lighting PLUS 300 IP GOBO User manual

User manual
300 IP GOBO
Please read the instructions carefully before use

2
TABLE OF CONTENTS
1. Safety Instructions………………………………………………………………………………3-4
Technical Specifications……………………………………………………………………………4
Control Menu ………………………………………………………………………………………5
DMX Channels ………………………………………………………………………………………6
Trouble Shooting……………………………………………………………………………………7
Fixture Cleaning………………………………………………………… …………………………7
STATEMENT
The product has well capability and intact packing when leave factory. All of the user should
comply with warning item and manual, any misuse cause of the damages are not included in our
guarantee, and also can not be responsible for any malfunction & problem owing to ignore the
manual.

3
1.Safety Instructions
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
•Unpack and check carefully there is no transportation damage before using the unit.
•Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
•It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
•The unit is for indoor use only. Use only in a dry location.
•The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
•Disconnect main power before replacement or servicing.
•Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
•Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always
by taking its base.
•Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher
than this Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand
during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before
replacing or serving.
•the event of serious operating problem, stop using the unit immediately.Never try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.
•DO NOT touch any wire during operation as high voltage might be causing electric shock.
Warning:
•To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
•The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.
Caution:
•There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any
repairs yourself. In the unlikely event your unit may require service, please contact your nearest
dealer.
Installation:
•The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly

4
fixed to avoid vibration and slipping while operating. And make sure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight. Also
always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture.
•The equipment must be fixed by professionals. And it must be fixed at a place where is out of the
touch of people.
2.Technical Specifications
Light source: 300W White led
Color temperature: 6500 k
Voltage: AC110-240v
Frequency: 50 /60 hz
Total power:350 w
Zoom angle: 5°-50°
Focus: 0-100% Clearly Linear focus
Rotating Gobo Wheel: 8 gobos
Dimmer: 0-100% linear adjustment
Control:DMX512,Auto, Sound active, Master/slave
Channel mode: 7/9 channel
Protection Rating：IP65
Dimension: 436*290*245mm; NW:16.15 kg

5

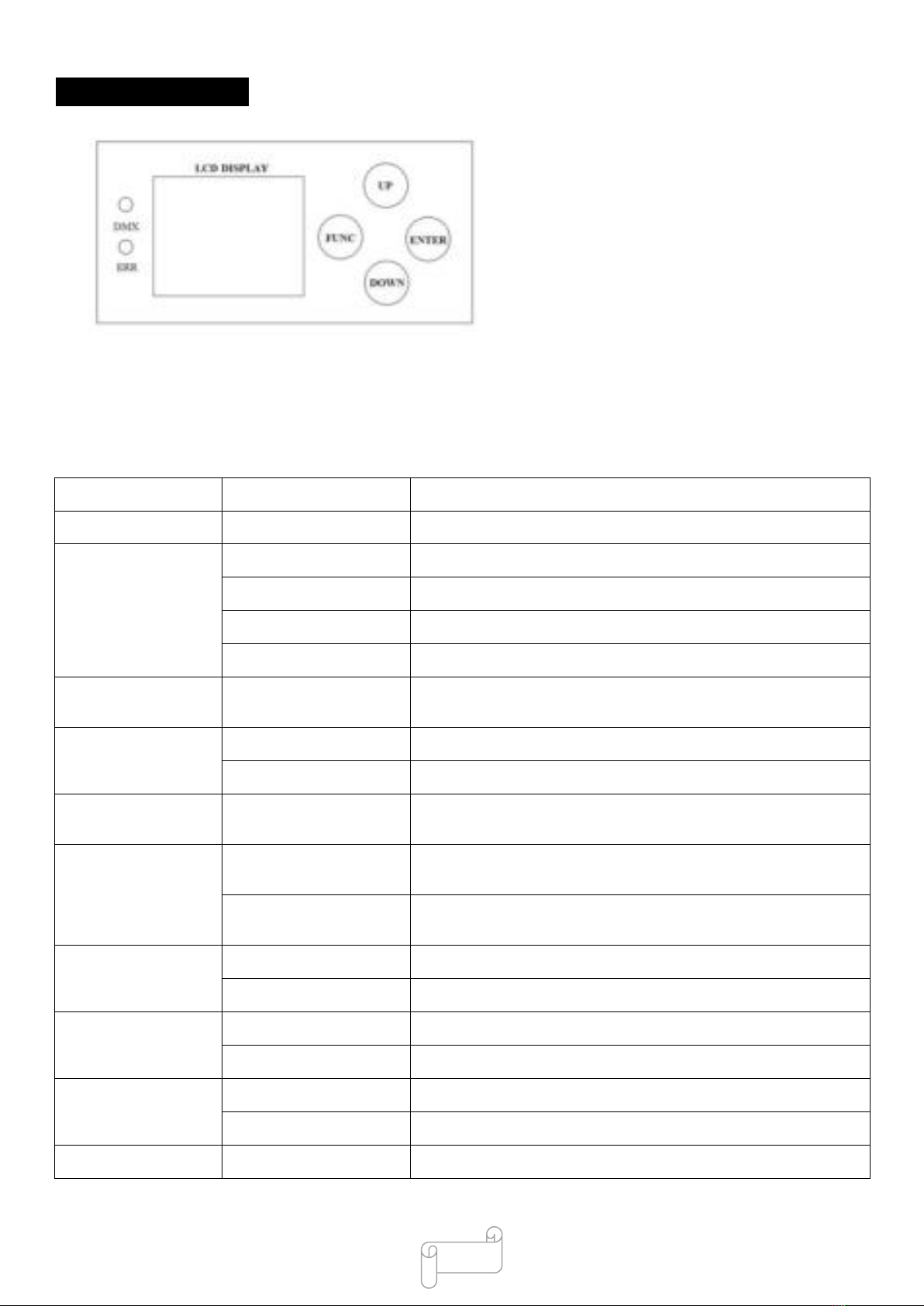

3.Control Menu
Press the up and down keys to input "up, down, up and down" in turn, and the "lock" icon displayed on the screen
will open to enter the operation interface
Menu Operation
On the base of the control panel offers a number of features, such as setting DMX fixture address,
switch the lamp, run the test program, the mode selection.
Main Menu
Second
Third
Dmx Address
000 - 512
Fixture
Dmx Mode
Receive DMX signal from console or host
Run Mode
self-propelled and send DMX signal to slave
manual
self-propelled and send DMX signal to slave
edit
Run the editing program and send DMX signal to the slave
scene editing
edit interface
The number of running steps, running time and running effect
can be set
Channel mode
7CH
9CH
Warm settings
Led Warm settings
Set the maximum temperature of the LED (note: the maximum
temperature does not exceed 75 degrees)
active cooling
close
Passive heat dissipation, the fan changes the wind speed
according to the temperature (quieter)
open
Active heat dissipation, the fan rotates at full speed when the
temperature is above 40 degrees
screen saver
settings
close
The screen backlight is always on
open
Screen backlight off with delay
No Signal Clear
NO
Hold when there is no DMX signal
YES
Clear when no DMX signal
linear dimming
close
NO linear dimming
open
linear dimming
advanced settings
advanced settings

6
4.DMX Channels
Model - CH9/CH7
9CH
7CH
DMX Value
Function
CH1
CH1
Total dimmer
0－255
From dark to light
CH2
CH2
Strobe
0－255
Strobe from slow to fast
CH3
CH3
no function
no function
CH4
CH4
GOBO
0-9
Gobo 1
10-19
Gobo 2
20-29
Gobo 3
30-39
Gobo 4
40-49
Gobo 5
50-59
Gobo 6
60-69
Gobo 7
70-79
Gobo 8
80-89
Gobo 8 Jitter
90-99
Gobo 7 Jitter
100-109
Gobo 6 Jitter
110-119
Gobo 5 Jitter
120-129
Gobo 4 Jitter
130-139
Gobo 3 Jitter
140-149
Gobo 2 Jitter
150-159
Gobo 1 Jitter
160-255
Self-propelled - from slow to fast
CH5
CH5
GOBO
Rotation
0-127
Reserve
128-192
GOBO forward-from slow to fast
193-255
GOBO reversal-from slow to fast
CH6
CH6
Focus
0-255
Focus
CH7
CH7
zoom
0-255
Zoom-from big to small
CH8
-
macro
function
0-9
no function
10-255
Self-propelled - from slow to fast
CH9
-
reset
0-250
no function
251-255
reset

7
5.Trouble Shooting
F ollo w ing a r e a few c o mm on p r oble m s th a t m a y occu r d uring ope r a tion . He r e a r e s o m e s ug g es tion s fo r
ea s y tr ou b leshooting :
A. The un it does no t work , no li ght a n d t he f a n d o es no t w o r k
1. Check th e c on nect ion of p owe r a nd m a in fu s e .
2. M eas ure th e m a ins volt a ge on th e m a i n co nn e ct o r .
3. Check th e pow er on LED .
B. N o t responding t o D MX c on t ro ll er
1. D M X LED s h ou ld b e on. If no t, che ck D M X co n nectors, ca b l es to s ee if link p r ope r ly .
2. If th e D M X LE D i s on a nd no r espons e t o th e c h a nn el, che ck th e a dd r ess s etti ng s a nd D M X p ol a r ity .
3. If y ou h a ve i nter m ittent D M X s ig n a l p r oble m s , che ck th e p ins on c onn ecto r s or on
PCB of th e u nit or the p r ev iou s on e.
4. Tr y to us e a no th er D M X co ntroller .
5. Check if th e D M X ca b le s r un ne a r or run a lon g s id e t o h ig h volta ge c a b les th a t m a y c a us e d a m a ge or
in terfer ence to D M X inter face circui t.
C . One of the cha nn el s is no t w o r k ing w el l
1. Th e s tep p er moto r m ig h t b e dam a g ed or the c a b le c on nect ed to th e PCB is b r oken.
2. Th e m oto r ’ s d r ive IC on th e PCB m ig h t b e o ut of co ndition
6.Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp,
smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
