Lightmaxx Vector Haze 1.7 User manual

ENGLISH
Important safety instructions! Please read before connection!
DANGER! (Electrical shock due to high voltages in the device)
The housing must not be removed! There are no parts to be maintained in the device.
Inside the unit there are components which are under high electrical voltage.
Before each use, check the device for damage or the absence of components, protective
devices or housing parts. If this is the case, the device must not be used!
Leave maintenance and repair work to a qualified service workshop or contact your
dealer. In the case of a malfunction of the device, operation must also be stopped
immediately until the device has been repaired by a specialist!
DANGER! (Electric shock due to short circuit)
Modifications to the power cord or plug are prohibited. If the power cord is damaged, it
must be replaced immediately with an original spare part from the manufacturer. Failure
to do so may result in fire or death due to electric shock!
DANGER! (For babies and children)
Dispose of or store any packaging material properly! Packaging material must be kept out
of the reach of babies and children due to the risk of suffocation.
Ensure that children never use the appliance unattended! In addition, make sure that
children do not remove (small) parts from the device, as they could suffocate by
swallowing parts!
Hint! (Fire and injure hazard due to overheating)
The maximum permissible ambient temperature of this device is 40°C.
Ensure that the unit is placed in a well-ventilated location away from direct heat sources,
naked flames, combustible materials, and liquids. A minimum distance of 1 m is required.
Do not tape or cover the ventilation slots of the unit.
The units' surface temperature may reach up to 85C. Don't touch the housing with bare
hands during its operation.
Allow the device about 10 minutes to cool down before you start servicing.
Hint! (Operating conditions)
Due to its structural characteristics, the device is designed for indoor operation (IP20).
Never expose the device to rain, moisture or liquids as this may cause damage.
Vibrations, dust or sunlight can also cause damage, avoid them!

ENGLISH
Hint! (Power supply)
It is essential that you check that the device voltage matches your local mains voltage. It
is highly recommended that you fuse your mains socket with a residual current circuit
breaker (FI).
If you do not use your device for a longer period of time or carry out maintenance work,
disconnect the device from the mains in order to minimize danger. The same applies to
storm conditions such as thunderstorms, floods, etc.
Hint! (Error during data transmission)
Never connect the DMX input or output to audio devices such as power amplifiers or
mixing consoles!
DMX cables enable trouble-free operation and the highest possible transmission reliability
of signal data. Do not use microphone cables!
Hint! (Condensation)
To avoid condensation in the unit, the unit should adapt to the ambient temperature
before commissioning.
Hint! (Unwanted odours)
A new product can sometimes lead to unwanted odours. This reaction is normal and
disappears after a few minutes.
Symbols on device and packaging:
The lightning flash symbol warns the user of uninsulated voltages and the risk
of electric shock.
The exclamation mark symbol draws the user’s attention to important maintains
and operating instructions in the manual.
Only suitable for indoor use.
Read the manual.

ENGLISH
Installation:
Be sure to check the unit for damage before use. Use the original packaging or a suitable
transport or storage packaging to protect the product from dust, moisture, etc. when not in use.
Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the
same type and electrical specifications!
Make sure to always place the unit on a stable surface, never install the fogger above the
audience, a little liquid can always drip from the fog output.
WARNING! (Risk of injury due to falling down)
Improper installation can cause considerable injury and damage!
The installation of the device should always be carried out by experienced personnel and
must be carried out in compliance with the mechanical and electrical safety regulations in
your country.
Hint! (Fog fluid)
Disconnect the device from the mains before filling!
Do not fill with hot liquids!
Only use high-quality water-based fog fluids recommended by your dealer. Other fog
fluids can lead to clogging or dripping of the device.
Suitable fog fluid:
lightmaXX Premium HAZE FLUID 5L, Hazer Fluid –LIG0010218-000
The fog fluids recommended by the manufacturer are environmentally harmless and can
be disposed of via the sewer.
Make sure that there is always a sufficient amount of fog fluid in the tank.
A too low tank level can lead to pump damage and overheating of the heating element
during operation!

ENGLISH
Congratulations on your new LightmaXX Vector Haze 1.7!
Thank you for choosing a LightmaXX product. Through efficient development and economical
production, LightmaXX enables high quality products at a fantastic price.
Please read the instruction manual carefully to learn about all the features of this
product and keep it for future use.
Have fun with your new product!
Your LightmaXX Team
Guarantee:
The current general terms and guarantee conditions
of the Music Store professional GmbH apply.
You can view it at: www.musicstore.de
If you have any questions or suggestions, please
contact us:
Music Store professional GmbH
Istanbulstr. 22-26
51103 Cologne
Managing Director: Michael Sauer
WEEE-Reg.-No. DE 41617453
Tel: [phone]
Fax: [phone]
[e-mail]
Intended use:
The product LightmaXX Vector Haze 1.7 is used exclusively for the generation of artificial fog
by vaporizing the filled fog fluid. The device may only be used for this purpose and in accordance
with the operating instructions. Other purposes as well as operation under other operating
conditions are expressly not intended and can lead to damage to property or personal injury! No
liability is assumed for damage resulting from improper use.
It must be ensured that the device is operated exclusively by trained and competent users who are
in full possession of their mental, physical and sensory abilities. The use of other persons is
expressly only permitted at the request of a person responsible for their safety, who instructs or
supervises the use.
Content
Quantity
lightmaXX Vector Haze 1.7
1
Power cable
1
Manual
1
Scope of delivery:

ENGLISH
Set up:
Connect the product to the power supply and then turn it on. Wait until the heating element has
reached the operating temperature. The control is now carried out either by DMX, remote control
or by operation on the device itself.
Display and menu buttons:
The device has 4 operating keys and an LCD display on which
all settings can be addressed and read.
Button
Function
Description
Interval Set
(5-200sec)
Duration Set
(5-200sec)
Timer-mode-setting
Timer Out
(1-100%)
Menu
Volume Out
(1-100%)
Fan Speed
(1-100%)
DMX Add
(001-512)
Fluid sensor on/off
Timer/
Up
Up/Activate Timer function
Volume/
Down
Down/Activate Volume
function
Stop
Stop/Exit

ENGLISH
Set interval
To set the interval, press "Menu" until "Interval set" appears on the display.
Then use the Up/Down buttons to set the fog pause from 5 to 200 seconds.
This setting is required if you want to use the timer mode.
Setting the fog duration
To set the duration, press "Menu" until the display shows "Duration set".
Use the Up/Down buttons to set the fog duration from 1 to 200 seconds.
This setting is required if you want to use the timer mode.
Setting the Fog Level for Timer Mode
To set the fog quantity for the timer mode, press "Menu" until the display shows "Timer out".
Use the Up/Down buttons to set the fog quantity from 1 to 100%.
This setting is required if you want to use the timer mode.
Setting the Fog Level for Volume Mode
To adjust the fog quantity, press "Menu" until the display shows "Volume out".
Use the Up/Down buttons to adjust the fog volume from 1 to 100%.
This setting is required if you want to use the option Volume (Continuous Mode).
Setting the fan speed
To set the fan speed, press "Menu" until the display shows "Fan Speed".
Use the Up/Down buttons to set the fan speed between 1 and 100%.
Setting the DMX address
To set the DMX address, press "Menu" until the display shows "DMX ADD xxx".
Then use the Up/Down buttons to set the value from 001 to 512.
Activating/deactivating the liquid sensor
Press "Menu" until "Fluid sensor" appears in the display.
Use the Up/Down buttons to activate or deactivate the fluid sensor (On/off).
When the Fluid sensor is activated, the display shows "Ready to Fazer S".
If the Fluid sensor is deactivated, the display shows "Ready to Faze".

ENGLISH
Timer Mode
In the timer mode, the fog machine will automatically emit fog. The time intervals, duration and
fog volume depend on the corresponding menu settings. Press the TIMER button, to activate the
timer mode. The display indicates the set time interval:
Interval xxx s
The unit counts down to 0 seconds and emits fog. To deactivate the timer mode, press the Stop
button.
Volume (Continuous Mode)
Press the VOLUME button, to activate continuous fog output. The display indicates Volume
followed by the value that was set in menu item “Volume Out”:
Duration xxx s
To stop the fog output, press the Stop button.

ENGLISH
DMX mode:
Configuration of the DMX connector:
Resistance 120 ohm // ¼ w between pin 2 (DMX-) and pin 3 (DMX+) oft he last fixture.
Connect the DMX input of your device to the DMX output of your DMX controller, your DMX
software or the DMX output of a device already in your DMX chain. Always use a DMX cable with
a 110 Ohm resistor for this connection. Address the device according to your DMX configuration.
The following table shows the respective DMX modes of the individual devices with the
corresponding values and functions:
Channel
Value
Function
1
000-005
Off
006-255
1-100% Fan Speed
2
000-005
Off
006-255
1-100% Fog Output

ENGLISH

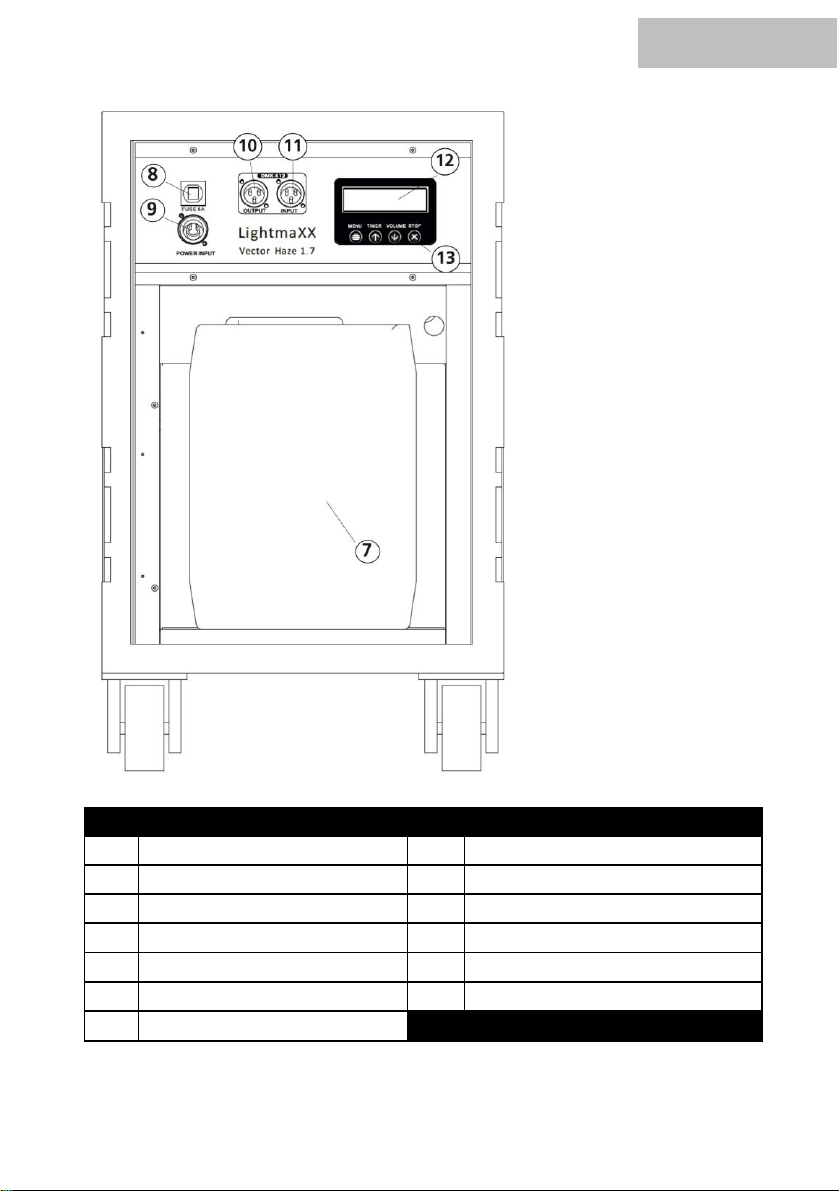

Connections and controls:

ENGLISH
No.
Designation
No.
Designation
1
Output nozzle
8
Fuse
2
Fan
9
Power input (Power Twist)
3
Air baffle (adjustable)
10
DMX-Out (3-pol)
4
Castors
11
DMX-In (3-pol)
5
Butterfly lock for removable cover
12
Display
6
Carrying handle
13
Menu buttons
7
Fluid tank compartment

ENGLISH
Specifications:
Troubleshooting:
The following overview serves as an aid for quick troubleshooting. If you are unsure, contact the
manufacturer, the dealer or the corresponding specialist personnel. Never open the device on
your own!
If the specified corrections have not led to success, please contact our service staff. The contact
details can be found at www.musicstore.de
Model
lightmaXX Vector Haze 1.7
Power supply
AC220-240V 50/60Hz
Power consumption
1650 Watt
Fog fluid tank capacity
5 Liter
Fog fluid consumption
1-42ml/min
DMX connection
3-pol
DMX channels
2
Power connection
Power Twist
Fuse
250/10A
Dimensions (L x W x H)
660 x 300 x 610 mm
Weight
34 Kg
Symptom
Troubleshooting
No function
Check the mains connection and the fuse
No fog output
Check the fill level of the fluid container
No reaction in DMX mode
Check the cable connections
Check your DMX address setting
If available, try an alternative DMX controller
No reaction in remote mode
Change the battery in your remote control
Ensure that the IR transmitter and receiver are at
close and clear distances from each other

ENGLISH
Cleaning:
The heating element should be cleaned regularly (every 30 operating hours) to avoid deposits.
In addition, regular cleaning of lines and nozzles is strongly recommended, e.g. with LightmaXX
cleaning fluid (LIG0010221-000/250 ml).
Please use only high quality cleaning fluids!
Procedure:
-Empty the fog machine and pour the cleaner into the tank as delivered.
-Operate the fog function of the machine a few times in a well ventilated place.
-Adapt the number of required repetitions to the degree of soiling.
-Remove the cleaner completely and rinse the tank properly with distilled water.
Maintenance:
-IMPORTANT: Always set the output to Zero and wait for minimum 30 seconds before to
switch off the unit.This allows the unit to execute its cleaning process so all the remaining
fluid is removed from the internal circuits.
-Switch off the unit, unplug the mains cable and wait 10 minutes until the unit has been
cooled down.
During inspection the following points should be checked:
-All screws used for installing the device and any of its parts should be tightly fastened and
may not be corroded.
-Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free
from any deformation.
-The mains cables must be in impeccable condition and should be replaced immediately when
even a small problem is detected.
Instructions for refilling of the fluid tank:
Fog fluid should be added when the machine shows" FOG FLUID EMPTY".

ENGLISH
Envrionmental protection:
The company MUSIC STORE professional GmbH always strives to reduce the burden of packaging
to a minimum. The use of environmentally friendly and recyclable materials is of fundamental
importance to us. Please dispose of and recycle the packaging components after use properly.
Disposal of packaging:
Ensure that paper packaging, plastic materials, etc. are separately recycled. Observe the
corresponding disposal instructions on the packaging.
Disposal of batteries:
Batteries do not belong in the garbage! Please keep batteries in accordance with the
official collection points or disposal stations in accordance with the specifications.
Disposal of your old device:
Do not dispose of the device with household waste! This device is subject to the WEEE
Directive (Waste Electrical and Electronic Equipment) in its currently valid version.
The device will be disposed of by an approved waste disposal company or your local waste
disposal office. The regulations valid in your country must be observed!
Manufacturer: MUSIC STORE professional GmbH,
Istanbulstraße 22-26,
51103 Cologne, Germany

ENGLISH
MS ID: LIG0016334-000
09/2019
Notes
