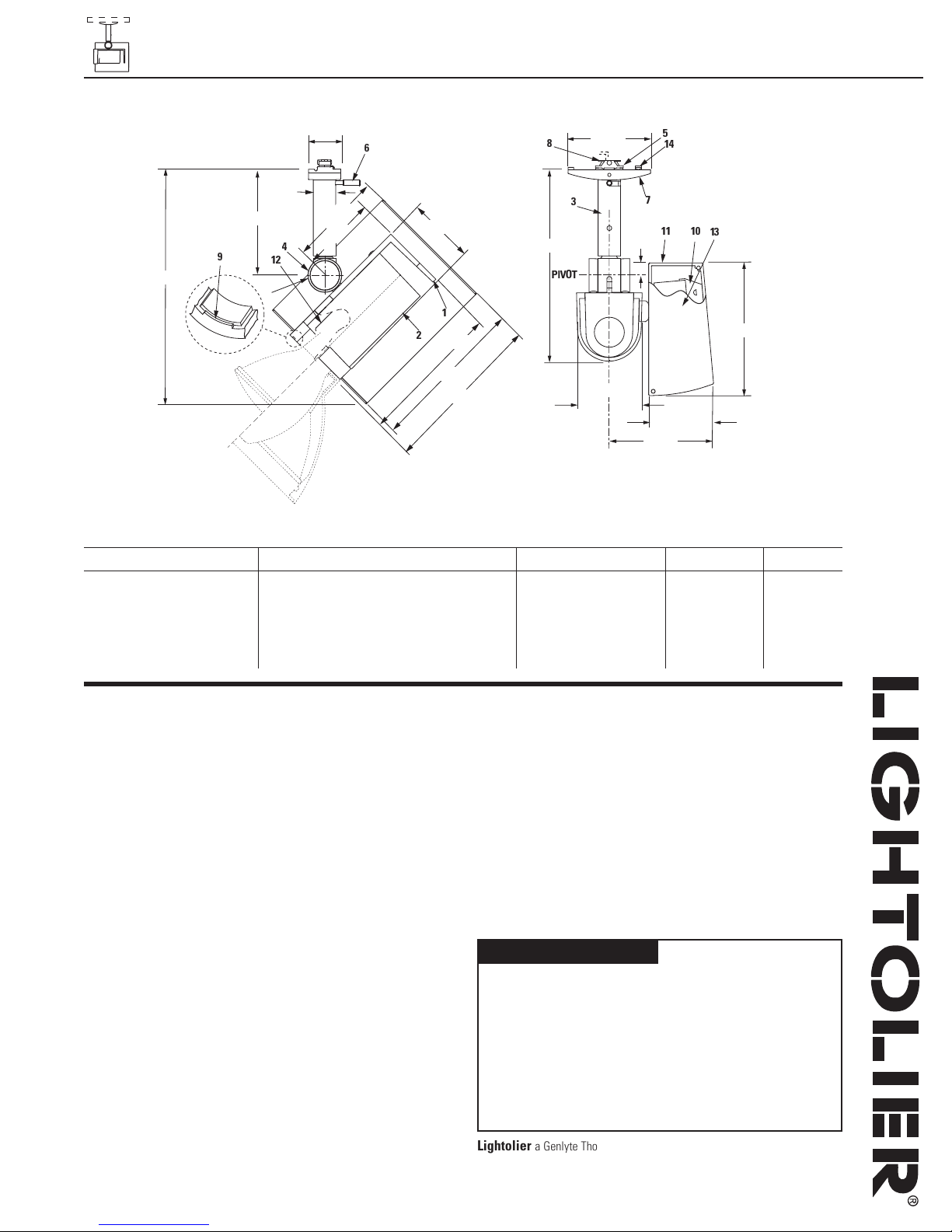

Lytespan® Track Lighting 8705E
Page 1 of 2 Metallics®Metal Halide (Electronic) 70W PAR30
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Features
1. Arm: Die-cast aluminum, brushed and clear coated finish.
2. Socket Cover: Injection-molded thermoplastic.
3. Stem: Stainless steel, brushed and clear coated finish, with a permanently
tensioned horizontal rotation stop.
4. Stem Base: Die-cast aluminum, brushed and clear coated finish with a
permanently tensioned 90° vertical rotation stop (0° to 90°).
5. Contact Holder: High temperature thermoplastic. Secures fixture mechani-
cally and makes electrical contact with track.
6. Locking Lever: Nickel-plated steel. For mechanical/electrical connection
into track.
7. Track Adapter: Die-cast aluminum, brushed and clear coated finish; attach-
es to track.
8. Moveable Brass Contact: Extends for 2nd circuit in two circuit Lytespan
track systems.
9. Embossed Keyway: For attachment of optional shades.
10. Ballast: U.L. Listed. High power factor Electronic Metal Halide ballast.
11. Ballast Housing: Aluminum-extrusion.
12. Socket: 5KV pulse rated ceramic body; leads encased in silicone coated
fiberglass sleeving.
13. Ballast Housing End Plates: Stamped steel.
14. Ground Spring: Grounds luminaire to track.
Electrical
Electronic Ballast
Input Voltage: 120V, 60Hz
Power Factor: >95%
Input Power: 78W
Input Current: .67 amp
Harmonic Distortion: <10%
Do not use on a dimming circuit.
Options and Accessories
For compatible accessories see spec sheet for Metallics®PAR30 Dome Shade
(8737), Metallics PAR30 Barndoor Shade (8735), Metallics PAR38 Barndoor
Shade (8745) and Metallics PAR38 Dome Shade (8747).
Finish
Feature numbers 2, 11, & 13 painted in White or Titanium. Other external com-
ponents, brushed metal with protective clear coat.
Labels
UL
Ordering Information
Catalog No. Finishes Track Mountings Lamps Shades Reflectors
8705E WH Matte White All Lytespan®Track Systems, Multipoint, 70W PAR30 Metal Halide Use One: Optional N/A
8705E TM Dark Titanium Monopoint, Monopoint Pin Up, Monopoint 8737
Weighted Base, Clamp On Monopoint, Extension 8735
Wands & Sloped Ceiling Adapter. (DOES NOT
MOUNT ON PROSPEC®TRACK.)
Note: Do not install on stem mounted Radius® track.
7 13/16”
3 9/16”
ø 1 1/8”
1 1/16”
3 3/16”
2 9/16”
ø 3/4”
2 1/4”
5 5/16”
5 3/16”
4 3/4”
2 3/4”
6 3/8”
2 3/16”
3 1/2”
2 3/16”
4 7/16”
7/16”

LAMP:
DFC L W DC FC L W DC FC L W DC FC L W
Beam Spread CBCP Rated
(To 50% CBCP) Life (Hrs.)
15’ 276 2.6’ 2.6’
20’ 155 3.5’ 3.5’
25’ 99 4.4’ 4.4’
30’ 69 5.2’ 5.2’
10’ 5.8’ 403 2.3’ 2.0’
15’ 8.7’ 179 3.5’ 3.0’
20’ 11.5’ 101 4.7’ 4.0
25’ 14.4’ 64 5.8’ 5.1’
5’ 8.7’ 310 3.6’ 1.7’
8’ 13.9’ 121 5.7’ 2.9’
11’ 19.1’ 64 7.9’ 3.8’
14’ 24.2’ 40 10.0’ 4.9’
8’ 8.0’ 343 2.0’ 2.0’
12’ 12.0’ 152 4.2’ 3.0’
18’ 16.0’ 86 5.6’ 4.0’
20 20.0’ 55 7.1’ 4.9’
62,000 6,000
70W PAR30
(MC/MH) SP 10˚
7’ 184 5.1’ 5.1’
10’ 90 7.3’ 7.3’
13’ 53 9.5’ 9.5’
16’ 35 11.6’ 11.6’
6’ 3.5’ 162 6.1’ 5.0’
9’ 5.2’ 72 9.1’ 7.6’
12’ 6.9’ 41 12.2’ 10.1’
15’ 8.7’ 26 15.2’ 12.6’
2’ 3.5’ 281 9.7’ 2.9’
3’ 5.2’ 125 14.5’ 4.4’
4’ 6.9’ 70 19.3’ 5.8’
5’ 8.7’ 45 24.2’ 7.3’
4’ 4.0’ 199 6.7’ 4.1’
6’ 6.0’ 88 10.1’ 6.2’
8’ 8.0’ 50 13.4’ 8.2’
10’ 10.0’ 32 16.8’ 10.3’
9,000 6,000
70W PAR30
(MC/MH) FL 40˚
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • C0902
Job Information Type:
Lytespan® Track Lighting 8705E
Page 2 of 2 Metallics®Metal Halide (Electronic) 70W PAR30
AIMING ANGLE: 0° Horizontal Aiming 30° Horizontal Aiming 30° Vertical AIming 45° Vertical Aiming
L Beam Length D Distance
W Beam Width A Aiming Angle
CDistance to center beam FC Footcandles
Land Ware the outer points where the candle power drops
to 50% of the maximum. FC are the initial footcandles at the
center of the beam.
Lamp data shown is typical. Consult lamp manufacturers for
availability and performance.
