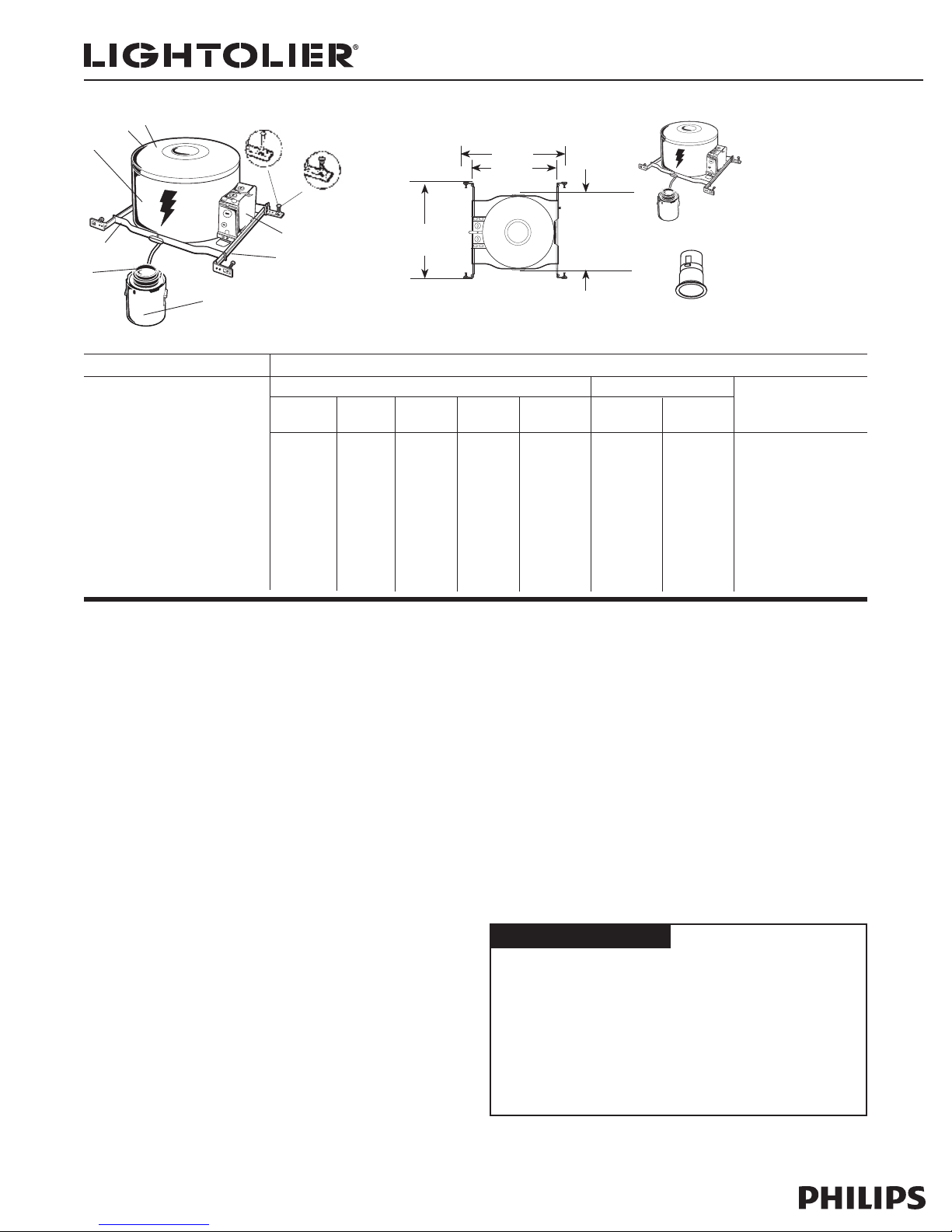

Lytecaster®Recessed Downlighting 2004ICV
Page 1 of 1 3 3/4” Aperture 0®Low Voltage AirSeal® Insulated Frame-In Kit
Frame-in Kit
Reflector Trim
Top View
Overall Length
2004ICV: 15 5/16”
Ceiling Opening: 3 15/16”
Overall Width
2004ICV: 10 3/8”
13 3/4” Min.
24” Max.
15 5/16”
12 1/4”
Height: 7 1/4”
Features
1. Housing: .032” (#20 ga.) aluminum. UL listed for direct contact with thermal
insulation. AirSeal® housing minimizes air leak-age to less than 2 CFM at
1.57 PSF (or 75pa), which complies with Model Energy Code (Section 602.3.3)
and Washington State Energy Code (Section 502.4) and reduces heat loss and
condensation in ceiling. Access door for inspection of junction box.
2. Mounting Frame: .032 (#20 ga.) aluminum. Accommodates ceilings up to 1”
thick. 3/8” deep integral lip. Locks into position along length of mounting bars
with locking screw and bendable slot. Four slots are positioned 90° apart to
simplify alignment. Push-in/twist-out roto-clips hold reflector flush to ceiling.
3. Junction Box: 2” X 4” X 3 1/2” (22 cu. in.) .032” (#22 ga.) galvanized steel.
UL listed for maximum of 8 (#12 ga.) 1104IC and 6 (#12 ga.) 90°C through
branch circuit conductors. Integral cable clamps permit attachment of
non-metallic (#12 or #14 ga.) Romex®cable without tools or additional
connectors.
4. Mounting Bars: .059” (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate
16” to 24“ O.C. joist spacing. Bars can accommodate 12” O.C joist spacing
after a slight field modification (see Instruction Sheet). 2004ICV features
integral self tapping phillips screws for secure attachment to wood or metal
construction. 2004ICVN features integral nails for secure attachment to
wood. Both attach to T-bar ceilings without the need of accessories.
5. Socket Housing: Aluminum, with lamp adjustment assembly allows 35°
max. vertical, 358° horizontal adjustment.
6. Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to
junction box.
7. Thermal Protector: Meets NEC and UL requirements. Integral to
transformer. Located inside housing.
8. Transformer: Mounted inside housing, magnetic. 120V primary, nominal 12V
secondary. Removable from below.
Dimming
Dimming Controls: use only dimmers specifically designed for use with mag-
netic transformers, like Lightolier Onset®Sunrise®series LV or VA, dimmers,
or any Lightolier Controls dimming sys-tems. Low voltage fixtures may produce
audible sound which may be objectionable in acoustically critical areas.
Options & Accessories
Extra-Thick Ceiling 1967C - up to 1 1/4” thick ceilings.
Mounting Ring:
MR 16 Socket Replacement: 1975B
Socket for General Electric Turn
and Lock (TAL) MR16 Lamp: 1975TAL
Labels
UL (Type I.C., Suitable for Damp Location), I.B.E.W.
Complies with Air Leakage Requirements stated in the Model Energy Code and
the Washington State Energy Code.
AirSeal®is a registered trademark of Lightolier.
Romex® is a registered trademark of General Cable Industries Inc.
2
3
6
1
5
4
2004ICVN
(Integral Nail) 2004ICV
(Integral Screw)
7
8
3 3/4” Aperture: Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Open Downlight Adjustable
Aperture Satin Baffles Slot Pinhole Mini Eyeball Enclosed
Cone Cone Swivel Diffuser
2004ICV 2012 2008 2005 2006 2011 2025WH 2022LV 2090LV
2004ICVN 2012NM 2010 2005NM 2026WH
2013 2008NM 2005WH
2013BKNM 2010NM 2005BNM
2013BK
2013CD
2013CDNM
2013NM
2013WH
2013WD
2013WDP
