Lightolier RT6-4 User manual

Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
"JSQPSU3PBE'BMM3JWFS."tt'BY
We reserve the right to change details of design, materials and finish.
XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt
Lighting Systems RT6-4
1BHFPG -ZUFUVCF%JSFDU-PVWFS-JHIU51FS'PPU4FDUJPO
#
Complete ordering instructions on back.
Ordering Information
Lytetube Direct Louver Two Lamps: Ballast & Voltage (add code to end of base catalog number - Example: RT622582E82)
4 Foot Joiner: RT622542 E81 = T8 Electronic 120v
E82 = T8 Electronic 277v
8 Foot Joiner: RT622582
HD1 = T8 Electronic PowerSpec Dimming 120v M71 = T8 Electronic Dimming 120v
HD2 = T8 Electronic PowerSpec Dimming 277v M72 = T8 Electronic Dimming 277v
For all fixtures represented in this family please refer to the brochure and/or additional specification sheets.
Features
1. Housing: Extruded aluminum. 1/8" (0.32cm) aluminumend cap attached with
no exposed fasteners.
2. Lamping: Two T8 32 watt fluorescent lamps. Provided by others.
3. Reflector: Precision die-formed high gloss baked white enamel reflector.
4. Louver: Extruded, precision die-formed aluminumlouver, provides 38° cut-off.
5. Alignment/Locking Mechanism: Heavy gauge steel bracket with integral
splines for alignment of housing modules, joins modules tightly together
without removing any luminaire component at time of installation.
Attached by two pressurized retaining clips. Semi-gloss white finish only.
Electrical
Specify 120 volt or 277 volt. 3 conductor, 18 gauge wire. Color-coded quick
connectors allow ease of connection for joiner modules. For special circuiting,
consult factory. Rapid start, HPF, class "P" thermally protected. PowerSpec HDF
dimming ballast is available. Factory installed ballast disconnect allows the ballast
to be disconnected fromand reconnected to incoming power under load without
turning the entire circuit off.
US Patent No. 4,717,993.
Mountings
Cable Suspension (not shown)- 1-1/2" (3.81cm) or 4-1/2" (11.43cm) diameter flat
canopy finished enamel white, 3/16" (0.48cm) diameter x 4" (10.16cm) stabilizing
tube (polished chrome finish), 1/16" (0.16cm) diameter stainless steel aircraft cable
adjustable up to 36" (91.44cm), adjustable cable gripper. Available with both white
jacketed straight or coiled cord. Feed locations require a 4-1/2" (11.43cm) canopy.
Coiled cord not available in dual switching or emergency battery backup.
Stem Mounting (not shown) - 4-1/2" (11.43cm) diameter flat canopy, 1/2"
(2.08cm) diameter stem. Chrome plate or white finish. Can be cut to length on job.
Self-aligning swivel provides adjustability up to 38°. The stemassembly shall meet
or exceed the requirements set forth in the State of California UniformBuilding
Code for suspended lighting fixtures installed in seismic zone four.
W
all Mounting (not shown) - consult factory for availability.
Finish
Powder coated baked white enamel. Customcolors available, consult factory.
Options and Accessories
L, T, X, Inline joiner blocks, emergency battery packs, dual switching and fusing
available.
Labels
UL, cUL and I.B.E.W.
Half Scale
3
12
4
6" (15.24cm)
5

Job Information Type:
"JSQPSU3PBE'BMM3JWFS."tt'BY
We reserve the right to change details of design, materials and finish.
XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt
Lighting Systems RT6-4
1BHFPG -ZUFUVCF%JSFDU-PVWFS-JHIU51FS'PPU4FDUJPO
#
20
20
34 5 6 7 8 9 10 11 12 13
40 60 80 100 120 140 160
40
60
80
100
120
ROOM SURFACE REFLECTANCES: 80% CEILING, 50% WALLS, 20% FLOOR
INITIAL FOOTCANDLES
AREA PER FIXTURE IN SQUARE FEET
CENTER TO CENTER DISTANCE OF FIXTURES IN FEET
2000 LUMENS PER LAMP
RCR = 1 (Rm. Width = 10xMtg. Ht. above work plane)
RCR = 5 (Rm. Width = 2xMtg. Ht. above work plane)
RCR = 10 (Rm. Width = Mtg. Ht. above work plane)
SPACING RATIOS: PARALLEL = 1.3 / PERPENDICULAR = 1.5
Mounting & Joiner Block Accessories
"T" Joiner Block
RT62-TD
6"
6"
9"
9"
"L" Joiner Block
RT62-LD
6"
6"
9"
12"
6"
6"
9"
12"
"X" Joiner Block
RT62-XD
Power Feed End Set
Cable/Cord
RT62 EDCC36
(straight cord)
RT62 EDCCC36
(coiled cord)
Max 10 amps.
Single Stem
Chrome
Power Feed End Set
Chrome Stem
RT62 ED12 = 12" OAL
RT62 ED18 = 18" OAL
RT62 ED24 = 24" OAL
3" 3"
Cable Assemblies
C36 (cable only)
CC36 (cable/straight
cord feed)
CCC36 (cable/coiled
cord feed)
Inline joiner block available: RT62ILD
Sample Run
Fixture Lengths & Mounting Locations
4-FOOT JOINER 8-FOOT JOINER
96" (243.84cm)48" (121.92cm)
POWER FEED SINGLE SINGLE SINGLE
END SET STEM OR CABLE STEM OR CABLE STEM OR CABLE
8-FOOT JOINER 8-FOOT JOINER 4-FOOT JOINER
96" (243.84cm)96" (243.84cm)48" (121.92cm)
20' 6" (624.84cm)
3” (7.62cm) 6“ (15.24cm) 9" (22.86cm) 12” (30.54cm) 18” (45.72cm) 24” (60.96cm)
S12 = 12" OAL
S18 = 18" OAL
S24 = 24" OAL
Add WH for
white stem
Ordering Instructions
Individual Fixtures:
1. Order number of JOINER FIXTURES.
2. Order one POWER FEED END SET per fixture.
3. Order one SINGLE STEM or CABLE ASSEMBLY per JOINER FIXTURE.
Continuous Rows:
1. Determine run length.
2. Order the appropriate number of JOINER FIXTURES for the complete run.
3. Order one POWER FEED END SET per run.
4. Order one SINGLE STEM or CABLE ASSEMBLY per JOINER FIXTURE.
5. For cable mounted runs that exceed amperage limits, order the appropriate
number of CABLE/CORD FEEDS.
Square/Rectangle Patterns:
1. Order appropriate number of JOINER FIXTURES to complete the pattern size.
2. Order number and type of JOINER BLOCKS required.
3. Order one SINGLE STEM or CABLE ASSEMBLY per JOINER FIXTURE.
4. For cable mounted patterns that exceed amperage limits, order the appropriate
number of CABLE/CORD FEEDS.
Add WH for
white stem
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10
0 50 50 50 49 49 49 46 46 46
145 434244 42 41 42 4140
240 383639 37 36 38 3635
337 343236 33 31 35 3231
433 302833 30 27 31 2927
530 272530 27 24 29 2624
628 242227 24 22 26 2422
725 222025 22 20 24 2119
823 201823 20 18 22 1917
921 181621 18 16 20 1816
10 19 16 14 19 16 14 18 15 13
ROOM CAVITY RATIO
CANDLEPOWER
ZONAL LUMEN SUMMARY
ZONE LUMENS % BARELAMP % LUMINAIRE
0-90 2401 41.4 98.7
90-180 33 0.6 1.3
0-180 2434 42.0 100.0
180 00000
175 00000
165 00000
155 00000
145 00000
135 00000
125 00000
115 00000
105 2 4 14 17 5
95 5133034 7
90 6224246 9
85 18 32 55 62 27
75 61 74 103 108 93
65 114 138 235 240 240
55 199 262 387 503 528
45 384 442 530 645 710
35 621 664 742 831 883
25 826 854 914 955 1018
15 1011 1029 1064 1101 1106
5 1117 1117 1127 1127 1131
0 1131 1131 1131 1131 1131
ZONE
Deg.
022456790
90˚
85˚
95˚
105˚
75˚
65˚
55˚
115˚
125˚
180˚ 175˚ 165˚ 155˚ 145˚ 135˚
0˚ 5˚ 15˚ 25˚ 35˚ 45˚
600
400
900
200
1000
600
800
400
1000
200
1200
1200
0
REPORT NO: LRL 689-7C
LAMPS: 2-32WT8
LUMENS: 2900
EFFICIENCY: 42.0%

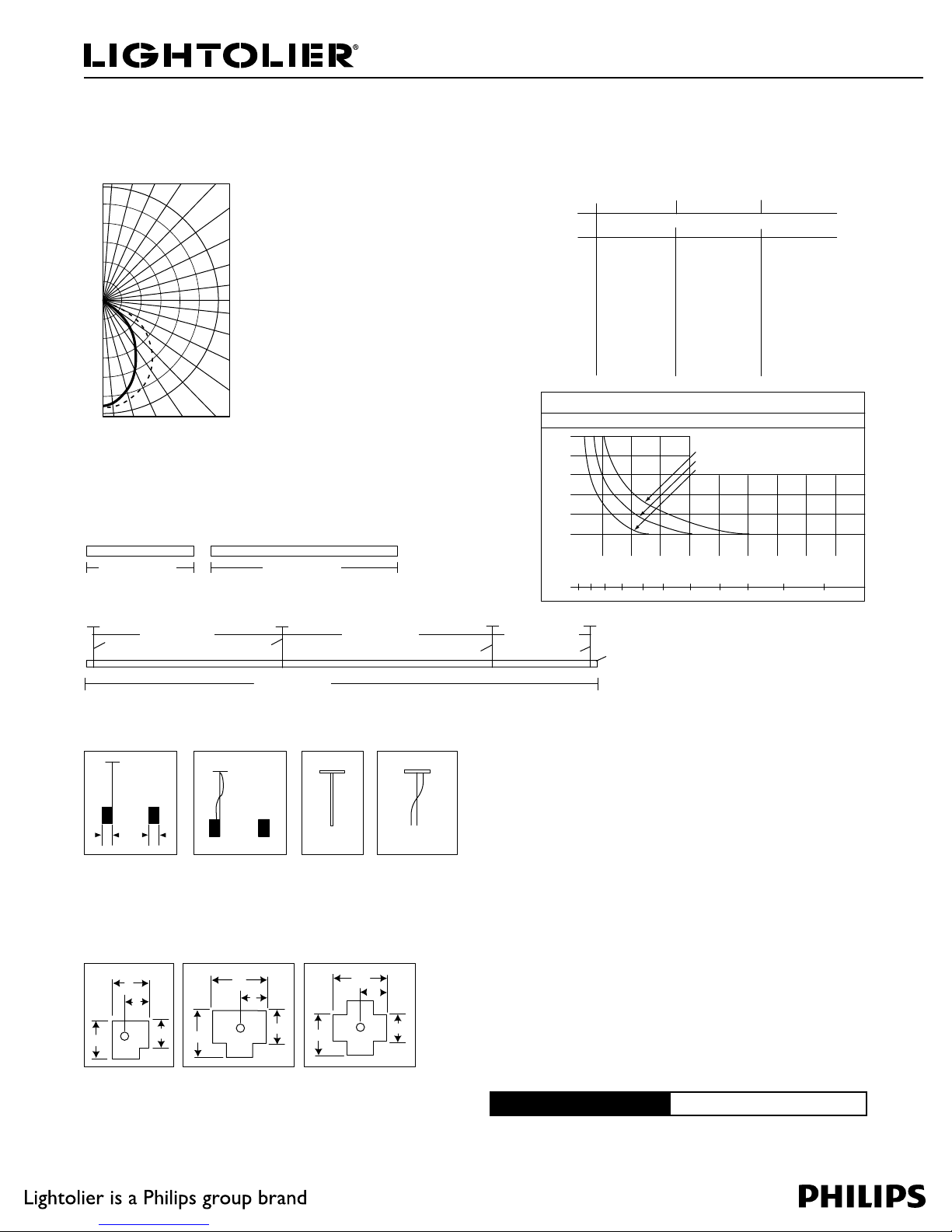

CANDLEPOWER CURVE
Performance and Quick Calculator
Dimensions given are both fixture
lengths and mounting distances.
3” (7.62cm) END SET
