Lightspeed Redcat media User manual

STANDARD REGISTRATION

FLEXMIKE REGISTRATION (OTHER REGISTERED COMPONENTS IN PLACE)

(Particularly valuable when Redcat Access is mounted on the wall)

For users adding a second Flexmike or replacing a lost or malfunctioning Flexmike.

1. Start with the Redcat plugged in and powered on.

2. If replacing a Flexmike, make sure the malfunctioning Flexmike is powered o.

3. If a second Flexmike, Sharemike or Media Connector is present, power it on and wait until it

has a solid blue light (“Ready”). (For the purpose of these instructions, it is assumed that the

#1 Flexmike is the functioning Flexmike and we are registering the #2 Flexmike.)

4. Power on the new Flexmike. Both microphone 1 and 2 blue lights should start

blinking.

10. Place system ID number (attached to the Redcat Quickstart Guide) on the new

Flexmike.

NOTE: if at any point, the Redcat or Flexmike lights begin blinking rapidly, that

indicates a registration error. Turn the new Flexmike o and repeat steps 4-9.

Power On

Solid light

(Existing Good Flexmike)

5. Open the new Flexmike battery compartment and pull the battery out (leaving it

plugged in) to reveal the registration button.

6. Use another registered functional component (existing Flexmike, Sharemike or

Media Connector) to trigger the registration function in Redcat.

• Using a paperclip with the end straightened out, press and hold the registration

button for 3 seconds inside the functioning Flexmike. This triggers registration in

the Redcat and the Redcat’s 1 and 2 amber lights will begin blinking.

• If using a registered Sharemike or Media Connector to trigger the registration

function, this process remains the same.

7. Briefly press the registration button on the new or replacement Flexmike. The 1

and 2 blue lights will start blinking alternately.

8. Aer several seconds, the 2 light on the Redcat will turn solid and the 2 light on the Flexmike will remain blinking, then turn solid.

9. The registration is complete. You can begin speaking into the new Flexmike to verify there is audio.

1POWER 2

Solid lights

1POWER 2

Blinking lights

Power On

Blinking lights

(NEW Flexmike)

Registration

Button

SYSTEM ID#

RETAIN EXTRALABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.

Match components

to this system ID#

Apply to system components to indicate which parts are registered

as a system. Keep registered items together when storing away.

Registration ID Labels

00-01

334-0162-02-00-01 10101

AUDIOIN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

REDCAT ACCESS REGISTRATION GUIDE

STANDARD REGISTRATION

REPLACING A FLEXMIKE (NO OTHER REGISTERED COMPONENTS IN PLACE)

For users replacing a lost or malfunctioning Flexmike.

1. Start with the Redcat plugged in and powered on.

2. If replacing a Flexmike, make sure the malfunctioning Flexmike is powered o.

3. Power on the new Flexmike. Both microphone 1 and 2 blue lights should start

blinking.

4. Open the Flexmike battery compartment and pull the battery out (leaving it

plugged in) to reveal the registration button.

7. Aer several seconds, the #1 light on the Redcat will turn solid and the #1 light on

Flexmike will remain blinking, then turn solid.

8. The registration is complete. You can begin speaking into the new Flexmike to

verify there is audio.

9. Place system ID number (attached to Redcat Quickstart Guide) on the new

Flexmike.

Power On

Blinking lights

(NEW Flexmike)

5. Using a paperclip with the end straightened out, briefly press the registration button on the side of the Redcat. The 1 and 2

lights will begin blinking on the Redcat.

6. Briefly press the registration button on the Flexmike. The 1 and 2 lights will start blinking alternately.

NOTE: if at any point, the Redcat or Flexmike lights begin blinking rapidly, that

indicates a registration error. Turn the new Flexmike o and repeat steps 4-9.

1POWER 2

Solid lights

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

1POWER 2

Blinking lights

Registration

Button

SYSTEM ID#

RETAIN EXTRALABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.

Match components

to this system ID#

Apply to system components to indicate which parts are registered

as a system. Keep registered items together when storing away.

Registration ID Labels

00-01

334-0162-02-00-01 10101

REDCAT ACCESS REGISTRATION GUIDE

AUDIOIN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

SHAREMIKE REGISTRATION (OTHER REGISTERED COMPONENTS IN PLACE)

(Particularly valuable when Redcat is mounted on the wall)

For users adding a Sharemike or replacing a lost or malfunctioning Sharemike.

1. Start with the Redcat plugged in and powered on.

2. If replacing a Sharemike, make sure the malfunctioning Sharemike is powered o.

3. If a Flexmike is present, power it on and wait until it has a solid blue or red light

(“Ready”).

4. Power on the new Sharemike. Both microphone 1 and 2 blue lights should

start blinking.

5. Slide open the Sharemike battery compartment. The registration button is

located below the battery on the le side, marked REG.

7. Aer several seconds, the #2 light on the Redcat will turn solid and only the #2

light on Sharemike will remain blinking, then turn solid.

8. The registration is complete. You can begin speaking into the new Sharemike to

verify there is audio.

9. Place system ID number (attached to the Redcat Quickstart guide) on the new

Sharemike.

Power On

Solid light

(Existing Good Flexmike)

6. Use another registered functional component (existing Flexmike, Sharemike, or

Media Connector) to trigger the registration function in Redcat.

• Using a paperclip with the end straightened out, press and hold the registration

button inside the registered component for 3 seconds. (For the purpose of

these instructions, it is assumed that a Flexmike is the the existing registered

component.)

• The 1 and 2 amber lights will begin blinking on the Redcat.

• Briefly press the registration button on the Sharemike. The Sharemike’s 1 and 2

lights will start blinking alternately.

NOTE: if at any point, the Redcat or Sharemike lights begin blinking rapidly,

that indicates a registration error. Turn the new Sharemike o and repeat steps

4-9.

1POWER 2

Solid lights

1POWER 2

Blinking lights

Power On

Blinking lights

Registration

Button

Registration

Button

STANDARD REGISTRATION

SYSTEM ID#

RETAIN EXTRALABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.

Match components

to this system ID#

Apply to system components to indicate which parts are registered

as a system. Keep registered items together when storing away.

Registration ID Labels

00-01

334-0162-02-00-01 10101

REDCAT ACCESS REGISTRATION GUIDE

AUDIOIN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

STANDARD REGISTRATION

MEDIA CONNECTOR REGISTRATION (OTHER REGISTERED COMPONENTS IN PLACE)

(Particularly valuable when Redcat is mounted on the wall)

1. Start with the Redcat plugged in and powered on.

2. If replacing a Media Connector, make sure the malfunctioning Media Connector is

unplugged.

3. Plug in the new Media Connector. The blue power light will turn on.

7. Aer several seconds, the #1 light on the Redcat will turn solid. The

LINK light on front of the Media Connector will begin blinking, then

turn solid.

8. The registration is complete. You can now plug any audio source into

the Media Connector to verify there is audio.

9. Place system ID number (attached to the Redcat Quickstart Guide) on

the new Flexmike.

4. Locate the registration button on the back panel marked “REGISTER”

5. Use another registered functional component (existing Flexmike or Sharemike) to

trigger the registration function in Redcat. (For the purpose of these instructions,

it is assumed that a Flexmike is the the existing registered component.)

• Using a paperclip with the end straightened out, press and hold the

registration button for 3 seconds inside the registered Flexmike.

• The 1 and 2 amber lights will begin blinking on the Redcat.

6. Briefly press the registration button on the Media Connector. The REGISTER light will begin blinking.

NOTE: if at any point, the Redcat or Media Connector lights begin

blinking rapidly, that indicates a registration error. Unplug the Media

Connector, then repeat steps 3-8.

1POWER 2

Solid lights

1POWER 2

Blinking lights

Registration

Button

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

1 4

322

AUDIO INAUDIO OUT

USB POWER

5V/1.5A

TONE

TREBLE BASS

1 4

322

AUDIO INAUDIO OUT

USB POWER

5V/1.5A

TONE

TREBLE BASS

1 4

322

AUDIO INAUDIO OUT

USBPOWER

5V/1.5A

TONE

TREBLE BASS

Registration

Button

AUDIO INMICROPHONE AUDIO OUT

POWER

MIN

LINK

MAX MIN MAX MIN MAX

AUDIO INMICROPHONE AUDIO OUT

POWER

MIN

LINK

MAX MIN MAX MIN MAX

For users adding a Media Connector or replacing a lost or malfunctioning Media Connector.

SYSTEM ID#

RETAIN EXTRALABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.

Match components

to this system ID#

Apply to system components to indicate which parts are registered

as a system. Keep registered items together when storing away.

Registration ID Labels

00-01

334-0162-02-00-01 10101

REDCAT ACCESS REGISTRATION GUIDE

AUDIOIN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

STANDARD REGISTRATION

ACTIVATE STATION REGISTRATION (OTHER REGISTERED COMPONENTS IN PLACE)

(Particularly valuable when Redcat is mounted on the wall)

For users adding an Activate or replacing a lost or malfunctioning Activate.

1. Start with the Redcat plugged in and powered on.

2. If replacing an Activate, make sure the malfunctioning Activate is unplugged.

3. Plug in the new Activate. The blue power light will turn on.

4. Locate the registration button on the back panel marked “Access Reg”.

5. Use another registered functional component (existing Flexmike or Sharemike)

to trigger the registration function in Redcat. (For the purpose of these

instructions, it is assumed that a Flexmike is the the existing registered

component.)

• Using a paperclip with the end straightened out, press and hold the

registration button inside the registered Flexmike for 3 seconds.

7. The registration is complete. You can now plug any audio source

into the Activate to verify there is audio.

8. Place system ID number (attached to the Redcat Quickstart

Guide) on the new Activate.

NOTE: if at any point, the Redcat or Activate lights begin blinking

rapidly, that indicates a registration error. Unplug the Activate,

then repeat steps 3-8.

• Briefly press the registration button on the Activate. The REGISTER light will

begin blinking.

6. Aer several seconds, the #1 light on the Redcat will turn solid. The LINK light on

front of the Activate will begin blinking, then turn solid.

Registration

Button

Registration

Button

1POWER 2

Blinking lights

1POWER 2

Solid lights

SYSTEM ID#

RETAIN EXTRALABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.

Match components

to this system ID#

Apply to system components to indicate which parts are registered

as a system. Keep registered items together when storing away.

Registration ID Labels

00-01

334-0162-02-00-01 10101

REDCAT ACCESS REGISTRATION GUIDE

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

REGISTRATION USING THE ACTIVATE APP

ADDING OR REPLACING A FLEXMIKE

For users adding a Flexmike, or replacing a lost or malfunctioning Flexmike.

Power On

Blinking lights

(NEW Flexmike)

1. Start with the Redcat plugged in and powered on.

• If replacing a microphone, match the number 1 or 2 of the bad

microphone

• If adding a microphone, the new microphone would be number 2.

2. If replacing a Flexmike, make sure the malfunctioning Flexmike is powered

o before you begin the process.

3. Power on the new Flexmike. Both microphone 1 and 2 blue lights should be

blinking.

4. Open the Flexmike battery compartment and pull the battery out (leaving it

plugged in) to reveal the registration button.

5. On your mobile device, open the Lightspeed Activate app.

6. Go to the ‘Settings’ tab and scroll down to find the ‘Register’ button and press the

button.

7. Tap the Mic 1 or Mic 2 button to add/replace the Flexmike.

8. Follow the instructions within the app to register the new Flexmike.

9. When the Flexmike is registered, you will see the Mic 1 or Mic 2 icon appear on the

screen.

SYSTEM ID#

RETAIN EXTRALABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.

Match components

to this system ID#

Apply to system components to indicate which parts are registered

as a system. Keep registered items together when storing away.

Registration ID Labels

00-01

334-0162-02-00-01 10101

REDCAT ACCESS REGISTRATION GUIDE

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

10. The registration is complete. You can begin speaking into the Flexmike to verify there is audio.

11. Place system ID number (attached to the Redcat Quickstart Guide) on the new Flexmike.

NOTE: if at any point, the Redcat or Flexmike lights begin blinking rapidly, that indicates a registration error.

Turn o the Flexmike, then repeat steps 3-8.

REGISTRATION USING THE ACTIVATE APP

ADDING OR REPLACING A SHAREMIKE

For users adding a Sharemike, or replacing a lost or malfunctioning Sharemike.

5. On your mobile device, open the Lightspeed Activate app.

6. Go to the ‘Settings’ tab and scroll down to find the ‘Register’ button and

press the button.

7. Tap the Mic 2 button to add/replace the Sharemike.

8. Follow the instructions within the app to register the new Sharemike.

9. When the Sharemike is registered, you will see the Mic 2 icon appear on

the screen.

10. The registration is complete. You can begin speaking into the Sharemike to verify there is audio.

11. Place system ID number (attached to the Redcat Quickstart Guide) on the new Flexmike.

NOTE: if at any point, the Redcat or Sharemike lights begin blinking rapidly, that indicates a

registration error. Turn o the Sharemike, then repeat steps 3-7.

SYSTEM ID#

RETAIN EXTRALABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.

Match components

to this system ID#

Apply to system components to indicate which parts are registered

as a system. Keep registered items together when storing away.

Registration ID Labels

00-01

334-0162-02-00-01 10101

Power On

Blinking lights

Sharemike

Registration

Button

REDCAT ACCESS REGISTRATION GUIDE

3. Power on the new Sharemike. Both microphone 1 and 2 blue lights should

be blinking.

4. Open the Sharemike battery compartment to reveal the registration button.

1. Start with the Redcat plugged in and powered on.

2. If replacing a Sharemike, make sure the malfunctioning Sharemike is powered o

before you begin the process.

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

REGISTRATION USING THE ACTIVATE APP

ADDING OR REPLACING AN ACTIVATE POD

For users adding a Pod, or replacing a lost or malfunctioning Pod.

1. Start with the Redcat plugged in and powered on.

2. If replacing a Pod, make sure the malfunctioning Pod is powered o before

you begin the process.

3. Power on the new Pod. The blue power light should begin blinking.

4. On your mobile device, open the Lightspeed Activate app.

5. Go to the ‘Settings’ tab and scroll down to find the ‘Register’ button and press

the button.

6. Follow the instructions within the app to register the new Pod.

7. When the Pod is registered, you will see the Pod icon change to green on the

screen.

8. The registration is complete. Using the app, select the new pod and begin speaking into the Flexmike to check for audio.

9. Place system ID number (attached to the Redcat Quickstart Guide) on the new Pod.

NOTE: if at any point, the Redcat or Pod lights begin blinking rapidly, that indicates a registration error. Power o the Pod,

then repeat steps 3-6.

SYSTEM ID#

RETAIN EXTRALABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.

Match components

to this system ID#

Apply to system components to indicate which parts are registered

as a system. Keep registered items together when storing away.

Registration ID Labels

00-01

334-0162-02-00-01 10101

REDCAT ACCESS REGISTRATION GUIDE

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

REMOTE REGISTRATION

ADDING OR REPLACING A REMOTE CONTROL

1. Start with the Redcat plugged in and powered on.

2. Use the existing Flexmike to register the Remote Control. Ensure that the Flexmike is

powered on and linked to the Redcat.

3. Open the Flexmike battery compartment and pull the battery out (leaving it plugged in) to reveal the registration

button.

4. Using a paperclip with the end straightened out, press and hold for 3 seconds the registration button inside the

Flexmike. The 1 and 2 lights will begin blinking on the Redcat Access.

Follow the procedures below if adding or replacing a remote.

(NOTE: once a remote is registered, it can be used to initiate registration of new/replacement

pods and microphones)

Registration

Button

1POWER 2

Blinking lights

REDCAT ACCESS REGISTRATION GUIDE

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

5. Briefly press the registration button on back of the remote.

6. The registration light on the remote will turn on for about 1 second, then turn o. The #2 light on the

Redcat will also turn o.

7. The registration is complete.

8. If there is a second remote, repeat steps 2-5, paying attention to the teacher select switch.

9. If desired, you can pair the remote with your Apple iOS device - iPhone®, iPad®, or iPod touch®. (See User

Manual for device compatibility).

10. Visit the App Store to search for and download “Lightspeed Flexcat Remote”.

11. Once you open the app, you will be prompted to pair with your remote.

12. Using a paperclip with the end straighted out, insert it into the “BT” button on the side of the

remote. The Mute button will begin blinking to indicate the remote is in pairing mode.

13. The app will then prompt you to “Pair” with the remote. Press the pair button to complete the

process. the app will take you through a tutorial on how to use the vaious functions.

14. When using the app, we recommend always leaving the remote control on the charger when not in

use. It must stay powered on and charged in order for the app to work.

15. The remote does remain fully operational and can be used in place of the app at any time.

NOTE: If there are two microphones, one remote should be set to Teacher 1, the 2nd to Teacher 2, ensuring the remote

label matches the Teacher 1 or Teacher 2 designation.

16. Once the remote is registered, you may now use it to initiate registration of additional or replacement pods and

microphones.

17. Place system ID number (attached to the Redcat Quickstart Guide) on the new Remote Control.

NOTE: if at any point, the Redcat or remote lights begin blinking rapidly, that indicates a registration error. Power o

the remote, then repeat steps 4-6.

REG

SYSTEM ID#

RETAIN EXTRALABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.

Match components

to this system ID#

Apply to system components to indicate which parts are registered

as a system. Keep registered items together when storing away.

Registration ID Labels

00-01

334-0162-02-00-01 10101

VolVol

Mute

UP DN

REMOTE REGISTRATION FOR FLEXMIKE

ADDING OR REPLACING A FLEXMIKE USING THE REMOTE

5. Determine what number microphone you wish to register 1 or 2:

1. Start with the Redcat plugged in and powered on.

2. If replacing a Flexmike, make sure the malfunctioning Flexmike is

powered o..

3. Power on the new Flexmike. Both microphone 1 and 2 blue lights should

be blinking.

4. Open the Flexmike battery compartment and pull the

battery out (leaving it plugged in) to reveal the registration

button.

• If replacing a microphone, match the number of the bad microphone

• If adding a microphone, the new microphone would be number 2

6. On the remote, in rapid succession, press:

7. The center button on the remote will begin blinking and the #1 light on the Redcat Access will begin blinking.

8. Using a paperclip with the end straightened out, briefly press the registration button on the Flexmike. The 1 and 2 lights will be blinking alternately.

9. Aer several seconds, the #1 light on the Redcat will turn solid and the Flexmike will have just one light blinking (1 or 2

depending on which microphone is being replaced) and then turn solid.

10. The registration is complete. Press the center button on the remote and begin speaking into the Flexmike to verify there is

audio.

11. Place system ID number (attached to the Redcat Quickstart Guide) on the new Flexmike.

NOTE: if at any point, the Redcat or Flexmike lights begin blinking rapidly, that indicates a registration error. Turn o the

Flexmike, then repeat steps 3-8.

VolVol

Mute

UP DN

Volume

Down Mute #1 or #2

ABC

VolVol

Mute

UP DN

1POWER 2

Blinking lights

Power On

Blinking lights

(NEW Flexmike)

Blinking lights

SYSTEM ID#

RETAIN EXTRALABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.

Match components

to this system ID#

Apply to system components to indicate which parts are registered

as a system. Keep registered items together when storing away.

Registration ID Labels

00-01

334-0162-02-00-01 10101

REDCAT ACCESS REGISTRATION GUIDE

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

REMOTE REGISTRATION FOR SHAREMIKE

ADDING OR REPLACING A SHAREMIKE USING THE REMOTE

5. Determine what number microphone you wish to register, 1 or 2:

1. Start with the Redcat plugged in and powered on.

2. If replacing a Sharemike, make sure the malfunctioning Sharemike is

powered o.

3. Power on the new Sharemike. Both microphone 1 and 2 blue lights

should be blinking.

4. Slide open the Sharemike battery compartment. The registration

button is located below the battery on the le side, marked REG.

• Sharemike is typically registered as mic 2.

6. On the remote, in rapid succession, press:

7. The center button on the remote will begin blinking and the 1 and 2 lights on the Redcat Access will be blinking alternately.

8. Using a paperclip with the end straightened out, briefly press the registration button on the Sharemike. The 1 and 2 lights will be blinking alternately.

9. Aer several seconds, the #2 light on the Redcat and the Sharemike will turn solid.

10. The registration is complete. Press the center button on the remote and begin speaking into the Sharemike to verify there is audio.

11. Place system ID number (attached to the Redcat Quickstart guide) on the new Sharemike.

NOTE: if at any point, the Redcat or Sharemike lights begin blinking rapidly, that indicates registration error. Turn o the Sharemike,

then repeat steps 3-8.

VolVol

Mute

UP DN

Volume

Down Mute #1 or #2

ABC

Blinking lights

Registration

Button

Power On

Blinking lights

Sharemike

VolVol

Mute

UP DN

1POWER 2

Blinking lights

SYSTEM ID#

RETAIN EXTRALABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.

Match components

to this system ID#

Apply to system components to indicate which parts are registered

as a system. Keep registered items together when storing away.

Registration ID Labels

00-01

334-0162-02-00-01 10101

REDCAT ACCESS REGISTRATION GUIDE

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

REMOTE REGISTRATION FOR FLEXCAT PODS

ADDING OR REPLACING A FLEXCAT POD USING THE REMOTE

4. Determine what number pod you wish to register

#1-6:

• If replacing a pod, match the number of the bad

pod.

• If adding a pod, choose the next one in

succession (for example, choose number 5 if

there are already 4 pods in place).

1. Start with the Redcat plugged in and powered on.

2. If replacing a pod, make sure the malfunctioning unit is powered o.

3. Power on the new pod. The blue power light on the top should be blinking.

Blinking light

5. On the remote, in rapid succession, press:

6. The center button on the remote will begin

blinking and the #1 light on the Redcat will begin

blinking.

7. Using a paperclip with the end straightened out, briefly press the registration button on the bottom of the pod. The registration light will turn on.

8. Aer several seconds, a number will light in the group # display, the green ready light will turn on, and the blinking power light on top will go solid blue.

9. The registration is complete. Using the remote, select the new pod and begin speaking into the Flexmike to check for audio.

10. Once verified, apply the appropriate pod number sticker on top of the unit for easy identification.

11. Place system ID number (attached to the Redcat Quickstart Guide) on the replacement pod.

NOTE: if at any point, the Redcat or speaker pod lights begin blinking rapidly, that indicates a registration error.

Turn o the pod, then repeat steps 3-8.

VolVol

Mute

UP DN

Volume Up Mute #1 - 6

ABC

VolVol

Mute

UP DN

1POWER 2

Blinking lights

VOL

REG

READY

GROUP

OFF

POWER

Solid Blue

VOL

REG

READY

GROUP

OFF

POWER

Power On

Group #

MN0505US01-1

SYSTEM ID#

RETAIN EXTRALABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.

Match components

to this system ID#

Apply to system components to indicate which parts are registered

as a system. Keep registered items together when storing away.

Registration ID Labels

00-01

334-0162-02-00-01 10101

REDCAT ACCESS REGISTRATION GUIDE

AUDIO IN

MIN

MAX

AUDIO

(ALD) OUT

MIN

MAX

ON/OFF

DC INPUT

16V/2.0A

Other manuals for Redcat media

Table of contents

Other Lightspeed Stereo System manuals

Lightspeed

Lightspeed 975 User manual

Lightspeed

Lightspeed flexcat User manual

Lightspeed

Lightspeed Redcat Access LSRCA 1881 User manual

Lightspeed

Lightspeed 880iR User manual

Lightspeed

Lightspeed Redcat media User manual

Lightspeed

Lightspeed Activate System User manual

Lightspeed

Lightspeed Redcat media User manual

Lightspeed

Lightspeed CAT 860 User manual

Lightspeed

Lightspeed 850iR User manual

Lightspeed

Lightspeed RedcatAccess User manual

Lightspeed

Lightspeed Access Link User manual

Lightspeed

Lightspeed 975 User manual

Lightspeed

Lightspeed flexcat User manual

Lightspeed

Lightspeed Lightspeed User manual

Lightspeed

Lightspeed 705iR User manual

Lightspeed

Lightspeed 820iR User manual

Lightspeed

Lightspeed Cascadia C25 User manual

Lightspeed

Lightspeed CAT AV User manual

Lightspeed

Lightspeed Redcat media User manual

Lightspeed

Lightspeed ActivateStation User manual

Lightspeed

Lightspeed 800 Series User manual

Lightspeed

Lightspeed Redcat media User manual

Lightspeed

Lightspeed Redcat media User manual

Lightspeed

Lightspeed Redcat media User manual

Popular Stereo System manuals by other brands

Humatechnik

Humatechnik Infralight DIR operating instructions

Sony

Sony HCD-VA550 operating instructions

Technics

Technics SC-C70 operating instructions

Sony

Sony CMTV11IPW operating instructions

Sony

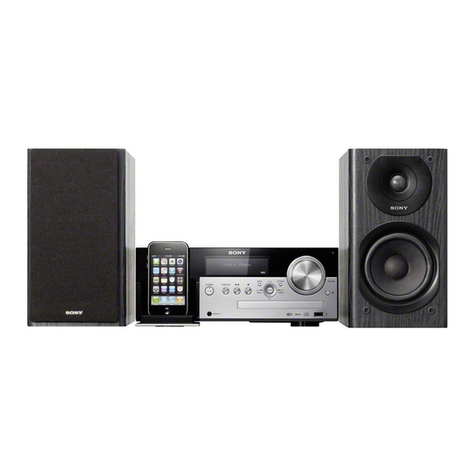

Sony MX750NI operating instructions

Aiwa

Aiwa NSX-R70 Service manual

LG FA163-A0P quick start guide

Ecler

Ecler WiSpeak user manual

Philips

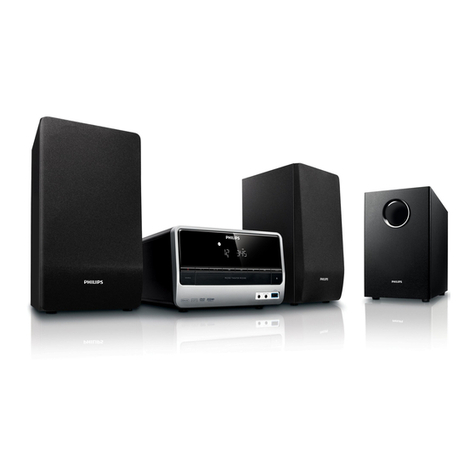

Philips MCD183/79 quick start guide

Panasonic

Panasonic SC-AP01 operating instructions

Philips

Philips MCM726 Servise manual

Philips

Philips MC-55 Service manual

Sony

Sony XDR-S100CD operating instructions

Fusion

Fusion MS-BB100 black box owner's manual

Fenton

Fenton PARTY STATION MDJ140 instruction manual

Harman Kardon

Harman Kardon FESTIVAL 300 Technical manual

Panasonic

Panasonic SC-PM04 operating instructions

Denon

Denon D-M37 Brochure & specs
