Lilin NVR5208E User manual

1 66-UM-4KNVR-CSE-6
4K UHD Network Video Recorder User Manual
Table of Contents
About this document............................................................................................................................... 3
Disclaimer................................................................................................................................................. 3
Caution...................................................................................................................................................... 3
Introduction............................................................................................................................................... 4
Features.................................................................................................................................................... 4
Trademarks and registered trademarks .............................................................................................. 4
Chapter 1 Getting Started...................................................................................................................... 5
Chapter 1-1 NVR Settings Quick Guide.............................................................................................. 6
Chapter 1-2 Freeze................................................................................................................................. 7
Chapter 1-3 Alarm Event........................................................................................................................ 7
Chapter 1-3-1 Motion / Sensor Event .................................................................................................. 7
Chapter 1-3-2 Manual Event ................................................................................................................. 8
Chapter 1-4 Playback / Backup ............................................................................................................ 9
Chapter 1-4-1 Playback.......................................................................................................................... 9
Chapter 1-4-2 Backup.......................................................................................................................... 10
Chapter 2 System Setup...................................................................................................................... 11
Chapter 2-1 General............................................................................................................................. 11
Chapter 2-2 Time.................................................................................................................................. 12
Chapter 2-3 User................................................................................................................................... 12
Chapter 2-4 Storage............................................................................................................................. 13
Chapter 2-4-1 HDD MGT ( Raid NVR )............................................................................................. 14
Chapter 2-4-2 S.M.A.R.T..................................................................................................................... 17
Chapter 2-4-3 USB MGT. .................................................................................................................... 17
Chapter 2-5 Event................................................................................................................................. 18
Chapter 2-5-1 System.......................................................................................................................... 18
Chapter 2-5-2 Operating...................................................................................................................... 18
Chapter 2-6 Maintenance .................................................................................................................... 18
Chapter 3 Network Setup..................................................................................................................... 19
Chapter 3-1 General............................................................................................................................. 19
Chapter 3-2 Advance............................................................................................................................ 20

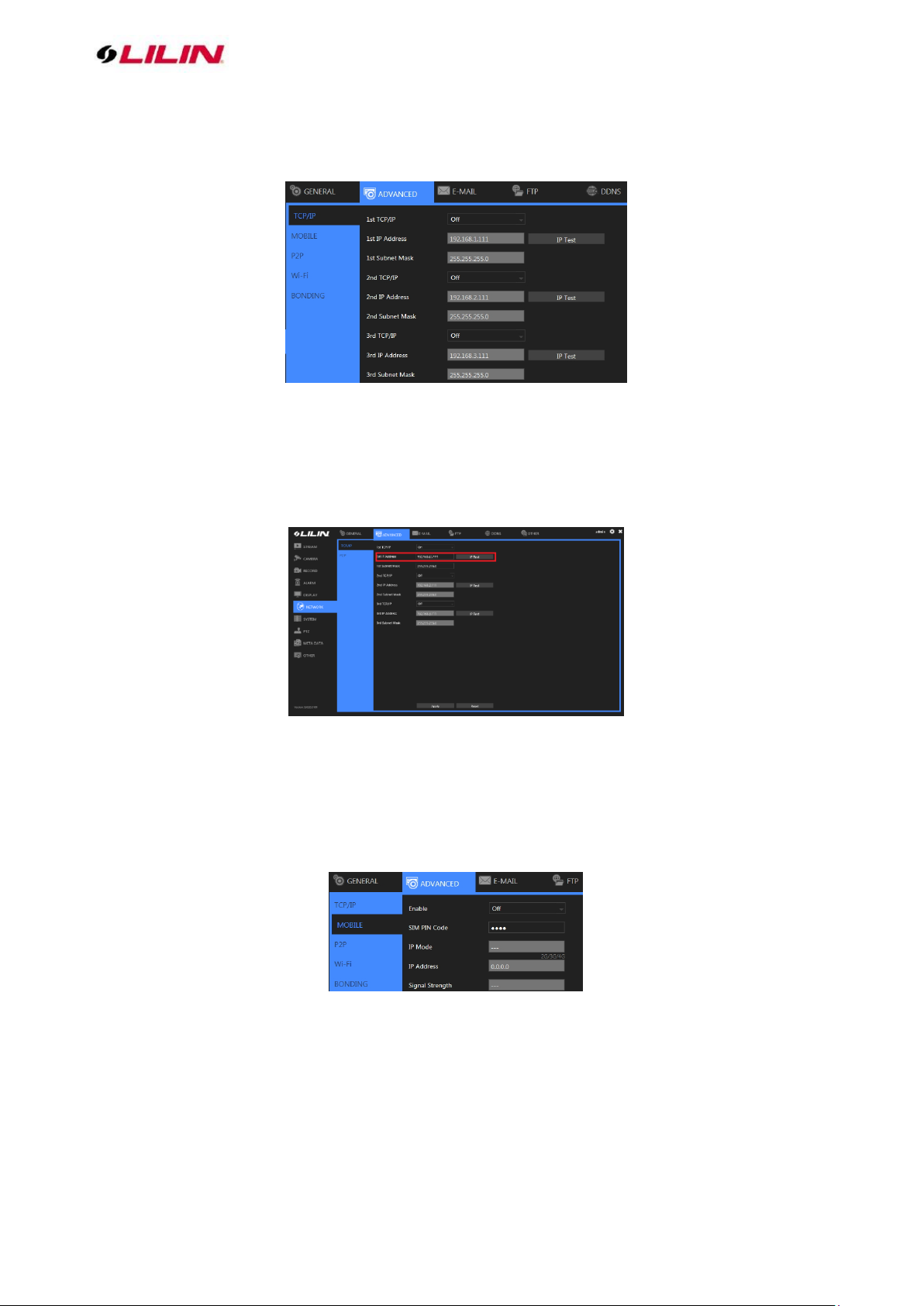

Chapter 3-2-1 TCP/IP........................................................................................................................... 20
Chapter 3-2-2 Mobile............................................................................................................................ 20
Chapter 3-2-3 P2P................................................................................................................................ 21
Chapter 3-2-4 Wi-Fi .............................................................................................................................. 21
Chapter 3-2-5 Bonding......................................................................................................................... 22
Chapter 3-3 E-Mail................................................................................................................................ 22
Chapter 3-4 FTP.................................................................................................................................... 23
Chapter 3-5 DDNS................................................................................................................................ 24
Chapter 3-6 Other................................................................................................................................. 24
Chapter 3-6-2 SNMP............................................................................................................................ 25
Chapter 4 Camera Setup..................................................................................................................... 26
Chapter 4-1 General............................................................................................................................. 26
Chapter 5 Record Setup...................................................................................................................... 27
Chapter 5-1 General............................................................................................................................. 28
Chapter 5-2 Schedule........................................................................................................................... 28
Chapter 5-3 Advance............................................................................................................................ 28
Chapter 6 Alarm Setup......................................................................................................................... 29

2 66-UM-4KNVR-CSE-6
Chapter 6-1 General............................................................................................................................. 29
Chapter 6-2 Motion Area...................................................................................................................... 29
Chapter 6-3 Output............................................................................................................................... 30
Chapter 6-3-1 Alarm Led...................................................................................................................... 30
Chapter 6-3-2 Buzzer........................................................................................................................... 30
Chapter 6-3-3 E-Mail ............................................................................................................................ 30
Chapter 6-3-4 FTP................................................................................................................................ 30
Chapter 6-3-5 Notification.................................................................................................................... 31
Chapter 6-3-6 DO#1–N (manual DO control)................................................................................... 31
Chapter 7-1 General............................................................................................................................. 31
Chapter 7-2 Advance............................................................................................................................ 32
Chapter 7-3 Sequence......................................................................................................................... 32
Chapter 8 PTZ Setup............................................................................................................................ 32
Chapter 8-1 General............................................................................................................................. 33
Chapter 8-2 NVR Cascade.................................................................................................................. 33
Chapter 9 Metadata Setup................................................................................................................... 34
Chapter 9-1 General............................................................................................................................. 34
Chapter 9-2 Event................................................................................................................................. 35
Chapter 10 Other Setup....................................................................................................................... 35
Chapter 10-1 Smartphone................................................................................................................... 36
Chapter 10-2 IVS................................................................................................................................... 36
Chapter 11 Stream................................................................................................................................ 36
Chapter 11-1 Live.................................................................................................................................. 37
Chapter 11-2 Play................................................................................................................................. 37
Chapter 11-3 Backup............................................................................................................................ 38
Appendix................................................................................................................................................. 39
Install LILINViewer................................................................................................................................ 39
For iOS User.......................................................................................................................................... 39
For Android Users................................................................................................................................. 40

3 66-UM-4KNVR-CSE-6
About this document
This document includes instructions for operating the 4K UHD Network Video Recorder Series.
Disclaimer
Please be aware that this user manual may cover a range of product specifications for various models.
Characteristics and features discussed and/or illustrated in this manual may not be applicable or
available to all models. We reserve the right to change product specifications, designs and equipment
without notice and without incurring obligation.
Caution
⚫Do not drop or strike the equipment
⚫Do not install the equipment near naked flames or heat sources
⚫Do not expose this unit to rain, moisture, smoke or dusty environments
⚫Do not cover the opening of the unit with cloth or plastic or install this unit in a poorly-ventilated
place. Allow 10cm between this unit and its surroundings
⚫Do not continue to operate the unit under abnormal conditions such as detection of smoke,
strange smell or no display on screen whilst power is turned on
⚫Do not touch the power connection with wet hands
⚫Do not damage the power cord or leave it under pressure
⚫To avoid unnecessary magnetic interference, do not operate this unit near magnets, speaker
system, etc.
⚫All connection cables must be grounded properly
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED WITH AN
INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.

4 66-UM-4KNVR-CSE-6
Introduction
The NVR 4K UHD Series are network video recorders that offer a standalone solution for managing IP
cameras and systems. The built-in high-quality decoder can deliver 4K/ 5MP/ 3MP/ 1080p/ 720p/ D1/
VGA/ CIF IP camera streams. Each channel can be individually configured to record in SD or HD
resolution to suit your needs.
The internal HDMI and VGA engine supports adaptive motion refinement technology, which provides
HDMI output with maximum resolution of 4K and VGA output with 1080p resolution. The NVR Series can
be easily installed in all environments through the TCP/IP network, and the support of IPScan utility and
Web Services Dynamic Discovery (WS-Discovery) protocol allows for locating all the cameras on the
network and can generate a preview thumbnail of each channel. The self-diagnostic feature can estimate
remaining recording time and monitor S.M.A.R.T status, network status, and other information.
Files recorded by the NVR can be exported to DVD and USB flash drive, or the files can be downloaded
via Backup Manager, Remote Player, FTP client software, or Network Places. Mobile support for iOS,
and Android allows for remote viewing of connected cameras at high frame rates. Browser-based live
monitoring and video playback features are also supported.
The NVR also supports external METADATA device, such as POS, ATM, GPS, etc. METADATA can be
embedded within videos and saved as a database where you can search for METADATA history
according to content, date, and time.
Features
⚫Standalone NVR
⚫Supports up to 4K UHD, and 1080p 120 FPS IP cameras
⚫Each channel up to 15 Mbps incoming network throughput
⚫4K HDMI and 1080P VGA output
⚫Compatible with iOS and Android devices
⚫Metadata can be embedded into videos
⚫Supports Setup Wizard
⚫HTML5 streaming multiple browser supported
⚫P2P easy remote access supported
Trademarks and registered trademarks
Microsoft, Windows, Internet Explorer are registered trademarks of Microsoft Corporation in the U.S
and/or other countries.
Adobe and Adobe PDF are registered trademarks of Adobe Systems Incorporated in the U.S and/or
other countries.
JavaScript and all Java-based trademarks and logos are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S and/or other countries.
Linux, Macintosh, and Mozilla are registered trademarks of the respective holders.
Other names of companies and their products mentioned in this manual may be trademarks or
registered trademarks of their respective owners.

5 66-UM-4KNVR-CSE-6
Chapter 1 Getting Started

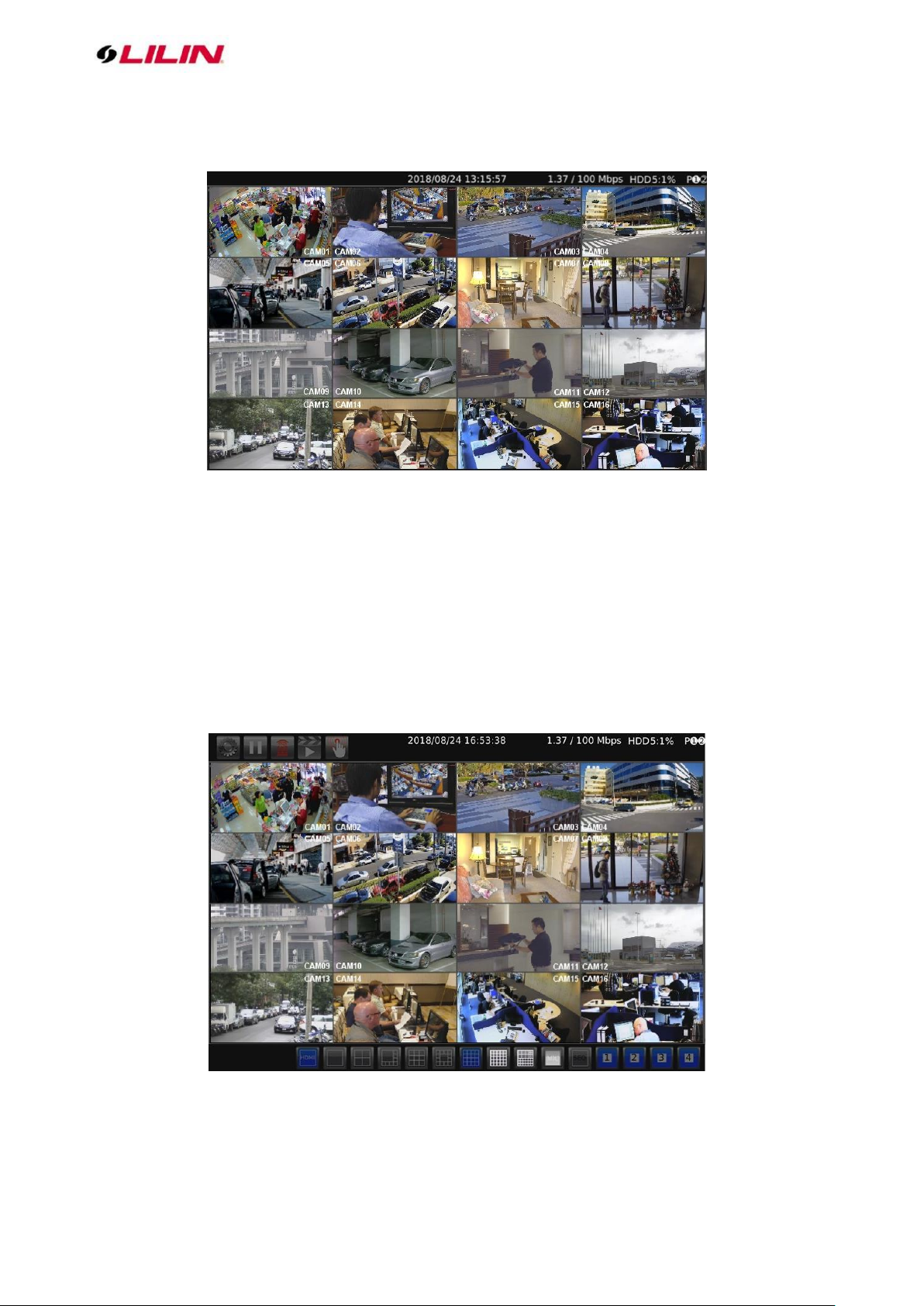

You will see the following screen through HDMI or VGA connection once you power on the NVR:
The information shown on the top of the screen is described as follows:
⚫0.00 / 1000 (100) Mbps: The left side of the slash is the combined transmission rate of all
channels, and the right side network speed.
⚫HDD (1):(2)%: (1) shows the current number of hard drive being used for recording. (2) storage
capacity used.
⚫P: Shows the power source currently used.
Note: This information is available depending on models.
Move mouse cursor slightly to display the NVR controls (as shown in the image below):

6 66-UM-4KNVR-CSE-6
Below controls can be seen at the bottom of the screen:
Icons
Description
Indicates whether the current split-screen controls are for HDMI
or VGA.
Note: Available only when VGA Spot mode is on
Controls for the number of split-screens.
Click to broadcast your message through a microphone.
Click to activate the sequentialmode, which will show videos
channels in the order you specify.
Click to activate a specific DO output.
Note: This information is available depending on models.
Below are NVR controls that are at the upper-left corner of the screen:
Icons
Description
NVR Settings
Freeze
Alarm Event
Playback / Backup
Schedule
Manual Recording
Chapter 1-1 NVR Settings Quick Guide
If you access the NVR SETTINGS for the first time, you will see Setup Wizard on the screen as below,
which provides you with quick configurations for the NVR, including language, password, date, time,
storage, network, P2P, and camera. Please follow the instructions to finish necessary setup and start
recording. To prevent the wizard from appearing again, be sure to check No longer use Setup Wizard.
Whenever you want to run Setup Wizard again, go to NVR SETTINGS> SYSTEM > MAINTENANCE,
and click Run to start Setup Wizard.

7 66-UM-4KNVR-CSE-6
Or, you may see the setting menu below:
Note: Click the gear icon at the upper-right corner of the screen to change the NVR language.
Chapter 1-2 Freeze
Click to freeze the real-time video, and the icon will be highlighted in blue.
Chapter 1-3 Alarm Event
Click to enter the ALARM EVENT page.
Chapter 1-3-1 Motion / Sensor Event
If the motion detection function is enabled for your camera, any motion alarms triggered will be recorded
in motion event history, and the sensor alarms triggered in the sensor event history (as shown in the
images below).

8 66-UM-4KNVR-CSE-6
Press the drop-down menu at the top to sort the alarm events by date or channel (as shown in the
image below).
Press USB to back up snapshot in USB storage, press E-MAIL to send a snapshot via e-mail, or press
PLAY to view recorded video.
Chapter 1-3-2 Manual Event
When the recording mode is switched from Schedule to Manual, a record entry will be saved here (as
shown in the image below).

9 66-UM-4KNVR-CSE-6
Chapter 1-4 Playback / Backup
Click to enter the PLAYBACK/BACKUP page as shown below.
Chapter 1-4-1 Playback
You can expand and collapse time line by year, month, day, hour, and minute. On the upper timeline
drag and select the time you want to start playing recorded video or alarm video to enter the Playback
as following screen:
Details of the controls at the bottom of the PLAYBACK screen are described as follows:
Icons
Description
Step Backward
Rewind: click repeatedly to adjust the speed of respective actions
(up to 64x)
Slow Rewind
Play

10 66-UM-4KNVR-CSE-6
Slow Forward
Fast Forward: click repeatedly to adjust the speed of respective
actions (up to 64x)
Step Forward
Pause
Click to return to the PLAYBACK/BACKUP screen.
Click to return to live video
Click to export the recorded video to a USB device.
Click to turn on/off sound
Choose the number of split-screens according to your needs
Indicates whether the current split-screen controls are for HDMI
or VGA
Note: This information is available depending on models.
Chapter 1-4-2 Backup
If you need to back up recorded files, click and drag the timeline at the bottom of the screen to select
the backup range. Press CHANNELS to show the FILE FORMAT/CHANNELS SELECT dialog (as
shown in the below image), where you can choose the channel(s) to back up and file format:
Choose ESTIMATE to show the BACKUP FILE SIZE ESTIMATE dialog:

11 66-UM-4KNVR-CSE-6
Choose BACKUP to show the DEVICE/EXECUTE dialog:
You may determine to back up the video in DVD, USB storage device, or the temporary space of the
NVR.
/SCHEDULE/MANUAL: Indicates whether the current recording setting is scheduled
recording or manual recording. Click to switch.
Chapter 2 NVR Settings
Chapter 2 System Setup
Click to enter NVR SETTINGS and click SYSTEM in the left pane, where you are
allowed to adjust system configurations of the NVR. The details of the tabs are described as follows:
Chapter 2-1 General
⚫Device ID: Assign an ID for the NVR to be controlled by the remote controller.
⚫Audio Out Volume: Adjust the volume of the NVR.
⚫Live OSD: On, off, or no camera name.
⚫System Lock: Switch on/off the system lock.
⚫Sound On Button Press: Switch on/off the sound when pressing remote control buttons.
⚫Buzzer: Switch on/off the sound when an alarm is triggered.
⚫Last Boot Time: Shows the last time the system is rebooted.
⚫Power Supply Status: Shows the status of the power supply currently in use.
Note: This information is available depending on models.
⚫Line Out Volume: Adjust the audio volume.
⚫RS-232: Press Test to test the functionality of the RS-232 port.
Note: This information is available depending on models.

12 66-UM-4KNVR-CSE-6
Chapter 2-2 Time
⚫Date/Time: Set the date/time of the NVR.
⚫Date Format: Modify the date display format.
⚫Time OSD: Switch on/off the time to be displayed on the screen.
⚫Time Zone: Change the time zone of the location where the NVR is installed.
⚫Time Sync Mode: Choose how you would like the time to be synced.
⚫NTP Server: Enter the NTP server you want to use.
⚫Time Sync Interval: Choose the interval for the time to be synced.
⚫NTP Status: The status of connection to selected NTP server will appear here.
Chapter 2-3 User
The NVR supports up to 15 sets of individual user settings (including default user administrator, operator,
and guest), to which you can assign different access privileges.
⚫User: Enter the name of the user (applicable only to User01–12).
⚫Old Password, New Password, and Confirm Password: If you would like to change the
password, enter your previous password and enter the new password and confirm the
password. Press Show to reveal the password. The default passwords for administrator,
operator, and guest are 1111, 2222, and 3333, respectively.
⚫User Permission: Set the access privileges of the user to administrator, operator, or guest.
⚫Load Default: Restore to the default settings.

13 66-UM-4KNVR-CSE-6
Chapter 2-4 Storage
HDD MGT ( Non-RAID NVR )
In HDD MGT.( Non RAID NVR ), there are HDD format, file system defrag, check HDD malfunctioned
blocks, and HDD periodic inspection. Select a desired HDD and click Format, File System Defrag,
Bad Block Check, or Regular Check.
Regular Check:
Allows you to set the interval between system checks:
Parameters: Click each device to enter the screen below.
System Reserve Ratio allows you to allocate the percentage of HDD space that will not be occupied by
recorded files. In Mount Option, choose the writing mode for the hard drive.

14 66-UM-4KNVR-CSE-6
Chapter 2-4-1 HDD MGT ( Raid NVR )
In HDD MGT.( RAID NVR ), able to create RAID, delete RAID, format, defrag, check HDD
malfunctioned blocks and HDD periodic inspection, allow recording with single HDD(s) or RAID group.
Create RAID:
Click Create RAID to pop-up a HDD list dialog as below, the dialog list all HDD that free to use for
building a RAID group.
Select desired HDD, then choose available RAID level and click Create RAID to build, after building
process finished, there will be a new RAID group that show in the HDD MGT..

15 66-UM-4KNVR-CSE-6
Select desired RAID then click Format to format or click Delete RAID to delete.
Note:
1.The limitation size for each RAID group is 16TB.
2.For more detail about RAID level, please refer to https://en.wikipedia.org/wiki/RAID
3.Availability depends on models.
For details about File System Defrag, Bad Blocks Check, Regular Check please refer to the
descriptions above.
Note: When HDD error happened, raid’s status will change to degrade.

16 66-UM-4KNVR-CSE-6
Unmount All HDD(s)
Mount All HDD(s)
Add HDD to RAID(s)

17 66-UM-4KNVR-CSE-6
Add success
Chapter 2-4-2 S.M.A.R.T.
The S.M.A.R.T. status of your hard drive is displayed in S.M.A.R.T., where you can run analysis (either
short or extended) on the HDD. Choose between Short or Extended analysis and click Analysis to
start the process. You will see HDD status, information, attributes, and event history under HDD
S.M.A.R.T. Information.
Chapter 2-4-3 USB MGT.
Connect a USB device (flash drive or hard drive) to the NVR, and check the one you want to format
under this page, and then click Format.

18 66-UM-4KNVR-CSE-6
Chapter 2-5 Event
Chapter 2-5-1 System
The search field in this page allows you to search for specific event reports at different time and of
different content. Press Download to export the event report, Reload to update.
Chapter 2-5-2 Operating
You can examine the operating status of different users under this page. Press Download to export the
event report, Reload to update.
Chapter 2-6 Maintenance
⚫Firmware Update: Choose a firmware file and click Update to proceed firmware update.
⚫Export Settings: Click Export to copy system settings to a USB flash drive.
⚫Import Settings: Click Import to apply a system setting that is stored in the plugged USB flash
drive.
⚫Factory Reset: Click Reset to restore the system to the factory settings.

19 66-UM-4KNVR-CSE-6
⚫Soft Reboot: Click to soft reset the system.
⚫Watchdog Test: Click to test the system watchdog function. This will reboot the NVR.
⚫Kernel Version: The kernel version of the system.
⚫Setup Wizard: Click to execute the quick setup wizard.
⚫Support: Click to open server execution log options dialog, record system execution details.
Chapter 3 Network Setup
Click to enter NVR SETTINGS, and click NETWORK in the left pane.
Chapter 3-1 General
Enter the required information in the fields:
⚫IP Mode: Select the connection type of the NVR from Static, DHCP, and PPPoE.
⚫IPAddress: Enter the IP address you want to use, and press IP Test if necessary.
⚫Subnet Mask: Enter the desired subnet mask.
⚫Default Gateway: Enter the desired default gateway.
⚫Primary DNS: Enter the first priority DNS server.
⚫Secondary DNS: Enter the secondary DNS server in case the primary DNS is not available.
⚫Video Port: Specify a desired video port.
⚫HTTP Port: Specify a desired HTTP port.
⚫FTP Port: Specify the desired FTP port.
⚫MAC: This is the MAC address of your NVR.
⚫PPPoE Account: If you choose to connect through PPPoE, enter the account name here.
⚫PPPoE Password: Enter the required password for PPPoE connection.
⚫PPPoE IP: Your PPPoE IP will be displayed here.
⚫Hotspot IP: Your hotspot IP will be displayed here.
Note: When connected to an Android device via a USB connector, please turn on the USB tethering
function to assign a hotspot IP to the NVR.

20 66-UM-4KNVR-CSE-6
Chapter 3-2 Advance
Chapter 3-2-1 TCP/IP
NVR supports three sets of virtual IP addresses. When TCP/IP is switched On, the NVR can access the
camera or another NVR using the specific IP.
For 4K PoE NVR series, 4K PoE NVR series use Advanced TCP/IP for automatically setting cameras'
IP addresses.
Note: For 4K PoE NVR series, when Auto is selected as the camera source, the IP addresses of the
cameras will be changed automatically. The IP addresses of the cameras will be in sequence assigned
after the IP address of the NVR.
Chapter 3-2-2 Mobile
The NVR is compatible with several mobile data adapters (D-Link DWM-221, HUAWEI E3372h,
ALCATEL L800, etc.). Plug in the device and adjust the settings below.
⚫Enable: Choose On to activate the service.
⚫SIM PIN Code: Enter the PIN of the SIM card you use to connect to the mobile network.
⚫IP Mode: The connection status of your mobile network.
⚫IPAddress: The IP address of your connection.
⚫Signal Strength: The signal strength of your connection.
