Linak DESKLINE DL5 User manual

Page 1 of 32
LINAK.COM/DESKLINE
DL5/DL6 with CBD6S
User manual

Page 2 of 32
Contents
Preface ..............................................................................................................................................3
Valid for..............................................................................................................................................4
Important information .....................................................................................................................5
Safety instructions.......................................................................................................................... 5
General ....................................................................................................................................... 5
Before installation, reinstallation or troubleshooting ..................................................................... 6
Before start-up ............................................................................................................................ 6
During operation.......................................................................................................................... 6
Misc. ........................................................................................................................................... 6
Only for EU markets........................................................................................................................ 7
Only for Non-EU markets ............................................................................................................... 7
Misuse ............................................................................................................................................ 7
Repairs ............................................................................................................................................ 8
Manufacturer’s declaration .......................................................................................................... 8
Declaration of confirmity ............................................................................................................... 9
Misc. on the DESKLINE®DL5/DL6 system.................................................................................... 10
Warranty..................................................................................................................................... 10
Maintenance............................................................................................................................... 10
Service of double-insulated products ........................................................................................... 10
ETL-markering ................................................................................................................................ 11
Description of the DESKLINE® DL5/DL6 system.......................................................................... 12
Installation.......................................................................................................................................13
Mounting guidelines for the DESKLINE®DL5/DL6 system............................................................. 13
Mounting of the foot part ........................................................................................................... 14
Mounting crossbar...................................................................................................................... 15
Mounting the tabletop.................................................................................................................16
Desks with crossbar .....................................................................................................................16
Placing the monitor..................................................................................................................... 16
Mounting guidelines CBD6S (SMPS)............................................................................................ 17
Electric connection of the DL5/DL6 system ................................................................................ 18
Initialisation of the DESKLINE®DL5/DL6 parallel systems ....................................................... 19
Anti-Collision.................................................................................................................................. 20
PIEZOTM description (optional) .................................................................................................... 21
Accessories ..................................................................................................................................... 22
Disposal of LINAK products.......................................................................................................... 23
Labels ........................................................................................................................................... 24
Drawing appendix.......................................................................................................................... 25
Addresses........................................................................................................................................ 32

Page 3 of 32
Preface
Dear User,
We are delighted that you have chosen a product from LINAK®.
LINAK systems are high-tech products based on many years of experience in the manufacture and development
of actuators, electric control boxes, controls and chargers.
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer
of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics.
It is the responsibility of the manufacturer of the end-user product to provide a User Manual where relevant
safety information from this manual is passed on to the end-user.
We are sure that your LINAK product/system will give you many years of problem-free operation.
Before our products leave the factory, they undergo full function and quality testing. Should you nevertheless
experience problems with your LINAK product/system, you are always welcome to contact your local contact.
LINAK subsidiaries and some distributors situated all over the world have authorised service centres, which are
always ready to help you.
LINAK provides a limited warranty on its products. This warranty is, however, subject to correct use in
accordance with the specifications, maintenance being done correctly, and any repairs being carried out at a
service centre, which is authorised to repair LINAK products. Changes in installation and use of LINAK products/
systems can affect their operation and durability. The products are not to be opened by unauthorised personnel.
You can review the full terms of the LINAK warranty on the LINAK website www.linak.com/warranty.
The User Manual has been written based on our present technical knowledge. We are constantly working on
updating the information and we therefore reserve the right to carry out technical modifications.
LINAK A/S

Page 4 of 32
Valid for:
This User Manual is valid for the following products:
(See the first 3 - 5 characters on the label)
Columns: 1 single DL5 standard / DL5 PLUSTM / DL6 standard / DL6 PLUSTM or 2 in parallel
Control boxes: CBD6S 200 W, CBD6S 300 W
Controls: DPF1M/DPG1M/DPG1B (if memory function is required)
DP1CS/DPT/DPF1C/DPG1C (if memory function and display is required) or
DPA/DPB/DPH/DP1K/DPF1K/DPG1K (if only up/down is required) or DPF1D (if display is required).

Page 5 of 32
Safety instruction
General
Important information
Important information on LINAK®products can be found under the following
headings:
Warning!
Failure to comply with these instructions may result in accidents involving
serious personal injury.
Failing to follow these instructions can result in the product being damaged
or being destroyed.
Safe use of the system is possible only when the operating instructions are read
completely and the instructions contained are strictly observed.
Failure to comply with instructions marked with the ”NOTE” symbol may result in
serious damage to the system or one of its components.
It is important for everyone who is to connect, install, or use the systems to
have the necessary information and access to this User Manual. Follow the
instructions for mounting – there is a risk of injury if these instructions are not
followed.
The appliance is not intended for use by young children or infirm persons
without supervision.
If there is visible damage to the product, do not install it.
Please note that during construction of applications in which the actuator
is to be fitted, there must be no possibility of personal injury, for example
squeezing of fingers or arms.
Assure free space for movement of the application in both directions to avoid
blockades.

Page 6 of 32
Before installation, re-installation, or troubleshooting:
•Stop the DL5/DL6
•Pull out the mains plug.
•Relieve the DL5/DL6 of any loads, which may be released during the work.
Before start-up:
•Make sure that the system has been installed as instructed in this User Manual.
•Make sure that the voltage of the control box is correct before connecting the
system to the mains.
•System connection. The individual parts must be connected before connecting the
control box to the mains. See the User Manual for LINAK actuators, if necessary.
During operation
•If the control box makes unusual noise or smells, switch off the mains voltage
immediately.
•Take care that the cables are not damaged.
•Unplug the mains cable on mobile equipment before moving it.
•The products must only be used in an environment that corresponds to their IP
protection.
Misc.
The actuator system has a sound level below 55 dB(A) in typical applications.
Updated manuals and declarations can always be found here:
www.linak.com/deskline

Page 7 of 32
Only for EU markets
This appliance can be used by children aged from aged 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Only for Non-EU markets
Persons who do not have the necessary experience or knowledge of the
product/products must not use the product/products. Besides, persons with
reduced physical, sensory or mental abilities must not use the product/
products, unless they are under surveillance or they have been thoroughly
instructed in the use of the apparatus by a person who is responsible for the
safety of these persons.
Moreover, children must be under surveillance to ensure that they do not play
with the product.
Misuse
Do not overload the actuators – this can cause danger of personal injury and
damage to the system.
Do not use the actuator system for lifting persons. Do not sit or stand on a
table while operating – risk of personal injury.
Do not use the system in environments other than the intended indoor use

Page 8 of 32
Repairs
In order to avoid the risk of malfunction, all DESKLINE®repairs must only be carried out by authorised LINAK service centres or
repairers, as special tools must be used and special gaskets must be fitted. Products under warranty must also be returned to
authorised LINAK service centres.
Further information on DESKLINE warranty can be found on the LINAK website www.linak.com/warranty.
Warning!
If any of the DESKLINE®products are opened, there will be a risk of subsequent malfunction.
Warning!
The DESKLINE®systems do not withstand cutting oil.
DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY
LINAK A/S
Smedevænget 8
DK - 6430 Nordborg
Herewith declares that LINAK DESKLINE®products as characterized by the following models and types:
Control Boxes CBD6S
Linear Actuators DB5, DB6, DB14, LA23, LA31
Lifting Columns DL1A, DL2, DL4S, DL5, DL5IC, DL6, DL6IC, DL7, DL8, DL8IC, DL9, DL9IC,
DL10, DL10IC, DL11, DL11IC, DL12, DL14, DL15, DL16, DL16IC, DL17,
DL19, DL19IC, BASE1
Desk Panels DPA, DPB, DPH, DPF, DPG, DPT, DP, DP1CS
RF Controls HB10RF, HB20RF, RFRL
Accessories BA001, BLE2LIN, DS1, DF2, Kick & Click, SLS, SMPS001, SMPS002, SMPS006
comply with the following parts of the Machinery Directive 2006/42/EC, ANNEX I, Essential health and
safety requirements relating to the design and construction of machinery:
1.5.1 Electricity supply
The relevant technical documentation is compiled in accordance with part B of Annex VII and that this
documentation or part hereof will be transmitted by post or electronically to a reasoned request by the
national authorities.
This partly completed machinery must not be put into service until the final machinery into which
it is to be incorporated has been declared in conformity with the provisions of the Machinery
Directive 2006/42/EC where appropriate.
Nordborg, 2019-05-27
LINAK A/S
John Kling, B.Sc.E.E.
Certification and Regulatory Affairs
Authorized to compile the relevant technical documentation
Original Declaration
Manufacturer’s declaration

Page 9 of 32
DECLARATION OF CONFORMITY
LINAK A/S
Smedevænget 8
DK - 6430 Nordborg
hereby declares that LINAK Actuator System composed of:
Control Box(s) CBD6SP00020A-009
CBD6S*000*0A-709
(The ‘*’ in the product description can either be a character or a number, thereby defining the variation of the product)
And
Linear Actuator(s) DB4, DB5, DB6, DB7, DB9, DB12, DB14, DB16, LA23, LA31 series and / or
Lifting Column(s) DL1A, DL2, DL4, DL5, DL6, DL7, DL8, DL9, DL10, DL11, DL12, DL12W, DL14,
DL15, DL16, DL17, DL19, BASE1 series
And
Desk Panel(s) DP*(C,K,L,U,V), WDPL1
(The ‘*’ in the product description can either be 1, 2, 3, A, B, H, T; thereby defining the variation of the product)
complies with EMC Directive: 2014/30/EU according to following standards:
EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011+AC:2012
complies with Low Voltage Directive 2014/35/EU according to the standard:
EN 60335-1:2012+A11:2014
complies with RoHS2 Directive 2011/65/EU according to the standard:
EN 50581:2012
Additional information:
The system does also comply with the standard: EN 13849-1:2015 SRP/CS Cat. B, PL = b and SRESW PL = b
Note 1: Exempted CBD6S with SW03003007 printed on the label.
Nordborg, 2019-06-07
LINAK A/S
John Kling, B.Sc.E.E.
Certification and Regulatory Affairs
Authorized to compile the relevant technical documentation
Original Declaration
Declaration of confirmity
The RoHS mark is only applicable for the end product. Therefore, it must be obtained by the manufacturer of the
end products. LINAK®can, however, supply the required material information on our products.
For more information, visit: https://www.linak.com/about/declarations/
or contact: [email protected]

Page 10 of 32
Misc. on the DESKLINE®DL5/DL6 system
This system is a DESKLINE system developed for desks and for indoor use in offices. Do not use it in industrial kitchens or in
other enviroments that have to be cleaned with aggressive detergents.

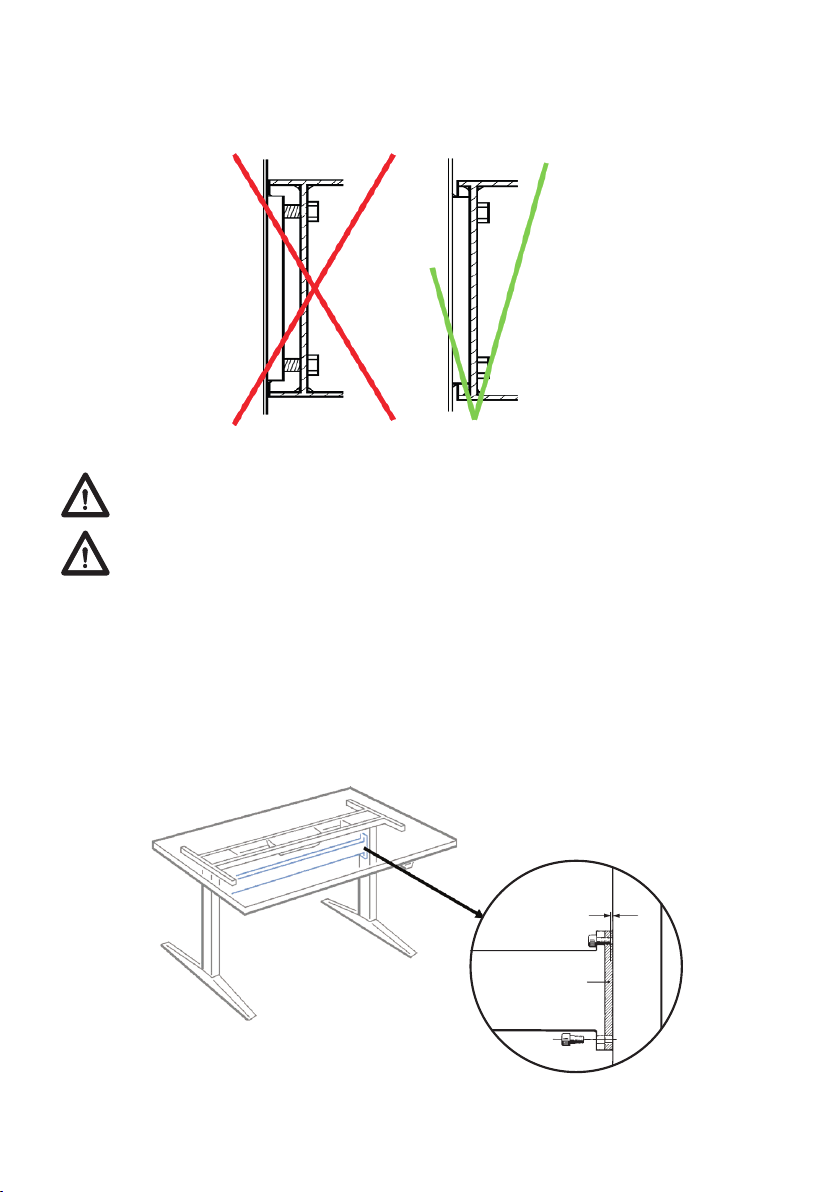

Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in fault
situations.
Warranty
This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK
website www.linak.com/warranty.
Maintenance
Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks.
Inspect the connections, cables, and plugs and check for correct functioning as well as fixing points.
Service of double-insulated products:
Class II
A Class II or double insulated electrical appliance is one which has been designed in such a way that it does not require a
safety electric earth connection (US: ground).
The basic requirement is that no single failure can result in dangerous voltage becoming exposed so that it might cause an
electric shock and that this is achieved without relying on an earthed metal casing. This is usually achieved at least in part by
having two layers of insulating material surrounding live parts or by using reinforced insulation.
There is no earthing/grounding means provided on the product, and no earthing/grounding means is to be added to the
product.
In Europe, a double insulated appliance must be labelled “Class II”, “double insulated” or bear the double insulation symbol (a
square inside another square).
Servicing a double-insulated product requires extreme care and knowledge of the system, and is to be done only by qualified
service personnel. Replacement parts for a double-insulated product must be identical to the parts they replace.
Cleaners and disinfectants must not be highly alkaline or acidic (pH value 6-8).
