Instruction Manual for RF remote control unit SEAV for TECH-system
Page 2 of 10 oct. 2017 ver. 02.
LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone [phone] - www.linak.dk
Foreword
Dear producer,
Thank you for choosing an actuator system from LINAK®. LINAK systems consist of high-tech
products based on many years' experience of manufacturing and developing actuators, electrical
control boxes, control systems and chargers.
This Instruction Manual explains how to install and set an RF Remote Control Unit of type SEAV for a
TECH-system.
Before our products leave the factory, they are subject to a full battery of function and quality tests. In
the unlikely event that you experience problems with your systems, please contact
LINAK Danmark A/S on ([phone].
LINAK provides a guarantee for all of its products and systems. However, this guarantee is subject to
the condition that the product is used in accordance with the specifications, that maintenance is
performed correctly, and that any repairs are carried out at a workshop that is authorised to repair
LINAK products.
Any alterations to the installation and use of LINAK systems may affect their operability and durability.
The products may not be opened by unauthorised persons.
LINAK Danmark A/S
Mønstedsvej 9
DK-8600 Silkeborg

Instruction Manual for RF remote control unit SEAV for TECH-system
Page 3 of 10 oct. 2017 ver. 02.
LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone [phone] - www.linak.dk
Table of contents.
Foreword................................................................................................................................................ 2
Table of contents................................................................................................................................... 3
Technical data........................................................................................................................................ 4
Description of the system.................................................................................................................... 4
Dimensions ......................................................................................................................................... 4
Installation.............................................................................................................................................. 5
Installing the receiver:......................................................................................................................... 5
Connection............................................................................................................................................. 6
Set relay function (SW1)..................................................................................................................... 6
Connecting receiver RXS 2224........................................................................................................... 7
CB8-A / CB8-T / CB9 / CB12.......................................................................................................... 7
TR-EM-208 ..................................................................................................................................... 9
TR-EM-239 ..................................................................................................................................... 9
TR-EM-288 ..................................................................................................................................... 9
Coding transmitter (control unit) TXS2.............................................................................................. 10
Pairing transmitter and receiver.................................................................................................... 10
Reset factory settings........................................................................................................................ 10

Instruction Manual for RF remote control unit SEAV for TECH-system
Page 4 of 10 oct. 2017 ver. 02.
LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone [phone] - www.linak.dk
Technical data
Technical data
The SEAV receiver and transmitter system comprises a two-channel transmitter and receiver:
Transmitter:
Model description: TXS 2
Power supply, alkaline battery: 12 VDC (23A)
Transmission frequency: 433.92 Mhz
Combinations: 1024 (12-bit code)
Max. consumption: 25 mA
Operating temperature: -20...+70°C
Receiver:
Model description: RXS 2224
Supply: 12/24 V AC/DC
Max. consumption: 5 W
Receiver frequency: 433.92 Mhz
Circuit: 30 VDC
Operating temperature: -20...+70°C
Range: 50 – 100 m
Ingress Protection rating: IP 54
Description of the system
The SEAV receiver and transmitter system is intended for use in a TECH actuator solution to facilitate
remote control of the system. The system uses radio frequencies to communicate between transmitter
and receiver.
Dimensions
Receiver; RXS 2224
82
55
45

Instruction Manual for RF remote control unit SEAV for TECH-system
Page 5 of 10 oct. 2017 ver. 02.
LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone [phone] - www.linak.dk
Transmitter; TXS 2
Installation
To achieve optimal conditions for communication between transmitter and receiver, it is important to
choose transmitter location with care. Range is determined not solely by the technical specifications of
the units in question. The range may therefore vary depending on radio-electrical conditions at the
installation site.
Installing the receiver:

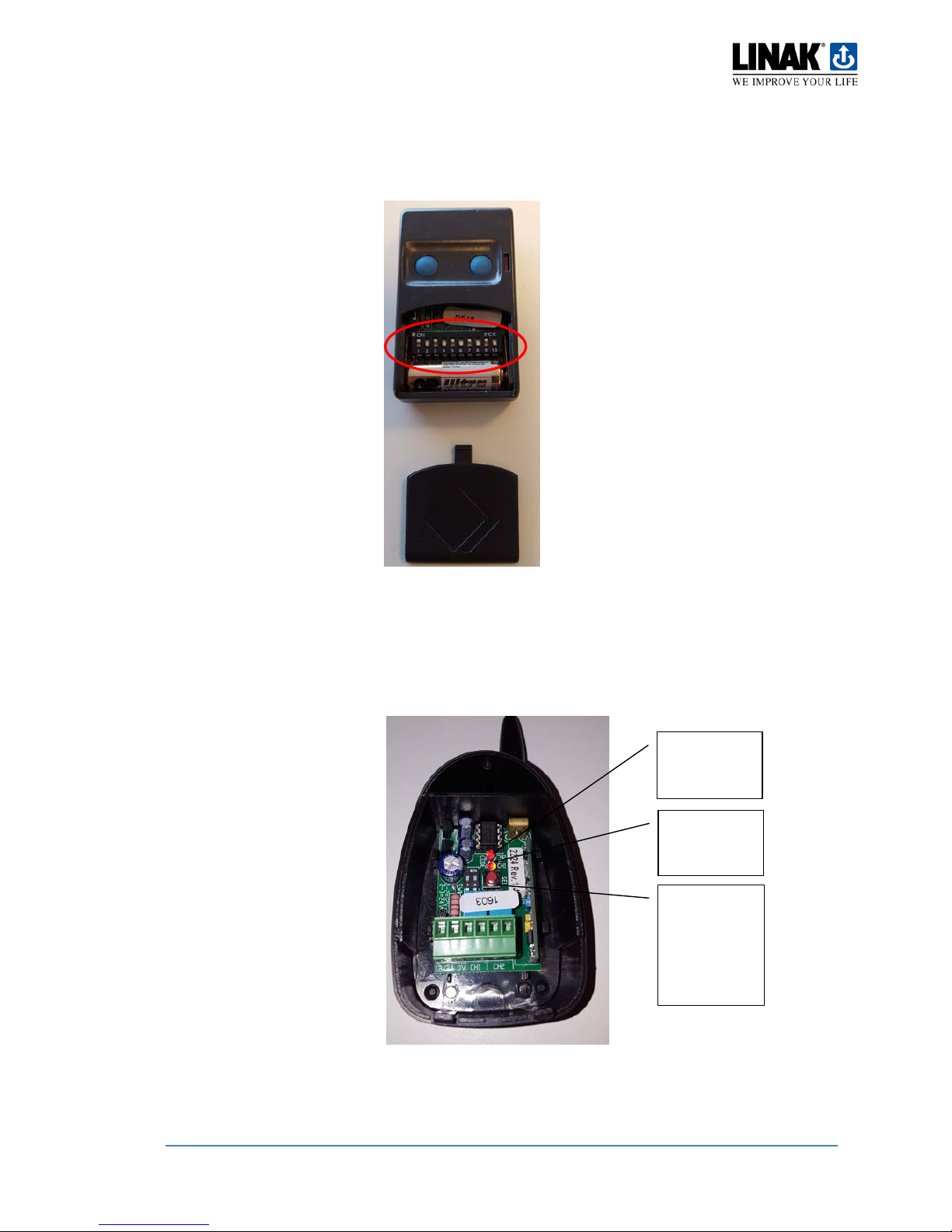

To remove receiver cover, unscrew screw C. Then, using the 3 screw holes (labelled A), mount the
transmitter with three suitable screws.

Instruction Manual for RF remote control unit SEAV for TECH-system
Page 6 of 10 oct. 2017 ver. 02.
LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone [phone] - www.linak.dk
Connection
.

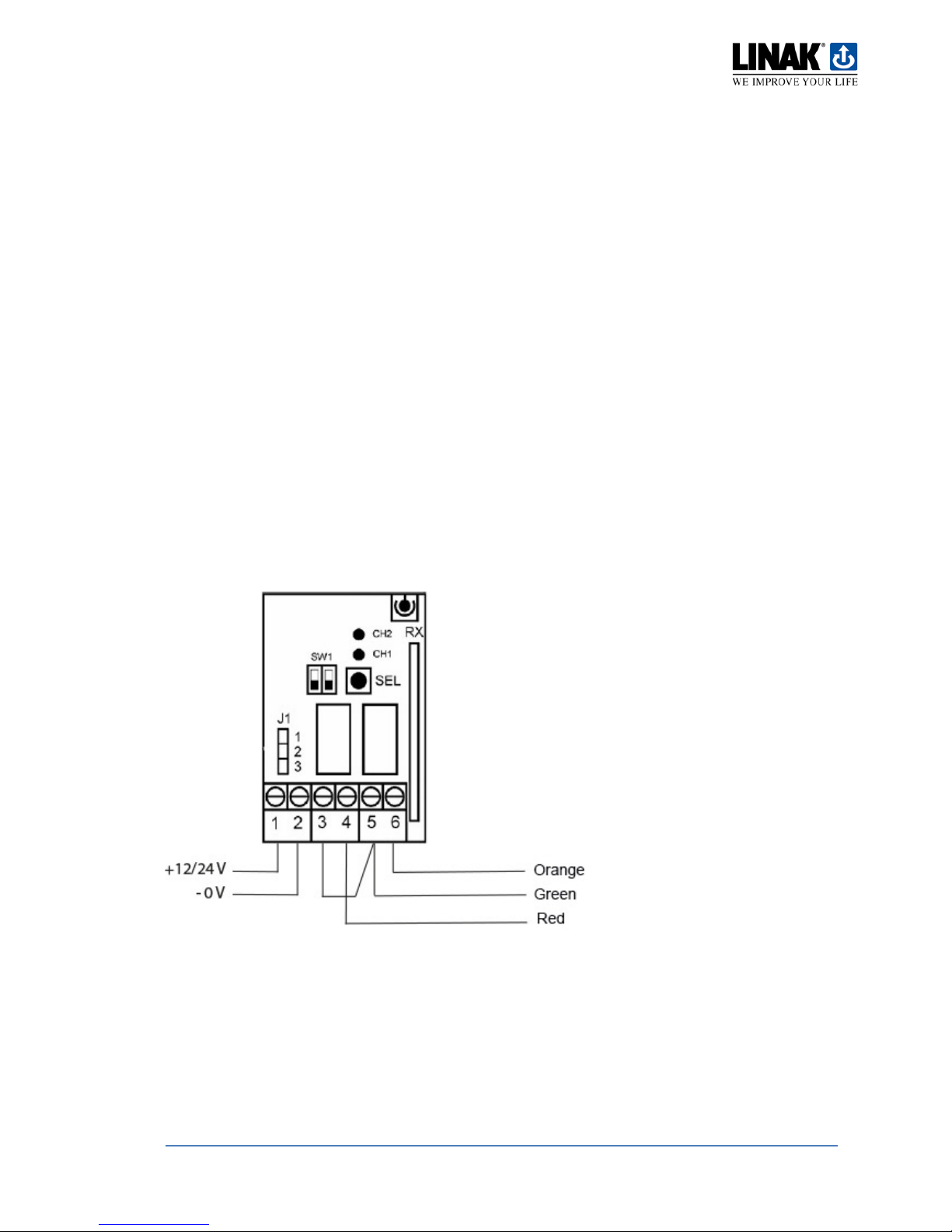

Terminal 1: Supply +12/24 V DC/AC
Terminal 2: Supply – 0V
Terminal 3: Output channel 1
Terminal 4: Output channel 1
Terminal 5: Output channel 2
Terminal 6: Output channel 2
Set relay function (SW1)
Monostable function = Active while the transmitter button is pressed and held.
Remote-controlled SEL button = Monostable function – can be used to code new transmitter.
120 sec. delay circuit = Active for 120 sec. after the button is released.
Bistable function = changeover relay function.
SEL button
Push button
to select
channel to
code the
transmitter
LED for
channel 2
(CH2)
LED for
channel 1
(CH1)
SW1
Set relay
function
J1
Jumper to
select
power supply
voltage
12 V DC/AC
24 V DC/AC

Instruction Manual for RF remote control unit SEAV for TECH-system
Page 7 of 10 oct. 2017 ver. 02.
LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone [phone] - www.linak.dk
Connecting receiver RXS 2224
The receiver must be connected in accordance with the connection diagrams (see below) for the
following LINAK control boxes and third-party controllers
LINAK control boxes:
•CB8-A
•CB8-T
•CB9
•CB12
Third-party controllers:
•TR-EM-208
•TR-EM-239
•TR-EM-288
LINAK control boxes:
CB8-A / CB8-T / CB9 / CB12
The above-mentioned LINAK control boxes use a DIN connector for control. You can order a cable
with DIN connectors for use between control box and receiver from LINAK Danmark A/S. Article no.
0015751

Instruction Manual for RF remote control unit SEAV for TECH-system
Page 8 of 10 oct. 2017 ver. 02.
LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone [phone] - www.linak.dk

Instruction Manual for RF remote control unit SEAV for TECH-system
Page 9 of 10 oct. 2017 ver. 02.
LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone [phone] - www.linak.dk

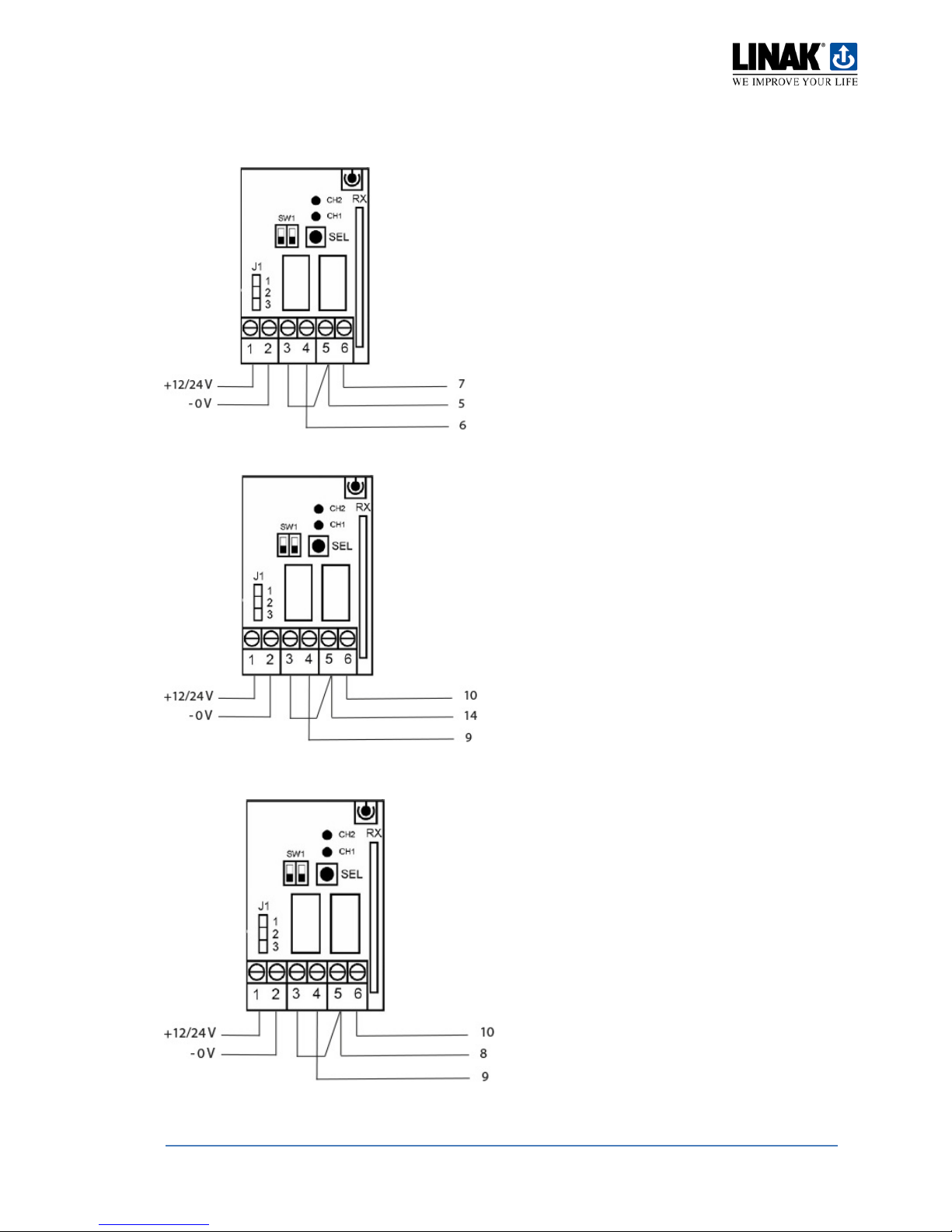

Third-party controllers
TR-EM-208
TR-EM-239
TR-EM-288

Instruction Manual for RF remote control unit SEAV for TECH-system
Page 10 of 10 oct. 2017 ver. 02.
LINAK Danmark A/S - Mønstedsvej 9- DK-8600 Silkeborg -Telephone [phone] - www.linak.dk
Coding transmitter (control unit) TXS2
Transmitters for use in the system must be coded individually. Each transmitter must have its own
code, which can be changed by moving the positions of the 10 switches so that the pattern on each
transmitter is different.
Pairing transmitter and receiver
To pair the respective transmitters to the receiver:
Press SEL button once. LED for CH1 flashes. Then press button 1 on the transmitter (control unit).
Constant light in LED for CH1 when pairing is completed. Press twice on the SEL button to repeat
same procedure for CH2.
NB! Disconnect the receiver's antenna before pairing transmitters (control units).
Reset factory settings
To delete all codes recorded in the receiver, press and hold the SEL button for 5 sec. When the unit is
reset, the LEDs for CH1 and CH2 respectively will flash 3 times.
SEL button
Push button
to select
channel to
code
transmitter
LED for
channel 2
(CH2)
LED for
channel 1
(CH1)
