Lincat OE8405 Owner's manual

IS 610 ECN 3946 Page 1 of 13
Installation, Operating and Servicing
Instructions
Opus 800 Electric Chargrills
OE8405, OE8406.
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________

IS 610 ECN 3946 Page 2 of 13
CONTENTS
Important Information
2
Warnings and Precautions
3
Technical Data
3
Checklist of Enclosures
3
Installation and Commissioning
4
Operating Instructions
6
Cleaning
8
Servicing, Maintenance and Component Replacement
9
Fault Finding
11
Spare Parts List
11
Accessories
12
Service Information and Guarantee
13
IMPORTANT INFORMATION
Read these instructions carefully before using this product, paying particular
attention to all sections that carry warning symbols, caution symbols and notices.
Ensure that these are understood at all times.
WARNING!
This symbol is used whenever there is a risk of personal injury.
CAUTION!
This symbol is used whenever there is a risk of damaging your Lincat product.
NOTE:
This symbol is used to provide additional information, hints and tips.
KEEP THIS MANUAL FOR FUTURE REFERENCE

IS 610 ECN 3946 Page 3 of 13
WARNINGS AND PRECAUTIONS
This appliance must be installed, commissioned and serviced by a qualified person
in accordance with national and local regulations in force in the country of
installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person.
Ensure that the plug/socket is accessible at all times.
Strip plastic coating and clean the appliance before use.
During operation parts may become hot - avoid accidental contact.
Disconnect this appliance before servicing, maintenance or cleaning.
TECHNICAL DATA
OE8405
OE8406
OE8406 Dual Supply
Height (mm)
415
Width (mm)
600
900
Depth (mm)
800
Weight (kg)
57
71
Element Rating (kW)
8.4
12.4
2 x 6.2
Supply 3N~+E
400V 50-60Hz
Current (A)
L1 12.2
L2 12.2
L3 12.2
L1 18
L2 18
L3 18
2 x L1 9
2 x L2 9
2 x L3 9
Power Rating (kW)
8.4
12.4
Water inlet (BSPT)
½”
Water overflow (Dia.mm)
22
CHECK LIST OF ENCLOSURES
Warranty card
Instructions manual
Legs x 4
Water level indicator
Splashguard
Branding plates
Slip stop washers
Scraper

IS 610 ECN 3946 Page 4 of 13
INSTALLATION AND COMMISSIONING
This appliance must be earthed.
An equipotential bonding terminal is provided to allow cross bonding with other
equipment.
If replacing the plug connect the terminals as follows:
Green and Yellow wire Earth E
Blue wire Neutral N
Brown wire Live L

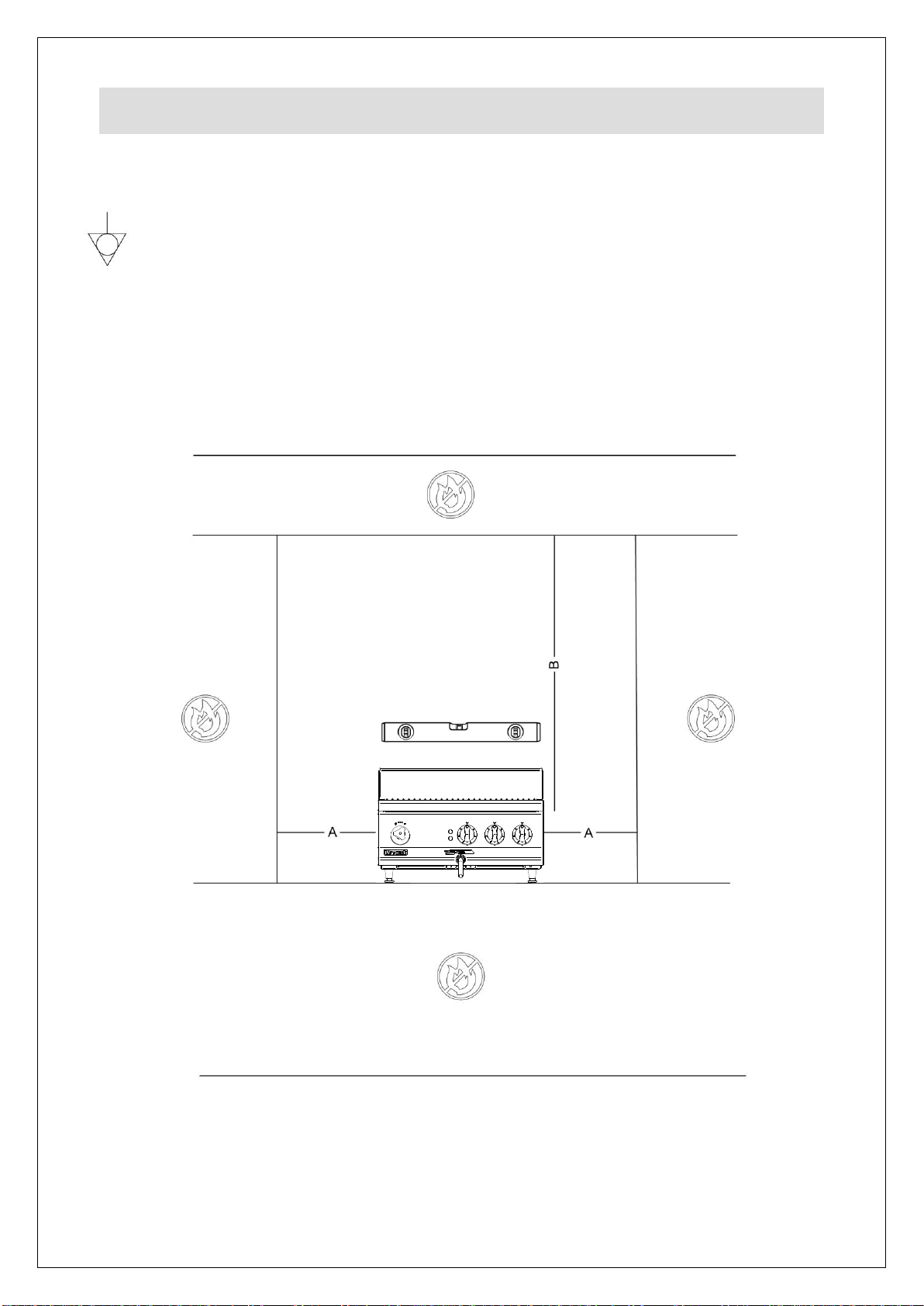

Fig 1

IS 610 ECN 3946 Page 5 of 13
Means of isolation with at least 3mm contact separation in all poles must be
incorporated into the fixed wiring of this appliance.
The fixed wiring insulation must be protected by insulated sleeving having a
temperature rating of at least 60 Deg C.
Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary
polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)
Install this appliance on a level surface ensuring all vents are unobstructed. Any
partitions, walls or furniture must be of non-combustible material. Minimum
distances A 100mm B 1000mm –see Fig 1.
Ensure there is a space of at least (1000 mm) between the working surface and any
ceiling.
Install this appliance beneath an extraction canopy.
Connection of the supply cable is behind the fascia panel at the front of the
appliance. Remove the fascia and fit a suitable cable through the cable guide to the
terminal block.
Connection to a mains water supply is provided at the rear of the appliance. There
is also an overflow pipe that must be connected to a waste outlet in case of
accidental overfilling of the tank. The appliance must not be operated without water
in the tank, as it will result in the operation of the safety cut-out beneath the facia
panel. (See operating instructions). Check the fill rate. If it is considered excessive,
source and fit a flow restrictor.
The appliance may be manually filled via the fill box at the front of the appliance.
However, we do not recommend this as the regular way to fill the tank.
When the appliance has been installed in the intended position, the legs should be
adjusted to maintain a level top. Use a spirit level to determine that the chargrill is
level left to right and front to back. This procedure is critical, as it can affect the
safety cut-out operation and also assist the drainage of the appliance.
Anti-slip washers are provided to create a slip free pocket for the front feet, so
preventing movement during operation. Ensure the work surface is structurally safe
before installing the washers.
Ensure that the operator understands how to fill the water tank, safely operate,
shutdown and clean the appliance, and is aware of the position of the isolating
switch.
.

IS 610 ECN 3946 Page 6 of 13
G
E
FDC
B
A
OPERATING INSTRUCTIONS
Only qualified or trained personnel should use this appliance.
This appliance should not be operated unattended.

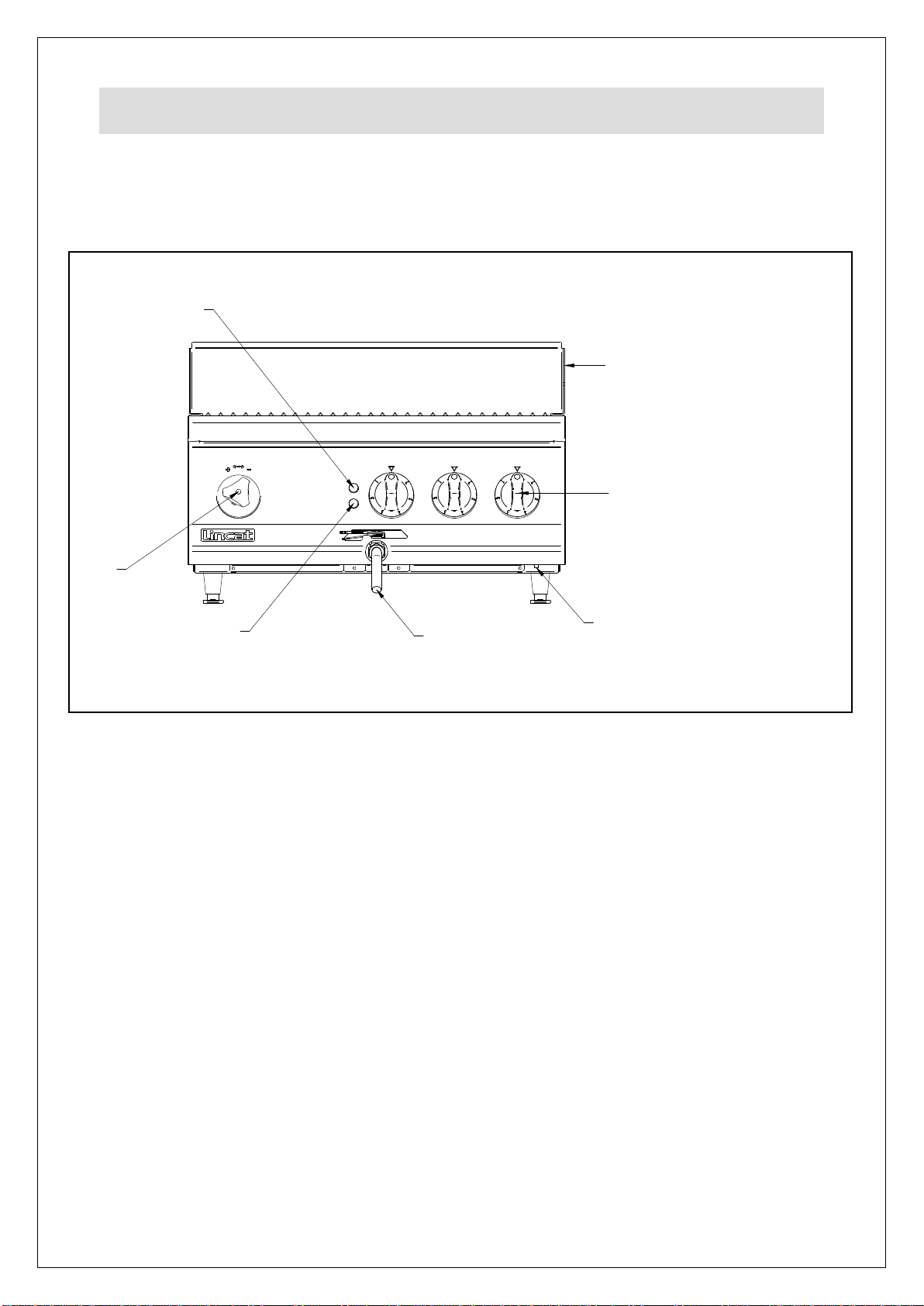

Fig 2
Preparation
Before first use, wash the branding plates, dry immediately and coat with a thin film
of cooking oil to encourage a coating which resists rust. Operate the appliance
without any food products to season the branding plates. During the lifetime of the
appliance, repeating this coating process whenever the coating has been removed
will prevent rust on the branding plates. Do not put the branding plates into a
decarboniser.
A Splashback
B Control knob
C Safety cut-out reset
D Drain tap
E Water Fill Valve
F Green neon
G Amber neon

IS 610 ECN 3946 Page 7 of 13
LEVEL GUAGE
FILL TANK
Filling
Open the water fill valve anticlockwise to fill the tank, closing the valve as soon as
the water level in the fill tank reaches the “Max Fill Level” (Fig 3). As a secondary
measure, ensure the water level does not fall below the lower leg of the level gauge
(Fig 3).
If a mains water supply is not available, the appliance can be hand filled via the fill
tank at the front of the unit. Do not pour water directly on the grill area or element.
If the appliance starts to overflow before the water level reaches the “Max Fill
Level”, the rear legs should be adjusted up, so that the unit sits level. When the
level has been reached, close the valve without over-tightening.
For optimum use, keep the water inlet set to a trickle feed for continuous filling of
the tank.
NB.
If the water level is not maintained the safety cut-out will operate. The appliance
will then need to be cooled before the cut-out can be reset. Reset by pressing the
red safety cut-out button (C) beneath the facia (Fig 2). When refilling with water
after overheating, extreme caution should be used, as cold water may react with the
contents if they have been allowed to build up and become volatile.
For additional safety, the OE8406 has two safety cut-outs, BOTH of which will need
resetting in the event of a fault.

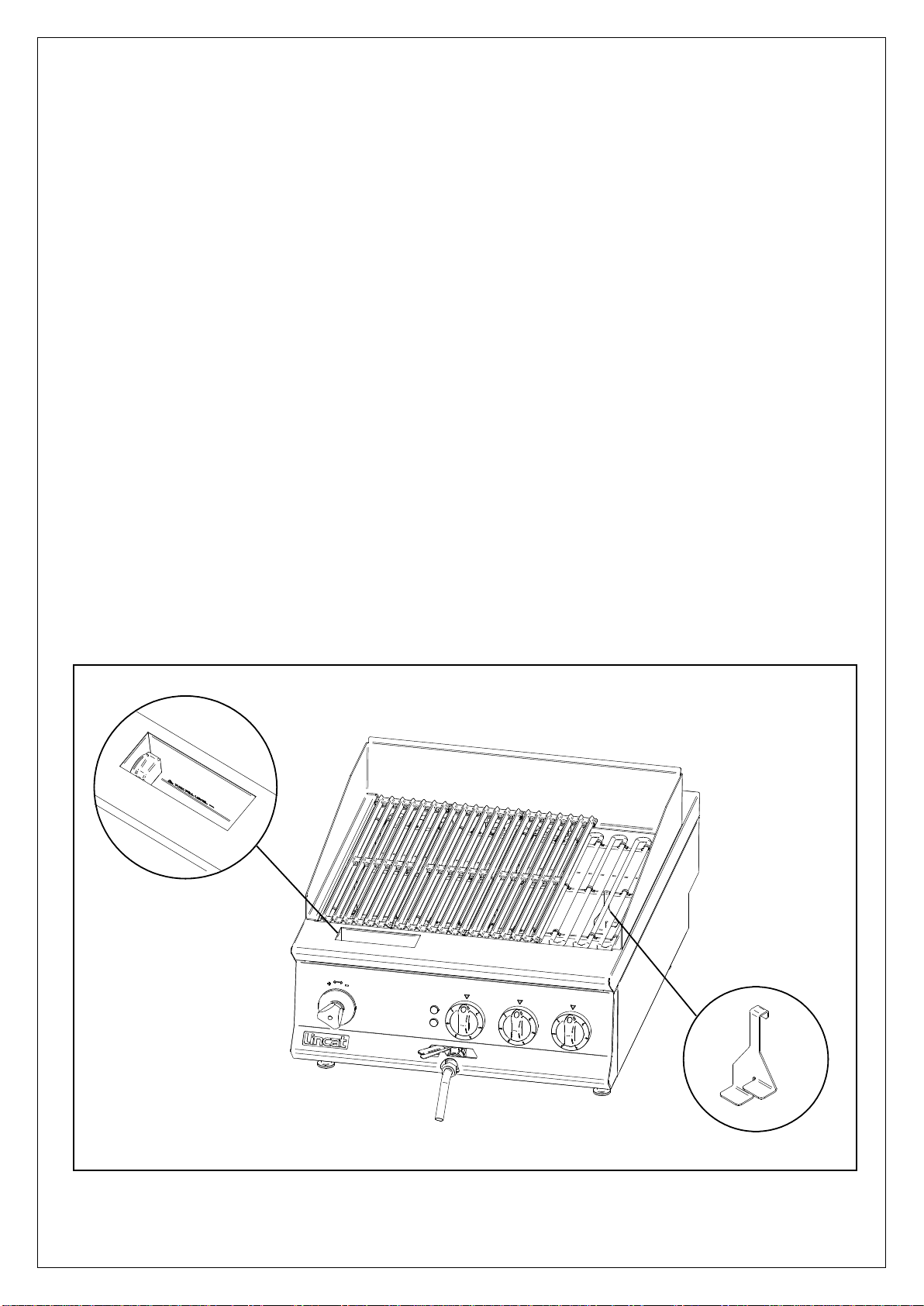

Fig 3

IS 610 ECN 3946 Page 8 of 13
Operating
Switch on the power supply at the isolating switch –the green neon will illuminate.
OE8405 –The branding plates create one large cooking zone, divided into three
equal areas, each independently controlled.
OE8406 –The branding plates create one large cooking zone, divided into six equal
areas, each independently controlled.
Turn the control knobs to the desired setting. On settings 1-5 the elements will
cycle to maintain the temperature. On setting 6 the elements remain on constantly.
To turn the appliance off after cooking, rotate all control knobs to the ‘Off’ position,
and turn off both electrical supply and water supply.
CLEANING
Do not use a water jet or steam cleaner, and do not immerse this appliance.
Clean all panels with warm water and mild detergent, do not use abrasive materials.
Dry with a soft cloth.
After the appliance has cooled, remove the branding plates, splashguard and water
level indicator. Lift and lock the element up, ensuring the stay is securely latched.
Remove any food debris from the tank and pour a quantity of warm soapy water
into the tank to assist with draining.
Drain the tank into a receptacle, and then clean all exterior panels with warm water
and mild detergent. Do not use abrasive materials or any products containing
chlorine or hydrochloric acid. Dry with a soft cloth.
Clean and dry the branding plates –for stubborn deposits a de-greasing agent
‘Carbon-Off’ is available from Lincat.
Lower the elements and replace all removable parts correctly.
Coat the branding plates lightly with cooking oil to avoid rusting.

IS 610 ECN 3946 Page 9 of 13
SERVICING, MAINTENANCE AND
COMPONENT REPLACEMENT
Your Lincat product has a manufacturer’s warranty. This requires you to maintain
and care for your product and follow maintenance instructions. If you fail to maintain
your unit or damage components Lincat may charge you for a warranty repair.
Please check the website for terms and conditions.
All servicing, maintenance and component replacement on this appliance should be
carried out by one of our recommended service engineers.
Routine Service
Carry out a general check of the installation paying particular attention to the
following:
The suitability of the supply cable.
The installation of isolation points for electricity and water.
The correct operation of all components.
Non leakage of the tank
Non leakage of all water carrying components.
Component replacement
Element
Remove the branding plates, level indicator and splash back.
Remove the screws securing the lifting box cover, tilt the cover forward, unhook and
lift away.
Disconnect the electrical terminals, marking each to assist with reassembly.
Remove the aero nuts securing the element bracket to the lifting box. Remove the
element and transfer the screws to the new element.
Reverse the above procedure to reassemble the appliance.

IS 610 ECN 3946 Page 10 of 13
Cut out switch in lifting box
Remove the branding plates, level indicator and splash back.
Remove the screws securing the lifting box cover, tilt the cover forward, unhook and
lift away.
Remove the cables and transfer to the new switch.
Remove the old switch and reassemble by reversing the above sequence.
Neon
Pull off the filling tap handle, taking care not to lose the blue pip, and remove the
filling tap bezel if required.
Remove the screws securing the facia to the base panel. Remove all control knobs
and free the facia by pulling towards you from the bottom.
Remove the cables from the neon and free the neon by unscrewing the retaining
collar.
Fit new neon and reverse the procedure to reassemble; using adhesive to secure
the bezel if removed.
Energy regulator
Remove the facia as detailed for neon replacement above.
Disconnect cables from the energy regulator terminals and fit to new regulator.
Unscrew the old regulator and refit the new regulator by reversal of the above
procedure.
Safety thermostat
Remove the facia as detailed above.
Remove the safety thermostat retaining screws. Loosen the phial bracket screws
until you can ease out the phial.
Replace the old thermostat with the new one and reverse the above procedure to
reassemble the appliance.
Check the appliance for electrical safety.

IS 610 ECN 3946 Page 11 of 13
Contactor
Pull off the filling tap handle, and remove the facia as detailed for neon replacement
above.
Unclip the contactor from the bracket.
Transfer the cables one at a time to the new contactor using a thin screwdriver to
release the wiring clamps.
Refitting is the reversal of removal.
Check the appliance for electrical safety.
Please refer to the Service Help Desk number on the final page of this manual.
Part Number
Description
Used on
BP37
Branding plate
OE8405, OE8406
CO167
Fill valve
CO215
Contactor
EL313
Element
OE8405
EL314
Element
OE8406
EN10
Energy regulator
OE8405, OE8406
KN511
Control knob
LE38
Leg
NE46
Green neon
NE47
Amber neon
RO02
Scraper
SW64
Micro switch
TH73
Safety thermostat
DS24
Drain valve
TU48
Drain Tube
FAULT FINDING
SPARE PARTS LIST

IS 610 ECN 3946 Page 12 of 13
Part Number
Description
Used on
OA8917
Floor stand
OE8405
OA8914
Floor stand
OE8406
OA8949
Griddle plate
All
ACCESSORIES

IS 610 ECN 3946 Page 13 of 13
For help with the installation, maintenance and use of your Lincat equipment,
please contact our service department:
UK: 01522 875520
For non-UK customers, please contact your local Lincat dealer
All service work, other than routine cleaning should be carried out by one of our
authorised service agents. We cannot accept responsibility for work carried out by
other persons.
To ensure your service enquiry is handled as efficiently as possible, please tell us:
Brief details of the problem
Product code
All available on serial plate
Type number
Serial number
Lincat reserve the right to carry out any work under warranty, given reasonable
access to the appliance, during normal working hours, Monday to Friday, 08:30 to
17:00.
GUARANTEE
This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is
in addition to, and does not diminish your statutory or legal rights.
The guarantee does not cover:
Accidental damage, misuse or use not in accordance with the manufacturer’s
instructions
Consumable items (such as filters, glass, bulbs, slot toaster elements and door
seals.)
Damage due to incorrect installation, modification, unauthorised service work or
damage due to scale, food debris build-up, etc.
The manufacturer disclaims any liability for incidental, or consequential damages.
Attendance is based on reasonable access to the appliance to allow the authorised
technician to carry out the warranty work.
Service calls to equipment under warranty will be carried out in accordance with the
conditions of sale. Unless otherwise specified, a maximum of 15 minutes of
administrative time, not spent directly carrying out servicing work, is provided for
within the warranty. Any requirement for staff attending the call to spend greater time
than 15 minutes due to administrative requirements, such as on health and safety risk
assessments, will be chargeable at the prevailing rate.
SERVICE INFORMATION
