Lincoln Electric Guardian AD1387-87 User manual

IM10361 | Issue Date 16-Jul
© Lincoln Global, Inc. All Rights Reserved.
Guardian®Control Panel
Register your machine:
www.lincolnelectric.com/register
Authorized Service and Distributor Locator:
www.lincolnelectric.com/locator
For use with machines having Code Numbers:
AD1387-87, AD1387-89
Save for future reference
Date Purchased
Code: (ex: 10859)
Serial: (ex: U1060512345)
Operator’s Manual

THANK YOU FOR SELECTING
A QUALITY PRODUCT BY
LINCOLN ELECTRIC.
PLEASE EXAMINE CARTON AND EQUIPMENT FOR
DAMAGE IMMEDIATELY
When this equipment is shipped, title passes to the purchaser
upon receipt by the carrier. Consequently, claims for material
damaged in shipment must be made by the purchaser against the
transportation company at the time the shipment is received.
SAFETY DEPENDS ON YOU
Lincoln arc welding and cutting equipment is designed and built
with safety in mind. However, your overall safety can be increased
by proper installation ... and thoughtful operation on your part.
DO NOT INSTALL, OPERATE OR REPAIR THIS EQUIPMENT
WITHOUT READING THIS MANUAL AND THE SAFETY
PRECAUTIONS CONTAINED THROUGHOUT. And, most importantly,
think before you act and be careful.
This statement appears where the information must be followed
exactly to avoid serious personal injury or loss of life.
This statement appears where the information must be followed
to avoid minor personal injury or damage to this equipment.
KEEP YOUR HEAD OUT OF THE FUMES.
DON’T get too close to the arc.
Use corrective lenses if necessary
to stay a reasonable distance
away from the arc.
READ and obey the Safety Data
Sheet (SDS) and the warning label
that appears on all containers of
welding materials.
USE ENOUGH VENTILATION or
exhaust at the arc, or both, to
keep the fumes and gases from
your breathing zone and the general area.
IN A LARGE ROOM OR OUTDOORS, natural ventilation may be
adequate if you keep your head out of the fumes (See below).
USE NATURAL DRAFTS or fans to keep the fumes away
from your face.
If you develop unusual symptoms, see your supervisor.
Perhaps the welding atmosphere and ventilation system
should be checked.
WEAR CORRECT EYE, EAR &
BODY PROTECTION
PROTECT your eyes and face with welding helmet
properly fitted and with proper grade of filter plate
(See ANSI Z49.1).
PROTECT your body from welding spatter and arc
flash with protective clothing including woolen
clothing, flame-proof apron and gloves, leather
leggings, and high boots.
PROTECT others from splatter, flash, and glare
with protective screens or barriers.
IN SOME AREAS, protection from noise may be appropriate.
BE SURE protective equipment is in good condition.
Also, wear safety glasses in work area
AT ALL TIMES.
SPECIAL SITUATIONS
DO NOT WELD OR CUT containers or materials which previously
had been in contact with hazardous substances unless they are
properly cleaned. This is extremely dangerous.
DO NOT WELD OR CUT painted or plated parts unless special
precautions with ventilation have been taken. They can release
highly toxic fumes or gases.
Additional precautionary measures
PROTECT compressed gas cylinders from excessive heat,
mechanical shocks, and arcs; fasten cylinders so they cannot fall.
BE SURE cylinders are never grounded or part of an
electrical circuit.
REMOVE all potential fire hazards from welding area.
ALWAYS HAVE FIRE FIGHTING EQUIPMENT READY FOR
IMMEDIATE USE AND KNOW HOW TO USE IT.
WARNING
CAUTION
Safety 01 of 04 - 5/16/2018

SECTION A:
WARNINGS
CALIFORNIA PROPOSITION 65 WARNINGS
WARNING: Breathing diesel engine exhaust
exposes you to chemicals known to the State
of California to cause cancer and birth defects,
or other reproductive harm.
• Always start and operate the engine in a
well-ventilated area.
• If in an exposed area, vent the exhaust to the outside.
• Do not modify or tamper with the exhaust system.
• Do not idle the engine except as necessary.
For more information go to
www.P65 warnings.ca.gov/diesel
WARNING: This product, when used for welding or
cutting, produces fumes or gases which contain
chemicals known to the State of California to cause
birth defects and, in some cases, cancer. (California
Health & Safety Code § 25249.5 et seq.)
WARNING: Cancer and Reproductive Harm
www.P65warnings.ca.gov
ARC WELDING CAN BE HAZARDOUS. PROTECT
YOURSELF AND OTHERS FROM POSSIBLE SERIOUS
INJURY OR DEATH. KEEP CHILDREN AWAY.
PACEMAKER WEARERS SHOULD CONSULT WITH
THEIR DOCTOR BEFORE OPERATING.
Read and understand the following safety highlights. For
additional safety information, it is strongly recommended
that you purchase a copy of “Safety in Welding & Cutting -
ANSI Standard Z49.1” from the American Welding Society,
P.O. Box 351040, Miami, Florida 33135 or CSA Standard
W117.2-1974. A Free copy of “Arc Welding Safety” booklet
E205 is available from the Lincoln Electric Company,
22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.
BE SURE THAT ALL INSTALLATION, OPERATION,
MAINTENANCE AND REPAIR PROCEDURES ARE
PERFORMED ONLY BY QUALIFIED INDIVIDUALS.
FOR ENGINE POWERED
EQUIPMENT.
1.a. Turn the engine off before troubleshooting
and maintenance work unless the
maintenance work requires it to be running.
1.b. Operate engines in open, well-ventilated areas or vent the engine
exhaust fumes outdoors.
1.c. Do not add the fuel near an open flame welding
arc or when the engine is running. Stop the
engine and allow it to cool before refueling to
prevent spilled fuel from vaporizing on contact
with hot engine parts and igniting. Do not spill fuel when filling
tank. If fuel is spilled, wipe it up and do not start engine until
fumes have been eliminated.
1.d. Keep all equipment safety guards, covers
and devices in position and in good repair.
Keep hands, hair, clothing and tools away
from V-belts, gears, fans and all other
moving parts when starting, operating or
repairing equipment.
1.e. In some cases it may be necessary to remove safety guards to
perform required maintenance. Remove guards only when
necessary and replace them when the maintenance requiring
their removal is complete. Always use the greatest care when
working near moving parts.
1.f. Do not put your hands near the engine fan. Do not attempt to
override the governor or idler by pushing on the throttle control
rods while the engine is running.
1.g. To prevent accidentally starting gasoline engines while turning
the engine or welding generator during maintenance work,
disconnect the spark plug wires, distributor cap or magneto wire
as appropriate.
1.h. To avoid scalding, do not remove the radiator
pressure cap when the engine is hot.
ELECTRIC AND
MAGNETIC FIELDS MAY
BE DANGEROUS
2.a. Electric current flowing through any conductor
causes localized Electric and Magnetic Fields (EMF).
Welding current creates EMF fields around welding cables
and welding machines
2.b. EMF fields may interfere with some pacemakers, and
welders having a pacemaker should consult their physician
before welding.
2.c. Exposure to EMF fields in welding may have other health effects
which are now not known.
2.d. All welders should use the following procedures in order to
minimize exposure to EMF fields from the welding circuit:
2.d.1. Route the electrode and work cables together - Secure
them with tape when possible.
2.d.2. Never coil the electrode lead around your body.
2.d.3. Do not place your body between the electrode and work
cables. If the electrode cable is on your right side, the
work cable should also be on your right side.
2.d.4. Connect the work cable to the workpiece as close as pos-
sible to the area being welded.
2.d.5. Do not work next to welding power source.
SAFETY
Safety 02 of 04 - 5/16/2018

ELECTRIC SHOCK
CAN KILL.
3.a. The electrode and work (or ground) circuits are
electrically “hot” when the welder is on. Do
not touch these “hot” parts with your bare skin or wet clothing.
Wear dry, hole-free gloves to insulate hands.
3.b. Insulate yourself from work and ground using dry insulation.
Make certain the insulation is large enough to cover your full area
of physical contact with work and ground.
In addition to the normal safety precautions, if
welding must be performed under electrically
hazardous conditions (in damp locations or while
wearing wet clothing; on metal structures such as
floors, gratings or scaffolds; when in cramped
positions such as sitting, kneeling or lying, if there
is a high risk of unavoidable or accidental contact
with the workpiece or ground) use the following
equipment:
• Semiautomatic DC Constant Voltage (Wire) Welder.
• DC Manual (Stick) Welder.
• AC Welder with Reduced Voltage Control.
3.c. In semiautomatic or automatic wire welding, the electrode,
electrode reel, welding head, nozzle or semiautomatic welding
gun are also electrically “hot”.
3.d. Always be sure the work cable makes a good electrical
connection with the metal being welded. The connection should
be as close as possible to the area being welded.
3.e. Ground the work or metal to be welded to a good electrical (earth)
ground.
3.f. Maintain the electrode holder, work clamp, welding cable and
welding machine in good, safe operating condition. Replace
damaged insulation.
3.g. Never dip the electrode in water for cooling.
3.h. Never simultaneously touch electrically “hot” parts of electrode
holders connected to two welders because voltage
between the
two can be the total of the open circuit voltage of both
welders.
3.i. When working above floor level, use a safety belt to protect
yourself from a fall should you get a shock.
3.j. Also see Items 6.c. and 8.
ARC RAYS CAN BURN.
4.a. Use a shield with the proper filter and cover plates to protect your
eyes from sparks and the rays of the arc when welding or
observing open arc welding. Headshield and filter lens should
conform to ANSI Z87. I standards.
4.b. Use suitable clothing made from durable flame-resistant material
to protect your skin and that of your helpers from the arc rays.
4.c. Protect other nearby personnel with suitable, non-flammable
screening and/or warn them not to watch the arc nor expose
themselves to the arc rays or to hot spatter or metal.
FUMES AND GASES
CAN BE DANGEROUS.
5.a. Welding may produce fumes and gases
hazardous to health. Avoid breathing these
fumes and gases. When welding, keep your head out of the fume.
Use enough ventilation and/or exhaust at the arc to keep fumes
and gases away from the breathing zone. When welding
hardfacing (see instructions on container or SDS)
or on lead or cadmium plated steel and other
metals or coatings which produce highly toxic
fumes, keep exposure as low as possible and
within applicable OSHA PEL and ACGIH TLV limits
using local exhaust or mechanical ventilation
unless exposure assessments indicate otherwise.
In confined spaces or in some circumstances,
outdoors, a respirator may also be required.
Additional precautions are also required when
welding
on galvanized steel.
5. b. The operation of welding fume control equipment is affected by
various factors including proper use and positioning of the
equipment, maintenance of the equipment and the specific
welding procedure and application involved. Worker exposure
level should be checked upon installation and periodically
thereafter to be certain it is within applicable OSHA PEL and
ACGIH TLV limits.
5.c. Do not weld in locations near chlorinated hydrocarbon vapors
coming from degreasing, cleaning or spraying operations. The
heat and rays of the arc can react with solvent vapors to form
phosgene, a highly toxic gas, and other irritating products.
5.d. Shielding gases used for arc welding can displace air and
cause
injury or death. Always use enough ventilation, especially in
confined areas, to insure breathing air is safe.
5.e. Read and understand the manufacturer’s instructions for this
equipment and the consumables to be used, including the
Safety Data Sheet (SDS) and follow your employer’s safety
practices. SDS forms are available from your welding
distributor or from the manufacturer.
5.f. Also see item 1.b.
SAFETY
Safety 03 of 04 - 5/16/2018

WELDING AND CUTTING
SPARKS CAN CAUSE
FIRE OR EXPLOSION.
6.a. Remove fire hazards from the welding area. If
this is not possible, cover them to prevent the welding sparks
from starting a fire. Remember that welding sparks and hot
materials from welding can easily go through small cracks and
openings to adjacent areas. Avoid welding near hydraulic lines.
Have a fire extinguisher readily available.
6.b. Where compressed gases are to be used at the job site, special
precautions should be used to prevent hazardous situations.
Refer to “Safety in Welding and Cutting” (ANSI Standard Z49.1)
and the operating information for the equipment being used.
6.c. When not welding, make certain no part of the electrode circuit is
touching the work or ground. Accidental contact can cause
overheating and create a fire hazard.
6.d. Do not heat, cut or weld tanks, drums or containers until the
proper steps have been taken to insure that such procedures
will not cause flammable or toxic vapors from substances inside.
They can cause an explosion even though they have been
“cleaned”. For information, purchase “Recommended Safe
Practices for the Preparation for Welding and Cutting of
Containers and Piping That Have Held Hazardous Substances”,
AWS F4.1 from the American Welding Society
(see address above).
6.e. Vent hollow castings or containers before heating, cutting or
welding. They may explode.
6.f. Sparks and spatter are thrown from the welding arc. Wear oil free
protective garments such as leather gloves, heavy shirt, cuffless
trousers, high shoes and a cap over your hair. Wear ear plugs
when welding out of position or in confined places. Always wear
safety glasses with side shields when in a welding area.
6.g. Connect the work cable to the work as close to the welding area
as practical. Work cables connected to the building framework or
other locations away from the welding area increase the
possibility of the welding current passing through lifting chains,
crane cables or other alternate circuits. This can create fire
hazards or overheat lifting chains or cables until they fail.
6.h. Also see item 1.c.
6.I. Read and follow NFPA 51B “Standard for Fire Prevention During
Welding, Cutting and Other Hot Work”, available from NFPA, 1
Batterymarch Park, PO box 9101, Quincy, MA 022690-9101.
6.j. Do not use a welding power source for pipe thawing.
CYLINDER MAY EXPLODE IF
DAMAGED.
7.a. Use only compressed gas cylinders containing
the correct shielding gas for the process used
and properly operating regulators designed for
the gas and pressure used. All hoses, fittings,
etc. should be suitable for the application and
maintained in good condition.
7.b. Always keep cylinders in an upright position securely chained to
an undercarriage or fixed support.
7.c. Cylinders should be located:
• Away from areas where they may be struck or subjected
to physical damage.
• A safe distance from arc welding or cutting operations
and any other source of heat, sparks, or flame.
7.d. Never allow the electrode, electrode holder or any other
electrically “hot” parts to touch a cylinder.
7.e. Keep your head and face away from the cylinder valve outlet
when opening the cylinder valve.
7.f. Valve protection caps should always be in place and hand tight
except when the cylinder is in use or connected for use.
7.g. Read and follow the instructions on compressed gas cylinders,
associated equipment, and CGA publication P-l, “Precautions for
Safe Handling of Compressed Gases in Cylinders,” available from
the Compressed Gas Association, 14501 George Carter Way
Chantilly, VA 20151.
FOR ELECTRICALLY
POWERED EQUIPMENT.
8.a. Turn off input power using the disconnect
switch at the fuse box before working on
the equipment.
8.b. Install equipment in accordance with the U.S. National Electrical
Code, all local codes and the manufacturer’s recommendations.
8.c. Ground the equipment in accordance with the U.S. National
Electrical Code and the manufacturer’s recommendations.
Refer to
http://www.lincolnelectric.com/safety
for additional safety information.
SAFETY
Safety 04 of 04 - 5/16/2018

v
SAFETYGUARDIAN®CONTROL PANEL
ELECTROMAGNETIC
COMPATABILITY (EMC)
CONFORMANCE
Products displaying the CE mark are in conformity with European
Community Council Directive of 3 May 1989 on the approximation of
the laws of the Member States relating to electromagnetic compat-
ibility (89/336/EEC). It was manufactured in conformity with a national
standard that implements a harmonized standard: EN 60974-10
Electromagnetic Compatibility (EMC) Product Standard for Arc Welding
Equipment. It is for use with other Lincoln Electric equipment. It is
designed for industrial and professional use.
INTRODUCTION
All electrical equipment generates small amounts of electromagnetic
emission. Electrical emission may be transmitted through power lines or
radiated through space, similar to a radio transmitter. When emissions
are received by other equipment, electrical interference may result.
Electrical emissions may affect many kinds of electrical equipment;
other nearby welding equipment, radio and TV reception, numerical
controlled machines, telephone systems, computers, etc. Be aware that
interference may result and extra precautions may be required when a
welding power source is used in a domestic establishment.
INSTALLATION AND USE
The user is responsible for installing and using the welding equipment
according to the manufacturer’s instructions. If electromagnetic
disturbances are detected then it shall be the responsibility of the
user of the welding equipment to resolve the situation with the
technical assistance of the manufacturer. In some cases this remedial
action may be as simple as earthing (grounding) the welding circuit,
see Note. In other cases it could involve construction of an electro-
magnetic screen enclosing the power source and the work complete
with associated input filters. In all cases electromagnetic disturbances
must be reduced to the point where they are no longer troublesome.
Note: The welding circuit may or may not be earthed for safety reasons accord-
ing to national codes. Changing the earthing arrangements should only be
authorized by a person who is competent to access whether the changes
will increase the risk of injury, e.g., by allowing parallel welding current
return paths which may damage the earth circuits of other equipment.
ASSESSMENT OF AREA
Before installing welding equipment the user shall make an
assessment of potential electromagnetic problems in the surrounding
area. The following shall be taken into account:
a. other supply cables, control cables, signaling and telephone cables;
above, below and adjacent to the welding equipment;
b. radio and television transmitters and receivers;
c. computer and other control equipment;
d. safety critical equipment, e.g., guarding of industrial equipment;
e. the health of the people around, e.g., the use of pacemakers and
hearing aids;
f. equipment used for calibration or measurement
g. the immunity of other equipment in the environment. The user
shall ensure that other equipment being used in the environment is
compatible. This may require additional protection measures;
h. the time of day that welding or other activities are to be carried out.
The size of the surrounding area to be considered will depend on the
structure of the building and other activities that are taking place. The
surrounding area may extend beyond the boundaries of the premises.
METHODS OF REDUCING EMISSIONS
Mains Supply
Welding equipment should be connected to the mains supply
according to the manufacturer’s recommendations. If interference
occurs, it may be necessary to take additional precautions such
as filtering of the mains supply. Consideration should be given
to shielding the supply cable of permanently installed welding
equipment, in metallic conduit or equivalent. Shielding should be
electrically continuous throughout its length. The shielding should be
connected to the welding power source so that good electrical contact
is maintained between the conduit and the welding power source
enclosure.
Maintenance of the Welding Equipment
The welding equipment should be routinely maintained according
to the manufacturer’s recommendations. All access and service
doors and covers should be closed and properly fastened when the
welding equipment is in operation. The welding equipment should not
be modified in any way except for those changes and adjustments
covered in the manufacturers instructions. In particular, the spark
gaps of arc striking and stabilizing devices should be adjusted and
maintained according to the manufacturer’s recommendations.
Welding Cables
The welding cables should be kept as short as possible and should be
positioned close together, running at or close to floor level.
Equipotential Bonding
Bonding of all metallic components in the welding installation and
adjacent to it should be considered. However, metallic components
bonded to the work piece will increase the risk that the operator
could receive a shock by touching these metallic components and the
electrode at the same time. The operator should be insulated from all
such bonded metallic components.
Earthing of the Workpiece
Where the workpiece is not bonded to earth for electrical safety, not
connected to earth because of its size and position, e.g., ships hull
or building steelwork, a connection bonding the workpiece to earth
may reduce emissions in some, but not all instances. Care should be
taken to prevent the earthing of the work piece increasing the risk
of injury to users, or damage to other electrical equipment. Where
necessary, the connection of the workpiece to earth should be made
by a direct connection to the work piece, but in some countries where
direct connection is not permitted, the bonding should be achieved by
suitable capacitance, selected according to national regulations.
Screening and Shielding
Selective screening and shielding of other cables and equipment
in the surrounding area may alleviate problems of interference.
Screening of the entire welding installation may be considered for
special applications.
1
Portions of the preceding text are contained in EN 60974-10: “Electromagnetic
Compatibility (EMC) product standard for arc welding equipment.”

vi
SAFETYGUARDIAN®CONTROL PANEL
As a rule of thumb, for many mild steel electrode, if the air is visibly
clear and you are comfortable, then the ventilation is generally
adequate for your work. The most accurate way to determine if the
worker exposure does not exceed the applicable exposure limit for
compounds in the fumes and gases is to have an industrial hygienist
take and analyze a sample of the air you are breathing. This is
particularly important if you are welding with stainless, hardfacing
or Special Ventilation products. All Lincoln MSDS have a maximum
fume guideline number. If exposure to total fume is kept below that
number, exposure to all fume from the electrode (not coatings or
plating on the work) will be below the TLV.
There are steps that you can take to identify hazardous substances
in your welding environment. Read the product label and material
safety data sheet for the electrode posted in the work place or in
the electrode or flux container to see what fumes can be reasonably
expected from use of the product and to determine if special
ventilation is needed. Secondly, know what the base metal is and
determine if there is any paint, plating, or coating that could expose
you to toxic fumes and/or gases. Remove it from the metal being
welded, if possible. If you start to feel uncomfortable, dizzy or
nauseous, there is a possibility that you are being overexposed to
fumes and gases, or suffering from oxygen deficiency. Stop welding
and get some fresh air immediately. Notify your supervisor and
co-workers so the situation can be corrected and other workers can
avoid the hazard. Be sure you are following these safe practices,
the consumable labeling and MSDS to improve the ventilation in your
area. Do not continue welding until the situation has been corrected.
NOTE: The MSDS for all Lincoln consumables is available on Lincoln’s web-
site: www.lincolnelectric.com
Before we turn to the methods available to control welding fume
exposure, you should understand a few basic terms:
Natural Ventilation is the movement of air through the
workplace caused by natural forces. Outside, this is usually the
wind. Inside, this may be the flow of air through open windows
and doors.
Mechanical Ventilation is the movement of air through the
workplace caused by an electrical device such as a portable fan
or permanently mounted fan in the ceiling or wall.
Source Extraction (Local Exhaust) is a mechanical device
used to capture welding fume at or near the arc and filter
contaminants out of the air.
The ventilation or exhaust needed for your application depends upon
many factors such as:
• Workspace volume
• Workspace configuration
• Number of welders
• Welding process and current
• Consumables used (mild steel, hardfacing, stainless, etc.)
• Allowable levels (TLV, PEL, etc.)
• Material welded (including paint or plating)
• Natural airflow
Your work area has adequate ventilation when there is enough
ventilation and/or exhaust to control worker exposure to hazardous
materials in the welding fumes and gases so the applicable limits for
those materials is not exceeded. See chart of TLV and PEL for Typical
Electrode Ingredients, the OSHA PEL (Permissible Exposure Limit), and
the recommended guideline, the ACGIH TLV (Threshold Limit Value),
for many compounds found in welding fume.
Ventilation
There are many methods which can be selected by the user to
provide adequate ventilation for the specific application. The
following section provides general information which may be helpful
in evaluating what type of ventilation equipment may be suitable for
your application. When ventilation equipment is installed, you should
confirm worker exposure is controlled within applicable OSHA PEL
and/or ACGIH TLV. According to OSHA regulations, when welding and
cutting (mild steels), natural ventilation is usually considered sufficient
to meet requirements, provided that:
1. The room or welding area contains at least 10,000 cubic feet
(about 22’ x 22’ x 22’) for each welder.
2. The ceiling height is not less than 16 feet.
3. Cross ventilation is not blocked by partitions, equipment, or other
structural barriers.
4. Welding is not done in a conned space.
Spaces that do not meet these requirements should be equipped with
mechanical ventilating equipment that exhausts at least 2000 CFM of
air for each welder, except where local exhaust hoods or booths, or
air-line respirators are used.
Important Safety Note:
When welding with electrodes which require special
ventilation such as stainless or hardfacing (see instructions
on container or MSDS) or on lead or cadmium plated steel
and other metals or coatings which produce hazardous
fumes, keep exposure as low as possible and below
exposure limit values (PEL and TLV) for materials in the
fume using local exhaust or mechanical ventilation. In
conned spaces or in some circumstances, for example
outdoors, a respirator may be required if exposure cannot
be controlled to the PEL or TLV. (See MSDS and chart of
TLV and PEL for Typical Electrode Ingredients.) Additional
precautions are also required when welding on galvanized
steel.

vii
SAFETYGUARDIAN®CONTROL PANEL
BIBLIOGRAPHY AND SUGGESTED READING
ANSI Z87.1, Practice for Occupational and Educational Eye and Face
Protection, American National Standards Institute, 11 West 42nd
Street, New York, NY 10036.
Arc Welding and Your Health: A Handbook of Health Information for
Welding. Published by The American Industrial Hygiene Association,
2700 Prosperity Avenue, Suite 250, Fairfax, VA 22031-4319.
NFPA Standard 51B, Cutting and Welding Processes, National Fire
Protection Association, 1 Batterymarch Park, P.O. Box 9146, Quincy,
MA 02269-9959.
OSHA General Industry Standard 29 CFR 1910 Subpart Q. OSHA
Hazard Communication Standard 29 CFR 1910.1200. Available from
the Occupational Safety and Health Administration at http://www.
osha.org or contact your local OSHA office.
The following publications are published by The American Welding
Society, P.O. Box 351040, Miami, Florida 33135. AWS publications
may be purchased from the American Welding society at http://www.
aws.org or by contacting the AWS at 800-443-9353.
ANSI, Standard Z49.1, Safety in Welding, Cutting and Allied
Processes. Z49.1 is now available for download at no charge at http://
www.lincolnelectric.com/community/safety/ or at the AWS website
http://www.aws.org.
AWS F1.1, Method for Sampling Airborne Particulates Generated by
Welding and Allied Processes.
AWS F1.2, Laboratory Method for Measuring Fume Generation Rates
and Total Fume Emission of Welding and Allied Processes.
AWS F1.3, Evaluating Contaminants in the Welding Environment: A
Strategic Sampling Guide.
AWS F1.5, Methods for Sampling and Analyzing Gases from Welding
and Allied Processes.
AWS F3.2, Ventilation Guide for Welding Fume Control.
AWS F4.1, Recommended Safe Practices for the Preparation for
Welding and Cutting of Containers and Piping That Have Held
Hazardous Substances.
AWS SHF, Safety and Health Facts Sheets. Available free of charge
from the AWS website at http://www.aws.org.
Supplemental Information:
(*) Not listed. Nuisance value maximum is 10 milligrams per cubic
meter. PEL value for iron oxide is 10 milligrams per cubic meter.
TLV value for iron oxide is 5 milligrams per cubic meter.
(**) As respirable dust.
(*****) Subject to the reporting requirements of Sections 311, 312,
and 313 of the Emergency Planning and Community Right-to-
Know Act of 1986 and of 40CFR 370 and 372.
(b) The PEL for chromium (VI) is .005 milligrams per cubic meter
as an 8 hour time weighted average. The TLV for water-soluble
chromium (VI) is 0.05 milligrams per cubic meter. The TLV for
insoluble chromium (VI) is 0.01 milligrams per cubic meter.
c) Values are for manganese fume. STEL (Short Term Exposure
Limit) is 3.0 milligrams per cubic meter. OSHA PEL is a ceiling
value.
(****) There is no listed value for insoluble barium compounds. The
TLV for soluble barium compounds is 0.5 mg/m3.
TLV and PEL values are as of April 2006. Always check Material
Safety Data Sheet (MSDS) with product or on the Lincoln Electric
website at http://www.lincolnelectric.com
LISTED BELOW ARE SOME TYPICAL INGREDIENTS IN WELDING ELECTRODES AND
THEIR TLV (ACGIH) GUIDELINES AND PEL (OSHA) EXPOSURE LIMITS
INGREDIENTS CAS No. TLV mg/m3PEL mg/m3
Aluminum and/or aluminum alloys (as AI)***** 7429-90-5 10 15
Aluminum oxide and/or Bauxite***** 1344-28-1 10 5**
Barium compounds (as Ba)***** 513-77-9 **** ****
Chromium and chromium alloys or compounds (as Cr)***** 7440-47-3 0.5(b) .005(b)
Fluorides (as F) 7789-75-5 2.5 2.5
Iron 7439-89-6 10* 10*
Limestone and/or calcium carbonate 1317-65-3 10 15
Lithium compounds (as Li) 554-13-2 10* 10*
Magnesite 1309-48-4 10 15
Magnesium and/or magnesium alloys and compounds (as Mg) 7439-95-4 10* 10*
Manganese and/or manganese alloys and compounds (as Mn)***** 7439-96-5 0.2 5.0(c)
Mineral silicates 1332-58-7 5** 5**
Molybdenum alloys (as Mo) 7439-98-7 10 10
Nickel***** 7440-02-0 1.5 1
Silicates and other binders 1344-09-8 10* 10*
Silicon and/or silicon alloys and compounds (as Si) 7440-21-3 10* 10*
Strontium compounds (as Sr) 1633-05-2 10* 10*
Zirconium alloys and compounds (as Zr) 12004-83-0 5 5

TABLE OF CONTENTSGUARDIAN®CONTROL PANEL
Page
Installation ..............................................................................................................................................
Technical Specifications......................................................................................................................A-1
Safety Precautions ..............................................................................................................................A-1
Select Suitable Location......................................................................................................................A-1
Environmental Area.............................................................................................................................A-1

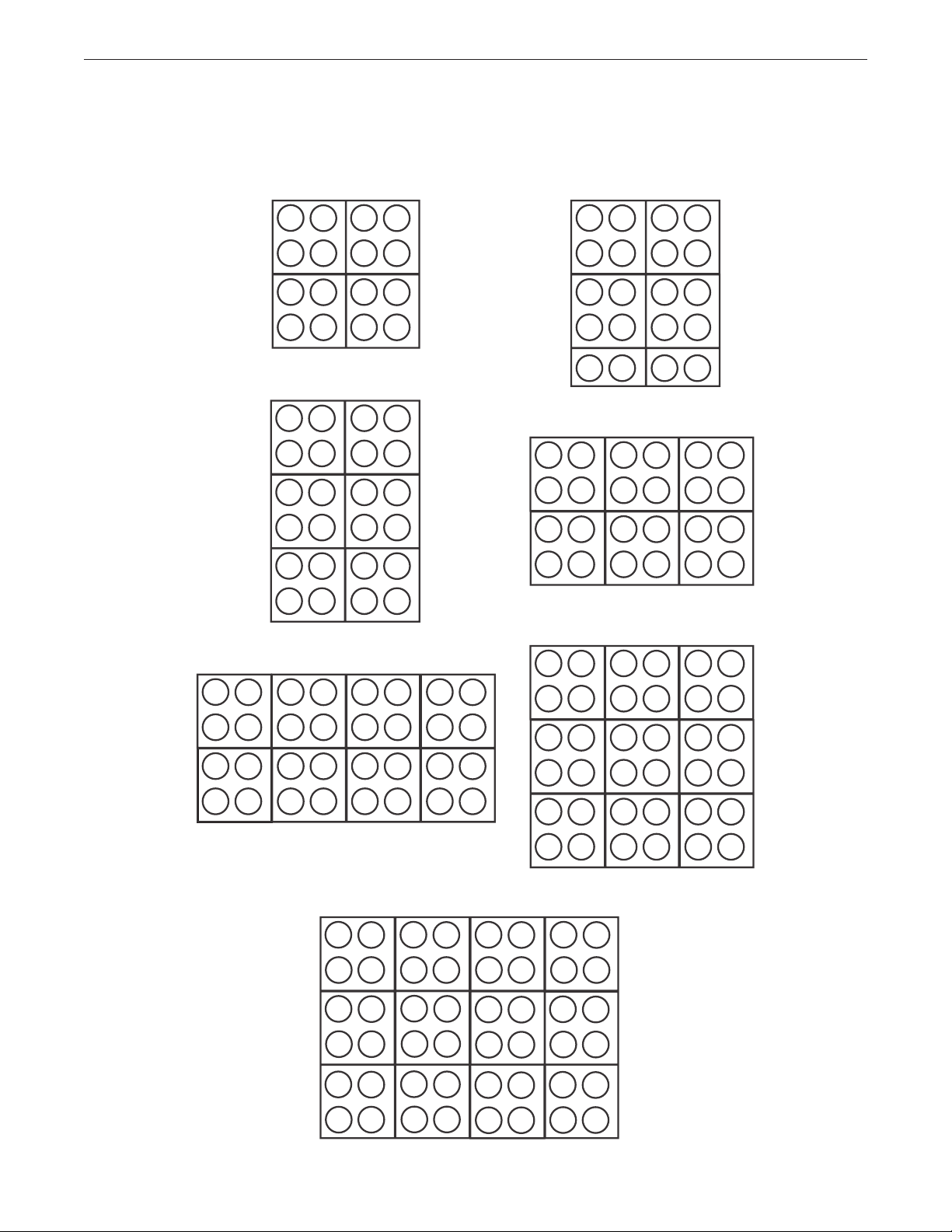

Stacking ............................................................................................................................................ A-1
Tilting ............................................................................................................................................A-1
Installation ..........................................................................................................................................A-1

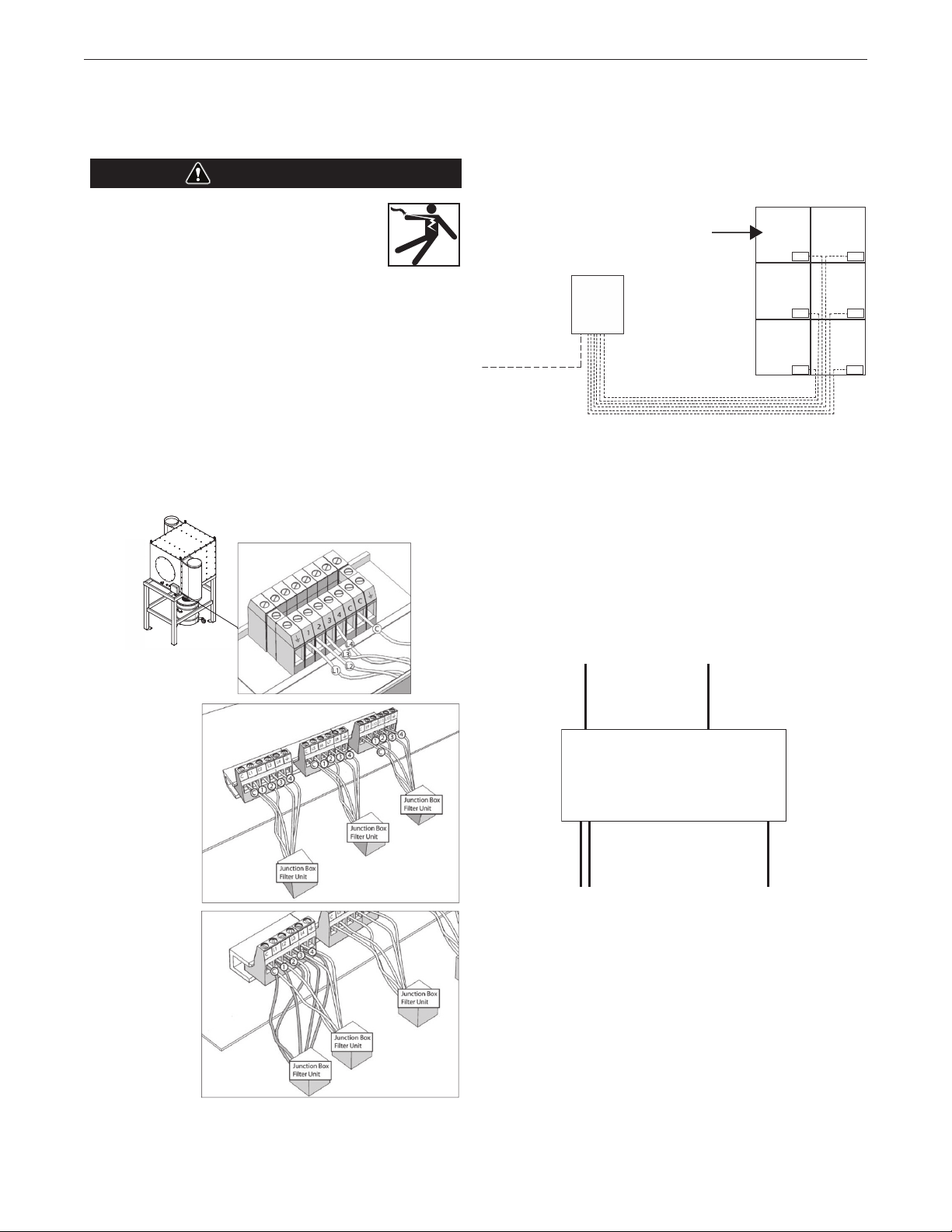

Electrical Connections .................................................................................................................A-2
Cleaning Schedule ..............................................................................................................................A-3
Operation.................................................................................................................................................
Product Description.............................................................................................................................B-1
User Interface Overview ......................................................................................................................B-1
Powering Up Your System....................................................................................................................B-1
Splash Screen.....................................................................................................................................B-1
Main Screen........................................................................................................................................B-1

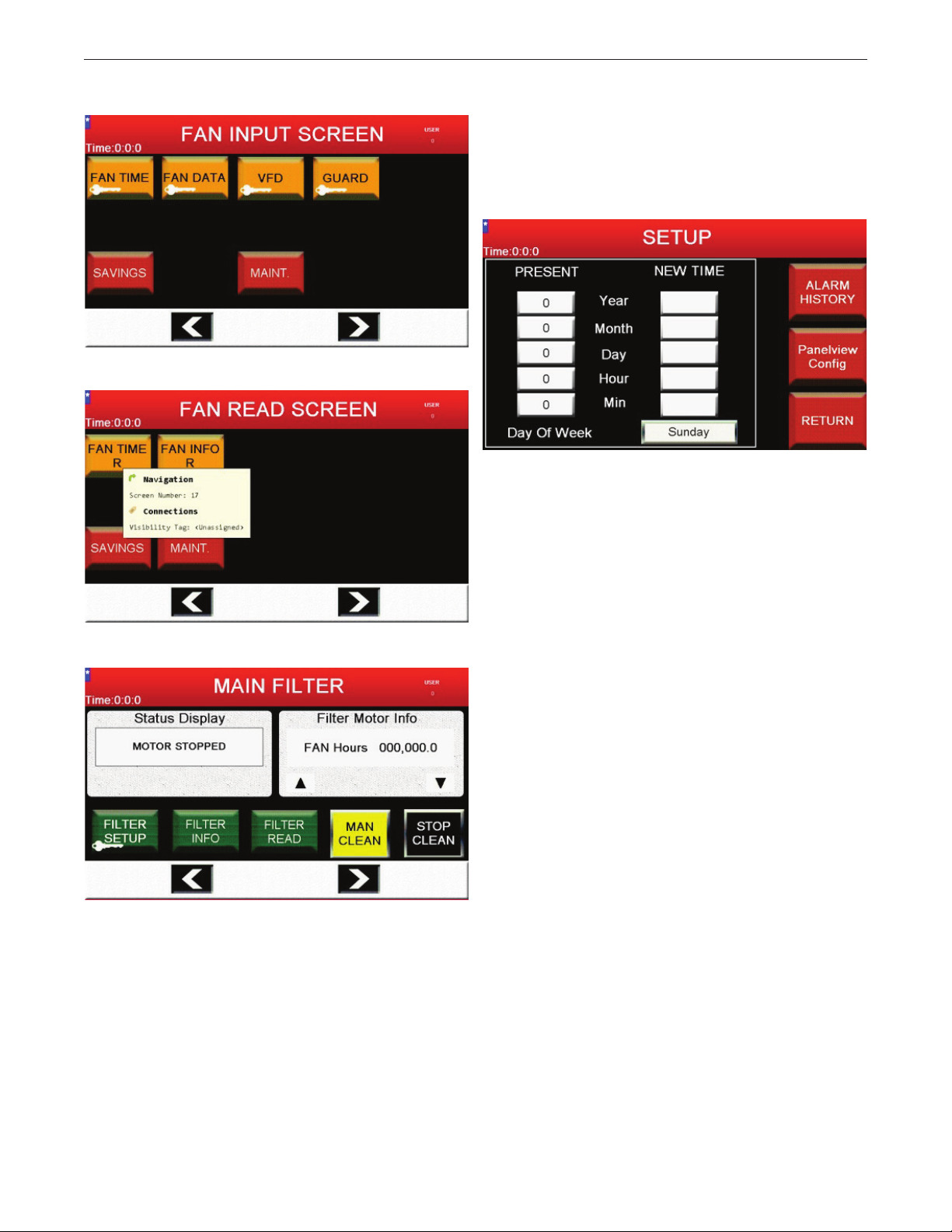

Time Setup Screen..............................................................................................................................B-3
Alarm Banner......................................................................................................................................B-4
Alarm History Screen ..........................................................................................................................B-4
Fan Start Screen .................................................................................................................................B-5

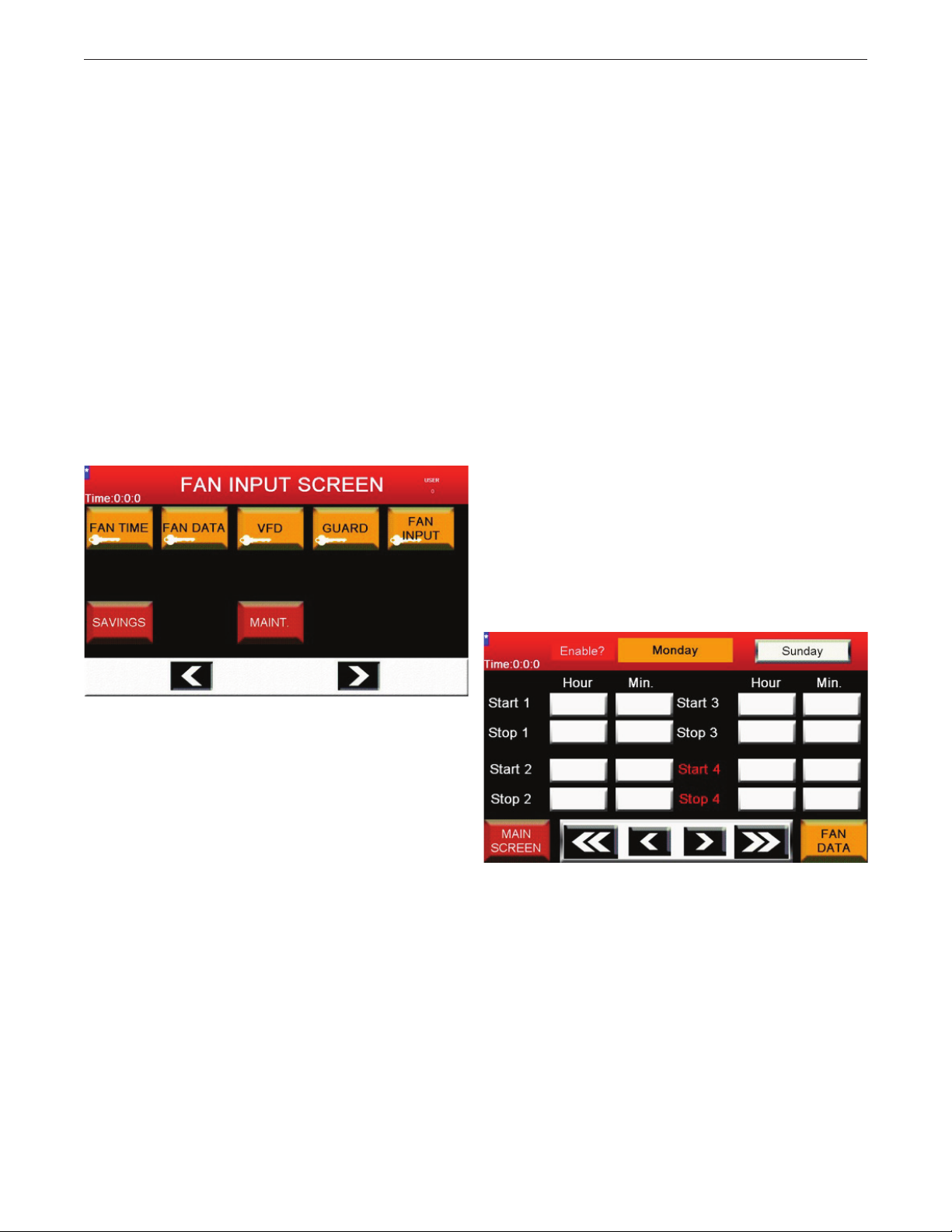

Fan Input Screen.................................................................................................................................B-6
Fan Times Screen ...............................................................................................................................B-6
Fan Data Screen .................................................................................................................................B-7
VFD Page 1 And Page 2 Screens .........................................................................................................B-7
Guardian Screen .................................................................................................................................B-8
Fan Input Screen.................................................................................................................................B-9
Savings Screen...................................................................................................................................B-9
Analog Maint. Screen ........................................................................................................................B-10
Fan Read Screen...............................................................................................................................B-10
Fan Time Read Screen ......................................................................................................................B-11
Motor Info Read Screen.....................................................................................................................B-11
Motor Filter Screen ...........................................................................................................................B-11
Filter Setup Screen............................................................................................................................B-12
Valve Inhibit Screen...........................................................................................................................B-13
Knowledge Screen ............................................................................................................................B-13
E205 Screen .....................................................................................................................................B-13
Replace Screens Replace 1, Replace 2, Replace 3.............................................................................B-14
Filter Setup Read Screen...................................................................................................................B-14
Valve Inhibit Read Screen..................................................................................................................B-14
Accessories.............................................................................................................................................
Maintenance ...........................................................................................................................................
Troubleshooting And Repair ...................................................................................................................
How To Use Troubleshooting Guide...................................................................................................... F-1
Troubleshooting Guide.................................................................................................................F-2 / F-3
Diagrams.................................................................................................................................................

ix
NOTESGUARDIAN®CONTROL PANEL

A-1
INSTALLATIONGUARDIAN®CONTROL PANEL
TECHNICAL SPECIFICATIONS
MEASUREMENTS 24”H X 24”W X 8”D
WEIGHT 75 LB / 34 KG
INPUT POWER 120 VAC, 60 Hz (175 W)
PULSE TIME 0.01 - 9.99 SEC. (0.25 SEC. FACTORY
SETTING)
PAUSE TIME 1-999 SEC. (60 SEC. FACTORY SETTING)
SHUT DOWN CLEANING 0-99 CYCLES (3 CYCLES FACTORY
SETTING)
SAFETY
CLASSIFICATION IP 54 / NEMA 12
MINIMUM OPERATING
TEMPERATURE 14ºF (-10ºC)
MAXIMUM OPERATING
TEMPERATURE 122ºF (+50ºC)
AD1387-87 PRESSURE CONTROLLED CLEANING UP
TO 32 VALVES
AD1387-89 PRESSURE CONTROLLED CLEANING UP
TO 64 VALVES
SAFETY PRECAUTIONS
• Service and Repair should only be performed by Lincoln Electric
Factory Trained Personnel.
• Electric connections should be executed in accordance with
local requirements. Ensure compliance with the EMC regulatory
arrangements.
• During installation, always use Personal Protective Equipment (PPE)
to avoid injury. This also applies to persons who enter the work
area during installation.
• Use sufficient climbing gear and safety guards when working higher
than 6 feet (local restrictions may apply).
• Never install any product in front of entrances and exits which must
be used for emergency services.
• Do not move, puncture, cut or otherwise disturb any gas, water
pipes and/or electric cables.
• Make sure the wall, ceiling or support system is strong enough to
support the weight of the products being mounted.
• Ensure the workspace is well illuminated.
• Use common sense. Stay alert and keep your attention to your
work. Do not install the product when you are under the influence
of drugs, alcohol or medicine.
• Make sure that the installation location, contains sufficient approved
fire extinguishers.
• Install according to the National Fire Protection Association
(NFPA) requirements and the state and local authorities having
jurisdiction.
SELECT SUITABLE LOCATION
Position the Guardian Control Panel in a dry location where there is
free circulation of clean air. Dirt, dust or any foreign material that
can be drawn into the machine should be kept at a minimum. Do
not expose the Guardian Control Panel to direct sunlight, as the
electrical circuits must not be subjected to extreme temperatures. All
electrical connections must be made in such a manner that water and
condensation cannot run into the control panel via the cables. The
control box should be powered from a non-switched source.
Mounting location should be at eye level as periodic adjustments may
be needed.
ENVIRONMENTAL AREA
Keep the machine inside and dry at all times. Do not expose to rain.
Never place liquids on top of the machine.
STACKING
The Guardian Control Panel cannot be stacked.
TILTING
Place the Guardian Control Panel directly on a secure, level surface
that is not subject to vibration.
INSTALLATION
1. Using a drill, make four mounting holes 18” X 25.24” apart on the
selected mounting surface. See Figure A.1.
2. Carefully position the Guardian Control Panel onto the mounting
surface and secure it using the appropriate mounting hardware.
GUARDIAN
CONTROL
PANEL
18” (452.2mm)
25.24” (641.1mm)
Figure A.1

A-2
INSTALLATIONGUARDIAN®CONTROL PANEL
ELECTRICAL CONNECTIONS
Make all electrical connections compatible to your local city / state
code.
ELECTRIC SHOCK can kill.
• Only qualified personnel should perform this
installation.
• Insulate yourself from the work and ground.
• Always connect the Guardian Control Panel to a power supply
grounded according to the National Electrical Code and local codes.
-------------------------------------------------------------------------
3. Using minimum of 16AWG/1.5 sq mm wire, connect the valves
from the terminal block on the filter module(s) to the terminal
block(s) inside the Guardian Control Panel. See Figure A.2. See
Wiring Diagram.
NOTE: Some larger installations may require additional holes to be
made in the Guardian Control Panel to allow for additional
wiring.
4. Valves must be connected in such a manner that the cleaning
cycle begins with the valves at the top of the filter bank and
progresses to the valves at the bottom of the filter bank. See
Cleaning Schedule. See Figure A.3. See Wiring Diagram.
5. Connect the equipment to a permanent power feed if shut-down
cleaning is required.
6. Make sure that the terminal voltage on the transformer matches
the actual line supply voltage coming into the control box. Check
transformer output once connected. It should be 24 - 28 volts.
See Figures A.4. See Wiring Diagram.
NOTE: See Wiring Diagram for connection to normally closed
contactor accessory points. This connection will control
on-line and off-line filter cleaning functions.
7. When all connections have been made, secure the junction box on
the rear of the filter bank.
8. Connect the ethernet cable from the VFD to the Ethernet port on
the side of the Guardian Control Panel. See Wiring Diagram.
9. Connect the pressure control panel to the Guardian Control
Panel. See Pressure Control Panel Operators Manual. See Wiring
Diagram.
10. Connect the Guardian Fire Control System to the Guardian Control
Panel. See Guardian Fire Control System Operators Manual. See
Wiring Diagram.
11. When all connections have been made, secure the Guardian
Control Panel.
GUARDIAN PANEL VALVE WIRING
SFB UNIT
GUARDIAN PANEL -32, -64
MAX. 2 VALVES PER OUTPUT
GUARDIAN PANEL -32, -64
MAX. 2 VALVES PER OUTPUT
JUNCTION BOX
FILTER UNIT
CONTROL UNIT
GUARDIAN
PANEL
LINE SUPPLY VOLTAGE
BACKSIDE OF FILTER UNIT CABINET
X1 X2
H1 H3 H2 H4
120V 60Hz AC MAINS
24V AC
Figure A.2
Figure A.3
Figure A.4
WARNING

A-3
INSTALLATIONGUARDIAN®CONTROL PANEL
CLEANING SCHEDULE
Valves are connected in such a manner that the cleaning cycle begins
with the valves at the top of the filter bank and progress to the valves
at the bottom of the filter bank. See Figures A.5 and A.6.
SFB-4 SFB-12-V
SFB-6
SFB-8-V SFB-8-H
12
34
12
34
56
12
34
56
78
12
56
34
78
12
34
56
78
910
11 12
EXAMPLE
ONE VALVE / ONE OUTPUT
Figure A.5

A-4
INSTALLATIONGUARDIAN®CONTROL PANEL
EXAMPLE
TWO VALVE / ONE OUTPUT
SFB-16
SFB-48-H
12
34
12
34
56
78
56
78
SFB-24/V
12
34
12
34
56
78
56
78
910
11 12
910
11 12
SFB-24
12
34
12
56
78
910
78
11 12
34
56
910
11 12
SFB-36
12
34
12
56
78
910
78
11 12
34
56
910
11 12
13 14
15 16
13 14
17 18
15 16
17 18
SFB-32
12
56
12
56
910
13 14
910
13 14
34
78
11 12
15 16
34
78
11 12
15 16
SFB-20
12
34
12
34
56
78
56
78
910910
12
56
12
56
34
78
34
78
910
13 14
910
13 14
11 12
15 16
11 12
15 16
17 18
21 22
17 18
21 22
19 20
23 24
19 20
23 24
Figure A.6

B-1
OPERATIONGUARDIAN®CONTROL PANEL
PRODUCT DESCRIPTION
The Guardian Control Panel is a control system designed to control
a fan motor, filter bank cleaning unit and an optional Janus fire
suppression product. The system utilizes an Allen-Bradley Micro850
PLC (Programmable Logic Controller) connected to a Panelview 800
HMI (Human Machine Interface) terminal and a Powerflex 400 VFD
(Variable Frequency Drive).
FAN MOTOR CONTROL
The fan motor may be controlled either manually with start / stop
buttons or automatically at preset start and stop times. The times are
entered on a series of screens on the HMI for the days-of-week and
can have up to four start / stop times per day.
FILTER CLEANING CONTROL
The cleaning mechanism is comprised of pneumatic solenoid valves
that blast pulses of air though the filer cartridges in order to loosen
the weld fume particulate so that it falls into collection container. The
valves can be sequenced manually or automatically based on the
differential air pressure drop across the filter banks.
JANUS RELEASE CONTROL
The optional Janus fire suppression system is monitored by the
Guardian Control Panel to stop the fan motor and close the barrier
valves if a fire is detected.
USER INTERFACE OVERVIEW
The user interacts with the control system via the Panelview 800
graphic terminal, also referred to as an HMI. The user navigates
through a series of screens to enter setpoints, activate pushbuttons
and monitor system status. See Figure B.1, for location of operator
controls and indicators.
1. Panelview 800 graphic terminal used to interact with control
system.
2. E-stop button to stop fan motor in the event of an emergency.
POWERING UP YOUR SYSTEM
1. Pull the E-Stop button out to the non-depressed position.
2. Plug the power cord into a standard outlet.
3. Guardian system will start up.
4. Wait a few minutes until the system displays the initial splash
screen on the HMI.
SPLASH SCREEN
The splash screen is displayed upon power up to identify the HMI
application. Touch any area on the screen to continue to the main
screen.
MAIN SCREEN
The main screen displays status information and provides navigation
to other screens in the system.
The main screen allows the user to:
• View cycle status information.
• View filter motor information.
• View Guardian active status.
• Navigate to Time Setup screen.
• Navigate to other top five level (Main Screen, Fan Start Screen, Fan
Input Screen, Fan Read Screen and Main Filter) screens.
1
2
Figure B.1
Figure B.2
Figure B.3

B-2
OPERATIONGUARDIAN®CONTROL PANEL
TITLE BAR
All screens contain a title bar at the top of the screen. The screen
name is displayed in the center while the time is displayed to the
left. Also for the five main navigation screens, the currently logged in
user name is displayed. If no user is logged in, the user name will be
blank.
STATUS DISPLAY
The status display area contains a status indicator and a cycle
indicator. The status indicator displays one of twelve possible states
of the fan motor / filter cleaner:
• Motor Stopped
• Motor Auto/Run
• Motor Manual Run
• Filter Clogged. Press Filter MSG Button.
• Manual Cleaning
• Auto Cleaning Lo Press Reached
• Auto Cleaning MED Press Reached
• Filter High Press Reached. Time To Purchase Filters.
• Auto Cleaning Pressure Alarm Reached
• Motor Start Failure. Service Motor.
• Motor Cooling <SETPOINT>s Cool Time (ACTUAL)
The cycle indicator displays one of three possible states of the cycle:
• Select Motor Start
• Auto Cycle Selected
• Manual Cycle Selected
FILTER MOTOR INFO
The filter motor info area contains a State Indicator. The State
Indicator displays one of fifteen possible states of the fan motor / filter
cleaner:
• FAN Hours nnn.n
• Filter Hours nnn.n
• Filter Pressure nnn PA
• Manual Cleaning nnnn
• Low Filter Clean nnnn
• Med Filter Clean nnnn
• High Filter Clean nnnn
• PAlarm Filter Clean nnnn
• Total Pulses nnn
• Filter Failure nnn
• Output Freq. nnn.n Hz
• Output Current nnn.n Amps
• Output Power nnn.n KW
• Est. Savings $nnnn.n
• Motor Failure nnn
The up arrow and down arrow buttons below the state indicator are
used to navigate through the list. If the top of the list is reached, the
up arrow will no longer be displayed. Likewise if the bottom of the list
is reached, the down arrow will no longer be displayed.
TIME BUTTON
The time button is used to navigate to the time setup screen. This
screen is password protected, you will have to enter the correct
password on the pop up keypad to access this screen.
GUARD ACTIVE INDICATOR
The guard active indicator displays guard active if the Guardian
system has been activated. If the Guardian system is not activated
the indicator displays Guard off.
LOG OUT BUTTON
The log out button is used to change the current user back to the
default user (All Users). Password protected screens will then need
the correct password to be entered on the pop up keypad.
LEFT AND RIGHT NAVIGATION BUTTONS
The left and right navigation buttons are used to navigate between
the top five screens in the screen hierarchy in a round robin fashion.
The top five screens are the Main Screen, Fan Start Screen, Fan Input
Screen, Fan Read Screen and Main Filter Screen. See Figures B.4 -
B.8.
Figure B.4
Figure B.5

B-3
OPERATIONGUARDIAN®CONTROL PANEL
TIME SETUP SCREEN
The user can set the system time and date here which is used for
automatic start and stop at preset times. Also allows navigation to
the alarm history and panelview configuration screens. The time is
entered using military time, i.e. the twenty-four hour clock.
PRESENT
Displays the current date and time.
DAY OF WEEK
Displays the current day-of-week.
NEW TIME
Touch the year, month, day, hour and min areas to enter the current
date and time on a pop up numeric keypad. The present time is
automatically updated when the enter button on the numeric keypad
is pressed. The value for the year must be in the range of 2012 to
2050 (inclusive), month 1 to 12, day 1 to 21. The value for the hour
must be within the range of 0 to 23, while the minute must be in the
range of 0 to 59. If a value outside of these ranges is entered, the
value will be rejected and a warning message will be displayed.
ALARM HISTORY BUTTON
The alarm history button is used to navigate to the alarm history
screen.
PANELVIEW CONFIG BUTTON
The panelview config button is used to exit the HMI application and go
to the panelview configuration screen. This button should be used by
qualified technicians only.
RETURN BUTTON
The return button is used to navigate back to the main screen.
Figure B.6
Figure B.9
Figure B.7
Figure B.8

B-4
OPERATIONGUARDIAN®CONTROL PANEL
ALARM BANNER
The alarm banner pops up on any screen when an alarm occurs.
There are three buttons that can be used to address the alarm:
ACK BUTTON
Acknowledges receipt of the alarm displayed in the alarm banner.
Pressing the ack button closes the alarm banner but does not clear
the alarm condition. The alarm is marked as acknowledged in the
alarm history.
When you press the ack button, the alarm acknowledged in the alarm
list object is the alarm above the last acknowledged alarm, regardless
of which alarm is highlighted.
CLEAR BUTTON
Clears the alarm from the alarm banner without acknowledging
the alarm and closes the banner, unless another alarm is awaiting
acknowledgment. Pressing the clear button does not clear the alarm
condition.
If the operator is not required to acknowledge any alarms, the alarm
banner must contain a clear button.
CLOSE BUTTON
Closes the alarm banner without performing any action on the alarm.
ALARM HISTORY SCREEN
Displays system alarms and the time and that they occurred.
ALARM LIST
The alarm list area displays alarms that have occurred. The alarm
message text is displayed in the left column, followed by the
occurrence time and date. Acknowledged alarms are displayed on
a yellow background while un-acknowledged alarms are displayed
on red. The currently selected alarm is displayed on a white
background. The possible alarms are:
• VFD Comm Fault. Check Cable
• No Air Pressure
• Filter Clogged
• Barrier Valves failed to open. Check switches and air supply.
• Inlet Barrier Valve failed to open. Check reed switch.
• Barrier Inlet Valve Reed SW on immediately.
• Outlet Barrier Valve failed to open. Check reed switch.
• Barrier Outlet Valve Reed SW immediately.
• Will not clean, all valves disabled.
• E-Stop Button Pressed, drive will not run.
• Fan inhibit. Janus Fire Guardian Fault
• Guardian fault reported. Check Janus Fire System.
• Fan Auto inhibit. Guardian fault
• Motor Failed to start 25 times. Please service motor.
• Will not clean, no valves are enabled.
• OT inhibited. No time.
• VFD start disabled. VFD must be on and press reset VFD PB.
• Cannot write to VFD. VFD not active.
• VFD Faulted during fan run.
• VFD write error.
ALARM LIST NAVIGATION BUTTONS
The alarm list navigation buttons are used to move the cursor up and
down the alarm list. The currently selected alarm appears on a white
background.
CLEAR ALL ALARMS BUTTON
The clear all alarms button removes all alarms from the alarm. Note
that even though the alarm doesn’t appear in the list, the alarm may
still be active in the system.
RETURN BUTTON
The return button is used to return to the time setup screen.
Figure B.10
Figure B.11

B-5
OPERATIONGUARDIAN®CONTROL PANEL
FAN START SCREEN
Allows the user to start the fan in manual or auto mode and extend
the fan on time. If there is a drive fault, it can be reset. Provides
navigation buttons to the other 5 top level screens.
DRIVE STATUS INDICATORS
The drive status indicators show the state of the VFD (Variable
Frequency Drive) that controls the fan motor.
Ready – The VFD doesn’t have any active faults and is ready to
accept start commands.
Active – The VFD has received a start command and is actively
controlling the motor.
CmdFwd – The VFD is being commanded to rotate forward.
Accel – The VFD is accelerating to the commanded frequency
(speed).
Comm F – Communications between the PLC and VFD are not
working.
RESET VFD BUTTON
The reset VFD button is used to attempt to clear any faults in the VFD.
VFD FAULT INDICATOR
Displays the fault status of the drive. The possible faults are:
• No Fault
• No Fault
• Aux Input
• Power Loss
• Under Voltage
• Over Voltage
• Motor Stalled
• Motor Overload
• HeatSink OT
• HW Over Current
• Ground Fault
• Load Loss
• Analog Input Loss
• Auto Restart Tries
• Phase U to Ground Fault
• Phase V to Ground Fault
• Phase W to Ground Fault
• Phase UV Short
• Phase UW Short
• Phase VW Short
• Param. Defaulted
• Software Overcurrent
• Drive Overload
• Power Unit Fail
• Net Loss
• Comm Loss
• Function Loss
• Parameter Checksum Error
• IO Board Fail
AUTO CYCLE BUTTON
Pressing the auto cycle button begins automatic start / stop operation
of the fan motor. The fan will start and stop at the times entered in
the fan times screen based on the current time.
MAN START BUTTON
Pressing the man start button begins manual mode of operation. The
fan motor will start and run until the Stop button is pressed.
STOP BUTTON
Pressing the stop button cancels both modes of operation and stops
the fan motor, if running.
STATUS INDICATOR
The Status Indicator displays one of twelve possible states of the fan
motor / filter cleaner:
• Motor Stopped
• Motor AUTO/RUN
• Motor Manual Run
• Filter Clogged. Press Filter MSG Button.
• Manual Cleaning
• Auto Cleaning Lo Press Reached
• Auto Cleaning Med Press Reached
• Filter High Press Reached. Time To Purchase Filters.
• Auto Cleaning Pressure Alarm Reached.
• Motor Start Failure. Service Motor.
• Motor Cooling <SETPOINT> S Cool Time (ACTUAL)
Figure B.12

B-6
OPERATIONGUARDIAN®CONTROL PANEL
PRESS OT BUTTON
Pressing the press OT button will extend the fan motor run time by
the amount entered in the fan data screen’s overtime entry field. If
overtime is not active, the button displays the overtime setpoint value.
If overtime is active, the button displays the actual time remaining.
LEFT AND RIGHT NAVIGATION BUTTONS
The left and right navigation buttons are used to navigate between the
top five screens in the screen hierarchy in a round robin fashion.
FAN INPUT SCREEN
The fan input screen contains navigation buttons to go to the fan start
/ stop data entry screens, as well as the VFD and Guarding setup
screens. Note that these screens are password protected, indicated
by the presence of a key on the button graphic.
The savings and maintenance screens are also accessible from this
screen. Refer to the screen navigation diagram for more information.
FAN TIME BUTTON
The fan time button is used to navigate to the fan time screen where
up to four start / stop times can be entered for each day-of-week.
Note that this screen is password protected.
FAN DATA BUTTON
The fan time button is used to navigate to the fan data screen where
drive operation parameters can be entered. Note that this screen is
password protected.
VFD BUTTON
The VFD button is used to navigate to the VFD screens where the
drive parameters can be changed. Note that this screen is password
protected.
GUARD BUTTON
The Guard button is used to navigate to the Guardian screen where
the Guardian parameters can be changed and the barriers operated
manually. Note that this screen is password protected.
FAN INPUT BUTTON
The fan input button is used to navigate to the fan input screen which
has buttons for setting or clearing the start / stop times for all of
days-of-week at one time.
SAVINGS BUTTON
The savings button is used to navigate to the savings screen which
displays the estimated savings gained by using a VFD verses an
across-the-line motor starter.
MAINT. BUTTON
The maint. button is used to navigate to the analog maintenance
screen which displays the scaled airflow analog input and allows the
user to select the type of sensor used.
LEFT AND RIGHT NAVIGATION BUTTONS
The left and right navigation buttons are used to navigate between the
top five screens in the screen hierarchy in a round robin fashion.
FAN TIMES SCREEN
The fan time screen is used to enter fan start and stop times for all
of the days-of-week. Up to four start and stop times can be entered
for each day. The fourth start / stop time has the ability to extend
into the next day. The times are entered using military time, i.e. the
twenty-four hour clock.
START / STOP TIMES
Touch the start or stop hour or minute areas to enter the time on a
pop up numeric keypad. The value for the hour must be within the
range of 0 to 23 (inclusive), while the minute must be in the range of
0 to 59. If a value outside of this range is entered, the value will be
rejected and a warning message will be displayed.
ENABLE? BUTTON
The Enable? button on the left side of the title bar is used to make the
start / stop times for a given day active. Pressing the Enable? area
of the screen will toggle between the active and inactive state. If the
times are inactive the text will read Enable? on a red background. If
the times are active the text will read Enabled on a green background.
Figure B.13
Figure B.14
