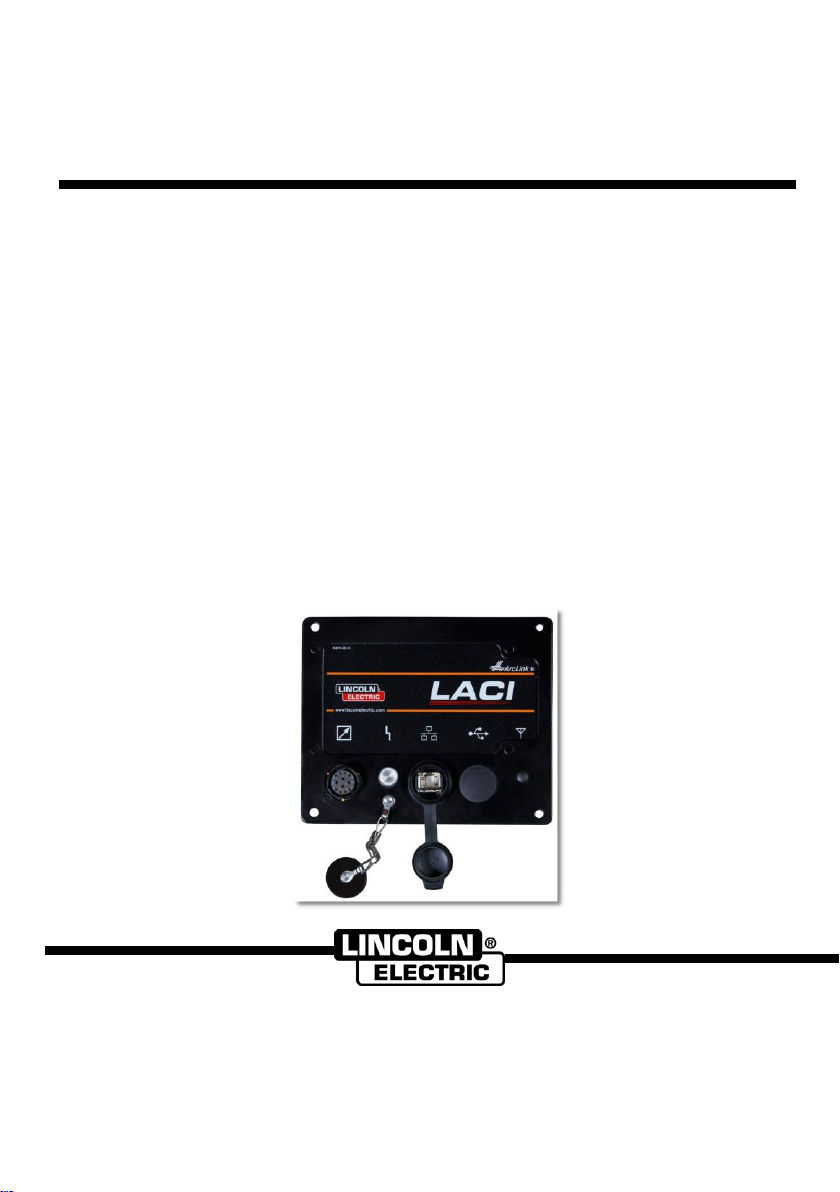

Lincoln Electric LACI Quick start guide

IM3063
03/2016
REV01
LACI Production Monitoring Module
Spare Parts.................................................................................................... 1
Electrical Schematic....................................................................................... 3
Lincoln Electric Bester Sp. z o.o.
ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland
www.lincolnelectric.eu

Spare Parts - Electrical Schematic Spare Parts - Electrical Schematic
1
Spare Parts
SP50310rev01
02/16
K14130-1 COMMUNICATION INTERFACE (ETHERNET BOX)
ASSEMBLY
PAGE NAME
Machine Assembly
CODE NO.:
FIGURE NO.:
A
50310
COMMUNICATION INTERFACE
(ETHERNET BOX)
1

Spare Parts - Electrical Schematic Spare Parts - Electrical Schematic
2
5
6
710
13
3
8
2
1
4
11
FIGURE A: MACHINE ASSEMBLY
Item
Description
Part number
Q-ty
1
LAMP RED/GREEN
0917-421-009R
1
2
PCB BRACKET
1158-632-018R
4
3
PGM-22 BLACK HOLE PLUG
0744-000-258R
1
4
CAP
1158-641-159R
1
5
COMMUNICATION
INTERFACE
9SG7761
1
6
HOLE PLUG
1159-190-073R
1
7
COVER
R-0010-521-1R
1
8
NAMEPLATE
R-0010-525-1R
1
9
ETHERNET CABLE
R-0010-559-1R
1
10
METAL PANEL
R-3019-353-1/08R
1
11
SOCKET WITH HARNESS
R-5041-360-1R
1
12
HARNESS
R-5041-364-3R
1
13
ETHERNET SOCKET
1159-190-070R
1

Spare Parts - Electrical Schematic Spare Parts - Electrical Schematic
3
Electrical Schematic
