Lincoln Electric Global UI User manual

IM3187
10/2022
REV01
Global UI
Introduction...................................................................................................................................................................... 1
UI Interface ...................................................................................................................................................................... 1
Interface description..................................................................................................................................................... 1
Main menu ................................................................................................................................................................... 1
Home Menu description ............................................................................................................................................... 1
GTAW .......................................................................................................................................................................... 2
SMAW.......................................................................................................................................................................... 5
Gouging ....................................................................................................................................................................... 6
Memories ..................................................................................................................................................................... 6
Limits & Lockouts ......................................................................................................................................................... 8

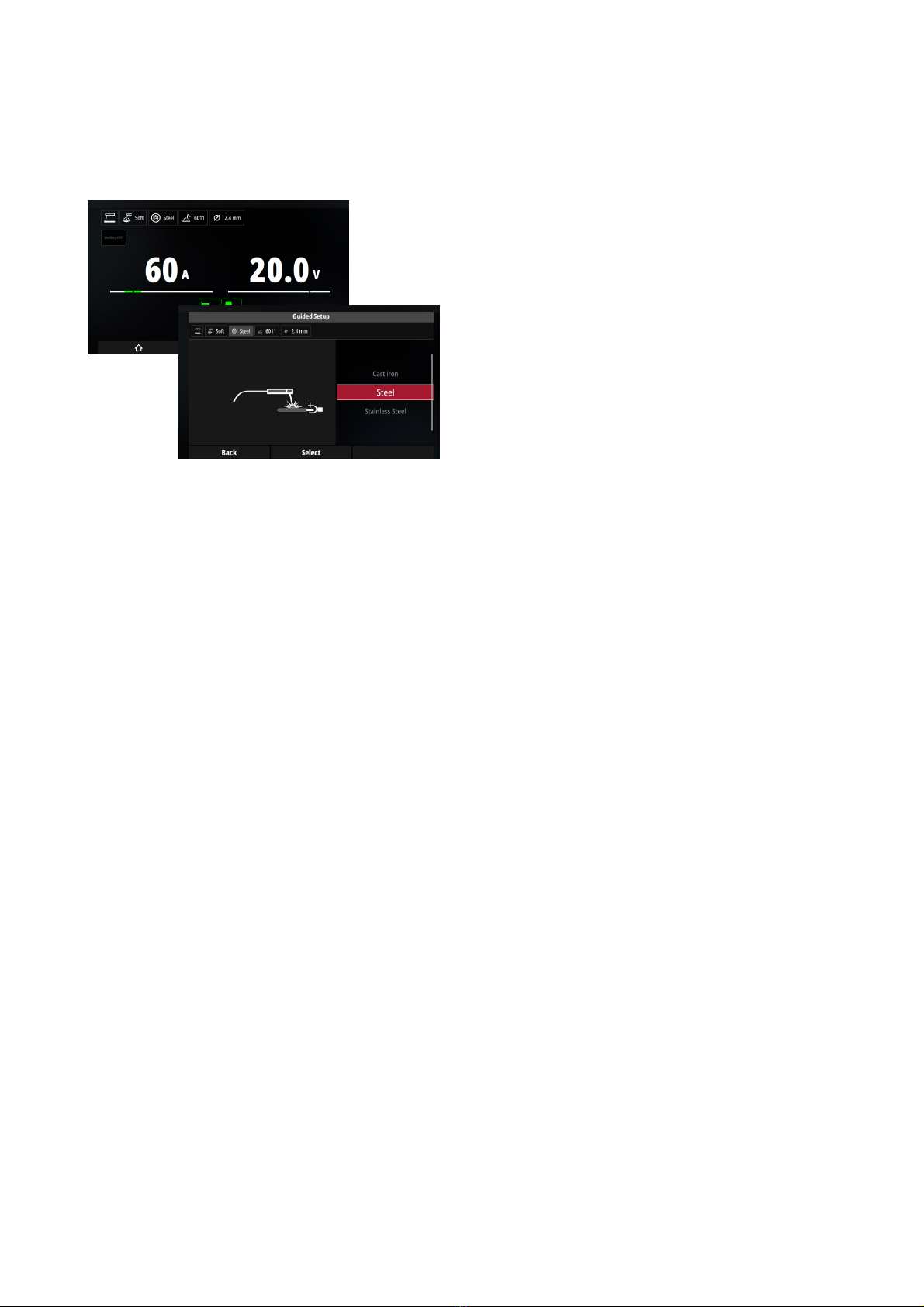

Guided Setup ............................................................................................................................................................. 10
System Options.......................................................................................................................................................... 12
Errors codes and troubleshooting .............................................................................................................................. 17
TIG Trigger Sequences ................................................................................................................................................. 19
ENGLISH
Lincoln Electric Bester Sp. z o.o.
ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland

English 1 English
Introduction
Global UI is used for communication between the device
and the user. It contains 5’’ TFT display, two controls with
active button and center validation button that allow the
user to effectively and quickly control all functions and
parameters.
WARNING
According to references some options or features cannot
be available.
This interface is or may be widely used in advanced
equipment as:
INVERTEC TP series
INVERTEC S series
PRESTO series
CITOARC series
PRESTOTIG series
CITOTIG series

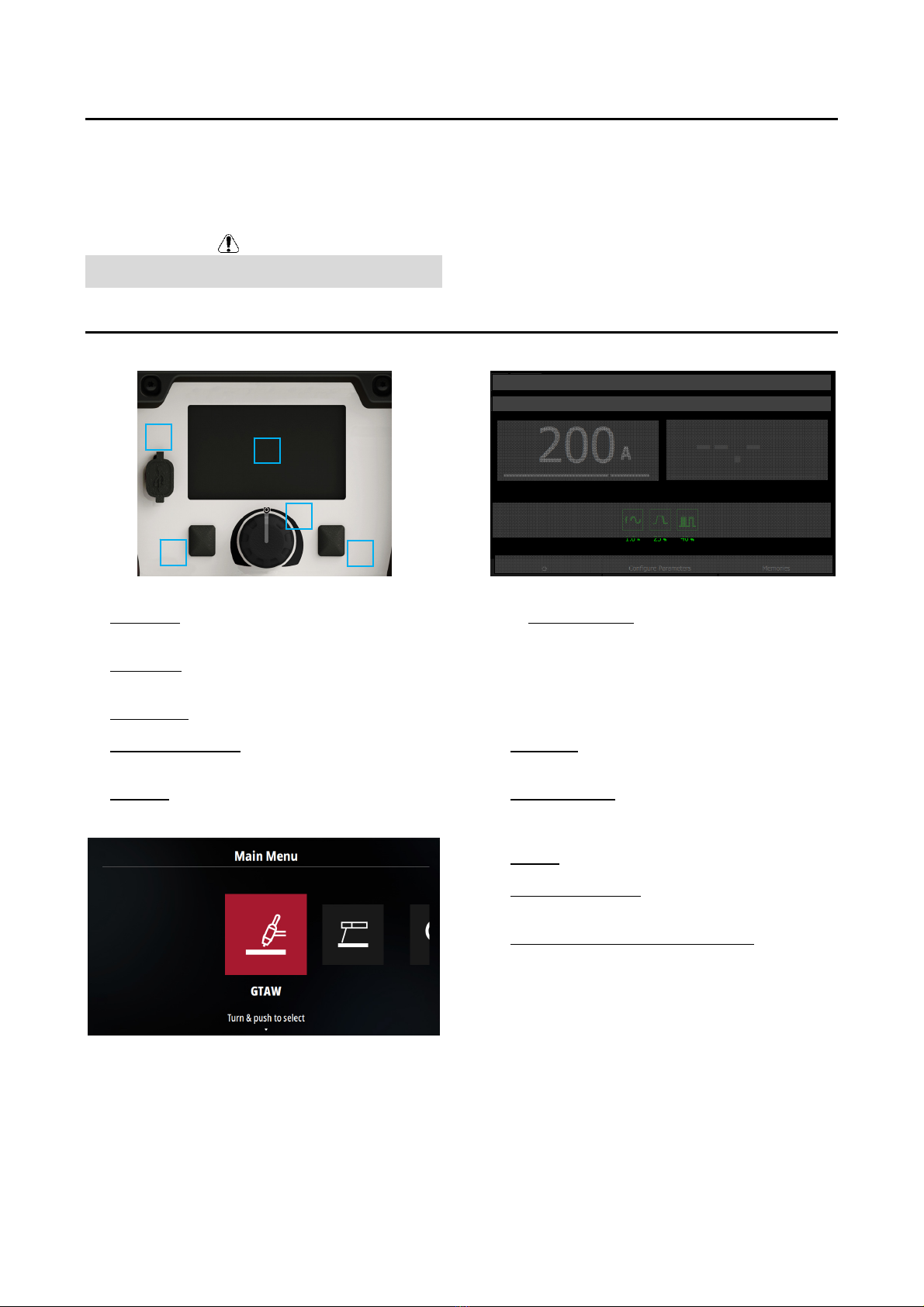

UI Interface
Interface description
Figure 1
1. 5ʺDisplay: TFT display shows welding processes
parameters.
2. Left Button: Cancel selection. Return to the previous
menu.
3. Right Button: Access to various functions.
4. Central Knob Button: Navigate and confirm/validate
selection.
5. USB Key: Export welding data and update software.
Main menu
Figure 2
After power source start-up, user has access to process
and power source configuration:
GTAW
SMAW
Gouging
System option
Home Menu description
Figure 3
1. In “Primary Settings” area, the type of process and
corresponding information will be indicated like type
of arc striking for TIG and type of MMA mode (Soft,
Crisp etc …).
If “Guided Setup Mode” is selected, all inputs will be
displayed in the section.
2. “Status Bar” gives additional information like Trigger
Interlock selection, remote control status.
3. “Preset Current” indicates the current value
configured by welder and, during welding, welding
current value.
4. “Voltage”: Indication of welding voltage.
5. “Secondary Settings” allow to user to see the
current values of weld sequence parameters.
6. “Contextual Buttons / Encoders Labels” informs the
user of features associated to the knob and buttons.
1
23
4
5
Primary settings
Status Bar
Preset current Voltage
Secondary settings
Contextual Buttons / Encoders Labels

English 2 English

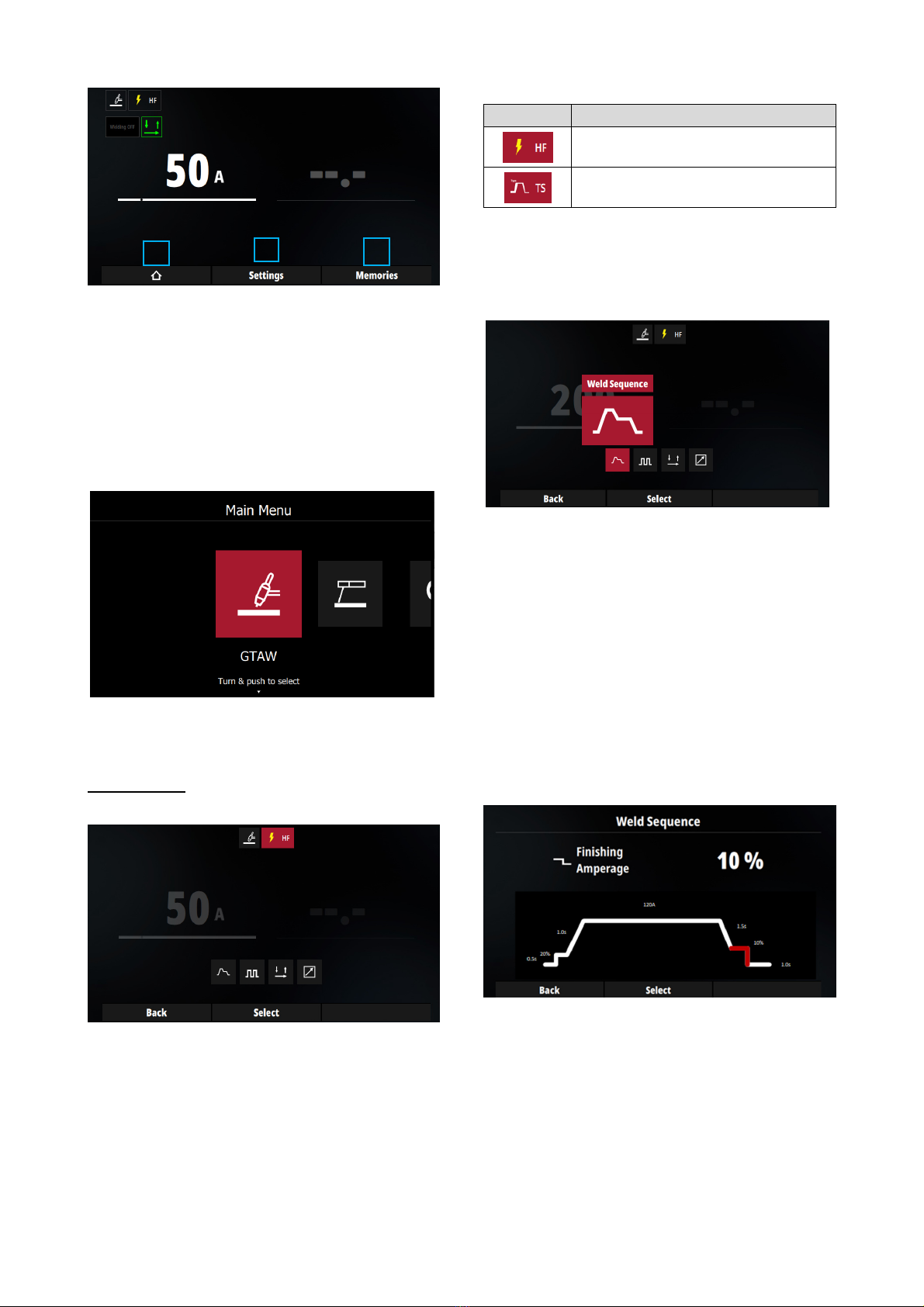

Figure 4
1. “Main Menu” access, push this button to go back in
order to change process or go to System Options.
2. Push button to configure all parameters of current
process.
Turn the knob to adjust the welding current value.
3. “Memories” access. See ʺMemoriesʺsubchapter.
GTAW
Figure 5
To choose TIG mode process, select GTAW icon and
push the knob button.
Settings pages
In Home menu, push knob to select “Settings”.
Figure 6
Start Mode selection:
Icon Description
High Frequency arc striking
Touch Start arc striking
In HF mode, a high voltage will allow arc striking.
In Touch Start, user has to touch welding piece with
electrode and lift torch to create arc.
Weld Sequence :
Figure 7
In this section, user will configure all TIG cycle
parameters:
Preflow time
Start current
Ramp-up time
Current value
Slope-down time
Finish current
Postflow time
If pulse mode is activated, additional parameters will be
available:
Frequency
Duty cycle
Background current.
Figure 8
1 2 3

English 3 English

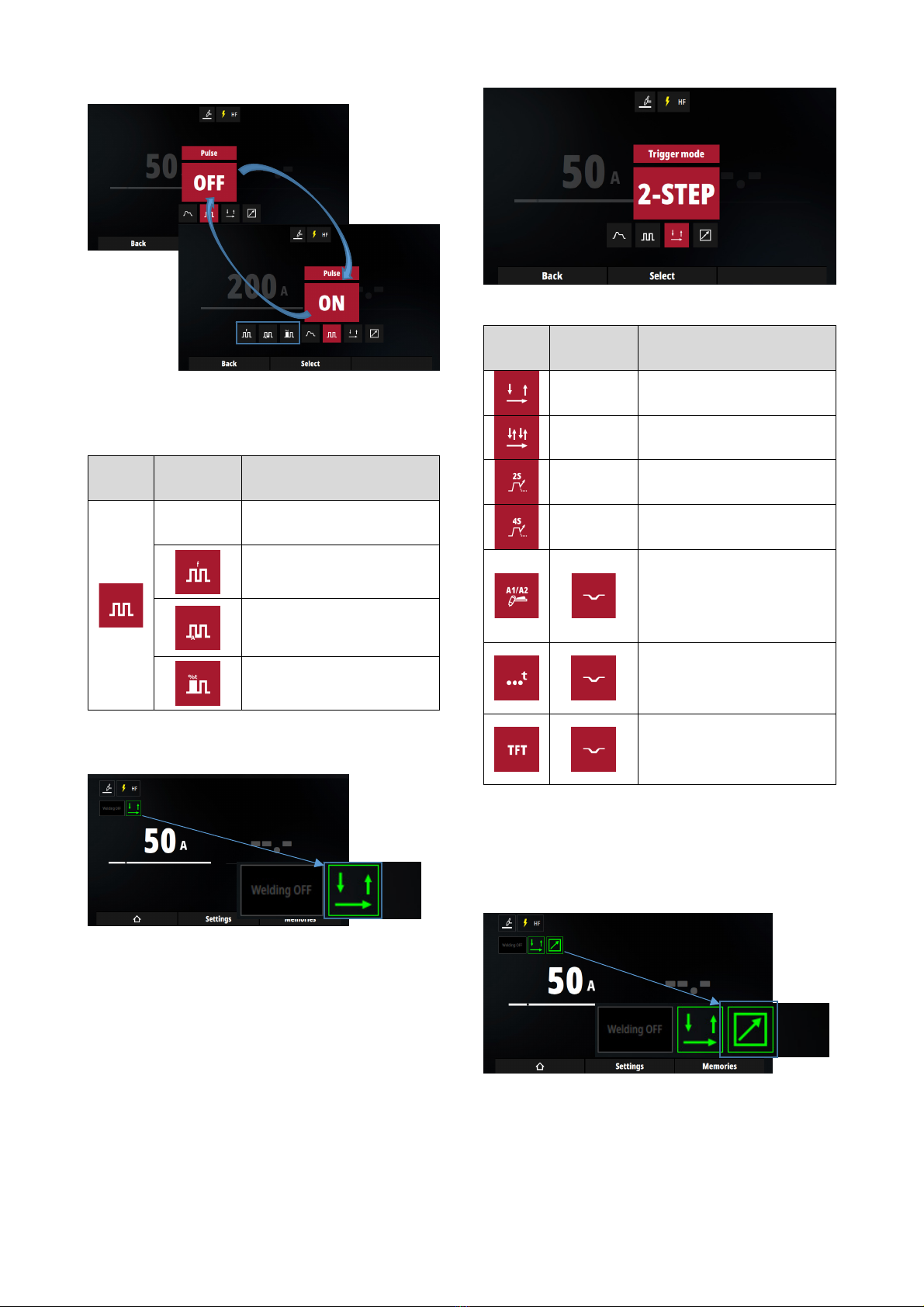

Pulse Mode activation:
Figure 9
When TIG pulse is activated, three new icons appear to
configure frequency, duty cycle and background current.
Main
Icon
Secondary
Icon Description
Pulse mode activation or
deactivation.
Pulse frequency.
Configure the Background
current which is a percentage
of Welding current.
Pulse duty cycle.
Trigger Mode:
According to Trigger mode selection, dedicated icon will
be displayed in “Status Bar”.
Figure 10
Use knob to go to “Trigger mode” icon and push knob
button to enter in “Trigger mode” menu selection.
Figure 11
Main
Icon
Secondary
Icon Description
Trigger torch operating mode
in 2 Step.
Trigger torch operating mode
in 4 Step.
Trigger torch operating mode
in 2 Step with Restart.
Trigger torch operating mode
in 4 Step with Restart.
Trigger torch operating mode
in 4 Step Bi-Level.
Secondary icon allows to set
the Background current
value.
Trigger torch operating mode
in Spot.
Secondary icon allows to set
the Spot time.
Trigger torch operating mode
in Tack For Thin.
Secondary icon allows to set
the Tack time.
For more details about Trigger sequence, see dedicated
section in TIG Trigger Sequences chapter.
Remote Control:
When remote control is activated, dedicated icon is
displayed in “Status Bar”.
Figure 12
Use knob to go to “Remote Control” icon and push knob
button to enter in Remote Control menu selection.

English 4 English
Figure 13
Main
Icon
Secondary
Icon Description
When a remote control is
selected (excepted Up &
Down).
Secondary icon allows to
configure current range.
Hand Remote:
Accessible with Manual remote control and torch with
potentiometer.
User configure the current value only with potentiometer.
Knob on UI has no effect on welding current configuration.
Current range value is defined in secondary icon. In
example below the current range will be from 15A to
270A.
Figure 14
In order to change range value, push knob button and
configure lower and upper limits of current range.
Figure 15
Figure 16
Foot pedal:
Accessible only with Foot remote control.
User configure the minimum current when pedal is barely
press and the maximum current when the pedal is fully
pressed.
The current value display on Home menu correspond to
current according to pedal position.
Torch potentiometer:
Accessible only with Torch potentiometer.
Works like Foot remote control but foot effect is done with
torch potentiometer.
UP-DOWN torch:
Usable only with UP&Down torch.
During welding pushing UP button will smoothly increase
the current value and pushing DOWN button will smoothly
decrease the current value.

English 5 English

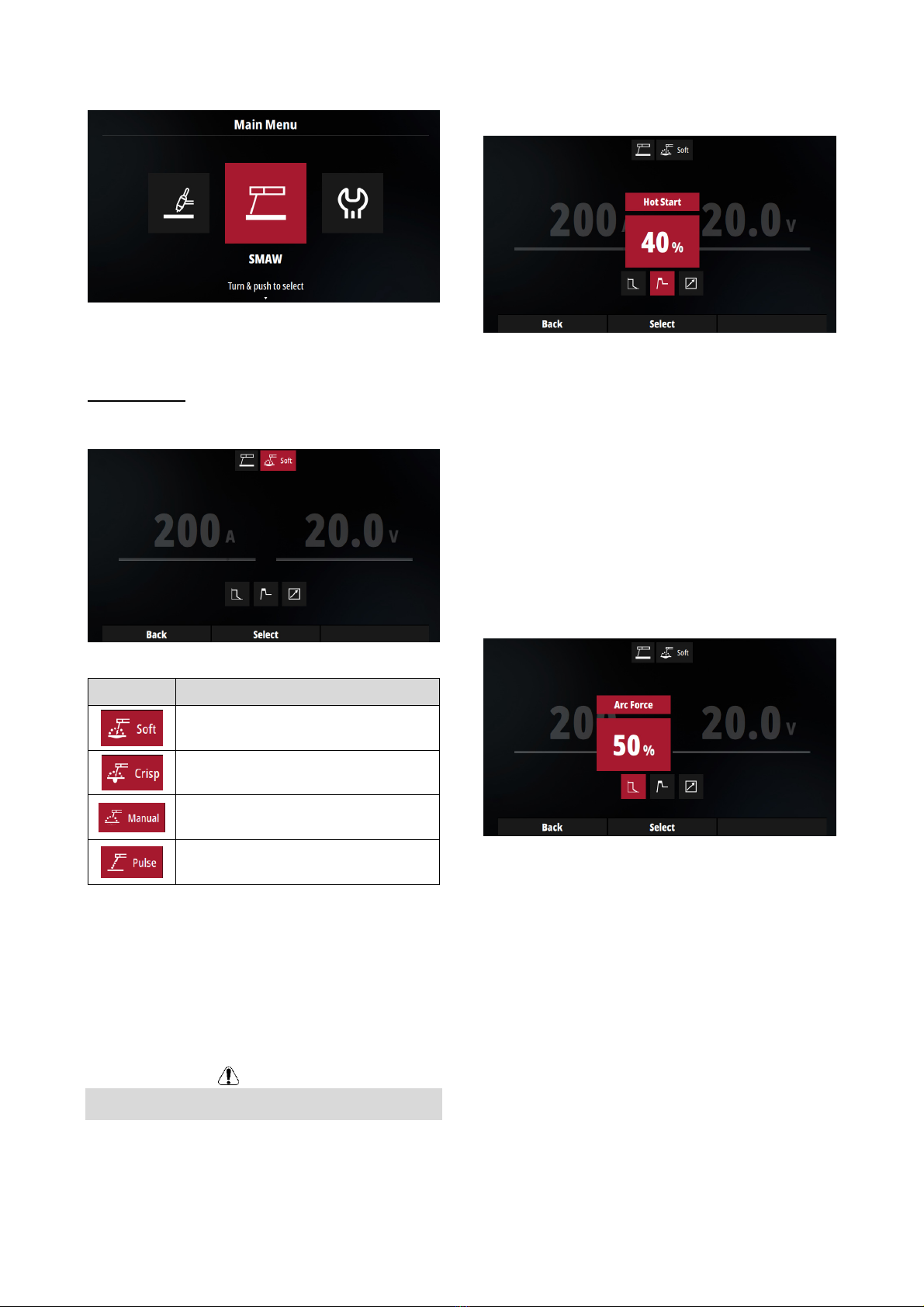

SMAW
Figure 17
To choose MMA mode process, select SMAW icon and
push the knob button.
Settings pages
In Home menu, push knob to select “Settings”.
Arc characteristics:
Figure 18
Icon Description
Soft arc behaviours. Hot Start and Arc
Force cannot be configured.
Crisp arc behaviours. Hot Start and Arc
Force cannot be configured.
In manual mode user has full access to
Hot Start and Arc Force values.
Arc will be pulsed with frequency, duty
and background current.
The machine allows the user the use 4 stick modes:
Soft: For a welding with a low spatter presence.
Crisp: For an aggressive welding, with an increased
Arc stability. This settings is mainly intended to
cellulosic electrodes.
Manual: user has full control of Arc Force and Hot start
parameters.
Pulse: user can define the frequency, duty, and
welding current.
WARNING
In Soft and Crisp, Hot Start and Arc Force cannot be
modified.
Hot Start:
This is a temporary increase in the initial welding current.
This helps ignite the arc quickly and reliably.
Figure 19
Select the “Hot Start”, push the knob button, change the
value and push again to validate.
Unit is in percentage. In this example the Initial current will
be equal the welding current with 40% of welding current
added.
Example: if welding current is 100A, the Hot Start current
will be 140%.
Arc Force:
This is a temporary increase in the output current during
normal stick welding. This temporary increase in output
current is used to clear intermittent contact between the
electrode and the weld puddle that occur during normal
stick welding.
Figure 20
Anti-Sticking
This feature cannot be modified by user.
This is a function that decreases the output current of the
machine to a low level when the operator makes an error
and sticks the electrode to the work piece. This decrease
in current allows the operator to remove the electrode
from the electrode holder without creating large sparks
that can damage the electrode holder.

English 6 English

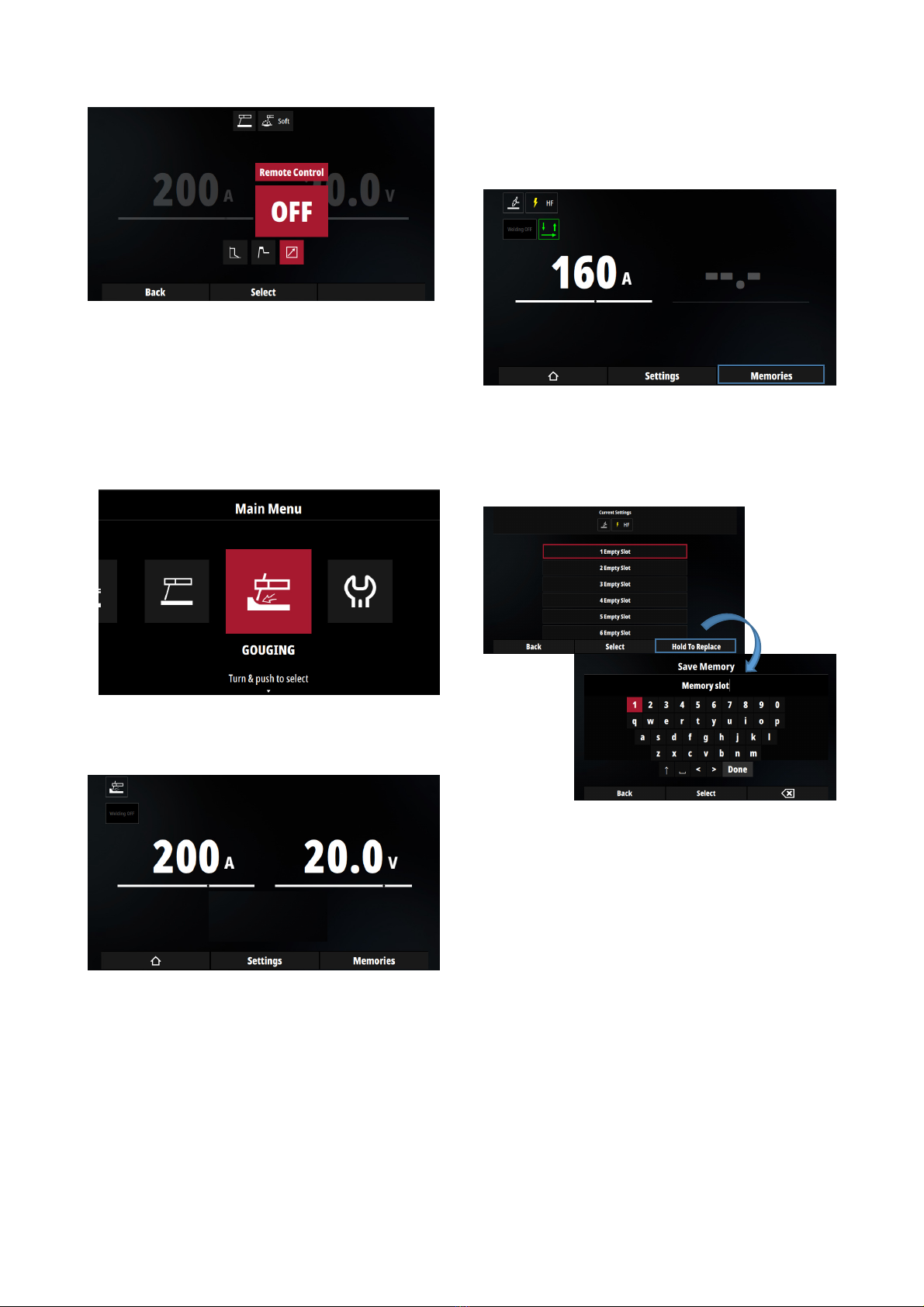

Remote Control
Figure 21
In SMAW mode, two type of remote control can be
selected:
Hand remote control
Pedal Remote control.
For both, behavior is identical to GTAW. Refer to
dedicated section in GTAW chapter.
Gouging
Figure 22
To choose Gouging mode process, select gouging icon
and push the knob button.
Figure 23
Memories
In Home menu, user can save the current welding setup
in dedicated slot by pressing “Memories” button. Welding
process and all cycle parameters are saved and can be
recalled.
Figure 24
Save Memory
Select a slot and hold “Hold To Replace” to save the
current welding. A keyboard will appear allowing user to
name the memory.
Figure 25

English 7 English
Recall Memory
In Home menu, press Memories button. Navigate with
knob to desired memory to load and push Knob button.
An icon with slot number will appear on the top right.
Figure 26
When scrolling through memories slot, border of current
memory slot currently selected is displayed in green.
Otherwise, border will be red.
Figure 27
When a memory is used, user can also Unselect memory.
This action is necessary when Limit & Lockout are set on
memory slot and user needs full control. See Limits &
Lockouts section.
Figure 28
Erase Memories
Memories can be erased. Select “System Options”,
“Memories management” and finally “Edit memories”.
Select the memories you want to erase and push knob
button.
Figure 29
Export / Import memories
To export on USB key memories, plug USB key, then
selection USB key in System Options menu. Finally select
“Backup all settings & memories”.
Figure 30
To load from USB key memories previously saved, select
Load Only Memories.
Memories and PIN settings
When a supervisor code is created, memories can be
locked. See dedicated section Limits & Lockouts.
Memory currently
used

English 8 English
Limits & Lockouts
Limits & Lockouts allows user to limit or lock some
welding parameters like Preflow time, slope up etc…
This feature is closely linked to Memories and PIN
settings. Limitations and lockouts can only be defined in a
memory slot. User has to load a memory with limited
parameters to use limitation features.
To select and set limits and lockouts, select Memories
management in System Options menu.
If there is no PIN settings used on machine, Supervisor
line cannot be accessed.
A Supervisor (when PIN number is created) can access to
all memories locked or not. An Operator can only access
to unlocked memories.
Figure 31
Memory lock
When a supervisor code is created, locking memory
forbids any modifications of them. When memory is
locked, a lock will be displayed on top-right. To unlock,
push Unlock button.
Figure 32
In Home page, memory number is indicated with a lock.
Any memory modification by erasing are impossible as
long as memory is locked. To replace memory, supervisor
must unlock it before.
Figure 33
Memory limits and lockouts.
Limits:
In this section, an example will be taken to understand
how to limit duty cycle range from 40% to 60% of pulsed
TIG. This procedure must be executed for any parameters
where restriction are expected.
From Home page, TIG parameters are saved in memory
slot n°2 with duty cycle set to 50% (within 40% and 60%).
Figure 34
To define limit, user have to go to “System Options” 
“Memories Management” “Supervisor” or “Operator” 
“Limits & Lockouts” et select memory slot n°2.
As there is currently no restriction, range is maximum from
5% to 95%. Push Select button to configure minimum and
maximum value.

English 9 English
Figure 35
Set low limit to 40% and maximum limit to 60%. Value
50% displayed is the value previously store in memory.
WARNING
Low limit cannot be higher than value store in memory
and high limit cannot be lower than value store in
memory. Based on this example, if user want to limit duty
cycle from 60% to 70%, user has to save configuration in
memory with duty value between 60% and 70% for
example 65%
Figure 36
In Home menu, when Duty Cycle is selected, areas in
white show inaccessible values.
Figure 37
Lockouts:
In order to lock Duty cycle to only one value. Low and
High limits must be set to same value.
Figure 38

English 10 English
Guided Setup
Guide Setup is a feature which configures automatically
the power source according to a set of input data:
Type of metal sheet
Thickness
Type of joint
Tungsten diameter
Based on this data, the power source will be automatically
configured to get the most suitable parameters for
optimum welding quality.
Guide Setup activation
Guided Setup can be activated in System Options then
Weld Mode Setup.
In “Manual Mode”, assistance is deactivated. A push on
knob button activates it.
Figure 39
GTAW Guide Setup
When Guided mode is activated, Home page layout is
changed by:
Adding list of all inputs data in “Primary Settings”
section.
Preset a defined current value.
Modifying current range ribbon.
Figure 40
Graphical Guide Setup
Push Guided Setup button to open graphical menu. Step
by step, user will set welding parameters:
Type of material to weld
Thickness
Type of joint
Tungsten electrode diameter.
Figure 41
Guide Setup direct access
Global UI offers the possibility to directly change a
parameter without recalling the graphical menu. From
Home menu, push Settings button and navigate directly to
parameter you wish to modify.
Figure 42
Once parameters are modified, the output welding current
will be automatically adjusted to fit with the application.
Current range
Guided Setup set a current value which fits perfectly with
application parameters. However, user keep full control of
current value and can modify it.
If current value is not the expected range (green),
additional indications (red line and arrow) will appear
indicating value is not in appropriate range.
Figure 43

English 11 English
SMAW Guide Setup
In same way than GTAW, SMAW process has also a
Guide Setup.
Parameters and inputs data are adjusted for SMAW
process.
Figure 44

English 12 English
System Options
System Options access is from Main Menu.
Figure 45:
Here below is the tree menu to configure power source.
USB key
Menu can be accessed only when USB be is plugged and
allow user to:
1. Data monitoring
When Data monitoring is activated, characteristics of
welding beads are saved on USB key. Following
information will be store on USB key:
Average voltage
Average current
Welding bead duration time
WARNING
Data are not saved in the power source. Data monitoring
is not possible without USB key plugged.
To activate Data monitoring, plug USB key and toggle
Enable data monitoring on USB key switch.
Figure 46
User gets back data in trace.csv file in USB key.
It is also possible to see data stored on USB key on
power source UI in Weld Log menu.
Figure 47
1. Export / Import memories
See Memories section.
2. Download a new software
When a USB key is inserted in socket, new software is
automatically detected. A pop-up windows will ask to
confirm software installation.

English 13 English
Figure 48
WARNING
Do not switch power source off during software update.
After software installation and it is requested, power
source must be restarted.
Weld Mode Setup
See Guided Setup subchapter.
Dual Procedure
WARNING
This mode in only available when Weld Mode Setup is in
Manual
Dual Procedure allows user to quickly change between
two power sources process configurations. Dual
Procedure is very similar to Memory recall with quick
access.
One configuration is saved in quick memory A and the
other configuration is saved in B quick memory B.
In order to activate Dual Procedure.
Figure 49
When activated, two new icons will be display in Home
Menu according to quick memory A or B selected.
Figure 50
To alternate between A and B, user has to access to new
icon in Secondary Settings.
Figure 51
Main
Icon Description
Push knob button to alternate between A and
B procedures.
Cooler Mode
Figure 52

English 14 English
When OFF is selected, cooler is not used.
When ON is selected, cooler will be always activated.
In Automatic mode, cooler will be activated when trigger is
pressed and will be shut down few minutes after trigger
released.

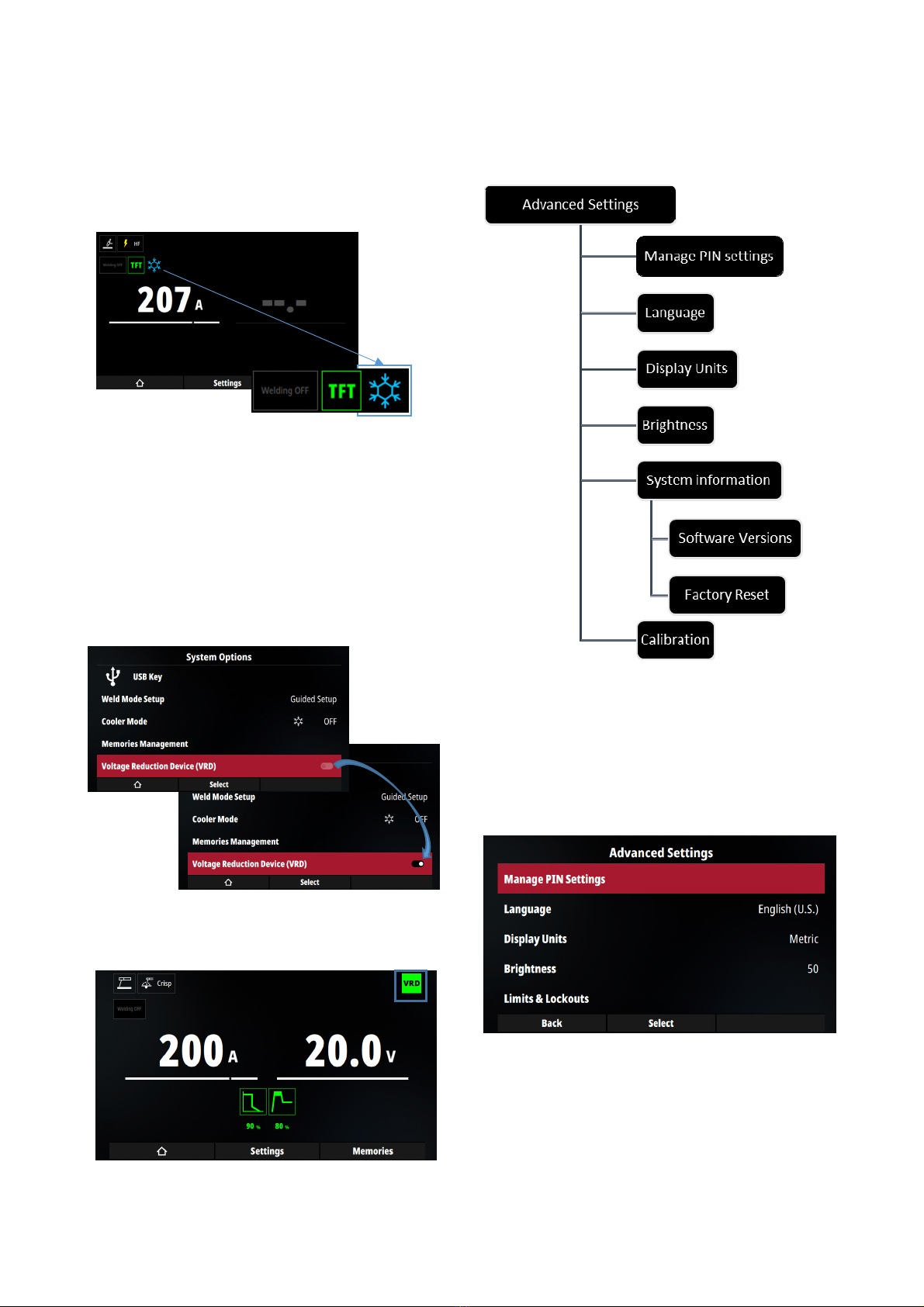

In ON and Automatic, an icon is displayed on Home menu
to indicate Cooler is activated.
Figure 53
Memories Management
See dedicated sections Memories page 6 and Limits &
Lockouts.
VRD
VRD (Voltage Reduction Device) feature is only available
when SMAW process is selected.
When VRD is activated, an auxiliary power source with
low voltage is used to arc strike.
Figure 54
When activated, a new icon on top right will indicate that
output voltage is reduced.
Figure 55
Customers support
In this section, user will find all information of our
accessories catalog.
Advanced Settings
Here below is the Advanced Settings tree.
Figure 56
Manage PIN settings
PIN settings allow to create a supervisor code which
allows to limit and restrict parameters modification.
Supervisor is defined by a unique PIN code number.
If a supervisor PIN code exists, PIN code will be asked to
enter in Manage PIN Settings menu.
Figure 57
To create a supervisor code (if it does not already exist),
select Create PIN and enter PIN supervisor code number.
If supervisor PIN code exists Create PIN line is not
selectable.

English 15 English
Figure 58
It is possible to change existing supervisor PIN number by
selecting Change PIN. Before entering new PIN code,
current code number will be requested.
If no PIN number is defined, option is not available.
Figure 59
In order to remove supervisor code, select Remove PIN.
Current PIN code number will be asked to validate
supervisor account removal.
Figure 60
WARNING
If Supervisor code is lost, a Factory Reset must be done
to recover all access to machine.
Login Delay Time
When supervisor code is set on machine, it is possible to
avoid entering supervisor code each time it is requested
for a definite time. By default, setting is OFF; each time
supervisor code is requested, a windows pop-up will ask
PIN code.
Figure 61
By changing Login Delay Time by a time, supervisor code
will not be asked during the time configured.
Figure 62
Language
User can change and configure UI language in this
section.
Figure 63

English 16 English
Display Units
In this section, user will be able to select metrics or
imperials units.
Figure 64
Brightness
User has the possibility to change the brightness of UI.
Figure 65
System Information
Software versions are indicated in this section. On the
top, v03.XX indicates the package number installed in
machine.
Figure 66
In this section user can restore default Factory settings.
WARNING
All memories will be erased. Save them on USB key to
reload them after restoration.
Calibration
WARNING
Calibration must be done by skilled technician with
proper equipments.

English 17 English
Errors codes and troubleshooting
When the error occurs, the error message is displayed in
red.
Figure 67
By pushing the knob button, the error code number is
displayed.
During error, new welding sequence is blocked as long as
the reason of error remains.
Figure 68
When the error vanished, it is now possible to
acknowledge the error by pushing the knob. The
background error message becomes white.
Table 1 Error codes shows list of elementary errors that
can appear. To get full list of error codes, please contact
Lincoln Electric service.

18
Table 1 Error codes
Error code Symptoms Cause Recommended Course of Action
36
37
The machine has shut
down because it has
overheated.
System detected a temperature
level beyond the normal system
operating limit.
Be sure process does not exceed duty
cycle limit of the machine.
Check the setup for proper air flow around
and through the system.
Check that the system has been properly
maintained, including removal of
accumulated dust and dirt from the intake
and outlet louvers.
User interface show information when
machine will be cooled down. To continue
welding operation Please press Left
Control or start welding operation by the
torch trigger.
266
No coolant flow There is no coolant flow in the
cooler after 3 seconds of welding.
Make sure there is enough coolant in the
tank and that auxiliary power is supplied.
Make sure the pump is working. When the
trigger is pulled the pump should run.
Check cooling circuit connections.
Impossible to have full
range of configurable
parameters
Limit & Lockout features are
possibly activated for selected
memory.
Unselect memories
Change Limits value
WARNING
If for any reason you are unable to perform the recommended actions in the event of a fault, contact the nearest authorized
Lincoln Electric service facility.

19
TIG Trigger Sequences
TIG welding can be done in either the 2-step or 4-step
mode. The specific sequences of operation for the trigger
modes are explained below.
Legend of the symbols used:
Torch Pushbutton
Output Current
Gas Pre-flow
Gas
Gas Post-flow
2-Step Trigger Sequence
With the 2-step trigger mode and a TIG welding mode
selected, the following welding sequence will occur.
1. Press and hold the TIG torch trigger to start the
sequence. The machine will open the gas valve to
start the flow of the shielding gas. After the preflow
time, to purge air from the torch hose, the output of
the machine is turned ON. At this time the arc is
started according to the selected welding mode.
After the arc is started the output current will be
increased at a controlled rate, or upslope time, until
the Welding current is reached.
If the torch trigger is released during the upslope time
the arc will stop immediately and the output of the
machine is turned OFF. Release the TIG torch trigger
to stop welding. The machine will now decrease the
output current at a controlled rate, or downslope time,
until the Crater current is reached and the output of
the machine is turned OFF.
After the arc is turned OFF, the gas valve will remain
open to continue the flow of the shielding gas to the hot
electrode and work piece.
As shown above, it is possible to press and hold the TIG
torch trigger a second time during downslope to end the
downslope function and maintain the output current at
the Crater current. When the TIG torch trigger is
released the output will turn OFF and the post flow time
will start. This operation sequence, 2-step with restart
disabled, is the default setting from the factory.
2-Step Trigger Sequence with Restart Option
If the 2-step restart option is enabled from the setup
menu the following sequence will occur:
1. Press and hold the TIG torch trigger to start the
sequence as described above.
2. Release the TIG torch trigger to start the
downslope. During this time press and hold the TIG
torch trigger to restart welding. The output current
will increase again at a controlled rate until the
Welding current is reached. This sequence can be
repeated as many times as necessary. When the
welding is complete release the TIG torch trigger.
When the Crater current is reached the output of the
machine is turned OFF.
