Lincoln Electric INVERTEC PC208 CE User manual

IM2016
01/2021
REV09
INVERTEC®PC208 & PC210
OPERATOR’S MANUAL
ENGLISH
Lincoln Electric Bester Sp. z o.o.
ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland
www.lincolnelectric.eu

English English
I
12/05
THANKS! For having choosen the QUALITY of the Lincoln Electric products.
Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified
immediately to the dealer.
For future reference record in the table below your equipment identification information. Model Name, Code & Serial
Number can be found on the machine rating plate.
Model Name:
………………...…………………………….…………………………………………………………………………………………..
Code & Serial number:
………………….……………………………………………….. …………………………………………………….……………..
Date & Where Purchased:
…………………………………………………………………... ……………………….…………………………………………..
ENGLISH INDEX
Technical Specifications...............................................................................................................................................................1
ECO design information ...............................................................................................................................................................2
Electromagnetic Compatibility (EMC) ..........................................................................................................................................4
Safety............................................................................................................................................................................................5
Installation and Operator Instructions ..........................................................................................................................................7
WEEE .........................................................................................................................................................................................12
Spare Parts.................................................................................................................................................................................12
REACh........................................................................................................................................................................................12
Authorized Service Shops Location...........................................................................................................................................12
Electrical Schematic ...................................................................................................................................................................12

English English
1
Technical Specifications
NAME INDEX
INVERTEC®PC208 CE K12037-1
INVERTEC®PC208 AUS K12037-2
INVERTEC®PC210 CE K12038-1
INVERTEC®PC210 AUS K12038-2
INPUT
Input Voltage Input Power at Rated Output EMC Class Frequency
230 V ±10%
Single Phase
2 kW @ 100% Duty Cycle
A 50Hz
2.5 kW @ 60% Duty Cycle
3 kW @ 35% Duty Cycle
RATED OUTPUT AT 40°C
Duty Cycle
(Based on a 10 min. period) Output Current Output Voltage
100% 15 A 86 Vdc
60% 20 A 88 Vdc
35% 25 A 90 Vdc
OUTPUT RANGE
Cutting Current Range Maximum Open Circuit Voltage Pilot Arc Current
10 - 25 A 500 Vdc 12 A
EXTERNAL INLET COMPRESSED AIR
Required Inlet Flow Rate Required Inlet Pressure
80 ±20% l/min @ 5.0bar 6.0bar - 7.5bar
RECOMMENDED INPUT CABLE AND FUSE SIZES
Fuse (delayed) or Circuit Breaker
(“D” characteristic) Size
Type of Plug
(Included with Machine) Input Power Cable
16 A SCHUKO 16A / 250V 3 x 1.5 mm2
AUSTRALIAN 15A / 250V
PHYSICAL DIMENSIONS
Height Width Length
(case only,without torch) Weight
385 mm 215 mm 480 mm 18 – 18.5 kg
Operating Temperature Storage Temperature
-10°C to +40°C -10°C to +40°C

English English
2
ECO design information
The equipment has been designed in order to be compliant with the Directive 2009/125/EC and the Regulation
2019/1784/EU.
Efficiency and idle power consumption:
Index Name Efficiency when max power
consumption / Idle power consumption Equivalent model
K12038-1 PC210 83,7% / 58W No equivalent model
Idle state occurs under the condition specified in below table:
IDLE STATE
Condition Presence
MIG mode
TIG mode
STICK mode
After 30 minutes of non-working X
Fan off
The value of efficiency and consumption in idle state have been measured by method and conditions defined in the product
standard EN 60974-1:20XX.
Manufacturer’s name, product name, code number, product number, serial number and date of production can be read from
rating plate.
XXXXXXXXXX
Code: XXXXX XXXXXX-X
S/N: P1YYMMXXXXX
12
34
5
P1 YY MM XXXXX
5A5A 5B 5D5C
XXXXXXX
Where:
1- Manufacturer name and address
2- Product name
3- Code number
4- Product number
5- Serial number
5A- country of production
5B- year of production
5C- month of production
5D- progressive number different for each machine

English English
3
Typical gas usage for MIG/MAG equipment:
Material type
Wire
diameter
[mm]
DC electrode positive Wire Feeding
[m/min] Shielding Gas Gas flow [l/min]
Current
[A]
Voltage
[V]
Carbon, low
alloy steel 0,9 ÷ 1,1 95 ÷ 200 18 ÷ 22 3,5 – 6,5 Ar 75%, CO225% 12
Aluminium 0,8 ÷ 1,6 90 ÷ 240 18 ÷ 26 5,5 – 9,5 Argon 14 ÷ 19
Austenic
stainless steel 0,8 ÷ 1,6 85 ÷ 300 21 ÷ 28 3 - 7 Ar 98%, O22% / He 90%, Ar 7,5% CO22,5% 14 ÷ 16
Copper alloy 0,9 ÷ 1,6 175 ÷ 385 23 ÷ 26 6 - 11 Argon 12 ÷ 16
Magnesium 1,6 ÷ 2,4 70 ÷ 335 16 ÷ 26 4 - 15 Argon 24 ÷ 28
Tig Process:
In TIG welding process, gas usage depends on cross-sectional area of the nozzle. For comonnly used torches:
Helium: 14-24 l/min
Argon: 7-16 l/min
Notice: Excessive flow rates causes turbulence in the gas stream which may aspirate atmospheric contamination into the
welding pool.
Notice: A cross wind or draft moving can disrupt the shielding gas coverage, in the interest of saving of protective gas use
screen to block air flow.
End of life
At end of life of product, it has to be disposal for recycling in accordance with Directive 2012/19/EU (WEEE), information
about the dismantling of product and Critical Raw Material (CRM) present in the product, can be found at
https://www.lincolnelectric.com/en-gb/support/Pages/operator-manuals-eu.aspx

English English
4
Electromagnetic Compatibility (EMC)
01/11
This machine has been designed in accordance with all relevant directives and standards. However, it may still generate
electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or
other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand this
section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine.
This machine has been designed to operate in an industrial area. The operator must install and operate this
equipment as described in this manual. If any electromagnetic disturbances are detected the operator must put
in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric.
This machine is not in accordance with IEC 61000-3-12. If it is powered by a low voltage public distribution
network in the connection responsibility of the installer or user of equipment, consultation, if necessary, with the electricity
service distributor.
Before installing the machine, the operator must check the work area for any devices that may malfunction because of
electromagnetic disturbances. Consider the following.
Input and output cables, control cables, and telephone cables that are in or adjacent to the work area and the machine.
Radio and/or television transmitters and receivers. Computers or computer controlled equipment.
Safety and control equipment for industrial processes. Equipment for calibration and measurement.
Personal medical devices like pacemakers and hearing aids.
Check the electromagnetic immunity for equipment operating in or near the work area. The operator must be sure that
all equipment in the area is compatible. This may require additional protection measures.
The dimensions of the work area to consider will depend on the construction of the area and other activities that are
taking place.
Consider the following guidelines to reduce electromagnetic emissions from the machine.
Connect the machine to the input supply according to this manual. If disturbances occur if may be necessary to take
additional precautions such as filtering the input supply.
The output cables should be kept as short as possible and should be positioned together. If possible connect the work
piece to ground in order to reduce the electromagnetic emissions. The operator must check that connecting the work
piece to ground does not cause problems or unsafe operating conditions for personnel and equipment.
Shielding of cables in the work area can reduce electromagnetic emissions. This may be necessary for special
applications.
WARNING
The Class A equipment is not intended for use in residential locations where the electrical power is provided by the public
low-voltage supply system. There can be potential difficulties in ensuring electromagnetic compatibility in those locations,
due to conducted as well as radio-frequency disturbances.

English English
5
Safety
01/11
WARNING
This equipment must be used by qualified personnel. Be sure that all installation, operation, maintenance and repair
procedures are performed only by qualified person. Read and understand this manual before operating this equipment.
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment.
Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages
caused by improper installation, improper care or abnormal operation.
WARNING: This symbol indicates that instructions must be followed to avoid serious personal injury, loss
of life, or damage to this equipment. Protect yourself and others from possible serious injury or death.
READ AND UNDERSTAND INSTRUCTIONS: Read and understand this manual before operating this
equipment. Plasma cutting or gouging can be hazardous. Failure to follow the instructions in this manual
could cause serious personal injury, loss of life, or damage to this equipment.
ELECTRIC SHOCK CAN KILL: Welding equipment generates high voltages. Do not touch the electrode,
work clamp, or connected work pieces when this equipment is on. Insulate yourself from the electrode,
work clamp, and connected work pieces.
ELECTRICALLY POWERED EQUIPMENT: Turn off input power using the disconnect switch at the fuse
box before working on this equipment. Ground this equipment in accordance with local electrical
regulations.
ELECTRIC AND MAGNETIC FIELDS MAY BE DANGEROUS: Electric current flowing through any
conductor creates electric and magnetic fields (EMF). EMF fields may interfere with some pacemakers,
and welders having a pacemaker shall consult their physician before operating this equipment.
CE COMPLIANCE: This equipment complies with the European Community Directives.
ARTIFICIAL OPTICAL RADIATION: According with the requirements in 2006/25/EC Directive and
EN 12198 Standard, the equipment is a category 2. It makes mandatory the adoption of Personal
Protective Equipments (PPE) having filter with a protection degree up to a maximum of 15, as required by
EN169 Standard.
WORK MATERIALS CAN BURN: Cutting generates a large amount of heat. Hot surfaces and materials
in work area can cause serious burns. Use gloves and pliers when touching or moving materials in the
work area.
EQUIPMENT WEIGHT OVER 30kg: Move this equipment with care and with the help of another person.
Lifting may be dangerous for your physical health.
CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct
shielding gas for the process used and properly operating regulators designed for the gas and pressure
used. Always keep cylinders in an upright position securely chained to a fixed support. Do not move or
transport gas cylinders with the protection cap removed. Do not allow the torch, work clamp or any other
electrically live part to touch a gas cylinder. Gas cylinders must be located away from areas where they
may be subjected to physical damage or the cutting process including sparks and heat sources.

English English
6
Cutting sparks can cause explosion or fire. Keep
flammables away from cutting. Do not cut near
flammables. Have a fire extinguisher nearby, and have
a watch person ready to use it. Do not cut on drums or
any closed container.
The plasma arc can cause injury and burns. Keep your
body away from nozzle and plasma arc. Turn off power
before disassembling torch. Do not grip material near
cutting path. Wear complete body protection.
Electric shock from torch or wiring can kill. Wear dry
insulating gloves. Do not wear wet or damaged gloves.
Protect yourself from electric shock by insulating yourself
from work and ground. Disconnect input plug or power
before working on machine.
Breathing cutting fumes can be hazardous to your
health. Keep your head out of the fumes. Use forced
ventilation or local exhaust to remove the fumes. Use
ventilating fan to remove fumes.
Arc rays can burn eyes and injure skin. Wear hat and
safety glasses. Use ear protection and button shirt
collar. Use welding helmet with correct shade of filter.
Wear complete body protection.
Become trained and read the instructions before working
on the machine or cutting.
Do not remove or paint over (cover) the label.
SAFETY MARK: This equipment is suitable for supplying power for cutting operations carried out in an
environment with increased hazard of electric shock.
The manufacturer reserves the right to make changes and/or improvements in design without upgrade at the same time the
operator’s manual.

English English
7
Installation and Operator Instructions
Read this entire section before installation or operation of
the machine.
Location and Environment
This machine can operate in harsh environments.
However, it is important that simple preventative
measures are followed to assure long life and reliable
operation:
Do not place or operate this machine on a surface with
an incline greater than 15° from horizontal.
Do not use this machine for pipe thawing.
This machine must be located where there is free
circulation of clean air without restrictions for air
movement to and from the air vents. Do not cover the
machine with paper, cloth or rags when switched on.
Dirt and dust that can be drawn into the machine
should be kept to a minimum.
This machine has a protection rating of IP23S. Keep it
dry when possible and do not place it on wet ground
or in puddles.
Locate the machine away from radio controlled
machinery. Normal operation may adversely affect
the operation of nearby radio controlled machinery,
which may result in injury or equipment damage.
Read the section on electromagnetic compatibility in
this manual.
Do not operate in areas with an ambient temperature
greater than 40°C.
Duty Cycle
The duty cycle of a plasma machine is the percentage of
time in a 10 minute cycle at which the operator can
operate the machine at rated cutting current.
Example: 35% duty cycle means that is possible cut for
3,5 minutes, then the machine stops for 6,5minutes.
Refer to the Technical Specification section for more
information about the machine rated duty cycles.
Input Supply Connection
Check the input voltage, phase, and frequency supplied to
this machine before turning it on. The allowable input
voltage is indicated in the technical specification section of
this manual and on the rating plate of the machine. Be
sure that the machine is grounded.
Make sure the amount of power available from the input
connection is adequate for normal operation of the
machine. The fuse rating and cable sizes are both
indicated in the technical specification section of this
manual.
The machines:
PC208 (230Vac, 50Hz, single phase)
PC210 (230Vac, 50Hz, single phase)
are designed to operate on engine driven generators as
long as the auxiliary can supply adequate voltage,
frequency and power as indicated in the "Technical
Specification" section of this manual. The auxiliary supply
of the generator must also meet the following conditions:
Vac peak voltage: below 410V.
Vac frequency: 50Hz.
RMS voltage of the AC waveform: 230Vac ± 10%.
It is important to check these conditions because many
engine driven generators produce high voltage spikes.
Operation of this machine on engine driven generators not
conforming to these conditions is not recommended and
may damage the machine.
Output Connections
WARNING
Use ONLY the torch supplied with this machine. For a
replacement refer to the Maintenance section of this
manual.
WARNING
Always turn OFF the machine when working on the torch.
WARNING
Do not remove the work clamp during cutting, plasma
cutting generates high voltages that can kill.
WARNING
Open Circuit Voltage U0> 100VDC. For more information
refer to the Technical Specification section.
This machine is sent from the factory with a cutting torch
and work clamp installed. The work clamp must be
securely connected to the work piece. If the work piece is
painted or extremely dirty it may be necessary to expose
the bare metal in order to make a good electrical
connection.
Built-In Compressor
This machine has a built-in compressor that allow to
operates in areas where an external primary air is not
available. Only an electrical mains supply is necessary!
Controls and Operational Features
INVERTEC PC208 front command panel.
The PC208 machine front panel has a lower quantity of
commands than the PC210 showed below, but the
displacement is the same:
The commands [A], [B], [C], [D] are available on the
PC208 front panel.
The commands [E], [F] aren’t available on the PC208
front panel.
INVERTEC PC210 front command panel.

English English
8
Commands descriptions:
A. Output Current Knob: Potentiometer used to set the
output current used during cutting. Refer to the
Technical Specification section for more information
about the machine rated current range.
Air Purge: The Output Current Knob completely
rotated counterclockwise enables the air purge
function. A 5 minutes timeout stops the purge
function; this happens only if the Output Current Knob
remains in the purge mode for a long time.
B. Power ON/OFF green LED: It lights up when the
machine is ON.
C. Output red LED: See meanings in the following
table.
D. Thermal yellow LED: See meanings in the following
table.
LEDs
Meaning
Output
(Red)
Thermal
(Yellow)
On Of
f
The cutting torch is energized.
On On
Part in place error: the retaining
cap is not properly screwed.
To restore the machine:
Screw firmly the torch retaining
cap.
Wait for 5seconds; during this
time the Output and Thermal
LEDs blinks alternately.
After 5seconds the machine is
automatically restored and
ready to operate.
Of
f
On
The machine is overheated and
the output has been disabled.
This usually occurs when the duty
cycle of the machine has been
exceeded. Leave the machine On
to allow the internal components to
cool. When the thermal LED turns
off, normal operation is again
possible.
Of
f
Blink
Mains undervoltage or overvoltage
error: the machine is disabled.
When the mains return in the
correct range, the machine restart
automatically.
Blink Of
f
Low air pressure error.
To check / adjust the air pressure
(see recommended values in the
Tecnical Specifications of this
manual):
Put the machine in Purge
mode [A].
Check and adjust the air
pressure through the
manometer and air pressure
regulator knob [F].
If necessary, check and adjust
also the inlet air pressure
through the commands of the
external compressor.
E. Internal / External air selection (PC210 only): This
switch determine the air supply. With the “In Compr”
position selected, the machine operates through the
built-in compressor. With the “Ext Air” position
selected, the internal compressor is completely
disabled and the machine operates through an
external air supply hose connected to the proper air
inlet connection placed on the machine rear side.
WARNING
PC210 Only: If operate with external air, be sure to
select the “Ext Air” switch position in order to
completely disable the built-in compressor.
Otherwise the compressor may be damaged by the
probable greater pressure of the external air.
F. Air Pressure Gauge and Regulator Knob (PC210
only): Allow to regulate and monitoring the air
pressure.

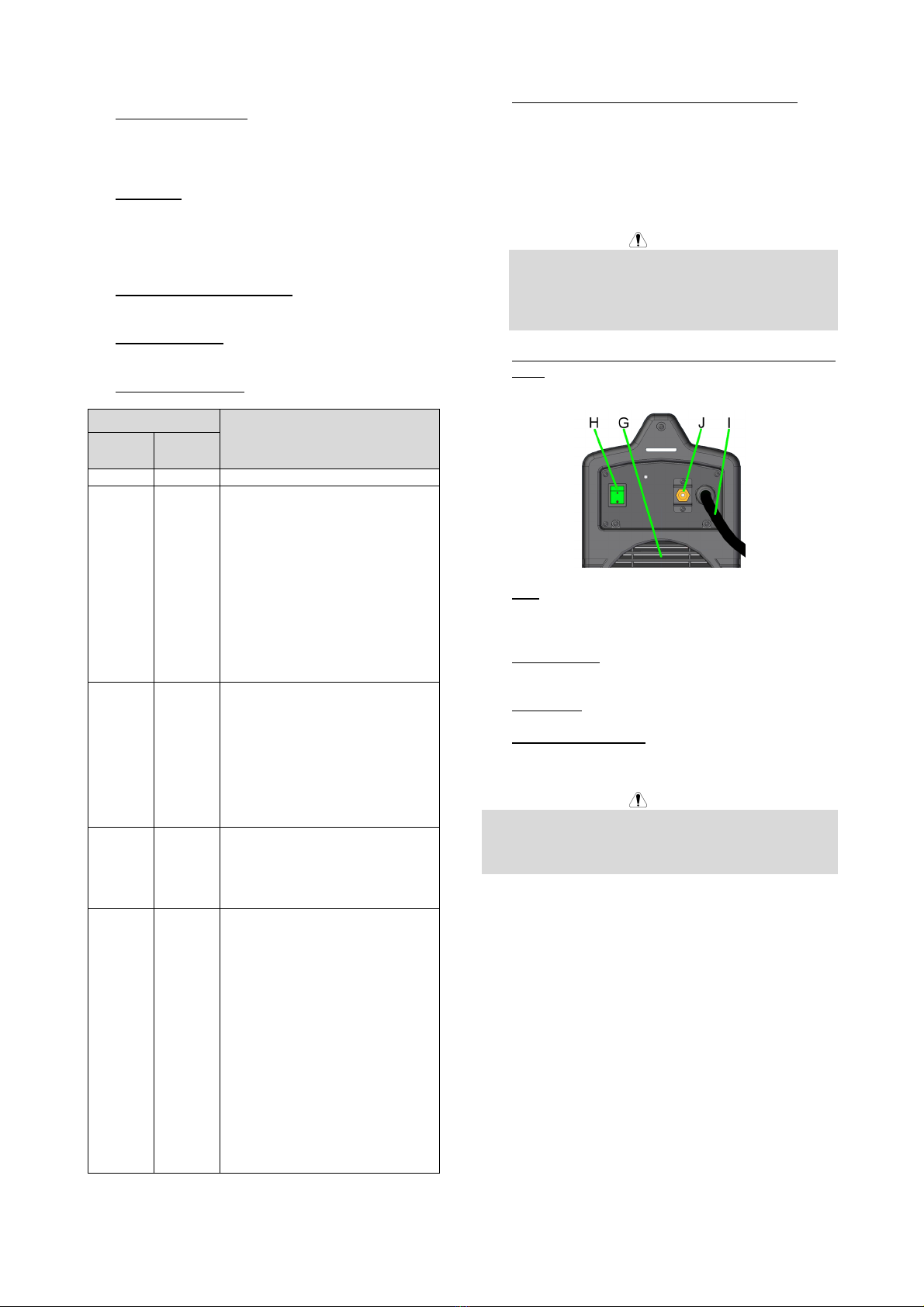

G. Fan: Provides machine cooling. It is switched ON
with the machine and continues to run till the machine
is turned OFF.
H. Power Switch: It turns ON / OFF the input power to
the machine.
I. Input cable: Connect it to the mains.
J. Air Inlet (PC210 only): If the “Ext Air” operating mode
is selected, connect here the hose carrying the air to
the machine.
WARNING
A clean, dry air must be supplied to the machine. A
pressure setting above 7.5bar could damage the torch.
Failure to observe these precautions could result in
excessive operating temperatures or damage to the torch.
Cutting Process
The air plasma cutting process uses air as primary cutting
gas and as torch cooling gas.
PC208 – PC210: the air is provided by the built-in
compressor with a pressure of 3.5bar (approximate
value).
The PC210 can reach the best cutting performances
operates also with external air; in this case the air
pressure is limited by a pressure regulator [F], set at
factory at 5.0bar. In case to adjust the air pressure, put
the machine in Purge mode [A].
The pilot arc is struck as follow:
PC208:
The torch button enables the built-in compressor that
provide the air flow to the torch. Releasing the torch
button the cutting process is stopped, but the
compressor continues to run for the post-flow stage.

English English
9
PC210:
“In Compr” operating mode: same as PC208.
“Ext Air” operating mode: the torch button
energize an electrovalve (solenoid valve). This valve
lets the air flow during the cutting and the post-flow
stages.
The design concept at the basis of these power sources is
to have available a current which remains constant at the
set value, independently from the length of the plasma
arc.
When preparing to cut, make sure you have all materials
needed to complete the job and have taken all safety
precautions. Install the machine as instructed in this
manual and remember to attach the work clamp to the
work piece.
Turn ON the Power Switch [H] placed on the back of
the machine; the LED [B] on the front panel will turn
ON. The unit is now ready to operate.
Check that the primary air is available through the Air
Purge function [A].
Set the desired current value with the Output Current
[A] knob.
To start the cutting process just press the torch button,
making sure you are not aiming the torch air blow towards
people or foreign objects. During the cutting process it is
possible to hold the torch away from the work piece for an
extended period of time.
To piercing the work piece, lower the
torch onto the metal at a 30° angle
away from the operator. This will blow
the dross (melted metal) away from the
torch tip.
Slowly rotate the torch to the vertical
position as the arc becomes deeper.
Once the work piece is pierced normal
cutting can occur.
Keep moving while cutting and
cut at a steady speed so that
the arc leg is 10° to 20° behind
the travel direction. Use a 5°
to 15° leading angle in the
direction of the cut.
Once the cutting process is
terminated releasing off the
torch button will cause the
plasma arc to be turned off; the
air flow will continue for
approximately 20sec. (post-flow) to allow the cooling
down of the torch.
Maintenance
WARNING
For any maintenance or repair operations it is
recommended to contact the nearest technical service
center or Lincoln Electric. Maintenance or repairs
performed by unauthorized service centers or personnel
will null and void the manufacturers warranty.
The frequency of the maintenance operations may vary in
accordance with the working environment. Any noticeable
damage should be reported immediately.
Check cables and connections integrity. Replace, if
necessary.
Regularly clean the torch head, check its consumables
and if necessary replace them.
WARNING
Refer to the torch instructions before changing or
servicing the torch.
Keep clean the machine. Use a soft dry cloth to clean
the enclosing case, especially the airflow inlet / outlet
louvers.
Regularly clean the compressor air inlet filter.
WARNING
Do not open this machine and do not introduce anything
into its openings. Power supply must be disconnected
from the machine before maintenance and service. After
each repair, perform proper tests to check safety
requirements.

English English
10
Cutting Speed
The cutting speed is a function of:
Thickness and of material to be cut.
Value of set current. The current setting affects the
quality of the cut edge.
Geometrical shape of the cut (whether straight or
curved).
In order to provide indications on the most suitable setting,
the following table was established, based on tests
performed on an automatic test-bench; the best results
however can only be achieved from direct experience by the
operator in his actual working conditions.
PC208 – PC210
(internal air)
PC210
(external air)
Speed (cm/min.) Speed (cm/min.)
Thickness
Current
(A)
MILD
STEEL
ALUMINUM
STAINLESS
STEEL
Current
(A)
MILD
STEEL
ALUMINUM
STAINLESS
STEEL
4 mm 25 147 94 77.7 25 179 122 112.8
5 mm 25 108 86 59 25 131 104 90
6 mm 25 73 68 47 25 80.6 81.6 70
¼” 25 55 58 43 25 67 70 62
8 mm --- --- --- --- --- --- --- ---
⅜” 25 10 --- 23 25 12 --- 30
10 mm 25 --- --- 20.4 25 --- --- 23.6
11 mm --- --- --- --- --- --- --- ---
½” 25 --- --- 11 25 --- --- 12
15 mm --- --- --- --- --- --- --- ---
¾” --- --- --- --- --- --- --- ---

English English
11
Customer Assistance Policy
The business of The Lincoln Electric Company is
manufacturing and selling high quality welding equipment,
consumables, and cutting equipment. Our challenge is to
meet the needs of our customers and to exceed their
expectations. On occasion, purchasers may ask Lincoln
Electric for advice or information about their use of our
products. We respond to our customers based on the best
information in our possession at that time. Lincoln Electric
is not in a position to warrant or guarantee such advice,
and assumes no liability, with respect to such information
or advice. We expressly disclaim any warranty of any
kind, including any warranty of fitness for any customer’s
particular purpose, with respect to such information or
advice. As a matter of practical consideration, we also
cannot assume any responsibility for updating or
correcting any such information or advice once it has
been given, nor does the provision of information or
advice create, expand or alter any warranty with respect
to the sale of our products
Lincoln Electric is a responsive manufacturer, but the
selection and use of specific products sold by Lincoln
Electric is solely within the control of, and remains the sole
responsibility of the customer. Many variables beyond the
control of Lincoln Electric affect the results obtained in
applying these types of fabrication methods and service
requirements.
Subject to Change – This information is accurate to the
best of our knowledge at the time of printing. Please refer
to www.lincolnelectric.com for any updated information

English English
12
WEEE
07/06
Do not dispose of electrical equipment together with normal waste!
In observance of European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE)
and its implementation in accordance with national law, electrical equipment that has reached the end of its
life must be collected separately and returned to an environmentally compatible recycling facility. As the
owner of the equipment, you should get information on approved collection systems from our local
representative.
By applying this European Directive you will protect the environment and human health!
Spare Parts
12/05
Part List reading instructions
Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department
for any code number not listed.
Use the illustration of assembly page and the table below to determine where the part is located for your particular
code machine.
Use only the parts marked "X" in the column under the heading number called for in the assembly page (# indicate a
change in this printing).
First, read the Part List reading instructions above, then refer to the "Spare Part" manual supplied with the machine, that
contains a picture-descriptive part number cross-reference.
REACh
11/19
Communication in accordance with Article 33.1 of Regulation (EC) No 1907/2006 – REACh.
Some parts inside this product contain:
Bisphenol A, BPA, EC 201-245-8, CAS 80-05-7
Cadmium, EC 231-152-8, CAS 7440-43-9
Lead, EC 231-100-4, CAS 7439-92-1
Phenol, 4-nonyl-, branched, EC 284-325-5, CAS 84852-15-3
in more than 0,1% w/w in homogeneous material. These substances are included in the “Candidate List of Substances of
Very High Concern for Authorisation” of REACh.
Your particular product may contain one or more of the listed substances.
Instructions for safe use:
use according to Manufacturer instructions, wash hands after use;
keep out of reach of children, do not put in mouth,
dispose in accordance with local regulations.
Authorized Service Shops Location
09/16
The purchaser must contact a Lincoln Authorized Service Facility (LASF) about any defect claimed under Lincoln's
warranty period.
Contact your local Lincoln Sales Representative for assistance in locating a LASF or go to www.lincolnelectric.com/en-
gb/Support/Locator.
Electrical Schematic
Refer to the "Spare Part" manual supplied with the machine.
