Lincoln Electric POWERTEC i320C STANDARD User manual

English English
IM3070
09/2018
REV04
POWERTEC i250C STANDARD
POWERTEC i250C ADVANCED
POWERTEC i320C STANDARD
POWERTEC i320C ADVANCED
OPERATOR’S MANUAL
ENGLISH
Lincoln Electric Bester Sp. z o.o.
ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland
www.lincolnelectric.eu

English English
I
12/05
THANKS! For having choosen the QUALITY of the Lincoln Electric products.
Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified
immediately to the dealer.
For future reference record in the table below your equipment identification information. Model Name, Code &
Serial Number can be found on the machine rating plate.
Model Name:
………………...…………………………….…………………………………………………………………………………………..
Code & Serial number:
………………….……………………………………………….. …………………………………………………….……………..
Date & Where Purchased:
…………………………………………………………………... ……………………….…………………………………………..
ENGLISH INDEX
Technical Specifications .................................................................................................................................................. 1
Electromagnetic Compatibility (EMC) .............................................................................................................................. 2
Safety .............................................................................................................................................................................. 3
Introduction...................................................................................................................................................................... 4
Installation and Operator Instructions .............................................................................................................................. 4
WEEE............................................................................................................................................................................ 31
Spare Parts.................................................................................................................................................................... 31
Authorized Service Shops Location............................................................................................................................... 31
Electrical Schematic ...................................................................................................................................................... 31
Accessories ................................................................................................................................................................... 32

English 1 English
Technical Specifications
NAME INDEX
POWERTEC i250C STANDARD K14157-1
POWERTEC i250C ADVANCED K14157-2
POWERTEC i320C STANDARD K14158-1
POWERTEC i320C ADVANCED K14158-2
INPUT
Input Voltage U1EMC Class Frequency
PTi250C STANDARD
PTi250C ADVANCED
PTi320C STANDARD
PTi320C ADVANCED
400V ± 10%
3-phase A 50/60Hz
Input Power at Rated Cycle Input Amperes I1max PF
PTi250C STANDARD
PTi250C ADVANCED
10,3 kVA @ 60% Duty Cycle
(40°C) 14,7A 0,85
PTi320C STANDARD
PTi320C ADVANCED
13,6 kVA @ 40% Duty Cycle
(40°C) 19,6A 0,90
RATED OUTPUT
Open Circuit
Voltage
Duty Cycle 40°C
(based on a 10 min. Output Current Output Voltage
PTi250C STANDARD
PTi250C ADVANCED
GMAW 49Vdc 60% 250A 26,5Vdc
100% 195A 23,8Vdc
FCAW 49Vdc 60% 250A 26,5Vdc
100% 195A 23,8Vdc
SMAW 49Vdc 60% 250A 30Vdc
100% 195A 27,8Vdc
PTi320C STANDARD
PTi320C ADVANCED
GMAW 49Vdc 40% 320A 30Vdc
100% 195A 23,8Vdc
FCAW 49Vdc 40% 320A 30Vdc
100% 195A 23,8Vdc
SMAW 49Vdc 40% 320A 32,8Vdc
100% 195A 27,8Vdc
WELDING CURRENT RANGE
GMAW FCAW SMAW
PTi250C STANDARD
PTi250C ADVANCED 10A÷250A 10A÷250A 20A÷250A
PTi320C STANDARD
PTi320C ADVANCED 10A÷320A 10A÷320A 20A÷320A
RECOMMENDED INPUT CABLE AND FUSE SIZES
Fuse Type gR or Circuit Breaker Type Z Power Lead
PTi250C STANDARD
PTi250C ADVANCED 16A, 400V AC 4 Conductor, 2,5mm2
PTi320C STANDARD
PTi320C ADVANCED 20A, 400V AC 4 Conductor, 2,5mm2
DIMENSION
Weight Height Width Length
66 kg 535 mm 300 mm 635 mm
Protection Rating Operating Humidity
(
t=20°C
)
Operating
Temperature
Storage
Temperature
IP23 ≤90 % from -10 ºC
to +40 ºC
from -25 ºC
to +55 ºC

English 2 English
Electromagnetic Compatibility (EMC)
11/04
This machine has been designed in accordance with all relevant directives and standards. However, it may still generate
electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or
other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand this
section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine.
WARNING
Provided that the public low voltage system impedance at the point of common coupling is
lower than:
56,4 mΩfor the Powertec i250/320.
This equipment is compliant with IEC 61000-3-11 and IEC-3-12 and can be connected to public lowvoltage systems. It is
the responsibility of the installer or user of the equipment to ensure, by consultation with the distribution network operator
if necessary, that the system impedance complies with the impedance restrictions.

Consider the following guidelines to reduce electromagnetic emissions from the machine.
Connect the machine to the input supply according to this manual. If disturbances occur if may be necessary to take
additional precautions such as filtering the input supply.
The output cables should be kept as short as possible and should be positioned together. If possible connect the
work piece to ground in order to reduce the electromagnetic emissions. The operator must check that connecting the
work piece to ground does not cause problems or unsafe operating conditions for personnel and equipment.
Shielding of cables in the work area can reduce electromagnetic emissions. This may be necessary for special
applications.
WARNING
The Class A equipment is not intended for use in residential locations where the electrical power is provided by the public
low-voltage supply system. There may be potential difficulties in ensuring electromagnetic compatibility in those
locations, due to conducted as well as radiated disturbances.
WARNING
While a high electromagnetic field occurs, a welding current can fluctuate.

English 3 English
Safety
01/11
WARNING
This equipment must be used by qualified personnel. Be sure that all installation, operation, maintenance and repair
procedures are performed only by qualified person. Read and understand this manual before operating this equipment.
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this
equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible
for damages caused by improper installation, improper care or abnormal operation.
WARNING: This symbol indicates that instructions must be followed to avoid serious personal injury,
loss of life, or damage to this equipment. Protect yourself and others from possible serious injury or
death.
READ AND UNDERSTAND INSTRUCTIONS: Read and understand this manual before operating
this equipment. Arc welding can be hazardous. Failure to follow the instructions in this manual could
cause serious personal injury, loss of life, or damage to this equipment.
ELECTRIC SHOCK CAN KILL: Welding equipment generates high voltages. Do not touch the
electrode, work clamp, or connected work pieces when this equipment is on. Insulate yourself from
the electrode, work clamp, and connected work pieces.
ELECTRICALLY POWERED EQUIPMENT: Turn off input power using the disconnect switch at the
fuse box before working on this equipment. Ground this equipment in accordance with local electrical
regulations.
ELECTRICALLY POWERED EQUIPMENT: Regularly inspect the input, electrode, and work clamp
cables. If any insulation damage exists replace the cable immediately. Do not place the electrode
holder directly on the welding table or any other surface in contact with the work clamp to avoid the
risk of accidental arc ignition.
ELECTRIC AND MAGNETIC FIELDS MAY BE DANGEROUS: Electric current flowing through any
conductor creates electric and magnetic fields (EMF). EMF fields may interfere with some
pacemakers, and welders having a pacemaker shall consult their physician before operating this
equipment.
CE COMPLIANCE: This equipment complies with the European Community Directives.
ARTIFICIAL OPTICAL RADIATION: According with the requirements in 2006/25/EC Directive and
EN 12198 Standard, the equipment is a category 2. It makes mandatory the adoption of Personal
Protective Equipments (PPE) having filter with a protection degree up to a maximum of 15, as
required by EN169 Standard.
FUMES AND GASES CAN BE DANGEROUS: Welding may produce fumes and gases hazardous to
health. Avoid breathing these fumes and gases. To avoid these dangers the operator must use
enough ventilation or exhaust to keep fumes and gases away from the breathing zone.
ARC RAYS CAN BURN: Use a shield with the proper filter and cover plates to protect your eyes from
sparks and the rays of the arc when welding or observing. Use suitable clothing made from durable
flame-resistant material to protect you skin and that of your helpers. Protect other nearby personnel
with suitable, non-flammable screening and warn them not to watch the arc nor expose themselves to
the arc.
WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding
area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding
process can easily go through small cracks and openings to adjacent areas. Do not weld on any
tanks, drums, containers, or material until the proper steps have been taken to insure that no
flammable or toxic vapors will be present. Never operate this equipment when flammable gases,
vapors or liquid combustibles are present.
WELDED MATERIALS CAN BURN: Welding generates a large amount of heat. Hot surfaces and
materials in work area can cause serious burns. Use gloves and pliers when touching or moving
materials in the work area.

English 4 English
SAFETY MARK: This equipment is suitable for supplying power for welding operations carried out in
an environment with increased hazard of electric shock.
CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the
correct shielding gas for the process used and properly operating regulators designed for the gas and
pressure used. Always keep cylinders in an upRight position securely chained to a fixed support. Do
not move or transport gas cylinders with the protection cap removed. Do not allow the electrode,
electrode holder, work clamp or any other electrically live part to touch a gas cylinder. Gas cylinders
must be located away from areas where they may be subjected to physical damage or the welding
process including sparks and heat sources.
The manufacturer reserves the Right to make changes and/or improvements in design without upgrade at the same time
the operator’s manual.
Introduction
General Description
The welding machines
POWERTEC i250C STANDARD
POWERTEC i250C ADVANCED
POWERTEC i320C STANDARD
POWERTEC i320C ADVANCED
enables welding:
GMAW (MIG/MAG),
FCAW (Flux-Cored),
SMAW (MMA),
The following equipment has been added to
POWERTEC i250C STANDARD
POWERTEC i250C ADVANCED
POWERTEC i320C STANDARD
POWERTEC i320C ADVANCED
Work lead – 3m,
Gas hose – 2m,
Driving roll V1.0/V1.2 for solid wire (mounted in the
wire feeder).
Recommended equipment, which can be bought by
user, was mentioned in the chapter "Accessories".
Installation and Operator Instructions
Read this entire section before installation or operation of
the machine.
Location and Environment
This machine will operate in harsh environments.
However, it is important that simple preventative
measures are followed to assure long life and reliable
operation.
Do not place or operate this machine on a surface
with an incline greater than 15° from horizontal.
Do not use this machine for pipe thawing.
This machine must be located where there is free
circulation of clean air without restrictions for air
movement to and from the air vents. Do not cover
the machine with paper, cloth or rags when switched
on.
Dirt and dust that can be drawn into the machine
should be kept to a minimum.
This machine has a protection rating of IP23. Keep it
dry when possible and do not place it on wet ground
or in puddles.
Locate the machine away from radio controlled
machinery. Normal operation may adversely affect
the operation of nearby radio controlled machinery,
which may result in injury or equipment damage.
Read the section on electromagnetic compatibility in
this manual.
Do not operate in areas with an ambient temperature
greater than 40°C.
Duty cycle and Overheating
The duty cycle of a welding machine is the percentage of
time in a 10 minute cycle at which the welder can operate
the machine at rated welding current.
Example: 60% duty cycle
Welding for 6 minutes. Break for 4 minutes.
Excessive extension of the duty cycle will cause the
thermal protection circuit to activate.
Minutes or decrease
Duty Cycle

English 5 English
Input Supply Connection
WARNING
Only a qualified electrician can connect the welding
machine to the supply network. Installation had to be
made in accordance with the appropriate National
Electrical Code and local regulations.
Check the input voltage, phase and frequency supplied to
this machine before turning it on. Verify the connection of
ground wires from the machine to the input source. The
welding machine POWERTEC i250C STANDARD/
ADVANCED, POWERTEC i320C STANDARD/
ADVANCED must be connected to a correctly installed
plug-in socket with an earth pin.
Input voltage is 400 Vac 50/60Hz. For more information
about input supply refer to the technical specification
section of this manual and to the rating plate of the
machine.
Make sure that the amount of mains power available from
the input supply is adequate for normal operation of the
machine. The necessary delayed fuse or circuit breaker
and cable sizes are indicated in the technical
specification section of this manual.
WARNING
The welding machine can be supplied from a power
generator of output power at least 30% larger than input
power of the welding machine.
WARNING
When powering the machine from a generator be sure to
turn off welder first, before generator is shut down, in
order to prevent damage to welder!
Output Connections
Refer to points [3], [4] and [5] of the Figures below.
Controls and Operational Features
Front Panel
Standard Version
Figure 1.
1. U0 User Interface: See “User Interfaces” Chapter.
2. Power Switch ON/OFF (I/O): Controls the input power
to the machine. Be sure the power source is
connected to the mains supply before turning power
on ("I"). After input power is connected and the power
switch is turned on, the indicator will light up to
indicate the machine is ready to weld.
3. Negative Output Socket for the Welding
Circuit: For connecting an electrode holder
with lead / work lead.
4. Positive Output Socket for the Welding
Circuit: For connecting an electrode holder
with lead / work lead.
5. EURO Socket: For connecting a welding gun (for
GMAW / FCAW process).
Front Panel
Advanced Version
Figure 2.
6. U7 User Interface: See User Interfaces chapter.
7. Remote Control Connector Plug: To install Remote
Control Kit. This connector allows connection Remote
Control. See "Accessories" chapter.

English 6 English
Rear panel
Figure 3.
8. Wire Liner Entry: Enables installing liner for welding
wire delivered in drum package.
9. Chain: To protect gas bottle.
10. Power Lead (5m): Connect the supply plug to the
existing input cable that is rated for the machine as
indicated in this manual, and conforms to all
applicable standards. This connection shall be
performed by a qualified person only.
11. Supply Plug: For CO2 gas heater kit (see
“Accessories” chapter).
12. Gas Connector: Connection for gas line.
13. Gas Flow Regulator Plug: Gas flow regulator can be
purchased separately (see “Accessories” chapter).
14. Gas hose
15. Work Lead
Internal Controls
Figure 4.
16. Spooled Wire (for GMAW / FCAW): The machine
does not include a spooled wire.
17. Wire Spool Support: Maximum 16kg spools. Accepts
plastic, steel and fiber spools onto 51 mm spindle.
Note: Plastic Brake Nut has a Left-hand thread.
18. Cold Inch/ Gas Purge Switch: This switch enables
wire feeding or gas flow without turning on output
voltage.
19. Wire drive feeding system: 4-Roll wire drive
mechanisms with quick-change feed rolls.
20. Terminal Block of Changing Polarity Plug (for GMAW /
FCAW-SS process): This terminal block enables to
set the welding polarity (+ ; -), which will be given at
the welding gun (see “Accessories” chapter).
21a. USB Receptacle Type A (Advanced only):
For USB memory stick connection. For machine
software update and service purpose.
21b. Fuse F1:
Use the 1A/400V (6,3x32mm) low blow fuse.
Stnadard User Interface (U0)
Figure 5.
22. Display:
Left display: Shows wire feed speed or welding
current. During welding shows the actual
welding current value.
Right display: Shows the welding voltage in
volts units. During welding shows the actual
welding voltage value.
23. Right Control: Adjusts values on the Right display.
24. Left Control: Adjusts values on the Left display.
25. Right Button: Enables scrolling, changing and setting
welding parameters.
26. Left Button: Enables changing the welding process.

English 7 English
27. Thermal Overload Indicator: It indicates that the
machine is overloaded or that the cooling is not
sufficient.
28. Status LED: A two color light that indicates system
errors. Normal operation is steady green light. Error
conditions are indicated, per Table 1.
WARNING
The status light will flash green, and sometimes red and
green, for up to one minute when the machine is first
turned on. When the power source is powered it can take
as long as 60 seconds for the machine to be ready to
weld. This is a normal situation as the machine goes
through initialization.
Table 1.
LED Light
Condition
Meaning
Only machines which using ArcLink®
protocol for communication
Steady Green System OK. Power source is
operational, and is communicating
normally with all healthy peripheral
equipment.
Blinking Green Occurs during power up or a system
reset, and indicates the power source
is mapping (identifying)
each component in the system.
Normal for first 1-10 seconds after
power is turned on, or if the system
configuration is changed during
operation.
Alternating Green
and Red
If the status lights are flashing any
combination of red and green, errors
are present in the power source.
Individual code digits are flashed in
red with a long pause between digits.
If more than one code is present, the
codes will be separated by green
light. Read the error code before the
machine is turned off.
If occurs, to clear the error try to turn
Off the machine, wait for a few
seconds, then turn ON again. If the
error remains, a maintenance is
required. Please contact the nearest
authorized technical service center or
Lincoln Electric and report the error
code read.
Steady Red Indicate no communication between
the power source and device which
has been connected to this power
source.
29. LED Indicator: Informs that the wire feed speed is on
the Left display.
30. LED Indicator: Informs that the value on the Left
display is in ampere units.
31. LED Indicator: Informs that the value on the Right
display is in volts unit.

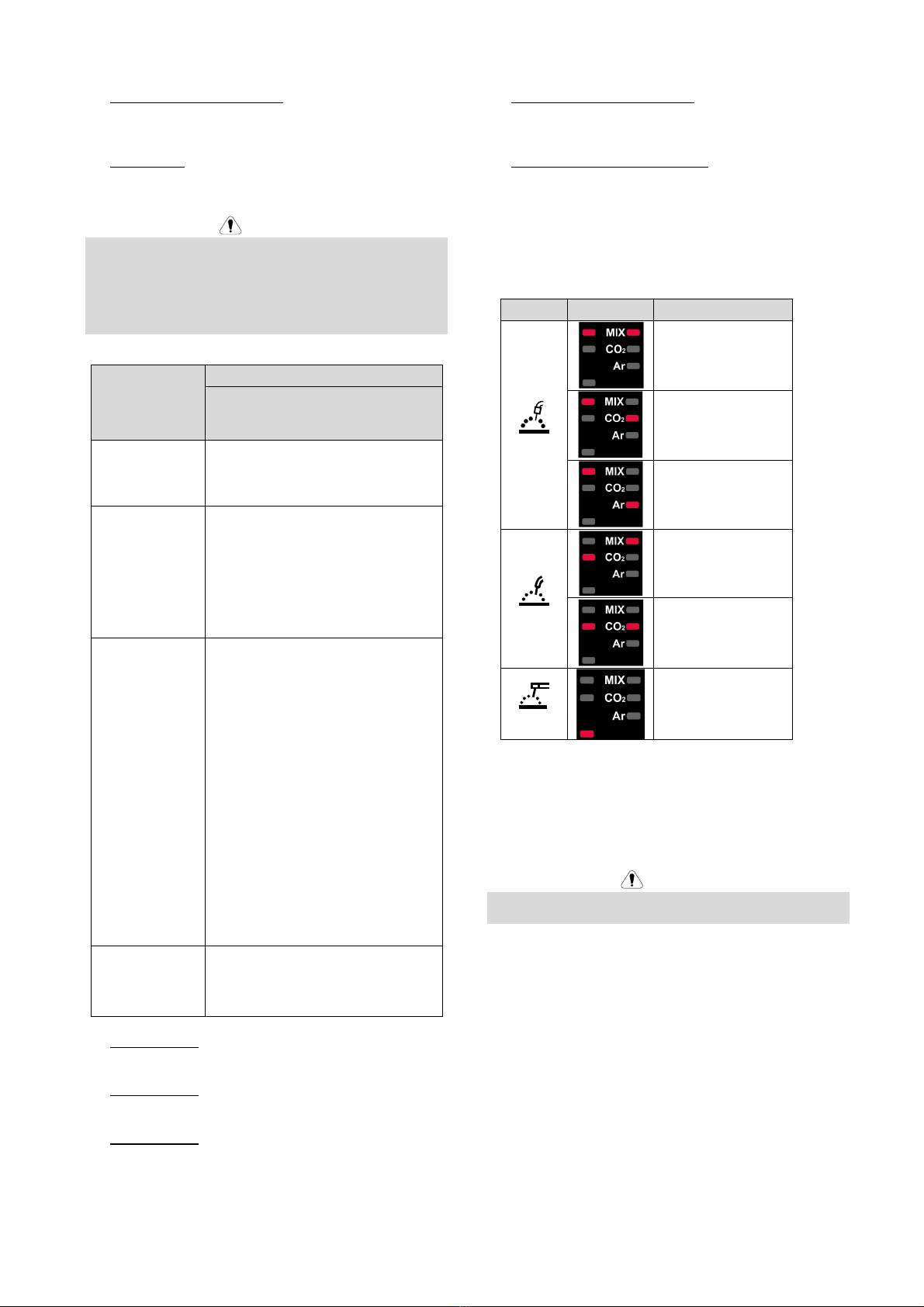

32. Welding Programs Indicators: lamps indicate the
active weld mode. Descriptions of parameters are in
Table 2.
33. Welding parameters Indicators: lamps indicate the
active weld parameters. Descriptions of parameters
are in Table 3.
Welding Process Change
It is possible to quick recall of one of the six manual
welding programs - Table 2.
Table 2. Manual Weld Modes:
Symbol LED Process
GMAW
GMAW MIX
GMAW CO2
GMAW AR
FCAW
FCAW MIX
FCAW CO2
SMAW
SMAW
To set the welding process:
Press the Left Button [26] to select an adequate
welding process- the weld program indicator [32]
the first weld program indicator [32] lights on.
Again, press the Left Button [26] the weld
program indicator will jump to the next mode.
WARNING
During switching the displays show a “creeping line” on
the screen.

English 8 English
Quick Access and Configuration Menu for
U0 User Interface
Users have access to the two menu levels:
Quick Access – basic menu which is connected with
setting the Welding Parameters.
Configuration Menu – advanced menu, configures
the device setting.
WARNING
The Menu cannot be accessed if the system is
welding, or if there is a fault (status LED is not solid
green).
The availability parameters in the Quick Access and
Configuration Menu depend on the selected welding
program / welding process.
After the device has been restarted the user settings are
restored.
Parameter Selection Mode – the Parameter Name on the
Left Display blinking.
Parameter Change Value Mode – the parameter value on
the Right Display blinking.
Quick Access
To set the parameter of Quick Access (Table 3):
Press the Right Button [25] to select mode.
Turn the Right Knob [24] to set the value of
parameter.
Press the Left Button [26] to retutn to main menu.
WARNING
If user do not press Left button, system return
automatically to the main menu after few seconds.
Table 3. The default settings of Quick Access
Paramete
r
Definition
Inductance – controls the arc characteristics when
short-arc welding. increasing Inductance greater than
0.0 results in a crisper arc (more spatter) while
decreasing the Inductance to less than 0.0 provides a
softer arc (less spatter).
Adjust range: from -10 to +10.
Factory default, Pinch is OFF.
The 2-Step - 4-Step changes the function of the
gun’s trigger.
2 Step trigger operation turns welding on and off
in direct response to the trigger. Welding process
is performed when the gun’s trigger is pulled.
4-Step mode allows to continue welding, when the
gun’s trigger is released. To stop welding, the
gun’s trigger is pulled again. 4-step mode
facilitates to making long welds.
Note: 4-Step does not work during Spot Welding.
Run-in WFS – sets the wire feed speed from the time
the trigger is pulled until an arc is established.
Factory default, Run-in is turned off.
Adjust range: from minimum to 3,81 m/min (150
in/min ).
Burnback Time – is the amount of time that the weld
output continues after the wire stops feeding. It
prevents the wire from sticking in the puddle and
prepares the end of the wire for the next arc start.
Factory default, Burnback Time is set at AUTO.
Adjust range: from 0 (OFF) to 0,25 seconds.

English 9 English
Configuration Menu:
To set the parameter of Confguration Menu:
Press the Left Button [26] and the Right Button [25]
simultaneously to get the access of menu.
Turn the Left Knob [23] to choose the parameter.
Press the Right Button [25] to confirm the selection.
Turn the Right Knob [24] to choose the value of
parameter.
Press the Right Button [25] to confirm the selection.
Press the Left Button [26] to back to the previous
menu and confirm the chosen value.
WARNING
To exit the menu with changes saved, press the Left [26]
and the Right [25] Buttons simultaneously.
After one minute of inactivity the Menu without saving will
also exit.
Table 4. The default settings of Configuration Menu
Paramete
r
Definition
Spot Time
r
– adjusts the time welding will continue even if the
trigger is still pulled. This option has no effect in 4-Step Trigger
Mode.
Crater Procedure – turn ON/OFF the Crater Settings
Procedure:
ON (factory default) – Crater can be adjusted. The Crater
Settings Procedure is assigned to the Right Button. During
adjusting Crater, the LED Indicator [25] lights.
OFF – The Crater Settings Procedure is OFF. After press the
Right Button, The Crater Settings Procedure is ignored.
Preflow Time – adjusts the time that shielding gas flows after
the trigger is pulled and prior to feeding.
Factory default, Preflow Time is set at 0 seconds.
Adjust range: from 0,1 seconds to 25 seconds.
Postflow Time – adjusts the time that shielding gas flows after
the welding output turns off.
Factory default, Postflow Time is set at 0 seconds.
Adjust range: from 0,1 seconds to 25 seconds.
Arc/Loss Time – this option can be used to optionally shut off
output if an arc is not established, or is lost for a specified
amount of time. Error 269 will be displayed if the machine times
out. If the value is set to OFF, machine output will not be turned
off if an arc is not established nor will output be turned off if an
arc is lost. The trigger can be used to hot feed the wire
(default). If a value is set, the machine output will shut off if an
arc is not established within the specified amount of time after
the trigger is pulled or if the trigger remains pulled after an arc
is lost. To prevent nuisance errors, set Arc Start/Loss Error
Time to an appropriate value after considering all welding
parameters (run-in wire feed speed, weld wire feed speed,
electrical stick out, etc).
OFF (0) to 10 seconds (default = Off)
Note: This parameter is disabled while welding in Stick, TIG or
Gouge.
Screen B
r
ightness – enables setting the displays brightness
level. Adjust range from 1 to 10, where 5 is default.
Feedback Persist – determines how feedback values are
displayed following a weld:
"Off" (factory default) – last recorded feedback values will
blink for 5 seconds following a weld, then return to present
display mode.

"On" – last recorded feedback values will blink indefinitely
following a weld until a Control or button is touched, or an
arc is struck.

English 10 English
Wire Feed Speed (WFS) units – enables change WFS units:
CE (factory default) = m/min;
US = in/min.
Hot Start – value in percentage of nominal value welding
current during arc start current. The control is used to set the
level of the increased current and arc start current is made
easy.
Adjust range: from 0 to +10.
Arc Force – the output current is temporarily increased to clear
short circuit connections between the electrode and the
workpiece.
Lower values will provide less short circuit current and a softer
arc. Higher settings will provide a higher short circuit current, a
more forceful arc and possibly more spatter.
Adjust range: from -10 to +10.
Restore to Factory Settings – it allows to restore the factory
settings.
V
iew Software version – used for viewing the software
version for user interface.
First view show effects after getting access to choose the
parameter.
Second view show effects after getting acces to edit
parameter.

English 11 English
Guide’s Marking Interface

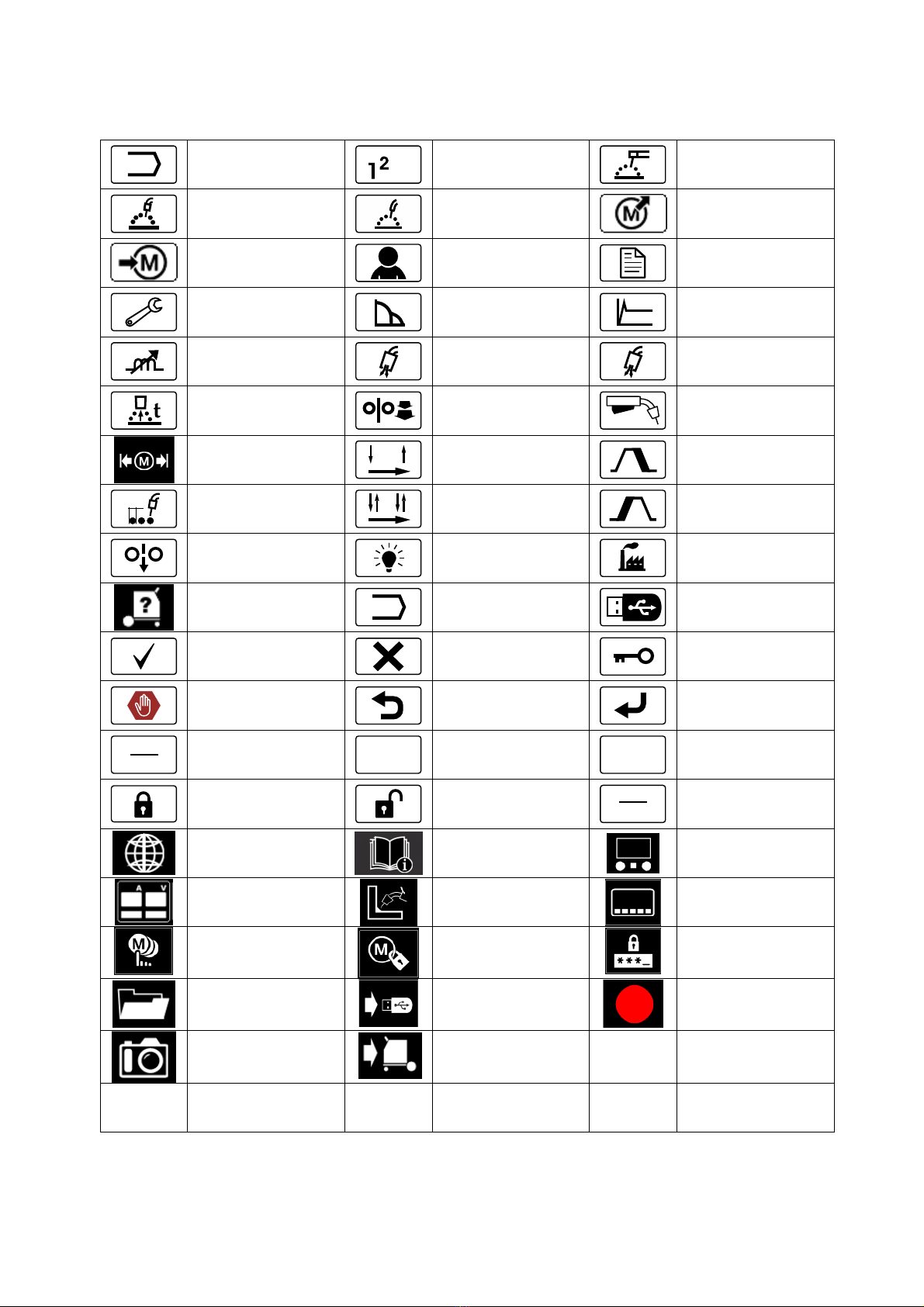

Table 5. Symbols description
Select Welding Process
3
...
Select Welding Program
SMAW Process
(MMA)
GMAW Process
(MIG/MAG)
FCAW Process
Recall from the User
Memory
Save to the User
Memory
User Setup Advanced Setup
Configuration Arc Force
A
Hot Start
Pinch
t1
Preflow Time
t2
Postflow Time
Burnback Time Run-in WFS
Select Function of Gun
Trigger (2-Step / 4-Step)
Memory Limits
2-Step Crater Procedure
t
Spot Welding Settings 4-Step Start Procedure
Cold Feed Brightness Level Restore Factory Setting
View Software and
Hardware Version
Information
A/ B
A/B Procedure USB Memory
Check Mark Resignation Mark
Lock / Unlock
Error ESCape Button Confirm Button
mi
n
in
Wire Feed Speed
in [in/min]
V
Welding Voltage
A
Welding Current
Locked
Unlocked
min
m
Wire Feed Speed
in [m/min]
Set the Language
Support
Display Configuration
Settings
Standard UI look
Advanced UI look
Select Item
Enable/ Disable Jobs
Mode or Select Jobs for
Jobs Mode
Enable/ Disable Jobs
Save
Lock
Weld History Save Service weld logs
SnapShot Load

English 12 English
User Interface Advaced (U7)

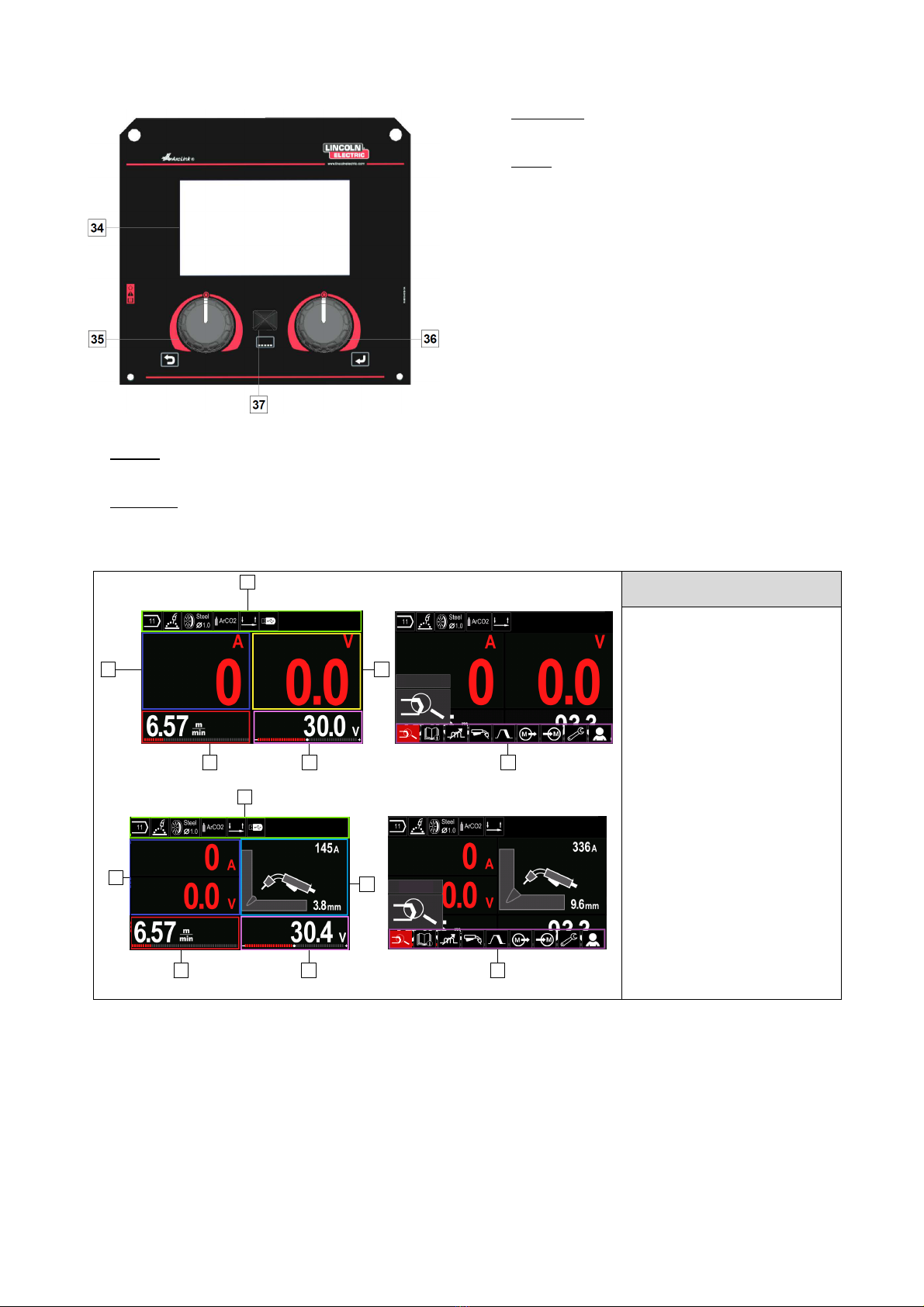

Figure 6.
34. Display: 7” TFT display shows welding processes
parameters.
35. Left Knob: Sets the value in the top Left corner
of the display. Cancel selection. Return to the
previous menu.
36. Right Knob: Sets the value in the top Right
corner of the display. Confirmation of changes.
37. Button: It enables return to main menu.
Users have access to the two different views of interface:
Standard view (Figure 7.)
Advanced view (Figure 8)
To choose the view of interface:
Press the Button [37] or Right Knob [36].
Use the Right Knob [36] to highlight the “Configuration” icon.
Press the Right Knob [36] to confirm decision.
Use the Right Knob [36] to highlight “UI look” icon.
Press the Right Knob [36] to confirm decision.
Select one of the view (Standard – Figure 7
or Advanced – Figure 8).
Press the button [37] or Left Knob [35]
to retutn to main menu.
Table 6. Different display veiews
44
38
39
41 42
40
Figure 7.
38
39
41 42
43
44
Figure 8.
Functions of Interface
Components
38. Status bar.
39. The measured value of
current.
40. The measured value of
voltage.
41. Parameter Value (wire feed
speed or current) regulated by
Left Knob [35].
42. Parameter Value (voltage,
trim or power) regulated by
Right Knob [36].
43. Welding Parameter
Visualization.
44. Welding Parameters Bar.

English 13 English

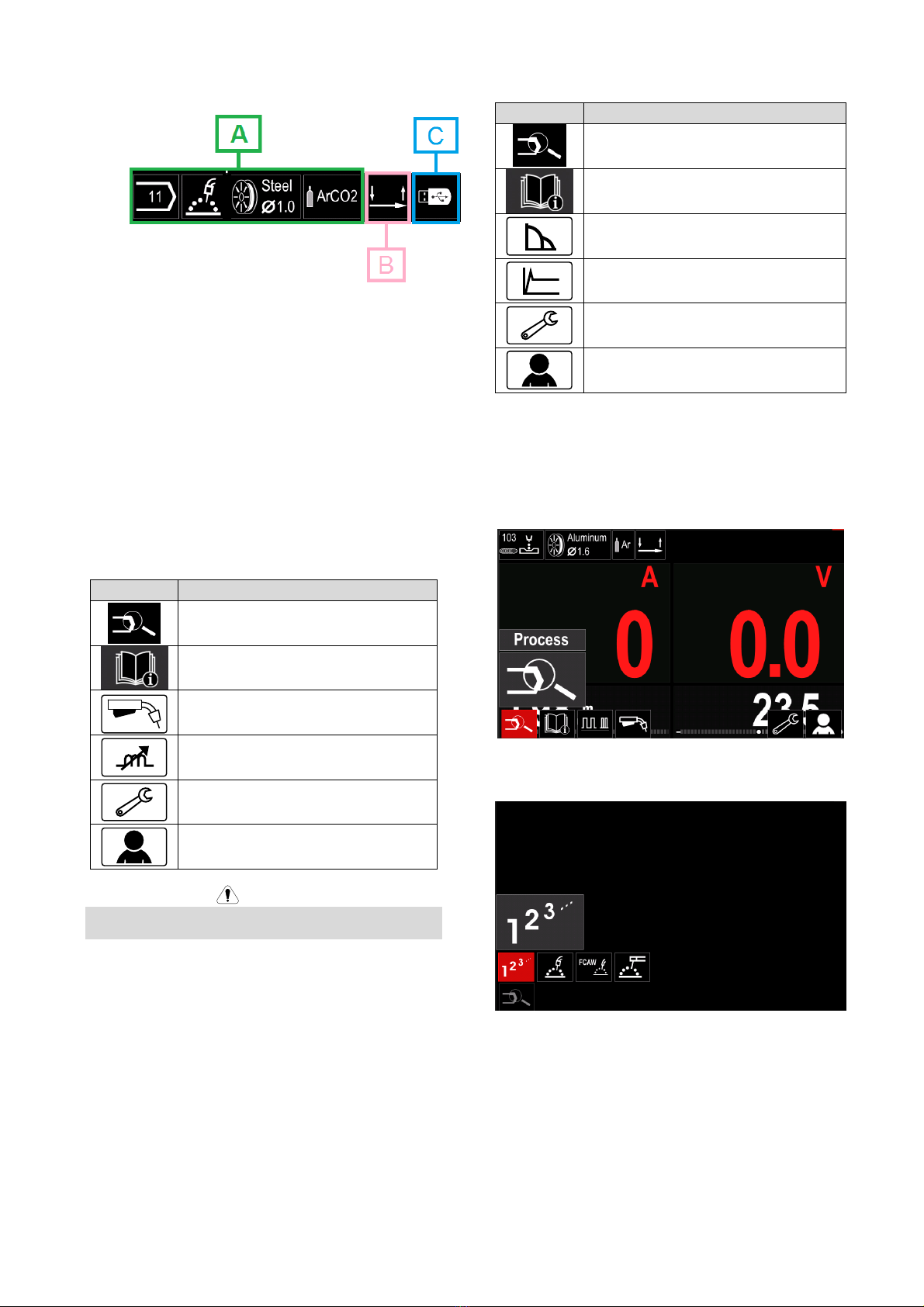

Status bar
Figure 9.
A) Information about active welding mode
B) 2/4 step
C) USB Interface
Welding Parameters Bar
The Welding Parameters Bar enables:
Welding Program change.
Wave Control Value change.
The gun’s trigger function change (GMAW,
FCAW, SMAW).
Add or hide functions and welding parameters –
User Setup
Change the Setup
Table 7. GMAW and FCAW Welding Parameters Bar
Symbol Description
Welding Process Choice
Support
The function of the gun’s trigger change
Pinch
Configuration Menu (Setup)
User Setup
WARNING
The availability parameters depend on the selected
welding program / welding process.
Table 8. SMAW Welding Parameters Bar
Symbol Description
Welding Process Choice
Support
Arc Force
A
Hot Start
Configuration Menu (Setup)
User Setup
Welding Program Choice
To select the Welding Program:
Press the Button [37] or Right Knob [36] to get
access of Welding Parameters Bar.
Use the Right Knob [36] to highlight the icon
“Welding Process Choice”.
Press the Right Knob [36] to confirm the selection.
Figure 10.
Use the Right Knob [36] to highlight the icon “Select
welding program”.
Figure 11.
Press the Right Knob [36] to confirm the selection.

English 14 English
Figure 12.
Use the Right Knob [36] to highlight the program
number.
Press the Right Knob [36] to confirm the selection.
WARNING
The Lists of available programs depends on the power
source.
If a user does not know the Welding Program Number, it can be
searched. In that case in subsequent steps are given:
The Welding
Process
The Electrode
Wire Type
The Electrode
Wire Diameter
The Shielding
Gas
Support
To access the Support Menu:
Press the Button [37] or Right Knob [36] to get
access of Welding Parameters Bar.
Use the Right Knob [36] to highlight the icon
“Support”.
Press the Right Knob [36] to confirm the selection.
The Support Menu enables to get knowledge of the
following points:
Accessories:
- Rolls for aluminum wire
- Rolls for fluxed cored wire
- Rolls for steel/stainless steel wire
- TIG torches
- Electrode & Ground cable
- MIG/MAG LINC GUN Standard
Tips and Tricks:
- Tutorial
- Welding variables effect MIG
User Setup
To access the User Setup:
Press the Button [37] or Right Knob [36] to get
access of Welding Parameters Bar.
Use the Right Knob [36] to highlight the icon
“Settings”.
Press the Right Knob [36] to confirm the selection.
Figure 13.
The User Setting Menu enables to add the additional
function and / or parameters to the Welding Parameters
Bar [44]:

English 15 English
Table 9.
Symbol Description
t1
Preflow
t2
Postflow
Burnback Time
Spot Welding
Run-In WFS
Start Procedure
Crater Procedure
A/ B
A/B Procedure
Load memory
Save memory
USB Memory
WARNING
To change the Parameters or Functions Value, theirs
icons had to be added to the Welding Parameters Bar
[44].
To add the Parameter or Function to the Welding
Parameters Bar [44]:
Access to the User Setup (see the Figure 13).
Use the Right Knob [36] to highlight the parameter or
function icon which will be added to the Welding
Parameters Bar [44], for example Run-in WFS.
Figure 14.
Press the Right Knob [36] to confirm the selection.
Run-in WFS icon will drop.
Figure 15.
WARNING
To remove the icon - press the Right Knob [36] once
again.
To exit the User Setup Menu – press the Left Button
[35].
The Selected parameters or function is added to the
Welding Parameters Bar [44].
Figure 16.
To remove the selected parameter or function from the
Welding Parameters Bar [44]:
Access to the User Setup.
Use the Right Knob [36] to highlight the parameter or
function icon which is added to the Welding
Parameters Bar [44].
Figure 17.
Press the Right Knob [36] – The selected icon will
disappear from the display bottom.

English 16 English
Figure 18.
The Selected parameters or function was
disappeared from the Welding Parameters Bar [44]
Figure 19.
Preflow Time adjusts the time that
shielding gas flows after the trigger is pulled
and prior to feeding.
Adjust range: from 0 seconds (OFF) to 25 seconds
(factory default is set at Auto mode).
Postflow Time adjusts the time that
shielding gas flows after the welding output
turns off.
Adjust range: from 0 seconds (OFF) to 25 seconds
(factory default is set at Auto mode).
Burnback Time is the amount of time that
the weld output continues after the wire
stops feeding. It prevents the wire from
sticking in the puddle and prepares the end of the wire
for the next arc start.
Adjust range: from OFF to 0.25 seconds (factory
default is set at Auto mode).
Spot Timer– adjusts the time welding will
continue even if the trigger is still pulled.
This option has no effect in 4-Step Trigger
Mode.
Adjust range: from 0 second (OFF) to 120 seconds
(factory default is OFF).
WARNING
Spot Timer has no effect in 4-Step Trigger Mode.
Run-in WFS – sets the wire feed speed
from the time the trigger is pulled until an arc
is established.
Adjust range: from minimum to maximum WFS
(factory default is set at Auto mode).
The Start Procedure – controls the WFS
and Volts (or Trim) for a specified time at the
beginning of the weld. During the start time,
the machine will ramp up or down from the Start
Procedure to the preset Welding Procedure.
Adjust time range: from 0 seconds (OFF) to
10 seconds.
Crater Procedure – controls the WFS (or
value in ampere units) and Volts (or Trim) for
a specified time at the end of the weld after
the trigger is released. During the Crater time, the
machine will ramp up or down from the Weld Procedure
to the Crater Procedure.
Adjust time range: from 0 seconds (OFF) to
10 seconds.
A/B procedure – enables quick weld
procedure change. The sequence changes
may occur between:
Two different welding programs.
Different settings for the same program.
Save Memory: Store the welding programs
with their parameters to one of the fifty user
Memories.
To save memory:
Add Save Memory icon to Welding Parameters Bar.
Use the Right Knob [36] to highlight the icon Save Memory.

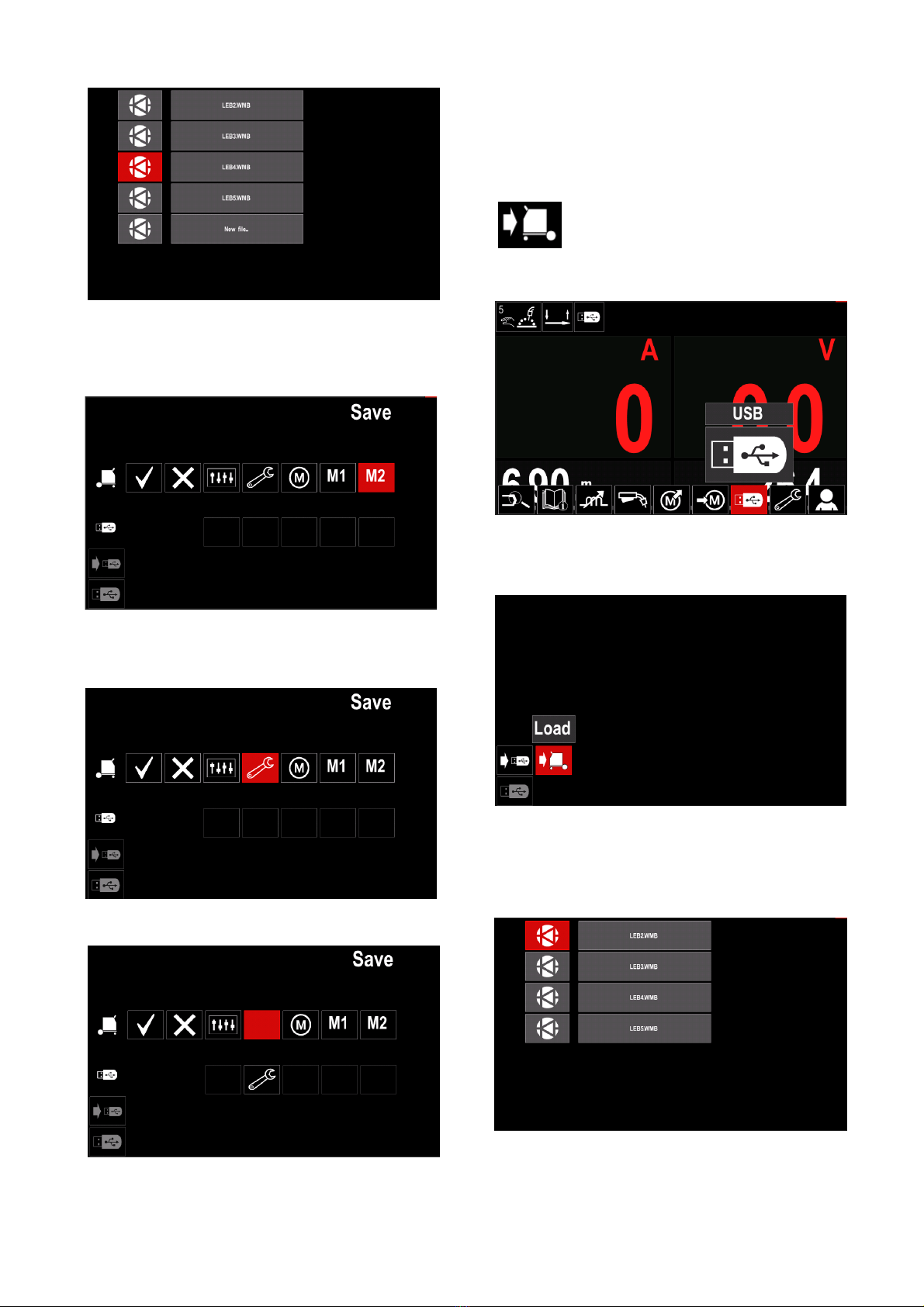

Figure 20.
Press the Right Knob [36] to confirm – the Save
Memory Menu is shown on the display .
Use the Right Knob to highlight the memory number
where the program would be stored.
Figure 21.
Confirm the selection – Press and hold for 3 second
Right Knob [36].
A/ B
t2
t1

English 17 English
Figure 22.
Rename job – turn Right Knob [36] to select:
numbers 0-9, letters A-Z, a-z. Press Right Knob [36]
to confirm first character of the name.
Next characters are selected in the same.
To confirm the name of job and back to the main
menu press Button [37] or Left Knob [35].
Load memory
Recall the stored programs from the user
Memory.
To recall the Welding Program from the User Memory:
Note: Before using, the Welding Program had to be
assigned to the user memory
Add the Load memory icon to the Welding Parameters
Bar.
Use the Right Knob [36] to highlight the Load memory
icon.
Press the Right Knob [36] to confirm – the Load
Memory Menu is shown on the display.
Use the Right Knob [36] to highlight the Memory
number which from the Welding Program will be
recall.
Confirm the select – press the Right Button [36].
USB
When the USB storage device is connected to
USB port – user have access to:
Table 10. USB Menu
Symbol Description
Save
Load
Save - the following data can be save on a USB Memory
Stick:
Table 11. Save and restore selection
Symbol Description
Current Welding Settings
Advanced Parameters Configuration
(P menu)
M
All welding programs stored in user
memory
One of the welding programs stored in user
memory
To save data into USB device:
Connect the USB to welding machine.
Add USB icon to the Welding parameters bar [44].
Use the Right Knob [36] to highlight the icon “USB”.
Figure 23.
Press the Right Knob [36] to confirm the selection – the
USB menu is shown on the display.
Use the Right Knob [36] to highlight the icon “Save”.
Figure 24.
Press the Right Knob [36] to get access of Save
option – the save menu is shown on the display.

English 18 English
Figure 25.
Create or choose a file in which will be saved copies
of the data.
The display shows the Save Data Menu on a USB
Memory Stick.
Figure 26.

 Use the Set Control [11] to highlight the data icon
which will be saved in the file on a USB Memory
Stick. For example: Configuration Menu icon.
Figure 27.
Press the Right Knob [36] to confirm.
Figure 28.
To confirm and save the data on a USB Memory
Stick, highlight the Check Mark icon and then press
the Right Knob [36].

 To exit the USB Menu – press the Left Button [37] or
disconnect the USB Memory Stick from the USB
receptacle.
Load – restore the data from the USB
Device to the machine memory.
To load the data from USB Memory:
Connect the USB to welding machine.
Add USB icon to the Welding parameters bar [44].
Use the Right Knob [36] to highlight the icon “USB”.
Figure 29.
Press the Right Knob [36] to confirm the selection – the
USB menu is shown on the display.
Use the Right Knob [36] to highlight the icon “Load”.
Figure 30.
Press the Right Knob [36] to get access of Load
option – the load menu is shown on the display.
Select the file name with the data to be loaded into
interface. Highlight the file icon – use the Right Knob
[36].
Figure 31.
