Lincoln blum AVENTOS User manual

AVENTOS Lift Systems
Including SERVO-DRIVE for AVENTOS

2
So fascinating
It’s so easy...
SERVO-DRIVE
inside
BLUMOTION
inside

Lift systems open with just a light touch - and then close
again with the press of a button. The new electrical
motion support system, SERVO-DRIVE for AVENTOS,
can be used with or without handles.
Discover for yourself how easy the opening and
closing of lift systems can be, along with the function
and design opportunities available to you with
SERVO-DRIVE for AVENTOS.
Contents
4 SERVO-DRIVE for AVENTOS features
6 SERVO-DRIVE for AVENTOS components
8 SERVO-DRIVE for the entire kitchen
14 Frequently asked questions
16 AVENTOS HF
24 AVENTOS HS
32 AVENTOS HL
38 SERVO-DRIVE for AVENTOS assembly
42 SERVO-DRIVE for AVENTOS functions & settings
46 Cover cap assembly and battery replacement
New effortless
opening and closing
for lift systems
It’s so easy... HF
HS
HL
Using this guide
Throughout this guide, the standard AVENTOS systems
are identified by a dark grey number or shading e.g.
and SERVO-DRIVE for AVENTOS components are
identified by an orange number or shading e.g.
When selecting AVENTOS items consider your
Standard AVENTOS or SERVO-DRIVE for AVENTOS
requirements.
You can also refer to the shaded tabs at the bottom of
the right-hand page for quick referral to the particular
AVENTOS lift system you are looking for.
1
3a
Lift mechanism
SERVO-DRIVE cover cap

4
So user-friendly
Completely safe even when closing
Even when the switch has just been pressed for closing – the closing procedure is halted immediately if
the kitchen user again reaches into the cabinet and/or an object is placed between the cabinet and the
front.
The complete focus
is on the kitchen user

5
Completely under control
Even though lift systems open and close automatically: the kitchen user can interrupt the motion at any
time. In addition, lift systems with SERVO-DRIVE for AVENTOS can also be easily opened and closed
manually at any time, e.g. when there is a power failure. Once the power has been restored, SERVO-
DRIVE for AVENTOS is again functional - no resetting is required.
Completely synchronised
Up to three drive units can be set for synchronised
motion. Synchronisation is ideal for several
cabinets that share one wide frontal.
No danger of collision
For corner solutions, it is especially important
that lift system fronts do not open simultaneously.
Thanks to the “collision avoidance” function, you
can set drive units so that only one front opens at
a time.

6
So well co-ordinated with each other

7
After lift mechanism installation and adjustment, SERVO-DRIVE components are attached to the lift
mechanism and cabinet.

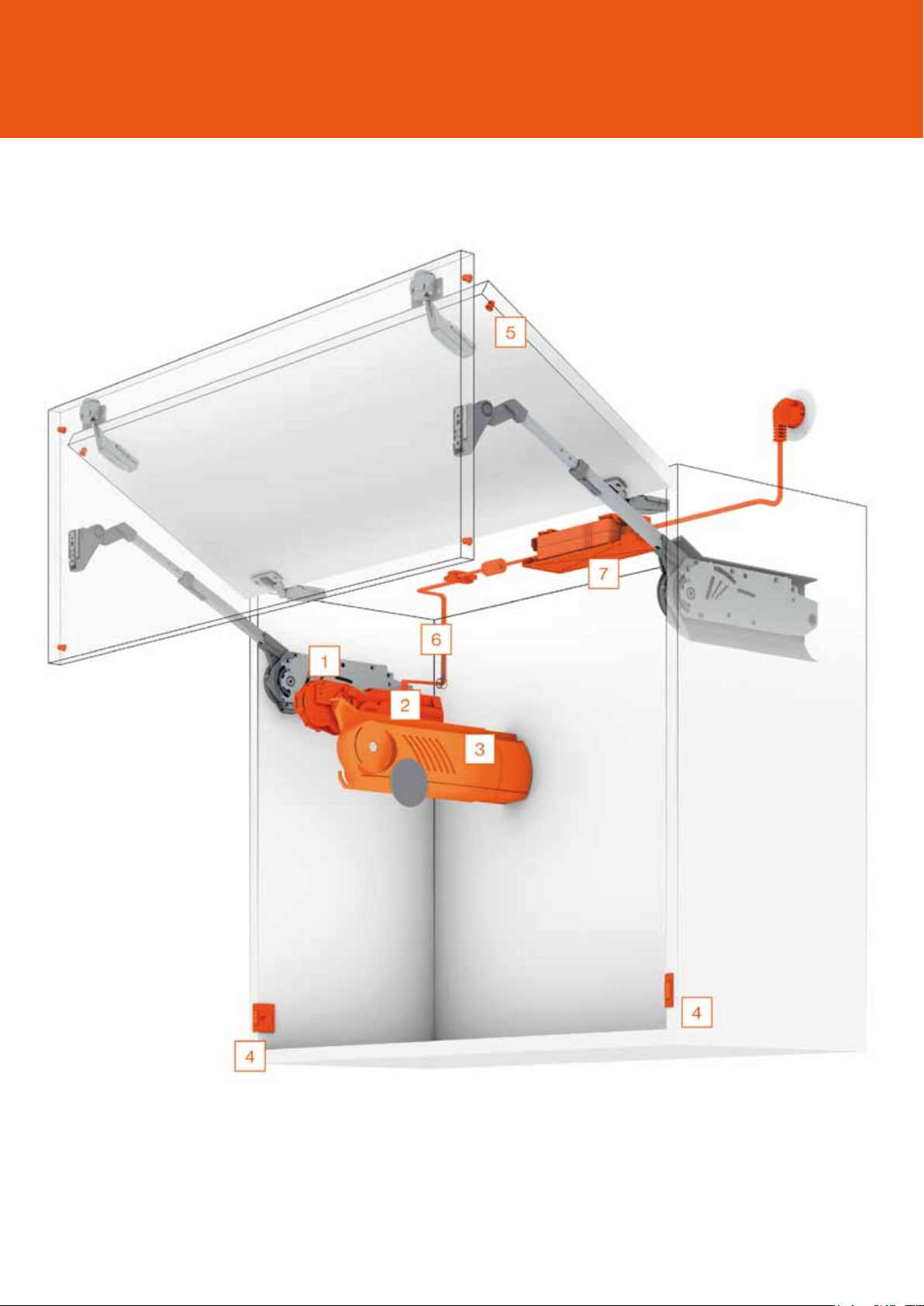

SERVO-DRIVE -
the individual components
Lift mechanism
»SERVO-DRIVE-compatible lift
mechanism with elongated hole for tool-
free attachment to the drive unit
1
Drive unit
»For assembly to the left lift mechanism
»Tool-free clip-on
»The same drive unit for all AVENTOS lift
mechanisms (HF, HS, HL)
»Several practical setting options, e.g.
synchronisation and collision avoidance
2
Cover cap
»For covering the lift mechanism and
drive unit and cabling
»Extendable to an internal depth
of 350mm to cover the distribution
cable
3
SERVO-DRIVE switch
»Attaches to both cabinet sides
»Wireless connection to the drive unit
»Frequency 2.4 GHz
»Certified for use worldwide
4
Distance bumper
»Existing SERVO-DRIVE bumpers ensure
the required trigger path
of 2mm
5
Cabling
»With proven cabling components such
as the SERVO-DRIVE distribution cable,
connecting node, cable end protectors
»For easy, practically tool-free cabling
6
Transformer for power supply
»Proven SERVO-DRIVE transformer
Transformer unit housing
»For secure fixing
»Enables necessary air circulation
7
Additional components and updates for
AVENTOS HS and HL
»Cross stabiliser (new length and
configuration)
»Modified lever shape
»Modified fixing position for the lift
mechanism
»Enables necessary air circulation
i

8
So practical
With SERVO-DRIVE, you will experience trouble
free opening throughout the entire kitchen. Whether
it’s the base or wall cabinet – a single system
automatically opens pull-outs & lift systems with the
slightest touch. Kitchen users will never again want to
do without this level of comfort.

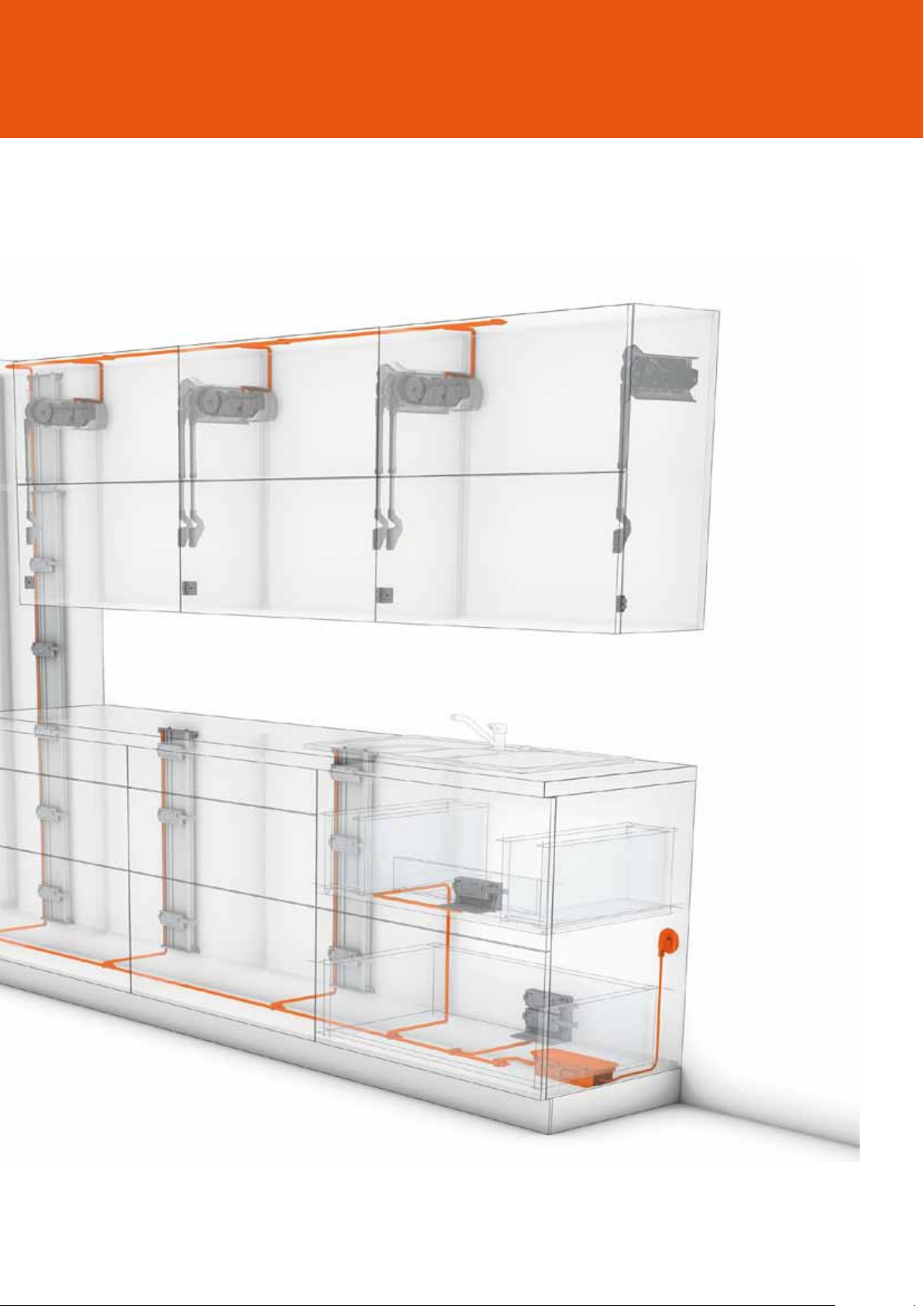

With complete SERVO-DRIVE cabinetry, the individual
cabling components for the base and wall cabinets
are the same. One transformer is all that’s required to
power the entire kitchen.
SERVO-DRIVE can be deactivated easily – preferably
via a switched outlet. This would be practical when
cleaning fronts, for example.
Complete SERVO-DRIVE
kitchens - one system
for the entire kitchen

9

10
So practical

11

12
So easy
Assembly – practically tool-free
Most components can be
attached tool-free, e.g. the drive
unit, distance bumper or
SERVO-DRIVE switch.

13
From assembly
through to start-up

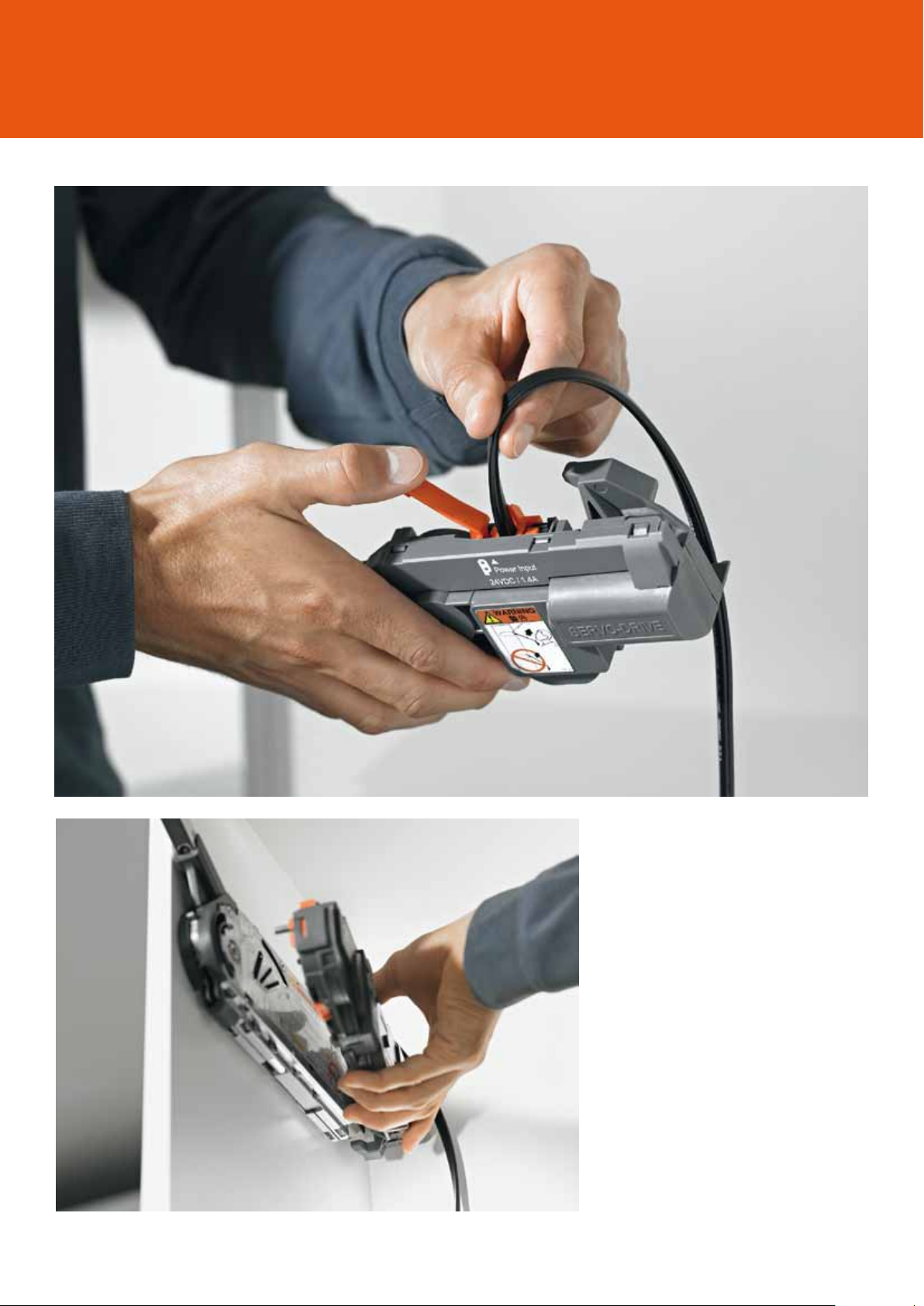

Cabling – quick and easy
The piercing technology makes cabling very
easy. A few steps is all that’s required to make
the electrical connections. The cabling is
very flexible, and can easily be customised to
individual requirements.
Start-up – takes just a few seconds
SERVO-DRIVE is easy to set up and operate
thanks to the clearly defined function keys on the
drive unit.
Switch installation – fast & simple
The SERVO-DRIVE switch is attached to the
cabinet side. Installation is very quick, simply
locate switch in pre-drilled hole & apply hand
pressure to insert.
When is the AVENTOS lift mechanism
set correctly?
The lift mechanism must be set correctly
in order to ensure optimal SERVO-DRIVE
for AVENTOS functionality. If the lift system
stops in any position when it is let go, then
the lift mechanism is properly adjusted.
>

14
So quickly answered
Frequently asked questions
How is this different from the regular
AVENTOS lift mechanism?
For the SERVO-DRIVE-compatible version,
the lift mechanism has an additional
elongated hole in which the drive unit can
be inserted or clipped on during assembly.
?Can I synchronise drive units?
Yes. Up to three drive units can be set so
that they move simultaneously.
?
Can I use asymmetrical fronts or fronts
with aluminium frames?
Yes, these are both possible.
?
Can SERVO-DRIVE for AVENTOS also be
used with lift systems with handles?
Yes. You can use SERVO-DRIVE for
AVENTOS with lift systems with or without
handles. The handle is purely a design
element in this case. Pulling the handle
does not trigger the motion support system
because SERVO-DRIVE for AVENTOS is
only activated by a light touch on the front.
In any event, the lift system can be opened
manually at any time.
?
Can I attach an opening angle stop?
Yes, this is possible – however only after
drive unit installation and before start-up.
?
Do I need different drive units for different
lift system types?
No. You can use the same drive unit for
the following AVENTOS lift systems:
high fold system, high swing system
and high lift.
?
Can I retrofit SERVO-DRIVE for AVENTOS?
Yes, however you do require additional
components depending on the lift
system type:
»SERVO-DRIVE-compatible lift
mechanism
»Special cover cap set(adjustable)
Additional for AVENTOS HS and HL:
»Special lever arms
»Shorter cross stabiliser rod
»Modified stabiliser adapter
?

15
Where are the SERVO-DRIVE switches
located?
The SERVO-DRIVE switches are attached
to the cabinet sides at the bottom. This
makes them easy to reach for thekitchen
user. This position also ensures that
SERVO-DRIVE for AVENTOS functions
optimally.
?Can SERVO-DRIVE for AVENTOS be
deactivated?
Your customers can easily deactivate
SERVO-DRIVE for AVENTOS, e.g. to clean
the fronts. We recommend a switched
outlet for this. While deactivated, the lift
systems can continue to be opened and
closed manually.
?
What if there is a warranty claim?
SERVO-DRIVE for AVENTOS underwent
exhaustive testing in the Blum test lab:
opening and closing 80,000 times.
When you combine SERVO-DRIVE with
AVENTOS lift systems, you will benefit
from a five-year warranty for all electrical
components. In case of a warranty claim,
please prepare all purchase documents
and contact your Blum distributor.
?
Where can I find additional information
about Blum products?
Please visit the Blum website at
www.blum.com.au
?
What happens in the event of a power cut?
If the power fails, SERVO-DRIVE cannot
be activated. However, you can continue
to open and close manually. Once the
power has been restored, SERVO-DRIVE
for AVENTOS is again functional – no
re-setting is required. If the power should
fail while the lift system is in motion, it will
stop in that position. Once the power has
been restored, simply touch the SERVO-
DRIVE switch to reactivate SERVO-DRIVE
for AVENTOS.
?
How does my customer know when the
battery has to be replaced?
The SERVO-DRIVE switch contains a battery
display. It flashes red when the battery
needs to be replaced. Battery replacement
is very simple. All you need is a common
button cell battery (type CR 2032).
?

16
AVENTOS HF
Standard AVENTOS
SERVO-DRIVE for AVENTOS

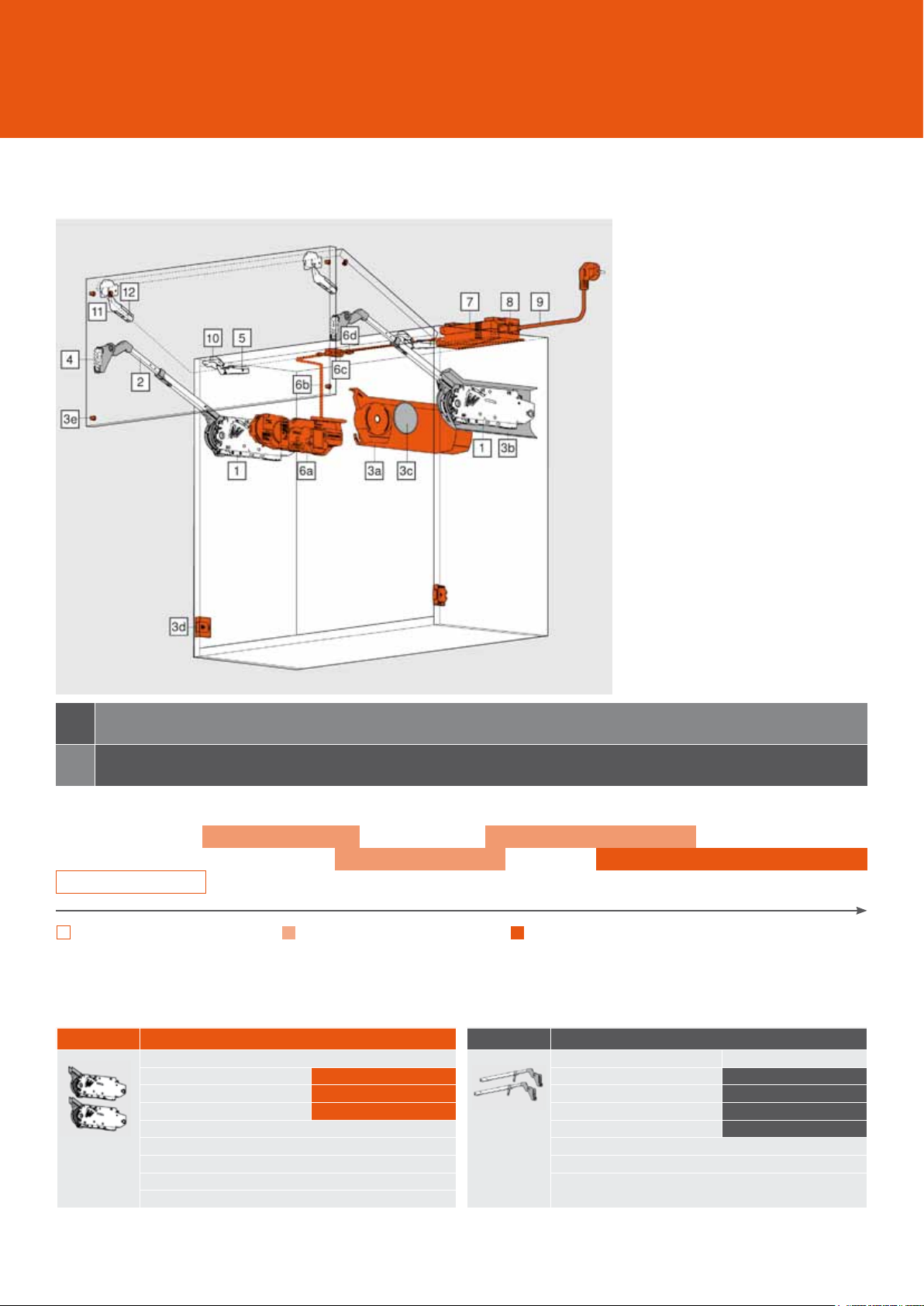

17
HF
Lift mechanism
1
Telescopic arm
2
Cover cap right
3b
Cover cap round
3c
Mounting plate for telescopic arm
4CLIP top 120ohinge (unsprung)
10
CLIP top centre hinge
11
Mounting plate for
CLIP top 120ohinge
CLIP top centre hinge
512
SERVO-DRIVE cover cap left
The left cover cap is used to cover
the lift mechanism, drive unit and
distribution cable. To cover the
cabling, the cover cap can be
expanded up to an internal depth
of 350 mm.
3a
Drive unit
The drive unit is attached tool-free
to the left lift mechanism. The same
drive unit can be used for all lift
mechanisms.
6a
Distribution cable
This cable is used to supply power
to the drive unit. The maximum
permitted operating power is 24V.
6b
SERVO-DRIVE switch
The SERVO-DRIVE switch is
attached to the cabinet side at the
bottom. The switch signals the drive
unit via a wireless connection. The
2.4 GHz frequency is certified for
international use.
3d
Blum distance bumper
The Blum distance bumper creates
and maintains the required trigger
path of 2mm.
3e
Connecting node + cable end
protector
This node establishes the electrical
connection between the distribution
cable and the transformer. The cable
end protector is inserted into the
“open” end of the cable.
6c 6d
Blum transformer + cable and plug
The Blum transformer converts the
mains voltage to 24V direct current.
You must use the Blum SERVO-
DRIVE transformer cable and plug to
keep the warranty valid.
79
Transformer unit housing
The transformer is easily and
securely stored in the transformer
unit housing.
8

18
AVENTOS HF order specifications
Wooden fronts and wide aluminium frames symmetrical/asymmetrical
3 types of lift mechanisms
are enough to cover a wide
range of applications.
Using the power factor,
you can calculate which
mechanisms you require.
The power factor required
depends on the combined
weight of the two fronts
(including the handle weight)
and the cabinet height.
The larger front must be at the
top for asymmetrical fronts.
This is how it’s done! Symmetrical fronts:
Power factor = cabinet height (KH) [mm] x door weight
Asymmetrical fronts:
Theoretical cabinet height (TKH) = upper front height (FHo) x 2 (including gaps)
i
20F2200.05 1-321-220
20F2500.05 1-321-250
20F2800.05 1-321-280
20F2800.05 1-321-280
20F2200.05 1-321-220
LF 2600-5500
LF 5350 - 10150
LF 9000 - 17250
LF 13500 - 259001)
LF 960 - 2650
Lift mechanism one-sided
A trial application is recommended when you are in a borderline area for the individual lift mechanism.
1) We recommend two synchronised drive units for a power factor > 17250.
Lift mechanism two-sided Additional 3rd lift mechanism LF Power Factor
1 Lift mechanism set for SERVO-DRIVE
Power factor LF
2600 - 5500 20F2200.05 1-321-220
5350 - 10150 20F2500.05 1-321-250
9000 - 17250 20F2800.05 1-321-280
Composed of:
2 x symmetrical lift mechanisms
10 x Chipboard screws Ø 4 x 35 mm
2 Telescopic arm set
Nickel plated steel
Cabinet height 2) 480 - 570 mm 20F3200 1-320-320
Cabinet height 2) 560 - 710 mm 20F3500 1-320-350
Cabinet height 2) 700 - 900 mm 20F3800 1-320-880
Cabinet height 2) 760 - 1040 mm 20F3900 1-320-390
Composed of:
2 x symmetrical telescopic arms
2) “Theoretical cabinet height” for asymmetrical fronts
= upper front height (FHO) x 2 (including gaps)

19
HF
Hinge set - INSERTA / EXPANDO / Knock-in
for wooden fronts 78Z5530T10 1-308-78Z553
Composed of:
10 2 x CLIP top 120° hinge (unsprung) (INSERTA)
11 2 x CLIP top centre hinge (Knock-in)
4 5 12 6 x Horizontal cam mounting plate (Knock-in)
12 2 x Cruciform mounting plate (EXPANDO)
Hinge set - Screw-on
for wooden fronts and wide
aluminium frames
78Z5500T10 1-308-78Z550
Composed of:
10 2 x CLIP top 120° hinge (unsprung)
11 2 x CLIP top centre hinge
4 5 12 6 x Horizontal cam mounting plate
12 2 x Cruciform mounting plate
12 x chipboard screws
3 SERVO-DRIVE cover cap set
Light grey 21F8000 1-321-010
White 21F8000-W 1-321-012
Composed of:
3a 1 x SERVO-DRIVE cover cap left
3b 1 x cover cap right
3c 2 x round cover caps
3d 2 x SERVO-DRIVE switches
3e 6 x Blum distance bumpers Ø 5 mm
3 Standard cover cap set
Light grey 20F8000 1-320-005
White 20F8000-W 1-320-007
Composed of:
3a 1 x cover cap left
3b 1 x cover cap right
3c 2 x round cover caps
3e 6 x Blum distance bumpers Ø 5 mm
6 SERVO-DRIVE set
21FA000 1-321-000
Composed of:
6a 1 x drive unit
6b 1 x distribution cable, 1.500 mm
6c 1 x connecting node
6d 2 x cable end protectors
Opening angle stop
Nylon, dark grey
104° 20F7051 1-320-104
83° 20F7011 1-320-083
7 Blum transformer
Z10NE050.01 1-244-050
8 Transformer unit housing for panel fixing
RAL 7037 dust grey Z10NG100 1-244-055
9 Cable and plug
Z10M200K 1-244-051
OR

20
AVENTOS HF planning information
Wooden fronts and wide aluminium frames symmetrical
Drilling position for lift mechanism and
distribution cable1)
Space requirement
4 x Ø 4 x 35 mm
1) Only on the left side
* Drilling depth 5 mm
**
Alternative drilling
Cabinet height H
480 - 549 mm KH x 0.3 - 28 mm
550 - 1040 mm KH x 0.3 - 57 mm
KH Cabinet height
KH Cabinet height
SFA Side front overlay
Number of Hinges
3 hinges starting at cabinet width 1200 mm
and/or 12 kg door weight
4 hinges starting at cabinet width 1800 mm
and/or 20 kg door weight
Cabinet height
X
Screw-on /
EXPANDO
X
Knock-in
480 - 549 mm 68 mm 70 mm
550 - 1040 mm 45 mm 47 mm
F Gap
Drilling distance TB
Front overlay FA
5 6 7 8 9 10 11 12 13 14 15 16 17
0 3456
3 3456
6 3456
93456
Mounting plate
*37 mm for cruciform mounting plates (37/32)
Min. gap F = 1.5 mm
Drilling distance TB
Front gap F
3456
0 6543
3
6
9
Mounting plate
CLIP top 120° hinge unsprung CLIP top centre hingeFront assembly
