ServiceTraining Page 1
Section 2.1
2 LINDE ELECTRIC FORK TRUCK E 20 / 25 / 30 SERIES 336
2.1 DRIVE - MOTOR
The electric fork trucks are powered by DC series-wound motors. DC series-wound motors develop the
highesttorqueofall electricmotors.Inseries-woundmotorsthefieldwinding isconnectedinseriestothe
armature.
Thefield windings terminalsD1andD2 and thearmaturewindingterminals A1 andA2aremarked. They
areleadoutofthemotorseparately.Thetractionmotordirectionisreversedbyreversingthearmaturefield.
Aspeedsensorisinstalledontheleft-handtractionmotorforsensingthemotorRPManddirectionofrotation.
2.1.1 TRACTION MOTOR TO 6/95
Type: DC series-wound motor witharmaturereversal
Model: E 20 GF144-14/5.4
E 25 / 30 GF146-14/7.8
Voltage: 80 V
Power: E 20 5.0 kW S2 (60 min rating)
E 25 / 30 6.4 kW S2 (60 min rating)
Typeof protection: IP00 / IP23 DIN 40 050
Brushdimensions: 12.5x40x40mm
Permissiblewear: down to 16 mm
Collectordiameter: original 104 mm
Reworking downto: 100 mm
Components: 2 thermal switches; 1 normally open operates at 80 °C; 1 normally closed
operates at 160 °C; brush monitoring, speed sensor on left-hand motor

ServiceTraining
Section 2.1
Page 2
Right-handtractionmotor1M1
Connector 1X8 for LH traction motor 1M2
1 Brushswitch 6B3
2 Brushswitch 6B4
3 Thermal switch 160 °C 1B6
4 Thermal switch 160 °C 1B6
5 Thermal switch 80 °C 1B4
6 Thermal switch 80 °C 1B4
7 Notused
8 Notused
Armature terminals A1 and A2
Field terminals D1 and D2
Connector 1X7 for RH traction motor 1M1
1 Brushswitch 6B1
2 Brushswitch 6B2
3 Thermal switch 160 °C 1B7
4 Thermal switch 160 °C 1B7
5 Thermal switch 80 °C 1B5
6 Thermal switch 80 °C 1B5
7 Notused
8 Notused

ServiceTraining Page 3
Section 2.1
2.1.2 TRACTIONMOTORFROM 7/95
Type: DC series-wound motor witharmaturereversal
Model: E 20 Juli GF144-14/5.4
E 25 / 30 JuliGF 146-14/7.8
Voltage: 80 V
Power: E 20 5.0 kW S2 (60 min rating)
E 25 / 30 6.4 kW S2 (60 min rating)
Typeof protection: IP00 / IP23 DIN 40 050
Brushdimensions: 12.5x40x40mm
Permissiblewear: down to 16 mm
Collectordiameter: original 104 mm
Reworking downto: 100 mm
Components: 1 thermalsensor;potential-freebrush monitoring
Connector 1X7 for RH traction motor 1M1
1 Brushswitch 6B4
2 Brushswitch 6B4
3 Thermalsensor6B1
4 Thermalsensor6B1
Connector 1X8 for RH traction motor 1M2
1 Brushswitch 6B5
2 Brushswitch 6B5
3 Thermalsensor6B2
4 Thermalsensor6B2
Armature terminals A1 and A2
Field terminals D1 and D2

ServiceTraining
Section 2.1
Page 4

ServiceTraining Page 5
Section 2.1
2.1.3 CHECKINGAND RENEWINGTHETRACTIONMOTORBRUSHES
Themotorbrushescanbecheckedforwearandfreemovementafteropeningthedriver’soverheadguard.
- Block up the truck at the axle.
- Raise the fork carriage and secure against inadvertent lowering.
- Chockthe wheels
- Turn off the key switch.
- Disconnectthe battery plug.
- Open the overhead guard as far as the second detent position.

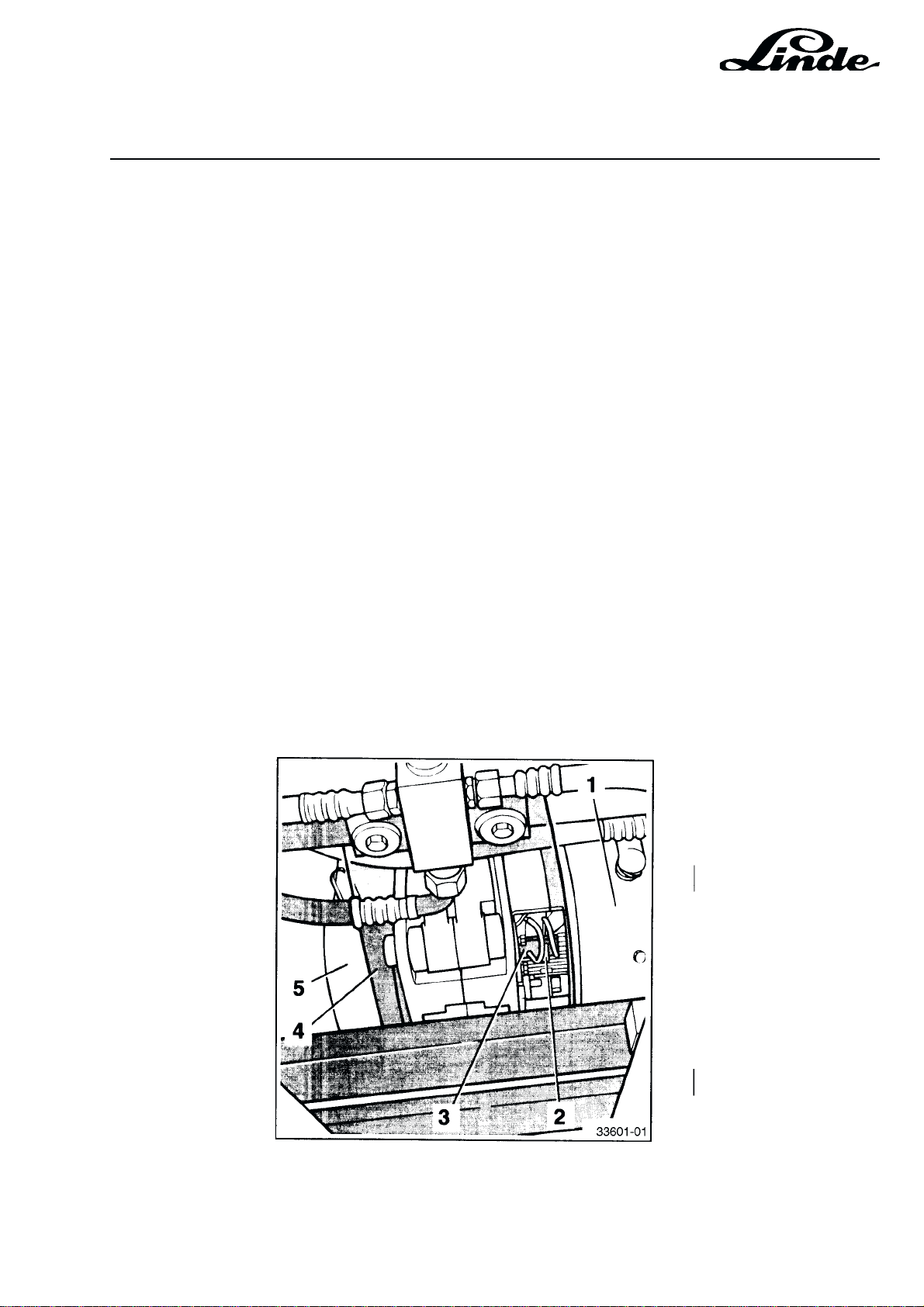

- Lift up the rubber covers (4) over the traction motors.
- Remove the brush cover on the traction motors (1) and (5).
- Lift up the pressure springs (2).
NOTE: When lifting the springs from the motor brushes and putting them on the holder, be sure that
theydonotslideoffandopen,ascompressingthemwhenthemotorsareinstalledisextremely
difficult
- Pull the motor brushes (3) out of the guide.
- Check the length of the motor brushes (minimum length 16 mm).
- Renew worn motor brushes only as a set.
- After renewing the brushes, check the brushes for free movement in the guides and the brush leads for
security.

ServiceTraining
Section 2.1
Page 6
2.1.4 TRACTIONMOTORDISASSEMBLY

ServiceTraining Page 7
Section 2.1
1 Brakedisc
2 Hexagonalscrew
3 Bearingplate
4 Hexagonalscrew
5 Brushholder
6 Brushspring
7 Bearing
8 Retainingring
9 Shim
10 Armatureassembly
11 Housing
12 Gasket
13 Hexagonalscrew
14 Cover
15 Sealingring
16 Bearingplate
17 Groovedball bearing
18 Retainingring
- Remove the speed sensor when dismantling the left-hand traction motor.
- Remove the cover strap.
- Remove the four brushes.
- Screw two M10x50 press-off screws into the brake disc (1).
- Remove the brake disc with the press-off screws. Turn the screws alternately to prevent the brake disc
from seizing (brake disc is pressed on with 30 kN).
- Remove the retaining ring (18).
- Mark the position of the bearing plate (16) to the motor housing (11).
- Remove the bearing plate (16).
- Press out the armature assembly (10).
- Do not lose the shim (9) and re-use it during re-assembly.
- Remove the 8 fastening screws (2) (torque 110 Nm, secured with Loctite 243).
- Mark the position of the inner bearing plate (3) to the motor housing (11).
- Disconnect the field leads at the brush holder (5).
- Remove the inner bearing plate (3).
- Remove the retaining ring (8).
- Drive out the bearing (7).

ServiceTraining
Section 2.1
Page 8
2.1.5 FAN
Fan method of operation to 6/95:
The traction motors and pump motor are forced-air ventilated by axial-flow fan 9M1. When the operating
temperatureofoneofthethreemotorsexceeds80°C,batterynegativeisappliedtothefansviathreethermal
switches(1B4,1B5and2B5)connectedinparallel.Thefansaresuppliedwith24Vdirectcurrentovervoltage
converter U1. The 80 °C thermal (make) switches are mounted on the motor brush holders.
Fan method of operation from 7/95:
Incontrasttotheabovefanmethodofoperationupto6/95,thermalsensors6B1,6B2and6B3aremounted
onthebrushholdersofthetractionmotorsandpumpmotor.Whenthetemperatureinoneofthethreemotors
exceeds 80 °C, +24 V is applied to axial-flow fan 9M1 and 9M2 via the combined instrument.
NOTE: Thefanoperatesonlywhenthekeyswitchisturnedon,i.e.thefandoesnotrunwhenthekey
switch is turned off.
SPECIFICATIONSFORFAN9M1
Ratedvoltage: 24 V
Voltagerange: 12 - 24 V
Powerconsumption: 710 mA
Power: 17 W
Temperaturerange: -20 ... +72 °C
Ratedspeed: 3400 rpm
2.1.6 SPEEDSENSOR
A differential speed sensor (1B8) is installed on the left-hand motor. The speed sensor senses the brake
disc bridges and supplies information regarding the motor speed and direction of rotation.
Adjustment:
Thespeedsensorismountedonanangleplateontheinsidebearingplate.Theairgapbetweentheactive
sensor area and a web on the brake disc must be 1.0+0.3 mm.

ServiceTraining Section 2.2
Page 1
2.2 DRIVE-GEARBOX
Theseries336electricforktrucksarepoweredbytwotractionmotors. Thetwotractionwheelsaredriven
by two planetary hub reduction gearboxes mounted on the traction motors. The motor and the reduction
gearbox together form one drive unit that is bolted to the truck chassis. For repairs, the drive axle can be
removed as a single unit.

ServiceTraining
Section 2.2
Page 2
2.2.1 DRIVEAXLEREMOVAL
- Remove the mast and the front wheel bolts.
- Jack up and secure the truck.
- Tilt the overhead guard back to the second detent.
- Unscrew the wheel bolts and remove the wheels.
- Loosenthelocknut(3)ontheparkingbrakelever(1)andtheadjustmentnut(2)ontheparkingbrakecable
(4).
- Unhook the parking brake cable (4) at the bottom of the brake shoes (5) and (6).
- Remove one pin retainer (9) on each of the two brake shoes (5) and (6).
- Unscrewthesocketheadscrew(7)atthebearingplatesandremovethelever(8)alongwiththeconnecting
rod (11).
- Disconnect the cables at the traction motors.
- Disconnect cable connectors 1X7 and 1X8 at the traction motors.
- Disconnect the cable connector for the speed sensor on the left-hand traction motor.
- Disconnect the cable connector for the fan.
- Remove the air duct hose.
- Support the drive axle with a pallet truck and blocks of wood.
- Remove the eight fastening screws on each bearing plate.
- Lower the drive axle.

ServiceTraining Section 2.2
Page 3

ServiceTraining
Section 2.2
Page 4
2.2.2 DRIVEAXLEDISASSEMBLYANDASSEMBLY
Disassembly:
- Remove the motor brush cover on each traction motor.
- Remove the fan along with the air duct.
- Remove the two lower socket head screws (3).
- Remove socket head screws (8).
- Take out the brake shoes (4) and (5) with bushings (6) and (7).
- Separate the two drive halves (1) and (2).
Assembly:
- Join the two drive halves (1) and (2) and bring them into alignment.
- Insert the brake shoes (4) and (5) with bushings (6) and (7).
- Screw in socket head screws (8).
- Screw in the lower socket head screws (3).
- Torque socket head screws (3) and (8) to 540 Nm.
- Install the fan along with the air duct.
- Fasten the motor brush cover on each traction motor.
