Introduction
Thank you for purchasing the USB VGA Adapter. The USB VGA Adapter enables you to
connect an additional display device (CRT/LCD monitor, projector) to your desktop or
notebook PC. The connected display can act as mirrored or extended desktop (it can
also be used as the primary display) of the main display on your PC. The flexibility of
USB 2.0 technology saves the need to open the computer and install a VGA graphics
card.
System Requirements
• Available USB 2.0 port
• Minimum Requirement to use one (1) USB Display Adapter: Intel/AMD Single
Core 1.5GHz or higher processor, RAM: 512MB memory or higher
• 2~3 Displays - (additional USB display adapters): Intel/AMD Single Core
2.4GHz or higher processor, RAM: 1GB memory or higher
• 4~6 Displays (additional USB display adapters): Intel/AMD Dual Core 2.0GHz or
higher processor, RAM: 2GB memory or higher
• Windows 2000 SP4 / Windows XP SP2 / Windows Vista
Package Contents
• USB 2.0 to VGA Adapter
• Driver CD
• LINDY Manual
Features
• USB 2.0 compliant
• supports display resolution up to VGA : 1600 x 1200
• Plug-and-Play USB connectivity
• Display Modes: Primary, Extended, Mirror
• Display Rotation: 0°, 90°, 180°, 270°
• Identify Monitors
• Multi-Display Control Panel
• Short-cut to access Windows Display Setting

User Manual English
4
Resolution USB-VGA
Refresh Rate
Frequency
800 * 600 16bit, 32bit
60Hz,75Hz
1024 *768 16bit, 32bit
60Hz,75Hz
1152 * 864 16bit, 32bit
60Hz
1280 * 720 16bit, 32bit
60Hz
1280 * 768 16bit, 32bit
60Hz
1280 * 800 16bit, 32bit
60Hz
1280* 960 16bit, 32bit
60Hz
1280 * 1024 16bit, 32bit
60Hz
1360 * 768 16bit, 32bit
60Hz
1400 * 1050 16bit, 32bit
60Hz
1440 * 900 16bit, 32bit
60Hz
1680 * 1050 16bit, 32bit
60Hz
1600 * 1200 16bit, 32bit
60Hz
Installation
Windows 2000/XP:
Installing the device driver enables your computer’s operating system to recognize the
USB VGA Adapter once it’s connected. Please check your operating system and refer
to the appropriate installation procedure to begin installing the device driver. Please
make sure the USB VGA Adapter is unplugged from your PC or Notebook before
executing the setup program. This section illustrates the simple device driver
installation procedure for computer running Windows 2000 / XP operating system.
Step 1
Insert the Driver CD into the CD-ROM drive; the setup program should be launched
automatically. If setup program does not begin automatically, click Start, Run and
double click “
D:\Setup.exe ” (where D: is the path of your CD-ROM drive).

User Manual English
5
Step 2

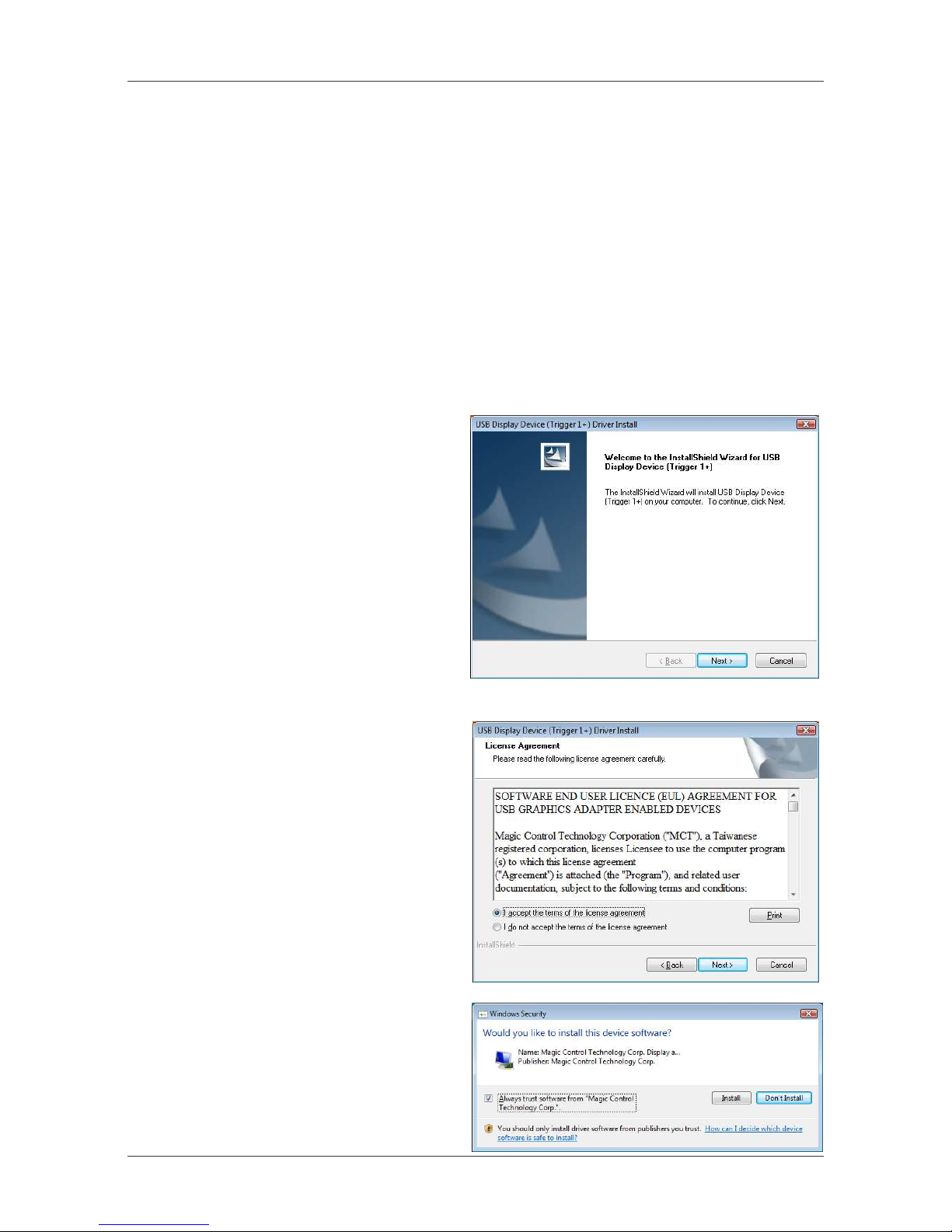

Driver Installation Wizard, click “ Next ” to
continue.
Step 3
License Agreement; please read it and
select “I accept the terms of the
license agreement .” Click “ Next ” to
accept the License Agreement.
Step 4
The Microsoft Software Installation
Certificate warning dialogue box, please
select “ Continue Anyway ” to continue with
the device driver installation. This will not
affect the device driver installation and the
device usage.

User Manual English
6
Step 5
Please select “ Yes, I want to restart my
computer now”. Then, click “ Finish ” to
complete the software installation.
Step 6 (After System Reboot)
Please connect the external display device (monitor/projector) to the VGA connector
of USB VGA Adapter and switch it on.
Then plug the USB VGA Adapter into an available USB 2.0 port of your PC or
Notebook.
Step 7

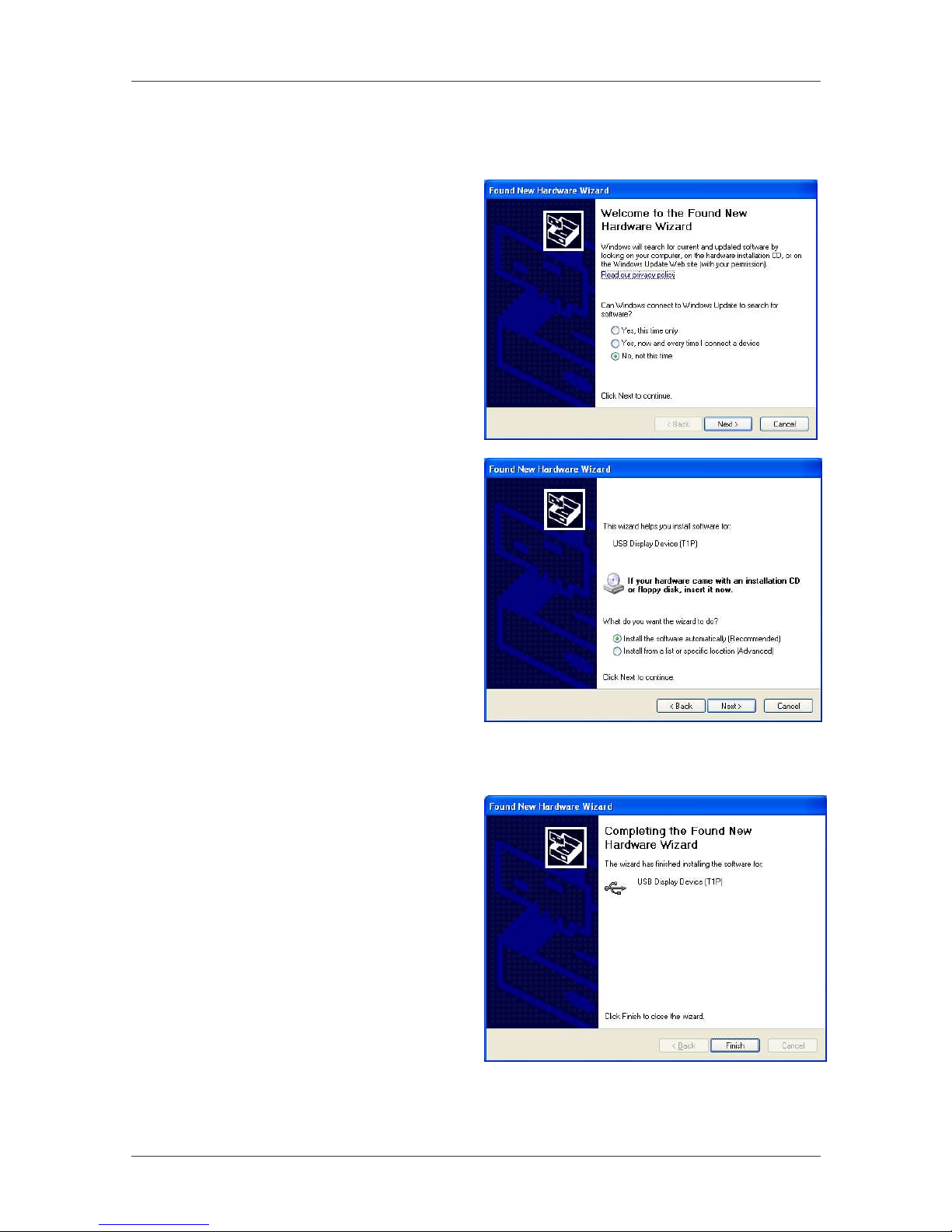

A Hardware Installation Wizard dialog will
show up, please select “ No, not this
time ” and click “ Next ” to continue.

User Manual English
7
Step 8

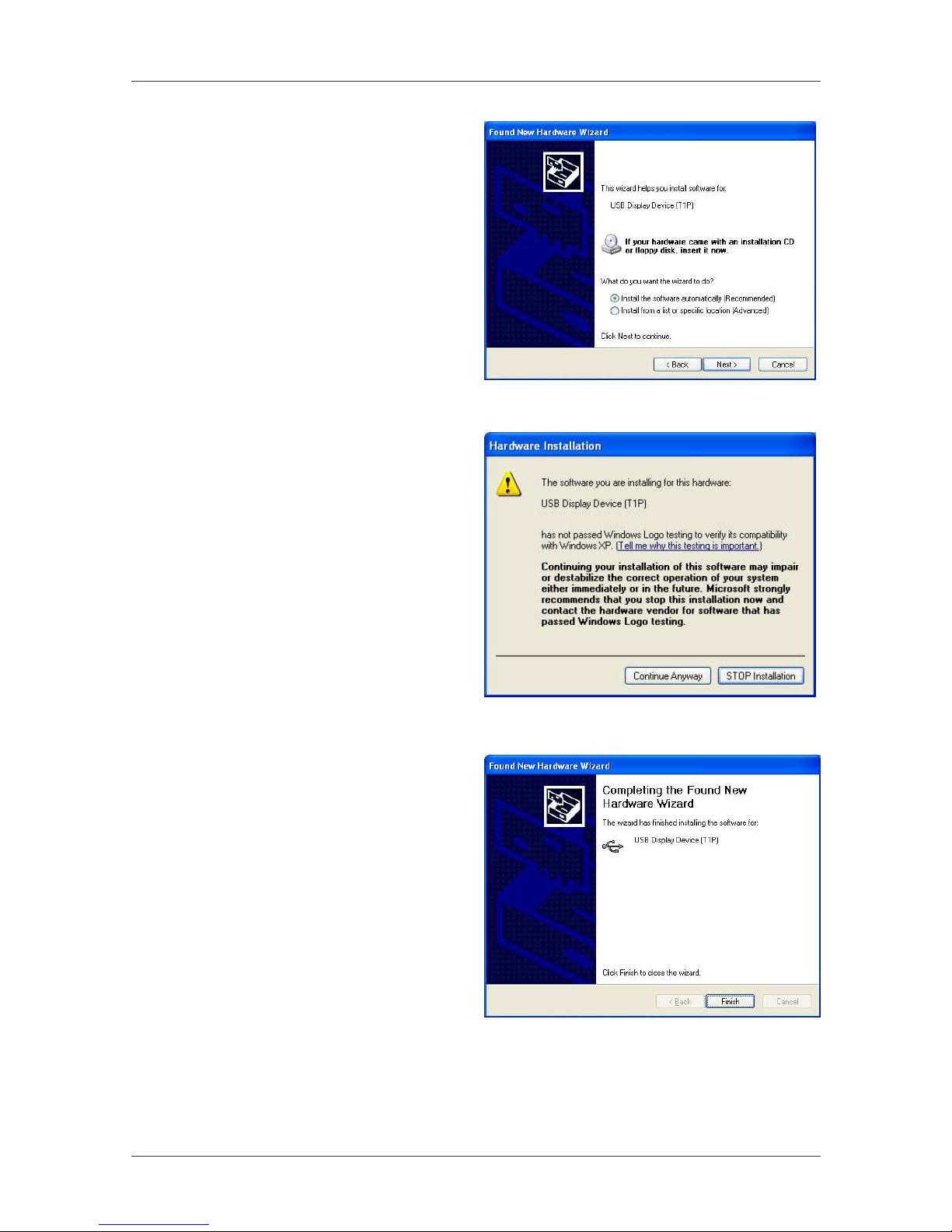

Please select “Install the software
automatically (Recommended)”.
And click ”Next” to continue.
Step 9
The Microsoft Software Installation
Certificate warning dialogue box, please
select “ Continue Anyway ” to continue
with the hardware installation.
This will not affect the device driver
installation and the device usage.
The extended display will be shown
on 2
nd
display device.
Step 10
Click “Finish ” to complete the Hardware
Wizard.

User Manual English
8
Step 11 Installation of multiple USB VGA Adapters
Please plug the additional USB VGA Adapter into an available USB 2.0 port of your
PC or Notebook.
a. A Hardware Installation Wizard dialog
will show up, please select “ No, not this
time ” and click “ Next ” to continue.
b. Please select “ Install the software
automatically (Recommended) ”.
And click ” Next ” to continue.
c. Please select “ Continue Anyway ” to complete the device driver installation.
The extended display will be shown on additional display device.
d. Click
“Finish ” to complete the
Hardware Wizard.
e. If you wish to install additional USB VGA Adapter, please follow the procedure a~ d
again.

User Manual English
9
To make sure the USB VGA Adapter works
correctly, please reboot the computer after
the installation.
After rebooting the computer, the USB
extended display will be shown on the
display device.
Verifying the device driver installation
The following procedure allows you to verify the device driver installation.

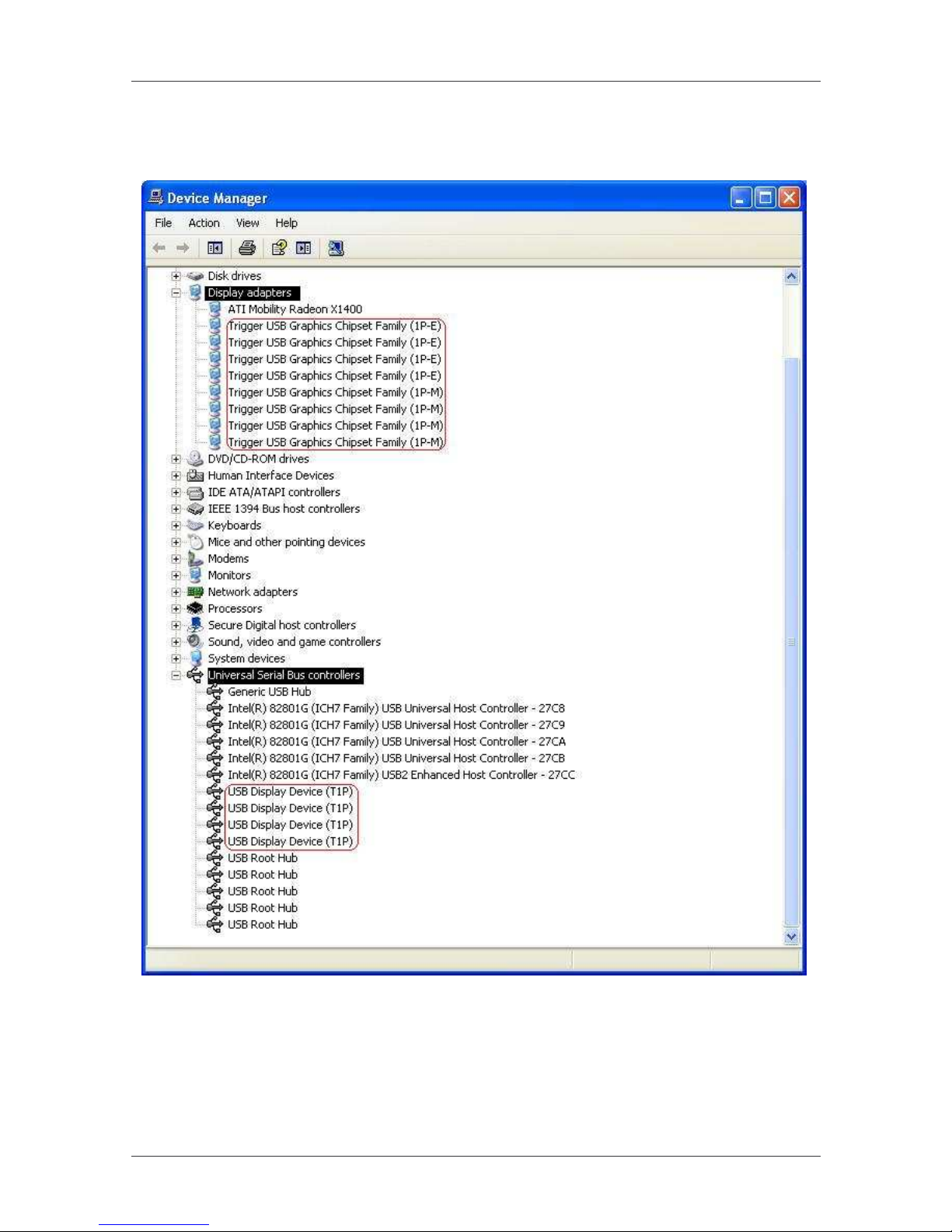

Please right click “ My Computer ”  “ Properties ”  “ Hardware ”  “ Device
Manager ”.
Plug-in the USB VGA Adapter, then double click “ Display adapters ” and “ Universal
Serial Bus controllers ”. It will show the new directions as below,
Single USB VGA Adapter installation on the computer

User Manual English
10
Multiple USB VGA Adapters installation on the computer
