Lindy Ethernet Powerline Adaptor 25131 User manual

Ethernet Powerline Adaptor
User Manual

Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in
an information retrieval system, translated into any language, or transmitted in any form or by any means,
mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written
permission.
Trademarks
All product, company, brand names are trademarks or registered trademarks of their respective
companies. They are used for identification purpose only. Specifications are subject to be changed without
prior notice.
Ethernet Powerline Adaptor i

FCC Radiation Norm
This equipment has been tested and found to comply with limits for a Class B digital device pursuant to
47 CFR, Part 2 and Part 15 of the Federal Communication Commission (FCC) rules. Operation is subject to
the following Two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received including interferences that may cause
undesired operations.
CE Radiation Norm
This equipment has been tested and found to comply with the limits of the European Council Directive
89/336/EEC on the approximation of the law of the member states relating to EN
55022:1998/A1:2000/A2:2003 Class B, EN6100-3-2:2000, EN 61000-3-3:1995/A1:2001, EN
55024:1998/A1:2001/A2:2003 and EN 60950.
FCC & CE Compliance Statement
These limits are designed to provide reasonable protection against radio interference in a residential
environment. This equipment can generates, uses and radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which is found by turning the
equipment ON and OFF, the user is encouraged to try to reduce the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and the receiver
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connect to
•Consult a dealer or an experienced technician for assistance
CAUTION!
The Federal Communication Commission warns the user that changes or modifications to the unit not
expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Ethernet Powerline Adaptor ii

Ethernet Powerline Adaptor iii
Contents
COPYRIGHT......................................................................................................................................................I
CHAPTER 1 INTRODUCTION.........................................................................................................................1
1.1 Features ......................................................................................................................................................2
1.2 Packet Contents..........................................................................................................................................3
CHAPTER 2 CONNECTING MECHANISM ..................................................................................................... 4
2.1 Introduction..................................................................................................................................................4
2.1 LED Indicator...............................................................................................................................................5
2.2 Physical Interface........................................................................................................................................6
2.3 Hardware Connection – Computer..............................................................................................................7
2.4 Hardware Connection – Internet.................................................................................................................8
CHAPTER 4 INSTALLING MANAGEMENT UTILITY .....................................................................................9
CHAPTER 5 USING THE MANAGEMENT UTILITY..................................................................................... 11
5.1 Main...........................................................................................................................................................12
5.1.1 Rename..................................................................................................................................................14
5.1.2 Enter Password......................................................................................................................................15
5.1.3 Add Device .............................................................................................................................................16
5.2 Privacy.......................................................................................................................................................17
5.3 Diagnostics................................................................................................................................................19
5.4 About .........................................................................................................................................................21
APPENDIX A: TROUBLESHOOTING GUIDE...............................................................................................22

Chapter 1 Introduction
Congratulations on your purchase of this outstanding Ethernet Powerline Adaptor. This device is a
85Mbps Powerline Ethernet Adaptor which transforms your house’s existing electrical wiring into an
ubiquitous networking infrastructure. Simply plug this 85Mbps Ethernet PowerlineAdaptor into an ordinary
AC power outlet which will easily extend your Cable/xDSL broadband connection or existing Ethernet (LAN)
network to any other electrical outlet in any room of a house without the need of any new cabling.
This Ethernet PowerlineAdaptor supports up to 85Mbps data rate over the existing household power
circuit. With data rates of 85Mbps, full multimedia application can easily be supported throughout the whole
house in addition to Internet access. This Ethernet PowerlineAdaptor uses the existing power lines installed
in a home as a path to transmit digital data, voice, audio and video between devices.
To ensure data communication’s security and multimedia applications, this Ethernet PowerlineAdaptor
support built-in 56-bit DES encryption and Quality of Service features.
With minimum setup, you can install and use this Ethernet PowerlineAdaptor within minutes.
Ethernet Powerline Adaptor 1

Ethernet Powerline Adaptor 2
1.1 Features
Homeplug Turbo
yHigh speed data transfer rate up to 85Mbps
yFully compatible to HomePlug 1.0
yBackward-compatible to HomePlug standard 1.0
yWorks withAC input of 100V ~ 240V
yPlug-and-Play configuration
yHigh-speed HomePlug adapter with Ethernet interface
ySupports QAM 256/64/16, DQPSK, DBPSK and ROBO modulation
yLow power consumption
yOFDM techniques for high data reliability in noisy media conditions
yIntelligent channel adaptation maximizes throughput under harsh channel conditions
yIntegrated Quality of Service (QoS) features
y56-bit DES Link Encryption with key management for secure power-line communications
yTransmission range up to 200m over household power supply grid
yEthernet specifications IEEE 802.3x compliant
ySupport Auto MDI / MDIX feature
System Requirement
yAt least two AC 100V ~ 240V power outlets with standard home power wiring
yA computer with the following:
Operating System with TCP/IP installed
Pentium III compatible processor and above
Ethernet LAN card installed with TCP/IP protocol
64 MB RAM or more
50 MB of free disk space (Minimum)
CD-ROM Drive
Target Application
yStandard Video TV (SDTV) Distribution
yHigher data rate broadband sharing
yShared broadband Internet access
yAudio and video streaming and transfer
yExpanding the coverage of wireless LANs
yVoice Over IP calls
yPC file and application sharing
yPrinter and peripheral sharing
yNetwork and online gaming
ySecurity cameras

Ethernet Powerline Adaptor 3
1.2 Packet Contents
The 85Mbps Ethernet Powerline Adaptor package contains the following items:
One 85Mbps Ethernet Powerline Adaptor
One CAT-5 Ethernet Cable
One CD-ROM (Utility / Manual / Quick Setup Guide)
If any of the above items are damaged or missing, please contact your dealer immediately.

Chapter 2 Connecting Mechanism
2.1 Introduction
The Ethernet PowerlineAdaptor support up to 85Mbps data rate. With this high speed connection rate,
this Ethernet Powerline Adaptor allows you to setup a high speed home network by using your home existing
electrical wiring. Simply plug this Ethernet PowerlineAdaptor into an ordinary power outlet to extend your
Cable/xDSL broadband connection or existing LAN network to any other electrical outlet in any rooms of your
house.
Take notes that this Ethernet PowerlineAdaptor works in pairs. You need to plug one Ethernet
Powerline Adaptor into a power outlet for each computer (Connect to the computer LAN card) you want to
connect (Network access); you will also need another Ethernet Powerline Adaptor connected to your
Cable/xDSL broadband (Ethernet port) in order to extend your broadband connection or Internet surfing.
Section below describe the Ethernet Powerline Adaptor’s LED indicators, physical interface and
hardware connection mechanism.
Ethernet Powerline Adaptor 4

2.1 LED Indicator
The LED indicator displays information about the device’s status.
Label Status Description
ON The Ethernet Powerline Adaptor is power on
Power OFF The Ethernet Powerline Adaptor is not receiving power
ON Another Powerline port is detected on the same Powerline network
OFF Did not detect any other Powerline port on the same powerline network
Powerline
Flashing The Powerline port is transmitting/receiving data
ON The Ethernet port is on and ready to receiving/transmitting data
OFF The Ethernet port is not connected or not power on
Ethernet
Flashing The Ethernet port is receiving/transmitting data
Ethernet Powerline Adaptor 5

2.2 Physical Interface
There are two physical interface on this Ethernet Powerline Adaptor.
Interface Description
Ethernet One 10/100Mbps Ethernet port connected to PC LAN card or broadband device.
Power Plug Power Plug connected to any 100V ~ 240VAC power socket.
Ethernet Powerline Adaptor 6

2.3 Hardware Connection – Computer
For those computers you wish to be networked by Ethernet Powerline Adaptor, each of the computer
must be properly connected with an Ethernet PowerlineAdaptor through an Ethernet (RJ-45) cable.
Following are the steps to properly connect the Ethernet Powerline Adaptor to your computer:
1. Power off your PC or Notebook.
2. Connect the provided Ethernet (RJ-45) cable to the Ethernet Powerline Adaptor’s Ethernet port.
3. Connect the other end of the Ethernet (RJ-45) cable to you computer’s LAN port.
4. Plug the Ethernet Powerline Adaptor into a wall socket next to the computer.
5. Turn on your computer.
6. Check and confirm that the Power and Ethernet LEDs on the Ethernet Powerline Adaptor are ON.
The hardware connection mechanism is shown below:
Ethernet Powerline Adaptor 7

2.4 Hardware Connection – Internet
This section describe how to connect the Ethernet Powerline Adaptor into your existing ADSL
broadband connection viaADSL Ethernet port. Follow the procedures describe below to connect the Ethernet
Powerline Adaptor to yourADSL broadband connection:
1. Power off your PC or Notebook.
2. Connect the provided Ethernet (RJ-45) cable to the Ethernet Powerline Adaptor’s Ethernet port.
3. Connect the other end of the Ethernet (RJ-45) cable to an available Ethernet port of your ADSL
broadband Router.
4. Plug the Ethernet Powerline Adaptor into a wall socket next to the computer.
5. Turn on your computer.
6. Check and confirm that the Power, Powerline and Ethernet LEDs on the Ethernet Powerline
Adaptor are ON.
The hardware connection mechanism is shown below:
Ethernet Powerline Adaptor 8

Chapter 4 Installing Management Utility
Please verify that no other Ethernet PowerlineAdaptor or any Encryption Management Utilities are
installed before installing the provided software. If other Homeplug Utilities are installed, uninstall them and
restart your personal computer before installing this provided software.
Follow the following procedures to properly installing the provided Management Utility:
Step 1: Power on your computer and insert the provided CD into the CD-ROM drive, the following screen will
pop-up automatically. Click on “Management Utility” to install the Management Utility.
Ethernet Powerline Adaptor 9

Step 2: The program installation process will carry out and automatically copying all the necessary files to
your system.
Step 3: The following screen will pop-up when the Power Adaptor Utility is successfully installed.
Step 4: After the installation, a shortcut to the “Power Adaptor Utility” application icon is provided on the
windows desktop.
Ethernet Powerline Adaptor 10

Chapter 5 Using The Management Utility
After you’d successfully installed the Ethernet Powerline Adaptor hardware and Management Utility
software, you can setup or configure the devices according to your need.
This Ethernet Powerline Adaptor Configuration Utility enables the users to identify HomePlug devices
on the powerline network, measures data rate performance, ensures privacy and performs diagnostics by
setting user defined secure powerline networks.
Double click on the “Power Adaptor Utility” from your windows desktop, the following screen display.
This Management Utility consists of a set of four property sheets, viz., “Main”, “Privacy”,“Diagnostics”
and “About”.
Ethernet Powerline Adaptor 11

5.1 Main
The Main tab shows all the Ethernet Powerline Adaptor that are logically connected to the current
computer where the Management Utility is running.
;Local Device(s) on your computer: This shows all local Ethernet Powerline Adaptor found
connected to the computer’s LAN card. In most cases, only one device will display in this panel.
Click and select the local device shown on the screen then click “Connect” tab to manage the
Ethernet Powerline Adaptor. The status message will be shown above the “Connect” button
indicates that your PC is connected to the same device. Once the chosen Ethernet Powerline
Adaptor is properly connected, this Management Utility will automatically scan the power line
periodically for any other existing powerline devices.

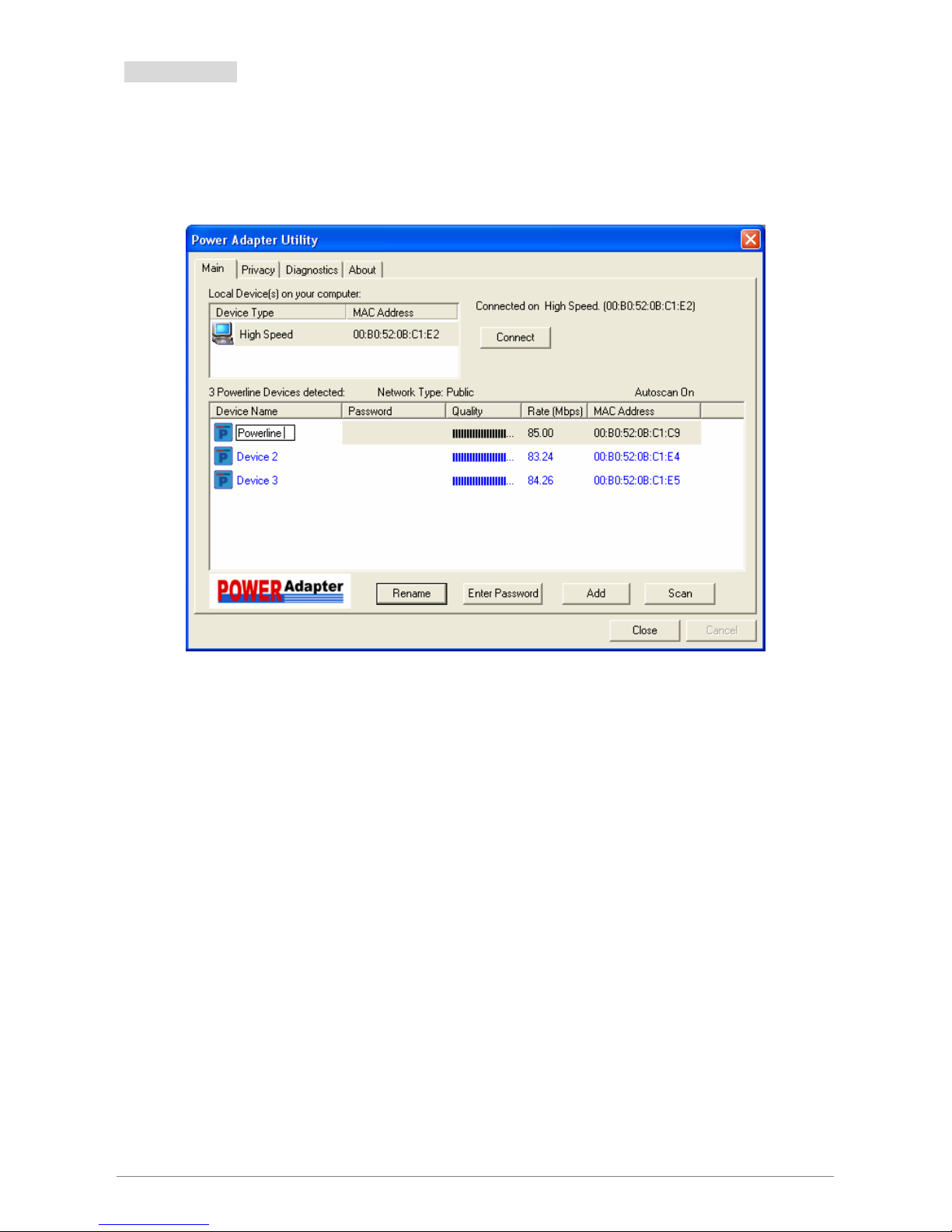

;“x” Powerline Devices detected: This display all the Ethernet Powerline Adaptor found on the
current logical network. “x” shows the number of remote Ethernet Powerline Adaptor discovered
by this Management Utility.
;Network Type: Displayed the type of logical network: “Public” or “Private”.
Ethernet Powerline Adaptor 12

Ethernet Powerline Adaptor 13
;Autoscan: Shows the scanning status (Default is “ON”).
Device Name: Shows the default device name. One may redefine or change the name by
clicking on the name and editing in place or by clicking the “Rename” button.
Password: Shows the current password of the Ethernet Powerline Adaptor.
Quality: Shows the quality of the Ethernet Powerline Adaptor connection.
Rate (Mbps): Shows the current transmission rate of the selected Ethernet Powerline
Adaptor.
MAC Address: Shows the Ethernet Powerline Adaptor’s MAC address.
;Rename: Click to change the name of the selected Ethernet Powerline Adaptor.
;Enter Password: Shows the supplied Ethernet Powerline Adaptor’s password (Initially left blank).
To set the Ethernet Powerline Adaptor password (Which is required when creating a private
network), click and select the device shown in the lower panel and click on the “Enter Password”
button. Follow the pop-up dialog box to complete your password setting.
;Add: Click this button to add a remote Ethernet Powerline Adaptor to your network that is not on
the lower panel displayed list. You will advice to locate the passwords for all Ethernet Powerline
Adaptor you wish to manage and add them to the local logical network by clicking the “Add”
button. Follow the pop-up dialog box to complete your setting.
;Scan: Click the “Scan” button to perform an immediate search of the Ethernet Powerline Adaptor
connected to the computer. The Management Utility will automatically perform the scanning
process and update the display every few seconds by default.

5.1.1 Rename
This Management Utility allows you to change the name of the listed Ethernet Powerline Adaptor. Click
and select the Ethernet Powerline Adaptor you wish to change from the list, then click on the “Rename” tab
and editing-in-place to change the name.
Ethernet Powerline Adaptor 14

5.1.2 Enter Password
To set or change your Ethernet Powerline Adaptor’s password, click and select the Ethernet Powerline
Adaptor you wish to change from the list, then click on the “Enter Password” tab, the following screen
display.
Enter your Password (Take note to the password format) and click “OK” after setup.
Note: The Ethernet Powerline Adaptor device must be present on the power line (plugged in) in order for
the password to be confirmed and added to the network. If the Ethernet Powerline Adaptor device
could not be located, a warning message will be shown.
Ethernet Powerline Adaptor 15

5.1.3 Add Device
The following dialog box pop-up when clicking the “Add” button under Main configuration homepage.
The dialog box allows you to enter both the selected device’s name and password. Noted that the Ethernet
Powerline Adaptor must be present on the power grid in order to activate the set password and added to the
local network.
Enter your Device Name and Password (Take note to the password format) and click “OK” after
setup.
The following screen display after the naming and password setting process, which is also the
Diagnostics configuration homepage.
Ethernet Powerline Adaptor 16
