Lindy 38088 User manual

© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION January 2012
8x8 DVI Matrix
Manual English
LINDY No. 38088
www.lindy.com

Manual
Thank you for purchasing the LINDY 8x8 DVI-D Single Link Matrix with remote control. This high performance
matrix offers maximum convenience in DVI distribution when you have multiple DVI sources and displays to connect
together. Each of the eight DVI inputs can be directed to any of the eight DVI outputs, so your displays can show up
to eight different sources at the same time.
•DVI 1.0 Compatible (Single Link)
•Supports resolutions up to 1920 x 1200 (WUXGA) & 1080p
•Support for the EDID function
•Switch channels using RS-232, USB or IR remote control
•Single-link 165MHz (4.95Gbps)
Front Panel
1. Power switch
2. Seven segment LED indicator
3. Input/Output indicators: Press the + or – switch on the input/output buttons to select the source and display
desired
4. IR receiver
Rear Panel
1. AC power input: 100-240V
2. RS-232 Communication port
3. USB control port
4. Main dip switches
5. DVI output ports
6. DVI input ports
Remote Control
1. Power: Turn the unit on/off
2. Source select: Only buttons 1 & 2 are used in this
area. These are used in conjunction with the “Fn”
button
3. Input: Press 1-8 to select the desired input
4. Output: Press 1-8 to select the desired output
1 3
2 4
2 14 36
6
5
6
6
1
2
3
4

Manual
To use the remote control to switch channels, first select the input you require and then select the output/outputs
you would like it to display on. Repeat this for multiple pictures on multiple screens. The channel switching takes
approximately 2 seconds.
Fn + Source Sel 1 = Escape system lock
Fn + Source Sel 2 = System lock. The remote control becomes inactive except for the above command.
Dip switches
Dip Switch Position Pin #1 Pin#2 Pin#3 Pin#4
Operation mode via RS
-
232 Port
1
OFF (
↑
)
OFF (
↑
)
OFF (
↑
)
OFF (
↑
)
Operation mode via USB Port
2
OFF (
↑
)
OFF (
↑
)
OFF (
↑
)
On (
↓
)
Firmware update mode
3
Block A Main
On (
↓
)
OFF (
↑
)
OFF (
↑
)
OFF (
↑
)
Block B Remote
On (
↓
)
On (
↓
)
On (
↓
)
OFF (
↑
)
1. Factory default setting, all pins set to “off”. This is the default mode for RS-232 control.
2. For USB control, set Pins 1, 2 & 3 to “off” and Pin 4 to “on”.
3. Firmware update mode can only be used via RS-232 with the PC set to COM1.
a. Power off your LINDY 8x8 DVI Matrix and connect your serial cable to the RS-232 port and serial port of
your PC.
b. Execute the firmware update program on your PC via the COM 1 port.
c. Set Pin 1of Black A Main to the “on” position for firmware update mode.
d. Set Pins 2 & 3 to the respective positions to assign which block is to be updated.
e. Power on your Matrix and the firmware update program should begin the update sequence automatically. (If
the program does not start, check the cable connections).
f. Once the firmware update sequence has completed, the screen will display “OK”, at this point turn off the
Matrix.
g. When all updates are complete, set the dip switches to normal operation mode.
h. Power on the LINDY 8x8 DVI Matrix.
Software installation & control
Note: before inserting either the USB or serial cable, make sure that the main dip switches are set to the correct
position. Incorrect dip switch settings will result in the DVI Matrix not being picked up on the PC com port.
1. Plug either a USB A male to female cable or serial cable in to the back of the Matrix and your computer.
2. For USB the computer will show that new hardware has been found. Click next to continue and click finish at
the end.
3. When the hardware has fully installed, insert the CD provided.
4. Open the folder “01 control program\control program 8x8 DVI matrix\8x8 DVI matrix setup” This will install the
Matrix control software.
DVI Input
mapping area
DVI Output
mapping area
Status indicator
1
2
3
4
5
6

Manual
5. Scan: Press the “scan” button, select “scan”, then select the
detected port and click OK.
6. Setting: Press the “setting” button then press the “get” button to read
back the device ID. Press the “set” button to write the device ID.
7. Linkage: Press the “linkage” button to read back all the status ID’s.
8. Open/Close: Press either the “open” or “close” button to open or close the COM port.
9. Mapping:
Select All Output: Click on “Select All Output” then
select the source on the main menu. This quickly
sets all the outputs to the same source.
Unselect All Output: This releases all the outputs
Select Input 1~8 Output: Select the input source,
then select the output port icon.
Example: click on “Select Input 1 – Output”, then
select output port 1 & 2. The video and audio will
be sent to port 1 & 2.

Manual

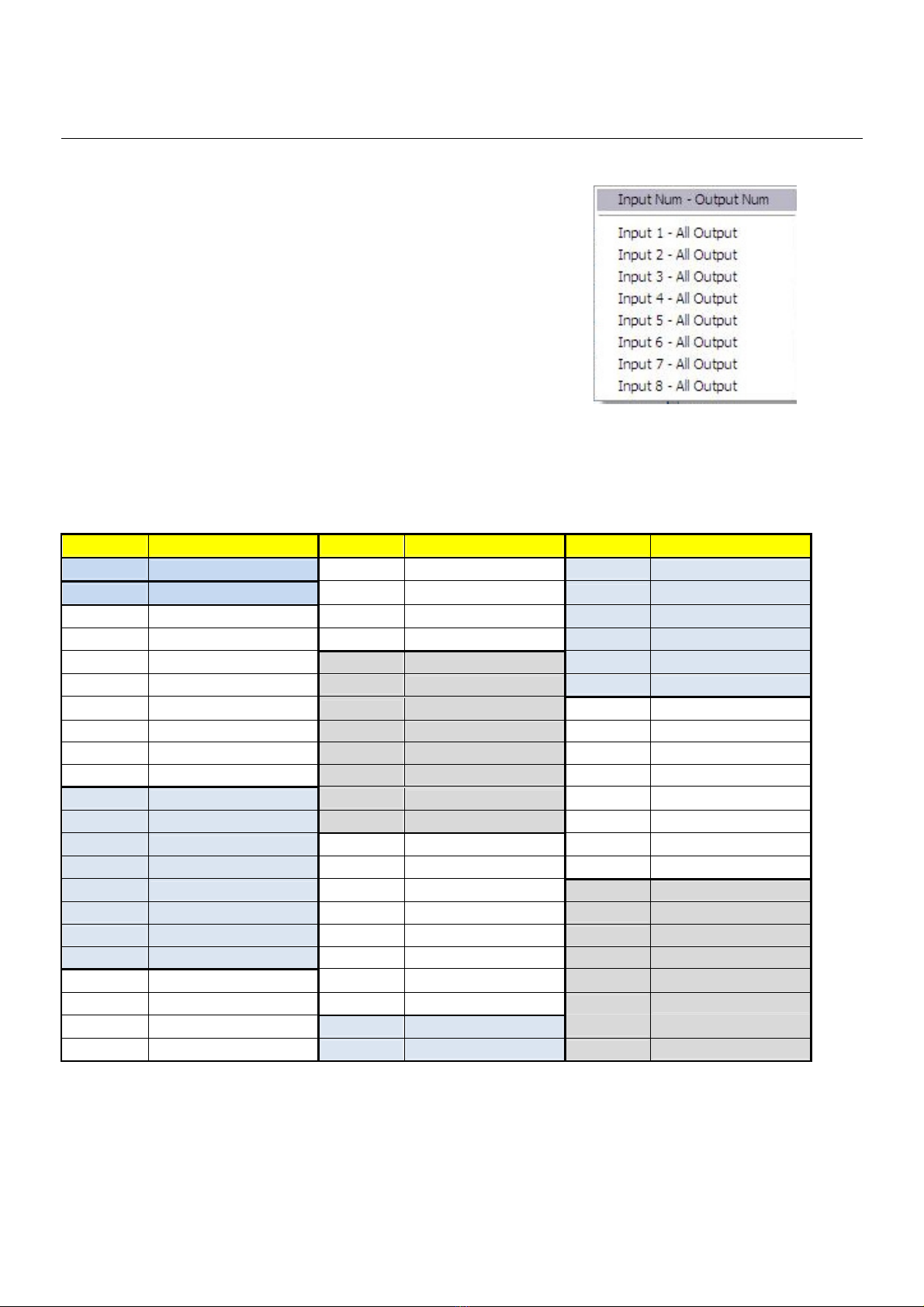

10.Fast Select:
Input Num – Output Num: This will set all input
Ports to its corresponding output port
ie. 1 to 2, 2 to 2
Input 1-8 – All Output: Quickly send the same
source to all outputs
Command Set
RS-232 Transmission format:
• Baud rate: 9600 bps
• Data length: 8 bits
• Parity check: None
• Stop bit: 1 bit
Full details of the RS-232 protocols can be found on the CD provided
COMMAND ACTION COMMAND ACTION COMMAND ACTION
ST System Status C5 Output C select Input 5 F3 Output F select Input 3
VR Firmware Version C6 Output C select Input 6 F4 Output F select Input 4
A1 Output A select Input 1 C7 Output C select Input 7 F5 Output F select Input 5
A2 Output A select Input 2 C8 Output C select Input 8 F6 Output F select Input 6
A3 Output A select Input 3 D1 Output select Input 1 F7 Output F select Input 7
A4 Output A select Input 4 D2 Output select Input 2 F8 Output F select Input 8
A5 Output A select Input 5 D3 Output select Input 3 G1 Output G select Input 1
A6 Output A select Input 6 D4 Output select Input 4 G2 Output G select Input 2
A7 Output A select Input 7 D5 Output select Input 5 G3 Output G select Input 3
A8 Output A select Input 8 D6 Output select Input 6 G4 Output G select Input 4
B1 Output B select Input 1 D7 Output select Input 7 G5 Output G select Input 5
B2 Output B select Input 2 D8 Output select Input 8 G6 Output G select Input 6
B3 Output B select Input 3 E1 Output E select Input 1 G7 Output G select Input 7
B4 Output B select Input 4 E2 Output E select Input 2 G8 Output G select Input 8
B5 Output B select Input 5 E3 Output E select Input 3 H1 Output H select Input 1
B6 Output B select Input 6 E4 Output E select Input 4 H2 Output H select Input 2
B7 Output B select Input 7 E5 Output E select Input 5 H3 Output H select Input 3
B8 Output B select Input 8 E6 Output E select Input 6 H4 Output H select Input 4
C1 Output C select Input 1 E7 Output E select Input 7 H5 Output H select Input 5
C2 Output C select Input 2 E8 Output E select Input 8 H6 Output H select Input 6
C3 Output C select Input 3 F1 Output F select Input 1 H7 Output H select Input 7
C4 Output C select Input 4 F2 Output F select Input 2 H8 Output H select Input 8
