LRT214 / LRT224
User Guide

ii
Table of Contents
Linksys
ii
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I
Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Ports 1
LED Indicators 2
Reset 2
Placement Tips 2
Wall Mounting Tips 2
Getting Started with the Router Configuration. . . . . . . . . . . .3
System Status 3
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Host Name and Domain Name 8
IP Mode 8
LAN Setting (Device IP address and subnets) 8
WAN Setting/ DMZ Setting (Internet connection & DMZ) 9
Setting Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
DMZ Host . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Port Forwarding and Port Triggering. . . . . . . . . . . . . . . .16
Port Range Forwarding 16
Port Triggering 17
Port Address Translation . . . . . . . . . . . . . . . . . . . . . . . 18
One-to-One NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Setting MAC Clone . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Dynamic DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Advanced Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Dynamic Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Static Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Outgoing Mail Server . . . . . . . . . . . . . . . . . . . . . . . . . 23
IPv6 Transition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
DHCP Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
DHCP Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Router Advertisement (IPv6) . . . . . . . . . . . . . . . . . . . . .26
IP & MAC Binding (for IPv4 Only) . . . . . . . . . . . . . . . . . . 27
DNS Local Database . . . . . . . . . . . . . . . . . . . . . . . . . . 28
System Management . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Dual WAN (LRT224 Only) / Network Service Detection 30
Dual WAN 30
Network Service Detection 30
Protocol Binding (Only Dual-WAN Mode supports this function) 31
Bandwidth Management 33
Session Control 34
SNMP 35
SSL Certificate 36
Port Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Port Setup 37
Port Status 38
802.1Q 39
802.1Q LAN Status 39
802.1Q LAN Configuration 40
Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Firewall General Settings 41
Access Rules 42
Content Filter 45
VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Summary 47
Gateway to Gateway 48
Table of Contents

iii
Table of Contents
Linksys
Client to Gateway 53
VPN Passthrough 58
PPTP Server 58
IP Address Range 58
PPTP Server 58
Connection List 59
EasyLink VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Summary 60
EasyLink VPN Server Status 60
Inbound EasyLink VPN Status 60
Outbound EasyLink VPN Status 60
Inbound EasyLink VPN 61
Add a New Account 61
Outbound EasyLink VPN 61
Edit Account 61
OpenVPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Summary 62
OpenVPN Server Status 62
OpenVPN Client Status 62
OpenVPN Server 62
Global Configure Settings 63
OpenVPN Client 65
Certificate Setting 65
Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
System Log 67
Syslog 67
E-mail Alert 67
Log Setting 67
System Statistics 68
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Diagnostic 70
DNS Name Lookup 70
Ping 70
Factory Default 70
Firmware Upgrade 71
Restart 71
Backup and Restore 71
Restore Startup Configuration 71
Backup Configuration File 71
Copy Configuration File 71
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

I
Introduction
Linksys
I
Introduction
LRT214/LRT224
Linksys’s VPN Routers for Small Business, LRT214 Gigabit VPN Router and LRT224
Dual WAN Gigabit VPN Router, support site-to-site VPN, which allows branch
offices to connect with the central office, and client-to-site VPN, which allows
employees to securely connect back to their offices while they are away. The
dual-WAN model supports WAN Failover, which allows a business to continue its
network operation when one of its WAN connections to the Internet fails. With
dual-WAN load balancing, the dual-WAN model can aggregate the bandwidths
of both WAN connections to achieve a higher Internet bandwidth than what a
single WAN connection can provide.
Employees increasingly demand remote access to enterprise IT resources
through their mobile devices such as smartphones and tablets. LRT214/LRT224
support OpenVPN server, which allows OpenVPN clients running on employees’
laptops, smartphones, and tablets to connect to the offices using two-factor
authentication. Two-factor authentication typically requires pre-installed
certificates as part of the authentication of an OpenVPN connection, in addition
to username/password, for additional security.
The products come with an integrated firewall that supports URL filtering
and access rules that allow administrators to further regulate the traffic within
the business network based on the services (i.e. TCP/UDP ports) and source/
destination IP addresses.
LRT214/LRT224 routers support 802.1q, which provides separation between
resources in different SSIDs/VLANs. This allows them to work with modern
wireless access points that support multiple SSIDs.. With inter-VLAN routing,
the products allow specified traffic to traverse between VLANs. The products
support dual stack IPv4 and IPv6, as well as transition technologies such as 6to4.
Like other Linksys routers, the products have an intuitive Web administrative
interface that allows small business owners to deploy and manage the routers
without professional IT staff onsite. The operational health of the products
can be monitored through system logs and email alerts. Standard MIBs are
supported, which allows the products to be monitored by a SNMP-based
network management system.

1
Hardware Installation
Linksys
1
Hardware Installation
Ports
LRT214
In this chapter we are going to introduce hardware interface as well as
physical installation.

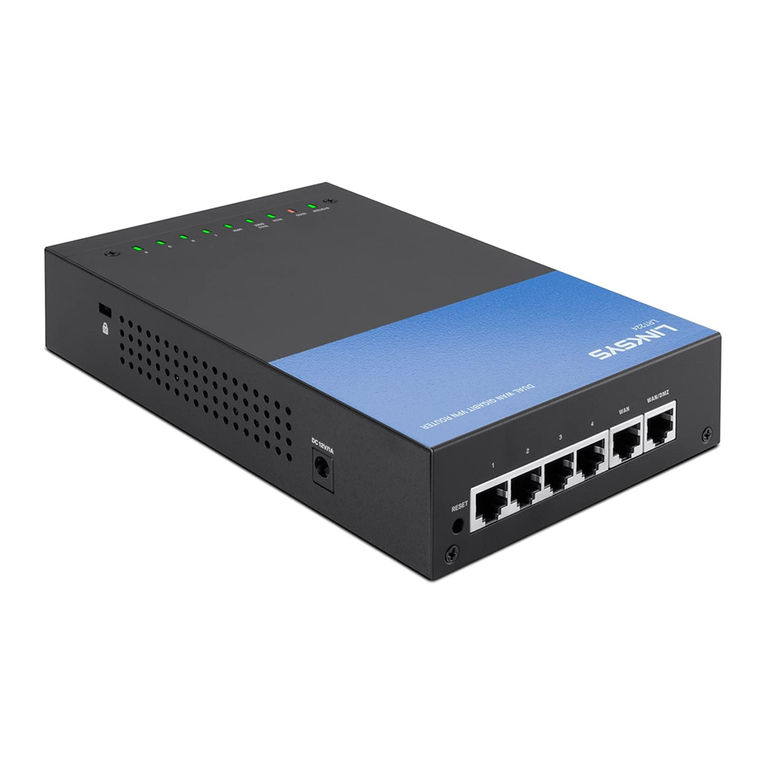

LRT224
•WAN: The WAN ports can be connected with DSL or cable modems,
provided by your internet service provider (ISP).
•DMZ: Use the DMZ (Demilitarized Zone) port to connect to a DMZ host,
such as a Web server or mail server. Inbound traffic can access the DMZ
host without exposing your intranet.
•WAN/DMZ (LRT224):LRT224 Dual WAN Gigabit VPN Router comes with
a port you can configure as a second WAN port or DMZ port based on
your network requirements.
NOTE
Dual WAN settings, such as link failover or load balance, will be
disabled when you configure the port as DMZ port.
LAN (1~4):Use the LAN ports to connect devices such as switching hubs,
computers, printer servers, etc., to the local network or intranet.

2
Hardware Installation
Linksys
LED Indicators
Reset
Action Description
Press Reset Button For
5 Secs
Warm start
DIAG indicator: Diag LED flashing slowly
Press Reset Button
Longer than 10 Secs
Factory default
DIAG indicator: Diag LED flashing quickly
Placement Tips
•Do not place anything on top of the router. The router could be damaged
by excessive weight.
•Do not obstruct heat dissipation holes on the sides of the router.
•Do not expose to direct sunlight or other heat source. Keep area around
router adequately ventilated.
•Place the router on a flat surface.
Wall Mounting Tips
The router has two wall-mount slots on its bottom panel. When mounting the
router on the wall, please ensure that the heat dissipation holes are facing
sideways as shown in the following picture for safety reasons. Linksys is not
responsible for damages incurred by insecure wall-mounting hardware.
LED Name Color Description
System Green On: Power On
Blinking: System booting up
DIAG Amber
On: System not ready
Off: System ready
Blinking: System is on self-test
WAN Green/ Amber
Amber On: 10/100M link
Amber Blinking: 10/100M activity
Green On: Gigabit link
Green Blinking: Gigabit activity
WAN/DMZ Green/ Amber
Amber On: 10/100M link
Amber Blinking: 10/100M activity
Green On: Gigabit link
Green Blinking: Gigabit activity
VPN Green On: Designated VPN tunnel up
Off: Designated VPN tunnel down
1~4
Ethernet Green/ Amber
Amber On: 10/100M link
Amber Blinking: 10/100M activity
Green On: Gigabit link
Green Blinking: Gigabit activity

3
Getting Started with the Router Configuration
Linksys
3
Follow the instructions to configure your router.
1. Be sure your computer is connected to a LAN port on the router and set
to receive an automatic IP address from the DHCP server.
2. Open a Web browser and type 192.168.1.1 in the address bar.
3. On the login screen, type in default username: admin, and default
password: admin. Click Log In.
4. Launch Setup Wizard – on the System Status or Quick Start tab – to
complete configuration. Allow blocked content if asked.
5. The Configuration tab allows more control of your network based on
your management needs.
NOTE:
Windows users can find the router IP address through the DOS
prompt. Click on the Start button, enter “CMD”in the search field,
and type “ipconfig” at the prompt. The IP address is the Default
Gateway.
System Status
After logging in to the Web GUI, you will be directed to system status page,
where you can glance how the router is configured. You can click on the System
Status tab to view the current status of the router later on.
System Information
This section includes the following information:
Serial Number: Serial number of this router.
Firmware Version: Current firmware version.
Model Number: Model name of the router.
MD5 Checksum: A value used for validation of the firmware installed on
the router.
LAN:
IPv4/Subnet Mask
IPv6/Prefix
Current LAN IP address of the router.
Working Mode: Current working mode as Gateway or Router mode.
System Up Time: How long since the last restart (or power-up) of the router.
Getting Started with the Router Configuration

4
Getting Started with the Router Configuration
Linksys
Configuration
You may click Setup Wizard button to launch wizard.
Port Statistics
Port ID: ID of physical port.
Interface: Type of the port: LAN, WAN or DMZ.
Status: Status of the port: Disabled, Enabled or Connected.
Clicking on a port’s status will launch a window with statistics on that port.
Type: 10Base-T / 100 Base-TX / 1000 Base-TX.
Interface: LAN/WAN/DMZ.
Link Status: Up or down.
Port Activity: Port Enabled, Port Disabled, or Port
Connected.
Priority: High or Normal.
Speed Status: 10Mbps, 100Mbps or 1000Mbps.
Duplex Status : Half or Full.
Auto Negotiation : On or Off.
VLAN : VLAN ID.
This table also gives you the counts for packets received and sent, packet bytes
received and sent, and packet errors.
WAN Status
This section displays information for the WAN and DMZ interface.
NOTE:
You should enable Dual-Stack IP first to view IPv6 status. Please go
to Configuration > Network.
IP Address: WAN IP address.
Default Gateway: Default gateway IP address.
DNS: IP address of the DNS server.
Dynamic DNS: (IPv4 Only) Enabled or disabled.
Release: If the WAN type is “Obtain an IP address
automatically(DHCP),”this buttonwill appear.
Click Release to release the IP address.
Renew: If the WAN type is “Obtain an IP address
automatically (DHCP),” this button will
appear. Click Renew to update the IP address.

5
Getting Started with the Router Configuration
Linksys
Connect/ Disconnect: If the WAN type is PPPoE or PPTP, this button
will appear. Click Disconnect to cut the
connection from ISP server. Click Connect to
re-dial to the server.
DMZ Status:
NOTE:
It is recommended to designate the configurable port on the
LRT224 as a DMZ port. Go to Device Configuration > Network and
check the Enable DMZ box.
IP Address: IP address of DMZ port.
DMZ Host: Private IP of DMZ host.
Firewall Settings
This section displays the current firewall settings:
SPI (Stateful Packet Inspection): Default configuration is On.
DoS (Denial of Service): Default configuration is On.
Block WAN Request: Default configuration is On.
Remote Management: Default configuration is Off.
Access Rule: The number of access rules configured
in the router.
VPN Settings
Tunnel(s) Used: Number of tunnels configured.
Tunnel(s) Available: Number of tunnels the router supports.
OpenVPN Status
Tunnel(s) Used: Number of OpenVPN tunnels configured.
Tunnel(s) Available: Number of OpenVPN tunnels the router supports.
Log Setting Status
This section displays the following information:
Syslog Server: Indicates whether Syslog server is activated.
Email Log: Indicates whether Email Log is activated.

6
Getting Started with the Router Configuration
Linksys
Quick Start (Setup Wizard)
Click the Quick Start tab to access Basic Setup Wizard. The setup wizard will
help you set up your network easily and finish basic network settings.
Basic Setup
Click Launch Now to run the Basic Setup Wizard. Refer to the information from
your ISP to enter the required settings for your connection.
You can configure Host and Domain, WAN setting, LAN setting, Time and
Password here. Click Finish button to leave the wizard.

7
Setup
Linksys
• Network
• SettingPassword
• Time
• DMZHost
• Forwarding
• PortAddressTranslation
• One-to-OneNAT
• MACAddressClone
• DynamicDNS
• AdvancedRouting
• IPv6Transition
Setup

8
Setup
Linksys
Network
Go to the Configuration > Setup > Network page to set up your LAN, WAN
(Internet connections), and DMZ interface.
NOTE:
Remember to click Save before leaving the page. You can also click Cancel
to undo the changes.
Host Name and Domain Name
Though this configuration is not necessary in most environments, some ISPs in
some countries may require it.
HostName: Keep the default setting or enter a host name
specified by your ISP.
DomainName:Keep the default setting or enter a domain name
specified by your ISP.
IP Mode
Choose the type of addressing to use on your network:
IPv4Only: Use only IPv4 addressing.
Dual-StackIP: Use IPv4 and IPv6 addressing. After you enable this
option, you can configure both IPv4 and IPv6 addresses
for LAN, WAN, and DMZ settings on this page.
LAN Setting (Device IP address and subnets)
Changing the device IP address
Enter the following information:
ForIPv4: Click the IPv4 tab, and then enter the Device IP Address
and Subnet Mask. The default configuration is 192.168.1.1
and the default Subnet Mask is 255.255.255.0. It can be
changed according to the actual network structure.
ForIPv6: Users have to enable Dual-Stack IP in the IP mode section
in advance to configure IPv6. Then click the IPv6 tab, and
then enter the IPv6 Address and the Prefix Length. The
default IP address is fc00::1, and the default prefix length
is 7. It can be changed according to the actual network
structure.
NOTE:
To configure global IPv6 prefixes for your LAN devices, go to the
WAN Setting, click the IPv6 tab, and click Edit for the WAN interface.
Then enter the LAN IPv6 Address. For more information, see WAN
Setting (Internet connection).
NOTE:
Remember to click Save before leaving the page. You can also click
Cancel to undo the changes.

9
Setup
Linksys
NOTE:
A pop-up confirmation message will appear to remind you to log
in to the user Web GUI with the new device IP address. Click OK to
confirm the change, or click Cancel to leave without applying the
changes.
MultipleSubnetSetting(IPv4only)
This function enables users to add IP segments that differ from the router
network segment to the multi-net segment configuration. The Internet will
then be directly accessible.
AddaVLAN: Click the button to add a new VLAN. The router
supports up to 5 VLANs. In other words, you can
add another 4 new VLANs.
AddaSubnetfor
OutboundNATing:
1. Click the button and a pop-up window will
appear.
2. Check “Add Local Subnet” or “Add Adjacent
subnet (where you have another router to reach
this subnet)” to identify the type of subnet.
3. Enter a LAN IP address and a Subnet Mask. The
IP address and subnet mask will appear in the list.
Repeat this step as needed to add more subnets.
4.You can also modify an existing subnet by clicking
the edit icon.
5. Click the trash can icon to delete the subnet.
WAN Setting/ DMZ Setting
(Internet connection & DMZ)
To set theWAN port to link to the Internet, refer to the configuration information
provided by your ISP (Internet Service Provider). The WAN setting table shows
WAN and DMZ ports of the router. You can configure the WAN/DMZ port for
use as a DMZ.
WANSetting
NOTE:
Remember to click Save before leaving the page. You can also click
Cancel to undo the changes.
Interface: An indication of which port is connected.
WAN
ConnectionType:
Obtain an IP automatically, Static IP, PPPoE (Point-
to-Point Protocol over Ethernet), PPTP (Point-to-
Point Tunneling Protocol) and Transparent Bridge.
Config.: A modification in an advanced configuration. Click
Edit to enter the advanced configuration page.

10
Setup
Linksys
Obtain an IP Automatically:
This mode is often used in the connection mode to obtain an automatic DHCP
IP. This is the device system default connection mode. It is a connection mode
in which DHCP clients obtain an IP address automatically. To use a different
connection mode, refer to the following instructions for selection of appropriate
configurations. Users can also set up their own DNS IP address. Check the
options and input the user-defined DNS IP addresses.
Use the following DNS
ServerAddresses:
Select a user-defined DNS server IP address.
DNSServer: Input the DNS IP address set by ISP. At least
one IP group should be input. The maximum
number of acceptable groups is two.
MTU(MaximumTransmission
Unit)
Choose Auto or Manual. Default is Auto. The
default value is 1500. Different value could be
set in different network environment (e.g., ADSL
PPPoE MTU: 1492).
Static IP:
If an ISP issues a static IP (such as one IP or eight IP addresses, etc.), please select
this connection mode and follow the steps below to input the IP numbers
issued by an ISP into the relevant boxes.
SpecifyWANIPaddress: Input the available static IP address issued by
your ISP.
SubnetMask: Input the subnet mask of the static IP address
issued by ISP, such as:
Issued eight static IP addresses: 255.255.255.248
Issued 16 static IP addresses: 255.255.255.240
DefaultGateway: Input the default gateway issued by ISP. For
ADSL users, it is usually an ATU-R IP address.
Optical fiber users should input the optical fiber
switching IP.
DNSServer: Input the DNS IP address issued by your ISP.
At least one IP group should be input. The
maximum number of acceptable groups is two.
MTU
(Maximum Transmission
Unit):
Choose “Auto” or “Manual.” Default is “Auto.” The
default value is 1500. Different value could be
set in different network environment (e.g., ADSL
PPPoE MTU: 1492).

11
Setup
Linksys
PPPoE:
This option is for an ADSL virtual dial-up connection (suitable for ADSL PPPoE).
UserName: Input the user name issued by your ISP.
Password: Input the password issued by your ISP.
ConnectonDemand: This function enables the auto-dialing function
in a PPPoE dial connection. When the client port
attempts to connect with the Internet, the device
will automatically make a dial connection. If the
line has been idle for a period of time, the system
will break the connection automatically. (The
default time for automatic disconnection from no
packet transmissions is five minutes).
KeepAlive: This function enables the PPPoE dial connection to
keep connected, and to automatically redial if the
line is disconnected. It also enables a user to set
up a time for redialing. The default is 30 seconds.
UsethefollowingDNS
ServerAddresses:
Select a user-defined DNS server IP address.
DNSServer: Input the DNS IP address set by ISP. At least one IP
group should be input. The maximum number of
acceptable groups is two.
MTU(Maximum
TransmissionUnit)
Choose “Auto” or “Manual”. Default is “Auto.” The
default value is 1500. Different value could be
set in different network environment (e.g., ADSL
PPPoE MTU: 1492).
PPTP:
SpecifyWAN
IPAddress:
The IP address to be configured could be one
issued by your ISP. (The IP address is usually
provided by the ISP when the PC is installed.
Contact your ISP for relevant information).
SubnetMask: Input the subnet mask of the static IP address
issued by your ISP, such as:
Issued eight static IP addresses: 255.255.255.248
Issued 16 static IP addresses: 255.255.255.240
DefaultGateway: Input the default gateway of the static IP address
issued by your ISP. For ADSL users, it is usually an
ATU-R IP address.
UserName: Input the user name issued by your ISP.
Password: Input the password issued by your ISP.
ConnectonDemand: This function enables the auto-dialing function
to be used for a PPTP dial connection. When the
client port attempts to connect with the Internet,
the device will automatically connect with the
default ISP auto dial connection. When the
network has been idle for a period of time, the
system will break the connection automatically.
(The default time for automatic break off when no
packets have been transmitted is five minutes).
KeepAlive: This function enables the PPTP dial connection
to redial automatically when the connection has
been disconnected. Users can set up the redialing
time. The default is 30 seconds.
MTU: Choose “Auto” or “Manual”. Default is “Auto.” The
default value is 1500. Different value could be
set in different network environment (e.g., ADSL
PPPoE MTU: 1492).

12
Setup
Linksys
L2TP
SpecifyWANIPAddress Configure a static IP address. The IP address
could be one issued by an L2TP server.
SubnetMask Input the subnet mask of the static IP address.
DefaultGateway Input the IP address of the L2TP server.
Username Input the username of the L2TP client.
Password Input the password of the L2TP client.
ConnectonDemand Enables auto-dialing for a dial connection. When
the client port tries to connect to the Internet,
the device will automatically connect with the
L2TPserver. When the network has been idle
for a period of time, the system will break the
connection automatically. (The default time for
automatic connection break is five minutes).
KeepAlive Enables the dial connection to redial
automatically when disconnected. Set the
redialing time (default is 30 seconds).
MTU Choose Auto or Manual. Default setting is Auto.
The default manual setting value is 1500 bytes. A
different value could be set in a different network
environment (e.g., ADSL PPPoE MTU: 1492).
Transparent Bridge:
The feature will come in handy in when a company wants to add a firewall or
dual-WAN device without changing the IP addresses of the computers in its
intranet. This function will enable users to integrate existing networks without
changing the original structure. Select the Transparent Bridge mode for the
WAN connection mode. In this way, users will be able to connect normally to
the Internet while keeping the original IP addresses in the intranet.
If there are two WANs configured, users still can select Transparent Bridge
mode for WAN connection mode, and load balancing will still function as usual.
SpecifyWANIPAddress: Input one of the static IP addresses issued by ISP.
SubnetMask: Input the subnet mask of the static IP addresses
issued by your ISP: 255.255.255.248 if your ISP
issues six usable addresses, and 255.255.255.240 if
your ISP issues 14 useable addresses.
DefaultGateway: Input the default gateway of the static IP address
issued by your ISP. For ADSL users, it is usually an
ATU-R IP address.
DNSServer: Input the DNS IP address set by your ISP. At least
one IP group should be input. The maximum
acceptable is two IP groups.
InternalLANIPRange: Input the available IP range issued by your ISP.
If your ISP issued two discontinuous IP address
ranges, users can input them into Internal LAN IP
Range 1 and Internal LAN IP Range 2, respectively.
MTU
(MaximumTransmission
Unit):
Choose “Auto” or “Manual”. Default is “Auto.” The
default value is 1500. Different value could be
set in different network environment (e.g., ADSL
PPPoE MTU: 1492).

13
Setup
Linksys
DMZ Setting
For some network environments, an independent configurable DMZ port
may be required to set up externally connected servers such as WEB and Mail
servers. Therefore, the device supports a set of independent configurable DMZ
ports for users to set up connections for servers with real IP addresses.The DMZ
ports act as bridges between the Internet and LANs.
Check Enable DMZ box and click the edit icon to configure DMZ port.
The DMZ configuration can be classified by subnet and range.
Subnet:
If the DMZ and WAN are located in different subnets:
If the ISP issued useable public IP addresses: 220.243.230.1-14 with Mask
255.255.255.240, users have to separate the 14 IP addresses into two groups:
220.243.230.1-6 with Mask 255.255.255.248, and 220.243.230.9-14 with Mask
255.255.255.248 and then set the device and the gateway in the same group
with the other group in the DMZ.
Range:
If the DMZ and WAN are within same subnet:
IPRange:Input the IP range located at the DMZ port.

14
Setup
Linksys
Setting Password
Use the Configuration > Setup > Password page to change the administrator
username and password. It is strongly recommended to change the default
username and password (admin/admin).
CAUTIONIf the password is forgotten, reset the router to factory default settings.
All the configurations of the router will disappear.
NOTE:
Remember to click Save before leaving the page. You can also click Cancel
to leave without any change.
NOTE:
If you want to enable remote access on the Firewall > General setting,
changing your password is necessary.
OldPassword: Enter the old password. The default
password is admin.
NewUsername:Enter a new username. To keep the
existing username, leave this field blank.
ConfirmNewUsername: Re-enter the new username.
NewPassword: Enter a new password for the router.
Alphanumeric characters and symbols
are allowed, but no spaces.
ConfirmNewPassword: Re-enter the new password.
Minimum
PasswordComplexity:
Check the box to enable box if you want
to enforce password complexity and
enable the Password Strength Meter.
This option is enabled by default and is
recommended.
NOTE:
When Minimum Password Complexity is enabled, the password must meet
the requirements listed below.
• At least 8 characters.
• The password cannot be the same as Username.
• The password cannot be the same as the current password
• Must contain characters from at least 3 of the following 4 categories:
uppercase letters, lowercase letters, numbers, and special characters
available on a standard keyboard.
PasswordStrengthMeter: When enabling Minimum Password
Complexity, the Password Strength Meter
appears and indicates the password
strength.
Red means you have to reset the password.
Yellow means the password is acceptable.
Green means the password is strong.
Password
AgingEnforcement:
Choose Disable to make the password
permanent. Choose Change the password
after if you want the password to expire
after the specified period. Check Change
the password after and input the specified
number of Days.
Time
Go to Configuration > Setup > Time page to configure the system time. The
exact time of event occurrences will be recorded in the System Log, as will the
time of closing or opening of access for Internet resources. You can select the
NTP Server synchronization function or set up a time manually.
NOTE:
Remember to click Save before leaving the page. You can also click Cancel
to undo the changes.

15
Setup
Linksys
SetthelocaltimeusingNetworkTimeProtocol(NTP)automatically:
TimeZone Select your location from the pull-down time zone list to
show correct local time.
DaylightSaving If there is Daylight Saving Time in your area, click
Enabled and enter start date and end day of the period.
NTPServer Input NTP server IP address.
Set the local time manually:
Date: Input date as yyyy.mm.dd, i.e., 2013.9.30.
Time: Input current time as hh:mm:ss, i.e., 08:50:00.
DMZ Host
When the NAT mode is activated, users may need to use applications
that do not support virtual IP addresses, such as network games or video
conferencing. We recommend that users map the device actual WAN IP
addresses directly to the intranet virtual IP addresses. Setting up a DMZ host
will allow one host in the LAN to be exposed to the Internet to use services
such as Internet gaming and video conferencing. Access to the DMZ host
from the Internet can be restricted by using firewall access rules. Use the
Configuration > Setup > DMZ Host page.
Enter the LAN IP address of the server that you want to use as a DMZ host.

16
Setup
Linksys
NOTE:
Remember to click Save before leaving the page. You can also click Cancel
to undo the changes.
Port Forwarding and Port Triggering
You can set up a port forwarding virtual host to allow public access to servers
connected to the LAN ports. Port Forwarding opens a specified port or a port
range for a service, such as FTP, WWW, and mail, etc. Port Triggering opens a
port range for services that use alternate ports to communicate between the
server and LAN host. Use the Configuration > Setup > Forwarding page to
configure.
• PortRangeForwarding
• PortTriggering
NOTE Remember to click Save before leaving the page. You can also click
Cancel to undo the changes.
Port Range Forwarding
Port forwarding can be used to set up public services on your network. When
users from the Internet make certain requests to your network, the router
can forward those requests to computers that are equipped to handle the
requests. If, for example, you set the port number 80 (HTTP) to be forwarded
to IP address 192.168.1.2, then all HTTP requests from outside users will be
forwarded to 192.168.1.2.
To set up other services input the server TCP or UDP port number and the
virtual host IP addresses.
Service Select the service. You can also add a new service from
Service Management.
IPAddress Input the LAN IP address of the virtual host.
Interface Select the WAN port. (Dual WAN router only)
Addtolist Click the button to add a new entry.
Update Select the entry that you want to modify. Change the setting
and then click Update. Clicking Add New deselects the entry
and clears the text fields.
Delete Click the entry and then click Delete.
View To view the entry table, choose Port Range Forwarding or
Port Triggering.Click Refresh to renew the display. Click Close
to return to configuring page.
