LINOVISION IPC608EX User manual

IPC608EX
Explosion-proof
Camera
User Manual

Contents
2 Activating the Camera ..................................................................................... 3
3 Access to the Camera ....................................................................................... 7
3.1 Accessing by Web Browsers ...................................................................................................... 7
4 LED Light Control ............................................................................................. 8
5 Access Camera from Guarding vision APP .................................................. 10
5.1 Enable the Guarding vision Platform ....................................................................................10
5.2 Setup Guide for Guarding vision ........................................................................................... 12
1 Connection Guide ............................................................................................. 3

1. Connection󶀅Guide
2. Activating the Camera
Activation via Web Browser
Steps:
1. Power on the Explosion-proof camera, and connect the camera to the network.
2. Input the IP address into the address bar of the web browser, and click Enter to
enter the activation interface.
Notes:
The default IP address of the camera is 192.168.1.64.
For the camera enables the DHCP by default, the IP address is
allocated automatically. And you need to activate the camera via SADP
software. Please refer to the following chapter for Activation via SADP.
Internet
POE Switch
NVR
Solar and/or
Wireless Transmission

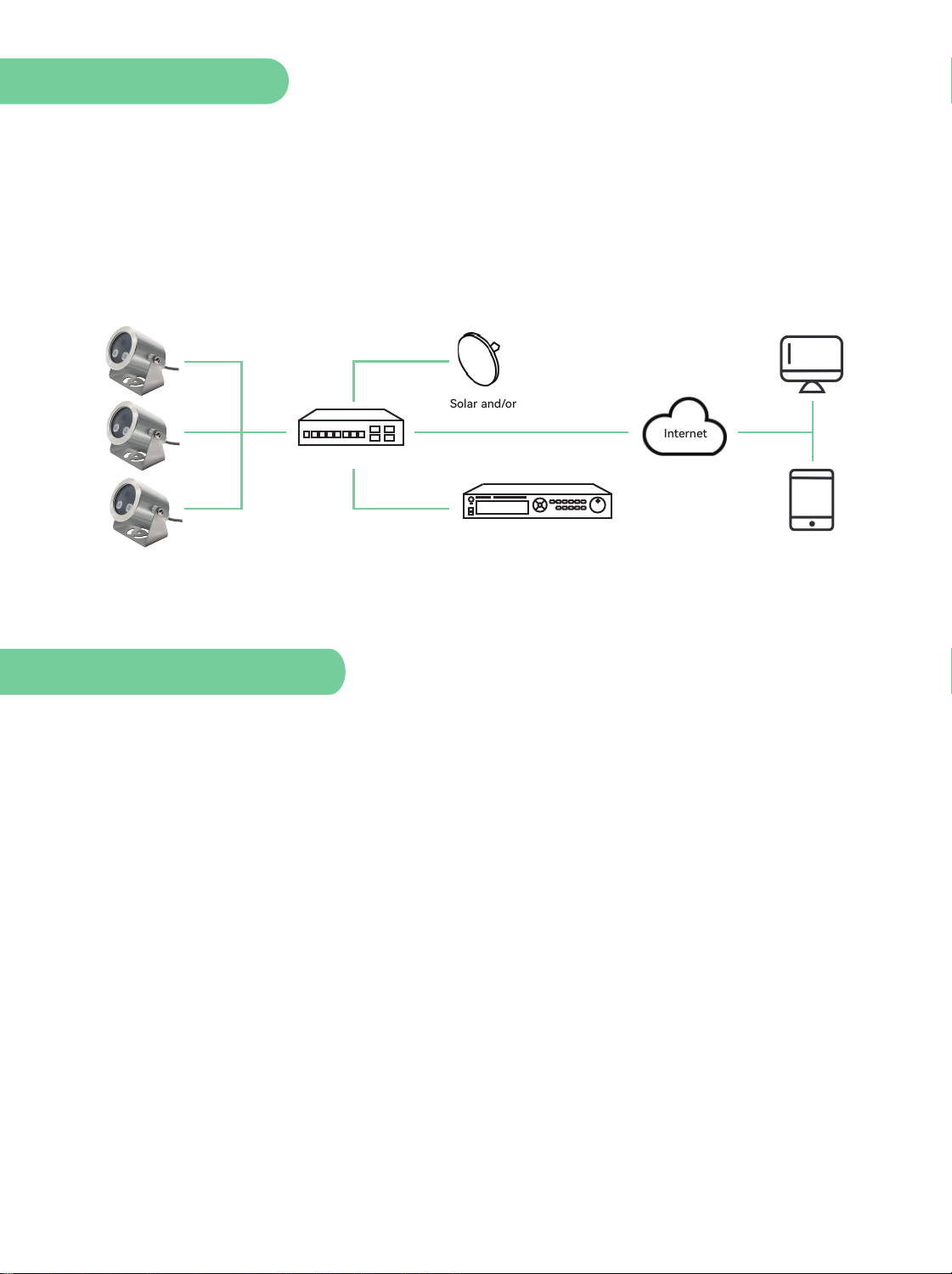

Figure 1-1 Connection diagram
It is an overall connection application diagram, among Explosion-proof
camera, PoE Switch, PC,NVR, Smartphone, etc. Please see below.
3

SADP software is used for detecting the online device, activating the
camera, and resetting the password.
Get the SADP software from the supplied disk or the official website, and
install the SADP according to the prompts. Follow the steps to activate the
camera.
SADP Tool for Windows
https://app.box.com/s/689l18421knsokmmontcc2v28owmz4om
SADP Tool for MAC
https://app.box.com/s/brssh8rpfbo5gjuzetopbtjwtr5fy7kc
Figure 2-1 Activation via Web Browser
3. Create a password and input the password into the password field.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
Activation via SADP Software
4

You can check whether the activation is completed on the popup window. If
activation failed, please make sure that the password meets the
requirement and try again.
Figure 2-2 SADP Interface
3. Create a password and input the password in the password field, and
confirm the password.
4. Click OK to save the password.
Steps:
1. Run the SADP software to search the online devices.
2. Check the device status from the device list, and select the inactive device.
5

Figure 2-3 Modify the IP Address
6. Input the password and click the Save button to activate your IP address
modification.
5. Change the device IP address to the same subnet with your computer by
either modifying the IP address manually or checking the checkbox of
Enable DHCP.
6

3.1 Accessing by Web Browsers
Steps:
1. Open the web browser.
2. In the browser address bar, input the IP address of the camera,
and press the Enter key to enter the login interface.
3. Activate the Explosion camera for the first time using, refer to the
Section 2 for details.
Note:
The default IP address is 192.168.1.64.
If the camera is not activated, please activate the camera first.
4. Select English as the interface language on the top-right of login
interface.
5. Input the user name and password and click Login.
The admin user should configure the device accounts and user/operator
permissions properly. Delete the unnecessary accounts and user/operator
permissions.
Note:
The IP address gets locked if the admin user performs 7 failed password
attempts
(5 attempts for the user/operator).
Figure 3-1 Login Interface
3. Access to the Camera
7

Figure 3-2 Download and Install Plug-in
Note: You may have to close the web browser to install the plug-in. Please
reopen the web browser and log in again after installing the plug-in.
6. Install the plug-in before viewing the live video and operating the
camera. Please follow the installation prompts to install the plug-in.
4. LED Light Control
1. Open the Infrared LED light
When the environment is dark, click the “Image” and switch to
“Night” mode in Day/Night Mode, the LED light will be turned on.
Figure 4-1 Turn on the LED
8

2. Close the Infrared LED light
When the environment is bright, click the “Image” and switch to
“Day” mode, the LED light will be turned off.
Figure 4-2 Turn off the LED
9

1. Open Internet Explorer and Enter the camera IP (192.168.1.64)
Enter Username as admin and password,Allow/Install the ActiveX plugin.
5.1 Enable the Guarding vision Platform
Steps:
Figure 5-1 Login Interface
5.Access Camera from Guarding vision APP
10

2. Click on Configuration, then Network, Advanced settings, Platform Access
enable box
Figure 5-2 Platform setting
3. Create your verification code, then click on OK.
Figure 5-3 Verification code
11

4. Click on Save
Refresh page, you should see your platform access register status as online.
Figure 5-4 Register Status
1. Download Guarding Vision APP for IOS or Android from link below
IOS:
https://itunes.apple.com/us/app/guarding-vision/id1101697283?mt=8
Android:
https://play.google.com/store/apps/details?
id=com.mcu.guardingvision&hl=en_US
5.2 Setup Guide for Guarding vision
Steps:
12

2. Register account for the APP
3. Once registered and logged into your account, click on Add Device.
Figure 5-5 APP GUI
Figure 5-6 Add Device
13

4. Scan the QR code on the camera.
Figure 5-7 Camera QR code
5. Once camera found, click on add
Figure 5-8 Scan results
14

6. Enter the verification code from step 5-1-3 and click on OK.
7. Click on the camera to view the live image.
Figure 5-9 Adding Completed
Figure 5-10 Device list
