Lionel 2-10-4 Texas Steam Locomotive User manual

72-8078-250
6/01
®
featuring and
2-10-4 ‘Texas’
Steam Locomotive and Tender
Owner’s Manual
SYSTEM

2
• Powerful Pittman®motor
• R2IR reverse unit for use with the
Lionel TrainMaster®CommandTM
model railroad control system
• Puffing smoke generator that produces
clean, safe and realistic smoke
• Die-cast ElectroCoupler
(rear of tender)
• Wireless Tether
• Odyssey System Speed Control
• Lighted cab interior
• RailSoundsTM digital sound system
• Brilliant Headlight and Marker Lights
• CrewTalkTM (in Command)
• TowerComTM (in Command)
• Tire-TractionTM
• Directional lighting
• Flickering Fire Box
You own one of the finest and most sophisticated model trains ever built—
the Lionel TrainMaster®Command and
Odyssey™System-equipped 2-10-4 ‘Texas.’
From its hand-applied scale details to the
advanced technology found inside, your loco-
motive is ready for duty on your model rail-
road layout. Experience the superiority of
today’s Lionel.
Congratulations!

3
Table of contents
Transformer operations
Running your steam locomotive with a Lionel transformer 4
Locking your locomotive into a single operational state 5
Your locomotive’s Odyssey™System speed control 6
Using your tender-mounted ElectroCoupler in the non-Command environment 7
Your locomotive’s RailSounds system—the basics 8
Experiencing the range of your locomotive’s RailSounds system 9
Notes on RailSounds 10
Installing the Lionel Sound Activation Button 11
TrainMaster Command operations
Your locomotive in the TrainMaster Command environment 12
CAB-1 commands for your locomotive 13
RailSounds in the Command environment 14
CAB-1 numeric keypad commands for your locomotive 14
Tuning your locomotive’s performance 15
Your locomotive’s Odyssey System in the Command Control environment 15
Assigning your locomotive a new ID# 16
Reprogramming the R2IR circuit board to restore features 17
Maintaining your locomotive’s handrail antenna 17
Maintaining and servicing your locomotive
Lubricating your locomotive 18
Replacing your locomotive’s lamps - Pennsylvania 19
Replacing your locomotive’s lamps - Chesapeake & Ohio 20
Tire-Traction™ 21
Adding fluid to the smoke generator 21
Installing the ‘O’ gauge front coupler 22
Notes 23
Lionel Service 24

Transformer operations
4
Running your locomotive with a Lionel transformer
Place your locomotive on Lionel or
Lionel-compatible O-72 or larger track.
• With track power OFF, connect the drawbar between locomotive and tender.
That’s all you have to do with Lionel’s Wireless Tether®, an infrared communica-
tion system that eliminates the plugs and wires of the past.
NOTE: Your locomotive is designed to operate on minimum 0-72 diameter track.
2
2
3
3
Power up your locomotive with your transformer.
•Your locomotive is designed to operate on 8-18 volts alternating
current. Virtually all Lionel and Lionel-compatible alternating-current trans-
formers are suitable; we recommend the TrainMaster Command model railroad
control system.
•Do not power your locomotive with direct current (DC). Damage to
sensitive electronic components may occur.
•When you first power up your track, the locomotive will wait
between three and eight seconds as it “listens” for digital language from
the TrainMaster Command Base (available separately). When it’s determined that
it’s on a conventional (non-Command) railroad, the locomotive headlight will illu-
minate and RailSounds will start up. At this point, the locomotive is in neutral.
(This occurs when placing the locomotive on your railroad for the first time.
Thereafter, it starts in forward after every three-second power interrupt.)
Note!
Move ‘em out!
•Get your locomotive moving. Press the DIR button on your CAB-1 remote or
Lionel transformer. This sequences the R2IR to the next operating state.
•Adjust track voltage until your locomotive moves at your desired speed.
1
1

SMOKE
Transformer operations
To select a single operational state for
your Lionel locomotive (example: for-
ward only), you can deactivate the R2IR’s
sequencing function with the Program/Run

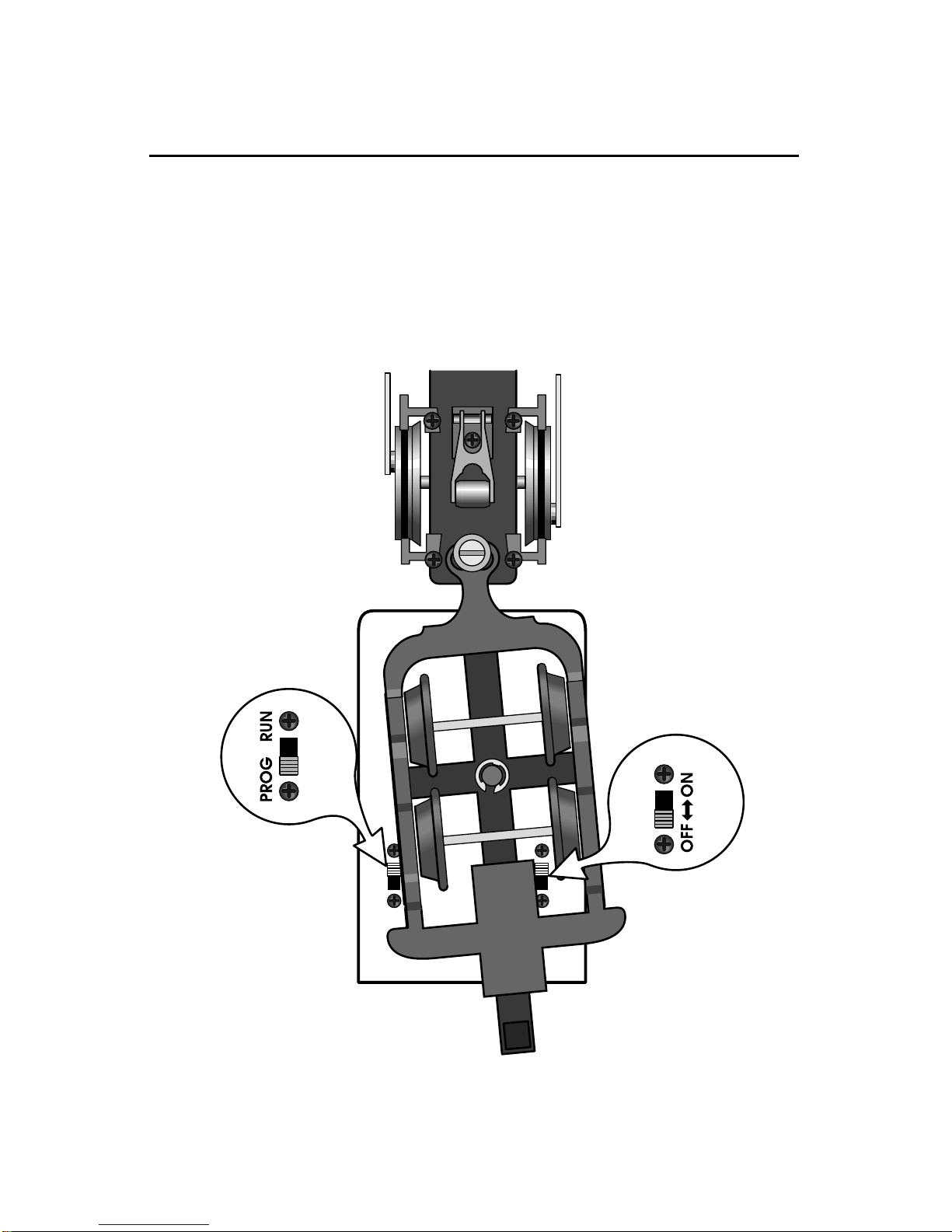

switch, located on the right hand side, under
the boiler casting.
Get your locomotive moving in the desired
direction, then slow it down without stop-
ping. Set the Program/Run switch to PROG.
The locomotive is now “locked” into your
chosen direction.
When you no longer want single-direction
operation, just slide the Program/Run switch
back to RUN.
Locking your locomotive into a single operational state
Program/Run Switch Smoke Unit Switch
(see page 21 for details)
5
Front
Rear

6
Transformer operations
Your locomotive’s Odyssey™ System speed control
You can lock your locomotive into speed control mode (ideal for low speed opera-
tion) so it will automatically compensate for
grades, or to simply maintain a specific
speed setting. To turn on the speed
control, get your locomotive moving at the
desired speed, in forward or reverse. Let it
run at the desired speed for at least 5 sec-
onds. Press and hold the horn/whistle button
for 2-3 seconds as you increase the throttle
by at least 3 volts. Your locomotive will accel-
erate briefly, then will return to your set
speed once you release the horn/whistle but-
ton. As long as the throttle position is main-
tained at a higher setting than the initial
level, your engine will maintain a constant
speed. If the throttle is turned below the orig-
inal level, your locomotive will slow down
due to the available voltage decrease below
the “set” level. To check if the speed control
setting has been “accepted,” turn up the
throttle. You will see the lights brighten, but
the speed will remain constant. For best
results, adjust the track voltage about 3-4
volts above the “set” point. This will provide
enough spare voltage to compensate for
uphill grades, etc., but will prevent excessive
voltage to the lamps and smoke unit. (In
conventional mode, these operate at track
voltage, and excessive voltage may lead to
premature bulb burn-out.)
• If you wish to change the speed control
setting, you must deactivate the speed
control, then reactivate at the new
setting.
To turn speed control off, get your
locomotive into neutral for at least 5 seconds.
Press the horn/whistle button for 2-3 seconds
while lowering the throttle voltage to 1/4 of
full power or at least three volts. Do not turn
the throttle off or speed control may not
deactivate. This can be difficult if you have
established a low speed control setting. Once
you are in neutral, you can increase the
track voltage before pressing the horn/whis-
tle button and lowering the voltage. This will
give you more “room” to lower the voltage.
(The speed control deactivates when it sees a
3 volt change with the horn/whistle button
pressed, regardless of initial voltage level.)
Note! Speed control settings are retained in memory even if power is turned off.
They will remain present until deactivated.

Transformer operations
7
Using your locomotive tender’s ElectroCoupler
in the non-Command environment
To use your locomotive tender’s Electro- Coupler in the non-Command environ-
ment, you must first couple a piece of rolling
stock equipped with Lionel magnetic cou-
plers directly to your locomotive tender’s rear
ElectroCoupler. The magnetic coupler on the

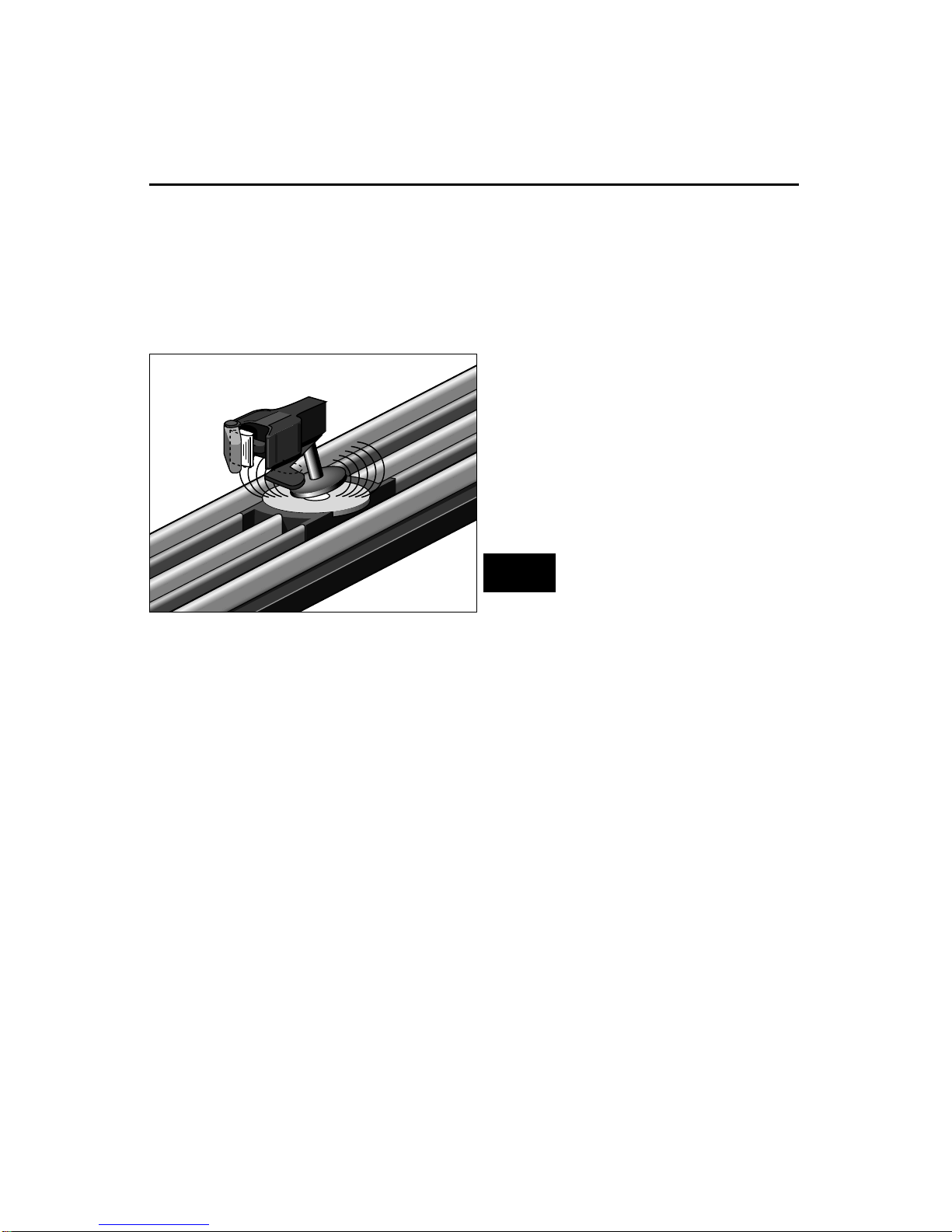

rolling stock will then react to the magnetic
field generated by a Lionel remote-control
track section (available separately). Place
your rolling stock’s coupler “trigger disc”
over the central coil of a remote-control
track section and press “uncouple” on the
controller. The magnetic field pulls the disc
downward, and the coupler opens.
Your locomotive tender’s
ElectroCoupler will NOT open
manually or by using a
remote-control track section.

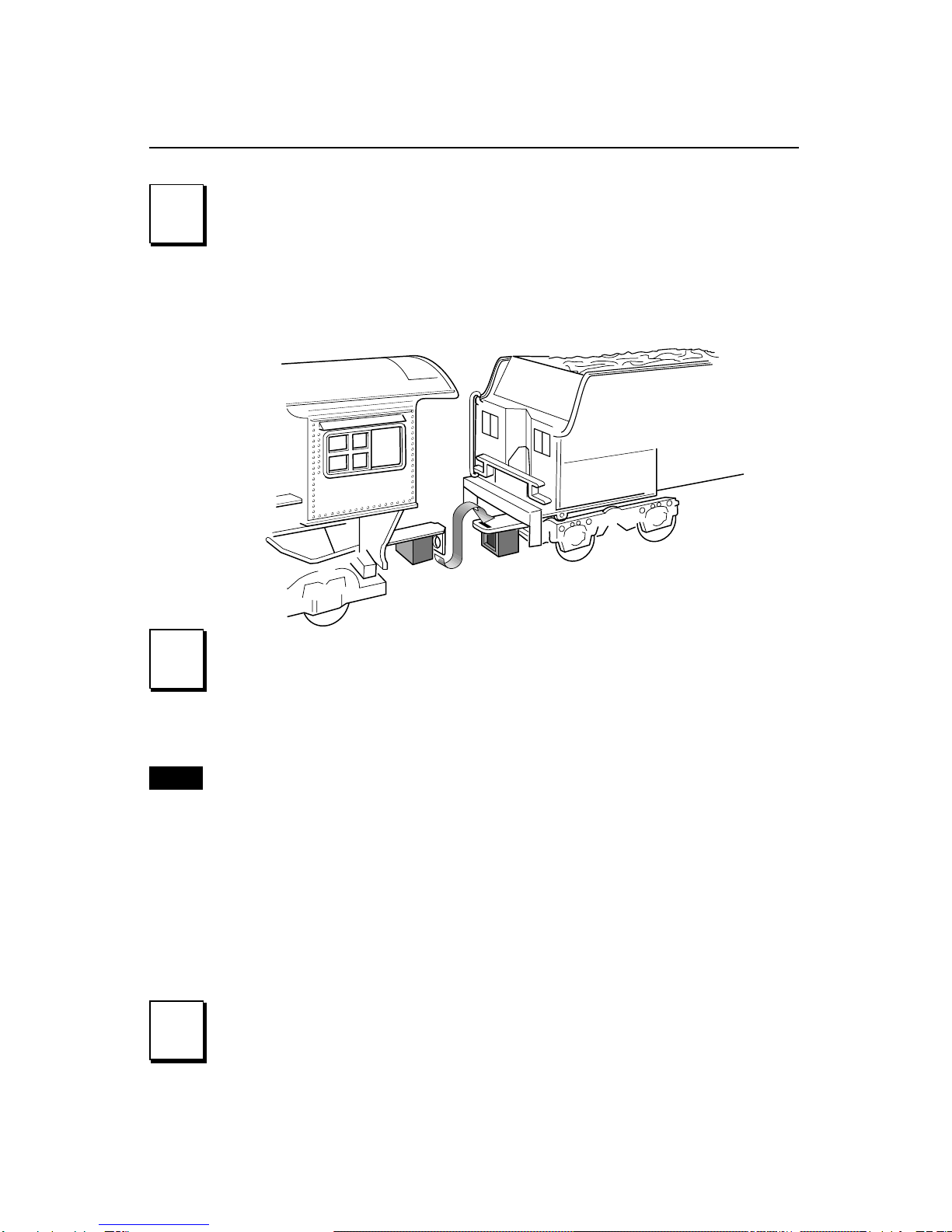

Magnetic coupler on the rolling stock coupled
to the rear of your locomotive tender
Note!
Remote-control
track section

Transformer operations
8
Note!
Note!
Note!
Note!
Your locomotive’s RailSounds system—the basics
Lionel RailSounds is the most realistic model railroad sound system in the
world. Your locomotive features digital sam-
ples from real-life steam locomotives for the
ultimate in realism.
Begin by installing a 9-volt alkaline bat-
tery in the tender. This ensures interruption-
free operation of RailSounds. The battery clip
is located in the tender. To remove the tender

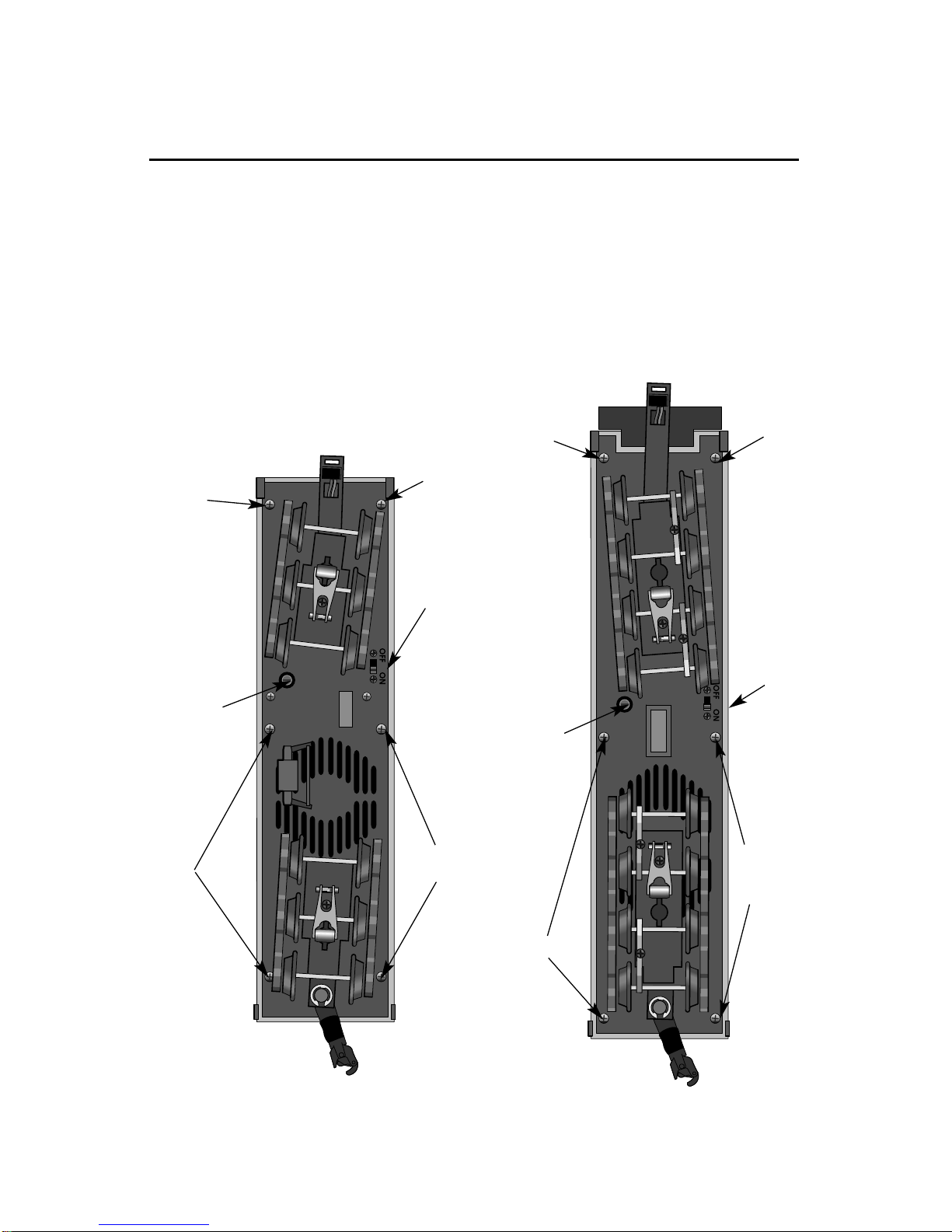

body, refer to the diagram on page 10 for
location of mounting screws.
When you first apply track power, the loco-
motive’s RailSounds system produces sounds
of the locomotive at rest. As the locomotive
moves, chuffing begins, increasing with the
locomotive’s speed.
To silence the steam chuffing sound (whis-
tle/bell are unaffected), slide the RailSounds
switch, located on the underside of the tender
(see page 10 for location), to the OFF posi-
tion before powering up the locomotive.
The whistle is activated by using the lever or
button on your transformer or CAB-1. The
volume control knob to raise or lower the
level of sound is located on the underside of
the tender near the front truck (see page 10).

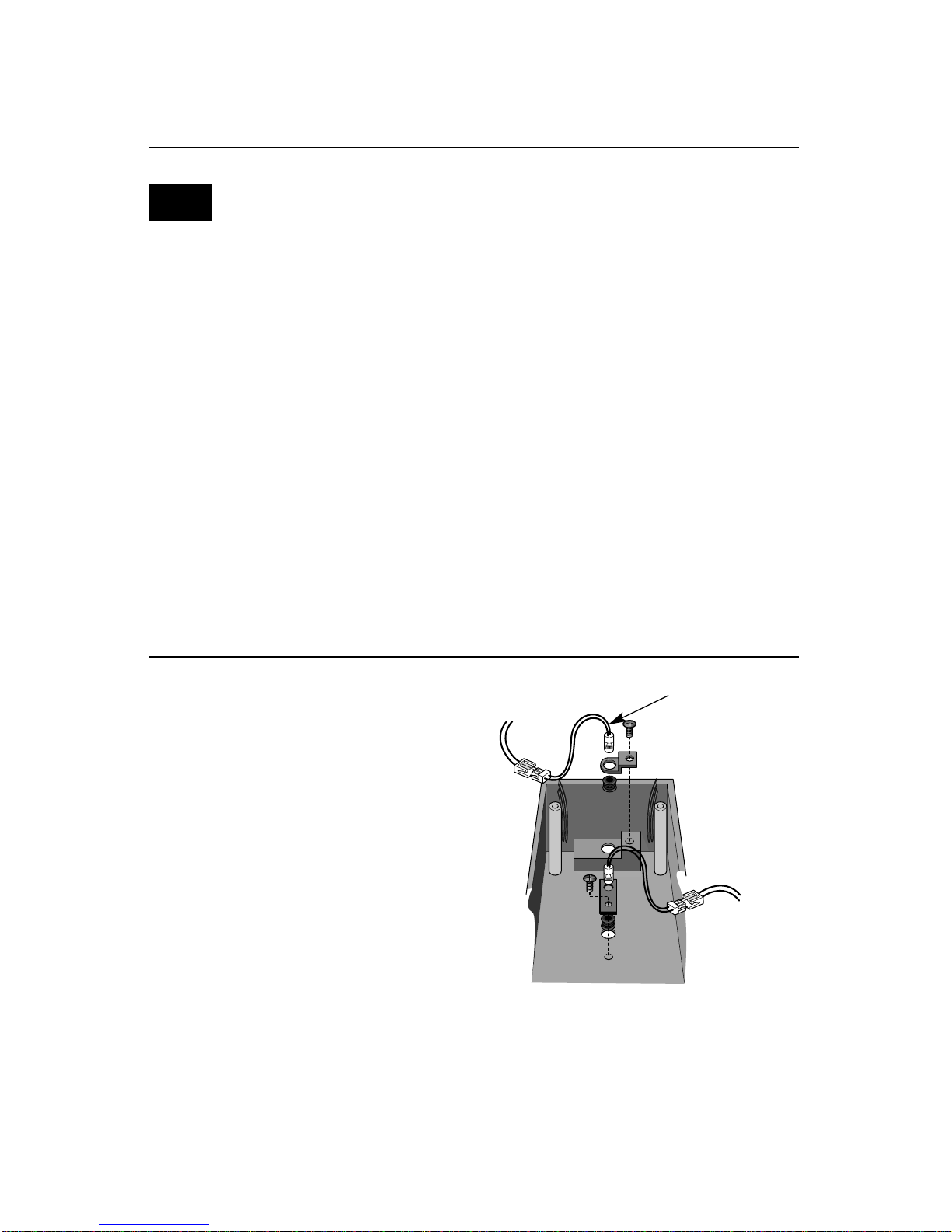

Installing a 9-volt alkaline battery in
your locomotive’s tender.
Please remove protective cover from battery clip before installing the battery.
Although RailSounds is powered by track voltage, the battery is required for
uninterrupted operation and shutdown sequences. Use only alkaline batteries.
Discontinue locomotive power for 10 seconds before changing the RailSounds
ON/OFF switch position.
If RailSounds “drops out” during track power interrupts (direction change),
replace the battery.

9
With RailSounds, you experience the sounds of real railroading like never
before. Simply put, it’s the most sophisticat-
ed, authentic model railroad sound system in
the world. And remember—coming from
inside your Lionel locomotive’s tender are
the authentic sounds of the RailSounds digi-
tal sound system. No other electric train can
offer you authentic sounds. That’s the
power of Lionel.
• Variable chuff rate. Your locomotive
speed determines the steam chuff rate.
• MultiWhistleTM. Different whistles
every time—a RailSounds exclusive.
• Authentic bell. Press BELL on your
CAB-1 or transformer to begin the effect,
again to discontinue. Even the final “hit”
is muted like the real thing.
• Reverse unit reset sound. Power
down your track, wait for 3-5 seconds,
and listen for the air-release sound—
that’s the locomotive telling you its R2IR
Command reverse unit has just reset to
forward operation.
• Shutdown sequence. No other model
railroad sound system shuts down like
RailSounds. Turn off track power, and
after the air-release reset sound, you have
two seconds to restart your locomotive. If
you’re done with operations, RailSounds
will commence with an authentic shut-
down sequence about two seconds after
the air-release reset occurs.
NOTE: Battery must be installed for shut-
down sequence.
Experiencing the range of your locomotive’s RailSounds system
Transformer operations

Transformer operations
10
Notes on RailSounds
• Use the volume control dial, located on
the underside of the tender, to adjust
sound output.
• Listen for incidental locomotive sounds
during RailSounds operation. They’re
automatic and, of course, authentic.
• The 9-volt alkaline battery you installed
ensures continuous sounds, even during
short track-power interrupts.
• Longer track-power interruptions
(including locomotive derailments)
cause RailSounds to shut down after
about 7 seconds.
• For even more authentic RailSounds
effects, operate your locomotive in the
TrainMaster Command environment. See
pages 12-13 for details.
Tender
Body
Screw
Tender
Body
Screws
Tender
Body
Screw
Tender
Body
Screws
Rear
Front
RailSounds
On/Off
Switch
RailSounds
volume
control
Tender
Body
Screw
Tender
Body
Screws
Tender
Body
Screw
Tender
Body
Screws
Rear
Front
RailSounds
On/Off
Switch
RailSounds
volume
control
C&O PENNSYLVANIA

Installing the Lionel Sound Activation Button
12
12
For AC transformers with a horn/whistle button
For AC transformers lacking a horn/whistle button
Attach to ground terminal
Attach to power terminal
Existing wire
Black wire
Red wire
Lionel no. 610-5906-001
SoundActivation Button for
activating the bell
To your transformer
Lionel no.
610-5906-001
SoundActivation
Button for
whistle Lionel no. 610-5906-001
SoundActivation Button for bell
Black wire
Red wire
Red wire
Attach to ground
terminal
Attach to power
terminal
To your transformer
The no. 610-5906-001 button works with any Lionel AC transformer except
no. 6-4690 Type MW. Transformers made by other manufacturers may not be
compatible with RailSounds.
Note!
To operate the bell and whistle sounds when operating your locomotive with
conventional transformers, you’ll need to
install the Lionel no. 610-5906-001 Sound
Activation Button (available separately).
Connect the button(s) as shown below.
11
Note! All track power must
feed through the Sound
Activation Button. Do
not bypass button.
Existing wire
Transformer operations

12
Your locomotive in the TrainMaster Command environment
Lionel TrainMaster Command is the fun and sophisticated model railroad con-
trol system from Lionel. Your locomotive fea-
tures the R2IR reverse unit, which acts as
both a conventional reverse unit as well as
the key to unlocking many extra features
when you operate in Command mode.
TrainMaster Command gives you the
power to operate multiple Command-
equipped locomotives on the same track, at
the same time. It’s the most fun you can
have with electric trains, and it’s incredibly
easy too! Just follow the directions below and
you’ll be on your way.
To operate in Command mode, you
need a Command Base and a CAB-1
remote. Find them both at your authorized
Lionel retailer.
Place your locomotive on Lionel or
Lionel-compatible O-72 or larger track.
• Make sure track power is OFF before placing it on track.
• Make sure your Lionel Command Base is ON and its communica-
tions wire is connected to the COMMON post on your Lionel transformer or
the U terminal on any of your installed PowerMasters.
• Once positioned on the track, increase track voltage to FULL (or a
maximum of 20 volts) (on PowerMaster, slide the CMD/CONV switch to
CMD).
Address your locomotive with CAB-1.
• Press ENG and 1 on the numeric keypad of your CAB-1 remote. This com-
mand is sent by CAB-1 to the Command Base, which then translates your
commands into digital code. That code is sent around your railroad’s outside
rails in the form of a digital “halo.” All Command-equipped Lionels listen to
this digital communication, but they do not respond until they hear their
own ID number.
• The digital language of TrainMaster Command—and not track power—con-
trols the actions of Command-equipped Lionels. Track power is simply like
gasoline in the tank of your car—it gives you the power to go places, but it
doesn’t tell you where to go or how fast to get there.
• All Command-equipped Lionels come factory-programmed with
an ID# of “1.” To change your locomotive ID#, see page 16.
Move ‘em out!
•Throttle up or press any command button on CAB-1. Your locomo-
tive will respond to your every command. Read on. The fun is just beginning!
1
1
2
2
3
3
TrainMaster Command operations

Tender rear coupler
releases. Coupler
release sounds.
13
Press AUX2 to turn
your locomotive’s
headlight on and off.
Press WSTL/HRN to
activate the locomo-
tive’s whistle, release to
discontinue. Multi-Whistle
steam whistle sound.
Press DIR—the loco-
motive decelerates to a
complete stop; turn
the throttle up, and the locomo-
tive moves in the opposite direc-
tion. There is no neutral. Steam
air-release sound.
Press BELL once to
activate the bell,
again to discontinue.
Traditional bell sound.
PressHALT to shut down all
PowerMaster electrical
output on your railroad.
Stops all Command-equipped
Lionels in operation.
NOTE: Use “HALT” only in “emergency” situations.
Turn the THROTTLE
to the right to accel-
erate, left to deceler-
ate. Speed-depen-
dent variable steam chuff-
ing. DynaChuff dynamic
chuffing effect.
CAB-1 commands for your locomotive
Press and hold BOOST
for extra power.
Release BOOST and
return to the locomotive’s previous
speed. Labored chuff.
Press and hold BRAKE
to slow down or stop.
ReleaseBRAKE and
return to the previous speed.
Squealing brake sounds.
Locomotive
RailSounds effects
in bold italic.
Running your locomotive in the TrainMaster
Command environment Your Command-equipped loco-
motive comes factory-pro-
grammed with an ID# of “1.” To get
your locomotive into action, set
PowerMasters to CMD or set all power
supplies on full or a maximum of 20
volts. Press ENG and “1” on CAB-1.
Turn the throttle or press any com-
mand button; RailSounds starts up.
Your locomotive is ready for
Command operations.
Address Locomotive #1
PowerMasters set to CMD or traditional
power supplies ON FULL
Press ENG
Press 1 (the ID#)
Throttle up/press any command button
Example
TrainMaster Command operations
Coupler release
sounds.

14
When you press AUX1 on CAB-1, you turn the
numeric keypad into 10 command
buttons. The keypad “stays open”
and gives you access to extra com-
mand features until you press any
top-row button (SW, ACC, RTE,
TR, or ENG). The CAB-1 keypad over-
lay included with your locomotive
is designed to help you learn the
auxiliary features specific to this
classic locomotive.
Locomotive RailSounds
effects in bold italic.
CAB-1 numeric keypad commands for your locomotive
STEAM
ENGINE
RESET
VOLUME
SMOKE
➠
BLOW
OFF
SHUT
DOWN
OFF ON
STEAM
RELEASE
PRESS
& HOLD
SMOKE
BOOST
➠
START-UP
0Stops and resets the locomotive to FOR- WARD. Headlight flickers.
1Raises the volume of RailSounds. Sound volume increases.
2CrewTalk™is the sound of unintelligi- ble walkie-talkie communication.
3Starts-up RailSounds. Start-up sequence commences. Steam
blowoff sound.
4Lowers the volume of RailSounds. Sound volume decreases.
5Activates the RailSounds steam shut- down sequence. Just like the real thing,
your locomotive must be idle for shut-
down to occur. Steam shutdown com-
mences. Remember, the whistle and bell
will not sound until you restart RailSounds.
CrewTalk sounds*.
6Steam release sound.
7TowerCom™is an audible announce- ment that includes that engine’s road
number and/or name. There is a four
second delay in this function.
8Turns off the smoke generator. Steam release sound*.
9Turns on the smoke generator. Press and hold 9 (10 seconds maximum) to initi-
ate Smoke Boost™—this superheats the
smoke generator and enhances smoke output
when you start running your locomotive.
Steam release sound*.
RailSounds in the Command environment
Your locomotive’s RailSounds system gives you even more in the
TrainMaster Command environment.
• DynaChuffTM. Real steam locomotive
chuffing depends on the locomotive’s load.
DynaChuff simulates both labored and
relaxed chuffing sounds. Highball down the
mainline and hear the labored chuffing of a
locomotive battling inertia. Reduce your
throttle setting, and chuffing relaxes to a
more sedate sound, as though the load placed
on the locomotive has decreased. Experience
DynaChuff on steep grades, at yard crawls,
and at speed. Another RailSounds exclusive.
• Bonus sounds like squealing brakes
with the CAB-1 BRAKE command.
• Incidental sounds you control with
CAB-1 numeric keypad commands, like
steam let-off and steam release effects.
TrainMaster Command operations
*Hearing the Steam release sound lets you know
that the locomotive has received these commands.
Note! AUX 1-9 only works if the smoke
unit switch is in the ON position.

15
Tuning your locomotive performance
MOMENTUM
Simulate the labored performance of a
locomotive pulling a heavy load with
momentum. Press L, M, or H (located under
CAB-1’s removable panel) for light, medium
or heavy momentum. The R2IR remembers
the setting until you change it. For delayed
response, use H. For quick response, choose L.
BOOSTING AND BRAKING
Use the BOOST and BRAKE command but-
tons for incremental control of speed and a
superior method for handling grades, stops-
and-starts, and more. Plus, using BRAKE in
the Command environment gives you a
bonus RailSounds effect—the ultra-realistic
sound of squealing brakes.
STALL
Make your locomotive feel more responsive
by setting a “stall” voltage. Get your locomo-
tive moving, then press SET; the locomotive
will stop. The headlight will flash, indicating
it’s in the SET mode. Turn the throttle clock-
wise to get the locomotive moving, then
decrease speed until the locomotive just
stops. Then press SET again; the R2IR
remembers the stall setting until you change
it. To clear stall, press SET twice, holding it
for one second each time.
HIGH VOLTAGE SETTING
Press ENG, the locomotive ID#, then press
SET; the headlight will flash. Get your loco-
motive moving to the maximum speed you
want it to run, then press BOOST. Use this to
keep your locomotive from accidentally
being derailed at high speed.
To clear setting, press ENG,
the ID#, then immediately
press BOOST.
SOUND QUALITY
To achieve your preferred RailSounds mas-
ter volume level, use the volume control dial
located on the bottom of the tender (see
page 10). Turn the dial left or right to adjust
the volume to your liking.
For quick remote-control of volume below
the master setting—like muting—use the
CAB-1 numeric keypad’s volume control.
Pressing AUX1 and 4 on the keypad lowers
overall RailSounds output.
These settings will be lost when you
assign a new engine ID number.
Note!
Note!
TrainMaster Command operations
Speed control in Command mode is auto- matic. Simply adjust the speed to the desired level, and the Odyssey System will maintain it over grades, etc.
Your locomotive’s Odyssey System in the
Command Control environment

16
Assign a new ID# to your
Command-equipped
locomotive
Set the locomotive PROGRAM/RUN Switch
to PROGRAM (see illustration below)
Command Base ON
Place the locomotive on track
PowerMasters set to CMD or
traditional power supplies ON FULL
Turn track power on (PowerMasters):
Press BOOST
Program the locomotive with a new ID#:
Press ENG
Press a number you choose (the
ID#)
Press SET
Set PROGRAM/RUN Switch to RUN
Your locomotive remembers its ID# forever;
change it any time with these steps.
Example As your fleet of Command-
equipped Lionels grows, give
your locomotive its own ID#. Choose
from any number between 1 and 99.
Slide the locomotive’s PROGRAM/
RUN switch to PROGRAM. (See illus-
tration below.) Plug-in the
Command Base and place the loco-
motive on track. Then, power up.
Using CAB-1, press ENG, the
locomotive ID#, then press the SET
button located under CAB-1’s
removable panel. See the
locomotive’s headlight flash; that’s
your signal that the programming
has been accepted. Now slide the
switch to RUN.
We recommend that you choose an easy-to-
remember ID# for your locomotives. Some
possibilities are part of the locomotive road
number, your age, or any two-digit number
that is not used by another locomotive. If
you like, write the number on a small piece
of tape and put this on the bottom of the
frame to aid in remembering.
Assigning your locomotive a new ID#
TrainMaster Command operations
SMOKE
Program/Run Switch
Smoke Unit Switch
(see page 21 for details)
Front
Rear

TrainMaster Command operations
17
Reprogramming R2IR circuit boards to restore features
STEP 1: Move switch on locomotive from
RUN to PROGRAM.
STEP 2: Plug-in Command Base.
STEP 3: Place locomotive on track, then
turn on power to track.
STEP 4: Press “ENG” then input locomo-
tive’s ID#. Press “SET”.
STEP 5: Press “ENG,” then the ID#,
“AUX1”, then press the number 74.
STEP 6: Turn off power to track and wait
ten seconds.
STEP 7: Remove locomotive from track,
move switch from PROGRAM to RUN.
STEP 8: Place locomotive back on track,
turn power on to track.
STEP 9: Press “ENG” and ID#, then oper-
ate as normal.
Due to the inevitable derailments, static, and the nature of electricity, it is possi-
ble that your R2IR could someday lose its
setup program. The symptoms of this condi-
tion would be unresponsiveness in Command
mode. This can be easily remedied by “repro-
gramming” your R2IR using the following
steps.
Maintaining your locomotive’s handrail antenna
Your locomotive handrails are more than just model grab irons—they’re
the R2IR’s antenna for receiving Command
Base digital communications. Please handle
the locomotive carefully to avoid handrail
damage. To ensure optimum reception, both
handrails are insulated from the die-cast
shell. If your locomotive experiences difficul-
ty receiving Base communications, check the
handrail ends in the cab and pilot for the
presence of insulating material. Ensure that
each insulator is present and enjoys a proper
fit. Finally, prevent the handrails from touch-
ing any part of the die-cast locomotive cab.

Help your Lionel locomotive lead a long and productive life on your railroad by
maintaining it properly.
We recommend you purchase a
Lionel Lubrication and
Maintenance Kit (part no.
6-62927), available from your
Lionel dealer. Two basic rules to
keep in mind: never over-
lubricate (a small amount will
do), and avoid getting grease or
oil on the locomotive wheels,
contact rollers, or your track.
You’ll know your locomotive
requires lubrication when visual inspection
reveals dryness on the parts indicated in the
illustration. Remove accumulated dirt and
dust before lubricating, and
always lubricate any locomotive
emerging from prolonged
storage. Also, lightly lubricate the
locomotive side rods, drive rods,
linkage, front and rear truck
pivot points, and tender wheel
bearings after each 25 hours of
operation.
18
Lubricating your locomotive
Maintaining and servicing your Locomotive
Grease
Grease
Grease
Oil both sides
of the
locomotive
Oil rods and
pivot points on
both sides of
the locomotive
FRONT
REAR
Body Screws
Body Screws

19
Your locomotive’s tender is illuminated by two lamps. Remove the tender body by
unscrewing the six screws located on the
underside of the tender (see page 10 for screw
locations).
Carefully lift the tender body from the frame,
taking care with the wiring assemblies which
are still attached to the tender body. Unplug the
connector and replace the expired backup light
with Lionel part no. 620-8029-300. Unplug and
replace the lamp that lights the “dog house”
with Lionel part no. 620-8029-300. All lamps
are available from your Authorized Lionel
Service Center or direct from Lionel Service.
See the Lionel Service section on page 24 for
more information.
Reassemble in reverse order. While
reassembling the tender, make sure all wires
are inside the body before the screws are
tightened.
Note: The two red marker lights are LEDs
and are not user serviceable.
Your locomotive is illuminated by four lamps. One is located in the headlight
housing mounted on the boiler front. A lamp
illuminates the interior of the cab. Two red
lights (1 assembly) show through the ash pan
grating and shine brighter when the speed of
the locomotive increases. During the course
of normal operations, these may require
replacement.
Note: Removing the four cab screws as
shown on page 18 will allow access to the
inside of the cab and the expired lamps. But
due to the complexity of the disassembly
required to replace these lamps, we recom-
mend that you take your locomotive to your
Authorized Lionel Service Center for any
required lamp replacement.
Lamp Numbers:
Headlight (1) 620-8029-300
Cab light (1) 610-8082-019
Ash Pan (1 Assembly) 620-8063-300
Note: The green front marker lights are
LEDs (Light Emitting Diodes), and are not
user serviceable.
Servicing your locomotive’s lamps – Pennsylvania Version
Maintaining and servicing your locomotive
Replacing your tender’s lamps
Before changing the lamps in your locomotive, be sure to check that the AUX2 com-
mand was not used to turn off the front headlight.
Note!
Rear ofTender Backup Light
Lionel Part no.
620-8029-300

Maintaining and servicing your locomotive
20
Your locomotive’s tender is illuminated by one lamp, located at the rear of the ten-
der. Remove the tender body by unscrewing
the six screws located on the underside of the
tender (see page 10 for screw locations).
Carefully lift the tender body from the
frame, taking care with the wiring assemblies
which are still attached to the tender body.
Unplug the connector and replace the expired
lamp with Lionel part no. 610-8049-200. All
lamps are available from your Authorized
Lionel Service Center or direct from Lionel
Service. See the Lionel Service section on
page 24 for more information.
Reassemble in reverse order. While
reassembling the tender, make sure all wires
are inside the body before the screws are
tightened. Note: The two red marker lights are LEDs
and are not user serviceable.
Your locomotive is illuminated by six lamps. One is located in the headlight
housing in the front of the boiler. Two more
light the boiler front-mounted number
boards. A lamp illuminates the interior of the
cab. Two red lights (1 assembly) show
through the ash pan grating and shine
brighter when the speed of the locomotive
increases. During the course of normal oper-
ations, these may require replacement.
Note: Removing the four cab screws as
shown on page 18 will allow access to the
inside of the cab and the expired lamps. But
due to the complexity of the disassembly
required to replace these lamps, we recom-
mend that you take your locomotive to your
Authorized Lionel Service Center for any
required lamp replacement.
Lamp Numbers:
Headlight (1) 620-8029-300
Number boards (2) 620-8064-300
Cab light (1) 610-8082-019
Ash Pan (1 Assembly) 620-8063-300
Note: The green front marker lights are
LEDs (Light Emitting Diodes), and are not
user serviceable.
Servicing your locomotive’s lamps – C & O Version
Replacing your tender’s lamp
Before changing the lamps in your locomotive, be sure to check that the AUX2 com-
mand was not used to turn off the front headlight.
Note!
Rear ofTender
