Liquid Image APEX User manual
Products mentioned above or throughout the manual may be trademarks or registered trademarks of their respective
companies.
ATTENTION
This manual explains how to safely operate the Camera Goggle.
Please read these instructions carefully before using the camera.
Keep this manual in a safe place for later reference
Disclaimer
While every effort has been made to ensure that the information contained in the
guide is accurate and complete, no liability can be accepted for any errors or
omissions. Liquid Image Co reserves the right to change the specifications of the
hardware and software described herein at any time without prior notice.
Liquid Image Co declines all responsibility for damages due to improper use of
this product, failure to adhere to the instructions given in this manual, or
modifications to the CAMERA GOGGLE.
Cautions concerning data storage: Stored data may be lost or corrupted. It is
recommended that any important data be copied onto a separate media (such as
a hard disk, DVD-R or CD-R disk). Liquid Image Co makes no warranties and shall
not be held responsible for damages resulting from corrupted or lost data due to a
malfunction of the camera, the software, the memory cards, personal computer,
peripheral devices, or for any losses that result from images that could not be
recorded, are erased, destroyed, or damaged in any way due to a problem or a
mistake while utilizing the camera or any of its accessories.
The Camera Goggle is a sophisticated electronic device and should
be supervised by an adult at all times. This product should not be
used by children under 13 years. This product is not a toy. The inserting
of memory cards, USB cable, and battery must be performed by an
adult 18 years or older who has read and understands this manual. An
adult must always check all water resistant compartments prior to each use.
ENGLISH
ENG-2
1.0 GET TO KNOW YOUR CAMERA GOGGLE
1.1 Features
Video Clips, Still Images, Micro SD/SDHC Card support
Driver free for Windows XP/Vista/7 and Mac 10.4 or above
1.2 Specifications -
1.2 System Requirements
Subject to change without notice
Sensor 1/2.5” 5.0MP CMOS Sensor
Image Resolution 12.0 Megapixels (4000x3000)
Lens F/3.2 f=2.75mm (135 Degree FOV)
Focus range .4m to infinity
Internal Memory 256MB NAND Flash Memory for CPU only
External Memory Card Micro SD/SDHC Card supports up to 32GB
Must be Class 4 and above
Video Mode 30FPS@HD 1080P
60FPS@HD 720P (1280x720) with Audio
(1920X1080) with Audio
File Format Picture: JPEG, Video: H.264 MOV with Audio
Status Display LCD Display
PC Interface USB
Power 3.7V Lithium Rechargeable Battery 1150mAh
Auto Off System time 180 seconds
Operating System
CPU Intel® Core™ 2 Duo CPU E6300 processor
(or above), AMD Athlon 64 X2 3800+ (or above)
RAM 1GB RAM (2GB recommended for editing HD videos)
300 MB available hard disk space
Memory
Graphics Card 256 MB Graphics Card or above is recommendeded
TV Output PAL and NTSC
Quantity of pixels is only an approximate number Approximate frames per second
*
* **
**
***
***
No Software required to download files
Windows® XP (SP2 or higher) ,Vista™,
Windows® 7 or Mac 10.4
ENG-1
ENG-1
TM
4.0 Recording Pictures and Video
4.1 720P Video Mode ENG-10
4.2 1080P Video Mode ENG-10
4.3 Still Image Photo Mode ENG-11
4.4 Continuous Photo Mode ENG-11
4.5 Power Off ENG-11
5.0 Transferring Still Images and Video to a Computer
5.1 Opening Memory Compartment ENG-12
5.2 Connecting and Transferring Files ENG-12
ENG-14
ENG-15
5.3 Disconnecting and Closing Memory Compartment ENG-13
7.0 Video and Image File Size ENG-15
6.0 Viewing Videos and Still Images on TV
6.1 Setting Correct NTSC/PAL Mode for your TV
6.2 Video and Still Image Playback on a TV
ENG-17
ENG-17
10.0 Replacing Lenses
10.1 Removing the Lens
10.2 Inserting the Lens
9.0 Care and Maintenance ENG-16
8.0 Firmware and Product Updates ENG-16
11.0 Camera Warnings and Precautions ENG-18
12.0 Battery Warning and Precautions ENG-19
13.0 Commonly Asked Questions and Troubleshooting ENG-20
CONTENTS
1.0 Get to know your CAMERA GOGGLE
1.1 Features ENG- 2
1.2 Specifications ENG- 2
1.3 System requirements ENG- 2
2.0 Functional Parts
2.1 Included Parts and Accessories ENG- 3
2.2 Part Names - Front View ENG- 4
2.3 Part Names - Back View ENG- 4
2.4 Part Names - Ports and LCD Screen

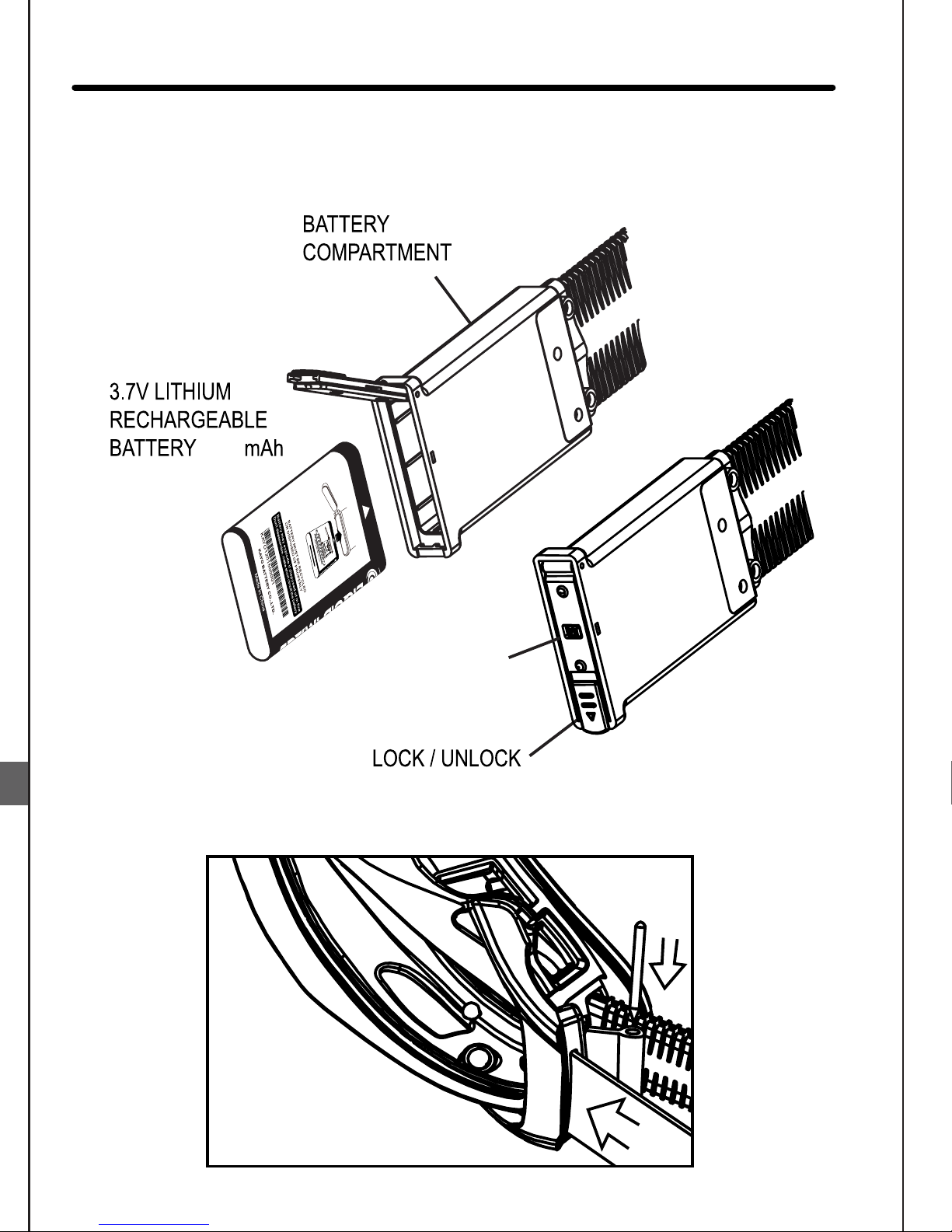

2.5 Part Names - Battery Compartment
ENG- 5
ENG- 6
2.6 Replace Goggle Strap ENG- 6

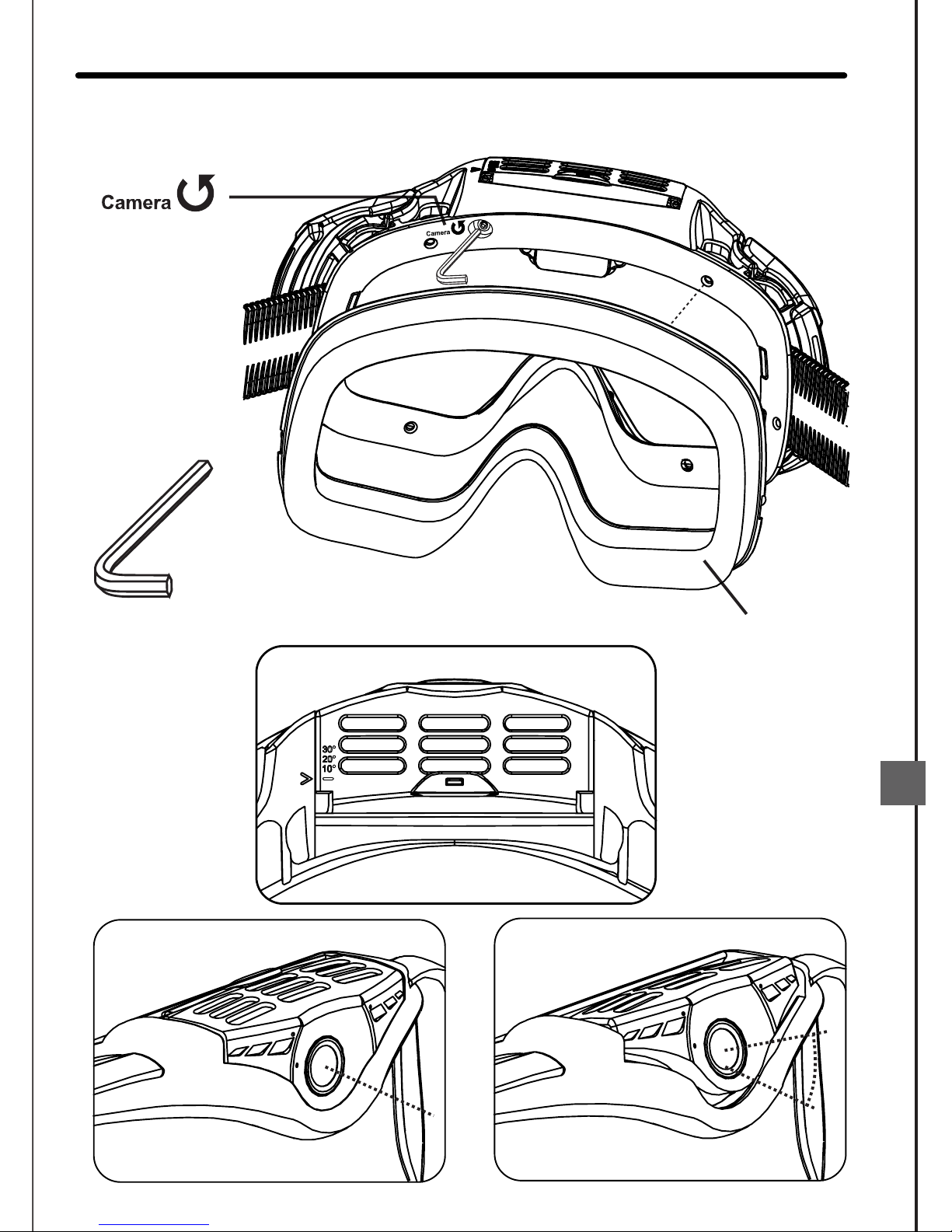

2.7 Replace Face Foam and Rotate Lens ENG- 7
3.0 Camera Goggle Setup
3.1 Recharging or Replacing the Li-ion Battery ENG- 8
3.2 Inserting Micro SD/SDHC Memory Card ENG- 8
3.3 Setting the Date and Time Mode ENG- 9
Products mentioned above or throughout the manual may be trademarks or registered trademarks of their respective
companies.
ATTENTION
This manual explains how to safely operate the Camera Goggle.
Please read these instructions carefully before using the camera.
Keep this manual in a safe place for later reference
Disclaimer
While every effort has been made to ensure that the information contained in the
guide is accurate and complete, no liability can be accepted for any errors or
omissions. Liquid Image Co reserves the right to change the specifications of the
hardware and software described herein at any time without prior notice.
Liquid Image Co declines all responsibility for damages due to improper use of
this product, failure to adhere to the instructions given in this manual, or
modifications to the CAMERA GOGGLE.
Cautions concerning data storage: Stored data may be lost or corrupted. It is
recommended that any important data be copied onto a separate media (such as
a hard disk, DVD-R or CD-R disk). Liquid Image Co makes no warranties and shall
not be held responsible for damages resulting from corrupted or lost data due to a
malfunction of the camera, the software, the memory cards, personal computer,
peripheral devices, or for any losses that result from images that could not be
recorded, are erased, destroyed, or damaged in any way due to a problem or a
mistake while utilizing the camera or any of its accessories.
The Camera Goggle is a sophisticated electronic device and should
be supervised by an adult at all times. This product should not be
used by children under 13 years. This product is not a toy. The inserting
of memory cards, USB cable, and battery must be performed by an
adult 18 years or older who has read and understands this manual. An
adult must always check all water resistant compartments prior to each use.
ENGLISH
ENG-2
1.0 GET TO KNOW YOUR CAMERA GOGGLE
1.1 Features
Video Clips, Still Images, Micro SD/SDHC Card support
Driver free for Windows XP/Vista/7 and Mac 10.4 or above
1.2 Specifications -
1.2 System Requirements
Subject to change without notice
Sensor 1/2.5” 5.0MP CMOS Sensor
Image Resolution 12.0 Megapixels (4000x3000)
Lens F/3.2 f=2.75mm (135 Degree FOV)
Focus range .4m to infinity
Internal Memory 256MB NAND Flash Memory for CPU only
External Memory Card Micro SD/SDHC Card supports up to 32GB
Must be Class 4 and above
Video Mode 30FPS@HD 1080P
60FPS@HD 720P (1280x720) with Audio
(1920X1080) with Audio
File Format Picture: JPEG, Video: H.264 MOV with Audio
Status Display LCD Display
PC Interface USB
Power 3.7V Lithium Rechargeable Battery 1150mAh
Auto Off System time 180 seconds
Operating System
CPU Intel® Core™ 2 Duo CPU E6300 processor
(or above), AMD Athlon 64 X2 3800+ (or above)
RAM 1GB RAM (2GB recommended for editing HD videos)
300 MB available hard disk space
Memory
Graphics Card 256 MB Graphics Card or above is recommendeded
TV Output PAL and NTSC
Quantity of pixels is only an approximate number Approximate frames per second
*
* **
**
***
***
No Software required to download files
Windows® XP (SP2 or higher) ,Vista™,
Windows® 7 or Mac 10.4
ENG-1
ENG-1
TM
4.0 Recording Pictures and Video
4.1 720P Video Mode ENG-10
4.2 1080P Video Mode ENG-10
4.3 Still Image Photo Mode ENG-11
4.4 Continuous Photo Mode ENG-11
4.5 Power Off ENG-11
5.0 Transferring Still Images and Video to a Computer
5.1 Opening Memory Compartment ENG-12
5.2 Connecting and Transferring Files ENG-12
ENG-14
ENG-15
5.3 Disconnecting and Closing Memory Compartment ENG-13
7.0 Video and Image File Size ENG-15
6.0 Viewing Videos and Still Images on TV
6.1 Setting Correct NTSC/PAL Mode for your TV
6.2 Video and Still Image Playback on a TV
ENG-17
ENG-17
10.0 Replacing Lenses
10.1 Removing the Lens
10.2 Inserting the Lens
9.0 Care and Maintenance ENG-16
8.0 Firmware and Product Updates ENG-16
11.0 Camera Warnings and Precautions ENG-18
12.0 Battery Warning and Precautions ENG-19
13.0 Commonly Asked Questions and Troubleshooting ENG-20
CONTENTS
1.0 Get to know your CAMERA GOGGLE
1.1 Features ENG- 2
1.2 Specifications ENG- 2
1.3 System requirements ENG- 2
2.0 Functional Parts
2.1 Included Parts and Accessories ENG- 3
2.2 Part Names - Front View ENG- 4
2.3 Part Names - Back View ENG- 4
2.4 Part Names - Ports and LCD Screen
2.5 Part Names - Battery Compartment
ENG- 5
ENG- 6
2.6 Replace Goggle Strap ENG- 6
2.7 Replace Face Foam and Rotate Lens ENG- 7
3.0 Camera Goggle Setup
3.1 Recharging or Replacing the Li-ion Battery ENG- 8
3.2 Inserting Micro SD/SDHC Memory Card ENG- 8
3.3 Setting the Date and Time Mode ENG- 9
Products mentioned above or throughout the manual may be trademarks or registered trademarks of their respective
companies.
ATTENTION
This manual explains how to safely operate the Camera Goggle.
Please read these instructions carefully before using the camera.
Keep this manual in a safe place for later reference
Disclaimer
While every effort has been made to ensure that the information contained in the
guide is accurate and complete, no liability can be accepted for any errors or
omissions. Liquid Image Co reserves the right to change the specifications of the
hardware and software described herein at any time without prior notice.
Liquid Image Co declines all responsibility for damages due to improper use of
this product, failure to adhere to the instructions given in this manual, or
modifications to the CAMERA GOGGLE.
Cautions concerning data storage: Stored data may be lost or corrupted. It is
recommended that any important data be copied onto a separate media (such as
a hard disk, DVD-R or CD-R disk). Liquid Image Co makes no warranties and shall
not be held responsible for damages resulting from corrupted or lost data due to a
malfunction of the camera, the software, the memory cards, personal computer,
peripheral devices, or for any losses that result from images that could not be
recorded, are erased, destroyed, or damaged in any way due to a problem or a
mistake while utilizing the camera or any of its accessories.
The Camera Goggle is a sophisticated electronic device and should
be supervised by an adult at all times. This product should not be
used by children under 13 years. This product is not a toy. The inserting
of memory cards, USB cable, and battery must be performed by an
adult 18 years or older who has read and understands this manual. An
adult must always check all water resistant compartments prior to each use.
ENGLISH
ENG-2
1.0 GET TO KNOW YOUR CAMERA GOGGLE
1.1 Features
Video Clips, Still Images, Micro SD/SDHC Card support
Driver free for Windows XP/Vista/7 and Mac 10.4 or above
1.2 Specifications -
1.2 System Requirements
Subject to change without notice
Sensor 1/2.5” 5.0MP CMOS Sensor
Image Resolution 12.0 Megapixels (4000x3000)
Lens F/3.2 f=2.75mm (135 Degree FOV)
Focus range .4m to infinity
Internal Memory 256MB NAND Flash Memory for CPU only
External Memory Card Micro SD/SDHC Card supports up to 32GB
Must be Class 4 and above
Video Mode 30FPS@HD 1080P
60FPS@HD 720P (1280x720) with Audio
(1920X1080) with Audio
File Format Picture: JPEG, Video: H.264 MOV with Audio
Status Display LCD Display
PC Interface USB
Power 3.7V Lithium Rechargeable Battery 1150mAh
Auto Off System time 180 seconds
Operating System
CPU Intel® Core™ 2 Duo CPU E6300 processor
(or above), AMD Athlon 64 X2 3800+ (or above)
RAM 1GB RAM (2GB recommended for editing HD videos)
300 MB available hard disk space
Memory
Graphics Card 256 MB Graphics Card or above is recommendeded
TV Output PAL and NTSC
Quantity of pixels is only an approximate number Approximate frames per second
*
* **
**
***
***
No Software required to download files
Windows® XP (SP2 or higher) ,Vista™,
Windows® 7 or Mac 10.4
ENG-1
ENG-1
TM
4.0 Recording Pictures and Video
4.1 720P Video Mode ENG-10
4.2 1080P Video Mode ENG-10
4.3 Still Image Photo Mode ENG-11
4.4 Continuous Photo Mode ENG-11
4.5 Power Off ENG-11
5.0 Transferring Still Images and Video to a Computer
5.1 Opening Memory Compartment ENG-12
5.2 Connecting and Transferring Files ENG-12
ENG-14
ENG-15
5.3 Disconnecting and Closing Memory Compartment ENG-13
7.0 Video and Image File Size ENG-15
6.0 Viewing Videos and Still Images on TV
6.1 Setting Correct NTSC/PAL Mode for your TV
6.2 Video and Still Image Playback on a TV
ENG-17
ENG-17
10.0 Replacing Lenses
10.1 Removing the Lens
10.2 Inserting the Lens
9.0 Care and Maintenance ENG-16
8.0 Firmware and Product Updates ENG-16
11.0 Camera Warnings and Precautions ENG-18
12.0 Battery Warning and Precautions ENG-19
13.0 Commonly Asked Questions and Troubleshooting ENG-20
CONTENTS
1.0 Get to know your CAMERA GOGGLE
1.1 Features ENG- 2
1.2 Specifications ENG- 2
1.3 System requirements ENG- 2
2.0 Functional Parts
2.1 Included Parts and Accessories ENG- 3
2.2 Part Names - Front View ENG- 4
2.3 Part Names - Back View ENG- 4
2.4 Part Names - Ports and LCD Screen
2.5 Part Names - Battery Compartment
ENG- 5
ENG- 6
2.6 Replace Goggle Strap ENG- 6
2.7 Replace Face Foam and Rotate Lens ENG- 7
3.0 Camera Goggle Setup
3.1 Recharging or Replacing the Li-ion Battery ENG- 8
3.2 Inserting Micro SD/SDHC Memory Card ENG- 8
3.3 Setting the Date and Time Mode ENG- 9
ENG-3
TM
2.0 Functional Parts
2.1 Included Parts and Accessories
Please check the contents now (before use) to confirm that it is complete.
Contact your Liquid Image Co dealer if anything is missing.
USER MANUAL
CAMERA GOGGLE
USB CABLE
WARRANTY
MICRO FIBER STORAGE BAG
RECHARGEABLE LI-ION BATTERY 3.7V 1150mAh
EXTRA SNOW LENS
STRAP
NOTE: The CAMERA GOGGLE will be referred to as the
"CAMERA GOGGLE" throughout this instruction manual.
WARNING: NEVER OPEN THE CAMERA BODY THAT IS FACTORY
SEALED WITH SCREWS. THIS WILL VOID ANY WARRANTY. NEVER USE
A SCREW DRIVER TO OPEN ANY PORTION OF THE CAMERA GOGGLE.
TM
“If the product is exposed to a strong electrostatic charge, its memory
contents may be damaged or the keys may stop working. In such case,
reinstall battery to clear the memory and restore normal key operation.”
REPLACEMENT FACE FOAM
HEX ALLEN WRENCH
ENG-3
2.2 Part Names - Front View
2.3 Part Names - Back View
CAMERA
LENS
POWER/MODE
BUTTON
SHUTTER/SELECT
BUTTON
BATTERY
COMPARTMENT
GOGGLE LENS
2.2 Part Names - Front View
MICROPHONE
WITH WIND GUARD
ENG-4
MODE LIGHT
INDICATOR
(blue - video 720P@60fps)
(green - video 1080P@30fps)
(red - photo)
(purple - continuous photo)
(also used for recharging)
2.4 Part Names - Ports and LCD Screen
ENG-5
POWER/MODE
BUTTON
SHUTTER/SELECT
BUTTON
HDMI
Port
Secondary LOCK
2.5 Part Names - Battery Compartment
2.6 Replace Goggle Strap
1150
ENG-6
ENG-3
TM
2.0 Functional Parts
2.1 Included Parts and Accessories
Please check the contents now (before use) to confirm that it is complete.
Contact your Liquid Image Co dealer if anything is missing.
USER MANUAL
CAMERA GOGGLE
USB CABLE
WARRANTY
MICRO FIBER STORAGE BAG
RECHARGEABLE LI-ION BATTERY 3.7V 1150mAh
EXTRA SNOW LENS
STRAP
NOTE: The CAMERA GOGGLE will be referred to as the
"CAMERA GOGGLE" throughout this instruction manual.
WARNING: NEVER OPEN THE CAMERA BODY THAT IS FACTORY
SEALED WITH SCREWS. THIS WILL VOID ANY WARRANTY. NEVER USE
A SCREW DRIVER TO OPEN ANY PORTION OF THE CAMERA GOGGLE.
TM
“If the product is exposed to a strong electrostatic charge, its memory
contents may be damaged or the keys may stop working. In such case,
reinstall battery to clear the memory and restore normal key operation.”
REPLACEMENT FACE FOAM
HEX ALLEN WRENCH
ENG-3
2.2 Part Names - Front View
2.3 Part Names - Back View
CAMERA
LENS
POWER/MODE
BUTTON
SHUTTER/SELECT
BUTTON
BATTERY
COMPARTMENT
GOGGLE LENS
2.2 Part Names - Front View
MICROPHONE
WITH WIND GUARD
ENG-4
MODE LIGHT
INDICATOR
(blue - video 720P@60fps)
(green - video 1080P@30fps)
(red - photo)
(purple - continuous photo)
(also used for recharging)
2.4 Part Names - Ports and LCD Screen
ENG-5
POWER/MODE
BUTTON
SHUTTER/SELECT
BUTTON
HDMI
Port
Secondary LOCK
2.5 Part Names - Battery Compartment
2.6 Replace Goggle Strap
1150
ENG-6
ENG-3
TM
2.0 Functional Parts
2.1 Included Parts and Accessories
Please check the contents now (before use) to confirm that it is complete.
Contact your Liquid Image Co dealer if anything is missing.
USER MANUAL
CAMERA GOGGLE
USB CABLE
WARRANTY
MICRO FIBER STORAGE BAG
RECHARGEABLE LI-ION BATTERY 3.7V 1150mAh
EXTRA SNOW LENS
STRAP
NOTE: The CAMERA GOGGLE will be referred to as the
"CAMERA GOGGLE" throughout this instruction manual.
WARNING: NEVER OPEN THE CAMERA BODY THAT IS FACTORY
SEALED WITH SCREWS. THIS WILL VOID ANY WARRANTY. NEVER USE
A SCREW DRIVER TO OPEN ANY PORTION OF THE CAMERA GOGGLE.
TM
“If the product is exposed to a strong electrostatic charge, its memory
contents may be damaged or the keys may stop working. In such case,
reinstall battery to clear the memory and restore normal key operation.”
REPLACEMENT FACE FOAM
HEX ALLEN WRENCH
ENG-3
2.2 Part Names - Front View
2.3 Part Names - Back View
CAMERA
LENS
POWER/MODE
BUTTON
SHUTTER/SELECT
BUTTON
BATTERY
COMPARTMENT
GOGGLE LENS
2.2 Part Names - Front View
MICROPHONE
WITH WIND GUARD
ENG-4
MODE LIGHT
INDICATOR
(blue - video 720P@60fps)
(green - video 1080P@30fps)
(red - photo)
(purple - continuous photo)
(also used for recharging)
2.4 Part Names - Ports and LCD Screen
ENG-5
POWER/MODE
BUTTON
SHUTTER/SELECT
BUTTON
HDMI
Port
Secondary LOCK
2.5 Part Names - Battery Compartment
2.6 Replace Goggle Strap
1150
ENG-6
ENG-3
TM
2.0 Functional Parts
2.1 Included Parts and Accessories
Please check the contents now (before use) to confirm that it is complete.
Contact your Liquid Image Co dealer if anything is missing.
USER MANUAL
CAMERA GOGGLE
USB CABLE
WARRANTY
MICRO FIBER STORAGE BAG
RECHARGEABLE LI-ION BATTERY 3.7V 1150mAh
EXTRA SNOW LENS
STRAP
NOTE: The CAMERA GOGGLE will be referred to as the
"CAMERA GOGGLE" throughout this instruction manual.
WARNING: NEVER OPEN THE CAMERA BODY THAT IS FACTORY
SEALED WITH SCREWS. THIS WILL VOID ANY WARRANTY. NEVER USE
A SCREW DRIVER TO OPEN ANY PORTION OF THE CAMERA GOGGLE.
TM
“If the product is exposed to a strong electrostatic charge, its memory
contents may be damaged or the keys may stop working. In such case,
reinstall battery to clear the memory and restore normal key operation.”
REPLACEMENT FACE FOAM
HEX ALLEN WRENCH
ENG-3
2.2 Part Names - Front View
2.3 Part Names - Back View
CAMERA
LENS
POWER/MODE
BUTTON
SHUTTER/SELECT
BUTTON
BATTERY
COMPARTMENT
GOGGLE LENS
2.2 Part Names - Front View
MICROPHONE
WITH WIND GUARD
ENG-4
MODE LIGHT
INDICATOR
(blue - video 720P@60fps)
(green - video 1080P@30fps)
(red - photo)
(purple - continuous photo)
(also used for recharging)
2.4 Part Names - Ports and LCD Screen
ENG-5
POWER/MODE
BUTTON
SHUTTER/SELECT
BUTTON
HDMI
Port
Secondary LOCK
2.5 Part Names - Battery Compartment
2.6 Replace Goggle Strap
1150
ENG-6
3.0 CAMERA GOGGLE SETUP
CAUTION: An adult 18 years or older should perform this function. Always
make sure the CAMERA GOGGLE is completely dry before performing these
steps. Set up should always take place in a clean dry space with a controlled
environment. These steps should be performed indoors to avoid exposure to
the elements.
3.1 Recharging or Replacing Li-Ion Battery
NOTE:
Only use a Liquid Image Rechargeable 3.7V 1150mAh Lithium Battery with the
CAMERA GOGGLE.
The LCD indicator shows battery life. When no remaining bars are
displayed, the battery is low and the LCD screen will show the word “LO” and will
make a beeping sound. Recharge or replace battery to continue using. Files on the
Micro SD/SDHC card will not be lost if battery power runs out or during replacement
of the battery.
To insert or replace battery:
1. Unlock and Slide Battery Compartment door forward and then down to open.
2. Insert the Battery as shown on page ENG-6. Notches on the battery will only
allow you to put the battery in one direction.
3. Close the BATTERY COMPARTMENT door carefully.
3.2 Inserting Micro SD or SDHC Memory Card - Mandatory
NOTE: A Micro SD/SDHC Memory Card may or may not be included with your
CAMERA GOGGLE. It is recommended that you utilize a commercially sold Micro
SD/SDHC Card to add memory storage to yourCAMERA GOGGLE. It is best to utilize
a high performance Micro SD/SDHC card as this will improve the performance of
Estimated Battery life for a new 1150 mAh Rechargeable Lithium Battery
Still image mode: up to 5000 pictures
Video clip recording mode: up to 150 minutes
To Recharge Battery:
1) Open MEMORY COMPARTMENT door.
2) Plug USB CABLE into both the USB Port on the CAMERA GOGGLE and the Computer.
The battery will start charging and the RED LED will start blinking. When the charge is
complete, the RED LED will stop blinking and will switch to a solid GREEN LED light.
V
ENG-8
your CAMERA GOGGLE.This CAMERA GOGGLE
CAMERA GOGGLE
works with both a Micro SD card or a
Micro SDHC card up to 32 GB (Class 4+). Carefully read the instructions and warnings
that come with the card. If your card is not FAT16 formatted, it will be reformatted once
placed into the Micro SD/SDHCcard slot on your and the Power is
turned on. Please note that any data on the card will be lost. Make sure to back up
any data on the Micro SD/SDHC Card prior to inserting into the CAMERA GOGGLE.
NOTE: The CAMERA GOGGLE does not have
internal memory to store the images and videos
taken by the . ou must
insert a Micro SD/SDHC card prior to taking images
and videos. 4GB Micro SDHC Class 6+ is
recommended for peak performance.
3.3 Setting the Date and Time Mode
This feature allows you to set the Date and Time to the photo or video file.
1. Press and hold the SHUTTER/SELECT button down. Press and hold POWER/MODE
button for 2 seconds to turn on camera.
2. Continue holding the SHUTTER/SELECT button down and press the
POWER/MODE button 3 times continuously and then release the
SHUTTER/SELECT button. The LCD screen will access the Time Setting mode.
You will be able to change Year (YY), Month (MM), Day (DD), Hour (hh), and
Minute (mm). The first window will be YY for Year. Press the SHUTTER/SELECT
button and the numbers will appear (eg.“12”, means year 2012). The first number “1”
in the year will start blinking.
3. Press the POWER/MODE button to change the blinking character from 0-9. Press
the SHUTTER/SELECT button to select the number and move onto the next number
“2”. The setting process is from the left to right and will go through the different
settings from Year, Month, Day, Hour, and minute. Once the number is confirmed by
pressing the SHUTTER/SELECT button, the next digit will start blinking. Once
you see the letters again such as MM for Month, press the SHUTTER/SELECT
button to move to the numbers representing the month. Continue the process until
you return to YY.
4. To get out of the Date and Time Setting Mode, press and hold the
SHUTTER/SELECT button for 2 seconds. The GOGGLE will return to the
Video mode (BLUE LED).
5. In case the battery needs to be replaced or the battery runs out, the date setting
data will be maintained for 5hours.
r r
r
CAMERA GOGGLE. Y
rT
r
.
ENG-9
Approximate File Storage
Micro SDHC Card 32GB
Images: 20,000
Video: 354 minutes
ENG-10
Note: the BLUE MODE LIGHT INDICATOR is blinking. The light will continue to
blink until the camera stops recording.
3. To stop recording, press the SHUTTER/SELECT button again.
Note: the GREEN MODE LIGHT INDICATOR is blinking. The light will continue to
blink until the camera stops recording.
3. To stop recording, press the SHUTTER/SELECT button again.
cycles through the modes in the following order: 720P Video@60 fps,
1080P Video@30fps, Still Photo, and Continuous Photo. To advance to the next
mode, press the POWER/MODE button one time. The camera will remain on and
ready to use for 180 seconds, after which the GOGGLE will turn off
automatically. Press and hold the POWER/MODE for more than 3 second to turn
off camera.
4.1 720P @ 60 FPS Video Mode - BLUE LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
The camera will power up in 720P @ 60 frames per second Video mode.
Note: the BLUE MODE LIGHT INDICATOR is on and the GOGGLE is now
in the VIDEO READY mode and set to take Videos. The LCD screen displays the
720P video icon.
2. Press the SHUTTER/SELECT button once. Recording begins.
4.2 1080P @ 30 FPS Video Mode - GREEN LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
2. Press the POWER/MODE button again for less than a second to change to
the 1080P @ 30 frames per second Video Mode.
Note: the GREEN MODE LIGHT INDICATOR is on and the GOGGLE is now
in the 1080P READY mode and set to take videos.
The LCD screen displays the 1080P Video icon.
4.0 RECORDING PICTURES AND VIDEO
NOTE: The GOGGLE has 4 modes and pressing the POWER/MODE button
3. Press the SHUTTER/SELECT button once. Recording begins.
2.7 Replace Face Foam and Rotate Camera Lens
ENG-7
Unlock Camera Lens
by loosening the Hex
screw with Allen
wrench provided.
Rotate lens up to
30 degrees.
To lock the lens in
place at a specified
angle, tighten the
Hex Screw.
Pull off replacement
face foam by pulling
on the plastic part
attached to the
Foam. To reattach,
align the pins on
the plastic part of the
replacement face foam
with the holes in the
goggle frame.
The Camera Lens
can be rotated up
to 30 degrees.
30 o
3.0 CAMERA GOGGLE SETUP
CAUTION: An adult 18 years or older should perform this function. Always
make sure the CAMERA GOGGLE is completely dry before performing these
steps. Set up should always take place in a clean dry space with a controlled
environment. These steps should be performed indoors to avoid exposure to
the elements.
3.1 Recharging or Replacing Li-Ion Battery
NOTE:
Only use a Liquid Image Rechargeable 3.7V 1150mAh Lithium Battery with the
CAMERA GOGGLE.
The LCD indicator shows battery life. When no remaining bars are
displayed, the battery is low and the LCD screen will show the word “LO” and will
make a beeping sound. Recharge or replace battery to continue using. Files on the
Micro SD/SDHC card will not be lost if battery power runs out or during replacement
of the battery.
To insert or replace battery:
1. Unlock and Slide Battery Compartment door forward and then down to open.
2. Insert the Battery as shown on page ENG-6. Notches on the battery will only
allow you to put the battery in one direction.
3. Close the BATTERY COMPARTMENT door carefully.
3.2 Inserting Micro SD or SDHC Memory Card - Mandatory
NOTE: A Micro SD/SDHC Memory Card may or may not be included with your
CAMERA GOGGLE. It is recommended that you utilize a commercially sold Micro
SD/SDHC Card to add memory storage to yourCAMERA GOGGLE. It is best to utilize
a high performance Micro SD/SDHC card as this will improve the performance of
Estimated Battery life for a new 1150 mAh Rechargeable Lithium Battery
Still image mode: up to 5000 pictures
Video clip recording mode: up to 150 minutes
To Recharge Battery:
1) Open MEMORY COMPARTMENT door.
2) Plug USB CABLE into both the USB Port on the CAMERA GOGGLE and the Computer.
The battery will start charging and the RED LED will start blinking. When the charge is
complete, the RED LED will stop blinking and will switch to a solid GREEN LED light.
V
ENG-8
your CAMERA GOGGLE.This CAMERA GOGGLE
CAMERA GOGGLE
works with both a Micro SD card or a
Micro SDHC card up to 32 GB (Class 4+). Carefully read the instructions and warnings
that come with the card. If your card is not FAT16 formatted, it will be reformatted once
placed into the Micro SD/SDHCcard slot on your and the Power is
turned on. Please note that any data on the card will be lost. Make sure to back up
any data on the Micro SD/SDHC Card prior to inserting into the CAMERA GOGGLE.
NOTE: The CAMERA GOGGLE does not have
internal memory to store the images and videos
taken by the . ou must
insert a Micro SD/SDHC card prior to taking images
and videos. 4GB Micro SDHC Class 6+ is
recommended for peak performance.
3.3 Setting the Date and Time Mode
This feature allows you to set the Date and Time to the photo or video file.
1. Press and hold the SHUTTER/SELECT button down. Press and hold POWER/MODE
button for 2 seconds to turn on camera.
2. Continue holding the SHUTTER/SELECT button down and press the
POWER/MODE button 3 times continuously and then release the
SHUTTER/SELECT button. The LCD screen will access the Time Setting mode.
You will be able to change Year (YY), Month (MM), Day (DD), Hour (hh), and
Minute (mm). The first window will be YY for Year. Press the SHUTTER/SELECT
button and the numbers will appear (eg.“12”, means year 2012). The first number “1”
in the year will start blinking.
3. Press the POWER/MODE button to change the blinking character from 0-9. Press
the SHUTTER/SELECT button to select the number and move onto the next number
“2”. The setting process is from the left to right and will go through the different
settings from Year, Month, Day, Hour, and minute. Once the number is confirmed by
pressing the SHUTTER/SELECT button, the next digit will start blinking. Once
you see the letters again such as MM for Month, press the SHUTTER/SELECT
button to move to the numbers representing the month. Continue the process until
you return to YY.
4. To get out of the Date and Time Setting Mode, press and hold the
SHUTTER/SELECT button for 2 seconds. The GOGGLE will return to the
Video mode (BLUE LED).
5. In case the battery needs to be replaced or the battery runs out, the date setting
data will be maintained for 5hours.
r r
r
CAMERA GOGGLE. Y
rT
r
.
ENG-9
Approximate File Storage
Micro SDHC Card 32GB
Images: 20,000
Video: 354 minutes
ENG-10
Note: the BLUE MODE LIGHT INDICATOR is blinking. The light will continue to
blink until the camera stops recording.
3. To stop recording, press the SHUTTER/SELECT button again.
Note: the GREEN MODE LIGHT INDICATOR is blinking. The light will continue to
blink until the camera stops recording.
3. To stop recording, press the SHUTTER/SELECT button again.
cycles through the modes in the following order: 720P Video@60 fps,
1080P Video@30fps, Still Photo, and Continuous Photo. To advance to the next
mode, press the POWER/MODE button one time. The camera will remain on and
ready to use for 180 seconds, after which the GOGGLE will turn off
automatically. Press and hold the POWER/MODE for more than 3 second to turn
off camera.
4.1 720P @ 60 FPS Video Mode - BLUE LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
The camera will power up in 720P @ 60 frames per second Video mode.
Note: the BLUE MODE LIGHT INDICATOR is on and the GOGGLE is now
in the VIDEO READY mode and set to take Videos. The LCD screen displays the
720P video icon.
2. Press the SHUTTER/SELECT button once. Recording begins.
4.2 1080P @ 30 FPS Video Mode - GREEN LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
2. Press the POWER/MODE button again for less than a second to change to
the 1080P @ 30 frames per second Video Mode.
Note: the GREEN MODE LIGHT INDICATOR is on and the GOGGLE is now
in the 1080P READY mode and set to take videos.
The LCD screen displays the 1080P Video icon.
4.0 RECORDING PICTURES AND VIDEO
NOTE: The GOGGLE has 4 modes and pressing the POWER/MODE button
3. Press the SHUTTER/SELECT button once. Recording begins.
2.7 Replace Face Foam and Rotate Camera Lens
ENG-7
Unlock Camera Lens
by loosening the Hex
screw with Allen
wrench provided.
Rotate lens up to
30 degrees.
To lock the lens in
place at a specified
angle, tighten the
Hex Screw.
Pull off replacement
face foam by pulling
on the plastic part
attached to the
Foam. To reattach,
align the pins on
the plastic part of the
replacement face foam
with the holes in the
goggle frame.
The Camera Lens
can be rotated up
to 30 degrees.
30 o
3.0 CAMERA GOGGLE SETUP
CAUTION: An adult 18 years or older should perform this function. Always
make sure the CAMERA GOGGLE is completely dry before performing these
steps. Set up should always take place in a clean dry space with a controlled
environment. These steps should be performed indoors to avoid exposure to
the elements.
3.1 Recharging or Replacing Li-Ion Battery
NOTE:
Only use a Liquid Image Rechargeable 3.7V 1150mAh Lithium Battery with the
CAMERA GOGGLE.
The LCD indicator shows battery life. When no remaining bars are
displayed, the battery is low and the LCD screen will show the word “LO” and will
make a beeping sound. Recharge or replace battery to continue using. Files on the
Micro SD/SDHC card will not be lost if battery power runs out or during replacement
of the battery.
To insert or replace battery:
1. Unlock and Slide Battery Compartment door forward and then down to open.
2. Insert the Battery as shown on page ENG-6. Notches on the battery will only
allow you to put the battery in one direction.
3. Close the BATTERY COMPARTMENT door carefully.
3.2 Inserting Micro SD or SDHC Memory Card - Mandatory
NOTE: A Micro SD/SDHC Memory Card may or may not be included with your
CAMERA GOGGLE. It is recommended that you utilize a commercially sold Micro
SD/SDHC Card to add memory storage to yourCAMERA GOGGLE. It is best to utilize
a high performance Micro SD/SDHC card as this will improve the performance of
Estimated Battery life for a new 1150 mAh Rechargeable Lithium Battery
Still image mode: up to 5000 pictures
Video clip recording mode: up to 150 minutes
To Recharge Battery:
1) Open MEMORY COMPARTMENT door.
2) Plug USB CABLE into both the USB Port on the CAMERA GOGGLE and the Computer.
The battery will start charging and the RED LED will start blinking. When the charge is
complete, the RED LED will stop blinking and will switch to a solid GREEN LED light.
V
ENG-8
your CAMERA GOGGLE.This CAMERA GOGGLE
CAMERA GOGGLE
works with both a Micro SD card or a
Micro SDHC card up to 32 GB (Class 4+). Carefully read the instructions and warnings
that come with the card. If your card is not FAT16 formatted, it will be reformatted once
placed into the Micro SD/SDHCcard slot on your and the Power is
turned on. Please note that any data on the card will be lost. Make sure to back up
any data on the Micro SD/SDHC Card prior to inserting into the CAMERA GOGGLE.
NOTE: The CAMERA GOGGLE does not have
internal memory to store the images and videos
taken by the . ou must
insert a Micro SD/SDHC card prior to taking images
and videos. 4GB Micro SDHC Class 6+ is
recommended for peak performance.
3.3 Setting the Date and Time Mode
This feature allows you to set the Date and Time to the photo or video file.
1. Press and hold the SHUTTER/SELECT button down. Press and hold POWER/MODE
button for 2 seconds to turn on camera.
2. Continue holding the SHUTTER/SELECT button down and press the
POWER/MODE button 3 times continuously and then release the
SHUTTER/SELECT button. The LCD screen will access the Time Setting mode.
You will be able to change Year (YY), Month (MM), Day (DD), Hour (hh), and
Minute (mm). The first window will be YY for Year. Press the SHUTTER/SELECT
button and the numbers will appear (eg.“12”, means year 2012). The first number “1”
in the year will start blinking.
3. Press the POWER/MODE button to change the blinking character from 0-9. Press
the SHUTTER/SELECT button to select the number and move onto the next number
“2”. The setting process is from the left to right and will go through the different
settings from Year, Month, Day, Hour, and minute. Once the number is confirmed by
pressing the SHUTTER/SELECT button, the next digit will start blinking. Once
you see the letters again such as MM for Month, press the SHUTTER/SELECT
button to move to the numbers representing the month. Continue the process until
you return to YY.
4. To get out of the Date and Time Setting Mode, press and hold the
SHUTTER/SELECT button for 2 seconds. The GOGGLE will return to the
Video mode (BLUE LED).
5. In case the battery needs to be replaced or the battery runs out, the date setting
data will be maintained for 5hours.
r r
r
CAMERA GOGGLE. Y
rT
r
.
ENG-9
Approximate File Storage
Micro SDHC Card 32GB
Images: 20,000
Video: 354 minutes
ENG-10
Note: the BLUE MODE LIGHT INDICATOR is blinking. The light will continue to
blink until the camera stops recording.
3. To stop recording, press the SHUTTER/SELECT button again.
Note: the GREEN MODE LIGHT INDICATOR is blinking. The light will continue to
blink until the camera stops recording.
3. To stop recording, press the SHUTTER/SELECT button again.
cycles through the modes in the following order: 720P Video@60 fps,
1080P Video@30fps, Still Photo, and Continuous Photo. To advance to the next
mode, press the POWER/MODE button one time. The camera will remain on and
ready to use for 180 seconds, after which the GOGGLE will turn off
automatically. Press and hold the POWER/MODE for more than 3 second to turn
off camera.
4.1 720P @ 60 FPS Video Mode - BLUE LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
The camera will power up in 720P @ 60 frames per second Video mode.
Note: the BLUE MODE LIGHT INDICATOR is on and the GOGGLE is now
in the VIDEO READY mode and set to take Videos. The LCD screen displays the
720P video icon.
2. Press the SHUTTER/SELECT button once. Recording begins.
4.2 1080P @ 30 FPS Video Mode - GREEN LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
2. Press the POWER/MODE button again for less than a second to change to
the 1080P @ 30 frames per second Video Mode.
Note: the GREEN MODE LIGHT INDICATOR is on and the GOGGLE is now
in the 1080P READY mode and set to take videos.
The LCD screen displays the 1080P Video icon.
4.0 RECORDING PICTURES AND VIDEO
NOTE: The GOGGLE has 4 modes and pressing the POWER/MODE button
3. Press the SHUTTER/SELECT button once. Recording begins.
2.7 Replace Face Foam and Rotate Camera Lens
ENG-7
Unlock Camera Lens
by loosening the Hex
screw with Allen
wrench provided.
Rotate lens up to
30 degrees.
To lock the lens in
place at a specified
angle, tighten the
Hex Screw.
Pull off replacement
face foam by pulling
on the plastic part
attached to the
Foam. To reattach,
align the pins on
the plastic part of the
replacement face foam
with the holes in the
goggle frame.
The Camera Lens
can be rotated up
to 30 degrees.
30 o
3.0 CAMERA GOGGLE SETUP
CAUTION: An adult 18 years or older should perform this function. Always
make sure the CAMERA GOGGLE is completely dry before performing these
steps. Set up should always take place in a clean dry space with a controlled
environment. These steps should be performed indoors to avoid exposure to
the elements.
3.1 Recharging or Replacing Li-Ion Battery
NOTE:
Only use a Liquid Image Rechargeable 3.7V 1150mAh Lithium Battery with the
CAMERA GOGGLE.
The LCD indicator shows battery life. When no remaining bars are
displayed, the battery is low and the LCD screen will show the word “LO” and will
make a beeping sound. Recharge or replace battery to continue using. Files on the
Micro SD/SDHC card will not be lost if battery power runs out or during replacement
of the battery.
To insert or replace battery:
1. Unlock and Slide Battery Compartment door forward and then down to open.
2. Insert the Battery as shown on page ENG-6. Notches on the battery will only
allow you to put the battery in one direction.
3. Close the BATTERY COMPARTMENT door carefully.
3.2 Inserting Micro SD or SDHC Memory Card - Mandatory
NOTE: A Micro SD/SDHC Memory Card may or may not be included with your
CAMERA GOGGLE. It is recommended that you utilize a commercially sold Micro
SD/SDHC Card to add memory storage to yourCAMERA GOGGLE. It is best to utilize
a high performance Micro SD/SDHC card as this will improve the performance of
Estimated Battery life for a new 1150 mAh Rechargeable Lithium Battery
Still image mode: up to 5000 pictures
Video clip recording mode: up to 150 minutes
To Recharge Battery:
1) Open MEMORY COMPARTMENT door.
2) Plug USB CABLE into both the USB Port on the CAMERA GOGGLE and the Computer.
The battery will start charging and the RED LED will start blinking. When the charge is
complete, the RED LED will stop blinking and will switch to a solid GREEN LED light.
V
ENG-8
your CAMERA GOGGLE.This CAMERA GOGGLE
CAMERA GOGGLE
works with both a Micro SD card or a
Micro SDHC card up to 32 GB (Class 4+). Carefully read the instructions and warnings
that come with the card. If your card is not FAT16 formatted, it will be reformatted once
placed into the Micro SD/SDHCcard slot on your and the Power is
turned on. Please note that any data on the card will be lost. Make sure to back up
any data on the Micro SD/SDHC Card prior to inserting into the CAMERA GOGGLE.
NOTE: The CAMERA GOGGLE does not have
internal memory to store the images and videos
taken by the . ou must
insert a Micro SD/SDHC card prior to taking images
and videos. 4GB Micro SDHC Class 6+ is
recommended for peak performance.
3.3 Setting the Date and Time Mode
This feature allows you to set the Date and Time to the photo or video file.
1. Press and hold the SHUTTER/SELECT button down. Press and hold POWER/MODE
button for 2 seconds to turn on camera.
2. Continue holding the SHUTTER/SELECT button down and press the
POWER/MODE button 3 times continuously and then release the
SHUTTER/SELECT button. The LCD screen will access the Time Setting mode.
You will be able to change Year (YY), Month (MM), Day (DD), Hour (hh), and
Minute (mm). The first window will be YY for Year. Press the SHUTTER/SELECT
button and the numbers will appear (eg.“12”, means year 2012). The first number “1”
in the year will start blinking.
3. Press the POWER/MODE button to change the blinking character from 0-9. Press
the SHUTTER/SELECT button to select the number and move onto the next number
“2”. The setting process is from the left to right and will go through the different
settings from Year, Month, Day, Hour, and minute. Once the number is confirmed by
pressing the SHUTTER/SELECT button, the next digit will start blinking. Once
you see the letters again such as MM for Month, press the SHUTTER/SELECT
button to move to the numbers representing the month. Continue the process until
you return to YY.
4. To get out of the Date and Time Setting Mode, press and hold the
SHUTTER/SELECT button for 2 seconds. The GOGGLE will return to the
Video mode (BLUE LED).
5. In case the battery needs to be replaced or the battery runs out, the date setting
data will be maintained for 5hours.
r r
r
CAMERA GOGGLE. Y
rT
r
.
ENG-9
Approximate File Storage
Micro SDHC Card 32GB
Images: 20,000
Video: 354 minutes
ENG-10
Note: the BLUE MODE LIGHT INDICATOR is blinking. The light will continue to
blink until the camera stops recording.
3. To stop recording, press the SHUTTER/SELECT button again.
Note: the GREEN MODE LIGHT INDICATOR is blinking. The light will continue to
blink until the camera stops recording.
3. To stop recording, press the SHUTTER/SELECT button again.
cycles through the modes in the following order: 720P Video@60 fps,
1080P Video@30fps, Still Photo, and Continuous Photo. To advance to the next
mode, press the POWER/MODE button one time. The camera will remain on and
ready to use for 180 seconds, after which the GOGGLE will turn off
automatically. Press and hold the POWER/MODE for more than 3 second to turn
off camera.
4.1 720P @ 60 FPS Video Mode - BLUE LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
The camera will power up in 720P @ 60 frames per second Video mode.
Note: the BLUE MODE LIGHT INDICATOR is on and the GOGGLE is now
in the VIDEO READY mode and set to take Videos. The LCD screen displays the
720P video icon.
2. Press the SHUTTER/SELECT button once. Recording begins.
4.2 1080P @ 30 FPS Video Mode - GREEN LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
2. Press the POWER/MODE button again for less than a second to change to
the 1080P @ 30 frames per second Video Mode.
Note: the GREEN MODE LIGHT INDICATOR is on and the GOGGLE is now
in the 1080P READY mode and set to take videos.
The LCD screen displays the 1080P Video icon.
4.0 RECORDING PICTURES AND VIDEO
NOTE: The GOGGLE has 4 modes and pressing the POWER/MODE button
3. Press the SHUTTER/SELECT button once. Recording begins.
2.7 Replace Face Foam and Rotate Camera Lens
ENG-7
Unlock Camera Lens
by loosening the Hex
screw with Allen
wrench provided.
Rotate lens up to
30 degrees.
To lock the lens in
place at a specified
angle, tighten the
Hex Screw.
Pull off replacement
face foam by pulling
on the plastic part
attached to the
Foam. To reattach,
align the pins on
the plastic part of the
replacement face foam
with the holes in the
goggle frame.
The Camera Lens
can be rotated up
to 30 degrees.
30 o
ENG-11
4.5 Power Off
1. Press the POWER/MODE button for more than 3 second to turn the camera off.
NOTE: If either the POWER/MODE or the SHUTTER/SELECT button has not been
used in 180 seconds or the Camera Goggle is not recording, the GOGGLE will turn
NOTE: To capture the sharpest images, it is important that the distance between
the camera and the subject is at least .4 Meters (16 inches).
4.3 Still Image Photo Mode - RED LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
2. Press the POWER/MODE button 2 times again for less than a second each to
change to Photo Mode.
Note: the RED MODE LIGHT INDICATOR is on and the GOGGLE is now in
the PHOTO READY mode and set to take still images. The LCD screen
displays the Camera icon.
3. Press the SHUTTER/SELECT button once. A still image is captured.
4.4 Continuous Photo Mode - PURPLE LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
2. Press the POWER/MODE button 3 times again for less than a second to change to
Continuous Photo Mode.
Note: the PURPLE MODE LIGHT INDICATOR is on and the GOGGLE is now
in the CONTINUOUS PHOTO READY mode and set to take continuous images.
The LCD screen displays the Continuous Camera icon.
3. Press the SHUTTER/SELECT button once and the camera will start taking still
images every 2 seconds. The PURPLE LIGHT INDICATOR will continue to blink while
taking pictures.
4. Press the SHUTTER/SELECT button again to stop taking images.
off automatically.
The CAMERA GOGGLE has two ways to transfer your image and video files to a
computer The CAMERA GOGGLE comes with a USB cable to connect your.
CAMERA GOGGLE directly to a computer. You may also choose to purchase
and use a commercially sold Micro SD/SDHC Card to store and transfer
images and videos that were taken with the CAMERA GOGGLE. The computer
does not require software to access the files stored on the CAMERA GOGGLE's
Micro SD/SDHC card. The CAMERA GOGGLE will act as an external removable disc
when the USB cable connects the camera to a computer..
5.0 TRANSFERRING STILL IMAGES AND VIDEO TO A
COMPUTER
CAUTION: ALWAYS DRY THE GOGGLE BEFORE OPENING THE
COMPARTMENTS.
5.1 Opening Memory Compartment
1. Make sure the CAMERA GOGGLE is thoroughly clean and dry. Follow the CARE
AND MAINTENANCE instructions.
2. Open the MEMORY COMPARTMENT to expose the USB Port, and the Micro
5.2 Connecting and Transferring Files
1. Choose a method to transfer files: USB or Micro SD/SDHC Card.
USB TRANSFER
Plug the USB cable into the USB connection port on the computer and then into the
USB Port on the CAMERA GOGGLE. Press the POWER/MODE to turn on the
CAMERA GOGGLE. NOTE:The USB cable will be able to access the files stored
on the Micro SD/SDHC Card.
MICRO SD/SDHC CARD TRANSFER
Press down on the Micro SD or SDHC Card gently.. The card will pop up for removal.
Carefully remove the card and insert it into the Micro SD card adapter that comes
with the Micro SD/SDHC Card and then insert the card into your computer's SD
Card Slot as directed by the manufacturer.
SD/SDCH port.
ENG-12
CAUTION: Never insert a wet Micro SD/SDHC Card into a card adapter or into a
Computer.
2. The connection screen opens on your computer monitor automatically. Choose
the option: OPEN FOLDER TO VIEW FILES.
NOTE: If the screen does not automatically open, look for a new hard drive icon on
the computer next to your other hard drive icons. Click on the icon to view your
image and video files.
3. The image and video files will appear in a folder.
4. Copy the files to a folder on your computer (For example: My Pictures\California).
Alternatively, you may copy the entire folder to your computer.
5. If you wish to delete the data from the CAMERA GOGGLE's Micro SD/SDHC
Card, select the files you wish to delete and press delete on your computer keyboard.
6. Click the close button.
5.3 Disconnecting and Closing Memory Compartment
1. Safely disconnect the USB from your computer and from the CAMERA GOGGLE.
Alternatively, if you transferred files using the SD Card method, disconnect the SD
Card from the computer and then remove the Micro SD/SDHC card from the adapter.
Reinsert the Micro SD/SDHC Card into your CAMERA GOGGLE.
NOTE: It is recommended that you always delete all the files from your Micro
SD/SDHC card after transferring your files to a computer. This will free up space for
more images and video files. Deleting files can only be done through the computer.
* Make sure your computer's SD Card Slot can handle High Capacity
SDHCcards as they are different than standard SD cards. You may need an adapter.
.
2. . Choose
TO VIEW FILES.
on
3. .
.
ENG-13
NOTE ON MEDIA PLAYERS:
There are multiple media players available online to play the HD (H.264) MOV video
files created with the CAMERA GOGGLE. The preferred video player is QUICKTIME.
If your default computer media player is unable to play the videos, your player may be
out of date and you may need to update it online. You may also try using an
alternate media player if your computer has one or if you choose to download one
from a source that you trust online. For PC Users - Windows 7 can play the MOV
files with Windows Media Player.
6.0 VIEWING VIDEOS AND STILL IMAGES ON A TV
The CAMERA GOGGLE can act as a media player and will be able to play videos
and pictures directly from your CAMERA GOGGLE onto a television set.
Connect an HDMI cable (not included) to the CAMERA GOGGLE and the HD television set.
IMPORTANT!
Make sure your camera is set to the correct NTSC or PAL video setting or your
CAMERA GOGGLE will not work properly with your TV for either Video or photo
playback. Select NTSC if viewing on a TV in North America. Choose PAL if viewing
on a TV outside of North America or if viewing on a PAL TV in any region.
6.1 Setting correct NTSC/PAL mode for your TV
This feature allows you to set the TV video output mode to PAL or NTSC. Please
check your Television Set to see if the TV can accept either PAL or NTSC video
playing devices. The CAMERA GOGGLE is set at the factory in thePAL mode. If you
need to change the output mode to NTSC or vice versa, follow the below directions.
1. Press and hold the POWER/MODE button for 2 seconds to turn on CAMERA GOGGLE,
the BLUE LED light will turn on. Then, press and hold both the SHUTTER/SELECT and
the POWER/MODE buttons for 5 seconds, at which time you will enter the TV Video
Output setup mode. Release both buttons and you will see the current mode.
2. To change the TV video output mode from PAL to NTSC or from NTSC to PAL,
press the POWER/MODE button once. You may cycle between the two output
modes by pushing the POWER/MODE button again.
3. To Select the TV output mode of either PAL or NTSC, press the
SHUTTER/SELECT button once and the camera will save your selected mode, exit
the TV video output mode, and return to the Video mode (BLUE LED).
4. To complete the TV video output mode setting on the CAMERA GOGGLE, restart
the CAMERA GOGGLE by pressing the POWER/MODE button for more than a few
seconds until the camera turns off. Press the POWER/MODE button again to restart
the CAMERA GOGGLE. Your camera will now be setup in the TV Video Output mode
that you selected. You do not have to repeat this procedure if you replace batteries.
The CAMERA GOGGLE will remain in this mode until you decide to change the TV
video output mode through the steps above.
PAL
Mode
NTSC
Mode
ENG-14
ENG-11
4.5 Power Off
1. Press the POWER/MODE button for more than 3 second to turn the camera off.
NOTE: If either the POWER/MODE or the SHUTTER/SELECT button has not been
used in 180 seconds or the Camera Goggle is not recording, the GOGGLE will turn
NOTE: To capture the sharpest images, it is important that the distance between
the camera and the subject is at least .4 Meters (16 inches).
4.3 Still Image Photo Mode - RED LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
2. Press the POWER/MODE button 2 times again for less than a second each to
change to Photo Mode.
Note: the RED MODE LIGHT INDICATOR is on and the GOGGLE is now in
the PHOTO READY mode and set to take still images. The LCD screen
displays the Camera icon.
3. Press the SHUTTER/SELECT button once. A still image is captured.
4.4 Continuous Photo Mode - PURPLE LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
2. Press the POWER/MODE button 3 times again for less than a second to change to
Continuous Photo Mode.
Note: the PURPLE MODE LIGHT INDICATOR is on and the GOGGLE is now
in the CONTINUOUS PHOTO READY mode and set to take continuous images.
The LCD screen displays the Continuous Camera icon.
3. Press the SHUTTER/SELECT button once and the camera will start taking still
images every 2 seconds. The PURPLE LIGHT INDICATOR will continue to blink while
taking pictures.
4. Press the SHUTTER/SELECT button again to stop taking images.
off automatically.
The CAMERA GOGGLE has two ways to transfer your image and video files to a
computer The CAMERA GOGGLE comes with a USB cable to connect your.
CAMERA GOGGLE directly to a computer. You may also choose to purchase
and use a commercially sold Micro SD/SDHC Card to store and transfer
images and videos that were taken with the CAMERA GOGGLE. The computer
does not require software to access the files stored on the CAMERA GOGGLE's
Micro SD/SDHC card. The CAMERA GOGGLE will act as an external removable disc
when the USB cable connects the camera to a computer..
5.0 TRANSFERRING STILL IMAGES AND VIDEO TO A
COMPUTER
CAUTION: ALWAYS DRY THE GOGGLE BEFORE OPENING THE
COMPARTMENTS.
5.1 Opening Memory Compartment
1. Make sure the CAMERA GOGGLE is thoroughly clean and dry. Follow the CARE
AND MAINTENANCE instructions.
2. Open the MEMORY COMPARTMENT to expose the USB Port, and the Micro
5.2 Connecting and Transferring Files
1. Choose a method to transfer files: USB or Micro SD/SDHC Card.
USB TRANSFER
Plug the USB cable into the USB connection port on the computer and then into the
USB Port on the CAMERA GOGGLE. Press the POWER/MODE to turn on the
CAMERA GOGGLE. NOTE:The USB cable will be able to access the files stored
on the Micro SD/SDHC Card.
MICRO SD/SDHC CARD TRANSFER
Press down on the Micro SD or SDHC Card gently.. The card will pop up for removal.
Carefully remove the card and insert it into the Micro SD card adapter that comes
with the Micro SD/SDHC Card and then insert the card into your computer's SD
Card Slot as directed by the manufacturer.
SD/SDCH port.
ENG-12
CAUTION: Never insert a wet Micro SD/SDHC Card into a card adapter or into a
Computer.
2. The connection screen opens on your computer monitor automatically. Choose
the option: OPEN FOLDER TO VIEW FILES.
NOTE: If the screen does not automatically open, look for a new hard drive icon on
the computer next to your other hard drive icons. Click on the icon to view your
image and video files.
3. The image and video files will appear in a folder.
4. Copy the files to a folder on your computer (For example: My Pictures\California).
Alternatively, you may copy the entire folder to your computer.
5. If you wish to delete the data from the CAMERA GOGGLE's Micro SD/SDHC
Card, select the files you wish to delete and press delete on your computer keyboard.
6. Click the close button.
5.3 Disconnecting and Closing Memory Compartment
1. Safely disconnect the USB from your computer and from the CAMERA GOGGLE.
Alternatively, if you transferred files using the SD Card method, disconnect the SD
Card from the computer and then remove the Micro SD/SDHC card from the adapter.
Reinsert the Micro SD/SDHC Card into your CAMERA GOGGLE.
NOTE: It is recommended that you always delete all the files from your Micro
SD/SDHC card after transferring your files to a computer. This will free up space for
more images and video files. Deleting files can only be done through the computer.
* Make sure your computer's SD Card Slot can handle High Capacity
SDHCcards as they are different than standard SD cards. You may need an adapter.
.
2. . Choose
TO VIEW FILES.
on
3. .
.
ENG-13
NOTE ON MEDIA PLAYERS:
There are multiple media players available online to play the HD (H.264) MOV video
files created with the CAMERA GOGGLE. The preferred video player is QUICKTIME.
If your default computer media player is unable to play the videos, your player may be
out of date and you may need to update it online. You may also try using an
alternate media player if your computer has one or if you choose to download one
from a source that you trust online. For PC Users - Windows 7 can play the MOV
files with Windows Media Player.
6.0 VIEWING VIDEOS AND STILL IMAGES ON A TV
The CAMERA GOGGLE can act as a media player and will be able to play videos
and pictures directly from your CAMERA GOGGLE onto a television set.
Connect an HDMI cable (not included) to the CAMERA GOGGLE and the HD television set.
IMPORTANT!
Make sure your camera is set to the correct NTSC or PAL video setting or your
CAMERA GOGGLE will not work properly with yourTV for either Video or photo
playback. Select NTSC if viewing on a TV in North America. Choose PAL if viewing
on a TV outside of North America or if viewing on a PAL TV in any region.
6.1 Setting correct NTSC/PAL mode for your TV
This feature allows you to set the TV video output mode to PAL or NTSC. Please
check your Television Set to see if the TV can accept either PAL or NTSC video
playing devices. The CAMERA GOGGLE is set at the factory in thePAL mode. If you
need to change the output mode to NTSC or vice versa, follow the below directions.
1. Press and hold the POWER/MODE button for 2 seconds to turn on CAMERA GOGGLE,
the BLUE LED light will turn on. Then, press and hold both the SHUTTER/SELECT and
the POWER/MODE buttons for 5 seconds, at which time you will enter the TV Video
Output setup mode. Release both buttons and you will see the current mode.
2. To change the TV video output mode from PAL to NTSC or from NTSC to PAL,
press the POWER/MODE button once. You may cycle between the two output
modes by pushing the POWER/MODE button again.
3. To Select the TV output mode of either PAL or NTSC, press the
SHUTTER/SELECT button once and the camera will save your selected mode, exit
the TV video output mode, and return to the Video mode (BLUE LED).
4. To complete the TV video output mode setting on the CAMERA GOGGLE, restart
the CAMERA GOGGLE by pressing the POWER/MODE button for more than a few
seconds until the camera turns off. Press the POWER/MODE button again to restart
the CAMERA GOGGLE. Your camera will now be setup in the TV Video Output mode
that you selected. You do not have to repeat this procedure if you replace batteries.
The CAMERA GOGGLE will remain in this mode until you decide to change the TV
video output mode through the steps above.
PAL
Mode
NTSC
Mode
ENG-14
ENG-11
4.5 Power Off
1. Press the POWER/MODE button for more than 3 second to turn the camera off.
NOTE: If either the POWER/MODE or the SHUTTER/SELECT button has not been
used in 180 seconds or the Camera Goggle is not recording, the GOGGLE will turn
NOTE: To capture the sharpest images, it is important that the distance between
the camera and the subject is at least .4 Meters (16 inches).
4.3 Still Image Photo Mode - RED LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
2. Press the POWER/MODE button 2 times again for less than a second each to
change to Photo Mode.
Note: the RED MODE LIGHT INDICATOR is on and the GOGGLE is now in
the PHOTO READY mode and set to take still images. The LCD screen
displays the Camera icon.
3. Press the SHUTTER/SELECT button once. A still image is captured.
4.4 Continuous Photo Mode - PURPLE LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
2. Press the POWER/MODE button 3 times again for less than a second to change to
Continuous Photo Mode.
Note: the PURPLE MODE LIGHT INDICATOR is on and the GOGGLE is now
in the CONTINUOUS PHOTO READY mode and set to take continuous images.
The LCD screen displays the Continuous Camera icon.
3. Press the SHUTTER/SELECT button once and the camera will start taking still
images every 2 seconds. The PURPLE LIGHT INDICATOR will continue to blink while
taking pictures.
4. Press the SHUTTER/SELECT button again to stop taking images.
off automatically.
The CAMERA GOGGLE has two ways to transfer your image and video files to a
computer The CAMERA GOGGLE comes with a USB cable to connect your.
CAMERA GOGGLE directly to a computer. You may also choose to purchase
and use a commercially sold Micro SD/SDHC Card to store and transfer
images and videos that were taken with the CAMERA GOGGLE. The computer
does not require software to access the files stored on the CAMERA GOGGLE's
Micro SD/SDHC card. The CAMERA GOGGLE will act as an external removable disc
when the USB cable connects the camera to a computer..
5.0 TRANSFERRING STILL IMAGES AND VIDEO TO A
COMPUTER
CAUTION: ALWAYS DRY THE GOGGLE BEFORE OPENING THE
COMPARTMENTS.
5.1 Opening Memory Compartment
1. Make sure the CAMERA GOGGLE is thoroughly clean and dry. Follow the CARE
AND MAINTENANCE instructions.
2. Open the MEMORY COMPARTMENT to expose the USB Port, and the Micro
5.2 Connecting and Transferring Files
1. Choose a method to transfer files: USB or Micro SD/SDHC Card.
USB TRANSFER
Plug the USB cable into the USB connection port on the computer and then into the
USB Port on the CAMERA GOGGLE. Press the POWER/MODE to turn on the
CAMERA GOGGLE. NOTE:The USB cable will be able to access the files stored
on the Micro SD/SDHC Card.
MICRO SD/SDHC CARD TRANSFER
Press down on the Micro SD or SDHC Card gently.. The card will pop up for removal.
Carefully remove the card and insert it into the Micro SD card adapter that comes
with the Micro SD/SDHC Card and then insert the card into your computer's SD
Card Slot as directed by the manufacturer.
SD/SDCH port.
ENG-12
CAUTION: Never insert a wet Micro SD/SDHC Card into a card adapter or into a
Computer.
2. The connection screen opens on your computer monitor automatically. Choose
the option: OPEN FOLDER TO VIEW FILES.
NOTE: If the screen does not automatically open, look for a new hard drive icon on
the computer next to your other hard drive icons. Click on the icon to view your
image and video files.
3. The image and video files will appear in a folder.
4. Copy the files to a folder on your computer (For example: My Pictures\California).
Alternatively, you may copy the entire folder to your computer.
5. If you wish to delete the data from the CAMERA GOGGLE's Micro SD/SDHC
Card, select the files you wish to delete and press delete on your computer keyboard.
6. Click the close button.
5.3 Disconnecting and Closing Memory Compartment
1. Safely disconnect the USB from your computer and from the CAMERA GOGGLE.
Alternatively, if you transferred files using the SD Card method, disconnect the SD
Card from the computer and then remove the Micro SD/SDHC card from the adapter.
Reinsert the Micro SD/SDHC Card into your CAMERA GOGGLE.
NOTE: It is recommended that you always delete all the files from your Micro
SD/SDHC card after transferring your files to a computer. This will free up space for
more images and video files. Deleting files can only be done through the computer.
* Make sure your computer's SD Card Slot can handle High Capacity
SDHCcards as they are different than standard SD cards. You may need an adapter.
.
2. . Choose
TO VIEW FILES.
on
3. .
.
ENG-13
NOTE ON MEDIA PLAYERS:
There are multiple media players available online to play the HD (H.264) MOV video
files created with the CAMERA GOGGLE. The preferred video player is QUICKTIME.
If your default computer media player is unable to play the videos, your player may be
out of date and you may need to update it online. You may also try using an
alternate media player if your computer has one or if you choose to download one
from a source that you trust online. For PC Users - Windows 7 can play the MOV
files with Windows Media Player.
6.0 VIEWING VIDEOS AND STILL IMAGES ON A TV
The CAMERA GOGGLE can act as a media player and will be able to play videos
and pictures directly from your CAMERA GOGGLE onto a television set.
Connect an HDMI cable (not included) to the CAMERA GOGGLE and the HD television set.
IMPORTANT!
Make sure your camera is set to the correct NTSC or PAL video setting or your
CAMERA GOGGLE will not work properly with your TV for either Video or photo
playback. Select NTSC if viewing on a TV in North America. Choose PAL if viewing
on a TV outside of North America or if viewing on a PAL TV in any region.
6.1 Setting correct NTSC/PAL mode for your TV
This feature allows you to set the TV video output mode to PAL or NTSC. Please
check your Television Set to see if the TV can accept either PAL or NTSC video
playing devices. The CAMERA GOGGLE is set at the factory in thePAL mode. If you
need to change the output mode to NTSC or vice versa, follow the below directions.
1. Press and hold the POWER/MODE button for 2 seconds to turn on CAMERA GOGGLE,
the BLUE LED light will turn on. Then, press and hold both the SHUTTER/SELECT and
the POWER/MODE buttons for 5 seconds, at which time you will enter the TV Video
Output setup mode. Release both buttons and you will see the current mode.
2. To change the TV video output mode from PAL to NTSC or from NTSC to PAL,
press the POWER/MODE button once. You may cycle between the two output
modes by pushing the POWER/MODE button again.
3. To Select the TV output mode of either PAL or NTSC, press the
SHUTTER/SELECT button once and the camera will save your selected mode, exit
the TV video output mode, and return to the Video mode (BLUE LED).
4. To complete the TV video output mode setting on the CAMERA GOGGLE, restart
the CAMERA GOGGLE by pressing the POWER/MODE button for more than a few
seconds until the camera turns off. Press the POWER/MODE button again to restart
the CAMERA GOGGLE. Your camera will now be setup in the TV Video Output mode
that you selected. You do not have to repeat this procedure if you replace batteries.
The CAMERA GOGGLE will remain in this mode until you decide to change the TV
video output mode through the steps above.
PAL
Mode
NTSC
Mode
ENG-14
ENG-11
4.5 Power Off
1. Press the POWER/MODE button for more than 3 second to turn the camera off.
NOTE: If either the POWER/MODE or the SHUTTER/SELECT button has not been
used in 180 seconds or the Camera Goggle is not recording, the GOGGLE will turn
NOTE: To capture the sharpest images, it is important that the distance between
the camera and the subject is at least .4 Meters (16 inches).
4.3 Still Image Photo Mode - RED LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
2. Press the POWER/MODE button 2 times again for less than a second each to
change to Photo Mode.
Note: the RED MODE LIGHT INDICATOR is on and the GOGGLE is now in
the PHOTO READY mode and set to take still images. The LCD screen
displays the Camera icon.
3. Press the SHUTTER/SELECT button once. A still image is captured.
4.4 Continuous Photo Mode - PURPLE LIGHT
1. Press and hold POWER/MODE button for 2 seconds to turn on camera.
2. Press the POWER/MODE button 3 times again for less than a second to change to
Continuous Photo Mode.
Note: the PURPLE MODE LIGHT INDICATOR is on and the GOGGLE is now
in the CONTINUOUS PHOTO READY mode and set to take continuous images.
The LCD screen displays the Continuous Camera icon.
3. Press the SHUTTER/SELECT button once and the camera will start taking still
images every 2 seconds. The PURPLE LIGHT INDICATOR will continue to blink while
taking pictures.
4. Press the SHUTTER/SELECT button again to stop taking images.
off automatically.
The CAMERA GOGGLE has two ways to transfer your image and video files to a
computer The CAMERA GOGGLE comes with a USB cable to connect your.
CAMERA GOGGLE directly to a computer. You may also choose to purchase
and use a commercially sold Micro SD/SDHC Card to store and transfer
images and videos that were taken with the CAMERA GOGGLE. The computer
does not require software to access the files stored on the CAMERA GOGGLE's
Micro SD/SDHC card. The CAMERA GOGGLE will act as an external removable disc
when the USB cable connects the camera to a computer..
5.0 TRANSFERRING STILL IMAGES AND VIDEO TO A
COMPUTER
CAUTION: ALWAYS DRY THE GOGGLE BEFORE OPENING THE
COMPARTMENTS.
5.1 Opening Memory Compartment
1. Make sure the CAMERA GOGGLE is thoroughly clean and dry. Follow the CARE
AND MAINTENANCE instructions.
2. Open the MEMORY COMPARTMENT to expose the USB Port, and the Micro
5.2 Connecting and Transferring Files
1. Choose a method to transfer files: USB or Micro SD/SDHC Card.
USB TRANSFER
Plug the USB cable into the USB connection port on the computer and then into the
USB Port on the CAMERA GOGGLE. Press the POWER/MODE to turn on the
CAMERA GOGGLE. NOTE:The USB cable will be able to access the files stored
on the Micro SD/SDHC Card.
MICRO SD/SDHC CARD TRANSFER
Press down on the Micro SD or SDHC Card gently.. The card will pop up for removal.
Carefully remove the card and insert it into the Micro SD card adapter that comes
with the Micro SD/SDHC Card and then insert the card into your computer's SD
Card Slot as directed by the manufacturer.
SD/SDCH port.
ENG-12
CAUTION: Never insert a wet Micro SD/SDHC Card into a card adapter or into a
Computer.
2. The connection screen opens on your computer monitor automatically. Choose
the option: OPEN FOLDER TO VIEW FILES.
NOTE: If the screen does not automatically open, look for a new hard drive icon on
the computer next to your other hard drive icons. Click on the icon to view your
image and video files.
3. The image and video files will appear in a folder.
4. Copy the files to a folder on your computer (For example: My Pictures\California).
Alternatively, you may copy the entire folder to your computer.
5. If you wish to delete the data from the CAMERA GOGGLE's Micro SD/SDHC
Card, select the files you wish to delete and press delete on your computer keyboard.
6. Click the close button.
5.3 Disconnecting and Closing Memory Compartment
1. Safely disconnect the USB from your computer and from the CAMERA GOGGLE.
Alternatively, if you transferred files using the SD Card method, disconnect the SD
Card from the computer and then remove the Micro SD/SDHC card from the adapter.
Reinsert the Micro SD/SDHC Card into your CAMERA GOGGLE.
NOTE: It is recommended that you always delete all the files from your Micro
SD/SDHC card after transferring your files to a computer. This will free up space for
more images and video files. Deleting files can only be done through the computer.
* Make sure your computer's SD Card Slot can handle High Capacity
SDHCcards as they are different than standard SD cards. You may need an adapter.
.
2. . Choose
TO VIEW FILES.
on
3. .
.
ENG-13
NOTE ON MEDIA PLAYERS:
There are multiple media players available online to play the HD (H.264) MOV video
files created with the CAMERA GOGGLE. The preferred video player is QUICKTIME.
If your default computer media player is unable to play the videos, your player may be
out of date and you may need to update it online. You may also try using an
alternate media player if your computer has one or if you choose to download one
from a source that you trust online. For PC Users - Windows 7 can play the MOV
files with Windows Media Player.
6.0 VIEWING VIDEOS AND STILL IMAGES ON A TV
The CAMERA GOGGLE can act as a media player and will be able to play videos
and pictures directly from your CAMERA GOGGLE onto a television set.
Connect an HDMI cable (not included) to the CAMERA GOGGLE and the HD television set.
IMPORTANT!
Make sure your camera is set to the correct NTSC or PAL video setting or your
CAMERA GOGGLE will not work properly with yourTV for either Video or photo
playback. Select NTSC if viewing on a TV in North America. Choose PAL if viewing
on a TV outside of North America or if viewing on a PAL TV in any region.
6.1 Setting correct NTSC/PAL mode for your TV
This feature allows you to set the TV video output mode to PAL or NTSC. Please
check your Television Set to see if the TV can accept either PAL or NTSC video
playing devices. The CAMERA GOGGLE is set at the factory in thePAL mode. If you
need to change the output mode to NTSC or vice versa, follow the below directions.
1. Press and hold the POWER/MODE button for 2 seconds to turn on CAMERA GOGGLE,
the BLUE LED light will turn on. Then, press and hold both the SHUTTER/SELECT and
the POWER/MODE buttons for 5 seconds, at which time you will enter the TV Video
Output setup mode. Release both buttons and you will see the current mode.
2. To change the TV video output mode from PAL to NTSC or from NTSC to PAL,
press the POWER/MODE button once. You may cycle between the two output
modes by pushing the POWER/MODE button again.
3. To Select the TV output mode of either PAL or NTSC, press the
SHUTTER/SELECT button once and the camera will save your selected mode, exit
the TV video output mode, and return to the Video mode (BLUE LED).
4. To complete the TV video output mode setting on the CAMERA GOGGLE, restart
the CAMERA GOGGLE by pressing the POWER/MODE button for more than a few
seconds until the camera turns off. Press the POWER/MODE button again to restart
the CAMERA GOGGLE. Your camera will now be setup in the TV Video Output mode
that you selected. You do not have to repeat this procedure if you replace batteries.
The CAMERA GOGGLE will remain in this mode until you decide to change the TV
video output mode through the steps above.
PAL
Mode
NTSC
Mode
ENG-14
7.0 Video and Image File Size
When recording video it is very important that you are already familiar with the file
size that your computer can store and playback. If you record a continuous video
clip onto a CAMERA GOGGLE's Micro SD/SDHC card, you may not be able to
download or play the video file on your computer because of the large file size.
Also, your media player may not be able to play large HD Videos.
6.2 VIDEO AND STILL IMAGE PLAYBACK ON A TV
1. With the CAMERA GOGGLE turned off, connect the HDMI cable (not included) to
the CAMERA GOGGLE and the HD TV..
2. Turn on the CAMERA GOGGLE and the camera will automatically start up in video
mode and begin playing the first video on the TV screen.
3. Press the SHUTTER/SELECT button to advance to the next video and press the
POWER/MODE button to go back to the previous video.
4. To switch to the playback of Pictures, press and hold the POWER/MODE button for
3 seconds. You will now be in the picture mode. To advance to the next picture, press
the SHUTTER/SELECT button and to go back to the previous picture, press the
POWER/MODE button.
5. You can toggle between the Picture and Video mode by pressing the POWER/MODE
button for 3 seconds.
6. To turn off, disconnect the HDMI cable from the CAMERA GOGGLE and press and
hold the POWER/MODE button for a few seconds until the camera turns off.
0006 / 0003 00:45:11
00:02:28
File name
Qty of videos per Mode
Mode
Video Time Code
Battery Life
Total Time
TV SCREEN
Video Mode
0006 / 0003
File name
Qty of pics per Mode
Mode
Battery Life
TV SCREEN
Still Image Mode
of Video
0006 / 0003 00:45:11
00:02:28
File name
Qty of videos per Mode
Mode
Video Time Code
Battery Life
Total Time
TV SCREEN
Video Mode
0006 / 0003
File name
Qty of pics per Mode
Mode
Battery Life
TV SCREEN
Still Image Mode
of Video
ENG-15
9.0 CARE AND MAINTENANCE
8.0 FIRMWARE AND PRODUCT UPDATES
Please conduct a FILE SIZE TEST before you use your CAMERA GOGGLE to capture
important images and video. Test various video file sizes to make sure your
computer will be able to store and play the videos that you record. If you have
difficulty in playing back video files smoothly, try taking a shorter video. You may
also try opening the video file with a different media player as not all media players
work the same.
Please read the sample chart below to estimate your file size per minute of
recording time.
Approximate Video File Sizes -
CAMERA GOGGLE
NOTE: Depending on the battery's charge as well as the size of your Micro SD/SDHC
card, you may be able to record a video for an hour or more. It is, however, best to
take short videos. This will make transferring files and playing them back easier.
The camera will split a video file over 1 hour into two files to improve the performance
of the camera.
NOTE: Video file sizes will vary due to the complexity of the scene. The file sizes listed are only estimates.
TIME (min): .5 1 10 20
SIZE OF FILE: 45MB 90MB 900MB 1.7GB
1. Before each use, the goggle should be inspected for any cracks, deformities or damage.
If there is any damage or deformation to the frame, or scratches or damage to the lens
that could obstruct or impair vision, do not use. Replace any damaged parts such as
the lens, strap or face foam prior to use.
TEST
ENG-16
!Liquid Image will update the software regularly, please refer to the
information on our website and download the newest software.
www.LiquidimageCo.com
2. Do not expose goggle to heat, strong detergents, or chemicals.
3. To clean, rinse the frame with tap water. A mild soap may be utilized on the frame only
when needed. To prevent damaging the lens, only clean the lense with tap water. Dry
with a soft cloth.
4. IMPORTANT: Do not rub lens when wet. When the inner lens surface is wet, it
becomes soft and is more susceptible to scratching. Rubbing the inner lens when it is wet,
may also reduce the effectiveness of the anti-fog coating.
5. To Dry: Gently shake snow and moisture off the lens. Use the micro bag or a soft cloth
to gently blot away moisture or allow lens to air dry. Make sure ventilation ports are clear
of snow or other debris. If wearing the goggle, motion will increase airflow and help to dry
the goggle. Once the lens has completely dried and is at room temperature, use the micro
bag or a soft cloth to remove any smudges.
6. To prevent scratching, do not use paper towels, ski gloves or clothing to clean the lens.
Only use a micro bag or a soft cloth. Abrasive materials may scratch the lens.
7. For optimum life and performance of your lens, store completely dry and in the protective
bag or case. Lens should be kept in a dry environment at room temperature when not in
use. Store the lens away from direct sunlight, or excessive heat or cold.
8. To prevent scratching, do not place lens face down.
10.0 REPLACING LENSES
Wash and thoroughly dry hands prior to removing or inserting the lens. Do not change
the lens while wearing gloves as the glove material may scratch the lens.
10.1 Removing Lens
1. Hold the bottom of the frame and grab the top of the frame from the inside.
2. Gently pull the top of the frame away from the lens.
3. Gently lift the lens out of the sides and bottom of the frame.
10.2 Inserting Lens
1. Insert the lens at the nose of the frame. Take care to align the notch of the lens with
the post in the frame. Gently push the lens onto the post.
2. Continue inserting the lens into the groove along the bottom and sides of the frame.
Make sure to push the lens completely into the groove of the frame.
3. Align the notch on the lens with the post at the top of the frame.
4. Check the lens to make sure that it is correctly set in the frame prior to use.
ENG-17
11.0 CAMERA WARNINGS AND PRECAUTIONS
Never touch the camera connection components that are exposed when the
MEMORY COMPARTMENT OR BATTERY COMPARTMENT are open. There is a
risk of shock if the components in the compartments become wet.
If the CAMERA GOGGLE emits a strange noise, smoke or odor, turn off
immediately and remove the battery.
1. Using the CAMERA GOGGLE in a manner other than what the product use is
intended for may result in injury to you, the product, or other persons.
8. If the inside of the camera gets wet, immediately turn it off and dispose of the
battery. Then dispose of the CAMERA GOGGLE in accordance with laws for
disposing electronics in your country. Using the camera after any internal
compartments have become wet may cause a fire or electric shock.
3. Avoid jolts, drops, collision with other hard objects, or shaking of the CAMERA
GOGGLE. These movements may damage the components.
4. Never open the camera body with a screw driver. There is a risk of shock if you
touch the camera components.
5. Children under 13 years of age should never wear or operate the CAMERA
GOGGLE.
6. Children age 13 to 17 should always have adult supervision with use of this
product. The CAMERA GOGGLE is not a toy and needs to be treated with the same
care as any other digital camera.
7. An adult age 18 or older should always dry the product thoroughly before
performing the battery replacement or before performing the transfer of image and
video files to a computer.
2. This is not a safety Goggle. Only use for intended purposes. The Goggle lens
provides basic protection against wind, dirt, dust, snow and glare. The lens will not
withstand a severe impact. This lens does not protect against hard or sharp objects.
Care should be taken to avoid impact with hard or sharp objects.
GOGGLE.
GOGGLE.
.
ENG-18
!
!
1. Before updating the firmware, make sure the battery level is at least at the 50% level.
Do not try to upload new firmware if the battery level is low as this may cause the camera
to have difficulty uploading firmware in the future.
2. Copy the firmware file to the root directory of the SD card, outside of the main directory
folders. Then, disconnect the USB cable and the camera will automatically shut down.
3. With the camera off, press and hold both the POWER/MODE button and the
SHUTTER/SELECT BUTTON at the same time. Once you hear the camera beep, release
both buttons.
4. The LCD will show “UP” in the LCD screen and then turn off. The new firmware is now installed.
7.0 Video and Image File Size
When recording video it is very important that you are already familiar with the file
size that your computer can store and playback. If you record a continuous video
clip onto a CAMERA GOGGLE's Micro SD/SDHC card, you may not be able to
download or play the video file on your computer because of the large file size.
Also, your media player may not be able to play large HD Videos.
6.2 VIDEO AND STILL IMAGE PLAYBACK ON A TV
1. With the CAMERA GOGGLE turned off, connect the HDMI cable (not included) to
the CAMERA GOGGLE and the HD TV..
2. Turn on the CAMERA GOGGLE and the camera will automatically start up in video
mode and begin playing the first video on the TV screen.
3. Press the SHUTTER/SELECT button to advance to the next video and press the
POWER/MODE button to go back to the previous video.
4. To switch to the playback of Pictures, press and hold the POWER/MODE button for
3 seconds. You will now be in the picture mode. To advance to the next picture, press
the SHUTTER/SELECT button and to go back to the previous picture, press the
POWER/MODE button.
5. You can toggle between the Picture and Video mode by pressing the POWER/MODE
button for 3 seconds.
6. To turn off, disconnect the HDMI cable from the CAMERA GOGGLE and press and
hold the POWER/MODE button for a few seconds until the camera turns off.
0006 / 0003 00:45:11
00:02:28
File name
Qty of videos per Mode
Mode
Video Time Code
Battery Life
Total Time
TV SCREEN
Video Mode
0006 / 0003
File name
Qty of pics per Mode
Mode
Battery Life
TV SCREEN
Still Image Mode
of Video
0006 / 0003 00:45:11
00:02:28
File name
Qty of videos per Mode
Mode
Video Time Code
Battery Life
Total Time
TV SCREEN
Video Mode
0006 / 0003
File name
Qty of pics per Mode
Mode
Battery Life
TV SCREEN
Still Image Mode
of Video
ENG-15
9.0 CARE AND MAINTENANCE
8.0 FIRMWARE AND PRODUCT UPDATES
Please conduct a FILE SIZE TEST before you use your CAMERA GOGGLE to capture
important images and video. Test various video file sizes to make sure your
computer will be able to store and play the videos that you record. If you have
difficulty in playing back video files smoothly, try taking a shorter video. You may
also try opening the video file with a different media player as not all media players
work the same.
Please read the sample chart below to estimate your file size per minute of
recording time.
Approximate Video File Sizes -
CAMERA GOGGLE
NOTE: Depending on the battery's charge as well as the size of your Micro SD/SDHC
card, you may be able to record a video for an hour or more. It is, however, best to
take short videos. This will make transferring files and playing them back easier.
The camera will split a video file over 1 hour into two files to improve the performance
of the camera.
NOTE: Video file sizes will vary due to the complexity of the scene. The file sizes listed are only estimates.
TIME (min): .5 1 10 20
SIZE OF FILE: 45MB 90MB 900MB 1.7GB
1. Before each use, the goggle should be inspected for any cracks, deformities or damage.
If there is any damage or deformation to the frame, or scratches or damage to the lens
that could obstruct or impair vision, do not use. Replace any damaged parts such as
the lens, strap or face foam prior to use.
TEST
ENG-16
!Liquid Image will update the software regularly, please refer to the
information on our website and download the newest software.
www.LiquidimageCo.com
2. Do not expose goggle to heat, strong detergents, or chemicals.
3. To clean, rinse the frame with tap water. A mild soap may be utilized on the frame only
when needed. To prevent damaging the lens, only clean the lense with tap water. Dry
with a soft cloth.
4. IMPORTANT: Do not rub lens when wet. When the inner lens surface is wet, it
becomes soft and is more susceptible to scratching. Rubbing the inner lens when it is wet,
may also reduce the effectiveness of the anti-fog coating.
5. To Dry: Gently shake snow and moisture off the lens. Use the micro bag or a soft cloth
to gently blot away moisture or allow lens to air dry. Make sure ventilation ports are clear
of snow or other debris. If wearing the goggle, motion will increase airflow and help to dry
the goggle. Once the lens has completely dried and is at room temperature, use the micro
bag or a soft cloth to remove any smudges.
6. To prevent scratching, do not use paper towels, ski gloves or clothing to clean the lens.
Only use a micro bag or a soft cloth. Abrasive materials may scratch the lens.
7. For optimum life and performance of your lens, store completely dry and in the protective
bag or case. Lens should be kept in a dry environment at room temperature when not in
use. Store the lens away from direct sunlight, or excessive heat or cold.
8. To prevent scratching, do not place lens face down.
10.0 REPLACING LENSES
Wash and thoroughly dry hands prior to removing or inserting the lens. Do not change
the lens while wearing gloves as the glove material may scratch the lens.
10.1 Removing Lens
1. Hold the bottom of the frame and grab the top of the frame from the inside.
2. Gently pull the top of the frame away from the lens.
3. Gently lift the lens out of the sides and bottom of the frame.
10.2 Inserting Lens
1. Insert the lens at the nose of the frame. Take care to align the notch of the lens with
the post in the frame. Gently push the lens onto the post.
2. Continue inserting the lens into the groove along the bottom and sides of the frame.
Make sure to push the lens completely into the groove of the frame.
3. Align the notch on the lens with the post at the top of the frame.
4. Check the lens to make sure that it is correctly set in the frame prior to use.
ENG-17
11.0 CAMERA WARNINGS AND PRECAUTIONS
Never touch the camera connection components that are exposed when the
MEMORY COMPARTMENT OR BATTERY COMPARTMENT are open. There is a
risk of shock if the components in the compartments become wet.
If the CAMERA GOGGLE emits a strange noise, smoke or odor, turn off
immediately and remove the battery.
1. Using the CAMERA GOGGLE in a manner other than what the product use is
intended for may result in injury to you, the product, or other persons.
8. If the inside of the camera gets wet, immediately turn it off and dispose of the
battery. Then dispose of the CAMERA GOGGLE in accordance with laws for
disposing electronics in your country. Using the camera after any internal
compartments have become wet may cause a fire or electric shock.
3. Avoid jolts, drops, collision with other hard objects, or shaking of the CAMERA
GOGGLE. These movements may damage the components.
4. Never open the camera body with a screw driver. There is a risk of shock if you
touch the camera components.
5. Children under 13 years of age should never wear or operate the CAMERA
GOGGLE.
6. Children age 13 to 17 should always have adult supervision with use of this
product. The CAMERA GOGGLE is not a toy and needs to be treated with the same
care as any other digital camera.
7. An adult age 18 or older should always dry the product thoroughly before
performing the battery replacement or before performing the transfer of image and
video files to a computer.
2. This is not a safety Goggle. Only use for intended purposes. The Goggle lens
provides basic protection against wind, dirt, dust, snow and glare. The lens will not
withstand a severe impact. This lens does not protect against hard or sharp objects.
Care should be taken to avoid impact with hard or sharp objects.
GOGGLE.
GOGGLE.
.
ENG-18
!
!
1. Before updating the firmware, make sure the battery level is at least at the 50% level.
Do not try to upload new firmware if the battery level is low as this may cause the camera
to have difficulty uploading firmware in the future.
2. Copy the firmware file to the root directory of the SD card, outside of the main directory
folders. Then, disconnect the USB cable and the camera will automatically shut down.
3. With the camera off, press and hold both the POWER/MODE button and the
SHUTTER/SELECT BUTTON at the same time. Once you hear the camera beep, release
both buttons.
4. The LCD will show “UP” in the LCD screen and then turn off. The new firmware is now installed.
7.0 Video and Image File Size
When recording video it is very important that you are already familiar with the file
size that your computer can store and playback. If you record a continuous video
clip onto a CAMERA GOGGLE's Micro SD/SDHC card, you may not be able to
download or play the video file on your computer because of the large file size.
Also, your media player may not be able to play large HD Videos.
6.2 VIDEO AND STILL IMAGE PLAYBACK ON A TV
1. With the CAMERA GOGGLE turned off, connect the HDMI cable (not included) to
the CAMERA GOGGLE and the HD TV..
2. Turn on the CAMERA GOGGLE and the camera will automatically start up in video
mode and begin playing the first video on the TV screen.
3. Press the SHUTTER/SELECT button to advance to the next video and press the
POWER/MODE button to go back to the previous video.
4. To switch to the playback of Pictures, press and hold the POWER/MODE button for
3 seconds. You will now be in the picture mode. To advance to the next picture, press
the SHUTTER/SELECT button and to go back to the previous picture, press the
POWER/MODE button.
5. You can toggle between the Picture and Video mode by pressing the POWER/MODE
button for 3 seconds.
6. To turn off, disconnect the HDMI cable from the CAMERA GOGGLE and press and
hold the POWER/MODE button for a few seconds until the camera turns off.
0006 / 0003 00:45:11
00:02:28
File name
Qty of videos per Mode
Mode
Video Time Code
Battery Life
Total Time
TV SCREEN
Video Mode
0006 / 0003
File name
Qty of pics per Mode
Mode
Battery Life
TV SCREEN
Still Image Mode
of Video
0006 / 0003 00:45:11
00:02:28
File name
Qty of videos per Mode
Mode
Video Time Code
Battery Life
Total Time
TV SCREEN
Video Mode
0006 / 0003
File name
Qty of pics per Mode
Mode
Battery Life
TV SCREEN
Still Image Mode
of Video
ENG-15
9.0 CARE AND MAINTENANCE
8.0 FIRMWARE AND PRODUCT UPDATES
Please conduct a FILE SIZE TEST before you use your CAMERA GOGGLE to capture
important images and video. Test various video file sizes to make sure your
computer will be able to store and play the videos that you record. If you have
difficulty in playing back video files smoothly, try taking a shorter video. You may
also try opening the video file with a different media player as not all media players
work the same.
Please read the sample chart below to estimate your file size per minute of
recording time.
Approximate Video File Sizes -
CAMERA GOGGLE
NOTE: Depending on the battery's charge as well as the size of your Micro SD/SDHC
card, you may be able to record a video for an hour or more. It is, however, best to
take short videos. This will make transferring files and playing them back easier.
The camera will split a video file over 1 hour into two files to improve the performance
of the camera.
NOTE: Video file sizes will vary due to the complexity of the scene. The file sizes listed are only estimates.
TIME (min): .5 1 10 20
SIZE OF FILE: 45MB 90MB 900MB 1.7GB
1. Before each use, the goggle should be inspected for any cracks, deformities or damage.
If there is any damage or deformation to the frame, or scratches or damage to the lens
that could obstruct or impair vision, do not use. Replace any damaged parts such as
the lens, strap or face foam prior to use.
TEST
ENG-16
!Liquid Image will update the software regularly, please refer to the
information on our website and download the newest software.
www.LiquidimageCo.com
2. Do not expose goggle to heat, strong detergents, or chemicals.
3. To clean, rinse the frame with tap water. A mild soap may be utilized on the frame only
when needed. To prevent damaging the lens, only clean the lense with tap water. Dry
with a soft cloth.
4. IMPORTANT: Do not rub lens when wet. When the inner lens surface is wet, it
becomes soft and is more susceptible to scratching. Rubbing the inner lens when it is wet,
may also reduce the effectiveness of the anti-fog coating.
5. To Dry: Gently shake snow and moisture off the lens. Use the micro bag or a soft cloth
to gently blot away moisture or allow lens to air dry. Make sure ventilation ports are clear
of snow or other debris. If wearing the goggle, motion will increase airflow and help to dry
the goggle. Once the lens has completely dried and is at room temperature, use the micro
bag or a soft cloth to remove any smudges.
6. To prevent scratching, do not use paper towels, ski gloves or clothing to clean the lens.
Only use a micro bag or a soft cloth. Abrasive materials may scratch the lens.
7. For optimum life and performance of your lens, store completely dry and in the protective
bag or case. Lens should be kept in a dry environment at room temperature when not in
use. Store the lens away from direct sunlight, or excessive heat or cold.
8. To prevent scratching, do not place lens face down.
10.0 REPLACING LENSES
Wash and thoroughly dry hands prior to removing or inserting the lens. Do not change
the lens while wearing gloves as the glove material may scratch the lens.
10.1 Removing Lens
1. Hold the bottom of the frame and grab the top of the frame from the inside.
2. Gently pull the top of the frame away from the lens.
3. Gently lift the lens out of the sides and bottom of the frame.
10.2 Inserting Lens
1. Insert the lens at the nose of the frame. Take care to align the notch of the lens with
the post in the frame. Gently push the lens onto the post.
2. Continue inserting the lens into the groove along the bottom and sides of the frame.
Make sure to push the lens completely into the groove of the frame.
3. Align the notch on the lens with the post at the top of the frame.
4. Check the lens to make sure that it is correctly set in the frame prior to use.
ENG-17
11.0 CAMERA WARNINGS AND PRECAUTIONS
Never touch the camera connection components that are exposed when the
MEMORY COMPARTMENT OR BATTERY COMPARTMENT are open. There is a
risk of shock if the components in the compartments become wet.
If the CAMERA GOGGLE emits a strange noise, smoke or odor, turn off
immediately and remove the battery.
1. Using the CAMERA GOGGLE in a manner other than what the product use is
intended for may result in injury to you, the product, or other persons.
8. If the inside of the camera gets wet, immediately turn it off and dispose of the
battery. Then dispose of the CAMERA GOGGLE in accordance with laws for
disposing electronics in your country. Using the camera after any internal
compartments have become wet may cause a fire or electric shock.
3. Avoid jolts, drops, collision with other hard objects, or shaking of the CAMERA
GOGGLE. These movements may damage the components.
4. Never open the camera body with a screw driver. There is a risk of shock if you
touch the camera components.
5. Children under 13 years of age should never wear or operate the CAMERA
GOGGLE.
6. Children age 13 to 17 should always have adult supervision with use of this
product. The CAMERA GOGGLE is not a toy and needs to be treated with the same
care as any other digital camera.
7. An adult age 18 or older should always dry the product thoroughly before
performing the battery replacement or before performing the transfer of image and
video files to a computer.
2. This is not a safety Goggle. Only use for intended purposes. The Goggle lens
provides basic protection against wind, dirt, dust, snow and glare. The lens will not
withstand a severe impact. This lens does not protect against hard or sharp objects.
Care should be taken to avoid impact with hard or sharp objects.
GOGGLE.
GOGGLE.
.
ENG-18
!
!
1. Before updating the firmware, make sure the battery level is at least at the 50% level.
Do not try to upload new firmware if the battery level is low as this may cause the camera
to have difficulty uploading firmware in the future.
2. Copy the firmware file to the root directory of the SD card, outside of the main directory
folders. Then, disconnect the USB cable and the camera will automatically shut down.
3. With the camera off, press and hold both the POWER/MODE button and the
SHUTTER/SELECT BUTTON at the same time. Once you hear the camera beep, release
both buttons.
4. The LCD will show “UP” in the LCD screen and then turn off. The new firmware is now installed.
7.0 Video and Image File Size
When recording video it is very important that you are already familiar with the file
size that your computer can store and playback. If you record a continuous video
clip onto a CAMERA GOGGLE's Micro SD/SDHC card, you may not be able to
download or play the video file on your computer because of the large file size.
Also, your media player may not be able to play large HD Videos.
6.2 VIDEO AND STILL IMAGE PLAYBACK ON A TV
1. With the CAMERA GOGGLE turned off, connect the HDMI cable (not included) to
the CAMERA GOGGLE and the HD TV..
2. Turn on the CAMERA GOGGLE and the camera will automatically start up in video
mode and begin playing the first video on the TV screen.
3. Press the SHUTTER/SELECT button to advance to the next video and press the
POWER/MODE button to go back to the previous video.
4. To switch to the playback of Pictures, press and hold the POWER/MODE button for
3 seconds. You will now be in the picture mode. To advance to the next picture, press
the SHUTTER/SELECT button and to go back to the previous picture, press the
POWER/MODE button.
5. You can toggle between the Picture and Video mode by pressing the POWER/MODE
button for 3 seconds.
6. To turn off, disconnect the HDMI cable from the CAMERA GOGGLE and press and
hold the POWER/MODE button for a few seconds until the camera turns off.
0006 / 0003 00:45:11
00:02:28
File name
Qty of videos per Mode
Mode
Video Time Code
Battery Life
Total Time
TV SCREEN
Video Mode
0006 / 0003
File name
Qty of pics per Mode
Mode
Battery Life
TV SCREEN
Still Image Mode
of Video
0006 / 0003 00:45:11
00:02:28
File name
Qty of videos per Mode
Mode
Video Time Code
Battery Life
Total Time
TV SCREEN
Video Mode
0006 / 0003
File name
Qty of pics per Mode
Mode
Battery Life
TV SCREEN
Still Image Mode
of Video
ENG-15
9.0 CARE AND MAINTENANCE
8.0 FIRMWARE AND PRODUCT UPDATES
Please conduct a FILE SIZE TEST before you use your CAMERA GOGGLE to capture
important images and video. Test various video file sizes to make sure your
computer will be able to store and play the videos that you record. If you have
difficulty in playing back video files smoothly, try taking a shorter video. You may
also try opening the video file with a different media player as not all media players
work the same.
Please read the sample chart below to estimate your file size per minute of
recording time.
Approximate Video File Sizes -
CAMERA GOGGLE
NOTE: Depending on the battery's charge as well as the size of your Micro SD/SDHC
card, you may be able to record a video for an hour or more. It is, however, best to
take short videos. This will make transferring files and playing them back easier.
The camera will split a video file over 1 hour into two files to improve the performance
of the camera.
NOTE: Video file sizes will vary due to the complexity of the scene. The file sizes listed are only estimates.
TIME (min): .5 1 10 20
SIZE OF FILE: 45MB 90MB 900MB 1.7GB
1. Before each use, the goggle should be inspected for any cracks, deformities or damage.
If there is any damage or deformation to the frame, or scratches or damage to the lens
that could obstruct or impair vision, do not use. Replace any damaged parts such as
the lens, strap or face foam prior to use.
TEST
ENG-16
!Liquid Image will update the software regularly, please refer to the
information on our website and download the newest software.
www.LiquidimageCo.com
2. Do not expose goggle to heat, strong detergents, or chemicals.
3. To clean, rinse the frame with tap water. A mild soap may be utilized on the frame only
when needed. To prevent damaging the lens, only clean the lense with tap water. Dry
with a soft cloth.
4. IMPORTANT: Do not rub lens when wet. When the inner lens surface is wet, it
becomes soft and is more susceptible to scratching. Rubbing the inner lens when it is wet,
may also reduce the effectiveness of the anti-fog coating.
5. To Dry: Gently shake snow and moisture off the lens. Use the micro bag or a soft cloth
to gently blot away moisture or allow lens to air dry. Make sure ventilation ports are clear
of snow or other debris. If wearing the goggle, motion will increase airflow and help to dry
the goggle. Once the lens has completely dried and is at room temperature, use the micro
bag or a soft cloth to remove any smudges.
6. To prevent scratching, do not use paper towels, ski gloves or clothing to clean the lens.
Only use a micro bag or a soft cloth. Abrasive materials may scratch the lens.
7. For optimum life and performance of your lens, store completely dry and in the protective
bag or case. Lens should be kept in a dry environment at room temperature when not in
use. Store the lens away from direct sunlight, or excessive heat or cold.
8. To prevent scratching, do not place lens face down.
10.0 REPLACING LENSES
Wash and thoroughly dry hands prior to removing or inserting the lens. Do not change
the lens while wearing gloves as the glove material may scratch the lens.
10.1 Removing Lens
1. Hold the bottom of the frame and grab the top of the frame from the inside.
2. Gently pull the top of the frame away from the lens.
3. Gently lift the lens out of the sides and bottom of the frame.
10.2 Inserting Lens
1. Insert the lens at the nose of the frame. Take care to align the notch of the lens with
the post in the frame. Gently push the lens onto the post.
2. Continue inserting the lens into the groove along the bottom and sides of the frame.
Make sure to push the lens completely into the groove of the frame.
3. Align the notch on the lens with the post at the top of the frame.
4. Check the lens to make sure that it is correctly set in the frame prior to use.
ENG-17
11.0 CAMERA WARNINGS AND PRECAUTIONS
Never touch the camera connection components that are exposed when the
MEMORY COMPARTMENT OR BATTERY COMPARTMENT are open. There is a
risk of shock if the components in the compartments become wet.
If the CAMERA GOGGLE emits a strange noise, smoke or odor, turn off
immediately and remove the battery.
1. Using the CAMERA GOGGLE in a manner other than what the product use is
intended for may result in injury to you, the product, or other persons.
8. If the inside of the camera gets wet, immediately turn it off and dispose of the
battery. Then dispose of the CAMERA GOGGLE in accordance with laws for
disposing electronics in your country. Using the camera after any internal
compartments have become wet may cause a fire or electric shock.
3. Avoid jolts, drops, collision with other hard objects, or shaking of the CAMERA
GOGGLE. These movements may damage the components.
4. Never open the camera body with a screw driver. There is a risk of shock if you
touch the camera components.
5. Children under 13 years of age should never wear or operate the CAMERA
GOGGLE.
6. Children age 13 to 17 should always have adult supervision with use of this
product. The CAMERA GOGGLE is not a toy and needs to be treated with the same
care as any other digital camera.
7. An adult age 18 or older should always dry the product thoroughly before
performing the battery replacement or before performing the transfer of image and
video files to a computer.
2. This is not a safety Goggle. Only use for intended purposes. The Goggle lens
provides basic protection against wind, dirt, dust, snow and glare. The lens will not
withstand a severe impact. This lens does not protect against hard or sharp objects.
Care should be taken to avoid impact with hard or sharp objects.
GOGGLE.
GOGGLE.
.
ENG-18
!
!
1. Before updating the firmware, make sure the battery level is at least at the 50% level.
Do not try to upload new firmware if the battery level is low as this may cause the camera
to have difficulty uploading firmware in the future.
2. Copy the firmware file to the root directory of the SD card, outside of the main directory
folders. Then, disconnect the USB cable and the camera will automatically shut down.
3. With the camera off, press and hold both the POWER/MODE button and the
SHUTTER/SELECT BUTTON at the same time. Once you hear the camera beep, release
both buttons.
4. The LCD will show “UP” in the LCD screen and then turn off. The new firmware is now installed.
9. If the battery becomes wet, there is a risk of fire, shock, shorting the electrical
system, or corrosion. Dispose of the battery immediately in accordance with the
local laws in regards to proper battery disposal.
10. Do not place on an unstable surface or near the edge of a surface. The camera
may fall, resulting in damage to the camera or injury. If the camera has fallen and its
body is damaged, turn it off, remove the battery and dispose of the CAMERA GOGGLE
in accordance with laws for disposing electronics. Using the camera after its body
has been damaged may cause a fire or electric shock.
11.
Never leave the CAMERA GOGGLE in direct sunlight. Never leave the Camera
in the trunk of a car or in a car on a warm or hot day. Direct sunlight or high
temperatures may damage the CAMERA GOGGLE or cause the housing to burst.
12. Do not use the CAMERA GOGGLE in a location where there is explosive gas, or
any other flammable material in the air. Doing so may cause a fire or an explosion.
13. If the camera is not going to be used for a long period of time, remove the
battery from the camera. This will prevent any possible excess heat or leakage of
battery fluid that may result in injuries or damage to nearby objects.
14. Do not attempt to check the LCD display while moving. If riding or otherwise in
motion, come to a complete stop and make sure you are not on a path that others
may use. When motionless, remove the goggle to look at the LCD status display.
12.0 BATTERY WARNINGS AND PRECAUTIONS
2. Use only appropriate refuse points for environmentally correct disposal of spent
batteries.
3. Batteries are to be inserted with correct polarity. See page ENG-6.
4. Parental guidance is necessary when installing or replacing battery.
5. Do not throw batteries into fire.
6. After use, always switch off the device. Take out battery to store the device.
7. The supply terminals are not to be short-circuited.
8. Do not drop, hit, or submit the battery to strong shocks.
9. Do not allow the battery to come into contact with fresh or salt water, or allow
the terminals to become wet.
10. If the battery is leaking and the battery fluid gets on your skin or clothing,
immediately rinse with clean water and seek emergency care.
11. Rechargeable batteries are only to be charged under adult supervision.
1. Only Liquid Image 3.7V 1150mAh batteries are to be used with the CAMERA GOGGLE.
ENG-19
13.0 COMMONLY ASKED QUESTIONS AND
TROUBLESHOOTING
1. Is the CAMERA GOGGLE water proof? The CAMERA GOGGLE is water resistant.
It is not intended for underwater use. However, it is designed to withstand rain, sleet,
and snow or a brief accidental submersion underwater. Be sure to always check
that your battery and memory compartments are completely sealed prior to
exposing them to moisture.
2. My CAMERA GOGGLE has stopped recording. If your camera stopped recording
photos or videos, check to see if the memory is full or if your battery is empty.
The LCD will display “FUL”, if your memory is full. If the battery is empty the
battery icon will not have any bars. It is also possible that your micro SD/SDHC
card may have failed. Try an alternate card.
3. My goggle fogs. The CAMERA GOGGLE is treated with anti-fog on the inside
lens, which should minimize any fogging under normal use conditions. Always air-dry
your lens or use a micro bag or soft cloth. Using gloves, clothing or other abrasive
materials may remove the anti-fog coating when wet. If fogging occurs, it is possible
that your anti-fog coating has rubbed off. You may need to replace your lens.
4. My CAMERA GOGGLE is no longer working (no power). Your battery may be
completely drained or your micro SD/SDHC card may not be working. Thoroughly
dry the CAMERA GOGGLE as directed in the CARE and MAINTENANCE (section 9.0).
Check the Goggle for any loose parts or open ports. DO NOTOPEN THE FACTORY
SEALED BODYOF THE CAMERA. If there were any open ports, check to make
sure they are not wet. Be careful not to touch any camera components inside the
MEMORY COMPARTMENTor BATTERY COMPARTMENT. If the components
are wet, follow the CARE AND MAINTENANCE (section 9.0). Check that the
battery and the memory card are completely inserted. If that does not solve the
problem, remove the battery and the micro SD/SDHC card. Fully charge the battery,
then reinsert into the camera. If the battery was not the issue, check the
micro SD/SDHC card by inserting another card, preferably a different brand, into the
camera. Please note that micro SD/SDHC cards can fail. Be sure to use a card that
meets the camera's specifications (see section 3.2). And be sure to follow the
manufacturer's Care and Maintenance instructions. If you had previously recorded
ENG-20
For more trouble shooting, visit our website's help section www.LiquidimageCo.com
LIMITED WARRANTY: See limited warranty form included with this product.
files to the micro SD/SDHC card that was removed from the camera, you may check
the card on a computer to see if any files were recorded and if they appear to have
recorded normally.
NOTE: Any large changes in temperature, exposure to extreme temperatures or
sudden jolts, including dropping your CAMERA GOGGLE may damage the camera
components. If you have not dropped your camera or caused damage through any
physical shaking or colliding of the camera with a hard object, or if you have not
caused exposure to extreme temperatures or temperature fluctuations, there may be
an issue of water leakage into one of the compartments.
5. My CAMERA GOGGLE is "FROZEN" (Turned ON, but not functioning).If your
camera is "frozen" or not functioning while turned on, you may need to reset the
camera functions. First, check to see if the memory is full. You will see the word
"FUL" displayed on the LCD screen. Also check to see if your battery is empty or low.
If that does not reset the functions of the camera, move to a clean and
dry environment, check that the camera is completely dry in accordance with the
CARE AND MAINTENANCE (section 9.0), then remove the battery. Reinsert the
battery. Close the compartment door. Turn on the camera and retest the functions.
Camera Goggle, Torque Series, Xtreme Sport Cams, XSC,
LIC, and Liquid Image are Trademarks of Liquid Image Co, LLC.
US and Foreign Patents Pending
Colors and style may vary from picture shown
®
ENG-21
Video Tutorials for product usage and trouble shooting are available on the website.
Warning: TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THE INNER ELECTRONICS TO RAIN OR MOISTURE.
FOR AMERICAN USERS
The following advisory is included in accordance with the laws of the state of
California (USA)
WARNING:
This product contains chemicals, including lead on the internal electronic board,
known in the State of California to cause cancer, birth defects or other
reproductive harm. Wash hands after handling.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Shielded cables must be used with this unit to ensure compliance with the Class B
FCC limits.
FOR CANADIEN USERS
This Class B digital apparatus complies with Canadian ICES-003.
ENG-22
