LiteGear Auroris V User manual

AURORIS SYSTEM PAGE 1
WELCOME KIT
™

Overview
Quick-Start Guide
Auroris V
Auroris X
LiteDimmer Spectrum AC600
Set-Up
Folding Instructions
Accessories
4
5-6
7-8
9-10
11-12
13-14
15-16
Auroris System
WELCOME KIT

AURORIS SYSTEM PAGE 4
Overview
Welcome to the Auroris Lighting System. Over the following pages, you’ll fi nd a quick guide
to getting started with your Auroris, and its accessories. For more detailed instructions and
information, please scan the appropriate QR codes placed throughout the kit.
WHAT’S INCLUDED WITH YOUR SYSTEM:
LiteDimmer Spectrum AC600
2 included with the Auroris X System
1 included with the Auroris V System
PowerCon Cables
Edison, Schuko,
or Bare Ends
Auroris V or Auroris X
28-Pin Cables
Auroris V
or
Auroris X
2 included with the
Auroris X System
1 included with the
Auroris V System
2 included with the
Auroris X System
1 included with the
Auroris V System

AURORIS SYSTEM AURORIS SYSTEMPAGE 5 PAGE 6
12 Large Format LED Pixels Orientation Tag1.
6
5
4
3
2
1
12
Pixel Numbering Pixel Numbering
FRONT BACK
11
10
9
8
7
2.

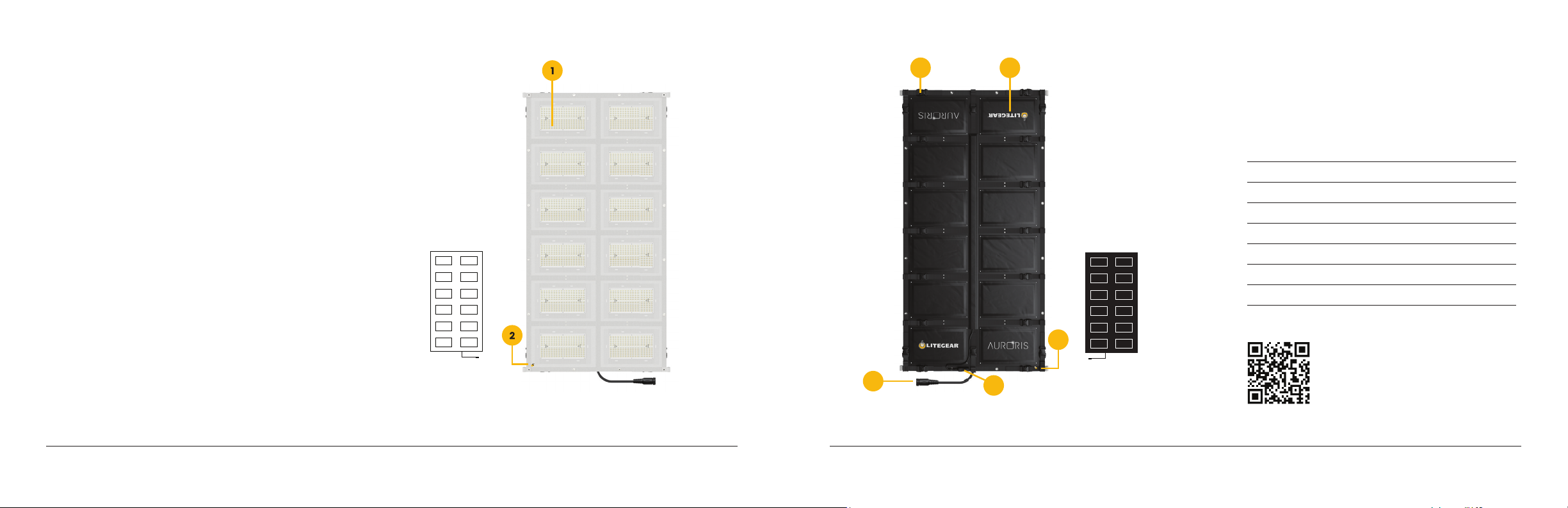

Auroris V
The Auroris V is a versatile, fl exible overhead lighting
source that combines high-quality color rendition
and precision control in a sleak, portable and easy to
use package. The Auroris V is one of the slimmest and
most versatile soft lights ever invented, and can be
mounted vertically or horizontally, hung from surfaces
or stands to give you the lighting, and the lighting
quality you need.
SYSTEM INCLUDES:
• Auroris V
• LiteDimmer Spectrum AC600
• 28-pin cable
• PowerCon Cable Fastening Strap With Buckles
Light Engine Cover
Connector Leads
Connector Storage
Orientation Tag
3.
4.
5.
6.
7.
3
6
4
Input Current: 1.04A per module (contains 12 modules)
Input Voltage: 48VDC
LE Wattage: 50W Nominal per module (contains 12 modules)
Total Power: 600W Nominal (700W Maximum)
Weight: 64 lbs (29.1 kg)
Dimensions: Height: 5 ft (1.5 m), Width: 10 ft (3 m), Depth: 1 in (25.4 mm)
Color Temperature Range: 2,000K to 11,000K
Tint Control: Full plus and minus green adjustment
Certifi cations: ETL, CE, UKCA, FCC
SCAN BEFORE USE OR GO TO
LITEGEAR.COM/AURORIS
AURORIS SPECIFICATIONS
5
12
11
10
9
8
7
6
5
4
3
2
1
QUICK-START GUIDE
7

AURORIS SYSTEM AURORIS SYSTEMPAGE 7 PAGE 8
24 Large Format LED Pixels Orientation Tag1.
612
511
410
39
28
17
12 6
Pixel Numbering Pixel Numbering
FRONT BACK
11 5
10 4
93
82
71
612
511
410
39
28
17
12 6
11 5
10 4
93
82
71
2.
SYSTEM INCLUDES:
• Auroris X
• 2 LiteDimmer Spectrum AC600
• 2 28-pin cables
• 2 PowerCon Cables Support D-Rings
Fastening Strap With Buckles
Light Engine Cover
Connector Leads
Connector Storage
Orientation Tag
3.
4.
5.
6.
7.
8.
3 4 5
Input Current: 1.04A per module (contains 24 modules)
Input Voltage: 48VDC
LE Wattage: 50W Nominal per module (contains 24 modules)
Total Power: 1,200W Nominal (1,450W Maximum)
Weight: 123 lbs (55.8 kg)
Dimensions: Height: 10 ft (3 m), Width: 10 ft (3 m), Depth: 1 in (25.4 mm)
Color Temperature Range: 2,000K to 11,000K
Tint Control: Full plus and minus green adjustment
Certifi cations: ETL, CE, UKCA, FCC
SCAN BEFORE USE OR GO TO
LITEGEAR.COM/AURORIS
AURORIS SPECIFICATIONS
7
6
Auroris X
The Auroris is a full-color overhead light source that
combines high-quality color rendition and precision
control in one sleek, easy-to-use package. Powered
by LiteGear’s Spectrum technology, Auroris is built
with 24 large format pixels, creating a pixel-mappable
source that can cover a 100-square-foot area from a
single fi xture. Designed to be lightweight and easy to
rig, Auroris is one of the slimmest, most versatile soft
lights ever invented.
QUICK-START GUIDE
8

AURORIS SYSTEM AURORIS SYSTEMPAGE 9 PAGE 10

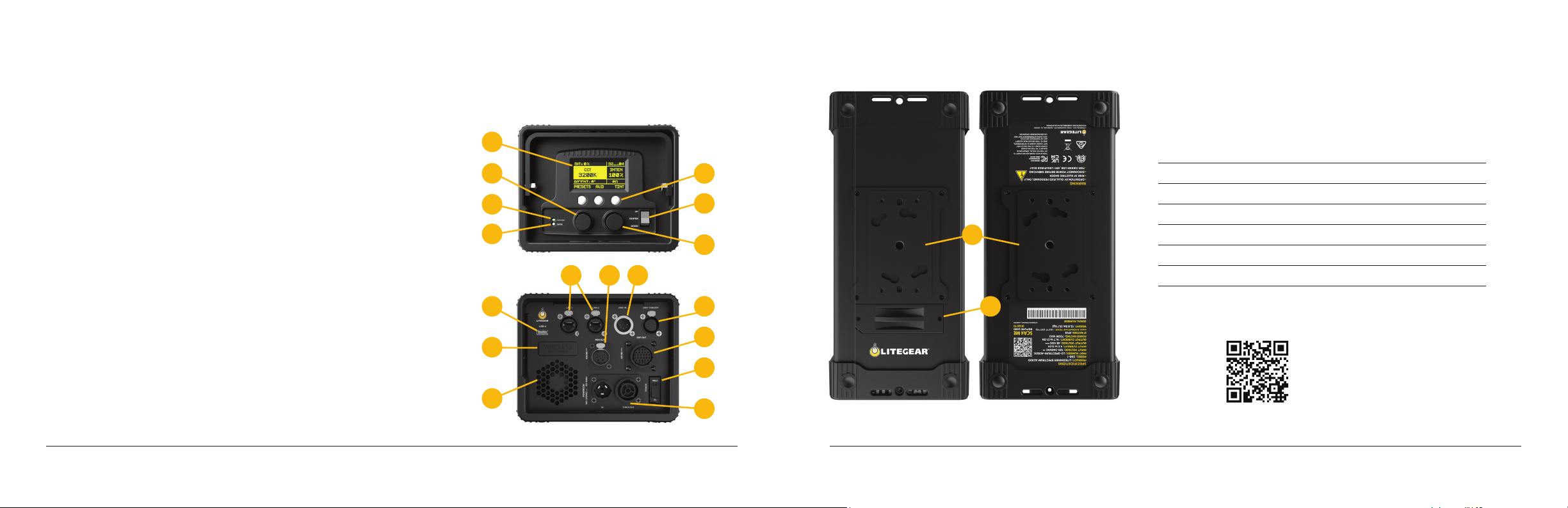

LiteDimmer Spectrum AC600
QUICK-START GUIDE
The LiteDimmer Spectrum AC600 is a new class of
dimmers made specifi cally with Auroris in mind.
Complete with local control and new communication
protocols, this dimmer can control 12 large format
pixels, making pixel mapping large overhead areas
easier than ever.
Specially designed with advanced processing power,
integrated Ethernet switch, expanded memory, and a
faster processor, this new hardware allows for Ethernet-
based communication protocols such as Art-Net
and sACN, advanced color control, and cutting-edge
software features. An integrated USB-A port enables
easy updates that will bring new, innovative software
for years to come.
1
26
47
8
11 12 13
5
3
9
10 17
16
15
14
OLED Display
Left Encoder
Right Encoder
Power LED Indicator
Data LED Indicator
Function Buttons
3-Position Rocker Switch
USB-A Port
Wireless Antenna
Cooling Fan
EtherCon Ports
PDX Connector
DMX In Connector
DMX Through Connector
28-Pin Connector
Power Switch
PowerCon Connectors
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
FRONT PANEL:
BACK PANEL:
2
1
K-Mount Plate Fuse Access Port1. 2.
SCAN BEFORE USE OR GO TO
LITEGEAR.COM/INFO_LDSAC600
TOP BOTTOM
LITEDIMMER SPECTRUM AC600 SPECIFICATIONS
Input Voltage: 100-240VAC, 50/60 Hz
Input Current: 4.5A to 9A
Output Voltage: 48VDC
Output Current: 14.7A to 21A
Weight: 12.6 lbs (5.7 kg)
Dimensions: Height: 5.8 in(147.3 mm) Width: 7.2 in(182.9 mm) Length: 15.7 in(388.8 mm)
Power: 700W Maximum
Certifi cations: ETL, CE, UKCA, FCC

AURORIS SYSTEM AURORIS SYSTEMPAGE 11 PAGE 12

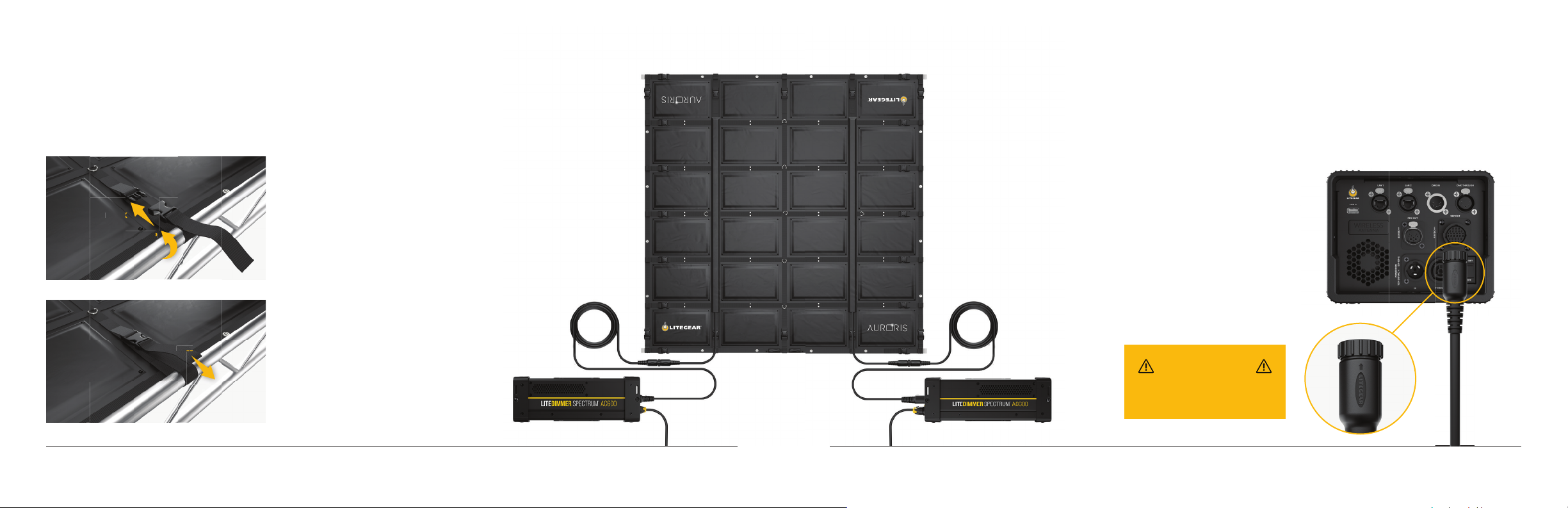

Set-Up
To secure Auroris to ladder truss,
loop strap around truss and
connect buckles with a click.
Ensure the buckle is fully inserted
with both prongs locked in place.
To tighten, pull strap horizontal
using normal force.
Do not pull with an upwards
angle or with excessive force.
STEP 1
STEP 2
Securing Auroris to Ladder Truss
Arrow on cable must be oriented
to the top when connecting
28-pin cable to dimmer.
Insert the cable connector into
dimmer, rotate the locking ring
clockwise 1/4 turn.
STEP 1
STEP 2
Connecting 28-Pin Cable to Dimmer
WARNING
INCORRECT ORIENTATION
MAY CAUSE DAMAGE TO PINS
LOOP
CLICK
PULL
CLICK
PULL
LOOP
Note:
Auroris V functions
with 1 lite dimmer
Auroris and Dimmer
not to scale

AURORIS SYSTEM AURORIS SYSTEMPAGE 13 PAGE 14
LIFT
LIFT
LIFT
FOLDING INSTRUCTIONS AURORIS V AURORIS X
Begin by laying your Auroris fl at, LED side down,
on a clean surface. It is recommended to use
the included ground tarp.
Begin by laying your Auroris fl at, LED side down,
on a clean surface. It is recommended to use
the included ground tarp.
Lift the inner crease points of the three outer
panels upward. Walk the sides inward until all
panels are touching.
Let the section lay fl at. At this point, the folded
Auroris should be one row wide with the white
sections on the inside and black on outside.
With two people on opposite sides (tag and
cable sides) lift up along the center crease to
form an “A” shape. Use the center D-ring to
assist in lifting.
With two people on opposite sides (tag and
cable sides), in one motion, lift and fold the
outer rows, one row at a time, over the center
rows of the Auroris.
Lay the folded Auroris fl at. Your Auroris is ready
to be stored in the storage bag.
Lift the inner crease points of the two outer
panels upward. Walk the sides inward until all
panels are touching.
Let the section lay fl at. At this point, the folded
Auroris should be one row wide with the white
sections on the inside and black on outside.
Lift up along the center crease to form an “A”
shape. Use the center D-ring to assist in lifting.
Lay the folded Auroris fl at. Your Auroris is ready
to be stored in the storage bag.
STEP 1 STEP 1
STEP 4 STEP 4
STEP 2
STEP 5
STEP 2
STEP 5
STEP 3 STEP 3
STEP 6
LIFT LIFT
FOLD IN
FOLD IN

AURORIS SYSTEM AURORIS SYSTEMPAGE 15 PAGE 16

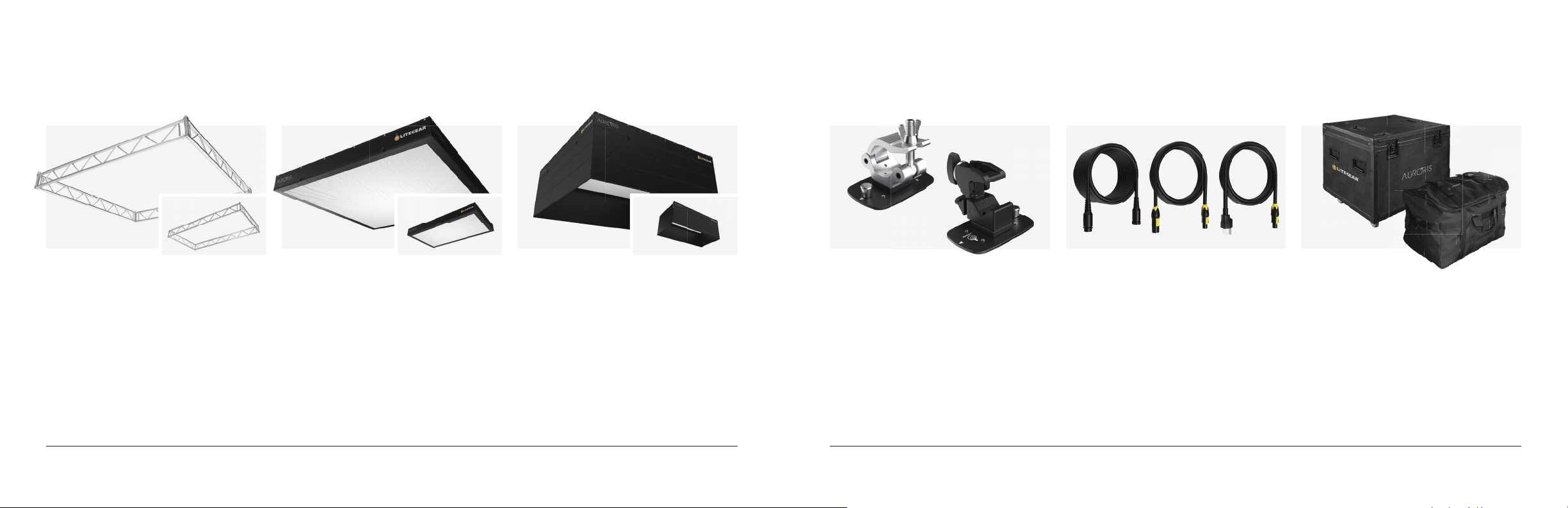

Accessories
AURORIS TRUSS SYSTEM DIFFUSION AND SIDE SKIRTS TEASERS
Designed for Auroris, this lightweight truss
system makes rigging quick and easy.
When paired with diffusion skirts, this frame
is the perfect structure for creating a low-
profi le light box with soft and even light.
Perfect for creating soft, even light output,
this diffusion and side skirt combo is
available in three densities: full, half, and
quarter. The skirt attaches quickly to the
truss system and controls unwanted
bounce or spill.
These duvetyn teasers extend the side
skirt and allow for additional control of
unwanted spill light. Attached Velcro strips
allow for the height of the teasers to be
quickly adjusted.
RIGGING
AURORIS V
AURORIS X AURORIS X AURORIS X
AURORIS V AURORIS V
LIGHT CONTROL LIGHT CONTROL
DIMMER TRUSS & STAND MOUNTS AURORIS CABLES BAGS & CASES
The Truss Mount provides secure
attachment to any 1.5-2 inch pipe. The
Dimmer Stand Mount provides secure
attachment to any light stand. The K-mount
enables quick and secure attachment to
the LiteDimmer Spectrum AC600.
Distribute data with the 28-pin extension
cable. Provide power with the mains cable
or the passthrough cable.
The Road Case can hold the complete
Auroris X System and is designed to be easily
transportable while offering a high level of
protection for the Auroris system.
The Storage Bag protects the Auroris X,
from dirt and wear and tear between uses.
MOUNTS CONNECTORS TRAVEL

For warranty information on your Auroris, see the comprehensive user
guide which can be scanned via QR code throughout this book.
V2 - 12.01.22
