Lites PROFILE LED WHITE Instruction Manual

Lites
PROFILE LED WHITE
Owner's and service manual
Read this manual totally and carefully follow all the instructions contained File this manual for
future use
It is essential to read all the information contained to ensure installation, service and full
operation of the HPLED
All operations must be accomplished, handled and carried out by qualified personnel only
NOT COMPLYNIG WITH GIVEN NOTICE WILL VOID WARRANTY AND WILL FREE THE
MANUFACTURER OF ANY SORT OF RESPONSABILITY AND LIABILITY
www.litessrl.com

Page 2 of 8
Unpacking
Unpack the carton and gently remove Lites Profile from the box. Ensure Lites Profile received is integer from
origin in all its components.
n the event the Lites Profile shows any damage, do not use it and contact immediately your transporter as well
as your seller.
tems in the carton consist of:
− Lites Profiel luminaire
− Colour frame
− Blue Neutrik PowerCon connector
− This owner's and service manual
Safety information for the use of the Lites Profile as well as its periodical maintenance”
‒ Lites Profile is for professional use only and NEVER for domestic use therefore refrain from this latter
utilisation.
‒ Users must scrupulously comply with information that follows, any other use in contrast will void
warranty and will free the manufacturer of any sort of responsibility and liability.
‒ Never use Lites Profile on any flammable surfaces.
‒ Minimum distance from any flammable source is of 0.25m.
‒ Minimum throw distance from illuminated surface: 1m.
‒ nstallation of the unit(s) must be secured with adequate clamps, safety cords, nuts and bolts to bear
the weight of the whole unit(s)
‒ Always Power Lites Profile to safety circuit breakers. Lites Profile must NOTand CAN NOT be operated
via Phase Control Dimmer.
‒ nstall Lites Profile in ventilated ambient which temperature must not trespass 35°C
‒ Some outer parts of the Lites Profile can reach temperatures of up to 60C° when in operation.
‒ Lites Profile must be fitted with protection shields (Lenses)
‒ Always disconnet power, (always double check that power is off) before any Service/Operation of the
unit.
‒ Lites Profile is rated Class .
‒ Earth connection is MANDATORY!
‒ On no account, directly or indirectly, LED must be touched as it may impair its use.
‒ An Essential and Periodically throughout cleaning of the Lites Profile is recommended. This practice
avoids that layers of dust and other impurity jeopardise and reduce the correct operation of the unit.
Lenses must be cleaned to remove layers of dust that may impede and or reduce the passage of the
light through the lenses. The correct and periodically maintenance keeps also fans and vents clean thus
keeping the Lites Profile in its best performance conditions. Never touch, directly or indirectly, the
Yellow core of the LED nor use solvents that can damage the LED irremediably. Protection shields if
battered/worn, must be replaced with new ones (Lenses)
CE APPROVALS
The Lites F200 products to which this manual refers to, complies with European directive pursuant to:
2006/95/EC safety of electrical equipment supplied at low voltage (LVD)
2004/108/EC Electromagnetic compatibility (EMC)
2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
WARRANTY
A 12-month warranty is granted on the Lites Profile from its purchase’s date. Warranty covers fabrication
defects only, unit will not be replaced but will be 100% fixed. Warranty is immediately voided if the Lites Profile
has not been handled by qualified personnel. Any improper and unauthorised use, such modification(s) or
misapplication of the unit will also void the warranty of the product(s). Silver colour label showing technical data
and serial number, if removed or if data are impaired to render details illegible, will immediately void the
warranty.

Page 3 of 8
Technical specifications
Power Supply 100-240 V~ 50/60Hz
Maximum power consumption 170W (Bridgelux BXRC)
cos Ø 0,98
Stand-by power consumption 5W
Minimum ambient temperature -10°C
Maximum ambient temperature 35°C
LED Colour Temperature: 2700°k, 3000°K, 4000°K,,5600°K (to specify when ordering)
LED CR 90
Colour frame dimensions: 160x160 mm
Aluminium die-caste body to maximize heat dissipation
LED Life (see Manufacturers ’ specifications)
Weight 7,5 Kg
P Rating 20
Working position Any
Power connectors N & OUT Neutrik PowerCon
Data connectors N & OUT XRL5
Data protocols DMX 512; RDM ready
User interface 4-digit display and 4 buttons
Manual operation: Users must operate via buttons provided on the display
Fan control: Fan speed adjustment
Control of LED frequency: Selection of LED frequency refresh
2 Dimming curves control: Selection of two dimming curves control
accessories: ris diaphragm; portagobos (size B Ø 86 mm, image Ø 66mm)

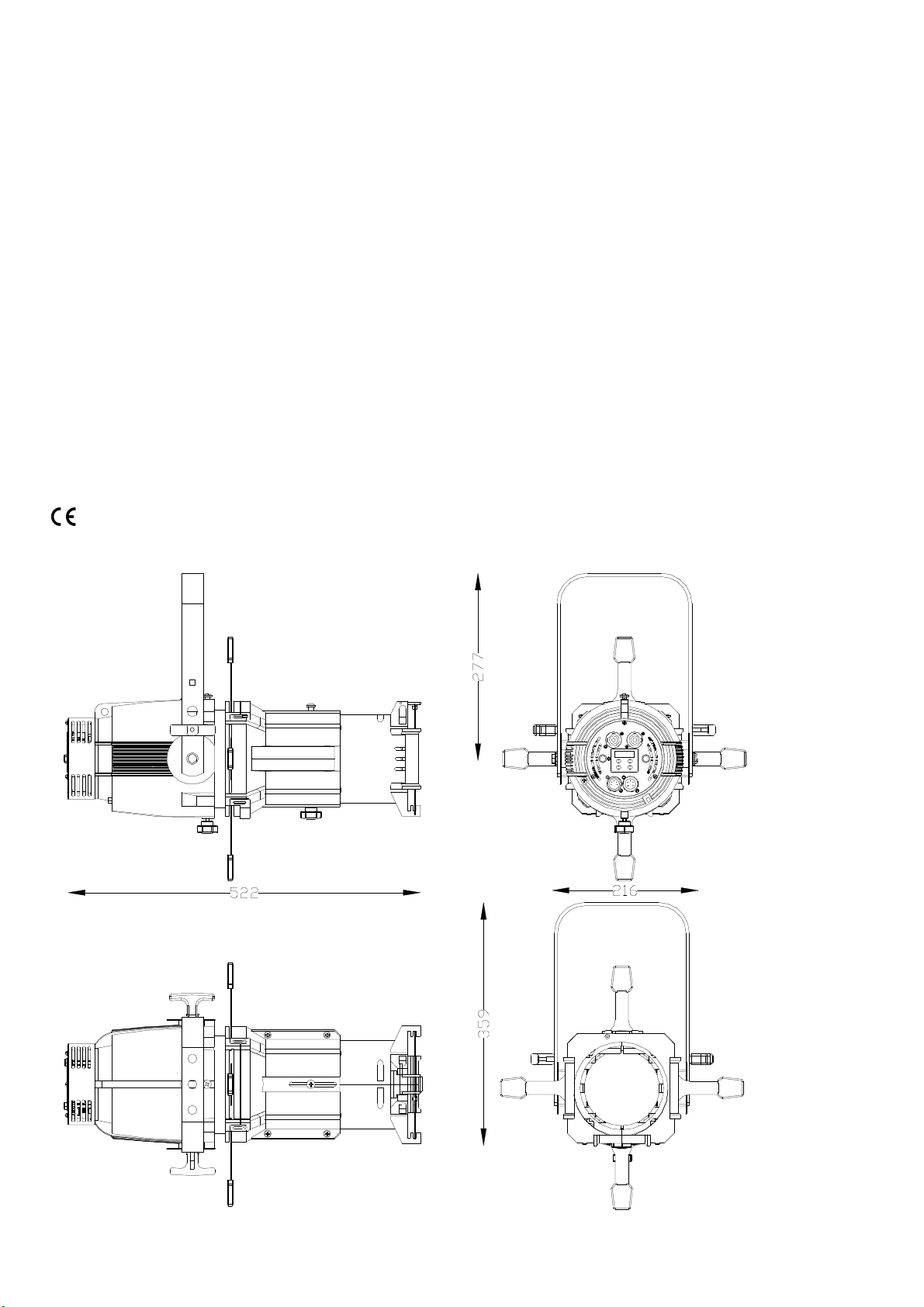

compliant Dimensions (see) picture)

Page 4 of 8
Lites Profile installation
Lites Profile is delivered with a robust yoke which hosts 3 x 12 mm mounting holes.
The use of an adequate G-clamp to sustain at least twice the weight of the Lites Profile (Lites Profile weighs
7,5 kg) and/or M10 screw is mandatory. The use of safety chain(s) to sustain twice the weight of the Lites
Profile is also mandatory, the safety chain adds more protections to users and third-parties. Eye-lid for the
safety chain is provided on the Lites Profile. (see Fig)
Connection to mains
WARNING ! Installation(s) must be accomplished, handled and carried out by qualified personnel
only and must comply with all norms in force in the installation's country
Lites Profile is supplied with a free Blue Neutrik PowerCon plug that must be wired using a 3x1.5mm² lead
which additional specifications include:
‒ Operating Voltage: 300/500V
‒ Test Voltage: 2KV
‒ Operating Temperature: -10°C / +90°C
Connect blue wire to N terminal, brown wire to L terminal and Yellow/Green wire to earth terminal. Ensure
safety circuit breaker use at all times. Daisy chain of up to 10 units when connected to 230VAC. Daisy chain of
up to 5 units when connected to 110VAC. Maximum daisy chain length: 20m.
WARNING:NEVER CONNECT LITES PROFILE ENGINE TO ANGLE PHASE DIMMER PACK NOR
TO NON- DIM MODE
POWER
IN
POWER
OUT

Page 5 of 8
Signal control connection
Lites Profile can be operated via either DMX512A and or RDM ready Protocols. For Daisy chain DMX line use a-
2 lead wire plus shield.
Red led on when DMX nput is available. DMX off line when led is off
RDM – Remote Device Management
RDM Controller allows for remote standard operations
RDM default options include:
Discovery mode: RDM is active when controller incepts this mode, the device reports itself by giving a flash of
light (Controller sets the device in a listing to read: settings, DMX address, personality settings, i.e. DMX mode
including all DMX supra mentioned)
ON/OFF ” dentify”: This mode is to identify the manufacturer’s device (Lites srl) by giving a flash of light of
the LED
Model information (HPLED-BUCK)
Software version information (HPLED-BUCK v.x.xx)
Mode to reveal temperatures of the LED and of the driver
Mode to reveal hour-meters of the LED and of the device
Focus
By flipping knob 5 you can adjust the lens
that adjusts the focus of the projector.
DMX XLR 5 Pin As sigment
pin Description
1 GND
2 DMX-
3 DMX+
4 Not connected
5 Not connected
5

Page 6 of 8
Shutter blade
With the 4 shutter blades, 1,2,3,4 you can shape the
projected image.

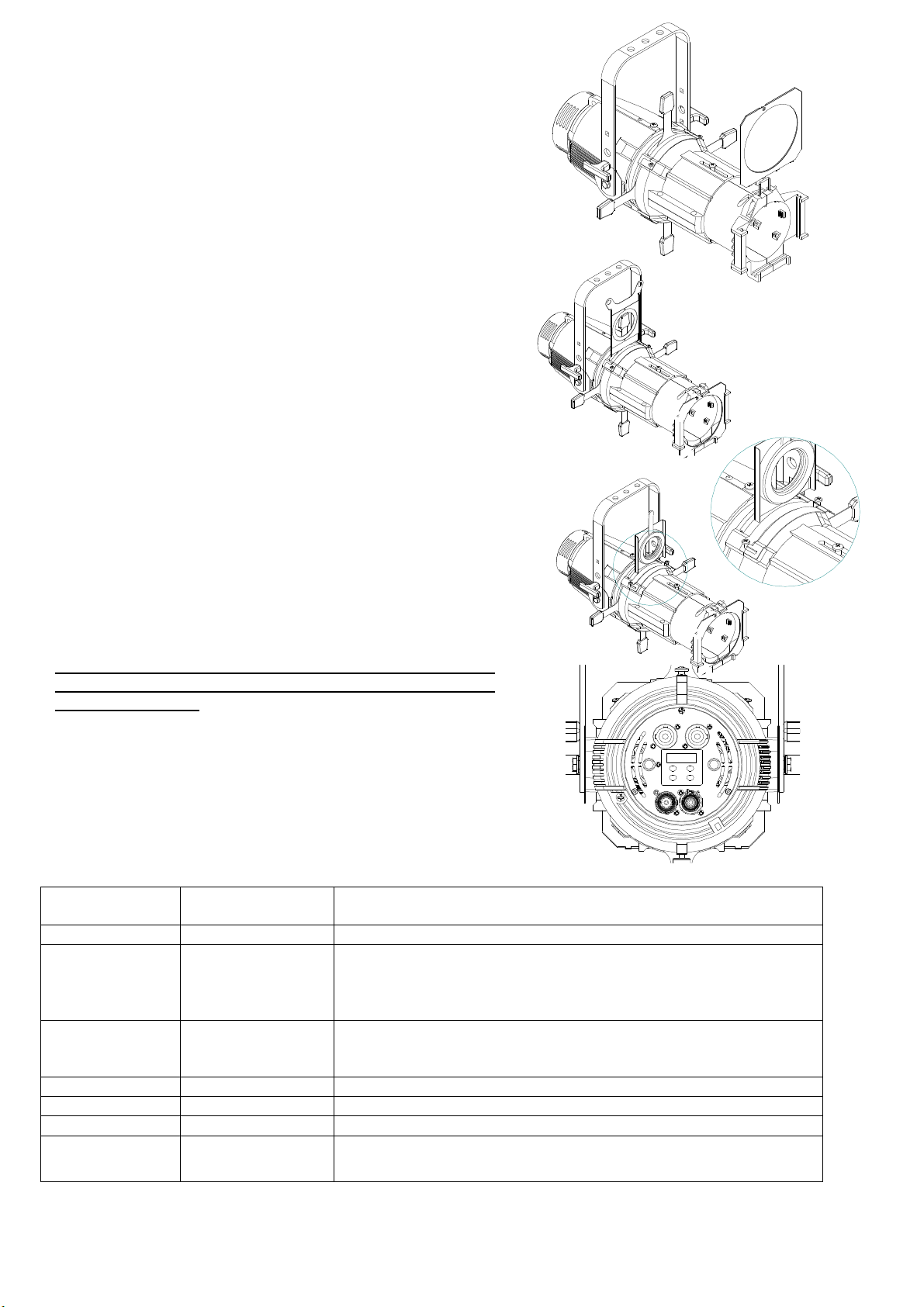

Installations of the accessories
Gel frame
Lites Profile delvered with a standard 160x160mm colour
frame. The LED source used on Lites Profile allows the use of
colour filters that cannot be used with high wattage tungstene
lamps which would impair colour filters. Ensure that
accessories when installed on the Lites Profile are securely
fitted in the gates and that are triggered and secured by the
spring-lock provided. (see figure)
Gobo holder
f a projector is an image or a gobo, a gobo holder (not
included) is available for standard gobos 'size B' (Ø 86 mm, Ø
66 mm). The screwdriver must be housed in the seat (see
fig.), Making sure it is well inserted and can not escape from
the seat by gravity .
Iris diaphragm
f you need to adjust the diameter of the projected image, an
iris diaphragm (not included) is available to be inserted in the
seat. Unscrew the two M4 screws and move the bulkhead
(see fig.). Be careful that it is well inserted and that it can not
escape from the seat by gravity.
Power Lites Profile ON
WARNING ! Before powering Lites Profile ensure that all
installation(s) procedure(s) have(s) been properly set
and accomplished
When Lites Profile is powered the setup display will show the
software release version. The UP, DOWN, ENTER and ESC
buttons will allow the operations of Lites Profile menu. UP and
DOWN buttons allow to browse through menu options, the
ENTER button to confirm selection. The ESC button is to return
to the previous menu or to quit previous setting(s).
Menu items
Displayed
Message
Allowed or
displayed values Function
Addr
001..510
Set Up DMX Address
Mode
1
ch
2 ch
3ch
4ch
5ch
DMX Operating mode (see next page)
Man
0..255
Manual light output adjustment (this is possible even if no DMX is
present). Adjusted value will be stored on the internal permanent
memory
drUt
..°C
Shows driver operating temperature
LEdt
..°C
Show led operating temperature
PUM
0..100%
Shows current led power (0-100%)
SMOO
FAST
MED
SLOW
DMX data Speed adjustment
A
DETTAGLIO A
1
4
2
3

Page 7 of 8
GAMM
L nE
qUAd
Dimmer profile selection:
- LinE for linear dimming regulation
- qUAd for tungsten lamp emulation
booS
Off
on
Boost selection:
off = maximum led power at 90%
on = maximum led power at 100%
PoS
AA
VV
Display orientation selection:
AA = normal
VV = inverted
StbY
Off
on
Standby display activity:
off = display always switched on
on = display switched off after few seconds of buttons inactivity
(only the right side dot will be lighted to indicate DMX availability)
dEF Off
on ON Will restore the default factory values
TiML ..h .. Shows LED life
TiMU ..h .. Shows HPLed life
SoFt Shows Software version
DMX Operating Modes (Mode)
Lites Profile provides different DMX operating modes ensuring the ideal use of the DMX universe
Shutter/strobo, 8/16 bit dimmer, fan speed and LED frequence are adustable
1ch mode
Channel Function DMX Values
1 dimmer 0..255 Light output: 0=Off, 255=Maximum Power
2ch mode
Channel Function DMX Values
1 shutter 0-9 off
10..255 Strobe effect from slow to fast
2 dimmer 0..255 Light output: 0=Off, 255=Maximum Power
3ch mode
Channel Function DMX Values
1 shutter 0-9 off
10..255 Strobe effect from slow to fast speed
2 dimmer 0..255 Light output: 0=Off, 255=Maximum Power
3 Fan speed 0..24 Fan at slowest speed
24..255 Fan speed from slow to fast
4ch mode
Channel Function DMX Values
1 shutter 0..9 off
10..255 Strobe effect from slow to fast speed
2 dimmer 0..255 Light output: 0=Off, 255=Maximum Power
3 Fan speed 0..24 Fan at slowest speed
24..255 Fan speed from slow to fast
4 Frequency
Modulation
0..24 PWM Frequency 1KHz
25..49 PWM Frequency 2KHz
50..74 PWM Frequency 3KHz
75..99 PWM Frequency 4KHz
100..124 PWM Frequency 5KHz
125..149 PWM Frequency 6KHz
150..174 PWM Frequency 7KHz
175..199 PWM Frequency 8KHz
200..224 PWM Frequency 9KHz
225..255 PWM Frequency 10KHz

Page 8 of 8
5ch mode
Channel Function DMX Values
1 shutter 0..9 off
10..255 Strobe effect from slow to fast speed
2 Dimmer Coarse 0..255 Light output: 0=Off, 255=Maximum Power –
Coarse
3 Dimmer Fine 0..255 Light output: 0=Off, 255=Maximum Power - Fine
4 Fan speed 0..24 Fan at slowest speed
24..255 Fan speed from slow to fast
5 Frequency
Modulation
0..24 PWM Frequency 1KHz
25..49 PWM Frequency 2KHz
50..74 PWM Frequency 3KHz
75..99 PWM Frequency 4KHz
100..124 PWM Frequency 5KHz
125..149 PWM Frequency 6KHz
150..174 PWM Frequency 7KHz
175..199 PWM Frequency 8KHz
200..224 PWM Frequency 9KHz
225..255 PWM Frequency 10KHz
Error messages
n case of malfunction, the following messages can be shown:
− HP Fan Error: means problems on 80x80x10 fan
− Temperature Error: LED sensor might be defective and or temperature has trespass threshold limit
Should any of the above given messages occur, the LED will automatically switch off. Refrain and halt the use
of the Lites Profile and promptly contact any authorized service centre.
Periodical maintenance
To ensure the correct Lites Profile operation, we suggest the following periodical maintenance operations:
− Remove dust or any kind of other dirt from the fans and loop-holes, this operation ensures the correct
air flow
− Remove dust from lenses using a clean cloth. This will ensure the maximum light efficiency
− Replace damaged protection screen and lenses when necessary
Do not touch nor clean the LED nor the yellow area around it with solvent
Device disposal information
At the end of its life, Lites Profile must be disposed to an appropriate electrical and
electronic equipment waste collection centre. Eco-friendly disposal, helps to avoid
possible negative impact on the environment and human health and promotes the
reuse and/or recycling of the materials making up the product. llegal disposal involves
administrative sanctions provided by laws enacted.
Manufacture declines any sort of personal/corporate responsibility/liability for damages caused by the
inadequate/misuse of the product as well as if the product has been handled by unqualified personnel. Not
complying with security norms/periodical maintenance as expressed in the owner's/service manual will also
totally free personal/corporate responsibility/liability.
Text, wordings, drawings, specifications, modifications and other changes of this manual
may apply anytime without notice. The specifications are not binding.
Lites Profile White 16/06/2017 rev.00
