LIVA EAS-501 User manual

Thank you for purchasing LIVA Air Sterilizer
•After reading, please keep the manual in a convenient location for future reference.
•Please read the instructions carefully before using this product as below.
•The product warranty is included in the A/S manual.
User's Manual
Air Sterilizer
Type：EAS-501

* This manual may be modified according to the company's regulations.
Important safety instructions
Check before the use of the new product
components
The size of the product
Location of the main parts
Touch button list
Operation
Checking and replacing the filter system
Specifications
After-sale Service Regulation
Checklist before reporting problems
Product Warranty
04
07
07
08
09
10
11
13
15
17
18
20
Contents

When using the air sterilizer, basic safety precautions should be followed,
which are given in two forms-WARNING and CAUTION.
WARNING
Failure to follow the instructions may cause serious injury and even death.
CAUTION
Failure to follow the instructions may lead ro personnel injury or property
loss.
Important Safety Instructions
Please read safety instructions carefully to prevent any potential acccident or
misuse of the product.
Installation
WARNING
-Do not extend the power cord without authorization.
It may cause electric shock, fire or product malfunction.
-Do not pose the product to any humidity or water.
Since the product is not waterproof, this may result in electric shock or fire.
-Do not put in places exposed to direct sunlight or heat sources.
(Doing so could cause warping or fire)
-Do not place the product near flammable materials, gas leak, industrial oi
ls in case of malfunction or fire.
4

Installation
CAUTION
-Do not place the product on an unstable or vibrating surface.
It may cause abnormal vibration, noise or inury.
-The power plug is the disconnecting device. In case of emergency,
the power plug must be readily accessible.
-Please reserve enough space for the product from other obstacles in
the indoor room. Otherwise, the cleaning capability may be reduced.
-Please hang curtains to ensure that the air inlet and outlet will not be
easily blocked.
-Do not install the product on vehicles (automobile/ship,etc.).
Doing so could cause malfunction.
Power
WARNING
-Do not use the cord if it is damaged.
If the cord is damaged, contact your store of purchase or Cleanbio authorized
service center. The power plug should be inserted fully into the power outlet. An
unstable connection may cause fire.
-Ensure the power cord are not modified, severely bent, twisted or pulled.
Doing so may result in electric shock or fire.
-Do not hang the cord on metal parts or place heavy objects on it.
Doing so may result in electric shock or fire.
5

Operation
WARNING
-If water has gone into the interior of the product, please turn off the
power button. Remove all the cables and then contact the customer
service center.
Failure to do so may result in electric shock or fire.
-Do not clean the product with brush, scrubber or cloth that is either
made of metal or have a rough surface.
Failure to do so may damage the insulation parts and cause electric shock
or fire.
-If there are strange sounds, uncomfortable smells or smokes coming
from the product, please remove the power plug immediately and
contact the service center.
It may cause fire.
-Do not use or place combustible materials (ether, benzene, alcohol,
drugs, LP gas, combustible spray, insecticides, aromatics, cosmetics,
etc.), flammable substances (candles, lamps,etc.)
Doing so could lead to explosion or fire.
-Do not modify the product. Also, no one other than an authorized
repairman should take apart or repair the product.
Doing so could lead to electric shock, fire or injury.
-Do not allow the pets or animals to nibble on the power cord.
Doing so may lead to electric shock or injury.
-Do not lean on or bump into the product in case of falling down.
-Never touch the power cord or the product with wet hands.
6

Components
Air Sterilizer Users' Manual
* Different types of the products may vary in the appearance and components.
Check before use
Three stages of filtration
Hexagonal wrench
Activated carbon filter
HEPA filter (H13)
Medium filter
7

The size of the product
8
340mm 360mm
1790mm

9
Touch Button
(* p.10 reference)
Three outlets
(located on the front, left, right side)
Filter system
(Three filters)
Travelling Wheel
(convenient to move. Fitted with a stopper)
Structure
Location of the main parts

Touch button list
Power
You can turn the power on/off.
(ON/OFF)
Wind force
You can adjust the air volume
Check fan
The signal of the fan will light up
when abnormal conditions occur in
the fan.
Caution and Notification (Before Service)
Check UV-A LED
The signal of the UV will light up
when the UV-A led cannot work
normally.
Check filter
The signal of the filter will light
up when it has to be replaced
due to the limited lifespan.
10

1 stage 2 stage 3 stage 4 stage
Blue Green Yellow Claret
Power on/off
•When the power button is pressed for 3
seconds, the air sterilizer will be turned on,
accompanied with a sound of “tirling”.
•When the air sterilizer is working, it can
be turned off by touching the power
button for 3 seconds.
Four-stage of wind force
•Select the indoor air volume by touching the
wind button.
•< 1 stage→ 2 stage → 3 stage → 4stage >
Rpeated in sequence.
Operation
When the the LIVA logo located on the front panel lights up, it shows that the
product is connected to the power supply.
11

Fan checking signal
The warning light informs the existence of
abnormal conditions in the fan.
•Pleaase call A/S if you have any problem.
UV LED checking signal
The warning light shows that the UV-A led is
operating abnormally.
•Please call A/S if you have any problem.
Filter replacement signal
The illuminated signal indicates that the filter
system has to be replaced (medium filter,
activated carbon filter,HEPA filter).
•If the indicator lights up when the product is
working, check the status of the filter
system and substitute with a new set.
•Touch the filter icon for about 10 seconds
to turn off the indicator and reset after the
replacement of the fliter system.
•The prodct works in vain in the event that the
filter system has not been replaced with the
signal illuminated or even working at the
absence of the filter system.
•Do not expose the filter system to water or
clean with water.
•The repalcement of the filter system is
charged even in the free warranty period.
12

Checking and replacing the filter system
A Hexagonal wrench is
required to open the top
lock.
The screw will be
loosened when turned
with a hex wrench.
1 2
1) How to open the door of the air sterilizer
13

< The door will be open when
the screws have been removed >

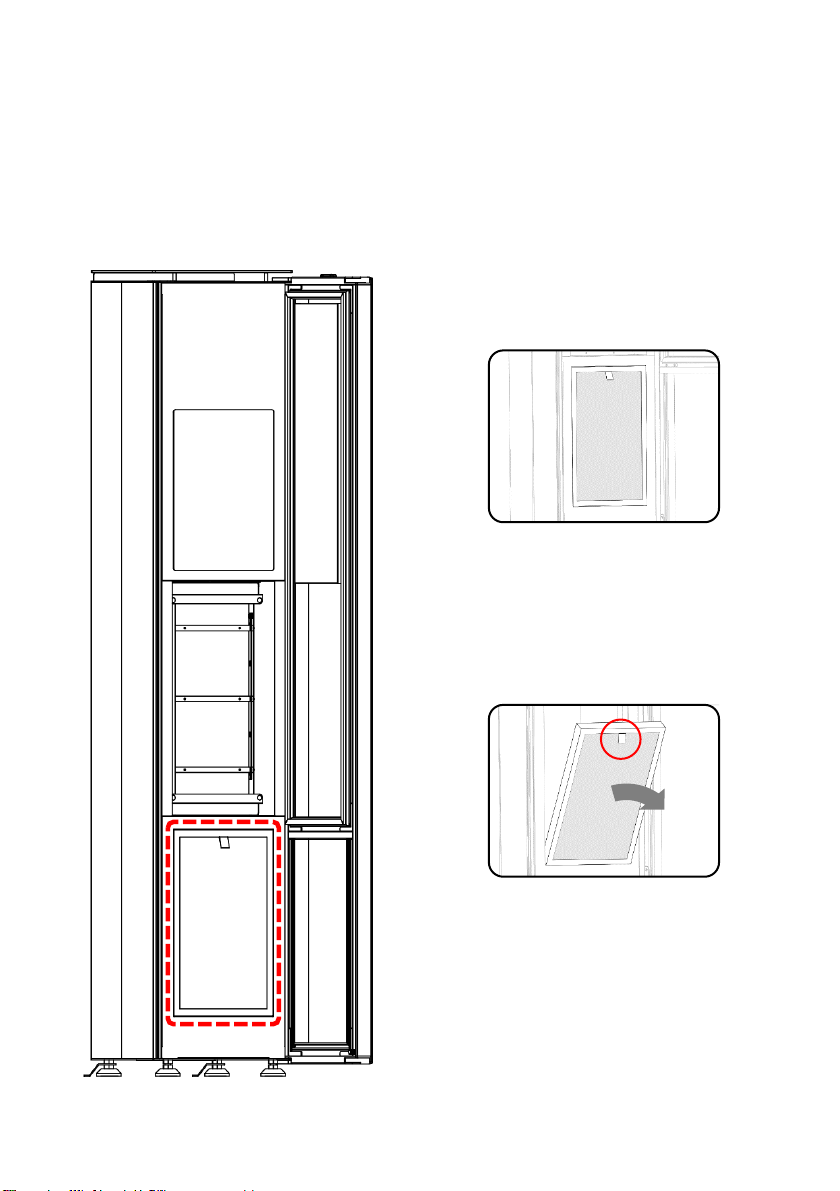

2) How to replace the filter system?
After checking and replacing,
please assemble in reverse order.
Check the status of the filter
system
Take off the filter system by
pulling the handle marked in
red circle.
1
2
14

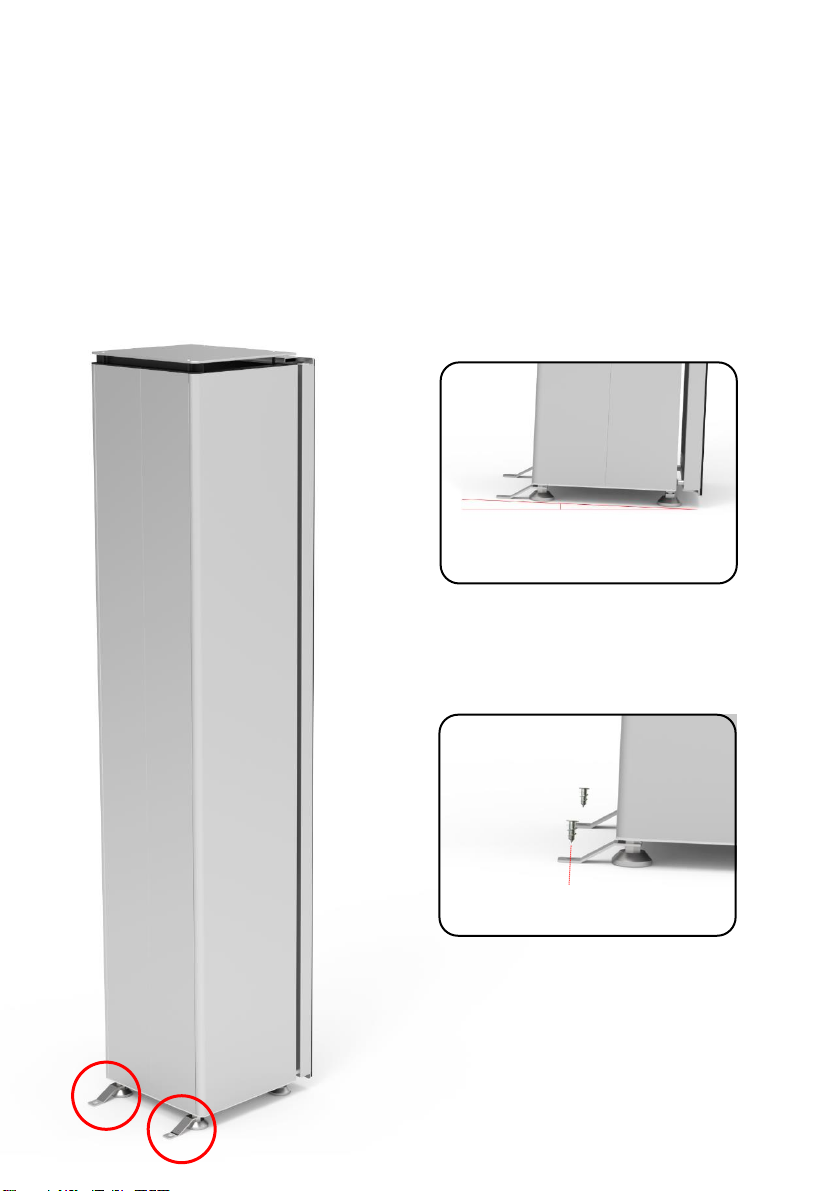

Fixing of Air Sterilizer on the Floor
When LIVA air sterilizer have to be installed & fixed on sloping floor or areas
with risk of electric conduction , kindly refer to following steps to fix the
machine:
Fix the air on sloping floor.
Fix the expansion bolts on the floor,
then fix the air sterilizer on it.
1
2
15

Specifications
Product Name EAS-501
Size 340 X 360 X 1790mm
Weight 67kg
Capacity about 165.3㎡
Voltage AC100V - 240V, 50/60Hz , 70W
Material Aluminum, Tempered glass
Power button One-touch
Notification
Power : The LED light is on when connected
Operation: Four-signal stands for different scale
of wind force
Inspection : Fault indicators (Fan/UV/Filter)
Wheel The travelling wheel is equipped with a stopper,
which can be fixed after installation.
Air outlets Three ways to release the fresh air
Purification
Deodorization
Medium filter & Activated carbon filter
& HEPA filter(H13)
Activated carbon filter & Ultraviolet
& Photocatalytic filter
Sterilization UV-A LED / Titanium dioxide filter
16

After-sale Service Regulation
When abnormal conditions occur, please check the following items
first before calling the customer service center.
Thank you for purchasing LIVAAir Sterilizer.
The warranty covers the replacement or maintainence of the parts
(except the filters) for one year from the date of purchase.
Paid service (Customers are responsible for the cost)
•Beverages, toys or foreign materials dropped into the product throght
he air intake or outlet.
•Damage caused during the replacement of the consummable parts.
•The damage caused by customers' discretionally disassemble and
modify the product.
•Damage or deformation brought to the appearance due to customers'
carelessness.
•Strike caused by falling down or other outside forces.
•Damage caused by using improper voltage.
•Flaws caused by Uers' negligence of precautions.
•Natural disasters (fire, salt damage,flood, earthquake, typhoon,
power outage, lightning and so forth)
•Failure caused by abnormal power or defective access equipment.
•Damage caused by a substandard power outlet or poor connection
device.
•Damage caused by the external forces other than the product itself.
•Failures brought by Users' other mistakes.
•The replacement or cleaning of the filters, and the extra service of
sanitation are charged even during the period of free warranty.
17

Symptom Cause Solution
The product
does not work
Have you plugged in yet? Plug it into the outlet correctly. If it still does not work, try a
different power plug.
Are all the LED signals off?
Check whether the LIVA logo
is illuminated (If it is lit, the prod
uct is well connected to the pow
er supply).
Touch the power button for
3 seconds to tun on.
Is there a power failure? Use the product when the powe
r is normally supplied.
The reducing of
the air volume
released Is the filter system dusty? Replace the filter system.
The Purification
performance is
not well
Does the indoor air
severely polluted? Ventilate the room adequately
and then use the product.
Are pollutants
accumulated in the filter
system? Replace the filter system.
Does the product work in
an open room?
Do not place in well ventilated
areas (for instance, the door, wi
ndow,etc.); Avoid working in an
open environment.
Are there any obstacles
near the air outlets? Remove the obstacles.
Do you install the product i
n a corner? Move the product into another place.
Checklist before reporting problems
18

Symptom Cause Solution
Unpleasant sm
ell mixed in the
air released.
Do the new products
release unpleasant
smell?
The smell comes from the
activated carbon filter, which
will disappear in 1-2 weeks.
Do you place the produ
ct
in an environment full
of disgusting smell or
smoke?
The product can not function
well in an environment full of
smoke or smell.
Please turn on the product
after the room is well
ventilated.
Does the filter system g
ive out odors?
Please replace the filter
system. As the installation
environment is different,
the lifespan of the filter syste
ms also differ from each othe
r.
19

Consumer Dispute Resolution Standard Guide
Consumer loss type During the 1 year
free warranty period
After the 1 year free warr
anty period (4 years)
When important repairs are required within 10
days of purchase Exchange or refund
None
When important repairs are required within 1 mont
h
after purchase
Exchange
Losses incurred during transportation and
installation
of the product when purchasing the product
Exchange
The product that needs to be replaced undergoes
major repairs within 1 month. A malfunction occurs Purchase price refund
When the exchange is not possible Purchase price refund
When the same faulty road fails twice in a row Free repair
Paid repairsWhen the same faulty road fails 3 times in a row
Exchange or return
When the same faulty road fails 5 times in a row
In the event of a malfunction caused by the intention or negligence of the consumer
Consumer loss type Within the free warranty
period
Ater the term of free
warranty
When it cannot be repaired Product exchange after collection of paid maintenance
When it can be repaired Paid repairs
Product Warranty
Customers have the right to enjoy free service for one year from the date of purchase for
failures that occur during product use. This product can only provide free service during the
warranty period in Korea.
When entrusting repairs, you need to present this warranty with the date of purchase in order to
receive adequate service. Please keep it safe.
1. The warranty of this product is the content contained in the guarantee, and enjoy the warranty
discount.
2. The free warranty period is calculated from the date of purchase, please indicate the date of
purchase.
(If the purchase date has not been confirmed, the warranty period will start from
3 months from the year of self-production or the date of customs clearance.)
3. This guarantee is no longer valid.
Type EAS-501 Warranty period: 1 year
Purchasing the main parts
retention time: 4 years
Purchase date
20
