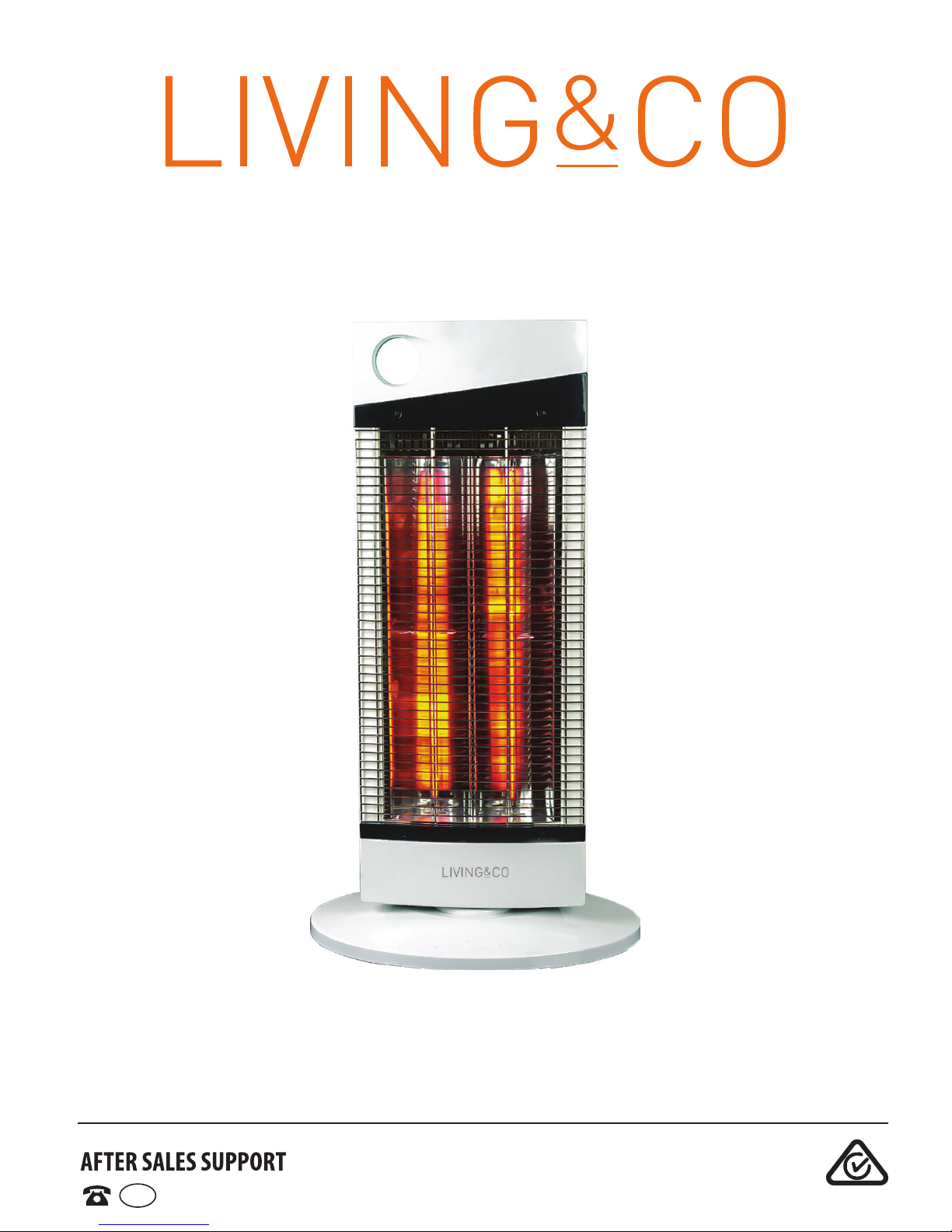

Living & Co QH-200 User manual

Radiant Heater
QH-200
Instruction Manual
0800 422 274
NZ N13275

2
0800 422 274
NZ
Contents
Important Safety Instructions 3
Product Overview 6
Getting Started 7
Instructions 8
Other Useful Information 10

3
0800 422 274
NZ
Important Safety Instructions
Read this manual thoroughly before first use, even if you are familiar with
this type of product. The safety precautions enclosed herein reduce the risk
of fire, electric shock and injury when correctly adhered to. Make sure you
understand all instructions and warnings. Keep the manual in a safe place
for future reference, along with any warranty information, your purchase
receipt and the original carton. If you sell or transfer ownership of this
product, pass on these instructions to the new owner.
Always follow basic safety precautions and accident prevention
measures when using an electrical appliance, including the following:
Electrical Safety and Cord Handling
• Voltage: Before plugging in the heater, make sure your outlet voltage and
frequency correspond to the voltage stated on the appliance rating label.
• Electrical circuit: To prevent overloading a circuit, do not plug the heater
into a circuit that already has other appliances working.
• No adaptor, no extension cord: Do not use the heater with a power board or
double adaptor as this may overheat and create a fire risk. Do not use it with
an extension cord because the cord may overheat and cause a risk of fire.
• WARNING: To reduce the risk of fire, electric shock or injury:
• Never touch the heater with wet or damp hands or feet.
• Do not use the heater if any part of it has become wet. Immediately call
a qualified service technician to inspect the heater and replace any part
of the electrical system that has been wet.
• Never spill liquid into the heater; never immerse the cord, plug or any
part of the appliance in water or any other liquid. Do not reach for an
appliance that has fallen into water. Switch off and unplug immediately.
• Damage: Do not operate the heater with a damaged cord or plug, or after the
heater malfunctions or has been dropped or damaged. If the supply cord is
damaged, it must be replaced by the manufacturer or an authorised service
agent in order to avoid a hazard. Contact our after sales support line to
arrange an examination and/or repair.
• Plug: It is normal for the plug to feel warm to the touch; however, a loose
fit between the AC outlet and plug may cause overheating and distortion of
the plug. Contact a qualified electrician to replace a loose or worn outlet.
• Protect the power cord:
• Do not twist or kink the cord or let it touch heated surfaces.
• Do not put any stress on the cord where it connects to the product.
• Arrange the cord away from any traffic area so no one will trip over it.
• Do not run the cord under carpeting; do not cover it with rugs, runners etc.
• Only operate the heater with the power cord fully unwound. Using it with
the cord coiled up could cause overheating and present a hazard.

4
0800 422 274
NZ
Important Safety Instructions (Cont.)
• After use: Always disconnect power when the heater is not in use and
before cleaning, servicing or moving the heater.
• Disconnect: To disconnect the heater, switch it off and remove the plug from
outlet. When disconnecting, grip the plug, do not pull on the cord.
• Safety switch: Unless your home is already fitted with a residual current
device (safety switch), we recommend installing an RCD with a rated residual
operating current not exceeding 30mA to provide additional safety protection
when using electrical appliances. See your electrician for professional advice.
Usage Conditions and Restrictions
• Indoor domestic use only: This appliance is intended for light domestic use
only. It is not suitable for heavy duty commercial or trade use. Do not use it
outdoors, on wet surfaces or near a swimming pool.
• Space heating only: Do not use this appliance for anything other than its
intended purpose, and only use it as described in this manual. Any other use
is not recommended and may cause fire, electric shock or injury.
• No clothes drying: Do not use this appliance as a drying rack for clothing.
Do not use the heater to dry or heat shoes, pipes or any other item.
• Accessories: The use of accessory attachments not recommended by the
appliance distributor may result in fire, electric shock or personal injury.
• Ventilation: Only use this heater in a well ventilated area. Keep a free space
of at least 1m at the front of the appliance and 50cm behind it.
• Keep openings clear: To prevent a possible fire or electrical hazard, do not
insert or allow objects to enter any ventilation or exhaust openings. Keep air-
flow grilles free of dust and hair build-up, especially if you have indoor pets.
Do not block air intakes or exhaust openings in any manner.
• WARNING: No external timer! Never operate the heater on a program
switch, separate timer switch or any other appliance for automatic operation,
as there is a risk of fire if the heater is covered or positioned incorrectly. In or-
der to avoid a hazard due to inadvertent resetting of the thermal cut-out, do
not connect it to a circuit that is regularly switched on and off by the utility.
• WARNING: Protect from water! This appliance is not intended for use in
bathrooms, laundry areas and similar indoor locations. Do not use it in the
immediate surroundings of a bath, shower or swimming pool. Never locate
the heater where it may fall into a bathtub or otherwise become immersed in
water.
• WARNING: No thermostat! This heater is not equipped with a device to
control the room temperature. Do not use this heater in small rooms when
they are occupied by persons not capable of leaving the room on their own,
unless constant supervision is provided.

5
0800 422 274
NZ
• Usage restriction: This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of expe-
rience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children: Supervise children to ensure they do not play with the heater. Close
supervision is necessary when any appliance is used by or near children.
• WARNING: Do not leave unattended during use.
• CAUTION: Hot! Accessible parts of this heater can become very hot
when in use. To avoid burns, do not let bare skin touch hot surfaces. Be
particularly careful when children and vulnerable persons are present.
Always let the heater cool down before touching it, even if it is unplugged
from the power supply.
• WARNING: To ensure personal safety, do NOT use this heater:
• In front of or immediately below a socket outlet.
• Close to a radiant heat source.
• Behind a door.
• While sleeping, or place it near a person who is sleeping.
• On long pile carpet or a flokati rug.
• Near a window where it may get splashed with rain.
• Near flammable materials or surfaces (such as furniture, curtains,
pillows, bedding, papers, clothes), or near open flames. Keep flammable
materials at least 1m away from the front, sides and rear of the heater.
• In an area where petrol, paint or other flammable liquids are stored, e.g. a
garage or workshop, as the heater has hot and arcing parts inside which may
spark.
• Service: This heater contains no user-serviceable parts inside. Do not attempt
to open and repair the heater yourself. Other components should only be
serviced by a qualified technician. All covers are intended to prevent direct
access to the heating elements and must be in place when the appliance is in
use.
• Malfunction: In case of malfunction, disconnect the plug immediately and
contact our after sales support line for advice.
• Storage: To avoid damaging the heater during storage or transport, keep
the heater in a dry place, free from excessive vibration.
• Improper use: Improper use or installation may result in the risk of fire,
electric shock and/or injury. We assume no liability for any eventual
damages caused by improper use or incorrect handling.
DANGER! Do not cover the heater in any manner as it may
overheat and become a fire risk.
Important Safety Instructions (Cont.)

6
0800 422 274
NZ
Product Overview
Parts of the Heater
1 Handle
2 Safety Grille
3 Quartz Heating Elements (2)
4 Base
5 Oscillation Switch
6 Heat Control Knob
Assembly Hardware (not shown)
2 Screws (for base assembly)
6
Front View
Top View
1
2
3
4
5

7
0800 422 274
NZ
Unpacking
• Unpack: This product has been packaged to protect it against
transportation damage. Unpack the appliance and keep the original
packaging carton and materials in a safe place. It will help prevent any
damage if the product needs to be transported in the future, and you can
use it to store the appliance when it is not in use.
• Installation hardware: Watch out for a some screws, which you will need
for assembling the base.
• Safe packaging disposal: Plastic wrapping can be a suffocation hazard
for babies and young children, so ensure all packaging materials are out
of their reach and disposed of safely. In the event that the carton is to be
disposed of, please recycle it where possible.
• Check power cord: Unwind the cord to its full length. Inspect the power
supply cord and plug, and all other parts of the appliance, for visual
damage. Do not use the appliance if anything appears to be damaged or
not working properly. In case of damage, contact our after sales support
centre using the details at the bottom of the page.
• Read instructions: Make sure you have read and understood all instructions
and warnings in this manual. Refer to the Product Overview, opposite, to
familiarise yourself with the product and identify all parts. Pay particular
attention to the safety instructions on the previous pages.
Assembly
The base of the heater comes detached and must be assembled prior to use.
WARNING! Do not connect the heater to the power supply until the base is
securely attached. Only operate the heater in an upright (standing) position.
• Carefully place the heater on a table or benchtop with the bottom part
overhanging so you can affix the base.
• Leading the cord through the centre hole,
push the base onto the bottom of the
heater’s main body, aligning the cut-outs
in the base with the three screws. Affix the
base to the heater body using the large
screws provided (Fig.1). Guide the cord
gently out of the base through the cut-
outs, then protect the cord using the cover
supplied (Fig.2).
• Turn the fan the correct way up and place
it on a level and dry surface for operation.
Getting Started
Fig. 1 Fig. 2

8
0800 422 274
NZ
Instructions
Using the Heater
Location
• Place the heater in an upright position on a firm, level, dry and heat-
resistant surface, taking into considering all relevant safety information on
the previous pages.
• Ensure that there is sufficient distance from the wall, fixtures and other ap-
pliances and at least 1m at the front of the heater to exclude the risk of fire.
Connection
• Insert the power plug of the heater into an appropriate power point and
switch on power to the outlet.
• Always use a separate socket that has no other high wattage appliances
connected at the same time – do not plug it into a power board or socket
adaptor; do not use an extension cord.
Switching On/Off and Power Level Selection
• To switch on the heater, turn the Heat Control Knob clockwise.
• Turn the knob to setting [ I ] to select 500W heat output.
• Turn the knob to setting [ II ] to select 1000W heat output.
• Turn the knob anticlockwise back to [ O ] to switch off the heater.
• If the heater is not going to be used for an extended period of time, please
unplug it from the power source.
Oscillation
The heater has an oscillation (swing) function which helps distribute the warm
air over a larger area. Always switch off the oscillation function before you
switch off the heater.
• Press the OSCILLATION switch on top of the heater to start oscillation.
• While the appliance is oscillating, press the OSCILLATION switch again to
stop oscillation when the appliance is in the desired position.
When turning your heater on for the first time it is normal for the
heater to emit a ‘new heater’ smell, which will quickly pass.
This is no cause for concern. Ensure good ventilation.

9
0800 422 274
NZ
Instructions (Cont.)
Moving the Heater
• If you want to relocate the heater, make sure you switch it off and unplug it
before doing so. Give it plenty of time to cool down before moving it. The
heater body is hot when in use.
• Lift up the heater by the handle, do not slide it across the floor, which may
damage the tip-over safety switch located at the bottom of the heater.
Tip-Over Safety
The heater has a tip-over safety switch, which will turn off the heater if it is
knocked over or if it is not in the upright position. It will start working again
as soon as the unit is placed upright. But take extreme care when standing
the heater upright as it will still be hot. Inspect it for damage, especially to the
heating elements and supply cord. Do not operate the heater if any damage is
visible.

10
0800 422 274
NZ
Other Useful Information
Troubleshooting
If your heater fails to operate, or you experience any other problem with the
appliance, contact our after sales line for advice or to arrange a service. But
before phoning for a service, please ensure that:
• Your heater is properly plugged in.
• The outlet is working and the circuit breaker or fuse are also working
properly.
Cleaning and Maintenance
The heater requires regular cleaning to ensure trouble-free operation.
• Before cleaning your heater, switch off the heater and allow it to cool.
Disconnect the electricity supply to the appliance.
• Use a vacuum cleaner to remove dust and fluff from around the grilles.
• Use a damp cloth (not wet!) to wipe the exterior of the heater to remove
dust and dirt. Allow some time for the heater to dry thoroughly before
reconnecting it to the power supply.
• Do not use detergents, abrasive cleaning powders or furniture polish.
• Do not immerse the cord, plug or heater in water or other liquid for
cleaning. Do not allow water to enter the heater.
• The safety grille must be removed
• To remove dust from behind the grille, unscrew the four screws on the
coloured panels and remove them and the safety grille. Carefully clean
the reflectors, taking care not to touch the quartz heating elements. Then
reassemble the parts, securing them with the four screws.
Storage
• If you are not going to use the heater for an extended period of time, we
recommend that you clean the heater and then protect it from dust.
• For long term storage, pack the heater in its original carton (or cover it with
some material) to protect it from dust.
• Store the heater in a cool, dry place, free from excessive vibration, and out
of children’s reach.
CAUTION!
Always switch off and disconnect the appliance from the power supply
before attempting any maintenance or cleaning the heater.

11
0800 422 274
NZ
Other Useful Information (Cont.)
Responsible Disposal
At the end of its working life, do not throw this appliance out with your
household rubbish. Electrical and electronic products contain substances
that can have a detrimental effect on the environment and human health
if disposed of inappropriately. Observe any local regulations regarding the
disposal of electrical consumer goods and dispose of it appropriately for
recycling. Contact your local authorities for advice on recycling facilities in
your area.
Compliance
This appliance has been fully tested and meets all requirements as set out by
standards AS/NZS 60335.1 and AS/NZS 60335.2.30.
CAUTION!
Do not attempt to open the heater and repair it yourself. Any repairs must
be carried out by a qualified technician.
Servicing
• If your heater requires servicing, please contact our after sales support
centre using the details at the bottom of the page.
• If the power cord is damaged and needs replacing, it must be replaced by
a service agent or equivalent qualified person in order to prevent a hazard.
Technical Specifications
Model No QH-200
Rated Power 1000W
Rated Voltage 220-240V ~50–60Hz
Dimensions (approx.) 700 (H) x 390 (L) x 260 (W) mm
Weight approx. 2.4kg

Warranty
We pride ourselves on producing a range
of quality home appliances that are both packed with features
and completely reliable. We are so confident in our products,
we back them up with a 1 year warranty.
Now you too can relax knowing that you are covered.
Customer Helpline NZ: 0800 422 274
This Product is covered by 1 year warranty when
accompanied by proof of purchase.
IM-V1.0
