Living Culture Onetangi User manual

MANUAL 4X
ONETANGI ALUMINUM PERGOLA
4

<2/20>
INSTALLATION NOTES
Before you start to install products ,please read below notes:
1.This is a general version manual .make sure that you review the design when placing
an order and read this manual several times before you start to assemble pergola ,
this installation steps can be referred to in this manual ,However ,other specific details
such as motor position ,drainage direction ect. should be accord to the drawing of the
order placed
2.Check the package list and confirm all items on the list ! Do not throw away any
package until the pergola is installed successfully
3.Minimum 3 people are required during the installation
4.It needs 2 people to lift the product parts from the package ,please put the product
very gentle ,it is better to cover a carpet or hard paper box on the flooring to protect it
from scratching
5.You should better to screw the pergola on a flat concrete floor or do pre-embedded
into the floor when its height up to 2800mm.
6.You should remove the film coated on the products entirely during the installation
because it is difficult to remove them after explosion under hot temperature.
7.Please do not DIY our product and take use of the other alternative accessories when
you change the original design ,which will void your warranty
8.We hold no responsibility for any damage caused due to human factor ,especially
incorrect assembly
9.During the installation process, if you encounter any uncertainties, please refer to the
installation instructions on the product page of the website.

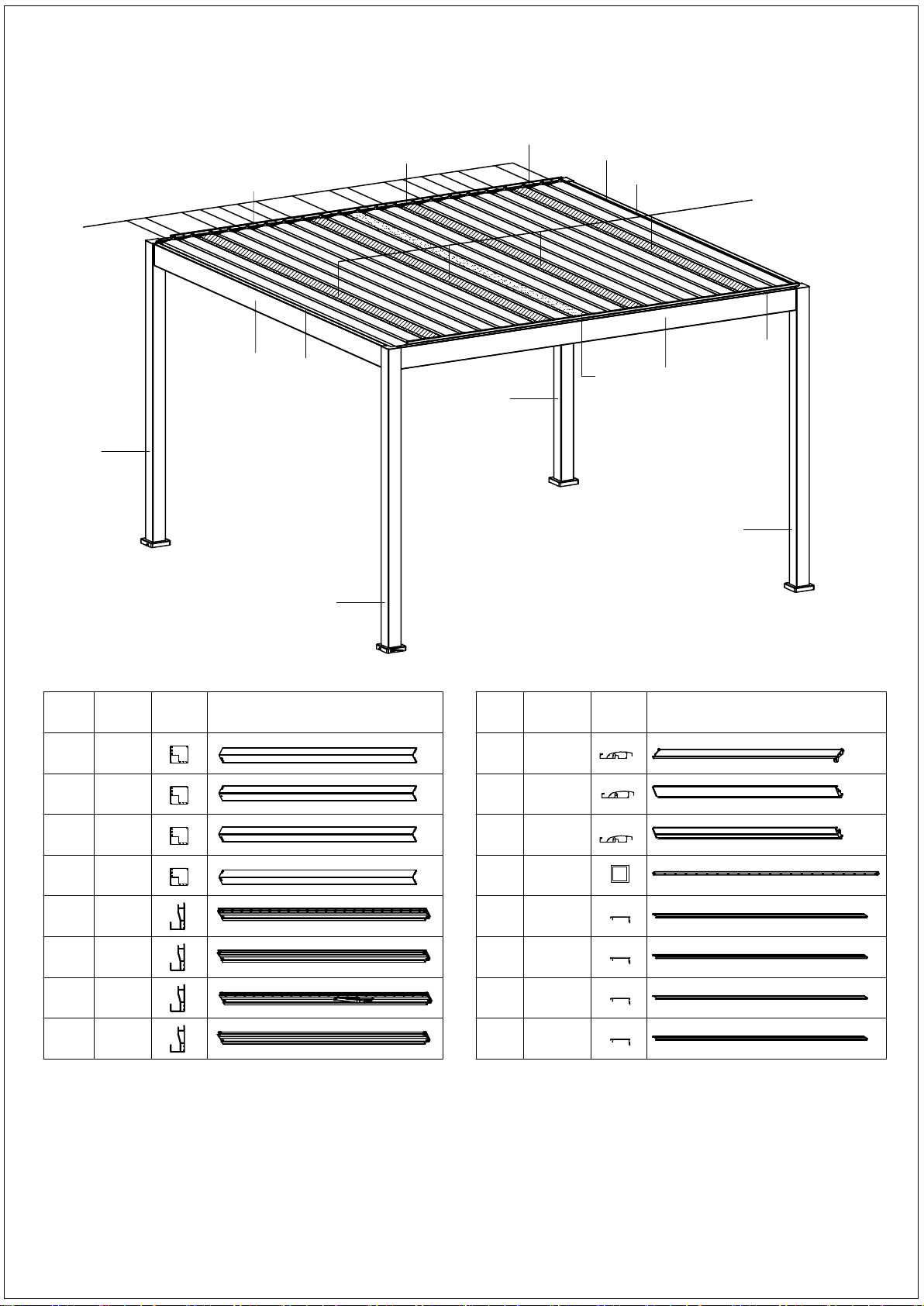

gutter
gutter
gutter
gutter
A-1
A-2
A-3
A-4
B-1
B-2
B-3
B-4
C-2
C-3
C-1
D-1
E-1
E-2
E-3
E-4
post
code name section
A-1
code name section
C-1
photo photo
post
A-2
post
A-3
post
A-4
B-1
B-2
B-3
B-4
driven
blade
led light
blade
blade
driven
rod
gutter
cover
C-3
C-2
D-1
E-1
E-2
E-3
E-4
gutter
cover
gutter
cover
gutter
cover
<3/20>

Note:
The silicone sealant is not allowed to
ship,we don't offer this item. please
purchase it in local
wrench(5mm)
remote
control system
(single motor+led light )
18
19
blade pivot cover
4*14 cross tapping screw
∅8*M6*5 shoulder screw
20
M8 washer
M8*80 SUS hex expansion
bolt
post end cover
4.2*16 cross tapping screw
driven blade cover（RIGHT）
4.2*19 cross tapping screw
cross tapping screw (4*20)
Hex screw nut M5
SUS screw M5*16
decoration cover
1
2
3
4
5
6
7
8
9
code name photo
10
11
12
13
base plate
15
16
17
gutter corner connector
14
SUS hex screw (M8*12)
A4 post decoration cover

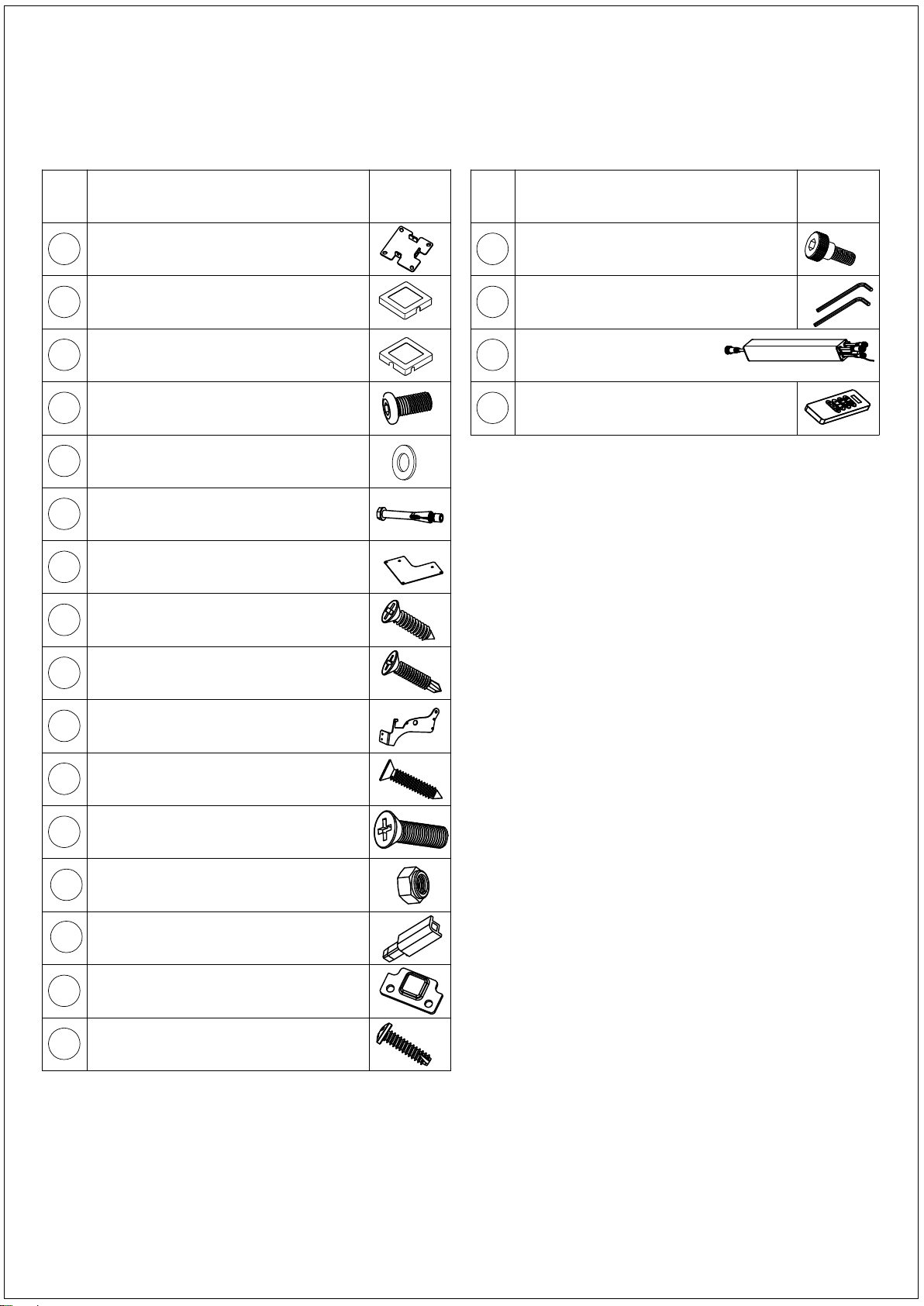

HARDWARE
code name photo
<4/20>

TOOLS
hand drill cross bar hammer marker tape
16mm wrench
electric spirit
level
security hat
ladderX3
INSTALLATION
STEP 1:Assemble the post with base plate
A-1
A-2
A-3
A-4
rubber hammer
1.1 put the base plate docorative cover into the post before
you screw them .please note the decoration cover of wire
post is different .
2
3
electrical
drill
∅14mm
drill bar
2
2
1
4
5
1.2、Fasten the
base plate with
the posts after
you put the
decoration cover
in each post
1.3、Fasten it
<5/20>

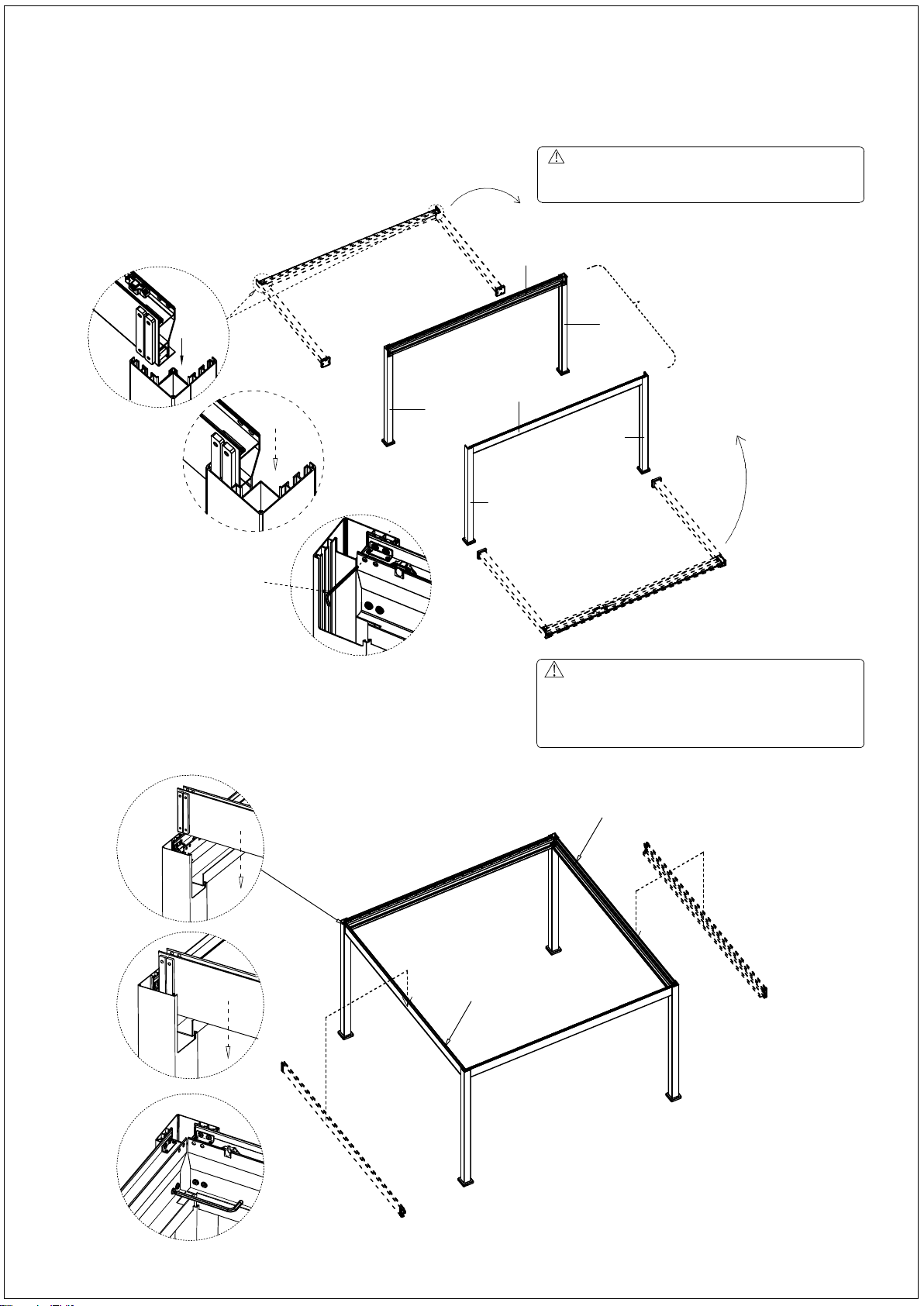

STEP 2：Assemble the pergola frame :assemble roller gutter with
posts first
2.1、Inset the
gutter into the
groove of post
2.2、Fasten the
screw from inside
at the connection
A-1
A-2
B-1
A-3
A-4
B-3
2.3、Assemble the pergola
frame on the floor and
make it stand
2.4、Assemble the remain gutter as same
B-4
B-2
Tip：
You should do the assemble on soft flooring
to protect product from scratch
Tips：
1.Please ensure the pergola frame is correct
before you assemble
2.It needs at least 2 people to make the post
stand
<6/20>

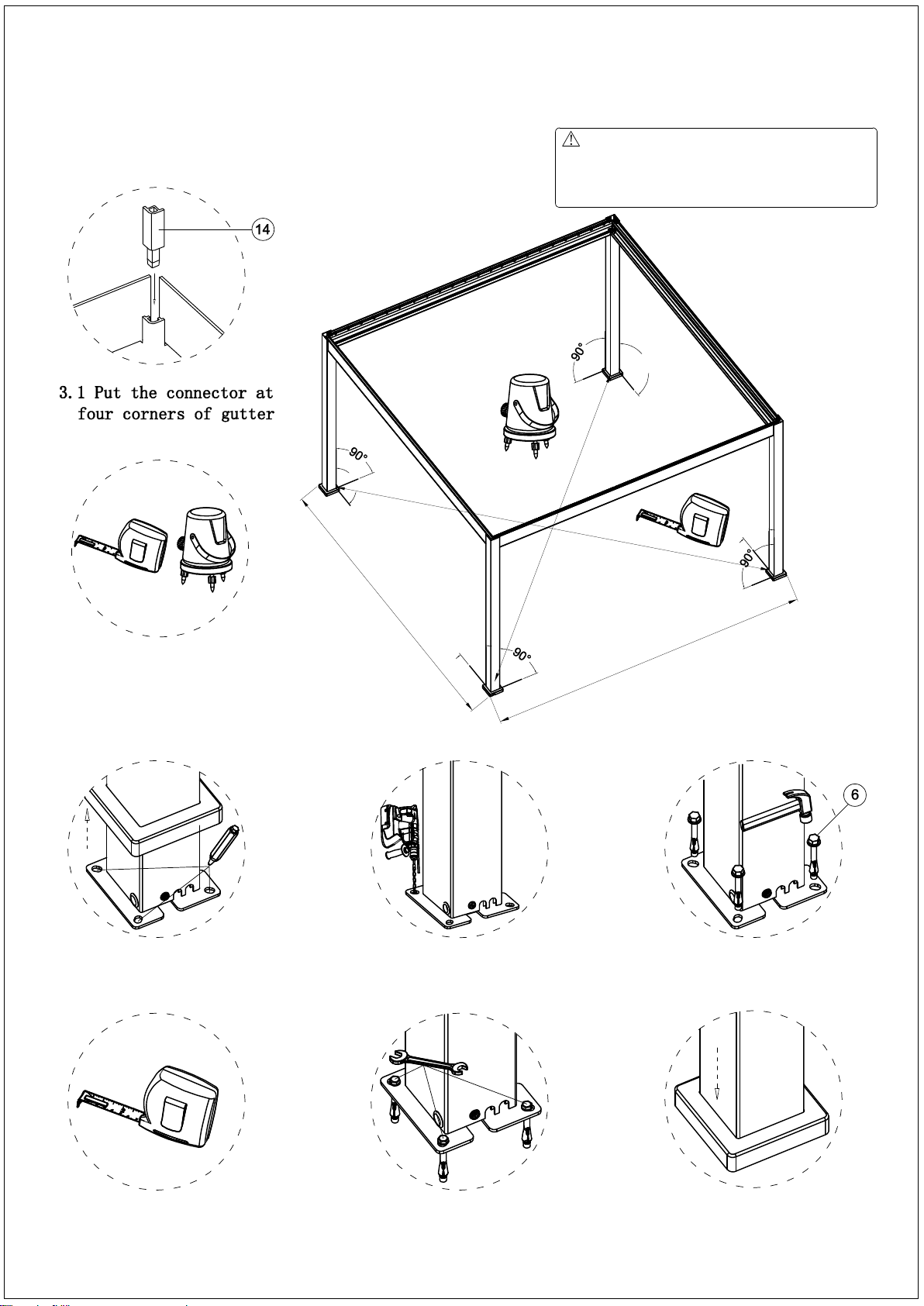

STEP 3:Adjust the pergola position and fix the posts on the floor
3.6 Double check the pergola
position because the frame
will move during installation
3.3 Mark the drill holes
on the ground
3.4 Drill bolt holes 3.5 Stuff the expanion
bolt into concrete
3.7 Fasten the base plate
on the floor
3.8 Use silicone to fix the
decoratio cover when
installation finished
3.2 Adjust the position
measure the diagonal
lines and ensure the
diagnal are equal.
Tips：
1.Ensure the post in correct position ,and stand
90 degree with floor.
2.Before you fasten the screws ,you should double
check the pergola position .
90°
90°
90°
90°
<7/20>

4.1 Take out the blade without driven cover from the package
4.2 screw the cover with blade as picture
4.3 Check the drawing and mark the position of led ligh blade and driven blade
C-1
STEP 4: Settle the blades
A视图
4.4 Confirm each blade position , then start to settle blades from the other side
4.4-1 Settle the blades in the grooves at both sides
Tip：
Settle the blades in correct position
<8/20>
led light
blade
led light
blade
led light
blade
led light
blade

4.4-2 When all blades
seetles ,then fasten
the covers
11
12
4.4-3 Connect the LED light
blade cable with electric cable
in gutter
motor
4.4-4 Fasten the
driven blade with
motor
13
12
STEP 5:Connect to the power
5.1
Before inset the
control system ,you
should connect the
voltage cable
5.2 Inset the control
system into the post A4
5.3 Connect to the cables
5.4 Connect the cable with
local power cable
motor cable
brown：live line（L）
blue：neutral line（N）
yellow：earth line（E）
19
C-3
Tip：
screw the motorwith driven
blade is essential part
Tips：
1.connect the cable as design
2.earth line is essential
3.RCCB is essential when you
install this product
<9/20>
C-1
motor cable

STEP 6: Install the driven rod and check the electric cables
Fasten the driven rod with
blades from inside to screw
6.2 learn to remote controller system
6.2-1 Press and hold this button
until the light next to it starts
to flash
6.2-2 Press and hold the stop
button on remote until led
light stop to flash
6.2-3
、
Check the remote function
Tip：
1、Two bays driven rods must be symmetrical
2、Driven rods should be outside ,or the bades
can not open
6.1 Install the driven rod
D-1
channel display
light switch
channel+
stop
adjust the light
channel-
close blade
oepn blade
<10/20>
17
20
type 1
type 2
channel 01：motor
the channel display show“01”
There are two types of remote , one is simple type
without any zip screen ,the other is type 2 , you
can remote the pergola and zip screen at one remote
.The remote was pre-seted type 1 . and press
channel to exchange to type 2 by yourself
channel 01：blalde switch
channel 02:the first zip screen
channel 03：the second zip screen
channel 04：the third zip screen
channel 05: the fourth zip screen
channel C1：blade switch
channel C2：all zip screen controlled together
channel C3：all devices controlled together

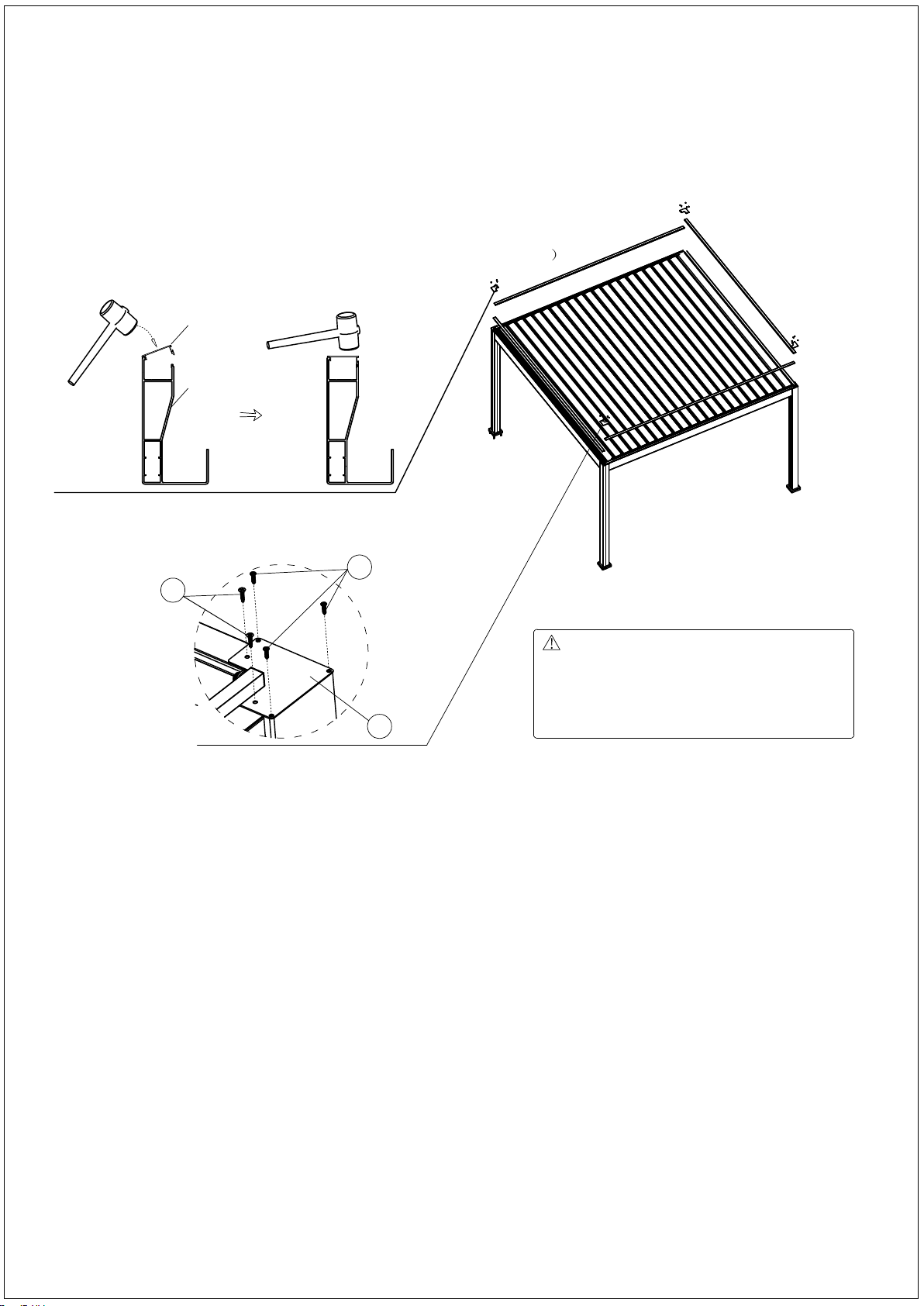

STEP 8:Install the gutter cover and post end cover
E-1/2/3/4
8.1 Use rubber hammer to knock the gutter cover into groove, note
width edge is inner side
7
8
9
8.2 Install the L shape cover at four corners
Tips：
1.Ensure the pergola function is well before
you install the cover
2.Settle all cable in the gutter groove and
knock the cover gentenly or broken the cables
to cause electric leakage
<11/20>
B-1/2/3/4
(Tip:It is easy to knock the cover when the louvers are open
）
STEP 7:If there is zip screen device on the pergola ,then do STEP 8 after
all cables connected

HOW TO USE TUYA APP
1. Prepare a public wifi for the pergola
2. Open the phone bluetooth and TUYA app
2. Search door window
(WIFI) in the catagory
3. input the wifi
password
1、Open tuya app
and click add device
Tip:
it needs 2.4GHz wifi
4. start to link
5、press and hole the
button until the blue
indicate light flash
6. click confirm
7, select quick flash 8、wait for link 9. sucess 10. select pergola
to control it
11. operation panel
<12/20>
STEP1 :Open tuya app

How to authorize account to family members
一、 TUYA APP
A
B
C
TIPS：
1the owner's phone (A) connect to pergola ，he can operate the pergola by his phone A，
2.the other family members also download TUYA app and singn in
When you connect to tuya app successfully ,you can share the account to your family members
share
1. Create a family group in the phone A
2. The other family members accept the invite on their Phones
1、creat a family
group
2、click my family 3、name the faily group 4、click into the
goup and link to
pergola as before
5、share to the other
family members
6、click into
family
group
7. join this family
goup
8. input the invite
code
9. confirm and
successly join
10. you can try to
operate the pergola on
the phone
<13/20>

WALL-MOUNTED MANUAL
Hardware list
expansion plug(M14*75)
wood screw (M10*100)
30 mm cap
21
22
23
17mm wrench
<14/20>

STEP 1:Install the wall-mounted gutter first
2.4 Stuff the expansion
plug into the holes
20
21
2.5 Stuff the cap
22
2.1 Take use of electric spirit
level to mark the gutter position 2.2 Mark the holes position through
the pre-drill holes on the gutter
2.3 drill ∅14 mm holes
on the wall
2.5 Use wrench to
screw the gutter on
the wall
Tip:
check the gutter position before
you fasten the screw
B-1
<15/20>

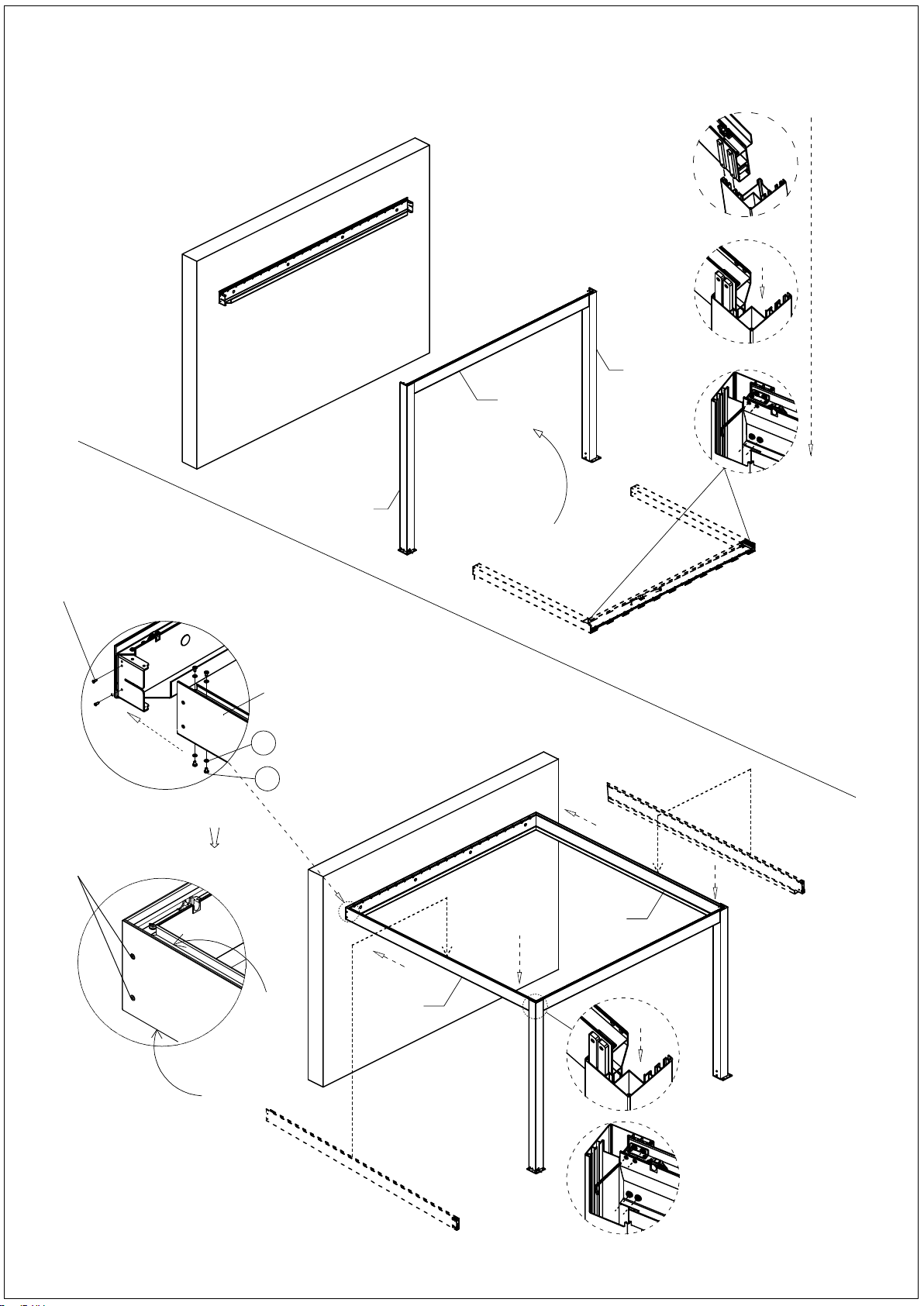

STEP 2 : Assemble the pergola frame
3.1、Assemble the frame on
the floor and make it stand
3.2 Fasten the gutter
with post
A-1
A-2
B-3
B-4
B-2
2.2-2 Loosen these two screws
2.2-3 Inset the gutter
into the junction
23
3
2.2-4 Fasten these two
screws again
2.2-5 Fasten the four
screw at up and bottom
<16/20>

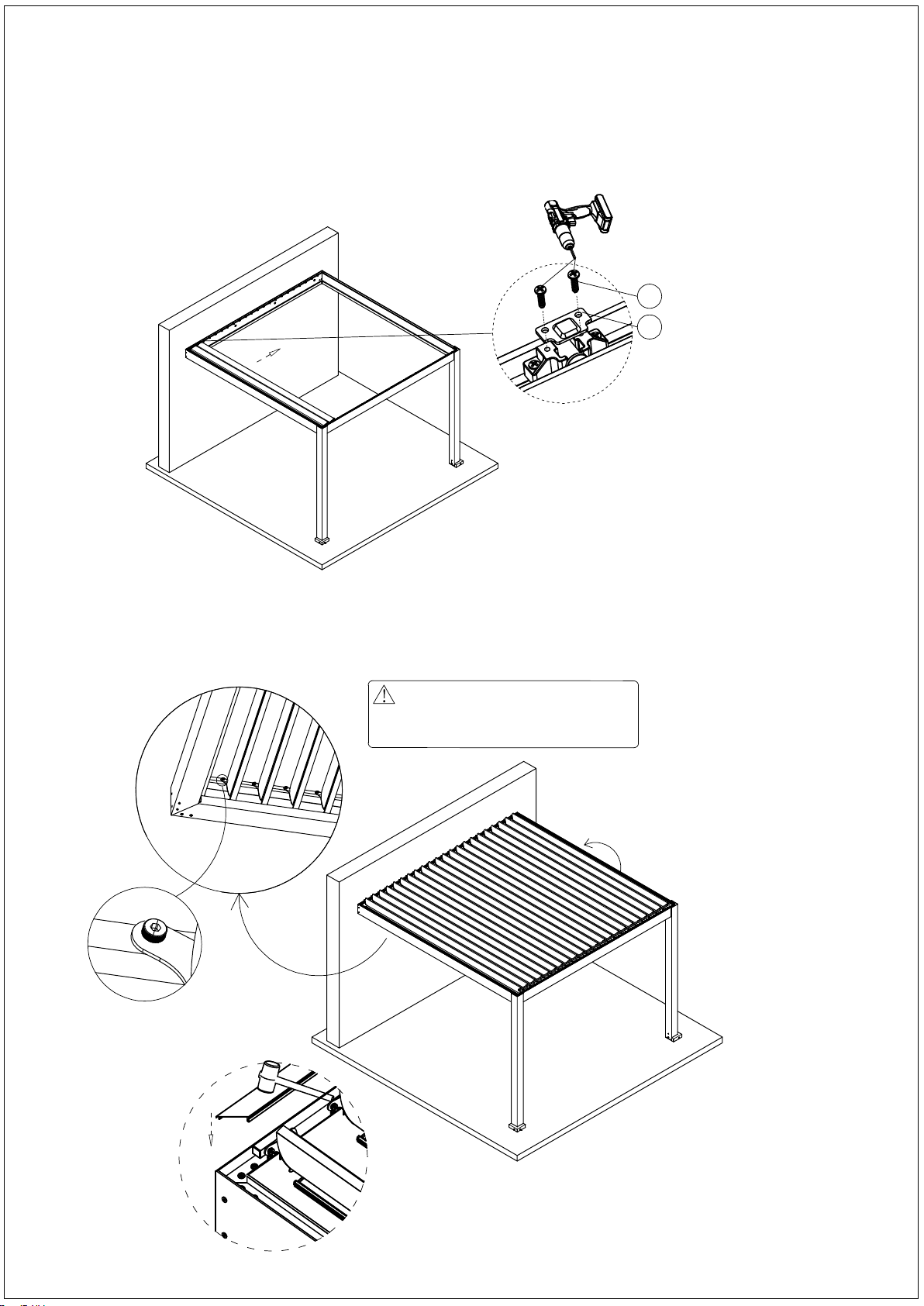

The remain installation as same as the previous steps
Tips：1.When you settle the blades ,you should fasten the blade
pivot covers when each 3 pcs of blades settled
2.When the blade vertical to wall ,you should install the again
wall side driven rod first. and input power to open the blades
to fix the wall mounted side driven rod
9
10
screw the blade pivot covers
each 3 pcs
2.1 open blades
2.2 Install
the driven
road when the
blade open
2.3 Install
the cover
through the
blade gap
<17/20>
Tip：
Attention:the power must be cut
down during the installation

malfunction solutions
motor and
led lights
don't work
can not open
the blades
water leak
at fan beam
position
remote
doesn't work
Trouble shooting
can not
link to APP
1.check the cables connect if correct
2.check if there is an avaliable voltage for pergola :
110V or 220V
3.check the remote if learn to match the control system
4.check the remote battery is work or not
5.check the control system has power output or not
1.check the motor is working or not
2.check the driven rod if installed successfully
3.check the driven blade connected the motor or not
1.check the connection if do silicone sealant dealing
1.press the learn button within 5
seconds when the motor input power
2.check the remote battery is avaliable
1.ensure you read the manual of tuya app link
2.you should remove the previous phone record then you
can connect again
<18/20>

Care and Maintenance
CARING FOR YOUR PERGOLA
Structure surface coated with the thermosetting powder coating must be
cleaned once a year to maintain their original appearance
Thermosetting powders are sensitive to :
1.Physical friction ,hard impact ,extrusion ,chemicals including alkaline
solvent and acidic solvent.
2.Natural elements such wind,rain ,snow ,and prolonged sunlight .The
exterior of the pergola may deteriorate over time and this will not be
covered under the warranty.
CLEANING YOUR PERGOLA
1.Do not use a scouring pad ,cream cleaner ,abrasive sponge ,iron wire
ball ,or colored cloths.
2.Recommended : soft sponge , soft sand-free cloth ,cotton wool ,
cotton ,or-non-woven paper (white only )
3.Do not use corrosive products such as acidic or alkaline cleaners , It
is recommended to wash with neatral PH detergent water and then wipw it
with a cloth to keep it try.
4.When cleaning with high -pressure equipment, the same precautions must
be taken when cleaning the car body :distance ,nozzle type ,water
temperature ,and pressure should all be considered.
USE REMINDER
After the installation is complete ,check that the screw are tight ,
Remember to check the screws at least once per year
1.Regularly check the sealing consitions to ensure the seals or other
companents don not leak.
2.Regularly cean up debris sich as fallen leaves on the pergola to prevent
blockage of the drain.
3.Restrictions on use :Watertigh systes ,although effective ,are not
designed to ensure complete water proofing ,Heavy rain and strong winds
may damage the pergola ,Any damage incurred will not be covered under
the warranty.
<19/20>

Letter of thanks
Dear Customer :
We appreciate your recent purchase .We really hope you can enjoy the happy
time with your loved ones and friends under our stylish aluminum pergola .
We know that you could have bought from any one of our competitors ,but you
choose us .For that ,and all of your previous purchases ,we wanted to say
thank you ,You are a valued customer and we'll continue to strive for the best
customer service we can offer .If you care to share any future stories from
the road ,we'd love to hear them .Thanks again !
Gratefully
LIVING CULTURE
