Remotelock 7i - Salto Instructions

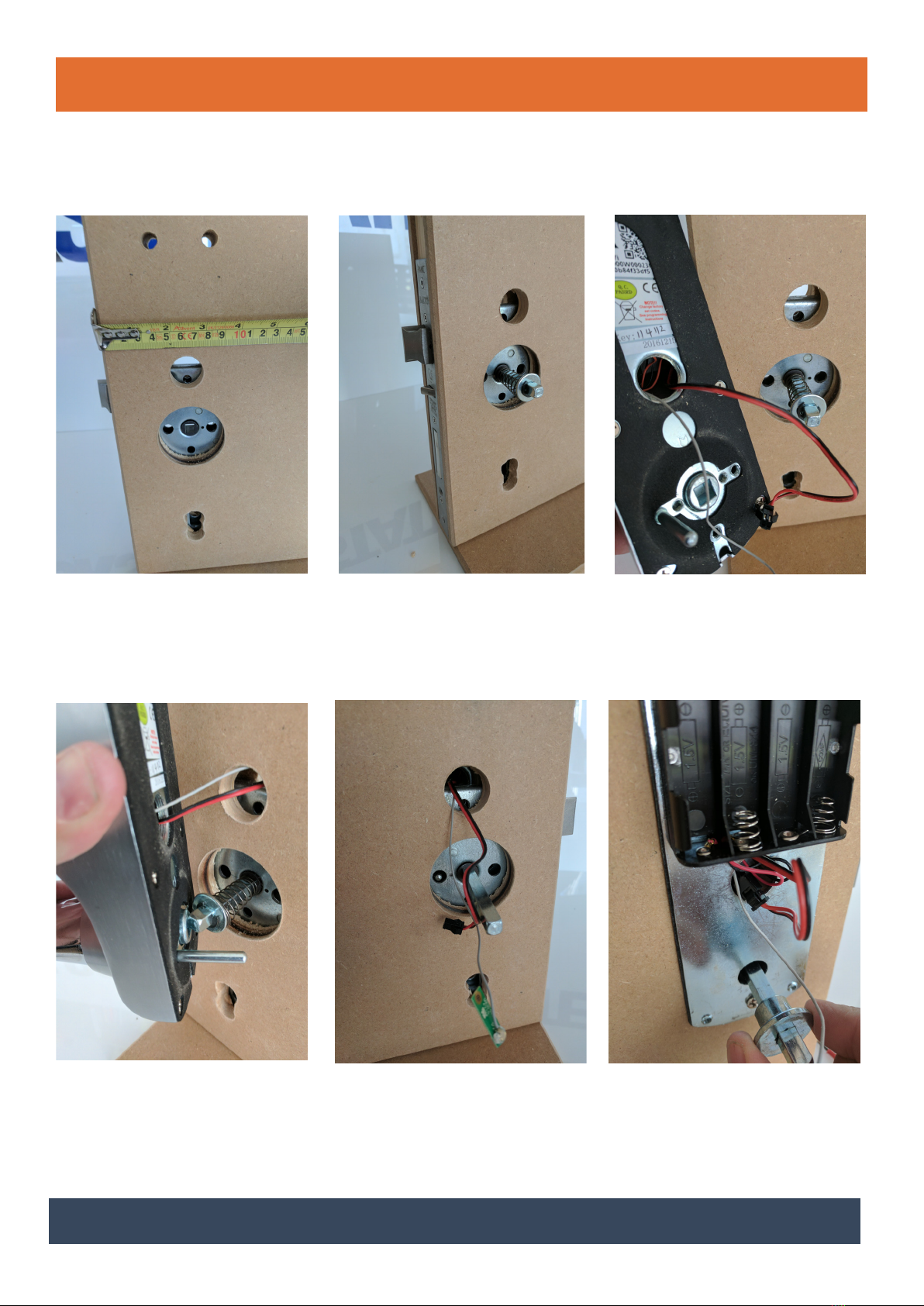

1. Fit the Salto latch as per the enclosed
instructions. It is backset 60mm. Offer up
the paper drillling template that is includ-
ed with the 7i and drill as above.
www.lockstate.com www.smartlock.co.uk
These instructions should be read in conjunction with the Remotelock 7i Installation manual.
As you are fitting the Salto mortice latch you do not require the 25mm barrel latch that is supplied with the 7i. In addition you do not need
the Fire Cup or Cable Tube.
2. On the keypad side, insert the spindle
and spring as shown
3. Insert the latch support pin on the in-
side of the front plate in either outer hole.
4. Thread the power cable and wifi an-
tenna cable through the top hole. Insert
the spindle into the spindle hole on the
keypad and offer up to the door.
5. This is how it should now look on the
inside of the door.
6. Fit the interior fixing plate and align-
ment insert over the spindle. Screw in the
3 fixing bolts, make sure these have been
cut to the right length. See installation
instructions. Connect the power cable and
the remove the alignment insert.

Remotelock 7i - Salto Instructions
7. Fit the internal lock body, carefully pull
through the wifi cable. Tighten the 4 allen screw
bolts.
www.lockstate.com www.smartlock.co.uk
8. Fit 4 x AA batteries. Connect the wifi antenna
to the battery cover and fix using the allen screw
bolt.
9. Fit the internal handle. 10. Fit the external handle in the same way.
