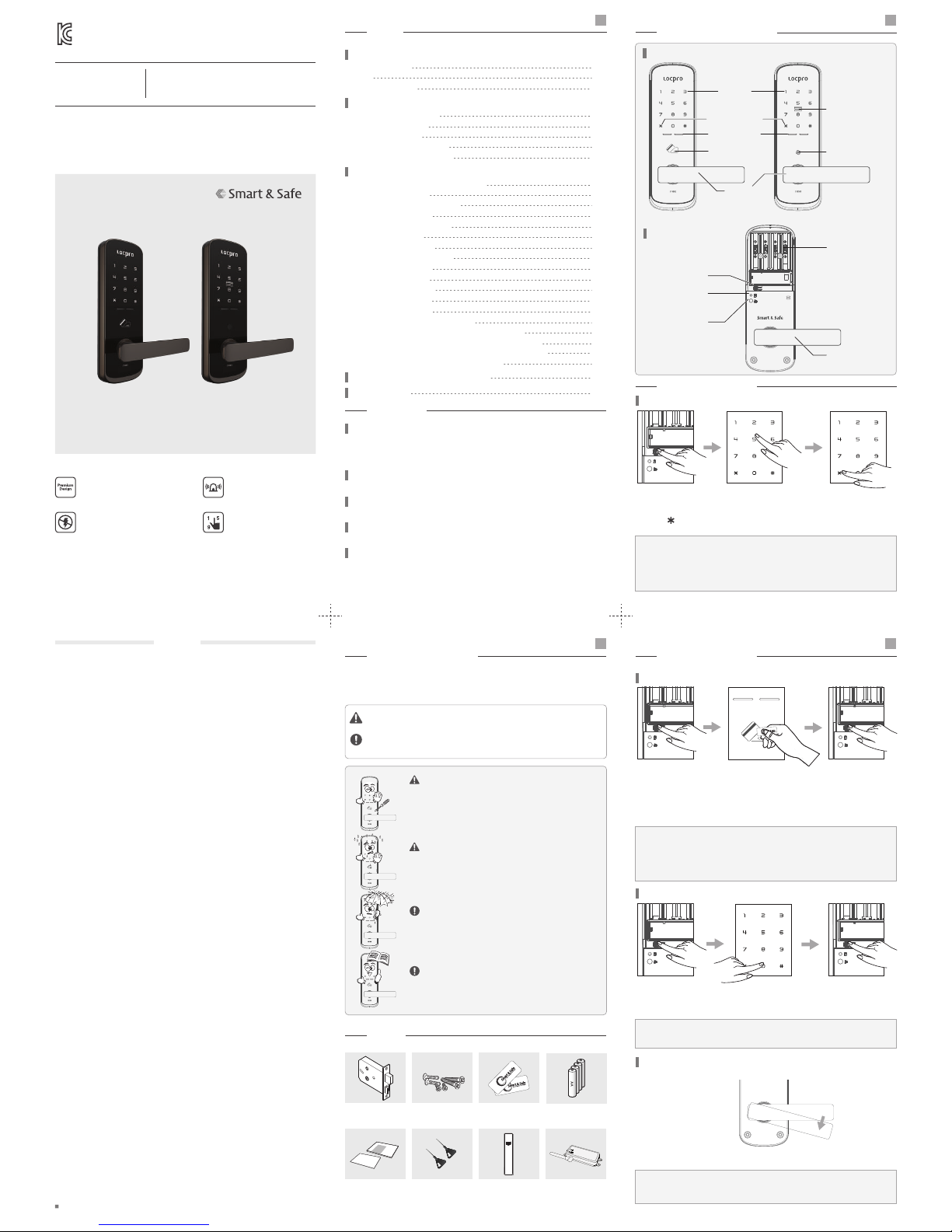

locpro C150B3 User manual

Inside
3 5
User Manual
Smart & Premium Design
Electric Shock & Static Proof
Fire-proof
Passcode Hide
■ Please read the manual throughly in order to secure your safety and to use the product
properly.
■ Please use the RF Tag which is provided with door lock.
■ If you use the RF Tag which is not provided with door lock, it may be occur security problem.
■ This section contains user safety information.
Please read carefully and use it properly.
Outside
Contents in user manual can be changed without notifying users in order to
improve product quality or service. Ver.1.0
Features
OPEN/CLOSE function
Door open by entering passcode
Door open by inside handle (Anti panic release function)
Outside force-lock function
Outside force-lock by passcode
Auto close/Manual close setting function
Setting auto close/manual close by switch
Inside force-lock function
Inside force-lock by program
Others
Etiquette mode, High temperature alert, Intrusion alert, Passcode hide, Prank prevention,
Reset, Master management, Low battery alert, Auto re-lock, Door open alert
Index
4
Safety Information
Parts
Basic Functions
If not followed, user can be dead or seriously injured.
※Types and quantity of RF Tag and emergency key can be changed according to a
specification.
If not followed, user can be injured or property damage can be caused.
warning
Caution
Do not remove
▷ You should not remove any installed parts from the door.
If you need to do so for any reason, please contact
service center and consult.
Do not spray water to the door lock or install
it where it is exposed to water or damp.
▷ door lock is not water proof, thus water exposure can
cause malfunctioning.
▷ It can cause product malfunction or operation malfunction.
Do not install where it is exposed to snow or
rain. Due to the extreme temperature difference
of indoor and outdoor, it can cause dampening
the door lock. Please use it after it dries.
▷ It can cause product malfunction or operation malfunction.
▷ It can cause product malfunction or operation malfunction.
Make sure the door lock is properly installed
and read manual for proper functioning.
Components name
1. Open battery cover and press register Button [S].
6
Basic Functions
How to register passcode
■ When register mode is canceled, previous passcode is kept.
■ When more than 14 digits are entered, it will not be registered.
■ When less than 4 digits are entered, it will not be registered.
■ When a new set of passcode is registered, existing passcode is deleted.
■ While entering passcode, registration is canceled when there is no action for
60 seconds.
1. Open battery cover and press register Button [S].
How to register RF Tag
2. Place RF Tag on RF Tag reader.
You may register up to 50 RF Tags.
Repeat the process consecutively if you have more RF Tags to register.
3. Press register Button [S] to complete the procedure.
1. Open battery cover and press set Button [S].
How to delete RF Tag
■ If lost RF Tag, register new RF Tag after deleting all existing RF Tag information in system.
■ When canceled, existing RF Tag is kept.
■ Delete mode is canceled when there is no action for 60 seconds.
2. Press 0 Button on the keypad.
3. Press set Button [S] to complete.
2. Input desired passcode.
Passcode can be set 4~13 digits.
3. Press Button to complete the procedure.
You will hear buzzer melody from door lock.
How to open door from inside
■ Auto lock is activated when the door is not opened within 7 seconds.
■ When outside force-lock is set, opening the door will set off intrusion buzzer alarm.
■ When childproof function is set, childproof function is deactivated.
- Press down the inside handle to open while locked.
MEMO
Motis Screw Set RF Tag Battery
(4EA)
Wireless Communication
Module (Optional Device)
Installation manual,
User manual(1) Emergency key
(3Way Model Only)
04
04
05
06
06
06
07
07
07
07
08
08
08
08
08
09
09
09
09
09
Introduction
Safety Information
Parts
Basic Functions
How to register passcode
How to register RF Tag
How to delete RF Tag
How to open door from insde
How to open door from outside
Additional Functions
Outside force-lock function by passcode
Etiquette mode function
Inside force-lock/release function
Passcode hide function
High temperature alert function
Intrusion alert function
Prank Prevention function
Deadbolt jamming alert function
Auto/Manual lock setting
Volume control function
Low battery alert function
Door open alert function
How to change batteries
10
10
Opening door with emergency battery
11
Incapacitation function of usual user’s passcode and RF Tag
05
Components name
■ When registration mode is canceled, existing RF Tag is kept.
■ When 50 consecutive tags are registered, registration is completed automatically.
■ When error occurs during the process, start over by pressing register button.
■ Registration is canceled when there is no action for 60 seconds.
■ You can not register the same RF Tag twice.
■ When a new RF Tag registered, existing RF Tag is deleted.
Door open by RF Tag / Door open by emergency key
Register & delete function of master passcode/RF Tag
warning
warning
Caution
Caution
Checklist before calling for service
Specifications
12
12
11
Wireless communication module Registration (Optional Product)
[Touch / RF Tag / Key (3Way Model only)]
Remote Control
(Optional Device)
11
Remote controller Registration (Optional Product)
Keypad
Start/End Button
Emergency
power port(9V)
RF Tag Reader
RF Tag Reader Key hole
Out handle
Battery box
AA Alkaline batteries
1.5V 4EA
In handle
Register Button [S]
Status LED
Double lock switch
[Touch / RF Tag] [Touch / RF Tag / Key]
C150B2 C150B3
C150 Series
[C150B2] [C150B3]
※ Please make sure whether the new passcode works or not
before you close the door.
※ This is to open the door in an emergency.

2. Place RF Tag on RF Tag reader after pressing button.
● Press registered passcode and Button after touching the keypad and
getting backlight on.
※It determines to manual lock through magnetic sensor after open mode.
Touch the keypad to lock from outside.
911
12
Basic Functions 7
Outside force-lock function by passcode
Additional Functions 8
1. When door is locked, touch keypad and then backlight will get on.
2. Press Button during 3 seconds after pressing the passcode.
1. When door is locked, touch keypad and then backlight will get on.
2. Press Button + passcode + Button.
Etiquette mode function
[Setting with passcode]
1. When door is locked, touch keypad and then backlight will get on.
It allows turning on or turning off the buzzer sound when using digital door lock.
It is one time function which automatically is deactivated after the regular procedure.
Passcode hide function
Passcode hide function is to prevent someone from noticing the actual passcode.
This function gets rid of anxiety that there would be fingerprint on the pad.
When high temperature is detected, deadbolt switches automatically to open from
close and alarm goes off.
High temperature alert function
[What is high temperature alert function?]
High temperature function activates at 60°C± 5°C or higher and alarm goes off at
least 80dB.
Intrusion alert function
In case of entrance door malfunctioning due to deadbolt being stuck at the strike
or the door not being completely closed, buzzer sound goes off and keypad LED flickers.
Deadbolt jamming alert function
[What is the deadbolt jamming alert function?]
Try Open/Close 3 times.
Waring sound goes off if the problem is not resolved after the trial.
You will hear buzzer sound ‘beep beep beep beep’ .
It is deactivated when the door is properly closed.
In case of low battery, low battery buzzer sound goes off and LED starts to flicker.
Low battery alert function
It is activated only after it detects low battery more than 3 times..
It remains activated even after power resets. It is deactivated only after replacing batteries.
Low battery voltage : 4.2V± 0.3
[Auto lock setting]
Inside force-lock/release function
1. When door is locked, touch keypad and then backlight will get on.
[Releasing Inside force-lock function with RF Tag]
2. Press Button after entering registered passcode.
[Setting Inside force-lock funstion]
Press Inside force-lock button during 3 seconds.
Additional Functions
How to open door from outside
1. When door is opened, press [S] Button.
[Manual lock setting]
2. Press the number ‘6’Button.
3. Press [S] Button.
Additional Functions
You can hear buzzer melody.
Additional Functions
10
Additional Functions
Auto/Manual lock setting
Door locks automatically certain time after the door opens or closes.
Manual lock setting keeps the door open at all times.
- Door open alarm goes off when door opens under auto lock mode.
- Alarm occurs 2 times every 18 second.
Door open alert function
If you want to use the passcode hide function, press imaginary number then press
he passcode.
● Open the door using by emergency key. (3Way Model Only)
● Place RF Tag on RF Tag reader.
■ Auto lock is activated when the door is not opened within 7 seconds.
■ When unregistered passcode is entered, you will hear error sound or see LED blinking.
■ When incorrect passcode is entered 5 consecutive times, childproof function is activated.
■ If passcode is not entered within 7 seconds after pressing more than 1 Button
or Button, then the mode is terminated.
If door is opened from inside, alarm will be occurred.
It could be set once and automatically deactivated when door opens.
3. Place registered RF Tag on RF Tag reader, and then inside force-lock is
released.
This function prohibits someone from opening the door using passcode or RF Tag from
outside. This function is useful during night time when extra caution for safety is required.
It checks for open mode every 3 seconds and tries to open if not in open mode.
It activates open mode to open even when inside or outside force lock function is activated.
It only activates open mode though pressing any Button inside.
Alarm is deactivated when passcode is entered or RF Tag is placed.
Alarm goes off when someone try to open the door abnormally.
Alarm is deactivated when passcode is entered or RF Tag is placed.
1. When door is opened, press [S] Button.
※It determines to auto lock mode through magetic sensor after open mode.
2. Press the number ‘4’ Button.
3. Press [S] Button.
Opening door with emergency battery
[Setting with RF Tag]
※This product cannot carry on perfect security function.
You may want to install separate security system.
※Contents in user manual can be changed without notifying users in
order to improve product quality or service.
Problem Check Solution
When entering passcode,
buzzer melody goes off.
After entering passcode, door
doesn’t open.
When operating Open/Close,
motor stops after a while then
‘bleep bleep bleep’ buzzer
sound comes on.
It freezes while entering
passcode.
9V battery does not work when
used as emergency power.
Door does not lock automatically
after closing the door.
It’s time to replace batteries.
It’s time to replace batteries.
There is a deadbolt jam caused
by improper hinging of the
door and frame.
In case incorrect passcode
in entered 5 times, it goes to safe
mode for 60 seconds.
9V battery connection is bad.
Replace all of the batteries with
alkaline batteries.
Use 9V battery to open the door
and then replace all of the batteries.
Use door closer to adjust the door
and the frame.
Try again after 1 minute.
Reconnect 9V battery and try again.
Please call A/S center and request
service. Meanwhile switch to manual
mode to use the lock properly.
When Open/Close the door,
it feels like there is something
stuck or it is shaky.
Bolt for motis or striker may
be loose.
Check the bolts for motis and striker
and tighten it if loose. Use super
glue if necessary.
Sensor may be defected or
magnet is displaced.
Checklist before calling for service
Specifications
1. Open battery cover and press [S] button.
2. From keypad, press button.
3. Volume goes up whenever press button.
Volume control function
[Setting volume control]
You can adjust the volume 8 steps from mute to high.
※Volume of Alarm is max regardless of volume control.
※Press 3 button to set Max volume.
Press 2 button to set Low volume.
Press 1 button to set mute.
[Replacing batteries]
How to change batteries
When you hear a buzzer melody, replace all of the batteries .
1. Use 1.5V AA authentic alkaline batteries.
2. Insert each battery according to the plus and minus sign inside the battery holder.
Please be cautious since improper insertion of the battery may cause leakage or
breakage.
3. After battery life is over, replace all the batteries at the same time and do not mix
new batteries with old ones.
- Door lock has a special design which prevents improper insertion of the battery
by not allowing any actions if the battery was installed incorrectly.
- Passcode and RF Tag information are kept when batteries are being replaced.
- Make sure the door lock works properly by entering passcode after replacing
batteries.
When batteries are discharged, place 9V battery to emergency
power port in order to use the passcode.
1. This is to provide temporary power when the door lock is not
functioning due to a complete discharge of batteries.
2. Use it while the battery is still in contact with the port.
3. When using emergency power, polarity of the battery does not matter.
Master passcode button
1. Register & delete on door open position
2. Register of Master Passcode, Master RF Tag
[S]button 9button [S]button 71button button
It is useful function for group management
Register & delete function of Master passcode/Master RF Tag
Master Passcode Master RF Tag [S]buttonbutton
[S]button 9button [S]button 73button button
[S]button 9button [S]button 73button button
Master Passcode
.... button Master RF Tag Master RF Tag
Master RF Tag [S]button
[Master Passcode Registration]
[Master RF Tag Registration]
[Master RF Tag Consecutive Registration]
- It’s available in case that master passcode is registered.
Register is complete automatically when 10pcs Master RF Tags are consecutively
registered. (Buzzer means‘be complete’)
※Be careful to manage Master Passcode and Master RF Tag.
It’s not possible to change or delete it if you forget the registered Master
Passcode.
[S]button
3. Change of Master Passcode, Master RF Tag
Master passcode button
[S]button 9button [S]button 71button button
[S]button 9button [S]button 73button button
existing Master Passcode
new Master Passcode
Master RF Tag
Master passcode button
button button
[Master Passcode Change]
[Master RF Tag Change]
4. Delete of Master Passcode, Master RF Tag
[Master Passcode Delete]
Master passcode button
[S]button 9button [S]button 91button button
[S]button 9button [S]button 93button button
Master passcode button
[Master RF Tag Delete]
※ All of the registered Master RF Tags will be deleted.
Wireless communication module registration (Optional Product)
1. Open battery cover and press [S] button.
2. Press register/open button on the wireless communication module.
3. Press [S] button.
4. Press open button on the wireless module to see if door lock operates properly.
※Please register within 60 seconds.
※Can register 5pcs of wireless module continuously.
[Registering wireless communication module]
1. Open battery cover and press [S] button.
2. Press the number 5 button.
3. Press [S] button.
[Deleting wireless communication module]
Remote controller Registration (Optional Product)
1. Lift up the battery cover from the main body, then press the register button [S].
[To register the remote controller]
2. Press and hold the register button on the remote controller for 4 seconds.
3. Press the register button [S] on the main body.
4. Press the open button on the remote controller to see if the door lock
operates properly.
s
1. Lift up the battery cover from the main body, then press the register button [S].
[To delete remote controller]
2. Press 5 on the keypad.
3. Press the register button [S]
1 2 3
12
2 3
4
SET
OPEN
Incapacitation function of usual user’s passcode and RF Tag
※ Incapacitation function is deactivated.
When door is open using master passcode or RF Tag.
82 Button Button Master passcode Button
82 Button Button RF Tag recognition
- When door is locked, touch keypad and then number pad backlight
will get on.
- When door is locked, touch keypad and then number pad
backlight will get on.
6Vdc (4EA 1.5V AA Type Alkaline Batteries)
Inbody 74(W) x 236(H) x 30(D) / R.F ABS / Al diecasting
Outbody 76(W) x 235(H) x 22(D) / Al diecasting
60℃ ±5℃
-20℃~60℃
Electronic & Mechanical (Passcode, RF Tag)
2WAY : Passcode, RF Tag
3WAY : Passcode, RF Tag, Key
Model name
1.7㎏ (Include packing)
Direct current / Non Fire-proof/Temp. sensor/Non Key/Digital door lock
( D - NF - T - NK - M )
Direct current / Non Fire-proof/Temp. sensor/Key/Digital door lock
( D - NF - T - K - M )
Rated voltage
Type
Weight
Usage Temperature
Sensor activating
Temperature
Product size/Material
(width x height x depth)
1 year if used 10 times per day
Battery life Battery life depends on battery quality, usage frequency
or usage environment
9V Alkaline battery(6LF22) 1EA (Optional Product)
Emergency power
Product type
2Way
3Way
447.275Mhz
A1D+F1D
ASK+FSK
MSIP - CMM - IcQ - C150 - 2WAY
MSIP - CMM - IcQ - C150 - 3WAY
MSIP - CRM - IcQ - CDL - T120
Frequency
Signal Type
Modulation Type
Equipment name Wireless equipment for RF ID / USN
13.56 MHz
Certification number
OR OR
[What is passcode hide function?]
In case of a risk of passcode exposure, this function can be useful.
If you want to use this function, enter imaginary numbers before entering the
actual passcode.
Ex) Imaginary number should be up to 20 digits including passcode.
When parts are separated improperly or someone try to invade by breaking the
door, intrusion alert alarm goes off more than 80dB.
1. 2 minutes alarm: [S] Button 7 Button [S] Button
2. Unending alarm: [S] Button 8 Button [S] Button
[What is intrusion alert function?]
Prank Prevention function
[What is Prank Prevention function?]
※In case of opening the door from inside, this function is deactivated.
※Alarms for 5 seconds and door lock does not work for 25 seconds.
Prank Prevention function activates even if it turns off the power.
When incorrect passcode or RF Tag is used for 5 consecutive times, the system
freezes for 60 seconds.
