Loewe Connect User manual

Operating instructions
Connect
TV
Connect 26 LED

- 2
english
Colour key function during radio operation
Red button: On/Off screen
Yellow button: Last selecting station
Button functions
Call MediaPortal,
select operating mode or function.
(e.g. Index)
With on-screen display: Info display,
info text appropriate to the content that can assist you
further, should you have any questions about your TV
device;
Without on-screen display: Access status display,
with status display open and repeatedly pressing
programme information (if available)
Call timer list
Press button twice in quick succession:
Show / hide time permanently
Adjust picture format
On/Off PIP (picture in picture)
On/Off EPG (Electronic Programme Guide)
On/Off teletext,
select teletext page
Call TV menu,
carry out settings
With opened menu: Exit menu;
Terminate inserts
Set operating mode
TV operation
Radio operation (standard assignment)
The assignment of the AUDIO button can be changed
(see page 87).
On/Off of the television set
On/Off device in standby
(Main switch must be turned on)
Selecting stations
OK Call station overview and with
Select station
or
P+/P– Programme +/–
or
Select station with numeric buttons
Sound
V+/V– Volume up/down
Sound on/off
Colour key function during TV operation
Red button: Freeze on/off;
start interactive data service
Green button: Teletext functions
Yellow button: Last selected station
Blue button: Programme information
Overview of the most important functions

3 -
english
(1 The assignment of these keys can be changed (see page 87).
The description refers to the standard setting.

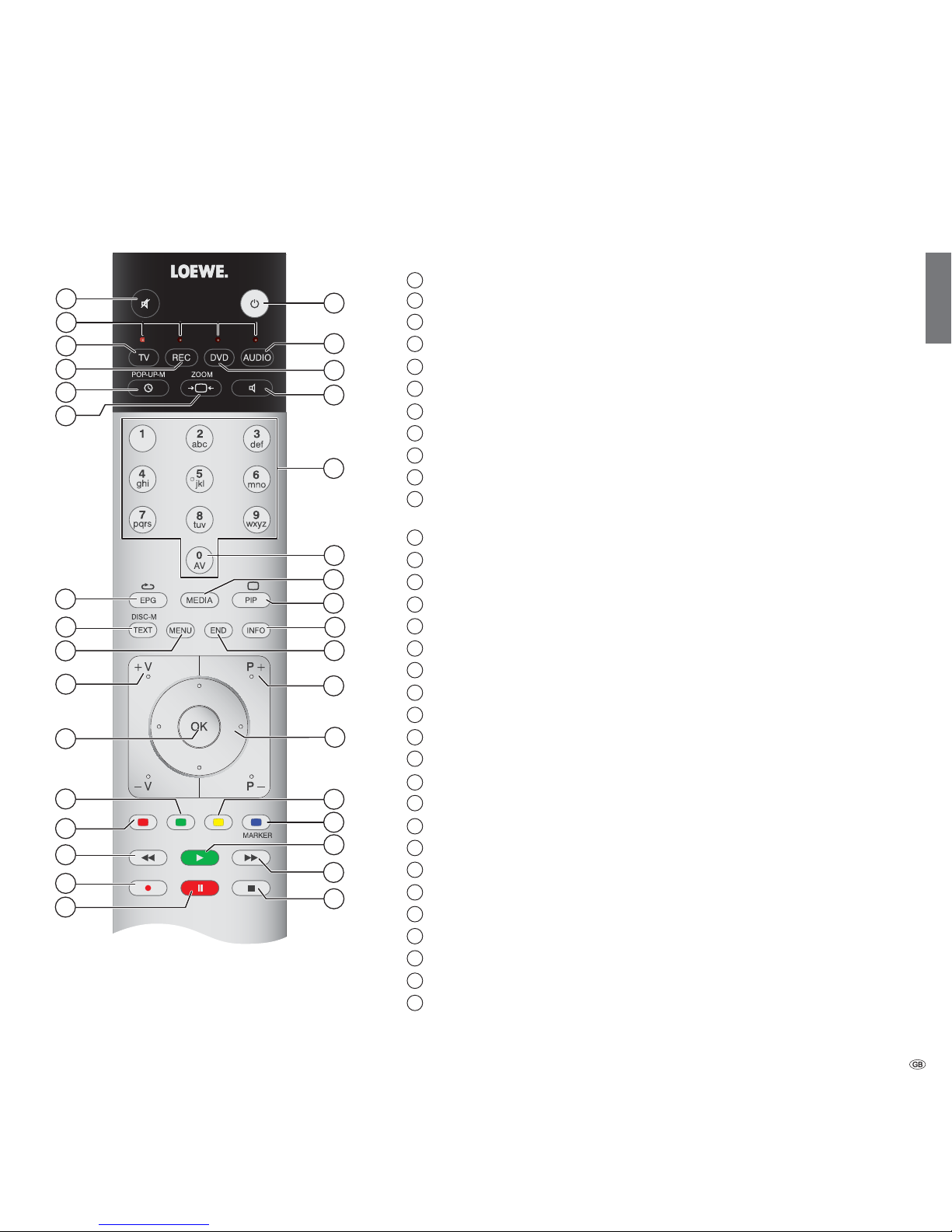

Functions of Loewe TV set
1
Sound off/on ...........................................................................................................(page 32)
2
LED display for current operating mode..................................................................(page 87)
3
Switch over to TV mode....................................................................................(page 20; 87)
4
Switch over to operate recorder (1 ...........................................................................(page 87)
5
Timer overview on/off .............................................................................................(page 85)
6
Set picture format....................................................................................................(page 35)
7
Electronic Programme Guide on/off ........................................................................(page 46)
8
Teletext on/off .........................................................................................................(page 48)
9
Menu on/off............................................................................................................(page 12)
10
V+/V– Volume louder/quieter ..................................................................................(page 32)
11
Station list on...........................................................................................................(page 30)
in the menu: Confirm/call........................................................................................(page 12)
12
Green button: Teletext functions.............................................................................(page 36)
13
Red button: Freeze on/off .......................................................................................(page 36)
14
Select station down; in the menu/wizard (if available): Back...................................(page 28)
15
Direct recording
16
Still frame on/off
17
Still frame on
18
Select station up
19
Still frame off
20
Blue button: Programme info on/off.......................................................................(page 36)
21
Yellow button: Previous station ...............................................................................(page 36)
22
In the menu / Lists: Select/Set..................................................................................(page 12)
23
P+/P– Select Station up/down.................................................................................(page 30)
24
Close all displays ......................................................................................................(page 12)
25
Status display on/off; in the menu: context-relevant Info on/off.......................(page 38; 15)
26
PIP on/off (picture in picture) ...................................................................................(page 44)
27
MediaPortal on/off ............................................................................................(page 14; 56)
28
AV selection.............................................................................................................(page 31)
29
Select station directly; in the menu: Enter numbers or letters..................................(page 30)
30
Set sound adjustment..............................................................................................(page 32)
31
Switch over to operate DVD player (1 .......................................................................(page 87)
32
Switch over to radio mode(1....................................................................... (page 21; 50; 87)
33
Switch on/off – to standby mode............................................................................(page 21)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
18
19
20
21
22
23
24
25
26
27
28
29
30
31
33
17
Remote control – TV functions

- 4
english
Acknowledgements
Loewe Opta GmbH
Industriestraße 11
D-96317 Kronach
www.loewe.de
Printed in Germany
Date of issue 11/10-2.0 TB/FP
© Loewe Opta GmbH, Kronach
ID: 3.9.0
All rights including translation, technical modifications and errors reserved.

5 -
english
Contents
Overview of the most important functions ............................................. 2
Remote control – TV functions ................................................................ 3
Acknowledgements.................................................................................. 4
Welcome................................................................................................... 7
Scope of delivery..................................................................................... 7
About this operating manual .................................................................. 7
For your safety ......................................................................................... 8
Control unit front side of the device ..................................................... 10
Connections rear side of the device ...................................................... 11
Operating convenience .......................................................................... 12
General information on menu operation.............................................. 12
Operating convenience with wizards.................................................... 13
Overview of wizards.............................................................................. 13
MediaPortal........................................................................................... 14
The index in the TV set.......................................................................... 15
The info display ..................................................................................... 15
TV menu – Overview diagram............................................................... 16
Radio menu – Overview diagram.......................................................... 17
Other menus– Overview diagram ......................................................... 17
Initial installation................................................................................... 18
Installing the TV set............................................................................... 18
Set covers.............................................................................................. 18
Connecting the TV Set .......................................................................... 19
Preparing the remote control unit......................................................... 20
Turning the set on/off............................................................................ 21
First installation wizard .......................................................................... 22
Positioning/aligning DVB-T antenna ...................................................... 29
Daily operation ...................................................................................... 30
Select station......................................................................................... 30
Selecting audio/video source................................................................. 31
Adjusting the sound.............................................................................. 32
Adjusting the picture............................................................................. 34
Button functions ................................................................................... 36
Operation without remote control........................................................ 37
Status display......................................................................................... 38
Managing stations................................................................................. 40
TV stations............................................................................................. 40
Put together / change favourites lists .................................................... 43
Picture in Picture.................................................................................... 44
Picture in Picture (PIP)............................................................................ 44
Configure Picture in Picture (PIP) mode ................................................. 45
Electronic Programme Guide ................................................................. 46
Electronic Programme Guide – EPG ...................................................... 46
Configuring EPG.................................................................................... 47
Teletext................................................................................................... 48
Teletext.................................................................................................. 48
Teletext menu........................................................................................ 49
Interactive data services ........................................................................ 50
Digital radio ........................................................................................... 50
Radio mode .......................................................................................... 50
EPG – Electronic Programme Guide (radio) ........................................... 51
Audio playback from external devices................................................... 51
Other settings ........................................................................................ 52
Parental lock.......................................................................................... 52
Timer functions ..................................................................................... 53
Language .............................................................................................. 53
On-screen displays ................................................................................ 54
Time and date....................................................................................... 54

- 6
english
Coded Stations....................................................................................... 55
Conditional Access module (CA module).............................................. 55
Media+.................................................................................................. 56
General information on Media+........................................................... 56
Connecting the TV set to your network................................................ 56
MediaNet .............................................................................................. 56
Help for configuration problems........................................................... 56
MediaUpdate - additional functions...................................................... 56
Accessing your media ........................................................................... 57
Media menu.......................................................................................... 58
MediaHome.......................................................................................... 62
MediaNet .............................................................................................. 65
MediaMusic .......................................................................................... 70
MediaPhoto .......................................................................................... 72
MediaVideo........................................................................................... 73
External devices ..................................................................................... 74
Connections menu................................................................................ 74
Devices to the connections AV/AVS ...................................................... 76
Devices to the HDMI connections......................................................... 78
Digital Link HD ...................................................................................... 79
Devices to the PC IN connection........................................................... 80
Sound components wizard ................................................................... 81
Connecting audio amplifiers ................................................................. 82
Assignment of the digital audio input................................................... 83
Audio connection in HDMI/DVI devices................................................ 83
Serial interface (RS-232C) (retrofittable)................................................. 83
The direct way to record ....................................................................... 84
Timer recording with external devices................................................... 86
Operating Loewe equipment................................................................ 87
Software update .................................................................................... 88
Basic information .................................................................................. 88
USB stick................................................................................................ 88
Download ............................................................................................. 88
Software update ................................................................................... 88
Troubleshooting ..................................................................................... 90
Technical data ........................................................................................ 93
General data.......................................................................................... 93
Electrical data ........................................................................................ 94
Signals via PC IN / HDMI ....................................................................... 94
Connections (max. equipment)............................................................. 95
MediaHome.......................................................................................... 96
Accessories............................................................................................. 97
Accessories............................................................................................ 97
Upgrade Kits / Conversion Kits / Cables................................................. 98
Equipment variants................................................................................ 99
TV set equipment.................................................................................. 99
Setup possibilities ................................................................................ 100
Instruction for wall installation ............................................................ 100
Environment......................................................................................... 101
Miscellaneous....................................................................................... 101
Character table.................................................................................... 101
Legal notes........................................................................................... 102
Glossary................................................................................................ 103
Index .................................................................................................... 108
Service.................................................................................................. 110
Contents

7 -
english
Thank you!
Loewe stands for the highest demands in technology, design and user
friendliness. This applies equally for TV, video and accessories.
In addition to the elegant design and the many different possible colour
combinations and installation possibilities, your Loewe TV set also offers
many technological options.
Loewe Image+
State-of-the-art Full-HD-LCD-displays with LED-Backlight Technology. The
advantage of the LED-Backlight is in the reduced energy consumption and
high contrast values.
24p films played by a connected HDMI unit can be displayed optimally.
Loewe Media+
You can reach the MediaPortal via the MEDIA button on your remote control,
giving you access to all multimedia functions of your TV set.
Scope of delivery
• LCD TV set
• Antenna cable
• Remote control Assist with two batteries
• TV quick guide
About this operating manual
For best results regarding safety and the longevity of the set, we recom-
mend you read the chapter For your Safety (page 8) before switching it
on for the first time.
The functions of the Loewe TV set are largely self-explanatory. However,
should you have any questions, the integrated index and the info display
(see page 15) can assist you further.
The index/glossary from page 103onwards gives explanations of certain
terms used in the TV set and the operating manual.
Paragraphs which begin with the symbol ➠indicate important instruc-
tions, tips or conditions for the following settings.
Terms which you will find in the menus or printed on the remote control
or TV set are written in bold type.
The necessary control elements are shown in the descriptions to the left
of the text containing the instructions for action.
Depending on the connected accessory equipment the menus in the TV
set can differ from those described here.
All the station names, programme contents, the illustrated photos, titles,
albums and album covers in this operating manual are examples.
In some countries, the stations also transmit interactive data services with
their programmes (see page 50, Digital Teletext/MHEG-5), whereby the
functions of individual keys are not available or only so to a limited extent.
InterActive
The symbol indicates which functions can differ for a loaded
application.
The operating instructions for your TV set are updated at irregular
intervals. We recommend checking now and then, especially after a
software update.
Welcome

- 8
english
For your own safety and to prevent unnecessary damage to your device,
read and comply with the following safety instructions:
Proper use and environmental conditions
This TV set is designed exclusively for reception and reproduction of
video and audio signals and is designed for living rooms or office facilities,
and should not be operated in rooms with high humidity, such as a
bathroom, or sauna, or where there is a high concentration of dust (e.g.
workshops). The manufacturer‘s warranty is only valid for use in the specified
permissible environment.
If the set is used outdoors ensure that it is protected against moisture
(rain, splashing water, or dew). High humidity and dust concentrations
cause leak currents in the device, which can cause a shock hazard if the
device is touched, or a fire.
If you have brought the set into a
warm environment from the cold,
then wait for about 1 hour before
switching it on to avoid formation of
condensation.
Do not place any objects filled with
liquids on top of the appliance. Pro-
tect the appliance against dripping
and splashing water.
Candles or naked flames must be kept
away from the appliance at all times
to prevent it from catching fire.
Never place the TV set in a position where it is exposed to vibrations. This
can lead to material overload.
Transporting
Only transport the device in vertical position. Grasp the device on the
upper and lower edges of the housing.
If the set has to be put down during packing/unpacking, place the TV
set with the entire front surface lying flat on a soft underlay such as a
blanket or the felt from the packing material.
The LCD screen is made of glass or plastic and can break if not handled
properly.
Always wear rubber gloves to carry the TV set if the LCD screen is dam-
aged and liquid crystal might be leaking out. In the case of skin contact
immediately wash thoroughly with water.
Power supply
The wrong voltage can damage the set. This equipment must only be
connected to a mains power supply which has the same voltage and
frequency as that specified on the rating plate. The mains plug of the TV
set must be easily accessible so that the device can be disconnected from
the mains at any time. When you unplug the mains plug, do not pull on
the cable rather pull on the plug housing. The cable in the mains plug
could be damaged and cause a short circuit the next time it is plugged
in.
Lay out the mains cable in such a manner that it cannot be damaged.
The mains cable must not be kinked or laid over sharp edges, stepped
on or exposed to chemicals; The latter also applies for the entire equip-
ment. A mains cable with damaged insulation can cause electrical shock
and is a fire hazard.
Air circulation and high temperatures
The vent slots on the rear panel of the set must always be kept free.
Please do not place newspapers or cloths on/over the TV.
Ensure that there is at least 10
cm free space on the sides and
above the set for air circulation,
if the set is placed in a cabinet
or on a shelf.
Like any electronic device, your
TV set requires air for cooling.
Obstruction of the air circula-
tion can cause fires.
The set is suitable for different
installation solutions. See the
instructions for assembly for the different installation solutions.
Stand the TV set with the table or floor stand only on a level, sturdy,
horizontal base. Particularly ensure that the set does not protrude to the
front when placed in or on pieces of furniture.
Set up the device where it is not exposed to direct sunlight and where it
is not exposed to additional warming through heating elements.
Prevent metal items, needles, paper clips, liquids, wax, or similar items,
from getting into the interior of the device through the vent slots in the
rear panel. Such objects can cause short circuits in the set, which could
possibly cause a fire.
If something should get into the interior of the set then immediately
unplug the mains plug of the device and contact customer service for
more information
For your safety
10 cm 10 cm 10 cm

9 -
english
Cleaning and care
➠ Switch off the TV set at the main switch before cleaning.
Clean the TV set, the screen, and the remote control unit with a soft,
moist, and clean cloth only, without any aggressive or scouring cleaning
agents.
Repairs and accessories
Never remove the back of the TV set yourself. Only have your TV device
repaired or serviced by authorised television technicians.
Only use original accessories such as Loewe stands if possible (see Acces-
sories on pages 97 and 100).
Supervision
Do not allow children to use the TV set without supervision or to play in
the immediate vicinity of the TV set. The set could tip over, be pushed
off or pulled down from the stand surface and injure someone.
Do not allow the switched-on TV set to run unattended.
Volume
Loud music can lead to ear damage. Avoid extreme volume especially
over long periods and when using headphones.
Thunder storms
Pull out the mains plug and all connected antenna cables from the TV
set in a thunderstorm. Overvoltage caused by lightning can damage the
set via the antenna system, as well as via the mains. The mains plug and
all connected antenna cables should also be pulled out during long pe-
riods of absence.
Note on the LCD screen
The TV set you have purchased with LCD screen satisfies the most rigor-
ous quality requirements and has been inspected relative to pixel errors.
In spite of the utmost care in manufacturing the display, for technical
reasons the possibility that some pixels will have defects cannot be 100%
excluded. Please understand that these types of effects, as long as they
are within the standard of specified limits, cannot be considered as a
device defect in terms of the guarantee.
Avoid displaying still images for long periods of time. It is possible that
a copy of the image may remain.
For your safety

- 10
english
Functions of the operating elements
1Mains switch:
The mains switch is located on the bottom of the set.
2 On/Off button:
Switch on from the standby mode
Switch off to the standby mode
3 Display:
red = Standby
green = Operation
orange = Operation without on-screen display
(Radio, EPG data capture or timer recording)
4 Button M:
Call the menu
in the menu: up/down 
5 Button R:
Radio on/off (back to TV mode)
Switch on the radio from the standby mode
in the menu: down 
6 Button +:
Station up
in the menu: to the right 
7 Button – :
Station down
in the menu: to the left 
Control unit front side of the device
M
R
+
-
3
1
5
7
2
4
6

11 -
english
1
Mains cable
2
HDMI 1 - HDMI input 1
3
HDMI 2 - HDMI input 2
4
PC IN - VGA/XGA input
5
AV - Euro-AV socket
6
LAN - Network connection
7
AUDIO IN - Audio input (analogue)
8
AUDIO DIGITAL OUT - Digital audio output
9
AUDIO DIGITAL IN - Digital audio input
10
CENTER IN - Centre audio input (analogue)
11
SERVICE - Service socket
12
ANT-TV - Antenna/cable analogue/digital
13
ANT SAT - Satellite antenna (Sat tuner) (1
14
RS-232C - Serial interface (1
15
CI-COMMON INTERFACE - Common Interface (CI slot)
16
USB - USB connection
17
- Headphones connection
18
AUDIO IN L - Audio in left (AVS)
19
AUDIO IN R - Audio in right (AVS)
20
VIDEO IN - Video in (AVS)
21
AVS - S-Video connection (AVS)
(1 Equipment and upgrade options, see page 99.

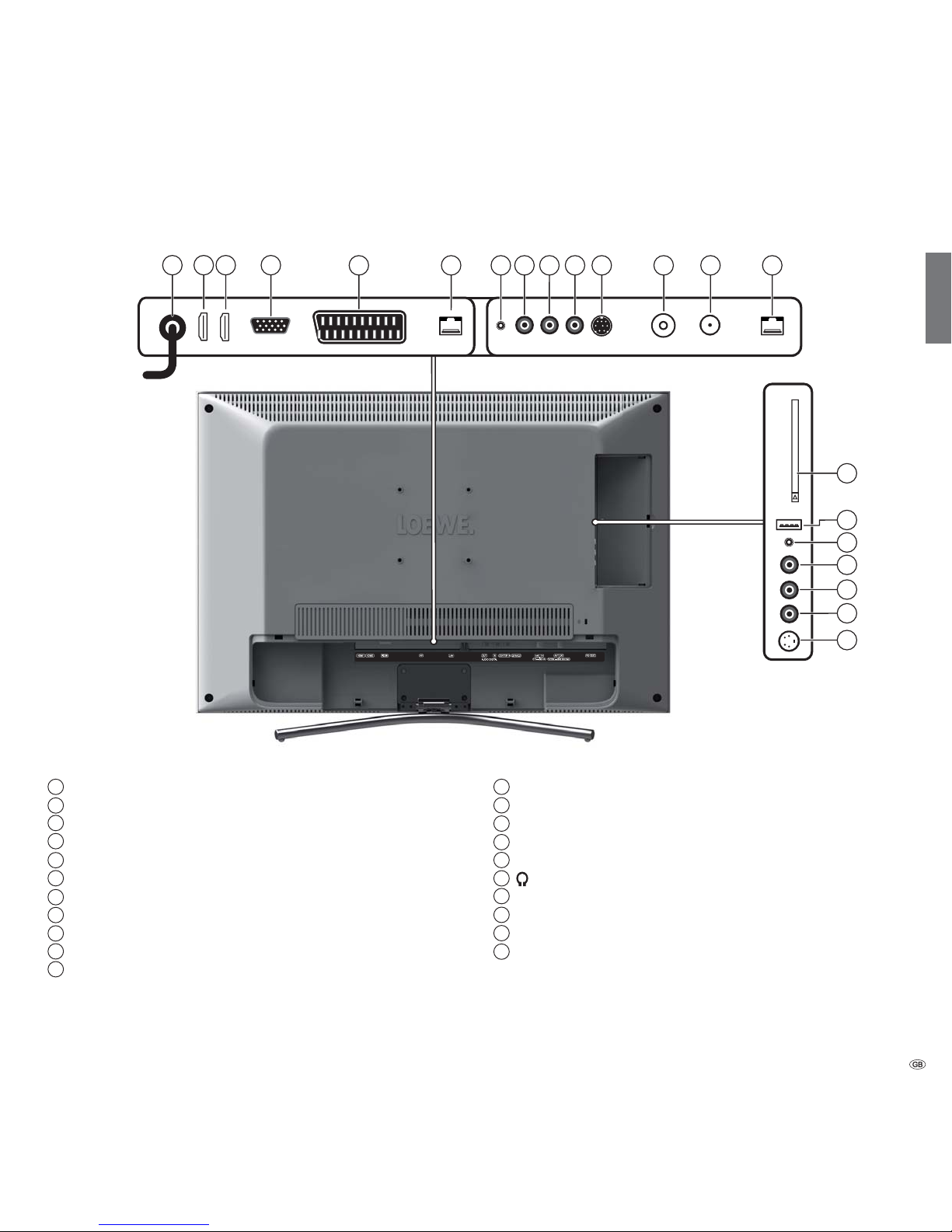

Connections rear side of the device
1 2
11
9
10
12 13
15
4 5 3 8
19
20
21
18
6 7
14
17
16

- 12
english
Menu operation (example: TV menu)
Menus for the individual modes (TV, Radio, PIP, EPG, Teletext and Me-
diaPortal) are called with the MENU button.
The menus are displayed at the bottom of the screen. At the top you get
additional information about the selected menu item (see info display on
page 15).
➠ In normal TV mode, without other displays.
MENU: Call TV menu.
Select Picture,
go to the menu line below.
Select Brightness,
go to the menu line below.
Set Brightness.
Return to the Brightness menu line
to make other picture settings.
Select more ... ,
OK call more ... functions.
Select Auto format,
go to the menu line below.
Select on / off.
END: Conclude the settings.
Menu structure
You can find a diagram of the menu structure in the overview diagrams,
page 16 and after.
General information on menu operation
The operation can be divided basically into two areas: The operation of
dropdown lists (e.g. station list, favourites list, EPG etc.) and the menu
operation (TV menu etc.) for configuring your TV set.
➠ If any questions arise during the operation of your TV set, an appro-
priate info screen can be accessed to help you by pressing the INFO
button, see also info display on page 15.
Selection list (example: Station list)
You move the cursor by pressing the ring (up,
down, left, right).
P+/P– If more selection options are available than will fit
on one screen page page is displayed. You can
scroll the pages with P+/P–.
OK The OK button calls the selection or confirms the
setting.
With the coloured buttons you can select different op-
tions depending on the application. The assignment of
the coloured keys is shown at the bottom of the screen.
INFO: Additional information about the screen page.
END: Close/exit dropdown list.
Inputs with the numeric buttons
Letters have to be entered for specific functions. Like using
a mobile phone keypad (0 to 9), press a numeric button
until the desired character appears. The available letters
are printed on the individual numeric buttons.
See page 101 for a detailed overview of the available char-
acters.
OK
az
-
P+
P–
21:00-21:45 Urlaubsparadies - Toskana
HDMI2
HDMI1
PC IN
AVS
AV
0 VIDEO
 
  
 
   
  
   
  

  
    

    

   
  

    
OK
STATIONLIST
Scan stations
Change stations
Sort alphabetically
Switch to ...
Select station
Favourites
Sound Recording Connections Settings G
Here you can adjust among other things: Contrast, colour, brightness,
picture adjustment, sharpness, picture format.
TV MENU
Picture adjustment ...
Operating convenience

13 -
english
Operating convenience with wizards
For many settings your TV set has user guidance with wizards which
guide you through the settings step by step.
Overview of wizards
Initial installation
The initial installation wizard helps you with the initial installation and
connection of any existing equipment (see page 22).
Setting up the antenna
You enter in the antenna wizard which antenna signals are available to
you. The antenna wizard is called in initial installation (see page 22). You
can also call the antenna wizard in the TV menu under Connections 
Antenna DVB Antenna DVB-S (1 or Antenna DVB-T.
Search wizard
If you want to search for new stations after the initial installation, or if you
have set up your antenna for the first time, then you can handle this task
with the help of the search wizard (see page 40).
You will find the search
wizard in the TV menu under Settings
Stations Search wizard.
Connecting sound components
The sound component wizard ensures that the components which re-
produce the TV sound are correctly registered, connected and set. It is
started automatically at the end of the initial installation wizard but can
also be called separately (see page 81). You will find the sound components
wizard in the TV menu under Connections Sound components.
Programming and managing recordings
The recording wizard helps you to programme a recoring with a VCR or DVD
recorder (see page 84).
Software update
You can download the latest software for your TV set from the Loewe
Service site and update using a USB stick (see page 88).
Operating convenience
(1 Equipment and upgrade options, see page 99.

- 14
english
MediaPortal
The MediaPortal is the central overview page for your TV set‘s functions.
From here you can gain access to TV channels, local and online media,
digital radio and to the archive of the Digital Recorder (see right column).
Call MediaPortal
MEDIA: Call MediaPortal.
The individual media and the various functions are dis-
played at the top of the MediaPortal.
The number of selectable items varies depending on the
TV equipment, network connection, available media/
media servers and connected appliances.
The lower part of the MediaPortal contains the selectable
recommendations.
Select menu item,
OK call.
Description of the individual functions:
TV: Here you call the TV mode of your TV set.
See page 30 for further information.
Radio digital: You can call up the radio mode of your TV set here.
The TV set can receive digital radio stations via DVB
or, if a connection is available, via the Internet.
See page 50 for further information.
DR archive: You can access the programmes recorded on your
digital recorder using the DR archive. The menu
item appears as soon as a network connection
to a Loewe TV set with an enabled DR archive is
established.
You can find more information in the Digital-
Recorder+operating instructions.
MediaHome: Here you have access to your personal memory
media, e.g. to all memory media connected via USB
or to networks with which your TV set is connected.
See page 56 onwards for further information.
MediaNet: Here you have access to music and video sources
from the Internet. The menu item only appears if
an Internet connection is available.
See page 56 onwards for further information.
Index: Here you have access to the index integrated in the
TV set.
See page 15 for further information.
MEDIA PORTAL
BR Filmtrailer.com Deluxe Loun... 90elf Dein Fus...
Focus TV ZDFFocus online
TV Radio digital DR archive
RECOMMENDATIONS
Index
MediaNet
MediaHome
Podcast archive
Operating convenience

15 -
english
Operating convenience
The index in the TV set
The index explains the TV functions and the terms that you may be con-
fronted with when operating the TV set. You can start all the assistants
and many of the operating functions directly from here.
Alphabetic sorting is preceded by the items Menu language, Energy ef-
ficiency, Integrated features and Repeat initial installation.
Call index
MEDIA: Call MediaPortal.
Select Index,
OK call.
You will see an info text for the highlighted keyword in
the info display.
If an OK symbol appears in the marked line, this function
can be called directly with OK.
Selecting a keyword
Enter initial letters with the numeric buttons like with a
mobile phone keypad (see page 12).
or go with:
to the preceding / next letters,
from line to line,
P+/P– scroll backwards or forwards in whole pages.
Example: You want to have the TV set switch off automatically at
a specific time:
Select the keyword Switch off Automatic, with OK you
will go to the setting.
The info display
The info display provides an info text appropriate to the on-screen display
that can assist you further with the operation of your TV set. Together
with the index it makes for a comfortable operating system.
➠ An on-screen display is faded in.
The factory setting is that the info display is shown auto-
matically for each menu item. In this case you can tempo-
rarily hide the info texts with the INFO button.
The automatic info display can be hidden via a menu
setting. Then it can be displayed temporarily by pressing
the INFO button.
An INFO icon at the bottom right above the menu bar
also tells you that an info text is available.
If an info text over several pages is available the number
of available pages and P+P– Page is displayed in the
Info window. You can scroll through the individual info
pages with P+ and P–.
Permanently display or hide the automatic info display
Once you have become familiar with how to operate the TV set, you can
switch off the automatic info display.
➠ In normal TV mode, without other displays.
MENU: Call TV menu.
Select Settings,
go to the menu line below.
Select Miscellaneous,
go to the menu line below.
Select On-screen displays,
go to the menu line below.
Select Automatic info,
go to the menu line below: yes / no.
OK
az
-
OK
P+
P–
Activate Previous/next letter

INDEX
Menu language
Energy efficiency
Integrated features
Repeat initial installation
*
Access code
Automatic dimming - Room
Automatic station programming
You can select your language for operating the TV set.
Picture Sound Recording
SETTINGS
Here, you can search for stations automatically or manually as well as set
the menu language, timer functions, parental lock,
on-screen displays, etc.
TV MENU
Settings
Station ...
t
ions

- 16
english
Settings
TV menu
Picture Sound Connections
Recording
Recording wizard
Timer list
Pre-record time
Post record time
Sound components
Antenna DVB
AV connecting settings
Miscellaneous
Picture adjustment
Contrast
Colour intensity
Colour temperature
Brightness
Sharpness
Digital Noise Control (DNC)
more...
Image+ Active
Auto format
Picture format
Move picture up/down(1
PC IN / HDMI display (2
Search wizard
Manual adjustment
Change stations
Select/change favourites
Sound effects
Sound adjustment
Headphone volume
Loudness
Sound-picture synchronisation
more...
Loudspeaker sound (1
Headphone sound (1
Auto volume
AV output signal
Maximum volume
max. switch on volume
Volume adjustment for
current station
Balance
Auto speech detection
On-screen displays
Time and date
Software update
CA module: xxx(1
DVB settings
Menu language
Subtitles (DVB)
Audio (DVB)
Energy efficiency
Stations
Parental lock
Timer functions
Language
Eco standard
Premium mode
Shop mode
Miscellaneous
Signal type at PC IN (2
Digital Link Plus
Decoder stations (3
Remote TV switch on
via Digital Link
Assign digital audio input
Switch off once
Switch off daily
One-time alarm
Wake up Mon-Fri
Wake up Sat
Wake up Sun
Wake up with
Wake up signal volume
TV menu – Overview diagram
(1 Menu items appear depending on the signal source currently selected (DVB or analogue) and/or at definite presettings in the relevant menus. For individual details,
see the corresponding chapter of the operating instructions.
(2 Menu item can only be selected if a valid signal is present at the PC IN/HDMI input.
(3 Menu item only available if a Decoder has been selected as Device at connection AV (see page 74).
Operating convenience

17 -
english
Radio menu
Sound Stations Timer functions
Search wizard
Manual adjustment
Change stations
Select/change favourites
Switch off once
Switch off daily
One-time alarm
Wake up Mon-Fri
Wake up Sat
Wake up Sun
Wake up with
Wake up signal volume
Switch on TV when marked
off
on
Station selection
Data capture
no
yes
EPG menu Teletext menu
Preview pages
Sub-title pages
Personal text pages
Character set
HiText
Page format
Station selection
Newsflash
Reveal
Recording wizard
Settings
Sorting
corresponding to station list
chronologically
Sound effects
Sound adjustment
Headphone volume
Loudness
more...
Auto volume
Maximum volume
max. switch on volume
Volume adjustment for
current station
Balance
Auto speech detection
Photo settings
Music settings
Video settings
Network access
Other
Network settings
Media menu
Operating convenience
Radio menu – Overview diagram
Other menus– Overview diagram

- 18
english
Installing the TV set
Installation notes
Choose a place for installing your TV where no bright light or sunlight
shines directly onto the screen. This could cause reflections which impair
the picture.
3 times the screen diagonal can be taken as a guide value or the viewing
distance (for 26-inch set approx. 2m for SD signal). The viewing distance
can be reduced with an HD signal.
Set covers

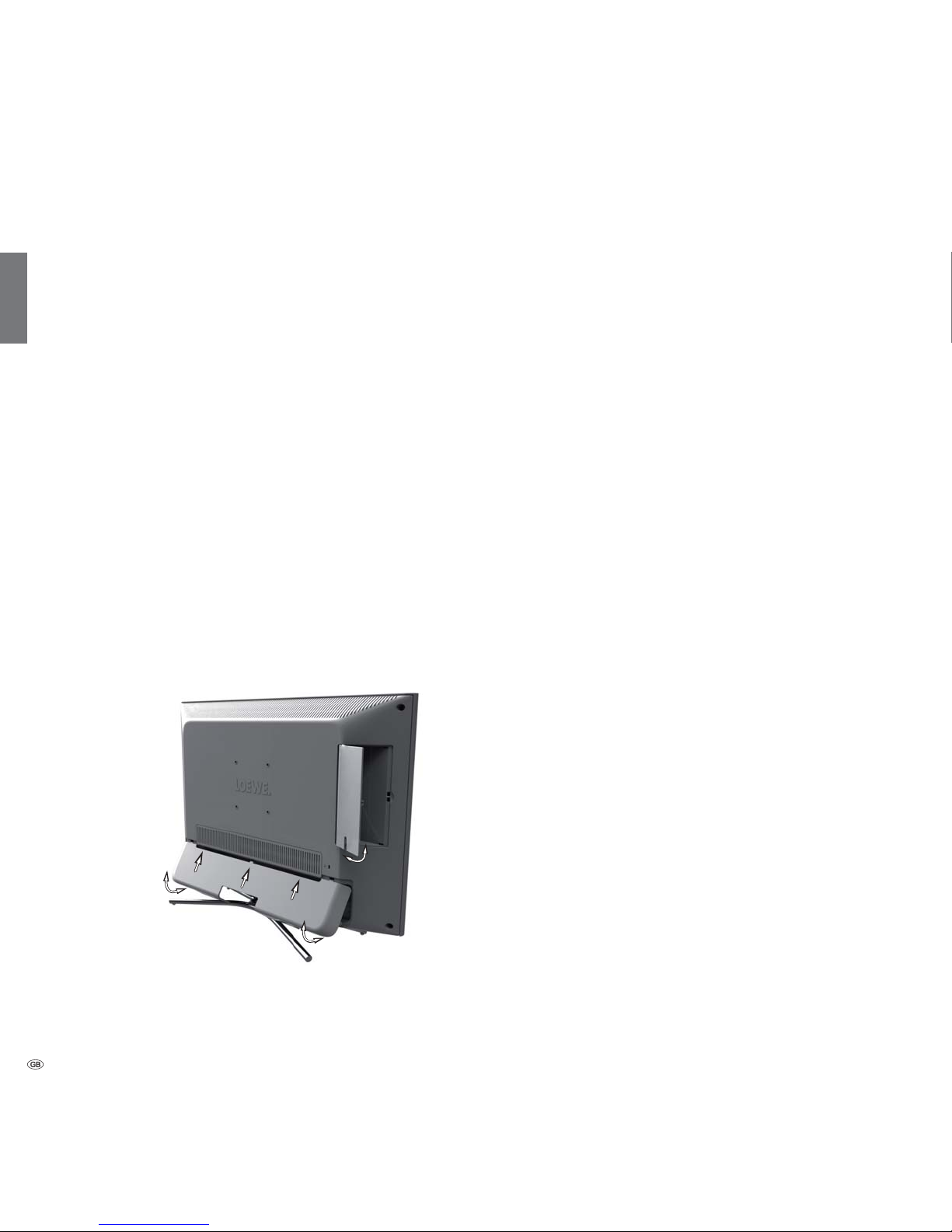

Covers for rear and side connections
To remove the rear cable cover, pull the two recessed handles at the
bottom and drop down the cover.
To fit the cover, insert the lugs at the top edge of the cover into the corre-
sponding cut-outs in the rear panel and push up the cover until it snaps in.
The side cover of the TV set can also be completely removed. For this,
open it as far as it will go and gently pull on the open cover.
The cover detaches from the holder and gives free access to the con-
nection area. To replace the cover, simply push it until it latches back
into place.
Initial installation

19 -
english
Connecting the TV set to the Home network
You can connect your TV set to the home network by a wired connection
(Ethernet, Powerline). Please contact your specialist dealer for more
information on Powerline.
Example for a wired connection
Connect the LAN socket of your TV set to the LAN switch/router of your
home network with a network cable (available from your dealer).
Connecting the TV Set
Connecting to the mains
Remove the cover for the connections.
Connect the TV set to a 220-240V mains socket:
Plug the mains plug into a mains socket.
Connecting antennas
Cable (analogue) / DVB-C / DVB-T antenna:
Plug the antenna cable of antenna, cable system or room antenna into
the ANT TV socket.
If you want to use analogue cables / DVB-C connection and a DVB-T
antenna together, use an external antenna switch (available from your
dealer).
Satellite antenna DVB-S:
If the TV set is equipped with a satellite tuner (retrofit kit), the ANT-SAT
socket is available.
Depending on the used satellite system, connect a connecting cable from
the multi-switch or directly from the LNC to the ANT-SAT socket of the TV.
When connecting the TV set to a single cable community antenna, con-
nect the ANT-SAT socket directly to the appropriate SAT antenna socket.
Ask your dealer if required.
R TV
DVB-T DVB-S
an. cable /
DVB-C
Initial installation
LAN switch/router
Homeserver,
e.g. PC
TV set

- 20
english
AAA LR03
AAA LR03
Initial installation
Preparing the remote control unit
Inserting or replacing batteries

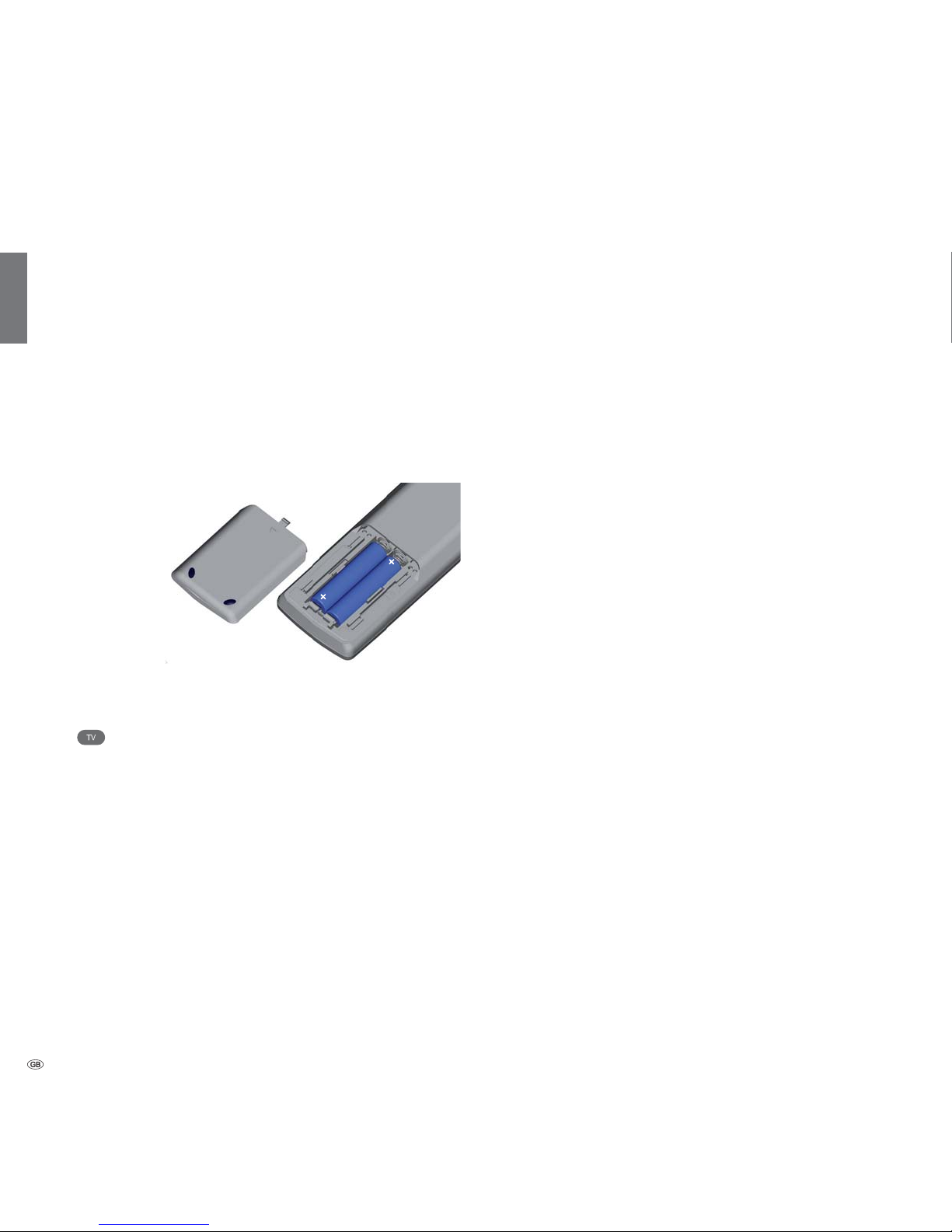

Press on the embossed arrow whilst pushing the battery cover down.
Only use leak-proof micro-cells of the LR 03 (AAA) Alkali-Manganese type.
Do not use different types of batteries and old and new batteries together.
Pay attention to the correct polarity of + and – when inserting the bat-
teries.
If the batteries are too weak after longer use, the TV set prompts you
to change the batteries.
Dispose of used batteries in an environmentally friendly way (see page 101).
Push the cover back on from below after inserting the batteries.
Adjusting the remote control for operating the TV set
Press the TV button.
See page 87 for how to operate other Loewe appliances
and how to reprogramme the remote control buttons.
