Loewe Art 40 LED 200 User manual

Operating instructions
Art
TV
Art 46 LED 200,
Art 40 LED 200,
Art 37 LED,
Art 32 LED
233–34480.023

- 2
english
Colour key function during radio operation
Red button: On/Off screen
Yellow button: Last selecting station
Button functions
Call MediaPortal,
select operating mode or function.
(e.g. Index)
with on-screen display: Info display,
info text appropriate to the content that can assist you
further, should you have any questions about your TV
device;
without on-screen display: Access status display,
with status display open and repeatedly pressing
programme information (if available)
Open DR archive/Video archive (2 / Timer list
Press button twice in quick succession:
Show / hide time permanently
Adjust picture format
On/Off PIP (picture in picture)
On/Off EPG (Electronic Programme Guide)
On/Off teletext/MediaText (1
Call TV menu,
carry out settings
With opened menu: Exit menu;
Terminate inserts
Set operating mode
TV operation
Radio operation (standard assignment)
The assignment of the AUDIO button can be changed
(see page 123).
On/Off of the television set
On/Off device in standby
(Main switch must be turned on)
Selecting stations
OK Call station overview and with
Select station
or
P+/P– Programme +/–
or
Select station with numeric buttons
Sound
V+/V– Volume up/down
Sound on/off
Colour key function during TV operation
Red button: Freeze on/off.
Start HbbTV (1 or interactive data service,
if this is available.
Green button: Teletext functions
Yellow button: Last selected station
Blue button: Programme information
Overview of the most important functions
(1
Depending on the corresponding settings (see page 78).
(2
Only for TV sets that contain an integrated hard disc (DR+), a connected external hard
disc (USB Recording) or that have an archive available on the network (DR streaming)

3 -
english
1
Sound off/on ...........................................................................................................(page 32)
2
LED display for current operating mode................................................................(page 123)
3
Switch over to TV mode..................................................................................(page 20; 123)
4
Switch over to operate recorder (2 .........................................................................(page 123)
5
DR archive/Video archive(1 / Timer list on/off...........................................................(page 93)
6
Set picture format....................................................................................................(page 35)
7
Electronic Programme Guide on/off ........................................................................(page 46)
8
Teletext/MediaText (3 on/off......................................................................................(page 48)
9
Menu on/off............................................................................................................(page 12)
10
V+/V– Volume louder/quieter ..................................................................................(page 32)
11
Station list on...........................................................................................................(page 30)
in the menu: Confirm/call........................................................................................(page 12)
12
Green button: Teletext functions.............................................................................(page 36)
13
Red button: Freeze on/off / Start HbbTV or interactive data service (3 .....................(page 78)
14
Select station down / Jump (1 / Rewind (1............................................................(page 85; 94)
15
Direct recording (1.....................................................................................................(page 87)
16
Still frame on/off / Interrupt timeshift television(1 ....................................................(page 85)
17
Still frame on / End timeshift(1 .................................................................................(page 85)
18
Select station up / Jump (1 / Fast forward(1.........................................................(page 85; 94)
19
Still frame off / Continue timeshift television(1 / Highlights (1..............................(page 85; 86)
20
Blue button: Programme info on/off.......................................................................(page 36)
21
Yellow button: Previous station ...............................................................................(page 36)
22
In the menu / Lists: Select/Set..................................................................................(page 12)
23
P+/P– Select Station up/down.................................................................................(page 30)
24
Close all displays ......................................................................................................(page 12)
25
Status display on/off / in the menu: context-relevant Info on/off......................(page 38; 15)
26
PIP on/off (picture in picture) ...................................................................................(page 44)
27
MediaPortal on/off ............................................................................................(page 14; 58)
28
AV selection.............................................................................................................(page 31)
29
Select station directly; in the menu: Enter numbers or letters..................................(page 30)
30
Set sound mode ......................................................................................................(page 32)
31
Switch over to operate DVD player (2 .....................................................................(page 123)
32
Switch over to radio mode(2..................................................................... (page 21; 50; 123)
33
Switch on/off – to standby mode............................................................................(page 21)
The key assignment displayed here is valid for the main menu level of the TV set. The key assignment
may vary in certain operating modes (see the corresponding chapter in this operating manual).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
18
19
20
21
22
23
24
25
26
27
28
29
30
31
33
17
Remote control – TV functions
(1 For equipment with integrated hard disc (DR+) or connected
external hard disc, see the Digital Recorder chapter from page 80
onwards.
(2
The assignment of these keys can be changed (see page 123).
The description refers to the standard setting.
(3 Depending on the corresponding settings (see page 78)..

- 4
english
Acknowledgements
Loewe Opta GmbH
Industriestraße 11
D-96317 Kronach
www.loewe.de
Printed in Germany
Date of issue 04/11-4.0 TB/FP
© Loewe Opta GmbH, Kronach
ID: 5.14.0
All rights including translation, technical modifications and errors reserved.

5 -
english
Contents
Overview of the most important functions ............................................. 2
Remote control – TV functions ................................................................ 3
Acknowledgements.................................................................................. 4
Welcome................................................................................................... 7
Scope of delivery..................................................................................... 7
About this operating manual .................................................................. 7
For your safety ......................................................................................... 8
Control unit front side of the device ..................................................... 10
Connections rear side of the device ...................................................... 11
Operating convenience .......................................................................... 12
General information on menu operation.............................................. 12
Operating convenience with wizards.................................................... 13
Overview of wizards.............................................................................. 13
MediaPortal........................................................................................... 14
The index in the TV set.......................................................................... 15
The info display ..................................................................................... 15
TV menu – Overview diagram............................................................... 16
Radio menu – Overview diagram.......................................................... 17
Other menus– Overview diagram ......................................................... 17
Initial installation................................................................................... 18
Installing the TV set............................................................................... 18
Set covers.............................................................................................. 18
Connecting the TV Set .......................................................................... 18

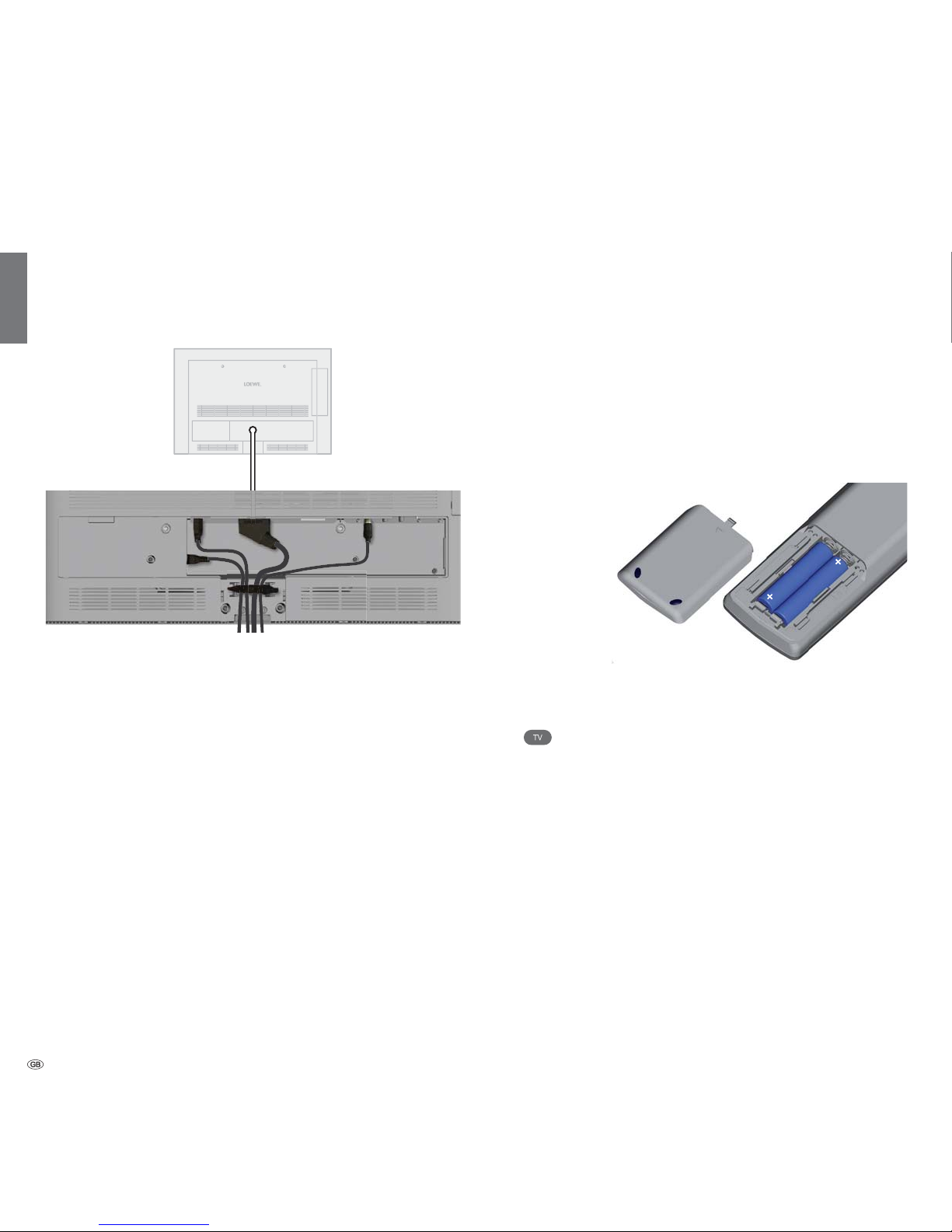

Bundling the Cables .............................................................................. 20
Preparing the remote control unit......................................................... 20
Turning the set on/off............................................................................ 21
First installation wizard .......................................................................... 22
Positioning/aligning DVB-T antenna ...................................................... 29
Daily operation ...................................................................................... 30
Select station......................................................................................... 30
Selecting Audio/Video Source............................................................... 31
Adjusting the sound.............................................................................. 32
Adjusting the picture............................................................................. 34
Button functions ................................................................................... 36
Daily operation (continuation)............................................................... 37
Operation without remote control........................................................ 37
Status display......................................................................................... 38
Managing stations ................................................................................. 40
TV stations............................................................................................. 40
Put together / change favourites lists .................................................... 43
Picture in Picture.................................................................................... 44
Picture in Picture (PIP)............................................................................ 44
iPIP ........................................................................................................ 44
Standard PIP .......................................................................................... 44
Configure Picture in Picture (PIP) mode ................................................. 45
Electronic Programme Guide ................................................................. 46
Electronic Programme Guide – EPG ...................................................... 46
Configuring EPG.................................................................................... 47
Teletext................................................................................................... 48
Teletext.................................................................................................. 48
Teletext menu........................................................................................ 49
Interactive data services (Digital teletext/MHEG-5)................................ 50
Digital radio ........................................................................................... 50
Radio mode (DVB radio)........................................................................ 50
EPG – Electronic Programme Guide (radio) ........................................... 51
Radio mode (Internet radio) .................................................................. 52
Audio playback from external devices................................................... 53
Other settings ........................................................................................ 54
Parental lock.......................................................................................... 54
Timer functions ..................................................................................... 55
Language .............................................................................................. 55
On-screen displays ................................................................................ 56
Time and date....................................................................................... 56
Coded Stations....................................................................................... 57
Conditional Access module (CA module).............................................. 57

- 6
english
Media+.................................................................................................. 58
General information on Media+........................................................... 58
Connecting the TV set to your network................................................ 58
MediaNet .............................................................................................. 58
Help for configuration problems........................................................... 58
MediaUpdate - additional functions...................................................... 58
Accessing your media ........................................................................... 59
Media menu.......................................................................................... 60
MediaHome.......................................................................................... 64
MediaNet .............................................................................................. 68
Video podcasts...................................................................................... 73
MediaMusic .......................................................................................... 74
MediaPhoto .......................................................................................... 75
MediaVideo........................................................................................... 76
HbbTV / MediaText................................................................................ 78
Digital Recorder ..................................................................................... 80
About the Digital Recorder system........................................................ 80
Settings ................................................................................................. 83
TV viewing with time shift..................................................................... 85
Archive recording – Direct recording..................................................... 87
Archive playback ................................................................................... 93
DR+ Streaming .................................................................................... 101
External devices ................................................................................... 106
Connections menu.............................................................................. 106
Gaming mode..................................................................................... 107
Devices to the connections AV/AVS .................................................... 108
Devices to the HDMI connections....................................................... 110
Digital Link HD .................................................................................... 111
Devices to the PC IN connection......................................................... 112
Sound components wizard ................................................................. 113
Connecting Loewe sound system ....................................................... 114
Connecting active loudspeakers.......................................................... 115
Adjusting the speaker system.............................................................. 115
Connecting audio amplifiers ............................................................... 118
Assignment of the digital audio input................................................. 119
Audio connection in HDMI/DVI devices.............................................. 119
Serial interface RS-232C (RJ12)............................................................ 119
External devices (continuation) ........................................................... 120
The direct way to record ..................................................................... 120
Timer recording with external devices................................................. 122
Operating Loewe equipment.............................................................. 123
Software update .................................................................................. 124
Basic information ................................................................................ 124
USB stick.............................................................................................. 124
Download ........................................................................................... 124
Software update ................................................................................. 124
Input of characters............................................................................... 126
USB keyboard...................................................................................... 126
Button combinations........................................................................... 126
Character table.................................................................................... 127
Tilting the TV set .................................................................................. 127
Troubleshooting ................................................................................... 128
Technical data ...................................................................................... 131
General data........................................................................................ 131
Electrical data ...................................................................................... 132
Signals via PC IN / HDMI ..................................................................... 132
Connections (max. equipment)........................................................... 133
MediaHome........................................................................................ 134
Accessories........................................................................................... 135
Upgrade kits / conversion kits / cables................................................. 136
Equipment variants.............................................................................. 137
TV set equipment................................................................................ 137
Setup possibilities ................................................................................ 138
Environment......................................................................................... 139
Legal notes........................................................................................... 140
Glossary................................................................................................ 141
EC Declaration of Conformity .............................................................. 146
Index .................................................................................................... 148
Service.................................................................................................. 151
Contents

7 -
english
Thank you
for choosing a Loewe TV set!
Loewe stands for the highest demands in technology, design and user
friendliness. This applies equally for TV, video and accessories.
In addition to the elegant design and the many different possible colour
combinations and installation possibilities, your Loewe TV set also offers
many technological options.
Loewe Image+
State-of-the-art Full-HD-LCD-displays with LED-Backlight Technology. The
advantage of the LED-Backlight is in the reduced energy consumption and
high contrast values.
24p films played by a connected HDMI unit can be displayed optimally.
Loewe Sound+
Loewe Sound+contains sound processors that are optimally calibrated to the
TV set, a closed coverage construction type for the integrated loudspeakers
and a total of 80 watts of output power.
A separate digital mono amplifier provides a further 40 watts of output
power to two bass speakers operating in parallel.
Many Loewe TV sets are fitted with a digital multi-channel audio decoder
for impressive 5.1 surround sound (1.
Loewe Media+
You can reach the MediaPortal via the MEDIA button on your remote control,
giving you access to all multimedia functions of your TV set.
Loewe DR+
If the hard disc recorder DR+(1 is integrated into your TV set, you can
record TV programmes simply at the press of a button. Programmes
currently being watched can be interrupted, rewound and played back
from the desired point if needed.
Scope of delivery
• LCD TV set
• Table stand (assembled)
• Mains cable
• Antenna cable
• Velcro cable ties
• Remote control Assist with two batteries
• TV quick guide
About this operating manual
For best results regarding safety and the longevity of the set, we recom-
mend you read the chapter For your Safety (page 8) before switching
it on for the first time.
The functions of the Loewe TV set are largely self-explanatory. However,
should you have any questions, the integrated index and the info display
(see page 15) can assist you further.
The index/glossary from page 141 onwards gives explanations of certain
terms used in the TV set and the operating manual.
Paragraphs which begin with the symbol ➠indicate important instruc-
tions, tips or conditions for the following settings.
Terms which you will find in the menus or printed on the remote control
or TV set are written in bold type.
The necessary control elements are shown in the descriptions to the left
of the text containing the instructions for action.
In addition to the remote control, a PC keyboard can be connected to one of the
USB ports on your TV and then used to control your TV set (see also page 126).
In the operating manual, this symbol indicates places in
which the use of a keyboard is particularly advantageous.
Depending on the connected accessory equipment the menus in the TV
set can differ from those described here.
All the station names, programme contents, the illustrated photos, titles,
albums and album covers in this operating manual are examples.
In some countries, the stations also transmit interactive data services with
their programmes (see page 50, Digital Teletext/MHEG-5), whereby the
functions of individual keys are not available or only so to a limited extent.
InterActive
The symbol indicates which functions can differ for a loaded
application.
The operating instructions for your TV set are updated at irregular
intervals. We recommend checking now and then, especially after a
software update.
Welcome
(1 Depending on the type of TV set. (equipment and upgrade options, see page 137.

- 8
english
For your own safety and to prevent unnecessary damage to your device,
read and comply with the following safety instructions:
Proper use and environmental conditions
This TV set is designed exclusively for reception and reproduction of
video and audio signals and is designed for living rooms or office facilities,
and should not be operated in rooms with high humidity, such as a
bathroom, or sauna, or where there is a high concentration of dust (e.g.
workshops). The manufacturer‘s warranty is only valid for use in the specified
permissible environment.
If the set is used outdoors ensure that it is protected against moisture
(rain, splashing water, or dew). High humidity and dust concentrations
cause leak currents in the device, which can cause a shock hazard if the
device is touched, or a fire.
If you have brought the set into a
warm environment from the cold,
then wait for about 1 hour before
switching it on to avoid formation of
condensation.
Do not place any objects filled with
liquids on top of the appliance. Pro-
tect the appliance against dripping
and splashing water.
Candles or naked flames must be kept
away from the appliance at all times
to prevent it from catching fire.
Never place the TV set in a position where it is exposed to vibrations. This
can lead to material overload.
Transporting
Only transport the device in vertical position. Grasp the device on the
upper and lower edges of the housing.
If the set has to be put down during packing/unpacking, place the TV
set with the entire front surface lying flat on a soft underlay such as a
blanket or the felt from the packing material.
The LCD screen is made of glass or plastic and can break if not handled
properly.
Always wear rubber gloves to carry the TV set if the LCD screen is dam-
aged and liquid crystal might be leaking out. In the case of skin contact
immediately wash thoroughly with water.
Power supply
The wrong voltage can damage the set. This equipment must only be
connected to a mains power supply which has the same voltage and
frequency as that specified on the rating plate; use the mains cable
provided. The mains plug of the TV set must be easily accessible so that
the device can be disconnected from the mains at any time. When you
unplug the mains plug, do not pull on the cable rather pull on the plug
housing. The cable in the mains plug could be damaged and cause a
short circuit the next time it is plugged in.
Lay out the mains cable in such a manner that it cannot be damaged.
The mains cable must not be kinked or laid over sharp edges, stepped
on or exposed to chemicals; The latter also applies for the entire equip-
ment. A mains cable with damaged insulation can cause electrical shock
and is a fire hazard.
Air circulation and high temperatures
The vent slots on the rear panel of the set must always be kept free.
Please do not place newspapers or cloths on/over the TV.
Ensure that there is at least 10
cm free space on the sides and
above the set for air circulation,
if the set is placed in a cabinet
or on a shelf.
Like any electronic device, your
TV set requires air for cooling.
Obstruction of the air circula-
tion can cause fires.
The set is suitable for different installation solutions. See the instructions
for assembly for the different installation solutions. Stand the TV set with
the table or floor stand only on a level, sturdy, horizontal base. Particu-
larly ensure that the set does not protrude to the front when placed in
or on pieces of furniture. The TV set may only be operated horizontally,
the vertical tilt must not be more than 10 degrees maximum. The TV set
must never be operated on edge, lying on the ground or hanging from
the ceiling.
Set up the device where it is not exposed to direct sunlight and where it
is not exposed to additional warming through heating elements.
Prevent metal items, needles, paper clips, liquids, wax, or similar items,
from getting into the interior of the device through the vent slots in the
rear panel. Such objects can cause short circuits in the set, which could
possibly cause a fire.
If something should get into the interior of the set then immediately
unplug the mains plug of the device and contact customer service for
more information.
For your safety
10 cm 10 cm 10 cm

9 -
english
Cleaning and care
➠ Switch off the TV set at the main switch before cleaning.
Clean the TV set, the screen, and the remote control unit with a soft,
moist, and clean cloth only, without any aggressive or scouring cleaning
agents.
Sets with glass screens may be cleaned with a conventional glass cleaner.
Repairs and accessories
Never remove the back of the TV set yourself. Only have your TV device
repaired or serviced by authorised television technicians.
Only use original accessories such as Loewe stands if possible (see Acces-
sories on page 135.
Supervision
Do not allow children to use the TV set without supervision or to play in
the immediate vicinity of the TV set. The set could tip over, be pushed
off or pulled down from the stand surface and injure someone.
Do not allow the switched-on TV set to run unattended.
Volume
Loud music can lead to ear damage. Avoid extreme volume especially
over long periods and when using headphones.
Thunder storms
Pull out the mains plug and all connected antenna cables from the TV
set in a thunderstorm. Overvoltage caused by lightning can damage the
set via the antenna system, as well as via the mains. The mains plug and
all connected antenna cables should also be pulled out during long pe-
riods of absence.
Note on the LCD screen
The TV set you have purchased with LCD screen satisfies the most rigor-
ous quality requirements and has been inspected relative to pixel errors.
Despite our thorough care when manufacturing the display, it cannot be
100% guaranteed that no subpixel defects will be present due to techni-
cal reasons. Please understand that these types of effects, as long as they
are within the standard of specified limits, cannot be considered as a
device defect in terms of the guarantee.
Avoid displaying still images for long periods of time. It is possible that
a copy of the image may remain.
For your safety

- 10
english
Functions of the operating elements
1Mains switch:
The mains switch is located on the bottom of the set.
Always return the TV set to Standby mode before switching it off
with the main switch.
2 On/Off button:
Switch on from the standby mode
Switch off to the standby mode
3 Display:
red = Standby
green = Operation
orange = Operation without on-screen display
(Radio, EPG data capture, timer recording) or archive
recording via USB (1.
4 Display DR+(2:
white = Digital Recorder inactive
(no recording, no playback)
green = Digital Recorder active (offset TV viewing or
archive playback)
red = Digital Recorder active
(archive recording)
5 Button M:
Call the menu
in the menu: up/down 
6 Button R:
Radio on/off (back to TV mode)
Switch on the radio from the standby mode
in the menu: down 
7 Button +:
Station up
in the menu: to the right 
8 Button – :
Station down
in the menu: to the left 
Control unit front side of the device
(1 USB recording is only possible for devices without DR+(integrated hard disc recorder).
(2 Only for devices with DR+(integrated hard disc recorder).
DR+
M
R
+
-
3 1
5
7
8
2
4
6
