Loewe Individual 26 Selection User manual

Operating instructions, Instrucciones de manejo
Connect
TV
Connect 26 LED
233–34659.020

- 2
english
Please fold out this page.
Colour key function during radio operation
Red button: On/Off screen
Yellow button: Last selecting station
Button functions
Call timer list
Press button twice in quick succession:
Show / hide time permanently
Adjust picture format
Call MediaPortal,
select operating mode or function.
On/Off PIP (picture in picture)
On/Off EPG (Electronic Programme Guide)
On/Off teletext,
select teletext page
Call status display,
call programme information (if available) with status
display open and repeated pressing.
Call TV menu,
carry out settings
With opened menu: Exit menu;
Terminate inserts
Set operating mode
TV operation
Radio operation (standard assignment)
The assignment of the AUDIO button can be changed
(see page 85).
On/Off of the television set
On/Off device in standby
(Main switch must be turned on)
Selecting stations
OK Call station overview and with
Select station
or
P+/P– Programme +/–
or
Select station with numeric buttons
Sound
V+/V– Volume up/down
Sound on/off
Colour key function during TV operation
Red button: Freeze on/off.
Green button: Teletext functions
Yellow button: Last selected station
Blue button: Programme information
Quick guide

3 -
english
(1 R
adio only for DVB reception, provided the station broadcasts this.
Otherwise switch-over to an audio input.
(2 The assignment of these keys can be changed (see page 85).
The description refers to the standard setting.
Functions of Loewe TV set
1
Sound off/on ...........................................................................................................(page 32)
2
LED display for current operating mode..................................................................(page 85)
3
Switch over to TV mode....................................................................................(page 20; 85)
4
Switch over to operate recorder (2 ...........................................................................(page 85)
5
Timer overview on/off .............................................................................................(page 83)
6
Set picture format....................................................................................................(page 35)
7
Electronic Programme Guide on/off ........................................................................(page 46)
8
Teletext on/off .........................................................................................................(page 48)
9
Menu on/off............................................................................................................(page 12)
10
V+/V– Volume louder/quieter ..................................................................................(page 32)
11
Station list on...........................................................................................................(page 30)
in the menu: Confirm/call........................................................................................(page 12)
12
Green button: Teletext functions.............................................................................(page 36)
13
Red button: Freeze on/off .......................................................................................(page 36)
14
Select station down; in the menu/wizard (if available): Back...................................(page 28)
15
Direct recording
16
Still frame on/off
17
Still frame on
18
Select station up
19
Still frame off
20
Blue button: Programme info on/off.......................................................................(page 36)
21
Yellow button: Previous station ...............................................................................(page 36)
22
In the menu / Lists: Select/Set..................................................................................(page 12)
23
P+/P– Select Station up/down.................................................................................(page 30)
24
Close all displays......................................................................................................(page 12)
25
Status display on/off; in the menu: context-relevant Info on/off.......................(page 38; 15)
26
PIP on/off (picture in picture) ...................................................................................(page 44)
27
MediaPortal on/off ............................................................................................(page 14; 56)
28
AV selection ............................................................................................................(page 31)
29
Select station directly; in the menu: Enter numbers or letters..................................(page 30)
30
Set sound adjustment..............................................................................................(page 32)
31
Switch over to operate DVD player (2 .......................................................................(page 85)
32
Switch over to radio mode(1 (2 .................................................................... (page 21; 50; 85)
33
Switch on/off – to standby mode............................................................................(page 21)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
18
19
20
21
22
23
24
25
26
27
28
29
30
31
33
17
Remote control – TV functions

- 4
english
Acknowledgements
Loewe Opta GmbH
Industriestraße 11
D-96317 Kronach
www.loewe.de
Printed in Germany
Date of issue 06/10-1.0 TB/FP
© Loewe Opta GmbH, Kronach
ID: 1.5.0.0
All rights including translation, technical modifications and errors reserved.

5 -
english
Contents
Quick guide .............................................................................................. 2
Remote control – TV functions ................................................................ 3
Acknowledgements.................................................................................. 4
Welcome................................................................................................... 7
Scope of delivery..................................................................................... 7
About this operating manual .................................................................. 7
For your safety ......................................................................................... 8
Control unit front side of the device ..................................................... 10
Connections rear side of the device ...................................................... 11
Operating convenience .......................................................................... 12
General information on menu operation.............................................. 12
Operating convenience with wizards.................................................... 13
Overview of wizards.............................................................................. 13
MediaPortal........................................................................................... 14
The index in the TV set.......................................................................... 15
The info display ..................................................................................... 15
TV menu – Overview diagram............................................................... 16
Radio menu – Overview diagram.......................................................... 17
Other menus– Overview diagram......................................................... 17
Initial installation................................................................................... 18
Installing the TV set............................................................................... 18

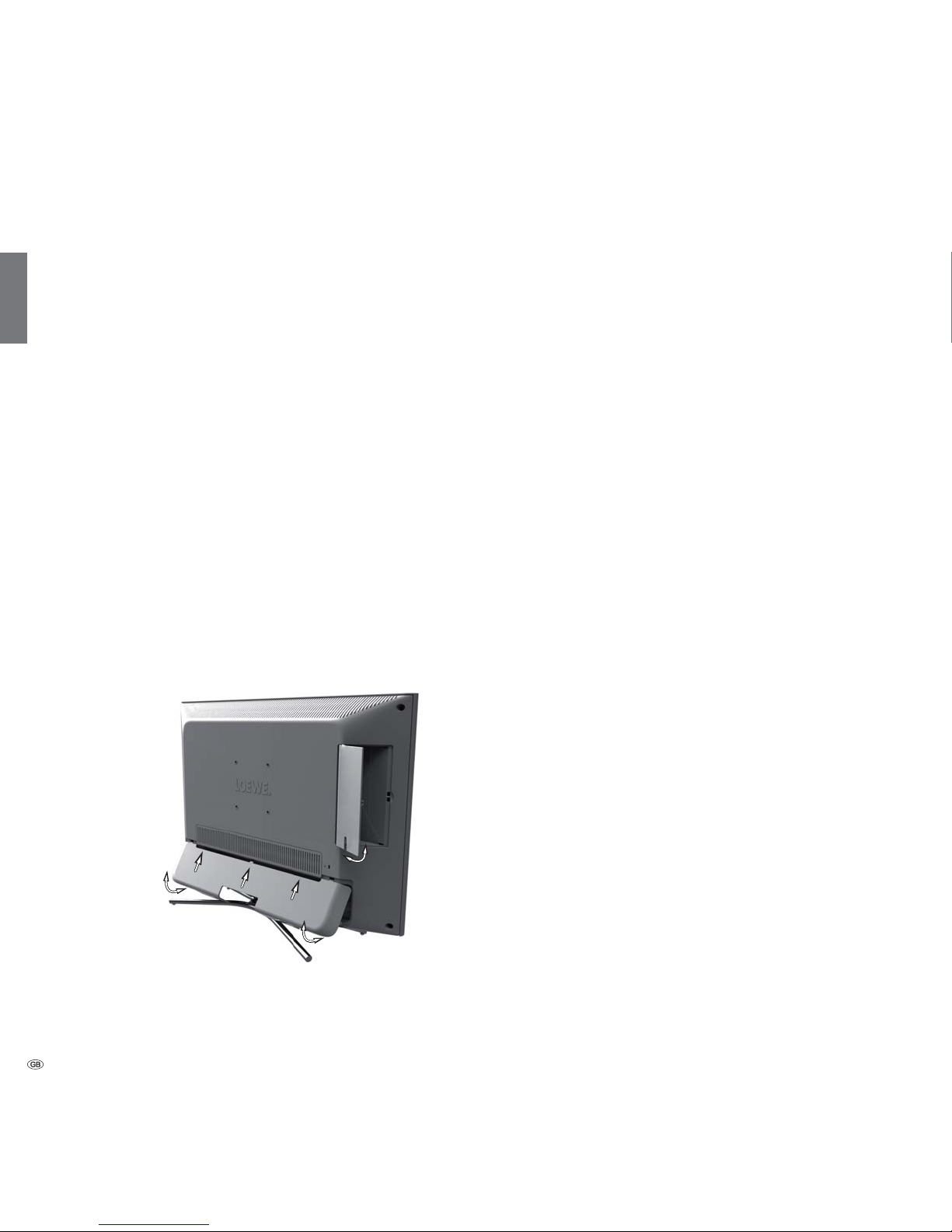

Set covers.............................................................................................. 18
Connecting the TV Set .......................................................................... 19
Preparing the remote control unit......................................................... 20
Turning the set on/off............................................................................ 21
First installation wizard.......................................................................... 22
Positioning/aligning DVB-T antenna ...................................................... 29
Daily operation ...................................................................................... 30
Select station......................................................................................... 30
Selecting Audio/Video Source............................................................... 31
Adjusting the sound.............................................................................. 32
Adjusting the picture............................................................................. 34
Button functions ................................................................................... 36
Operation without remote control........................................................ 37
Status display......................................................................................... 38
Managing stations ................................................................................. 40
TV stations............................................................................................. 40
Put together / change favourites lists .................................................... 43
Picture in Picture.................................................................................... 44
Picture in Picture (PIP)............................................................................ 44
Configure Picture in Picture (PIP) mode ................................................. 45
Electronic Programme Guide ................................................................. 46
Electronic Programme Guide – EPG ...................................................... 46
Configuring EPG.................................................................................... 47
Teletext................................................................................................... 48
Teletext.................................................................................................. 48
Teletext menu........................................................................................ 49
Interactive data services (Digital teletext/MHEG-5)................................ 50
Digital radio ........................................................................................... 50
Radio mode .......................................................................................... 50
EPG – Electronic Programme Guide (radio) ........................................... 51
Audio playback from external devices................................................... 51
Other settings ........................................................................................ 52
Parental lock.......................................................................................... 52
Timer functions ..................................................................................... 53
Language .............................................................................................. 53
On-screen displays ................................................................................ 54
Time and date....................................................................................... 54
