Loewe SL1 Series User manual

Chassis SL1xx
Quick guide
Loewe
TV

- 2
english
Contents
Overview of the most important functions ............................................. 3
Remote control – TV functions ................................................................ 4
Welcome................................................................................................... 5
About this quick guide ............................................................................ 5
Acknowledgements ................................................................................ 5
For your safety ......................................................................................... 6
Position of the power switch................................................................... 8
Operating convenience .......................................................................... 10
General information on menu operation .............................................. 10
The index in the TV set.......................................................................... 11
The info display ..................................................................................... 11
Daily operation ...................................................................................... 12
MediaPortal........................................................................................... 12
Button functions ................................................................................... 13
Select station......................................................................................... 14
Select audio/video source...................................................................... 15
Adjusting the sound.............................................................................. 16
Adjusting the picture............................................................................. 16
3D functionality..................................................................................... 17
Status display......................................................................................... 17
Picture in Picture.................................................................................... 18
Electronic Programme Guide ................................................................. 18
Teletext................................................................................................... 19
Digital radio ........................................................................................... 19
Digital Recorder (DR+/ USB Recording)................................................ 20
TV viewing with time shift..................................................................... 20
Digital recorder archive / Video archive ................................................. 20
Archive recording ................................................................................. 21
Archive playback ................................................................................... 21
DR+ Streaming ...................................................................................... 22
Interactive data services........................................................................ 23
HbbTV / MediaText................................................................................ 23
MHP...................................................................................................... 24
MHEG-5 ................................................................................................ 25
Media+.................................................................................................. 26
MediaHome .......................................................................................... 26
MediaNet .............................................................................................. 27
Menu structure....................................................................................... 28
TV menu – Overview diagram............................................................... 28
Radio menu – Overview diagram.......................................................... 29
Other menus– Overview diagram ......................................................... 29
Connections rear side of the device ...................................................... 30
Position of the ports.............................................................................. 30
Function of the ports............................................................................. 31
Environment........................................................................................... 32
Equipment / Download .......................................................................... 32
TV set equipment.................................................................................. 32
Software / Operating instructions.......................................................... 32
Legal notes............................................................................................. 33
Trademarks............................................................................................ 33
Conformity / Manufacturer’s declaration .............................................. 33
Service.................................................................................................... 34

3 -
english
Colour button function during radio operation
Red button: On/Off screen
Yellow button: Last selected station
Button functions
Call MediaPortal,
select operating mode or function.
(e.g. Index)
with on-screen display: Info display,
info text appropriate to the content that can assist you
further, should you have any questions about your TV
device;
without on-screen display: Access status display,
with status display open and repeatedly pressing
programme information (if available)
Open DR archive/Video archive (2 / Timer list
Press button twice in quick succession:
Show / hide time permanently
Adjust picture format
On/Off PIP (picture in picture)
On/Off EPG (Electronic Programme Guide)
On/Off teletext/MediaText (1
Call TV menu,
carry out settings
With opened menu: Exit menu;
Terminate inserts
Set operating mode
TV operation
Radio operation (standard assignment)
On/Off of the television set
On/Off device in standby
(Main switch must be turned on)
Selecting stations
OK Call station overview and with
Select station
or
P+/P– Next/ previous channel
or
Select station with numeric buttons
Sound
V+/V– Increase/ reduce volume
Sound on/off
Colour button function during TV operation
Red button: Freeze frame on/off;
Start HbbTV (1 or interactive data service,
if this is available.
Green button: Teletext functions
Yellow button: Last selected station
Blue button: Programme information
Overview of the most important functions
(1
Depending on the equipment present in the TV set and the corresponding settings.
(2
Only for TV sets that contain an integrated hard disc (DR+), a connected external hard
disc (USB Recording) or that have an archive available on the network (DR streaming).

- 4
english
(1 For equipment with integrated hard disc (DR+) or connected
external hard disc.
(2
The assignment of these buttons can be changed. The description
refers to the standard setting.
(3
Depending on the equipment present in the TV set and the cor-
responding settings.
1
Sound off/on ...........................................................................................................(page 16)
2
LED display for current operating mode
3
Switch over to TV mode
4
Switch over to operate recorder(2
5
DR archive/Video archive (1 / Timer list on/off
6
Set picture format....................................................................................................(page 16)
7
Electronic Programme Guide on/off ........................................................................(page 18)
8
Teletext/MediaText (3 on/off................................................................................(page 19; 23)
9
Menu on/off ............................................................................................................(page 10)
10
V+/V– Increase/ reduce volume ...............................................................................(page 16)
11
Station list on...........................................................................................................(page 14)
in the menu: Confirm/call........................................................................................(page 10)
12
Green button: Teletext functions .............................................................................(page 13)
13
Red button: Freeze on/off / Start interactive data service (3 .....................................(page 13)
14
Select station down / Jump (1 / Rewind (1
15
Direct recording
16
Still frame on/off / timeshift television (1
17
Still frame on / End timeshift (1 / End archive playback (1
18
Select station up / Jump (1 / Fast forward (1
19
Still frame off / Set bookmark (1 / Highlights (1
20
Blue button: Programme info on/off .......................................................................(page 13)
21
Yellow button: Switch to the last viewed channel...................................................(page 13)
22
In the menu / Lists: Select/Set ..................................................................................(page 10)
23
P+/P– Select station up/down .................................................................................(page 14)
24
Close all displays ......................................................................................................(page 10)
25
Status display on/off / in the menu: context-relevant info on/off ......................(page 17; 11)
26
PIP on/off (picture in picture) ...................................................................................(page 18)
27
MediaPortal on/off ..................................................................................................(page 12)
28
AV selection.............................................................................................................(page 15)
29
Select station directly / in the menu: Enter numbers or letters.................................(page 14)
30
Set Sound mode / Sound adjustment......................................................................(page 16)
31
Switch over to operate DVD player (2
32
Switch over to radio mode (2....................................................................................(page 19)
33
Switch on/off to standby mode
The key assignment displayed here is valid for the main menu level of the TV set.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
18
19
20
21
22
23
24
25
26
27
28
29
30
31
33
17
Remote control – TV functions

5 -
english
Welcome
Thank you
for choosing a Loewe TV set!
Loewe stands for the highest demands in technology, design and user
friendliness. This applies equally for TV, video and accessories.
In addition to the elegant design and the many different possible colour
combinations and installation possibilities, your Loewe TV set also offers
many technological options.
Loewe Image+
State-of-the-art Full-HD-LCD-displays with LED backlight technology. The
advantage of the LED backlight is in the reduced energy consumption and
high contrast values.
24p films played by a connected HDMI unit can be displayed optimally.
Loewe Sound+
Loewe Sound+contains sound processors that are optimally calibrated
to the TV set and boasts a closed coverage construction type for the
integrated loudspeakers.
Many Loewe TV sets are fitted with a digital multi-channel audio decoder
for impressive 5.1 surround sound (1.
Loewe Media+
You can reach the MediaPortal via the MEDIA button on your remote control,
giving you access to all multimedia functions of your TV set.
Loewe DR+
If the hard disc recorder DR+(1 is integrated into your TV set, you can
record TV programmes easily at the touch of a button. Programmes
currently being watched can be interrupted, rewound and played back
from the desired point if needed.
About this quick guide
This user manual only gives you a short overview of the most important
functions of your TV set.
You can download a detailed, up to date user manual using the Loewe
support portal (page 32) on our website.
➠ For best results regarding safety and the longevity of the set, we
recommend you read the chapter For your safety (page 6) before
switching it on for the first time.
The functions of the Loewe TV set are largely self-explanatory. However,
should you have any questions, the integrated index and the info display
(see page 11) can assist you further.
Paragraphs which begin with the symbol ➠indicate important instruc-
tions, tips or conditions for the following settings.
Terms which you will find in the menus or printed on the remote control
or TV set are written in bold type.
The necessary control elements are shown in the descriptions to the left
of the text containing the instructions for action.
In addition to the remote control, a PC keyboard can be connected to
one of the USB ports on your TV and then used to control your TV set.
In the quick guide, this symbol indicates places in which
the use of a keyboard is particularly advantageous.
Depending on the connected accessory equipment the menus in the TV
set can differ from those described here.
All channel names and programme contents as well as the photos shown,
song titles, albums and album images used in this quick guide are only
meant to serve as examples.
Interactive data services
In some countries the stations also broadcast interactive data services
with their programmes, leading to the functions of individual buttons
not being available or only so to a limited extent. You can find out more
about this from page 23 onwards.
Acknowledgements
Loewe Opta GmbH
Industriestraße 11
D-96317 Kronach
www.loewe.de
Printed in Germany
Date of issue 12/11-8.0 TB/FP
© Loewe Opta GmbH, Kronach
ID: 7.5.0
All rights including translation, technical modifications and errors reserved. (1 Depending on the type of TV set.

- 6
english
For your safety
For your own safety and to prevent unnecessary damage to your device,
read and comply with the following safety instructions:
Proper use and environmental conditions
This TV set is designed exclusively for reception and reproduction of
video and audio signals and is designed for living rooms or office facilities,
and should not be operated in rooms with high humidity, such as a
bathroom, or sauna, or where there is a high concentration of dust (e.g.
workshops). The manufacturer‘s warranty is only valid for use in the specified
permissible environment.
Only devices corresponding to the statutory regulations may be con-
nected to the TV set.
The TV set may be operated under the following conditions:
➠Mains voltage 220-240V/50-60Hz
➠Ambient temperature 5°-35°Celsius
➠Relative humidity (non condensing) 20-80%
➠Air pressure 800-1114hPa (0-2000m above sea level)
If the set is used outdoors ensure that it is protected against moisture
(rain, splashing water, or dew). High humidity and dust concentrations
cause leak currents in the device, which can cause a shock hazard if the
device is touched, or a fire.
If you have brought the set into a warm
environment from the cold, then wait
for about 1 hour before switching it on
to avoid formation of condensation.
Do not place any objects filled with
liquids on top of the appliance. Protect
the appliance against dripping and
splashing water.
Candles or naked flames must be kept
away from the appliance at all times to
prevent it from catching fire.
Never place the TV set in a position where
it is exposed to vibrations. This can lead
to material overload.
Transporting
Only transport the device in vertical position. Grasp the device on the
upper and lower edges of the housing. Never put the TV set down on
the control unit with the control unit projecting on the bottom. This could
damage the control unit.
If the set has to be put down during packing/unpacking, place the TV
set with the entire front surface lying flat on a soft underlay such as a
blanket or the felt from the packing material.
The LCD screen is made of glass or plastic and can break if not handled
properly.
Always wear rubber gloves to carry the TV set if the LCD screen is dam-
aged and liquid crystal might be leaking out. In the case of skin contact
immediately wash thoroughly with water.
Power supply
The wrong voltage can damage the set. This equipment must only be
connected to a mains power supply which has the same voltage and
frequency as that specified on the rating plate; use the mains cable
provided. The mains plug of the TV set must be easily accessible so that
the device can be disconnected from the mains at any time. When you
unplug the mains plug, do not pull on the cable rather pull on the plug
housing. The cable in the mains plug could be damaged and cause a
short circuit the next time it is plugged in.
Lay out the mains cable in such a manner that it cannot be damaged.
The mains cable must not be kinked or laid over sharp edges, stepped
on or exposed to chemicals; The latter also applies for the entire equip-
ment. A mains cable with damaged insulation can cause electrical shock
and is a fire hazard.
Air circulation and high temperatures
The vent slots on the rear panel of the set must always be kept free.
Please do not place newspapers or cloths on/over the TV.
Ensure that there is at least 10
cm free space on the sides and
above the set for air circulation,
if the set is placed in a cabinet
or on a shelf.
Like any electronic device, your
TV set requires air for cooling.
Obstruction of the air circula-
tion can cause fires.
Prevent metal items, needles,
paper clips, liquids, wax, or
similar items, from getting into
the interior of the device through the vent slots in the rear panel. Such
objects can cause short circuits in the set, which could possibly cause a
fire.
If something should get into the interior of the set then immediately
unplug the mains plug of the device and contact customer service for
more information.
Automatic shutdown (only in Home Mode)
If the TV is not operated for 4 hours (adjustment of volume, programme
change, etc.) the TV will automatically switch to stand-by mode to save
energy. A prompt to terminate this shutdown process appears one minute
before expiry of the 4 hours. The automatic shutdown is only active in
the energy efficiency mode Home Mode. Automatic shutdown does not
occur when using the radio without screen display (screen off).
10 cm 10 cm 10 cm

7 -
english
TV sets with 3D function (1
Read the following safety instructions before using the 3D function of
your TV set.
Please only use Loewe 3D glasses in conjunction with Loewe 3D TV sets.
People that have a visual disorder may not be able to perceive 3D effects
or may only be able to perceive them to a limited extent. People that are
sensitive to flickering images (e.g. those with epilepsy) should only use
this product after having consulted their doctor.
It might take some time for you to get used to the 3D glasses and before
you can perceive the 3D effects properly.
Stop using the 3D devices immediately if you experience any feelings of
nausea, dizziness or malaise when viewing 3D content.
Supervise children whilst they are viewing 3D content, as they can be
particularly sensitive to it.
Allow more time for a break when viewing 3D films, so that you are able
to relax. Failure to do this could result in headaches, fatigue, dizziness
or malaise.
Position yourself comfortably in front of the 3D TV set and ensure that
you are seated firmly. By doing this, you will avoid any injuries that may
arise due to reacting to extreme 3D content.
Switch off any artificial light sources (e.g. energy saving lamp) between
the TV set and the 3D glasses. These could impair the infrared reception
or the TV picture may flicker as a result.
Installation
The set is suitable for different installation solutions. See the instructions
for assembly for the different installation solutions.
Stand the TV set with the table or floor stand only on a level, sturdy,
horizontal base. Particularly ensure that the set does not protrude to the
front when placed in or on pieces of furniture.

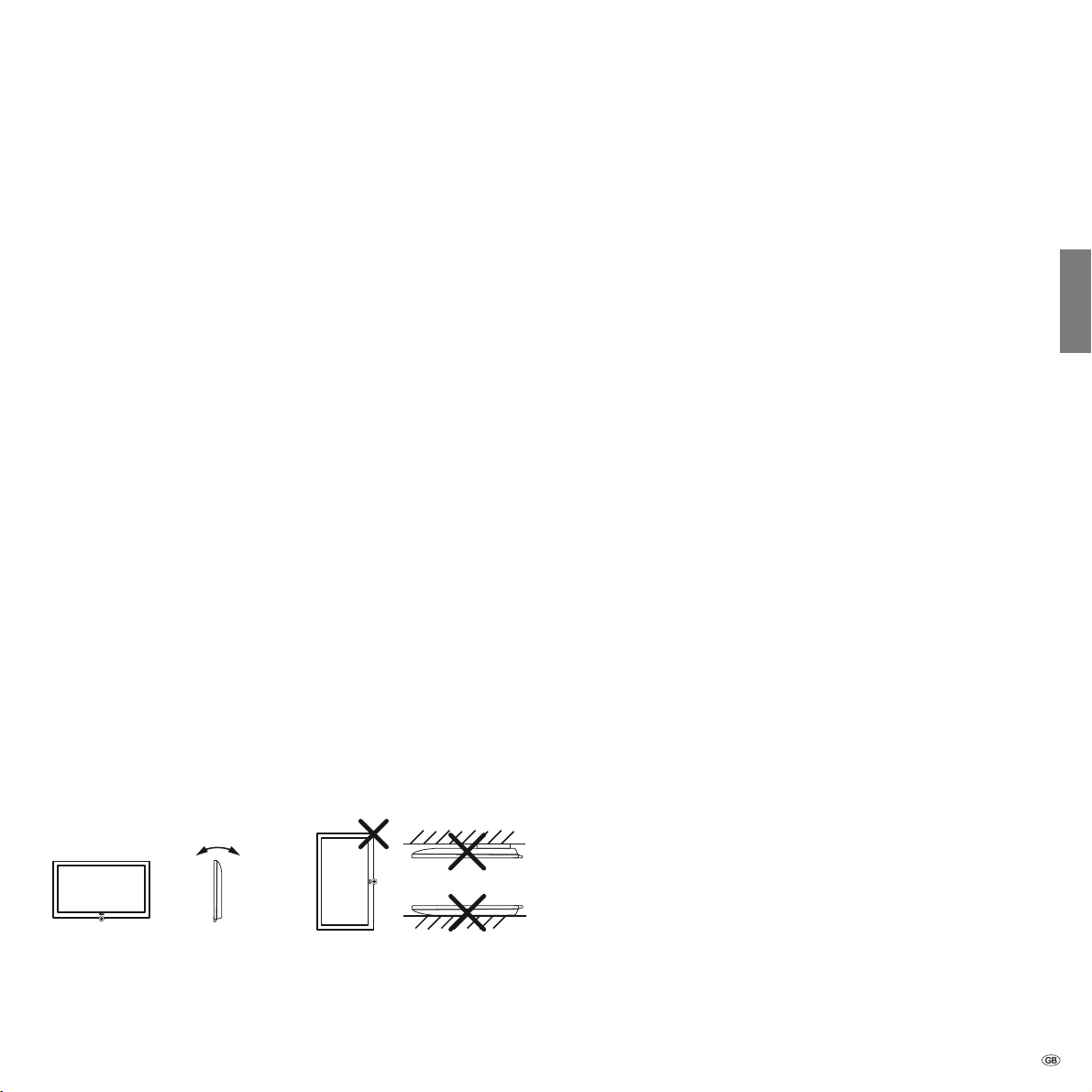

Place the TV set in a normal position for use. The TV set may only be
used in an upright horizontal position. It may not be tilted by more than
10 degrees. The TV set must never be operated vertically, lying flat or
hanging overhead from the ceiling.
Set up the device where it is not exposed to direct sunlight and where it
is not exposed to additional warming through heating elements.
Repairs and accessories
Never remove the back of the TV set yourself. Only have your TV device
repaired or serviced by authorised television technicians.
Only use original accessories such as Loewe stands if possible.
Supervision
Do not allow children to use the TV set without supervision or to play in
the immediate vicinity of the TV set. The set could tip over, be pushed
off or pulled down from the stand surface and injure someone.
Do not allow the switched-on TV set to run unattended.
Volume
Loud music can lead to ear damage. Avoid extreme volume especially
over long periods and when using headphones.
Thunder storms
Pull out the mains plug and all connected antenna cables from the TV
set in a thunderstorm. Overvoltage caused by lightning can damage the
set via the antenna system, as well as via the mains. The mains plug and
all connected antenna cables should also be pulled out during long pe-
riods of absence.
Note on the LCD screen
The TV set you have purchased with LCD screen satisfies the most rigor-
ous quality requirements and has been inspected relative to pixel errors.
Despite our thorough care when manufacturing the display, it cannot be
100% guaranteed that no subpixel defects will be present due to techni-
cal reasons. Please understand that these types of effects, as long as they
are within the standard of specified limits, cannot be considered as a
device defect in terms of the guarantee.
Avoid displaying still images for long periods of time. It is possible that
a copy of the image may remain.
Cleaning and care
➠ Switch off the TV set at the main switch before cleaning.
Clean the TV set, the screen, and the remote control unit with a soft,
moist, and clean cloth only, without any aggressive or scouring cleaning
agents.
Sets with glass screens may be cleaned with a conventional glass cleaner.
For your safety
(1
only for sets with 3D function.
±10°
D

- 8
english
Position of the power switch
The power switch of your TV set is located in the following position, depending on the type:
Individual 40/46/55 3D
Individual 40/46/55 LED
The power switch, viewed from the front, is to the right on the bottom
of the TV set.
In the sets Individual 40 and Individual 46 with mounted stereo speaker,
the power switch can no longer be reached from the front of the set. To
press the power switch reach around the right side.
Individual 32 LED
Individual 32 3D
The power switch is in the centre on the bottom of the speaker.

9 -
english
The power switch of your TV set is located in the following position, depending on the type:
Art 32/37/40/46 LED
Art 40/46 3D
Connect 32/40 LED
Connect 32/40 3D
Xelos 32/40 LED
Xelos 32/40 Media
The power switch is in the centre on the bottom of the TV set.
Connect 26 LED
The power switch, viewed from the front, is offset slightly to the right of
the centre on the bottom of the TV set.
Position of the power switch

- 10
english
Menu operation (example: TV menu)
Menus for the individual modes (TV, radio, PIP, EPG, teletext, MediaPortal
and DR archive/Video archive (1) are called with the MENU button.
The menus are displayed at the bottom of the screen. At the top you get
additional information about the selected menu item (see info display on
page 11).
➠ In normal TV mode, without other displays.
MENU: Call TV menu.
Select Picture,
go to the menu line below.
Select Brightness,
go to the menu line below.
Set Brightness.
Return to the Brightness menu line
to make other picture settings.
Select more ... ,
OK call more ... functions.
Select Auto format,
go to the menu line below.
Select on / off.
END: Exit settings and close all on-screen displays.
Menu structure
You can find a diagram of the menu structure in the overview diagrams,
page 28 and after.
General information on menu operation
The operation can be divided basically into two areas: The operation of
dropdown lists (e.g. station list, favourites list, EPG etc.) and the menu
operation (TV menu etc.) for configuring your TV set.
➠ If any questions arise during the operation of your TV set, an appro-
priate info screen can be accessed to help you by pressing the INFO
button (see also info display on page 11).
Selection list (example: Station list)
You move the cursor by pressing the ring (up,
down, left, right).
P+/P– If more selection options are available than will fit
on one screen page page ܬis displayed. You can
scroll the pages with P+/P–.
OK The OK button calls the selection or confirms the
setting.
With the coloured buttons you can select different options
depending on the application. The assignment of the
coloured buttons is shown at the bottom of the screen.
INFO: Additional information about the screen page.
END: Close/exit dropdown list.
Inputs with the numeric buttons
Letters have to be entered for specific functions. When
using the remote control, press the numeric buttons just
as on a telephone keypad (0-9) until the desired symbol
is displayed.
The available letters are printed on the individual numeric
buttons.
OK
az
-
P+
P–
STATIONLIST
21:00-21:45 Urlaubsparadies - Toskana
HDMI3
HDMI2
HDMI1
PC IN
AVS
AV
0 VIDEO
 'DV(UVWH۽
 =')۽
 :'5.¸OQ   ۽
  %D\HULVFKHV)6 ۽
KUIHUQVHKHQ   ۽
  3KRHQL[ ۽
  %5DOSKD۽
VDW۽
  (LQV([WUD۽
  (LQV)HVWLYDO۽
(LQV3OXV۽
  =')LQIRNDQDO   ۽
  =')GRNXNDQDO  ۽
  =')WKHDWHUNDQ  ۽
  DUWH۽
.LND۽
OK
Scan stations
Change stations
Sort alphabetically
Switch to ...
Select station
Favourites3DJHܬ
Sound Recording Connections Settings G
Here you can adjust among other things: Contrast, colour, brightness,
picture adjustment, sharpness, picture format.
TV MENU
Picture adjustment ...
Operating convenience
(1
Only for TV sets that contain an integrated hard disc (DR+), a connected external hard
disc (USB Recording) or that have an archive available on the network (DR streaming).

11 -
english
The index in the TV set
The index explains the TV functions and the terms that you may be con-
fronted with when operating the TV set. You can start all the assistants
and many of the operating functions directly from here.
Alphabetic sorting is preceded by the items Menu language, Energy ef-
ficiency, Integrated features and Repeat initial installation.
Call index
MEDIA: Call MediaPortal.
Select Index,
OK call.
You will see an info text for the highlighted keyword in
the info display.
If an OK symbol appears in the marked line, this function
can be called directly with OK.
Selecting a keyword
Enter initial letters with the numeric buttons like with a
mobile phone keypad (see page 10).
or go with:
to the preceding / next letters,
from line to line,
P+/P– Flip forwards or backwards through the pages.
Example: You want to have the TV set switch off automatically at
a specific time:
Select the keyword Switch off טAutomatic, with OK you can
activate the setting and with back again.
The info display
The info display provides an info text appropriate to the on-screen display
that can assist you further with the operation of your TV set. Together
with the index it makes for a comfortable operating system.
➠ An on-screen display is faded in.
The factory setting is that the info display is shown auto-
matically for each menu item. In this case you can
temporarily hide the info texts with the INFO button.
The info display can be constantly switched off via the
TV menu
ט Settings ט Miscellaneous ט On-screen displays
ט Automatic info ט no.
You will also be able to see that there is an info-text
available from the displayed INFO symbol at the bottom
right.
If an info text over several pages is available the number
of available pages and P+P– Page ܬis displayed in the
Info window. You can scroll through the individual info
pages with P+ and P–.
Operating convenience
OK
az
-
OK
P+
P–
Activate Previous/next letter
6HOHFWOHWWHU3DJHܬ
INDEX
Menu language
Energy efficiency
Integrated features
Repeat initial installation
*
Access code
Audio commentary
Automatic station programming
You can select your language for operating the TV set.
Picture Sound Recording
SETTINGS
Here, you can search for stations automatically or manually as well as set
the menu language, timer functions, parental lock, on-screen displays, etc.
TV MENU
Settings
Station ...
t
ions

- 12
english
MediaPortal
The MediaPortal is the central overview page for your TV set‘s functions.
From here you can gain access to TV channels, local and online media,
digital radio and to the archive of the Digital Recorder (1.
Call MediaPortal
MEDIA: Call MediaPortal.
The individual media and various functions are organised
in the MediaPortal.
The number of selectable items varies depending on the
TV equipment, network connection, available media/
media servers and connected appliances.
Select menu item,
OK call.
Description of the individual functions:
TV: Here you call the TV mode of your TV set.
See page 14 for further information.
DVB radio: Use this to open the DVB radio mode of your TV set
to listen to digital radio stations over DVB.
See page 19 for further information.
Internet radio (1: Use this to open the Internet radio mode of your TV
set to listen to digital radio stations over the Internet.
The menu item only appears if an Internet connection
is available.
See page 19 for further information.
DR archive (1 / Using the DR archive, you have access to the recorded
Video archive (1: programmes on the integrated hard disc (for TV sets
with DR+) or to the recordings on a storage device
connected via USB. If the TV set does not have an
integrated hard disc or a storage device connected via
USB, the menu item Video archive will only appear if a
network connection to a Loewe TV set with a shared
DR archive is available.
See page 20 for further information.
MediaHome: Here you have access to your personal memory media,
e.g. to all memory media connected via USB or to net-
works with which your TV set is connected.
See page 26 for further information.
DR+ Streaming (1: Here, you can switch off the TV set in the advanced
standby mode for DR+Streaming.
The menu item only appears if the TV set is equipped
with an integrated hard disc (DR+) and the DR archive
is being shared with other TV sets.
See page 22 for further information.
Index: Here you have access to the index integrated in the TV
set.
See page 11 for further information.
Application list (1: Here you can access the applications and settings for
the interactive data service MHP. The menu item only
appears if MHP is offered by the current channel.
See page 24 for further information.
MediaNet (1: Here you have access to multimedia content in the
Internet as well as a high-quality web browser.
See page 27 onwards for further information.
MEDIA PORTAL
TV
DR+ StreamingMediaHome
DVB radio DR archive
MediaNet
Index
Internet radio
(1 Depending upon which equipment the TV set has.
Daily operation

13 -
english
Button functions
Every operating mode of the TV set (TV, radio, MediaPortal, teletext, EPG,
PIP, and DR archive/Video archive(1) has its own menu and own functions
for the coloured buttons.
The function of the coloured buttons is shown at the bottom of the
menus and wizards. Below, some of the function are listed which you
need in TV mode for the daily handling of your TV set.
Coloured buttons in TV mode
➠ In normal TV mode without other displays.
Red button: Freeze on/off.
If an interactive data service is available (e.g. HbbTV), the
red button will load or start the corresponding application
(see page 23).
Green button: Open the Teletext functions menu (2.
You can select
Subtitles and your Personal text pages via
the Teletext functions menu. The operation of subtitles
depends on the station selected.
Subtitles only for analogue stations:
Select Subtitles,
go to the menu line below.
Select the size of the teletext subtitles,
OK show teletext subtitles
(display only if subtitles are available).
END: Teletext subtitles off or select off in menu.
Subtitles for DVB stations:
➠ If the DVB station does not provide any subtitles, the
menu item Subtitles is greyed out and cannot be
accessed with OK.
➠ The DVB subtitles can also be selected via the status
display (see page 17).
Select Subtitles,
OK call.
Select subtitle mode,
OK show/hide subtitles.
Coloured buttons in TV mode (continued)
Green button: Open the Teletext functions menu.
Select Personal text pages,
OK call.
Select text page,
OK view.
➠ If only one text page is defined, no list will be shown
and the Teletext page will be opened immediately.
Yellow button: Go to the last viewed station.
Use this button to quickly switch back and forth between
two stations.
Blue button: Show programme info.
The programme info of the following programme is
displayed additionally for DVB stations.
Explanation of the symbols in the programme information:
۳Programme in 16:9 picture format
ܦProgramme in high picture definition (HDTV)
۲Programme with Dolby-Digital sound
۴Broadcast of subtitles for the deaf and hard of hearing
۵Programme with youth protection
The symbols may also appear in combinations.
Permanent display of time
Press twice in rapid succession:
Time is shown/hidden permanently.
Subtitles
Personal text
pages
Detailed info (Teletext) Programme preview (
E
PROGRAMME INFO 14:43
Detailed info (EPG)
1ARD Stereo
14:30-15:15 Urlaubsparadies Toskana
Urlaubsparadies Toskana
۳
15:15-15:45 Reiseziele dieser Erde
Ägypten
OK
Personal text pages
TELETEXT FUNCTIONS
Subtitles
off ...
TELETEXT FUNCTIONS
Subtitles Personal text pages
OK
TELETEXT FUNCTIONS
Personal text pages OK
btitles Subti
t
OK
PERSONAL TEXT PAGES
arte 112 News
ZDF 200 Sport
ARD 170 Wetter
-------- --- ----------
-------- --- ----------
-------- --- ----------
View
OK
Daily operation
(1
Only for TV sets that contain an integrated hard disc (DR+), a connected external hard
disc (USB Recording) or that have an archive available on the network (DR streaming).
(2
If the audio commentary is active, this button will have other functions.

- 14
english
Select station
Select station with P+ / P–
P+/P– Station up/down.
The status display with station title, progress bar, time and
sound identification signal is shown briefly (see page 17).
➠ If Favourites are selected, you can change to the corre-
sponding station in the Favorites list using P+/P– (see
page 15).
➠ If there are additional languages or DVB subtitles for
DVB stations, then language and subtitle selection is
shown below the station display.
See also page 17: Selection possibilities for DVB
stations.
Select station using the numeric buttons
1-digit stations
Hold the numeric button down for a little bit longer: The
channel will change immediately.
or:
Press the numeric button briefly, the station changes after
2 seconds (changes immediately in case up to 9 stations
are stored).
2-digit and 3-digit stations
Press first (and second) numeric button briefly.
Hold the last numeric button down for a little bit longer:
The channel will change immediately.
or:
Press all the numeric buttons and the channel changes
two seconds after the last number was entered (up to 99
or 999 saved channels it will change immediately).
4-digit stations
Press all four numeric buttons, the station changes imme-
diately.
➠ If Favorites are selected, you can change to the corre-
sponding station in the Favorites list using the
numeric buttons (see page
15 ). Maximum two-digit
station numbers are possible.
➠ If you select an unoccupied station slot, the next avail-
able station is switched to.
Select station with the station list
➠ In normal TV operation, without further displays, no
favourites selected:
OK Call Station list.
P+/P– Scroll in the pages of the station list.
 Jump to the next station block.
 Mark stations.
or:
Input the channel number.
The marker will switch to the selected station. The marked
station is shown as a small picture.
OK The marked station is called.
Blue button: Changes the sorting between numerically
and alphabetically.
.
Input the first letter (see also page 10).
The first station for the specified letters is marked.
Mark stations.
OK The marked station is called.
OK
az
-
P+
P–
STATIONLIST
21:00-21:45 Urlaubsparadies - Toskana
HDMI3
HDMI2
HDMI1
PC IN
AVS
AV
0 VIDEO
 'DV(UVWH۽
 =')۽
 :'5.¸OQ   ۽
  %D\HULVFKHV)6 ۽
KUIHUQVHKHQ   ۽
  3KRHQL[ ۽
  %5DOSKD۽
VDW۽
  (LQV([WUD۽
  (LQV)HVWLYDO۽
(LQV3OXV۽
  =')LQIRNDQDO   ۽
  =')GRNXNDQDO  ۽
  =')WKHDWHUNDQ  ۽
  DUWH۽
.LND۽
OK
Scan stations
Change stations
Sort alphabetically
Switch to ...
Select station
Favourites3DJHܬ
.
OK
az
-
P+
P–
PIP scan
Change stations
Sort numerically
VDW۽
/LYH۽
DUWH۽
$5'۽
AVS
%D\ULVFKHV)6۽
%5DOSKD۽
BR
CNN INT
Switch to ...
Select station
Favourites
'DV(UVWH۽
'6)۽
DVD-REC
D Vierte
(LQV([WUD۽
(LQV)HVWLYDO۽
(LQV3OXV۽
(XURVSRUW۽
HDMI1
HDMI2
3DJHܬ
OK
STATIONLIST
21:00-21:45 Urlaubsparadies - Toskana
long
short short long
all short
Sorting
numerically
Sorting
alphabetically
Daily operation

15 -
english
Select station via favourites list
You can save your favourite stations in 6 favourites lists (e.g. for multiple
users). Each favourites list can contain up to 99 stations. After initial in-
stallation, 10 stations from the station list are already stored in the first
list. Change the favourites list to suit your requirements.
➠In normal TV mode, without other displays:
OK Call station list.
Red button: Calls up the last used favourites list.
P+/P– Scroll in the pages of the favourites list.
Select station directly with numeric buttons. Or:
Mark stations.
Select other favourites list.
OK The marked station is called.
➠ Other favourites lists can only be selected if these
contain stations.
Red button: Back to the station list.
Green button: Scan all stations of the currently selected
favourites list.
Yellow button: Change the Favourites lists.
Explanation of the favourites lists:
The selection made with the red button (favourites list) is retained until
you switch back to the station list with the red button.
If favourites are selected, the name of the favourites list appears in the
status display after the station name after changing stations.
Explanation of the icons following station names:
ۼDVB-T station (digital terrestrial via antenna)
۽DVB-C station (digital via cable)
ۻDVB-S station (digital via satellite)
۩Coded station
vCI Plus coded station
ۮ Locked station (parental lock)
Select audio/video source
Select the AV source via the AV selection
➠In normal TV mode, without other displays:
Call AV selection.
Select desired connection,
OK switch over.
If the selected AV source provides a signal (picture), it
should be visible now.
For the VIDEO selection the set switches to programme
place 0 (signal source antenna/cable (analogue), factory
setting channel E36). The TV set shows the signal of a
provider via antenna. The channel can be changed as
required.
Select the AV source via station list
➠In normal TV mode, without other displays:
OK Call the station list.
If the favourites list is displayed, switch to the
station list first.
The connections are always at the beginning of the list
in numerical sorting.
The connections are sorted into the list in alphabetical
order in alphabetic sorting.
Select connection.
OK Switch over.
OK
FAVOURITES
FavouriteList 1
'DV(UVWH   ۽
=')۽
:'5.¸OQ   ۽
%D\ULVFKHV)6 ۽
KUIHUQVHKHQ ۽
3KRHQL[ ۽
%5DOSKD   ۽
VDW۽
(LQV3OXV۽
(LQV([WUD   ۽
079۽
9,9$۽
Switch to ...
OK
az
-
P+
P–
STATIONLIST
21:00-21:45 Urlaubsparadies - Toskana
PIP scan
Change stations
Sort alphabetically
HDMI3
HDMI2
HDMI1
PC IN
AVS
AV
0 VIDEO
 'DV(UVWH۽
 =')۽
 :'5.¸OQ   ۽
  %D\HULVFKHV)6 ۽
Switch to ...
Select station
Favourites
KUIHUQVHKHQ   ۽
  3KRHQL[ ۽
  %5DOSKD۽
VDW۽
  (LQV([WUD۽
  (LQV)HVWLYDO۽
(LQV3OXV۽
  =')LQIRNDQDO   ۽
  =')GRNXNDQDO  ۽
  =')WKHDWHUNDQ  ۽
  DUWH۽
.LND۽
3DJHܬ
OK
OK
AV SELECTION
HDMI3
HDMI2
HDMI1
PC IN
AVS
AV
VIDEO
Switch to ...
Daily operation

- 16
english
Adjusting the sound
Switching sound off/on
Sound off.
Sound on: Press the button again or increase the volume
using V+.
Setting the volume
V+/V– Volume louder / quieter.
The volume bar will be shown briefly if no other menu
is displayed.
Setting the Sound mode (1
Call Sound mode.
Select the number of speakers you want to hear.
Additional sound settings
➠As long as you can still see the volume bar or the
selection of speakers for sound mode:
Call additional sound settings.

Select sound setting,
 go to the menu line below.
Make changes.
Sound settings via the TV menu
➠ In normal TV mode, without other displays.
MENU: Call TV menu.
Select Sound,
go to the menu line below.
Select desired sound setting,
go to the menu line below.
Make changes.
Adjusting the picture
MENU: Call TV menu.
Select Picture,
go to the menu line below.
Select the desired picture function,
 go to the menu line below.
Make changes.
Selecting the picture format
➠ The picture format cannot be changed if an HbbTV
application is active (see page 23) or if the TV set is
in 3D mode (see page 17).
Press the Picture format button until the desired picture
format is set or press
to select the desired picture format.
The Panorama picture format can be set between
proportionally correct and format filling display. Black
bars are visible on the left and right of the picture in
the proportionally correct display.
Switch: Keep the Mbutton on the TV pressed, at the
same time, press the Picture format button on the remote
control briefly.
Reset: Press the same button combination again.
Move picture vertically
➠ In normal TV mode without other displays.
Move picture up/down.
To show subtitles or news tickers which have been cut
off, the picture can be moved up or down in the picture
formats Panorama and Zoom (not with high resolution
signal) with the arrow buttons .
Sound mode Dolby PLII mode Sound adjustmen
t
Volume
24
Daily operation
Sound mode ...
optimal ܃܃܃܃܃
Contrast Colour intensity Colour
t
TV MENU
Picture adjustment
Personal settings (TV digital) ...
3D
Panorama
Picture format
Zoom 16:9
4:3
Bild vert. verschieben
2
Move picture up/down
(1 In devices without integrated digital multi-channel audio decoders, the Sound
adjustment menu appears instead of the Sound mode setting.
(2 Depending on TV set variants, equipment and settings.
InterActive

17 -
english
Selection possibilities for DVB stations
Additional selection options are shown in the status display for the
individual programmes (depending on the DVB programme provider).
➠If during the status display you press one of the coloured
buttons or the TEXT button then the associated selection
menu will be displayed.
➠ The selection line is also displayed automatically when
a new broadcast with different options to the previous
broadcast begins or when you switch stations.
The selection menus are only available as long as the
status display is shown. However you can call them again
by pressing the INFO button.
Red button: Channel selection for multi-channel
providers
Green button: Language/sound
The sound formats on offer and their
designations depend on the programme
being broadcast.
Yellow button: Time selection
Blue button: CA module selection
The CA module selection only appears
when two (1 CA modules are plugged in,
which are both able to descramble the
encrypted station.
In this case, you can choose which of the
two CA modules should descramble the
station.
TEXT: Subtitles
The subtitles available depend on the
programme being broadcast.
3D functionality
You can use the 3D functionality (1 of your TV set to display 3D material
transmitted by a channel or from an external player that is connected.
You require a pair of Loewe Active 3D Glasses to be able to use the 3D
functionality in its entirety. Please read the operating instructions included
with the 3D glasses.
Status display
➠In normal TV mode, without other displays.
INFO: Show status display.
In the upper two lines, you will see the number and name
of the station, the title and transmission time of the
programme currently showing (if available) and the sound
identification signal.
The bar (if available) indicates the progress of the current
programme.
If information about the current programme is available,
this can be called by pressing the INFO button again; in
this case the button on the right is displayed.
A menu (see right column), the time and, if activated, the
alarm time and switch-off time appear at the bottom of
the screen depending on the DVB station.
The status bar is also shown automatically every time you
change channels.
The status bar is hidden automatically at the end of the
display time.
If you want to hide the status bar manually before the dis-
play time ends, you can only do this with the END button.
 'DV(UVWHሇᇀᇢ'LJLWDOᇳ
   7RVNDQD   

ሇ
/DQJXDJHVRXQG   6XEWLWOH
ᇜ$ODUPWLPH6OHHSWLPHU
TEXT
Daily operation
(1 Depending upon which equipment the TV set has.

- 18
english
Picture in Picture (PIP)
The concurrent display of two different images is referred to as Picture
in Picture.
Restrictions for the PIP mode:
➠When in PIP mode, restrictions with regards to display, selection and
combination options for main picture/PIP picture will apply. You can
read about these in detail in the particular operating instructions (see
page 32).
PIP operating modes
iPIP Only in sets with a Digital Recorder: The TV picture is
moved to the PIP picture when you start the iPIP mode.
The station of the TV picture is now freely selectable.
When you exit iPIP mode the PIP picture becomes the
TV picture again and the PIP window is closed.
An orange frame around the PIP picture shows the iPIP
functionality.
Standard PIP Stations freely selectable and changeable for PIP and TV
picture (coloured buttons have PIP-specific meaning, see
right hand column).
A green frame around the PIP picture indicates that the
station selection affects the PIP picture. A white frame
means that the operation refers to the main picture. If the
frame is blue, the station play is active in the PIP picture.
Starting and ending iPIP mode
On pressing the PIP button the currently displayed TV
picture becomes the PIP picture. You can select other
stations for the TV picture and still keep an eye on the
PIP picture. You can temporarily shift commercials or
programme sections to the PIP picture in this way.
The PIP picture becomes the TV picture again (PIP off).
Starting and ending standard PIP mode
Show/hide PIP.
Function of the coloured buttons in standard PIP functionality
Green button: Selects between PIP/main picture.
Yellow button: Switches contents of TV picture and PIP
picture.
Blue button: Start/stop PIP scan in the PIP picture .
Electronic Programme Guide – EPG
EPG stands for Electronic Programme Guide and provides you with
on-screen programme details. With the system, as with a printed pro-
gramme guide, you can learn about the current programme. In addition
programmes can be sorted according to certain topics, memorised, and
also recordings can be programmed.
Starting and ending EPG
EPG: Switch EPG on / off.
➠ EPG is only available for DVB stations.
➠ The first time you start EPG, an assistant will guide you
through the necessary presettings.
The display of the programme guide is divided into two
branches. The specifications in the upper section limit
the scope of the stations displayed in the lower section.
Blue button: Switches between the upper default lines
Date, ..., Topics and the lower programme list.
Picture in Picture Electronic Programme Guide
OK
MENU
OK
az
-
P+
P–
TEXT
Recording
Select date, ..., topics
View
Select time
Detail
3DJHܬ
EPG (ELECTRONIC PROGRAMME GUIDE) Mon 01.03./16:05
Date
Time
Station
Topics
arte 15:57-16:59 Charmed - Zauberhafte Hexen
Das Erste 16:00-16:10 Tagesschau
ZDF 16:00-16:10 heute - in Europa
WDR Köln 16:00-16:15 WDR aktuell
Bayerisches... 16:00-16:05 Rundschau
hr-fernsehen 16:00-16:30 Schlemmerreise Spanien
MDR FERNS... 16:00-16:15 Hier ab vier
NDR FS HH 16:00-16:30 Tipps und Trends - Der Verbraucher...
SWR Fernse... 16:00-16:05 Baden-Württemberg aktuell
2 ZDF
&KDUPHG=DXEHUKDIWH+H[HQ۲
MON 01.03.
now until 17.00 17.00 18.00 19.00
all
all

19 -
english
Radio mode
The TV set can receive digital radio stations over DVB or over the internet(1.
In addition you can play the sound from an external device through the
TV set via the audio/AV inputs of the TV set.
➠The AUDIO button has been preset for radio operation in the factory.
Radio mode on
Press AUDIO button on the remote control.
Or:
MEDIA: Call MediaPortal.
Select DVB radio / Internet radio (1,
OK call.
You see an information window about the currently set
station. The station overview appears the first time you
call up Internet radio.
If a connection to the internet is already established:
Change between DVB radio and Internet radio (1.
Switching the screen on/off
Red button: Switch off the screen.
Switching off the screen reduces the power consumption
of the TV set.
The LED display on the TV set changes from green to
orange.
Switch on the screen:
Press the red button or the OK button (station list is
opened).
Switch off radio mode
Press TV button or
END button on the remote control.
Teletext
Your TV set supports the two operating systems TOP Text and FLOF.
Up to 2,000 pages are stored so that you have quick access.
Starting and ending teletext
TEXT: Call up Teletext.
If provided by the station HbbTV, the MediaText/HbbTV-
Text (1 will open after pressing the TEXT button again (see
page 23).
The function of the TEXT button can be set (see page
23). The factory setting is Standard teletext first.
TEXT: pressing the TEXT button again ends Teletext/
MediaText.
Page selection with the coloured buttons
Red button: Previous page.
Green button: Next page.
Yellow button: To next topic.
Blue button: To next range of topics.
The coloured bars (with TOP text) or the coloured writing
(with FLOF text) in the last to bottom line show you which
colour button you need to use to select which topic areas
and topics.
Teletext page displays
0 AV: Stop self changing pages.
9: Enlarge page (press several times).
PIP: Show / hide TV picture (full screen/split screen).
Tagesschau . . . 110/112 Kultur . . . . . . . . . . 500
Wetter. . . . . . . . . . . 170 Gesellschaft . . . . . 530
Sport. . . . . . . . . 200/600 Lotto/Toto. . . . . . . 666
TV Guide. . . . . . 300/400 Wirtschaft. . . . . . . 700
Politik: Die neuen Gesetzesentwürfe. . . . . . . . . . 120
Wird auch der Nahverkehr teurer?. . . . . . . . . . . . 121
Australien: Keine Zugeständnisse . . . . . . . . . . . 122
Tote bei Zugunglück in Schweden . . . . . . . . . . . 532
Tennis: Auftaktmatch wurde abgebrochen . . . 204
Formel 1: Neues Reglement für Motoren. . . . . . . 213
Fussball: Heimsieg für den Meister . . . . . . . . . . . 204
100 100 ARDtext Do 07.01.10 14:14:42
ARD Text
– +
Inhalt tagesschau
13:00 ARD-Mittagsmagazin . . . . . . . . . . . . . . . . 312
14:00 Tagesschau
Page selection
Teletext Digital radio
OK
RADIO DIGITAL 12:45
DVB radio
'/)6WHUHR ܃
12:10 - 13:30 Informationen am Mittag
Berichte, Interviews, Musik
Volume 30
Previous station
Station list
Screen off/on
(1
Depending on the equipment present in the TV set and the corresponding settings.

- 20
english
Digital Recorder (DR+/ USB Recording)
Using the Digital Recorder of your Loewe TV set you can record pro-
grammes onto the integrated hard disc (for TV sets with DR+), or onto
an external hard disc connected via USB (USB recording only for TV sets
without DR+).
Only the most important basic functions will be described in this quick
guide. The complete range of functions and the various setting options
are described in the detailed user manual for your TV set. This can be
downloaded from the Loewe support portal, see page 32.
TV viewing with time shift
The Digital Recorder continuous mode (only in TV sets with DR+) is acti-
vated at the factory. In this case, the TV broadcast that you are watching
is automatically recorded in the background.
The maximum time that a programme can be delayed is 3 hours.
➠ Programmes with copy protection (e.g. Macrovision) cannot be
watched with a time shift for legal reasons.
Interrupt
Press PAUSE button.
The TV picture freezes and the drive display appears.
Continue (time shift viewing)
Press PLAY button.
You can now watch the TV programme with a time shift
from the time you pressed the PAUSE button. The Playback
symbolappears in place of the Pause symbol.
Switch to live picture
Press STOP button.
You see the station’s live picture again.
Fast forward and rewind
During time shift viewing you can fast forward and rewind at three different
speeds. Sound is not audible during winding.
Press or for a little longer.
Jumping
You can jump during time shift viewing by briefly pressing the buttons
  in the jump distance set; this enables you to skip uninteresting
sections quickly.
If Smart Jump is activated, the jump width is halved every time you change
the jump direction. The jump width is doubled if you jump more than
three times in the same direction (max. 8 min.).
 Jump forwards.
 Jump backwards.
Slow motion
If Pause is active (freeze picture) you can play at four slow-motion speeds.
Sound is not audible during slow motion. When viewing HDTV slow mo-
tion backwards is not possible.
Press PAUSE button.
Press or briefly.
Increase speed:
Press or several times briefly.
Digital recorder archive / Video archive
You can record movies you want to watch later in the Digital Recorder‘s
archive. Start playback of your recordings from the archive.
Open the DR archive
Call DR archive / Video archive.
Or:
MEDIA: Call MediaPortal.
Select DR archive / Video archive,
OK call.
09:5609:45 10:00
Follow me
3KRHQL[ 6WHUHR܃
09:45-10:00 Bon(n) jour Berlin
DR archive Language/sound
TEXT
OK
۩
-
Top-Movie 1
15.09. Sky Cinema HD
Bon(n) jour Berlin
14.09. Phoenix
da capo
31.08. Das Erste
Tagesschau
29.07. 3sat
Individual
00.00. LOEWE.
09:45 - 10:00
DR ARCHIVE free capacity 68:42 hrs
Edit/protect
Delete/copy
Change sorting
Detail View
Timer list
