Loewe MediaVision 3D User manual

Operating Manual
Audiodesign
Blu-ray Audio System
MediaVision 3D
34995022

Preparation
TV Mode
MediaVision Mode press briefly
Switch device on/off
Insert disc Sensor button Insert disc
Operating modes
Select operating mode Movie - Music - Photos -
Inputs - FM Radio - OK
Sound
Volume V+/-
Sound Mode (press several times)
Sound mute/On
Playback
Playback
Pause
Stop (Continue)
Stop
Search forwards press longer, then press several times
Search backwards
press longer, then press several times
Next/Previous chapter P+/-
Single image (press several times)
Slow motion /
press longer, then press several times
Other functions
Call up menu
Close menu
Title Menu 
Pop-up menu (Blu-ray Disc™) 
Disc Menu (DVD) 
Source selection 
Title recognition
Repeat (press several times) OK
Zoom Menu
Zoom out
Zoom in
Screen off/on (Music)
Set flag
Call up flag long press OK
BD-LIVE™
Pop-up menu (Blu-ray Disc™) Submenu/Menu BD-LIVE™
OK
Radio
FM Radio Mode FM Radio OK
Station search long press
Select station up/down. P+/-
Select source SRC
FM Radio Mode long press

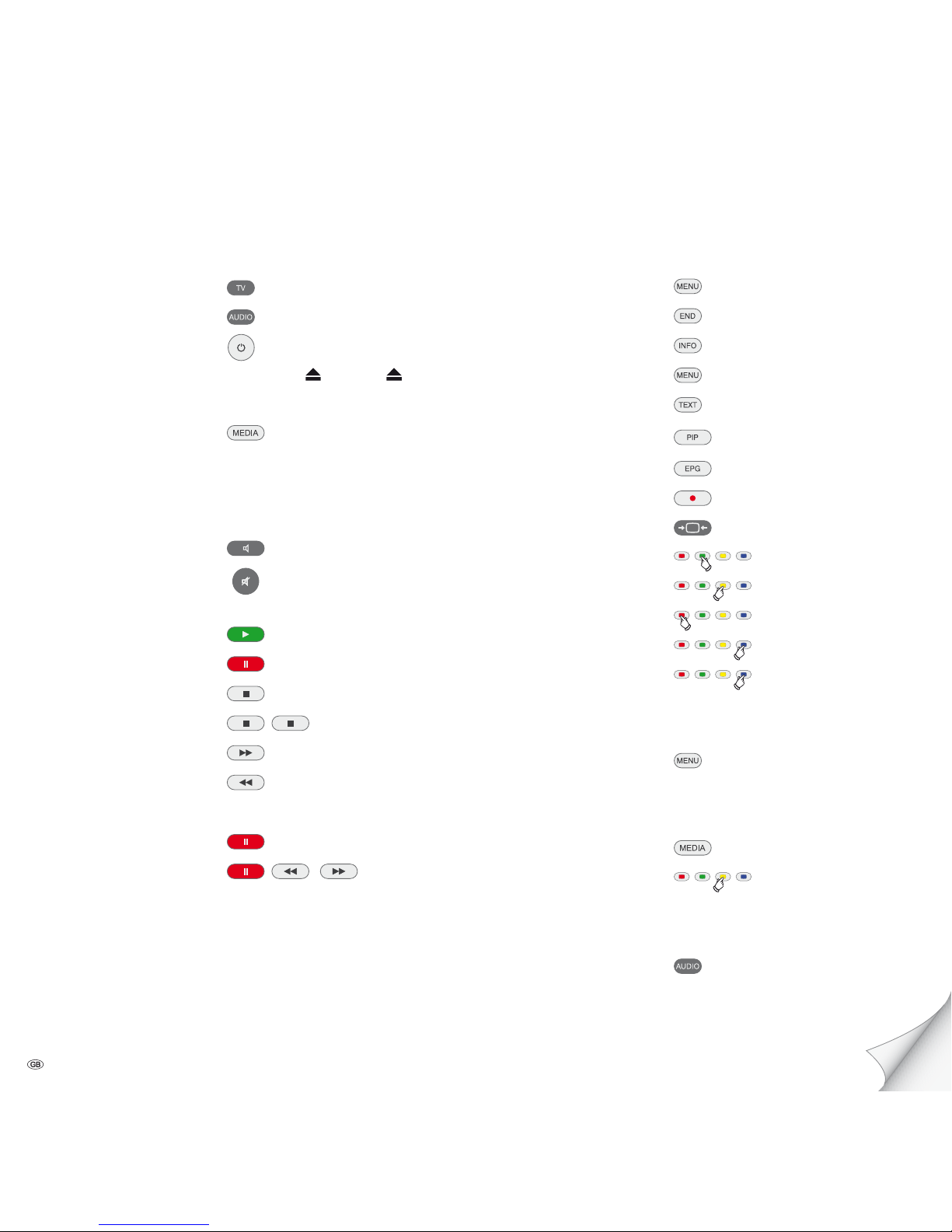

Brief instructions
Please unfold this cover page.
- 3

Assist remote control – MediaVision 3D Mode
1Sound Mute/On
2 LED indicator light for current operating mode
3
Switch over to TV mode
4
Switch over to operate recorder (1
5
Sleep Timer
6
Zoom function
7
Title recognition
8
DISC: Disc Menu (DVD)
9
Menu settings; DISC: Pop-up menu (Blu-ray Disc™)
10
V+/V– volume up / down
11
 (MSGDLDMT"NMÆQLB@KKTO
12
Green coloured button: Title/Chapter selection
13
Red coloured button: Camera angle
14
short: Select title down
15
Repeat
16
Pause
17
Stop
18
short: Select title up
19
Playback
20
 !KTDBNKNTQDCATSSNMRGNQS2DSÇ@FKNMF%K@FRD@QBGA@Q
21
 8DKKNVBNKNTQDCATSSNM%K@F,DMT#DKDSDÇ@F
22
Select/set
23
P+/P– Select title/radio station up/down
24
Close menu/back
25
Title Menu
26
Source selection
27
Main Menu
28
Enter numbers or letters
29 Sound functions
30
Switch over to operate DVD player (1
31
MediaVision: Switch on / Replay last music source (1
 KNMFOQDRR%,1@CHN,NCD
32
 2VHSBG.-.%%HM2S@MCAXLNCD
(1 The assignment of these buttons can be changed (page 15). The description refers to the standard
setting.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
18
19
20
21
22
23
24
25
26
27
28
29
30
31
17
- 4

HDMI CEC 16
HDMI colour setting 19
I
Importing Audio CDs 40
Importing Music 40
Initialize 25
Inserting discs 27
Intended Use 10
iPod playback 38
L
Language 18
Language code list 44
Legal information 45
Lock 21
M
Main Menu 17, 34
Manual search 39
0HGLDÀOHV34
Movie Information 30
0XVLFÀOHV36
N
Navigation in the menu 17
Network 23
Night Mode 20
O
Operating Loewe Equipment 15
Optional extensions 9
P
Password set-up 22
Performance 8
3KRWRÀOHV37
Picture format 19
Picture-for-picture playback 28
Picture Mode 30, 32
Playback in general 28
Playing discs 27
3UHDPSOLÀHU21
Preconditions 27
R
Regional code 27
Repeat 28, 31
Resolution 19
S
Safety 10
Index of key words
Symbols
3D Mode 19
A
Angle 30
Area Code 22, 27
Assist remote control 4
Audio 20
Audio channels 29
Automatic search 39
Auto Power Off 25
B
BD-LIVE™ 33
BD-LIVE™connection 24
Blu-ray disc memory 25
Brief instructions 3
C
Center-Kanalwiedergabe bei Loewe TV-Geräten 21
Chapter / Track selection 29
Cleaning 10
Connection options 8
Country code list 44
D
Default settings 25
Digital audio formats 29
Digital Link HD 16
Disc languages 18
Disc Menu 32
Disc playback 29
Display 19
DivX® VOD 25
DRC 20
E
Ejecting the disc 27
Environment 41
F
Film language 29
Flagging 30
Flagging the last scene 31
FM Radio 39
Freeze frame 28
Front / Rear view 7
G
Glossary 43
H
Handling discs 27
Scope of supply 9
Searching 28
Setting radio stations 39
Settings 17
Set-up 9
Sleep Timer 41
Slide show 37
Slow motion 28
Sound functions 15
Source selection 41
Start-up 15
Subtitles 30, 35
Supervision 10
Switching on/off 16
Symbols 27
T
Technical Data 45
Time 29
Title selection 29
Trademark rights 46, 47
Troubleshooting 42
U
Updating software 26
USB Mode 35
V
9LGHRÀOHV34
W
Wireless Audio Link 20
Z
Zoom 31
5 -

Contents
Brief instructions .................................................................................3
Assist remote control – MediaVision 3D Mode..................................4
Front / Rear view..................................................................................7
Performance Features .........................................................................8
Welcome ...............................................................................................9
Scope of supply.............................................................................................9
Optional extensions ......................................................................................9
Set-up...........................................................................................................9
For your safety...................................................................................10
About these operating instructions .............................................................10
Connection ......................................................................................... 11

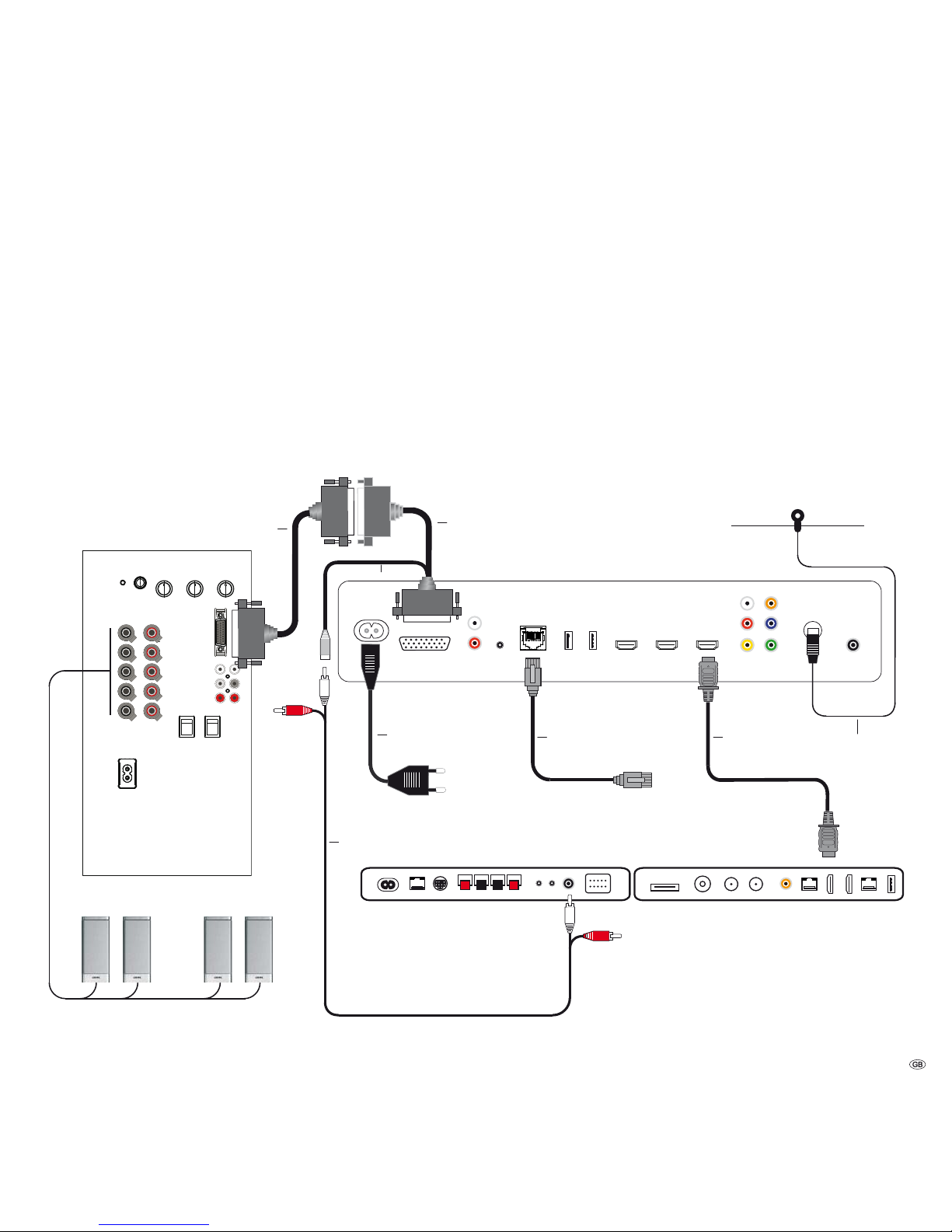

MediaVision 3D as an audio system............................................................ 11
MediaVision 3D as an audio system (SL155) ...............................................12
MediaVision 3D as an audio system (SL2xx)................................................13

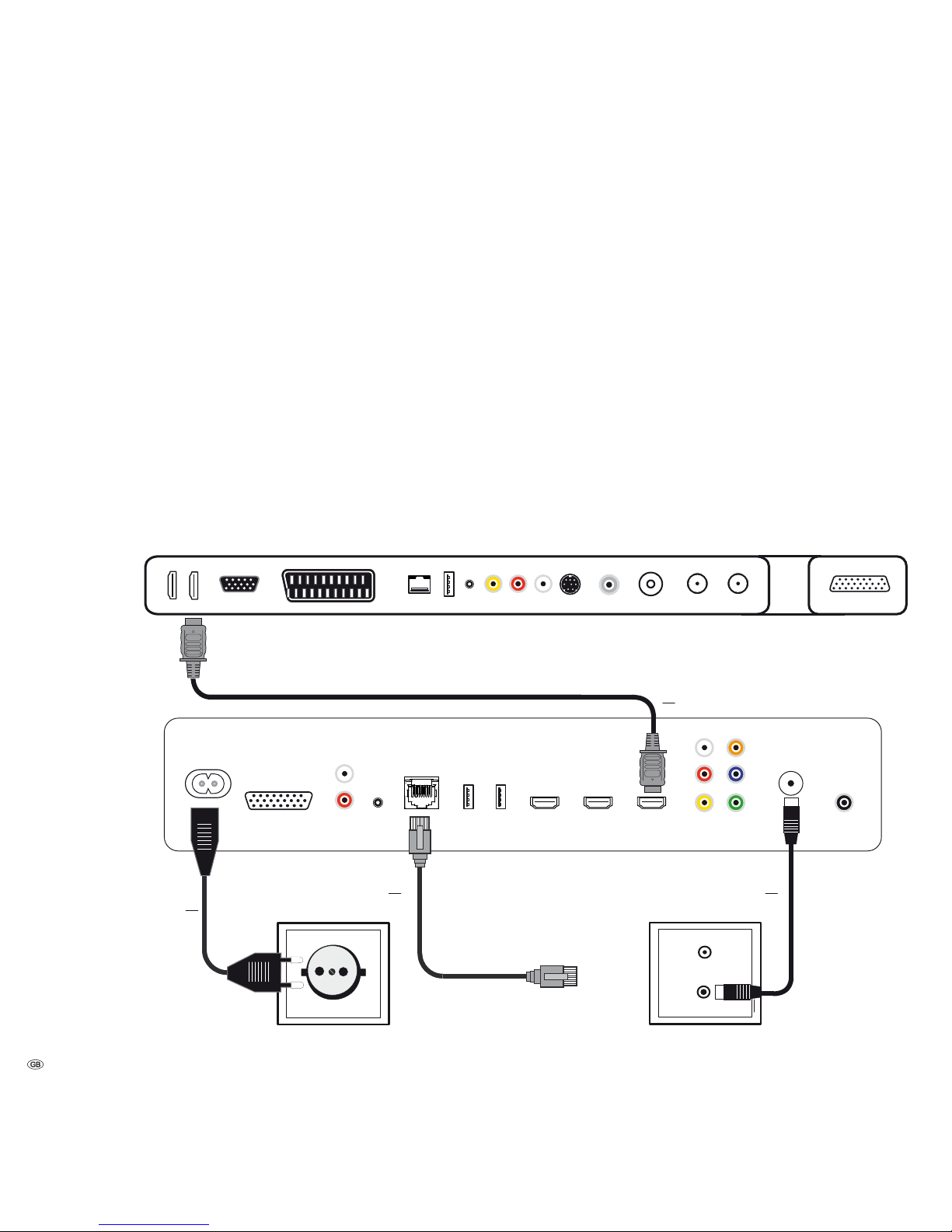

MediaVision 3D as a Player.........................................................................14
Startup................................................................................................15
Using the Assist remote control...................................................................15
Operating Loewe Equipment.......................................................................15
Connecting to the mains supply..................................................................16
Switching on/off..........................................................................................16
Digital Link HD............................................................................................16
Digital Link HD (HDMI CEC) ........................................................................16
Navigation in the menu ..............................................................................17
Main Menu.................................................................................................17
Setup Menu ................................................................................................17
Language Menu..........................................................................................18
Menu Display..............................................................................................19
Audio Menu................................................................................................20
Dolby PL II Menu ........................................................................................21
Lock Menu..................................................................................................22
Network Menu............................................................................................23
Others Menu...............................................................................................25
Software updating.............................................................................26
Playing discs ...................................................................................... 27
Prerequisites ...............................................................................................27
Playback in general.....................................................................................28
Disc playback..............................................................................................29
Flagging the last scene ...............................................................................31
Disc Menu ..................................................................................................32
Picture Mode ..............................................................................................32
BD-LIVE™ ...................................................................................................33
Sound functions..........................................................................................33
Playing media files ............................................................................34
Main Menu.................................................................................................34
Video files...................................................................................................34
USB Mode...................................................................................................35
Music files ..................................................................................................36
Photo files...................................................................................................37
Playback from iPod............................................................................38
Connecting the iPod....................................................................................38
iPod playback .............................................................................................38
Setting the radio stations............................................................................39
Listening to the radio..................................................................................39
Importing Music.................................................................................40
Importing Audio CDs ..................................................................................40
Sleep Timer................................................................................................. 41
Source selection..........................................................................................41
Environment....................................................................................... 41
Troubleshooting .................................................................................42
Glossary..............................................................................................43
Language code list.............................................................................44
Country code list................................................................................44
Technical data ....................................................................................45
Legal information........................................................................................45
Trademark rights................................................................................46
Declaration of conformity............................................................................47
Service ................................................................................................48
- 6

Front / Rear view
7 -
Display
CD/DVD/Blu-ray disc
drive
VIDEO OUT
(Video output)
DIGITAL IN
(digital audio input)
HDMI OUT
(HDMI output)
ANTENNA FM
(FM Radio Antenna)
LAN
(RJ-45 network
connection)
COMPONENT VIDEO OUT
(Video output)
HDMI IN 1/2
(HDMI inputs)
INPUT AUX R/L
(analog audio input
Stereo L/R)
Next chapterStopSource
Previous chapterPlayback
Pause
IR receiver
Open / Close disc drawer VolumeOn
Switch off to Stand-by
Operating
display
Mains socket
AUDIO-LINK
USB 1/2
USB socket
iPod dock
PHONE
(Headphones)
AUX OUT R/L
(analog audio output
Stereo L/R)

Performance Features
Your Loewe MediaVision 3D offers you convenient access to your media collec-
tion. It plays Blu-ray Discs™ in 2D/3D format, audio CDs and video DVDs. You can
also play digital video, photo and music files from a USB stick and from data discs.
Connection options
2x USB 2.0 (connection from Flash memory or hard disc)
2x HDMI IN (HDMI input) without CEC)
HDMI OUT (HDMI output) with CEC)
VIDEO OUT (Video output)
COMPONENT VIDEO OUT (Component-video output)
AUX IN (Analog audio input stereo L/R)
AUX OUT L/R (Analog audio output stereo L/R)
DIGITAL IN (digital audio input)
LAN (Network connection)
PHONE (Headphone output)
ANTENNA FM (FM Radio Antenna)
AUDIO-LINK (cabled system connection to Loewe sound systems)
WIRELESS AUDIO-LINK (wireless system connection to Loewe sound systems)
Blu-ray™/CD/DVD Player
Playing Blu-ray™ 2D and 3D discs
Playing audio CDs, CD-R and CD-RW discs
Playing DVD video, DVD-ROM and DVD-RW discs
DVD upscaling (720p/1080p)
Operation via touch-sensitive sensor buttons on the device and Assist remote
control
Media management
DLNA streaming client
BD/DVD/CD/File
Title recognition via Internet databases
Displaying ID3v1 and ID3v2 meta data
Displaying album graphics
Importing meta data from the Internet
Importing audio CDs
Music playback
Integrated 5.1 Dolby Digital Decoder
Playing MP3, WMA, AAC audio files
Repeating titles, tracks or directories
Random playback
Playing wired audio sources at AUX IN
Video playback
Playing DivX(HD) video files
Displaying subtitles
Resume function
Photo display
Displaying JPEG, PNG photo files
Slide show with music
iPod support
iPod docking station
Audio playback
Easy control by remote control Loewe Assist
Charge battery
Radio
FM radio with RDS display via cable or terrestrial means
Memory for 50 radio stations
Use with other Loewe system components
Connection of Loewe flat TV sets via Digital Link HD (HDMI CEC) (from chassis
L271x - a software update for the TV set might be required) and operation with a
single Assist remote control - also for concealed set-up of the MediaVision 3D.
- 8

Thank you,
for choosing a Loewe product. We are happy to have you as a customer.
At Loewe we combine the highest requirements regarding technology, design
and ease of use. This applies equally for TV, DVD, video, audio and accessories.
Neither technology nor design is an end in itself, but both are intended to provide
our customers with the best possible audio and visual experience. Our design is
not influenced by short-term, fashionable trends. You have, after all, purchased
a high-quality piece of equipment which you do not want to tire of tomorrow or
the day after.
Scope of supply
• MediaVision 3D

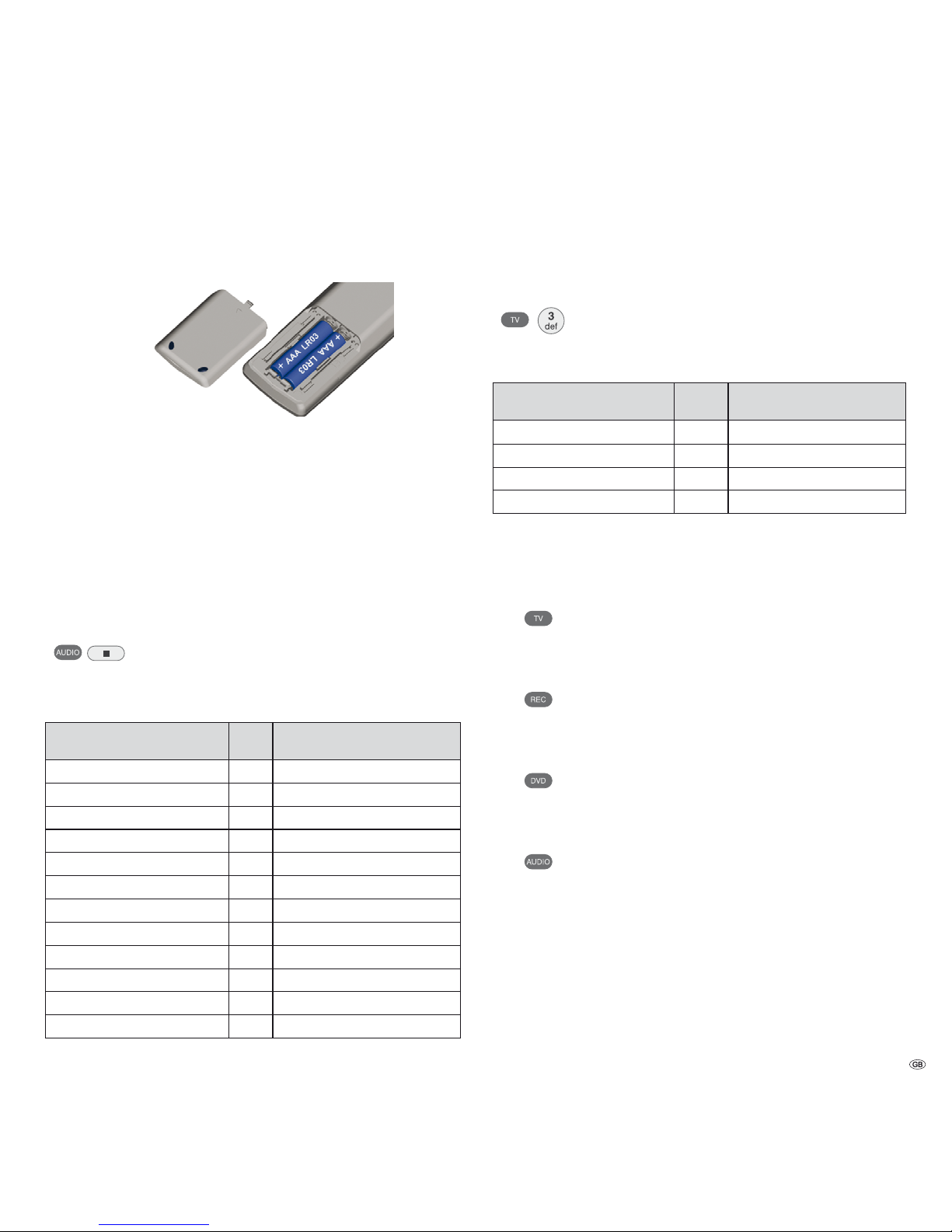

• Assist remote control with 2 batteries
• HDMI cable
• Antenna
• Cinch cable for digital sound
• Stereo-Cinch cable
• Adapter cable for centre channel of the TV (art. no. 009-70784.001)
• Adapter cable for centre channel of the TV (art. no. 009-71387.001)
• Network cable
• Mains cable
• These instructions for use
Optional extensions
• Loewe TV set with HDMI input
• Loewe Individual Sound Subwoofer / Highline / Compact
• Loewe Individual Sound Speaker
Set-up
• Place unit on a stable, even surface.
• Do not set up the unit near strong heat sources or in direct sunlight.
• If setting up in a shelf or a closed cupboard: Leave at least 2.5 cm clearance
around the unit, so that the air can circulate unhindered and there is no heat
backup.
• The picture and sound of a TV set, a player or a radio in the vicinity can be
distorted. If this is not the case, do not place the unit in the direct vicinity of
these devices.
• Set up the device so that the infrared signal of the remote control can reach the
display of the player without hindrance (or if this is not possible, see "Digital
Link HD (HDMI CEC)" page 40).
• Do not place any strong artificial light source in front of the unit. This could
have a detrimental effect on the infrared reception.
• Incorrect voltages can damage the unit. This device may only be connected
to a powersupply with the voltage and frequency indicated on the type plate.
• Pull out the power cable during thunderstorms. A voltage surge caused by
lightning conducted through the mains could damage the unit.
• If the unit is not to be used for an extended period, the plug should also be
disconnected from the mains.
• The power plug of the TV set must be easily accessible so that the TV can be
disconnected from the power supply at all times.
• Position the mains cable in such a way that it can not be damaged. The power
cable may not be kinked or laid over sharp edges, stood on or exposed to
chemicals; the latter also applies to the unit as a whole. A power cable with
damaged insulation can cause electric shocks and poses a fire risk.
• When you want to unplug from the mains, pull on the plug housing rather
than on the cable. The cables in the mains plug could otherwise be damaged
and could cause a short-circuit when plugged in again.
Please note and follow the safety information on the following pages.
Welcome
9 -

For your safety
For your safety, and to avoid unnecessary damage to your unit, please
read and follow the safety advice below.
Please keep the safety information in a safe place.
Use for the intended purpose and ambient conditions
This unit is intended exclusively for playing visual and audio signals. It is designed
for living or office rooms and may not be used in rooms with a high level of hu-
midity (e.g. bathroom, sauna) or a high dust concentration (e.g. workshops).
The terms of the warranty only cover the intended use of the unit.
If the unit is used outdoors, make sure that it is protected from moisture (rain,
drips, sprayed water or dew).
High humidity and dust concentrations lead to leakage currents in the device, this
can result in a contact risk with voltages or a fire.
If you have moved the unit out of the cold into a warm environment, leave it
switched off for about an hour to avoid the formation of condensation.
Ensure that your system (MediaVision 3D, TV set and other connected components,
if any) are switched off before you connect or disconnect other devices or
speakers.
Protect your device from:
• Water, dampness, dripping and sprayed water or steam.
• Knocks and mechanical stress.
• Magnetic and electric fields.
• Cold, heat, direct sunlight and high temperature fluctuations.
• Dust.
• Covers that inhibit ventilation.
• Interference with the internal workings of the unit.
Do not place objects containing liquids on top of the unit.
Candles and other open flames must be kept away from the unit at
all times to prevent the spread of fire.
Do not cover ventilation slits with magazines or rugs. Pay attention to curtains
etc. here, for example.
ATTENTION: TO PREVENT THE RISK OF AN ELECTRIC SHOCK, DO
NOT REMOVE THE COVER. THERE ARE NO PARTS INSIDE THE
UNIT THAT CAN BE REPAIRED BY THE USER. REPAIRS SHOULD
ONLY BE CARRIED OUT BY A LOEWE DEALER.
Only use Original accessories and spare parts from
Loewe.
Supervision
Do not let children loiter unsupervised around the device. Do not let children play
in the immediate vicinity of the device. Do not operate your MediaVision 3D
unsupervised. Disconnect the device from the mains if absent for a longer
period.
Cleaning
Only clean your unit with a slightly damp, soft, clean cloth (without any aggressive
or scouring cleaning agents).
Volume
Loud music can result in impaired hearing. Avoid extreme volumes, especially over
longer periods and if you use headphones.
About these operating instructions
The information in these instructions refers to the Loewe product MediaVision 3D.
Unless stated otherwise, the instructions refer to the operating elements on the
Assist remote control.
Paragraphs beginning with the ➠symbol indicate important hints, tips or condi-
tions for perfect operation.
Terms which you will find in the menu or printed on the unit are printed in bold type.
In the functional descriptions, the necessary operating elements are arranged to
the left of the text containing the handling instructions.
The diagrams in these operating instructions are only by way of example. However,
the actual display can differ.
- 10
