Battle Ax Light
Skid Loader Mulching Head
51 • 61
Owner’s Manual and Parts Book
(Originating w/Serial Number
93-101 thru 93-124)

LOFTNESS SPECIALIZED EQUIPMENT, INC.
LIMITED WARRANTY POLICY
The limited warranty policy begins upon delivery of the unit to the original customers.
All Loftness products have a one (1) year limited warranty. The XLB10 Grain Bag Loader has a two (2) year limited warranty.
If any Loftness product is used as rental equipment the limited warranty period is for only 30 days from the delivery date to the
original customers.
Loftness Specialized Equipment, hereinafter referred to as LOFTNESS, a manufacturer of quality machinery since 1956, warrants
new LOFTNESS machinery and/or attachments at the time of delivery to the original purchaser, to be free from defects in material
and workmanship when properly set up and operated in accordance with the recommendations set forth in the LOFTNESS Operator’s
Manual.
LOFTNESS’ liability for any defect with respect to accepted goods shall be limited to repairing the goods at an authorized dealer or
other LOFTNESS designated location, or replacing them as LOFTNESS shall elect. The above shall be in accordance with
LOFTNESS warranty adjustment policies.
WARRANTY REQUIREMENTS
Warranty registration form must be filled out and returned to Loftness Specialized Equipment to validate all warranty claims.
To receive a warranty claim, a return authorization from LOFTNESS must be obtained. The failed part may then be returned in an
untampered status. This warranty does not include freight or delivery charges incurred when returning machinery for servicing.
Dealer mileage, service calls and pick-up/delivery charges are the customer’s responsibility.
LIMITATIONS OF WARRANTY
LOFTNESS products are designed to provide years of dependable service when proper use and maintenance is adhered to. The
potential for misuse in many applications exists; therefore, a limited warranty is provided as follows.
This warranty shall not apply to any machine or attachment which shall have been repaired or altered outside the LOFTNESS factory
or authorized LOFTNESS dealership or in any way so as in LOFTNESS’ judgment, to affect its stability or reliability, nor which has
been subject to misuse, negligence or accident, nor to any machine or attachment which shall not have been operated in accordance
with LOFTNESS’ printed instructions or beyond the company recommended machine rated capacity. LOFTNESS may elect to have
an area representative evaluate the condition of the machine before warranty is considered.
In addition, this limited warranty provides no coverage for general wear or maintenance items, misuse, environmental conditions
and/or contamination for which they were not designed or not intended, including but not limited to the following items:
•Use of machine beyond its rated capacity;
•Improper knife replacement;
•Missing knives;
•Striking foreign objects
•Lack of lubrication
•Failures caused by running in an “out-of-balance” condition;
•Tires;
•Conveyors;
•Auger wear;
•Saw blades; and
•Brakes and brake pads.
EXCLUSIONS OF WARRANTY
Except as otherwise expressly stated herein, LOFTNESS makes no representation or warranty of any kind, expressed or implied. The
implied warranty of merchantability and fitness for a particular purpose are excluded from this limited warranty. The
remedies set forth in this warranty are the only remedies available to any person under this warranty. LOFTNESS shall have no
liability to any person for incidental, consequential or special damages of any description, whether arising out of express or implied
warranty or any other contract, negligence, or other tort or otherwise. This exclusion of consequential, incidental and special damages
is independent from and shall survive any finding that the exclusive remedy failed of its essential purpose. Upon purchase, the buyer
assumes all liability, all personal injury and property damage resulting from the handling, possession or use of the goods by the buyer.
No agent, employee or representative of LOFTNESS has any authority to bind LOFTNESS to any affirmation, representation or
warranty concerning its machinery and/or attachments except as specifically set forth herein.
July 2019

Battle Ax Light - Skid Loader OM
Table of Contents
Warranty
Table of Contents
Ordering Code
Ordering Code ..................................................................1
Battle Ax Light - Skid Loader (Example) ...........................................1
Introduction
Owner Information...............................................................3
Warranty Policy .................................................................3
Serial Number Location...........................................................3
Manual Storage .................................................................3
Battle Ax Light Features ..........................................................4
Safety Instructions
Safety First. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Owner’s Responsibility ...........................................................5
Mandatory Shut-Down Procedure...................................................5
Safety Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Hydraulic Safety .............................................................7
California Proposition 65 Warning...................................................7
Safety Decal Locations ...........................................................8
Battle Ax Light Identification ......................................................10
Set-up Instructions
Pusher Bar Assembly ...........................................................11
Installing the Battle Ax Light to the Loader ...........................................12
Hydraulic Connections .......................................................13
Checking Rotor Rotation .........................................................13
Checking Rotor Speed ..........................................................14
Cutter Bar Adjustment...........................................................14
Operating Instructions
Getting Started ................................................................15
Operation.....................................................................15
Clearing Jams .................................................................16
Log Moving ...................................................................16
Detaching Battle Ax Light ........................................................16
Maintenance
General Maintenance ...........................................................17
Maintenance Schedule ..........................................................17
Lubrication....................................................................17
Grease Points Location .......................................................17
Overhung Load Adapter ......................................................18
Removing Belt Cover............................................................19

Battle Ax Light - Skid Loader OM
Table of Contents
Maintenance (Cont’d)
Removing Left End Bearing Cover .................................................19
Removing Motor Cover, Manual Holder Cover, and Hose Cover ..........................20
Skid Removal/Replacement ......................................................21
Belt Adjustment ................................................................21
Tooth Removal and Installation ....................................................22
Tooth Sharpening ..............................................................22
Storage ......................................................................23
End of Season ..............................................................23
Beginning of the Season ......................................................23
Motor & Sheave Selection Chart ...................................................24
Troubleshooting ................................................................25
Parts Identification
Covers, Manual Holder ..........................................................28
Rotor, Skid Shoes ..............................................................30
Cutter Bar, Deflector Chains ......................................................31
Pusher Bar....................................................................32
Motor Mount ..................................................................33
Motor Cover (203233) ...........................................................34
Lubrication....................................................................35
Belt and Sheave, 3/B BSL “A” (8.6" Top, 6.2" Bottom)..................................36
Belt and Sheave, 3/B BSL “B” (8" Top, 6.8" Bottom) ...................................37
Belt and Sheave, 3/B BSL “C” (7.4" Top, 7.4" Bottom)..................................38
Belt and Sheave, 3/B BSL “D” (6.8" Top, 8" Bottom) ...................................39
Rotor Assembly with Shankless Tooth; 51" (203124), 61" (203252) ........................40
Rotor with Shankless Tooth; 51" (203123), 61" (203251) ................................41
Rotor Assembly with Planer Teeth; 51" (203530), 61" (203532) ...........................42
Rotor with Planer Teeth; 51" (203529), 61" (203531) ...................................43
Motor Assembly; 51" (203261), 61" (203418) .........................................44
Overhung Load Adapter (N16416)..................................................46
Machine Decals and Signs .......................................................47
Appendix
Specifications .................................................................49
Dimensions ...................................................................50
Torque Specifications ...........................................................51
Inches Hardware and Lock Nuts ................................................51
Metric Hardware and Lock Nuts ................................................52

1Battle Ax Light - Skid Loader OM
Ordering Code
Ordering Code
Battle Ax Light - Skid Loader (Example)
The ordering code will consist of two numbers (machine size), three letters (machine type), one letter (cutter type), one
number (motor size), one letter (sheaves and belt combination), and one letter (pusher bar). An example for a Battle Ax
Light - Skid Loader of this type would be as shown below.
SIZE
51 = 51" Cut
61 = 61" Cut
TYPE
BSL = Battle Ax Skid Loader Light
TOOTH
Q = Shankless
P = Planer
MOTOR SYSTEM
1 = 40cc
SHEAVES/BELT COMBO
A = 8.6" Top, 6.0" Bottom
B = 8.0" Top, 6.8" Bottom
C = 7.4" Top, 7.4" Bottom
D = 6.8" Top, 8.0" Bottom
PUSHER BAR
P = Pusher Bar
51BSLQ1A.P

2Battle Ax Light - Skid Loader OM

3Battle Ax Light - Skid Loader OM
Owner Information
Thank you for your decision to purchase a Battle Ax
Light skid loader-mounted shredder from Loftness. To
ensure maximum performance of your machine, it is
mandatory that you thoroughly study the owner’s manual
and follow its recommendations. Proper operation and
maintenance are essential to prevent injury or damage
and to maximize machine life.
The Loftness Battle Ax Light is an effective, reliable
machine used for maintaining grass, weeds, brush and
trees. Efficiently cuts and mulches up to 6" diameter
material. Intermittently cuts larger diameter material.
Lifting or tilting the Battle Ax Light increases the risk of
flying debris. Because of the high speed of the teeth, the
life of the teeth will be reduced if it is operated in rocky
terrain or in areas where many obstacles are present.
Areas to be mowed should be free of debris such as
rocks, bottles, etc. The teeth cut and pulverize the grass,
weeds, and brush. The Battle Ax Light deposits cut
material over the entire width-of-cut, which eliminates
bunching or windrowing behind the machine.
Operate and maintain this machine in a safe manner and
in accordance with all applicable local, state, and federal
codes, regulations and/or laws, and in compliance with
on-product labeling and these instructions.
Make sure that all personnel have read this owner’s
manual and thoroughly understand safe and correct
operating, installation and maintenance procedures.
Continuous improvement and advancement of Loftness
products may result in changes to your equipment
that may not be reflected in this publication. Loftness
reserves the right to make product improvements to the
machine at any time. Although great care has been taken
to ensure the accuracy of this publication, Loftness does
not assume any liability for errors or omissions.
Warranty Policy
Be sure to read and understand the Warranty Policy at
the beginning of this manual. It is also important that you
fill out the Warranty Registration form(s) completely with
your dealer so as not to void the warranty.
Serial Number Location
1
2
The machine serial number is shown in the tag (1), and
is also stamped into the frame (2) on the skid steer
mounting bracket.
Always use your model and serial number when
requesting information or when ordering parts.
Manual Storage
1
Keep the owner’s manual and the entire documentation
packet in the manual holder (1) provided on your Battle
Ax Light. The owner’s manual must be available for all
operators.
Introduction

4Battle Ax Light - Skid Loader OM
Introduction
Battle Ax Light Features
• Downward Rotation Design
• Premium Strength Steel Body & Rotor
• Front Mounted
• Hydraulic Driven
• Universal Skid-Loader Mount
• Adjustable Tree Pusher - (Optional)
• Claw Hooks On Tree Pusher
• Two-stage Cutting Chamber - uses 2 shear bars,
producing a finer mulch with less passes
• Power Requirement - 16-30 GPM up to 4350 PSI -
20-50 hydraulic horsepower
• Pressure Gauge
• Fixed Displacement Gear Motor - 40cc
• Rotor Speed 1800-2600 RPM
• 13.5 in. (34 cm) Diameter Rotor.
• Efficient Staggered/Spiral Tooth Pattern
• Shankless or Planer Teeth (sharpenable)
• 1.75 in. (44.5 mm) Piloted Double Taper Roller
Bearings.
• Anti Wrap Bearing Protection
• Heavy Duty Bearing Block
• 3-Band V-Belt
• Tapered-Lock Sheaves
• Skid Shoes
• Steel Chain Deflectors
• Adjustable Shear Bar
• Built-in depth gauges - controls cutting depth.
• Hydraulic Hoses

5Battle Ax Light - Skid Loader OM
Safety First
In the owner’s manual and on decals used on the
machine the words DANGER, WARNING, CAUTION,
IMPORTANT, and NOTE are used to indicate the
following:
DANGER: This word warns of immediate hazards which,
if not avoided, will result in severe personal injury or
death. The color associated with Danger is RED.
WARNING: This word refers to a potentially hazardous
situation which, if not avoided, could result in severe
personal injury or death. The color associated with
Warning is ORANGE.
CAUTION: This word refers to a potentially hazardous or
unsafe situation that, if not avoided, may result in minor
or moderate injury. It may also be used to alert against
unsafe practices. The color associated with Caution is
YELLOW.
IMPORTANT: Highlights information that must be
heeded.
NOTE: A reminder of other related information that needs
to be considered.
If Safety Decals on this machine are ISO two panel
pictorial, decals are defined as follows:
• The first panel indicates the nature of the hazard.
• The second panel indicates the appropriate
avoidance of the hazard.
• Background color is YELLOW.
• Prohibition symbols such as and STOP if used,
are RED.
Be certain all machine operators are aware of the
dangers indicated by safety decals applied to the
machine, and be certain they follow all safety decal
instructions. Contact Loftness for safety decal
replacement.
Loftness cannot anticipate every possible
circumstance that may involve a potential hazard. The
warnings in this owner’s manual are not all inclusive.
Owner’s Responsibility
Due to the potential danger of flying debris, it is the owner’s
responsibility and is “ABSOLUTELY MANDATORY that
IMPACT-RESISTANT SHIELDING” be installed on the
machine to protect the operator.
It is ABSOLUTELY MANDATORY that all personnel read
and follow all safety precautions before operating the
machine and attachment.
Make sure that all personnel have read this owner’s
manual, and thoroughly understand safe and correct
installation, operation, and maintenance procedures.
Operate and maintain this machine in a safe manner and
in accordance with all applicable local, state, and federal
codes, regulations and/or laws; and in compliance with
on-product labeling and this owner’s manual instructions.
Make sure that all personnel know how to stop the
machine and attachment by disengaging all controls.
See “Mandatory Shut-Down Procedure” on page 5.
Make sure the attachment is installed on the machine
correctly before being placed into service. At regular
intervals thereafter, the attachment should be serviced
in accordance with procedures outlined in this owner’s
manual.
Mandatory Shut-Down Procedure
• Stop the machine and attachment on a level surface
and lower the attachment to the ground.
• Move throttle to idle position.
• Disengage all power to the attachment.
• Shut off engine and remove the key.
Wait until the rotor has stopped completely before
inspecting the attachment.
Safety Alert Symbol
This message alert symbol identifies
important safety messages on the machine
and in the owner’s manual. When you see this
symbol, be alert to the possibility of personal
injury and carefully read the message that
follows.
Safety Instructions

6Battle Ax Light - Skid Loader OM
Safety Rules
These are general safety considerations. Additional
precautions may be necessary to operate your
machine in a safe manner. Be certain you are operating
your machine in accordance with all safety codes,
OSHA rules and regulations, insurance requirements
and local, state, and federal laws.
• Read and observe all warnings decals on the machine
before attempting to operate the attachment. Do not
attempt to operate this attachment unless all factory
devices and decals are in place. Keep safety decals
clean of dirt and grime. Keep all guards, shields and
decals in place.
• Remove from area of operation all foreign objects
such as bottles, rocks, wire, etc., that might become
tangled in the rotor, causing damage to the machine
or be thrown striking other objects.
• Do not allow any people and animals within 300 feet
of the machine and attachment during operation.
• Do not allow anyone to operate the attachment
until he or she has read the owner’s manual and is
completely familiar with all safety precautions. Keep
the work area clear of all unauthorized personnel.
• Do not allow persons under the influence of alcohol,
medications, or other drugs that can impair judgment
or cause drowsiness to operate or maintain the
machine.
• Always use an approved roll bar and seat belt for
safe operation. Overturning a machine without a roll
bar and seat belt can result in injury or death.
• Use the handholds and step plates when getting on
and off the machine to prevent falls. Keep steps and
platform cleared of mud and debris.
• Always have an operator in the machine while the
attachment is in operation. Never leave the machine
and attachment running and unattended.
• Operate the attachment only from the operator’s
seat.
• Keep your feet on the pedals, (floor plates) seat belt
fastened snuggly and seat bar lowered, (if equipped),
when operating the attachment.
• The adjustable push bar could contact the machine
in some positions. Before starting the power unit,
set the push bar in the most forward position, then
slowly rotate the attachment back while an assistant
checks for clearance. Repeat this process in the
other settings to determine which positions are
usable with your machine.
• Never attempt to make any adjustments while the
attachment is running or the key is in the “ON”
position in the machine. Before leaving the operator’s
position, disengage power to the attachment, shut
off engine and remove ignition key.
• Disengage auxiliary hydraulics and place all machine
controls in neutral and engage the parking brake
before starting the engine.
• Become familiar with and know how to operate all
safety devices and controls on the machine and
attachment before attempting to operate. Know how
to stop the machine and attachment before starting
it.
• Repeated impact of the knives with hard objects can
cause excessive wear and damage to the skid-loader
or attachment. Be sure to maintain recommended
ground clearance as specified in this manual.
• Should excessive vibration occur, disengage the
auxiliary hydraulics immediately and shut off engine.
Do not continue to operate the attachment until the
problem has been determined and corrected.
• Do not start, operate, or work on this attachment until
you have carefully read and thoroughly understand
the contents of this manual and the operator’s
manual for your machine.
• Keep children, bystanders and other workers off
and away from the machine and attachment during
operation. No riders allowed.
• Before inspecting, cleaning, lubricating, adjusting
or servicing any part of the attachment, always
exercise the Mandatory Shut-Down Procedure.
See “Mandatory Shut-Down Procedure” on page
5. After service has been performed, be sure to
restore all guards, shields and covers to their original
position.
• Make sure the operator’s area is clear of any
distracting objects. Keep work areas clean and free
of grease and oil to avoid slipping or falling.
Safety Instructions

7Battle Ax Light - Skid Loader OM
Safety Rules (Cont’d)
• Make sure all controls, (levers, pedals and switches),
are in NEUTRAL position before starting the engine.
• Before leaving the operator’s position for ANY
reason or allowing anyone to approach the machine
and attachment, always perform the mandatory
shutdown procedure.
• Do not wear loose hanging clothes, neckties or
jewelry around rotating parts. Long hair is to be
placed under a cap or hat. These precautions will
help prevent you from becoming caught in any
moving parts on the machine and attachment.
• Before working under the attachment, be certain it is
securely blocked!
• Do wear safety glasses, ear protection, respirators,
gloves, hard hats, safety shoes and other protective
clothing when required.
• Periodically check all guards, shields and structural
members. Replace or repair anything that could
cause a potential hazard.
• Do not replace components or parts with other than
factory-recommended service parts. To do so may
decrease the effectiveness of the machine.
• It is the operator’s responsibility to be aware of
machine and attachment operation and work area
hazards at all times.
• Never operate the attachment without adequate
light and visibility.
• Keep hands and feet clear! Never step over or climb
over the attachment while the rotor is engaged or the
engine is running; entanglement could occur.
• Operators are responsible to know the location
and function of all guards and shields including but
not limited to belt drives and rotor. Operators are
responsible to make certain that all guards are in
place when operating the machine and attachment.
• Operators are responsible to be aware of safety
hazard areas and follow instructions on warning,
caution, or danger decals applied to the machine.
• Know the area before operating the machine. Be
aware of power lines or other equipment.
Safety Instructions
• Do not lubricate parts while the machine is running.
• Do not smoke while servicing the machine.
Hydraulic Safety
• The hydraulic system is under high pressure. Make
sure all lines and fittings are tight and in good
condition. These fluids escaping under high pressure
can have sufficient force to penetrate skin and cause
serious injury.
• Never check for leaks by using any part of your body
to feel for escaping fluid.
WARNING: Contact with high pressure
fluids may cause fluid penetration and burn
hazards. Fluid that is under pressure can
penetrate body tissue. Fluid penetration can
cause serious injury and possible death. If
fluid is injected into the skin, seek medical
attention immediately!
California Proposition 65 Warning
WARNING: This product can expose you to
Mineral Oil, which is known to the State of
California to cause cancer. For more
information, go to www.p65warnings.ca.gov.
A decal with this warning statement is adhered to the
machine. If the decal should become worn or missing,
replace immediately.

8Battle Ax Light - Skid Loader OM
Safety Instructions
Safety Decal Locations
Check and replace any worn, torn, hard to read, or missing safety decals on your machine.
NOTE: This section shows where safety-related decals are applied on the machine. For all machine decals see “Machine
Decals and Signs” on page 47.
See the following page for detailed images of the safety decals called out above.
3
10
1 1
1 2 1
5
7
8
9
4
3
6
11 10
12
3
Note: Pusher bar
removed on side
view for clarity.
Note: Pusher bar
removed on side
view for clarity.
Note: Hydraulic hoses
removed for clarity.

9Battle Ax Light - Skid Loader OM
Safety Instructions
3
Part No. N28386
STAY BACK
KEEP HANDS AND FEET
AWAY FROM ROTATING
KNIVES UNDER MACHINE
DO NOT LEAVE
OPERATORS POSITION
WHILE POWER UNIT IS
RUNNING
DANGER
11
Part No. N28385
WARNING
IMPROPER CONNECTION TO THE POWER UNIT’S HYDRAULIC SYSTEM
COULD CAUSE SERIOUS COMPONENT DAMAGE AND PERSONAL INJURY.
This attachment can be configured with different components to operate on a variety
of power units.
It is absolutely MANDATORY that you refer to your OPERATOR’S MANUAL for Set-up
Instructions and Pressure Ratings that apply to the components used on this unit.
The dealer/owner will be responsible for any damage caused by improper connection
to the power unit.
4
Part No. 203264
10
Part No. 4334
Safety Decal Locations (Cont’d)
12
Part No. 4256
9
Part No. N17013
WARNING
Due to the possible danger of flying debris,
it is absolutely MANDATORY that impact-resistant
shielding be provided on the power unit to
protect the operator.
The owner is responsible for providing the
operator protection devices on the power unit.
8
Part No. N68716
5
Part No. 200491
1
Part No. N29769
2
Part No. N17014
6
Part No. N20661
7
Part No. N68724

10 Battle Ax Light - Skid Loader OM
Hydraulic Motor
(behind cover)
Rotor Bearing
Guard
Skid
(left side)
Cutting Teeth
Rotor
Hydraulic
Control Valve
Pressure Gauge
Hydraulic Hoses
Mounting Plate
Deflector Chains Step
Skid
(right side)
Drive Belt
(behind cover)
Drive Belt
Cover
Manual
Holder
Pusher Bar
Safety Instructions
Battle Ax Light Identification

11Battle Ax Light - Skid Loader OM
from the 25-7/8 in. pusher tube (6) attached to the left
side of the machine.
Remove the nut (7), lock washer (8), and bolt (9) securing
the pusher tube to the machine frame.
NOTE: This 25-7/8 in. tube will be moved to the right
side of the frame in a later step.
Remove the 37-1/2 in. pusher tube (10) from the right
side of the machine by removing the upper nut (11), lock
washer (12), and bolt (13).
Remove lower nut (14), lock washer (15), and bolt (16).
NOTE: This 37-1/2 in. tube will be moved to the left side
of the frame.
1
5
432
7 86
ABC
Align the top end hole of the 37-1/2 in. pusher tube (1)
into the desired position hole (A, B, or C) on the left side
pusher bar side plate. (Position A is shown in the image
above.)
Insert the bolt (2) from the outside and install the lock
washer (3) and nut (4) onto the bolt on the opposite side
of the pusher tube. Do not tighten at this time.
Align the bottom end hole of the pusher tube with the
hole (5) in the left side of the mulcher frame. Insert the
bolt (6) from the outside and install the lock washer (7)
and nut (8) onto the bolt on the opposite side of the
pusher tube. Do not tighten at this time.
(Procedure continued on following page.)
Set-up Instructions
Pusher Bar Assembly

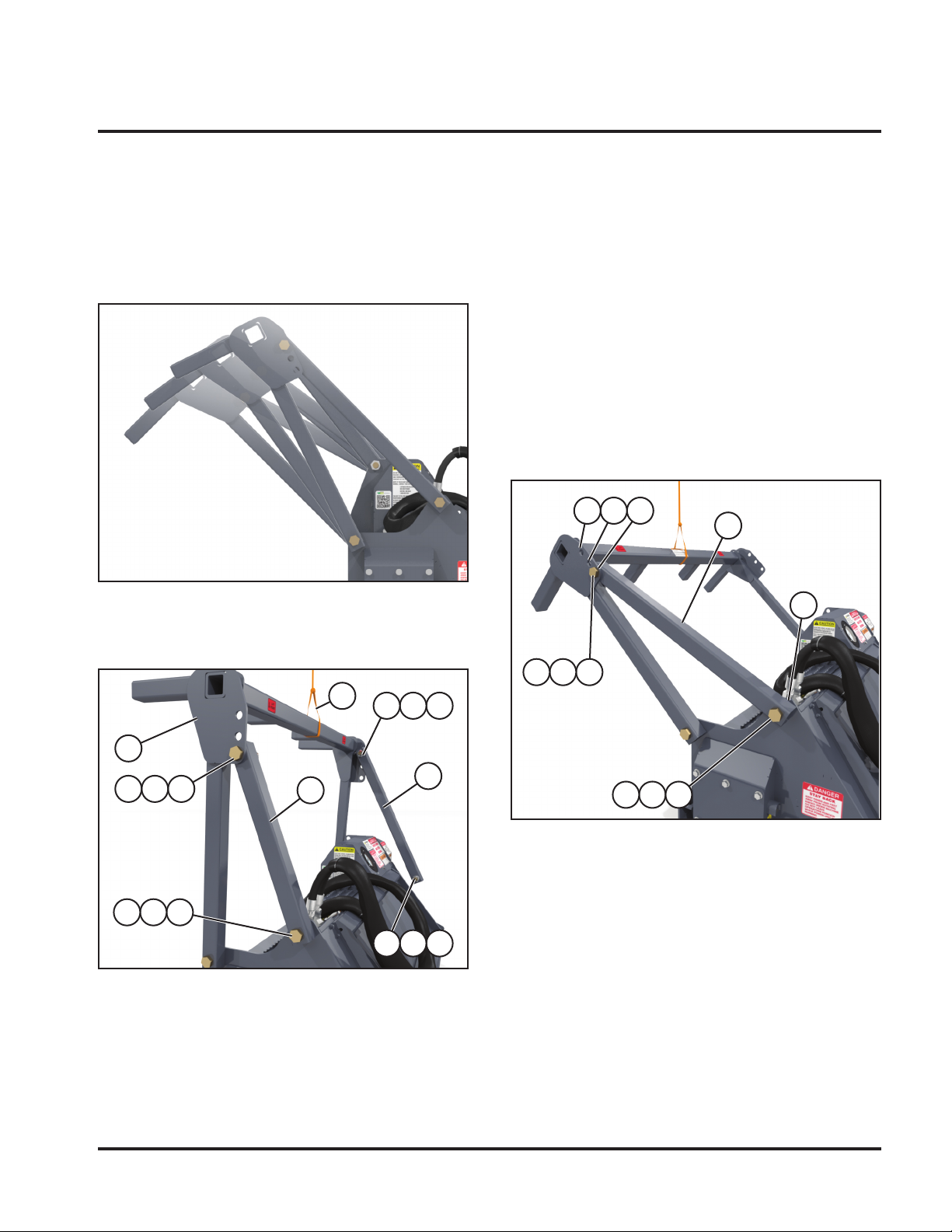

The Battle Ax Light is shipped with the pusher bar in
an upright position. For shipping purposes, the left side
and right side pusher tubes are reversed and some
reconfiguring is required. Follow the procedure below to
get the mulcher into an operating position.
The pusher bar can be set into one of three different
operating positions as shown above. Determine which of
the three positions is desired before assembling.
2
6
1
10
543
131211
161514
987
NOTE: Assembling the pusher bar requires two people
or the use of an approved lifting device (1) to
support the push bar as it is being adjusted.
Ensure pusher bar (2) is being safely supported.
Remove the upper nut (3), lock washer (4), and bolt (5)

12 Battle Ax Light - Skid Loader OM
Installing the Battle Ax Light to the
Loader
Fully raise the attachment-locking levers on the loader
mounting plate.
1
Tilt the loader mounting plate ahead. Drive forward with
the loader and hook the top edge of the loader mounting
plate under the top flange (1) on the Battle Ax Light
mounting plate. Be careful not to damage the locking
levers on the loader mounting plate.
Tilt the loader mounting plate back until the mulcher
mounting plate is firmly against the loader mounting
plate, but Do Not lift the attachment off the ground.
WARNING: Before you leave the operator’s
seat: Lower the lift arms, put the attachment
on the ground. Stop engine and remove
ignition key. Engage the parking brake.
Fully lower the attachment-locking levers on the loader
mounting plate.
WARNING: Locking-wedge pins must extend
through the holes in attachment-mounting
plate. Levers must be fully down in the locked
over-center position. Failure to secure wedge
pins can allow attachment to come off,
causing serious injury or death.
(Procedure continued on following page.)
Pusher Bar Assembly (Cont’d)
A
1
5
432
876
B C
Align the top end hole of the 25-7/8 in. pusher tube (1)
onto the right side pusher bar side plate, using the same
position hole (A, B, or C) as the left side. Insert the bolt
(2) from the outside. Install the lock washer (3) and nut
(4) onto the bolt on the opposite side of the pusher tube.
Align the bottom end of the pusher tube with the hole (5)
in the right side of the mulcher frame. Insert the bolt (6)
from the outside and install lock washer (7), and nut (8)
onto the bolt on the opposite side of the pusher tube.
Tighten all hardware on the both the left side and right
side pusher tubes.
Set-up Instructions

13Battle Ax Light - Skid Loader OM
Installing the Battle Ax Light to the
Loader (Cont’d)
Hydraulic Connections
WARNING: Hydraulic Lines. Protect hands
and body from high pressure fluids.
Pressurized fluids can penetrate the skin.
Disconnect and lock out power source
before disconnecting and/or connecting
hydraulic hoses.
NOTE: The hydraulic hose quick couplers shown above
are not supplied with the Battle Ax Light.
Install the Battle Ax Light quick couplers to the loader.
Checking Rotor Rotation
DANGER: Keep hands, feet, and clothing
clear of rotor and bearings while the loader is
running.
1
Raise the Battle Ax Light off the ground and place blocks
(1) underneath the skids. Lower the Battle Ax Light down
on the blocks.
Rotor
Rotation
Engage the loader auxiliary hydraulics, the rotor should
start rotating in a forward direction. The rotation should
be counterclockwise as viewed from the left side of the
Battle Ax Light.
NOTE: If the rotor is rotating backward, reverse the
quick couplers (not supplied) on the Battle Ax
Light hydraulic hoses. Re-install the couplers
(not supplied) on the loader and test for correct
rotor rotation.
WARNING: The Battle Ax Light can be
damaged if rotor is operated in reverse
rotation.
Set-up Instructions

14 Battle Ax Light - Skid Loader OM

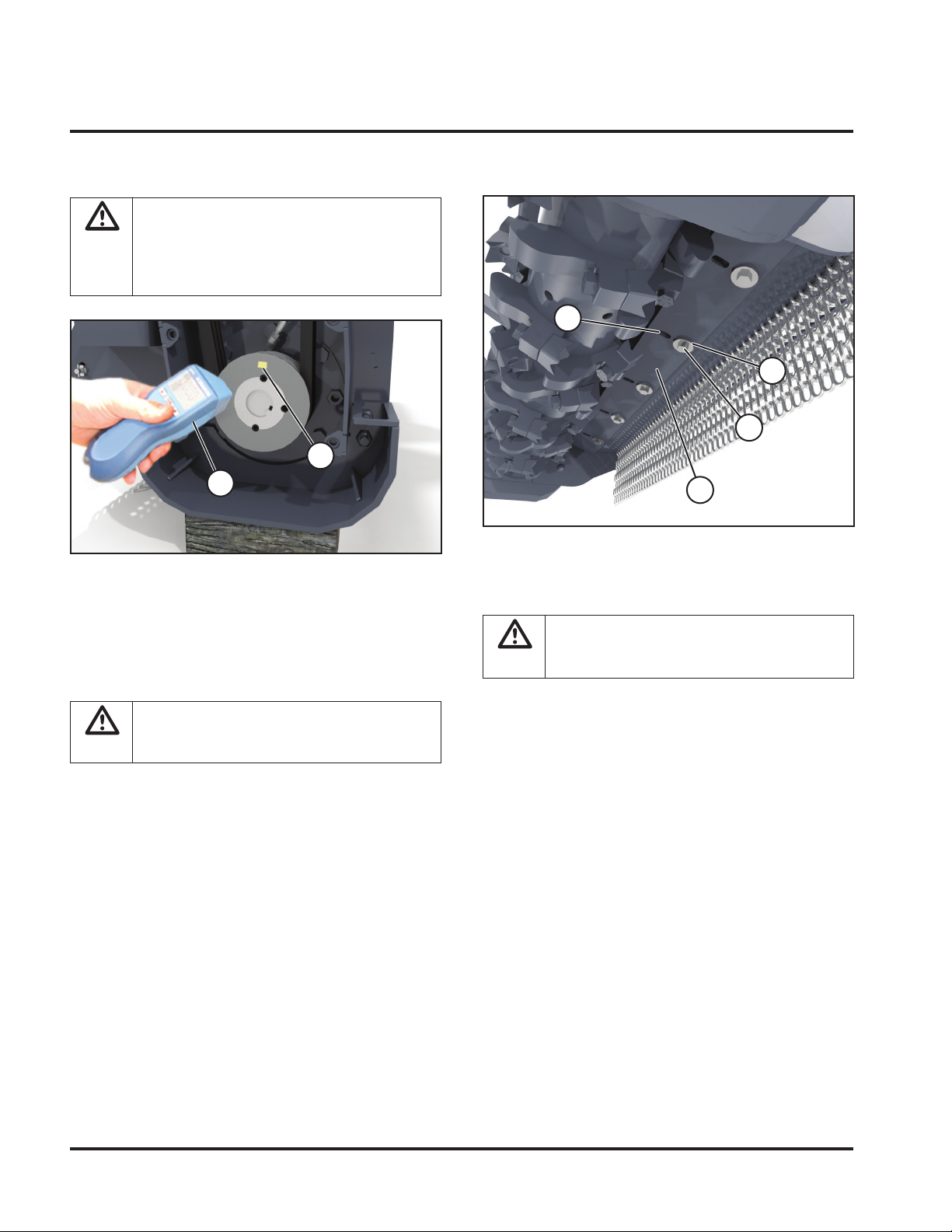

Checking Rotor Speed
DANGER: Shut down power from the
loader before removing the belt cover and
applying reflective tape to the sheave. Keep
the Battle Ax Light skids on blocks for this
procedure.
1
2
Remove the belt cover. See “Removing Belt Cover” on
page 19 for instructions.
Apply a small piece of reflective tape (1) to the outer edge
of the lower sheave.
Start the loader and engage the auxiliary hydraulics.
DANGER: Keep hands, feet, and clothing
clear of the rotor, belt, and sheaves while the
loader is running.
Point an electronic (photo) tachometer (2) towards the
edge of the sheave to check the rotor speed.
NOTE: The tachometer is not supplied with the Battle
Ax Light.
Test the rotor RPM with the loader engine at full throttle.
Shut down the loader when done.
See “Motor & Sheave Selection Chart” on page 24 for
rotor RPM. If it is outside this recommended range, it
may be necessary to disconnect the Battle Ax Light and
test the hydraulic output of the loader with a flow meter
to see if it corresponds with the factory specifications.
Turn power off from loader and return the belt cover to
position, securing with the eight bolts.
Cutter Bar Adjustment
1
2
3
4
NOTE: The cutter bar can be adjusted back or forward
to increase or decrease the distance between
the bar and the rotor.
WARNING: Shut down and disconnect the
hydraulic hoses from the loader before
adjusting the cutter bar.
Loosen the series of bolts (1) with washers (2) securing
the cutter bar (3) to the frame. Move the cutter bar either
forward or back making sure the distance moved is
consistent through the entire length of the cutter bar.
Retighten bolts.
To move the cutter bar a greater distance, remove the
bolts, washers, and bar and reposition into the next
row of slotted bolt holes (4). Reinstall the washers and
bolts and tighten, making sure the distance moved is
consistent through the entire length of the cutter bar.
IMPORTANT: If adjusting the cutter bar after the
machine has been used, the cutter bar
should be completely removed to clear
any debris away from contact surfaces
before assembly and tightening. FAILURE
TO DO SO COULD RESULT IN SEVERE
DAMAGE TO THE MACHINE!
Set-up Instructions
