Instruction / Installation Manual
Undercounter Fridge
LUL50S13

Contents
Safety Warnings............................................................................................................................ 3
Unpacking..................................................................................................................................... 5
Installation .................................................................................................................................... 6
Location .......................................................................................................................................................................6
Free Space Requirements......................................................................................................................................6
Reversing the Door Swing.....................................................................................................................................7
Cleaning Before Use .............................................................................................................................................10
Before Using Your Unit......................................................................................................................................... 10

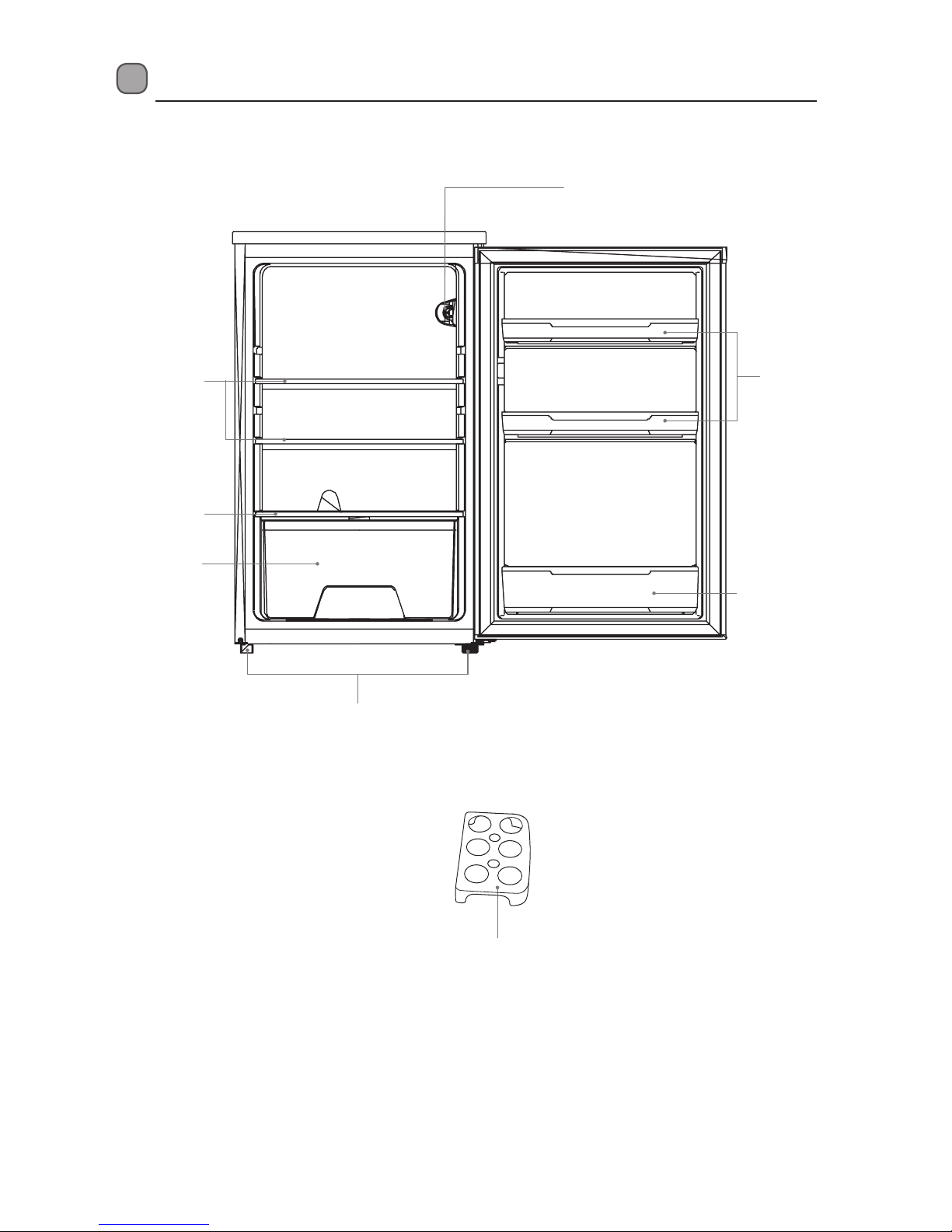

Product Overview....................................................................................................................... 11
Operation .................................................................................................................................... 12
Switching On Your Unit .......................................................................................................................................12

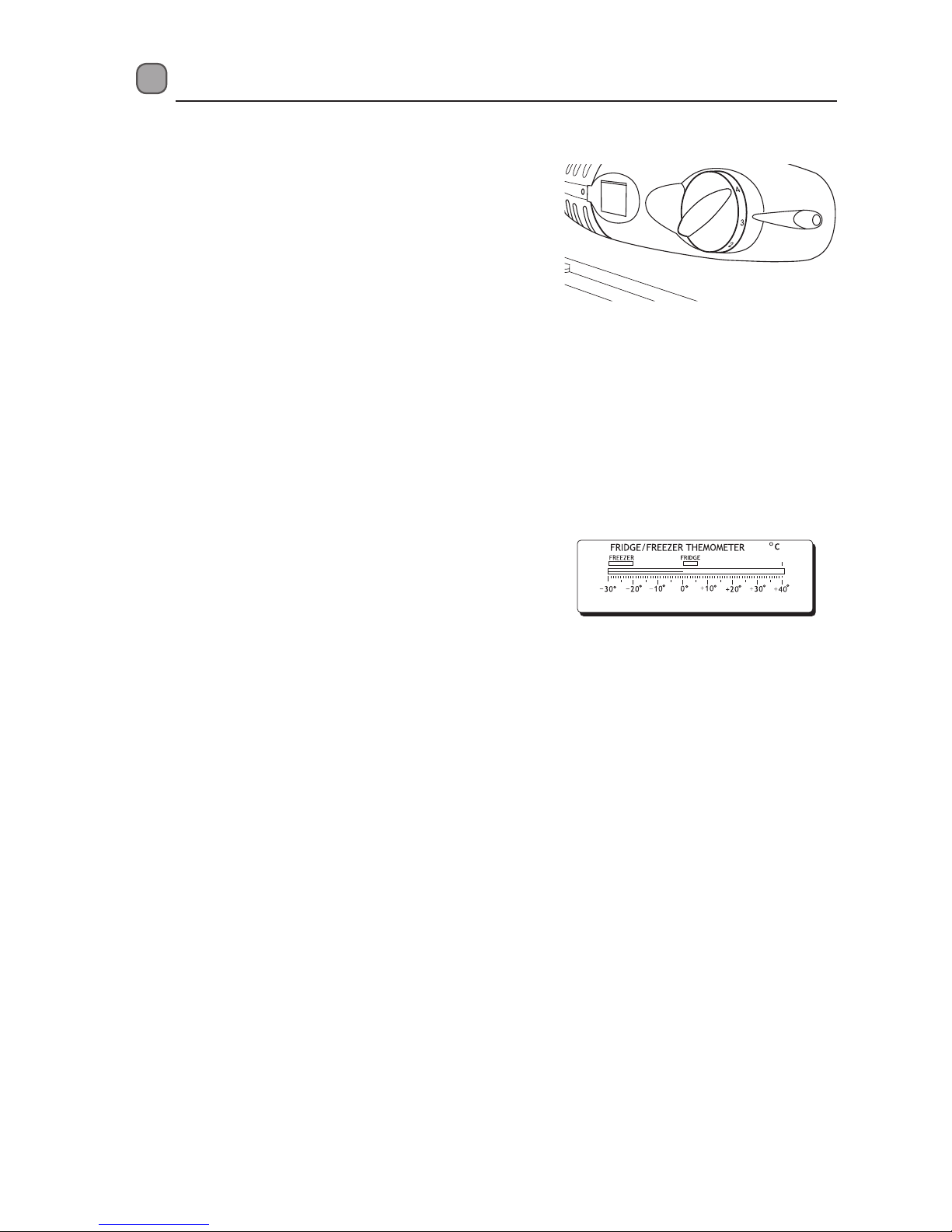

Adjusting the Temperature................................................................................................................................12
Noises Inside the Unit!.........................................................................................................................................12
Tips for Keeping Food in the Unit....................................................................................................................13
Cleaning ...................................................................................................................................... 13
Defrosting ................................................................................................................................................................13
Cleaning the Interior and the Exterior of the Unit..................................................................................... 13
Maintenance ............................................................................................................................... 14
Changing the Internal Light ..............................................................................................................................14
Care When Handling / Moving the Unit........................................................................................................14
Servicing...................................................................................................................................................................14
Switching O for Long Periods of Time......................................................................................................... 14
Condensation..........................................................................................................................................................14
Disposal....................................................................................................................................... 14
Specications.............................................................................................................................. 15

3
Safety Warnings
For your continued safety and to reduce the risk of injury or electric shock,
please follow all the safety precautions listed below.
• Read all instructions carefully before using the unit and keep them for
future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to
include this manual.
• This appliance is intended for indoor household use and similar
applications such as:
- farm houses and by clients in hotels, motels and other residential type
environment;
- bed and breakfast type environment;
- catering and similar non-retail applications.
• Ensure that the plug is easily accessible to enable disconnection from
the mains supply.
• Keep ventilation openings in the unit enclosure clear of obstructions.
• Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• Do not use electrical appliances inside the food storage compartments
of the unit, unless they are of the type recommended by the
manufacturer.
• If the mains cable is damaged, it must be replaced by the manufacturer,
its service agent or a qualied technician in order to avoid a hazard.
• Choose a location for your unit away from heat sources such as
radiators or res as refrigerant and vesicant are burnable.
• Do not damage the refrigerant circuit (The refrigerant is a very
environmentally friendly gas but is also combustible. Take care when
transporting or moving the unit to ensure that the refrigeration circuit
is not damaged. In the event of damage avoid naked ames or ignition
sources and ventilate the room in which the unit is placed for a few
minutes.)
• The unit must be manoeuvred by a minimum of 2 persons.

4
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• Children should be supervised to ensure that they do not play with the
unit.
• If your unit is tted with a lock to prevent children being trapped inside,
keep the key out of reach and not in the vicinity of the unit.
• Do not store volatile or ammable substances, such as aerosol cans with
a ammable propellant, in the unit.
• Do not store bottles or glass containers in the freezer compartment.
Contents can expand when frozen (zzy drinks) which may break the
bottle and damage your freezer compartment.
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED
SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH
INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT
REPAIRS YOURSELF.

5
Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.

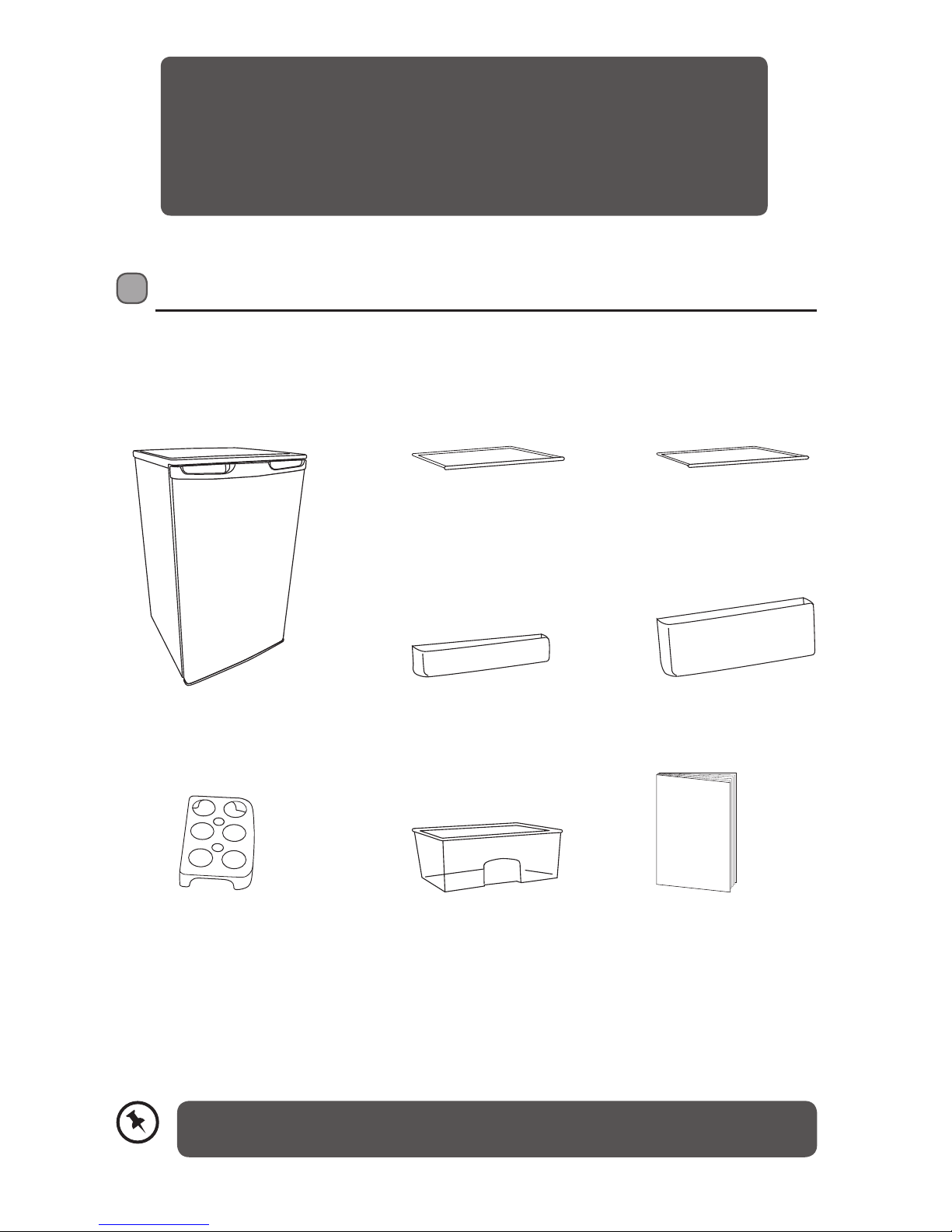

The following items are included:
Salad Bin Instruction Manual
Adjustable Glass Shelf x 2 Salad Bin Cover
Door Shelf x 2 Lower Door Shelf
Egg Tray
The Main Unit
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Instruction
Manual
Thank you for purchasing your new Logik Undercounter Fridge.
We recommend that you spend some time reading this instruction manual in
order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this instruction
manual for future reference.

INSTALLATION
6
Installation
Location
When selecting a position for your unit you should make sure the floor is flat and firm, and
the room is well ventilated with an average room temperature of between 16°C and 38°C.
Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct
sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures
may also cause the unit not to perform properly. This unit is not designed for use in a garage
or outdoor installation. Do not drape the unit with any covering.
Levelling the Unit
To do this adjust the two levelling feet at the
front of the unit.
If the unit is not level, the doors and
magnetic seal alignments will not be
covered properly.
Free Space Requirements
When installing the unit, ensure that 25 mm
of free space is left at both sides, 15 mm at
the rear of the unit and 20 mm at the top
of the unit. The door can be opened to the
right or the left, depending on which best
suits the location. Please ensure there is
adequate space for the door to fully open to

INSTALLATION
7
Reversing the Door Swing
Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner
160°.

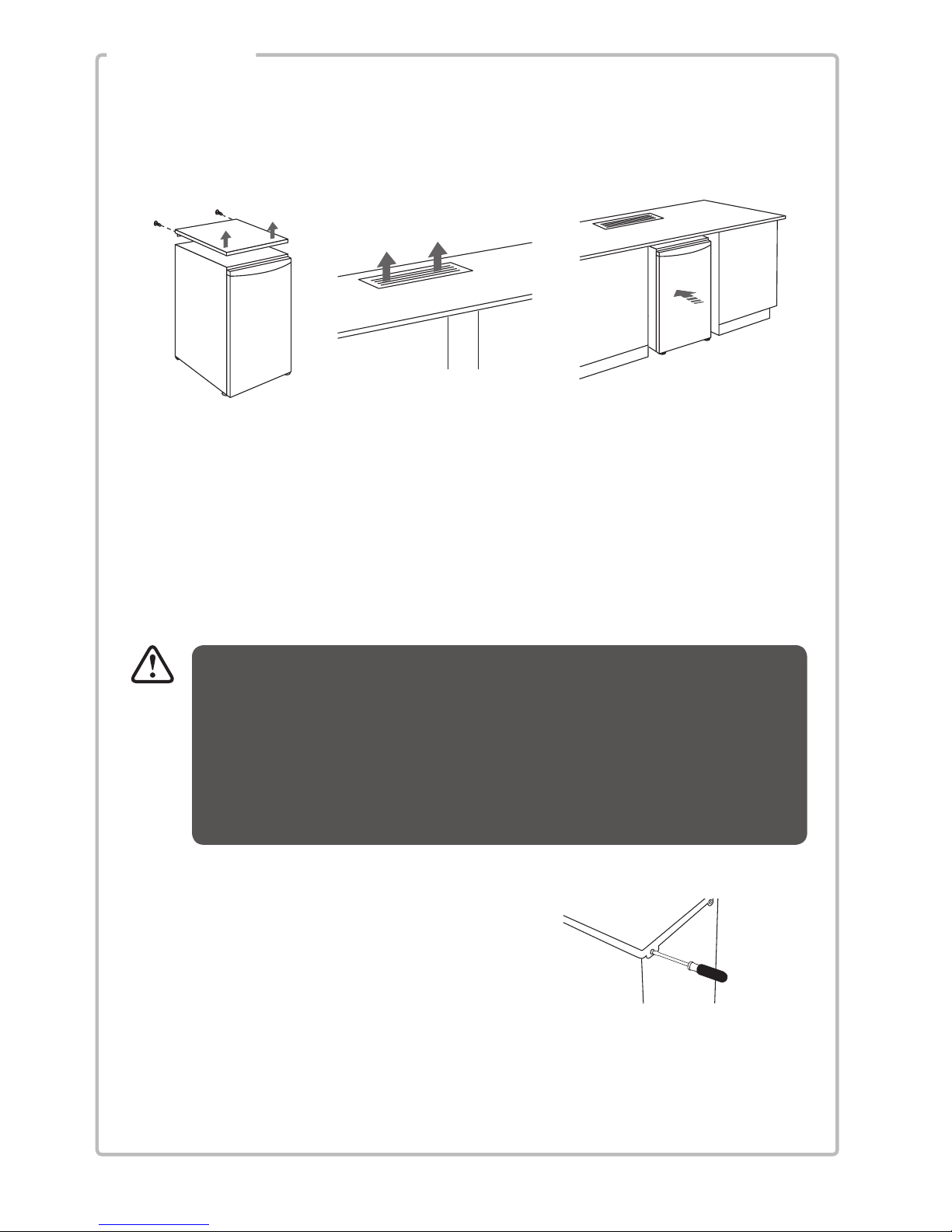

If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may
be removed and a ventilation grille of at least 200 cm2(available from DIY shops or specialist
retailers) should be installed to the worktop above the rear of the appliance to increase
ventilation.
Benefits of increased ventilation:
• Lowered power consumption • Improved cooling performance
• Reduce running costs • Prolong product life span
• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on
something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
• If you want to have the door swing reversed, we recommend that you contact a qualified
technician. You should only try to reverse the door yourself if you believe that you are
qualified to do so.
min. 200 cm2
1. Remove the 2 screws on the back.

INSTALLATION
8

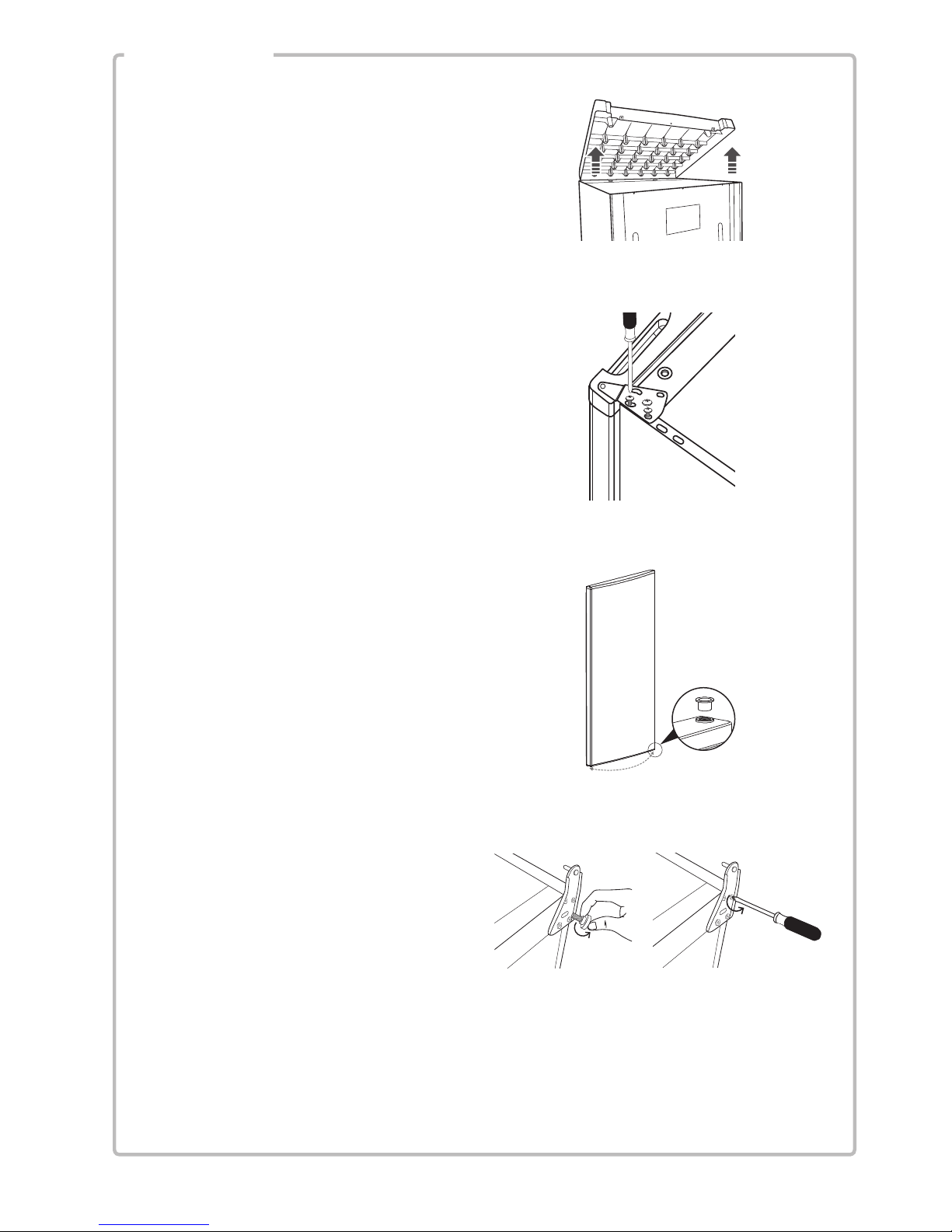

2. Lift the top cover away from the fridge.
3. Remove the three screws, then remove
the upper hinge that hold the door
in place. Lift the door and place it on
a padded surface to prevent it from
scratching.
4. Swap the bottom bushing and bottom
bushing cap of the upper door. The
bottom bushing key must be in the
correct position to allow it to be inserted
correctly.
5. Remove the lower screws, hinge bracket
and adjustable feet from the unit bottom.
unscrew unscrew

INSTALLATION
9
screw
screw
6. Remove the screw-type adjustable feet
from another side of the unit bottom and
transfer it to the corresponding position
on the opposite side of the unit bottom.
7. Reattach the two lower screws, hinge
bracket and adjustable feet to the
opposite side of the unit bottom. Loosely
secure.
8. Carefully set the upper door back into
place. Ensure the fridge door is aligned
horizontally and vertically so that the
seals are closed on all sides before finally
tightening the top hinge.
Insert the hinge bracket and screw it to
the top of the unit.
9. Use a spanner to tighten it if necessary.
11. With the door closed, check that the
door is aligned horizontally and vertically
and that the seals are closed on all sides
before finally tightening the bottom
hinge. Re-adjust the levelling feet as
needed.
10. Put the top cover back and fix it in place
with the screws.

INSTALLATION
10
• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.
Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm
water using a ‘wrung-out’ sponge or cloth. Wash the drawers in warm soapy water and dry
completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.
If you require more information refer to the Cleaning section.
Before Using Your Unit
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is
working properly and to allow it time to fall to the correct temperature. Your unit should not
be overfilled.
