Logik Tilt Medium Bracket User manual

Instruction Manual
Tilt Medium Bracket
LTM13

2
CUSTOMER HELPLINE (UK Customers Only)
0344 561 1234

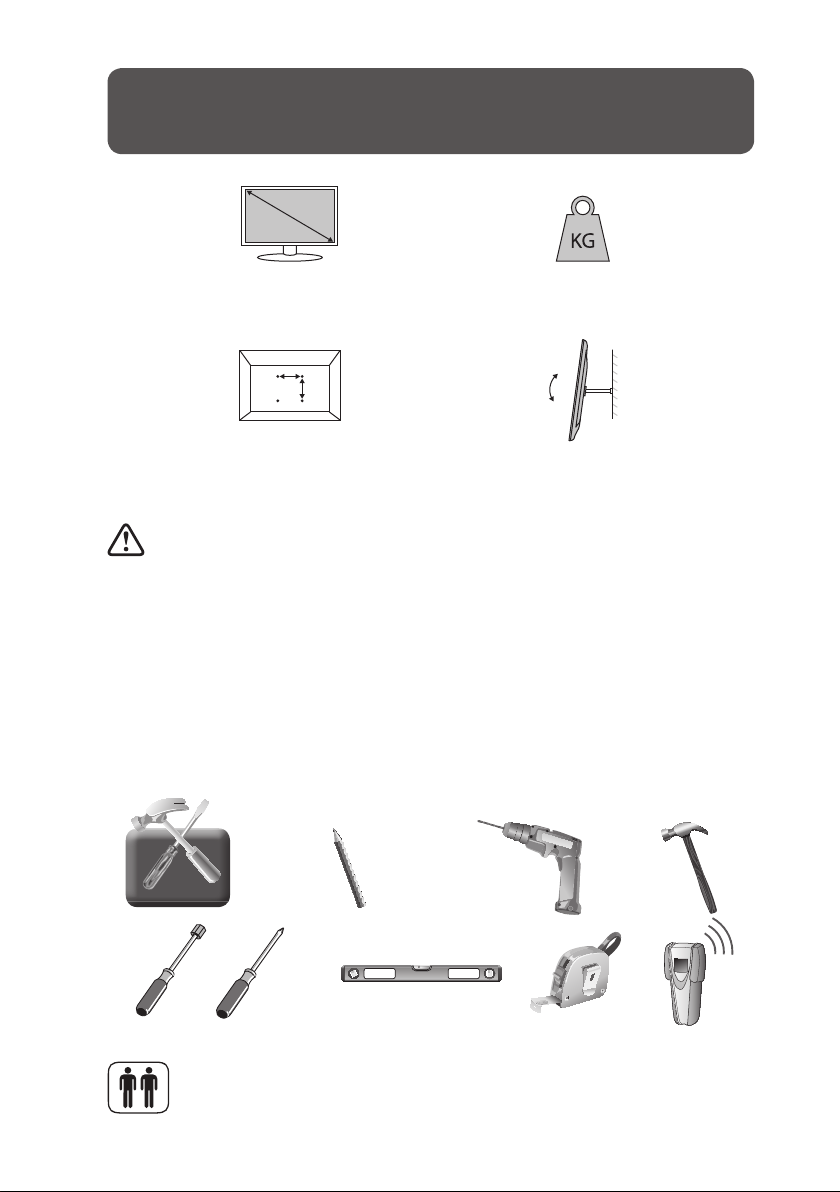

Max. Max loading capacity
Smooth tiltVESA compliance
37” 15 kg
0° – -10°400 x 400 mm
WARNING! READ THE FOLLOWING BEFORE STARTING INSTALLATION
Assembly is required. Installation must be carried out by qualified personnel only. Incorrect
assembly can result in severe personal injury and property damage. The supplied TV bracket is
only for use on vertical walls constructed from solid brick, solid concrete, solid wood and solid
wooden columns. It is the installers responsibility to verify that the wall will safely support the
total load of the TV and the TV bracket. Never exceed the designated maximum TV load. Parts
are heavy, take care when handling. For some steps 2 people are required for installation. Check
the TV bracket frequently to ensure that it is safe and secure. Additional tools(not included) are
required for the installation. Do not overtighten screws. Keep this instruction manual for future
reference.
2 people are required to lift the unit during assembly.

3
Instruction
Manual
A1 x 6 A2 x 6 A3 x 6
Wall Plate Adapter Bracket
A4 x 1 A5 x 2
M5 × 15 M5 × 20 M5 × 30 M6 × 15 M6 × 20 M6 × 30
M8 × 15 M8 × 20 M8 × 30 Ø6-Ø8 × 5 Ø6-Ø8 × 10
Ø4-Ø5 Ø6-Ø8
B1 x 4 B2 x 4 B3 x 4 B4 x 4 B5 x 4 B6 x 4
B7 x 4 B8 x 4 B9 x 4 B10 x 4 B11 x 4
B12 x 4 B13 x 4
If items are missing, or damaged contact Partmaster on 0344 800 3456 (UK customers only).

4
1
2
A2
ø10mm
55mm
ø6mm
50mm

5
3
4
A3
A3
A2
A2
A1
A1
A3 A1
Mounting On Wood Stud Wall
Mounting On Solid Brick & Concrete Block Walls

6
5
For Flat Back Screen
For Recessed Back Screen or to Access A/V Inputs
B4
B4
B1
B1
B7
B7
B5
B5
B2
B2
B8
B8
B12
B12
B10
B6
B6
B3
B3
B9
B9
B13
B13
B11
Use spacers provided for mounting TV’s with curved / recessed backs, recessed mounting holes,
or to allow access to A/V inputs.

7
7
8
wall wall
Bolt
0˚ - 10˚

DSG Retail Ltd. (co. no. 504877)
Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK
IB-LTM13-150831V4
