Logik LCX17LN2 User manual

LCX17LN2 LCDTV
INSTRUCTION MANUAL

CONTENTS
CAUTIONS 1
REMOTE FUNCTIONS 2A - 2B
SAFETY INSTRUCTION 3
REAR VIEW 4
CONNECTING WITH EXTERNAL EQUIPMENT 5 - 6
BUTTONS ON THE FRONT OF YOUR LCD TV 7 - 8
TUNING YOUR LCD TV 9
CONTROLS AND FUNCTIONS 10 - 16
TROUBLE SHOOTING GUIDE 17
SPECIFICATIONS 18

CAUTIONS
NEVER REMOVE THE BACK COVER
Removal of the back cover should be carried out only by qualified personnel.
TO ELIMINATE EYE FATIGUE
Do not use the unit against a bright back ground and where sunlight or other light
sources will shine directly on the monitor.
BE CAREFUL OF HEAVY OBJECT
Neither the monitor itself nor any other heavy object should rest on the power cord.
Damage to a power cord can cause fire or electrical shock.
SCREEN BURN
Please note that some programmes are broadcast
with a logo which will appear in the corner of your TV screen.
Some of these logos can be very bright and may cause.
damage by permanently maeking the logo on the screen.
To prevent this , avoid watching channels displaying a logo
for prolonged periods of time, particularly when the TV is
not being watched. Turning down the brightness/contrast
levels will also help to minimise any damage.
DON’T APPLY PRESSURE TO LCD SCREEN
Do not apply pressure to the LCD screen
since it will damage the screen.
1 INSTRUCTION MANUAL

REMOTE FUNCTIONS
2A
INS T R UC T ION MA NUA L
1. POWER( )
Turns the power ON or OFF. There will be a few seconds delay before the
display appears.
2. SOURCE
Select pc or video(TV / Video / S-Video / SCART) sources.
3. MUTE
Mute the sound.
4. AUTOSCAN
Find available channels(programs).
5. MENU
Activates and exits the On Screen Display.
6. VOL( )
Increases or decreases the level of audio volume.
7. CH( )
Increases or decreases the channel number.
Up / Down the teletext page number in teletext mode
A. REMOTE CONTROLLER
12
4
8
5
6
10
3
9
7
6
7
11
12~19
21
20

8. DISPLAY
Channel display in TV Source.
9. TV
Change Input Source to TV.
10. AUTO
Auto geometry adjustment in PC Source.
11. EXIT
Exit the On Screen Display.
12. TEXT ( )
Select Teletext display / Return to TV picture display.
13. INDEX ( )
Return to index page in teletext mode.
14. CANCEL( )
Display the TV picture on the screen while waiting for the new teletext page.
15. REVEAL( )
Reveal hidden text, such as Solutions of riddles or puzzles in teletext mode.
16. HOLD( )
Toggle hold on or off for current display page in teletext mode.
17. SIZE( )
Page expand in teletext mode.
18. SUBCODE( )
Select Sub page in teletext mode.
If Some page may be multiple in teletext, Select subcode( ) Key and enter
four digits for the page you need.
19. I/II(Multi-Channel TV Sound)
Access I/II Setting(Stereo, Mono, Second Audio Selection) when a TV signal is received.
20. RED / GREEN / YELLOW / CYAN
Change to associated page in the display block according to the acquisition mode
while teletext operating.
21. 0, 1, 2, 3, . . . 9(Number Key)
Using the 0, 1, 2, 3, . . . 9 Keys, the required channel or Teletext page are selected.
* Teletext, I/II function is optional.
The teletext functions only work in TV and Video.
INSTRUCTION MANUAL 2B
REMOTE FUNCTIONS
!
X
?

SAFETY INSTRUCTION
Damage
Never use your LCD TV if it is damaged in
any way. Always place your LCD TV on a
flat level surface avoiding anywhere
which may be subject to strong vibration.
Weather
It is advisable to unplug the aerial
during an electrical storm.
Moisture
Do not allow your LTD TV to be exposed
to rain moisture, dust. If any liquid is
spilt into your LCD TV it can cause serious
damage. If you spill any liquid into
your LCD TV switch it off at the mains
immediately. Contact your store.
Interference
Do not place your LCD TV on or near
appliances which may cause
electromagnetic interference(TV or Hi-
Fi speakers). If you do, it may
adversely affect the working of the
unit, and cause a distorted picture or
sound.
Temperature
Avoid extremes of temperature, either
hot or cold, place your LCD TV well away
from heat sources such as radiators or gas/electric
fires.
Ventilation
The LCD TV must be well ventilated. Do not
cover your LCD TV or position in a small
confined space. It is recommended
that you leave a 10cm gap all around
your LCD TV.
Batteries
Batteries are easily swallowed by
young children. Do not allow young
children to play with the remote
control unit.
Covers
Do not remove any fixed covers as
this may expose dangerous voltages.
Standby
Do not leave your LCD TV in standby for
long periods of time e.g. overnight or
while on holiday.
3 INS T R UC T ION MA NUA L

REAR VIEW
ACCESSORY
1. POWER CORD
2. REMOTE CONTROL
3. USER’S MANUAL
4. A/V CABLES
A. AC CONNECTOR
Connect the AC connector into the AC inlet
socket on the back of your LCD TV and plug
into the main power supply.
B. D-SUB CONNECTOR
Connect to the video signal cable.
C. ANTENNA(aerial)
Use an RF lead (not supplied) to connect
your LCD TV to on aerial socket.
INS T R UC T ION MA NUA L 4
A. AC INLET B. D-SUB CONNECTOR
C. ANTENNA(aerial)

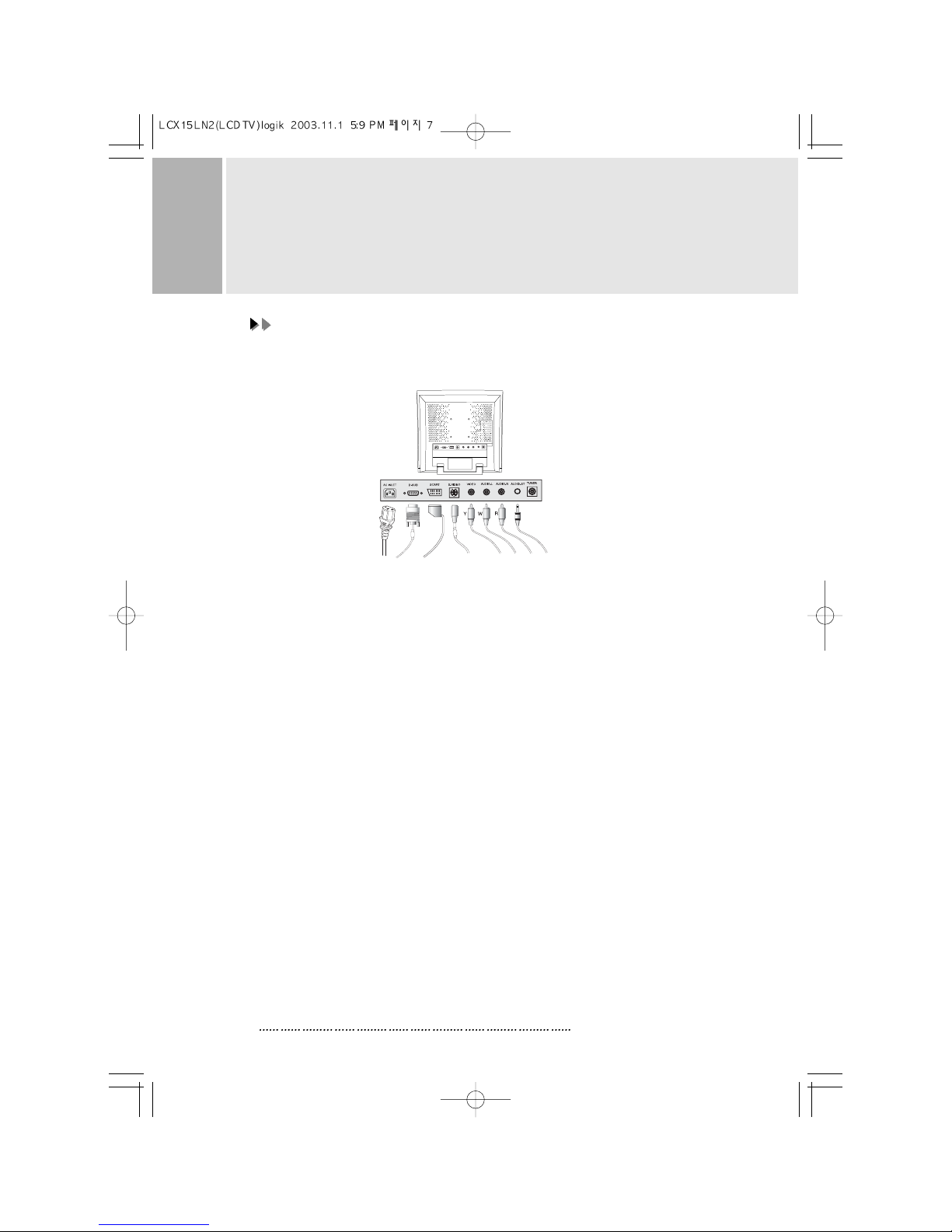

CONNECTING WITH EXTERNAL
EQUIPMENT
CC
CCAA AAUU UUTT TTII IIOO OONN NN
B e sure to turn off the power of your computer before connecting the monitor.
1. CONNECT THE VIDEO SIGNAL CABLE
A. Connect one end of the signal cable to the back panel of the monitor
and connect the other end to the graphic card on back of the computer.
B. Secure the connection with the screws on the plug.
2. CONNECT THE POWER CORD
Connect the female end of the power cord to the power input socket
on the LCD Monitor.
Then, plug the male end of the power cord to an AC outlet or computer.
3. CONNECT THE A/V CABLE
A. Connect the end of RCA(White, Red) SCART or S-VHS cable to
the terminals on the back of the Monitor.
B. Connect an antenna or CATV cable to the terminal on the back of the Monitor.
(Optional TV Tuner can be purchased from the dealer)
C. Connect one end of stereo audio cable to the stereo jack on the back of the Monitor.
(Connect another end of stereo audio cable to the “Audio(Line) out” terminal of
the sound card on your computer or another audio equipment)
4. TURN THIS MONITOR ON AND START YOUR SYSTEM
5 INS T R UC T ION MA NUA L

5. If you have connected your LCD TV to a piece of external equipment
select the correct input on the ‘input source’ screen shown below.
This screen can be accessed by pressing the ‘MENU’ button on
the remote control once.
CONNECTING WITH EXTERNAL
EQUIPMENT
2. OSD MENU DESCRIPTION
: Input Source
Select PC or AV(TV, Video, S-Video, SCART) Source.
INSTRUCTION MANUAL 6

BUTTONS ON THE
FRONT OF YOUR LCD TV
A. ON/STANDBY( )
Turns the LCD TV ON or to STANDBY. There will be a few seconds delay before the
display appears.
The power LED(next to the power switch) lights green when the power is turned ON.
The power is turned off by pressing the power switch again and the power
LED goes out.
NOTE:Do not leave your LCD TV in standby for long periods of time e.g. overnight,
while out of the house or while on holiday.
B. MENU (MENU)
Activates and exits the On Screen Display.
This button can also be used to move previous menu or status.
OSD MENU(MAIN) : Input Source, Screen, Audio, OSD, Color, Utility, Exit.
7 INS T R UC T ION MA NUA L
B. SOURCE BUTTON
E. VOLUME BUTTONS
(LEFT & RIGHT)
D. CHANNEL BUTTONS
(DOWN & UP)
POWER INDICATOR(LED)
A. POWER SWITCH
REMOCON SENSOR
C. MENU BUTTON
