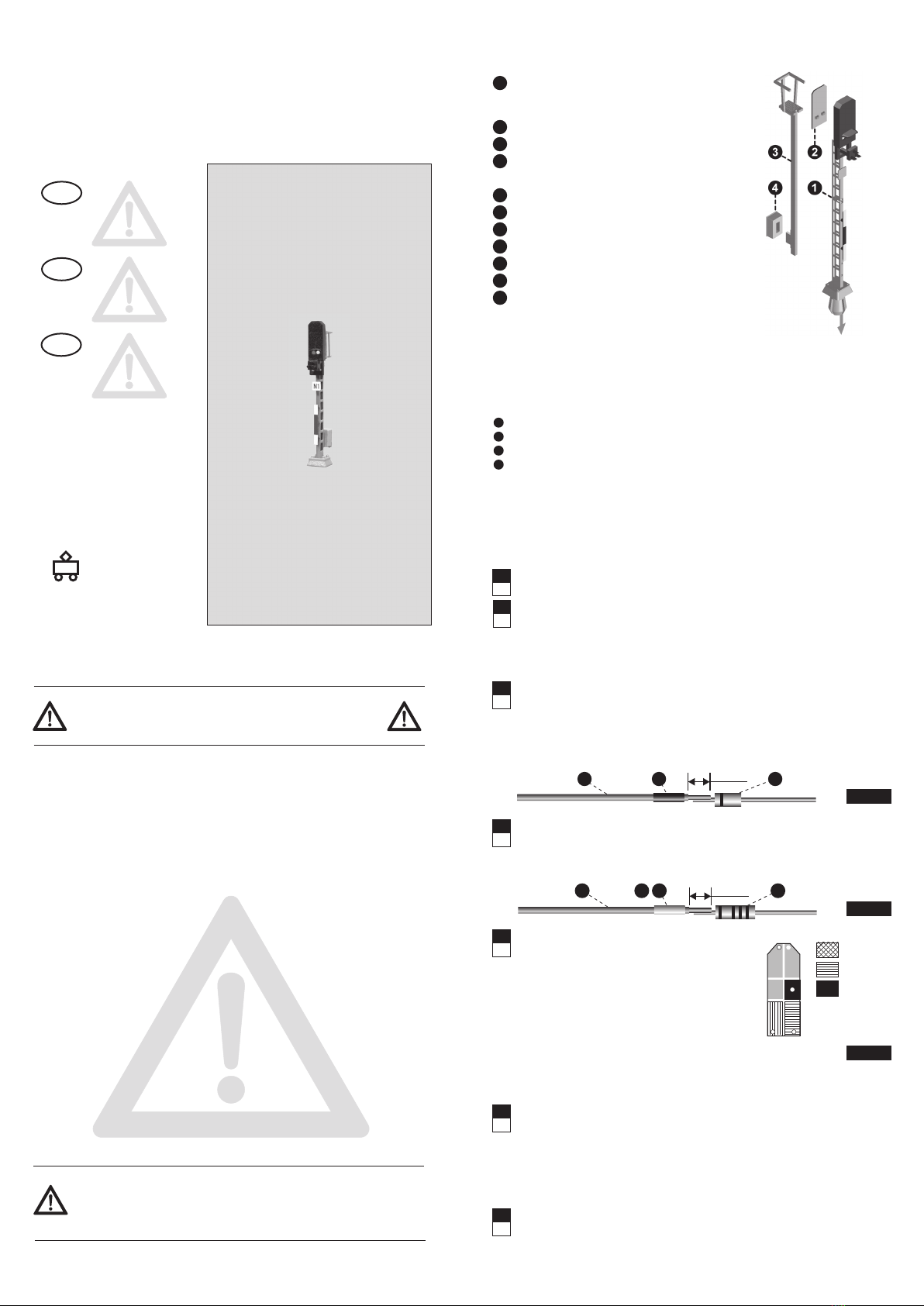

Lokshop LS4811 User manual

1.
2.
3.
4.
5.
6.
7.
3 mm
7 8 5
3 mm 67 10
9
green
red
black
Fig. 2
Fig. 1
Fig. 3
Shorten the cable into 3 pieces of equal length. Uninsulate the ends
of all cables (length: approx. 3 mm) and tin-plate them.
Lead the cables through the mast (1) so that approx. 20 cm of the
cables remain outside at both ends.
Solder one of the cables (7) on the diode (5). The black ring must
tend towards the cable! Insulate the junction with black shrink-tube
(8). Shrink on with hair-drier or hot-air-gun. Attention: the shrink-tube
should me mounted onto the cable before soldering! (Fig. 1)
The other cables are being soldered on the resistors (6). Insulate the
junctions with the other shrink-tubes (9, 10). Attention: shrink-tubes
should me mounted onto the cables before soldering! (Fig. 2)
Solder the cables on the
circuit-board (2), which is
not yet inserted into the
signal screen according to
Fig. 3. (LED’s are placed at
the front side.) Solder only a
short time! Do not 'roast'!
The LEDs and the circuit
board are sensitive to heat.
Use only little solder! Take
care that the fields are not being connected electrically!
If all cables are soldered on correctly, check the function of each
LED before you insert the circuit board into the screen. To do so,
connect each LED with the the alternating voltage output of a
commercially available model-railway transformer. The cable
insulated with black shrink-tube is the common anode (’+’).
(Attention: Die LEDs may never be run without resistor and diode!)
Then the circuit board (2) is being inserted into the signal screen.
Gently pull out the cables at the bottom of the mast (be careful!).
Make sure the cables are being pulled through from top to the
bottom.
Solder on
cables with
matching colour
of shrink-tube .
Assembly:
For a better control, you can tick each finished work-step in a box at the
left side of the text.
The following tools are required:
Small edge cutter
Flat pliers and pointed tweezers
Soldering iron with thin tip, solder (pref. Ø 0,5 mm)
Superglue
2
1
3
4
5
mast, pre-assembled with signal
screen, post plate, foundation and
plate for signal number
circuit board with 2 LED’s
back part of mast with basket
switchbox
Without illustration:
diode
resistor
cable
shrink-tube, black
shrink-tube, green
shrink-tube, red
labels
1
1
1
1
1
2
1
1
1
1
1
6
7
8
9
10
11
Content:
Safety advices
This kit contains small parts which can easily be swallowed by children. Not
suitable for children under 14 years!
The electric and electronic components may only be run with approved
low-voltage transformers. The components are sensitive to heat and may
only be exposed to high temperatures for a short time. Do not “roast”!
A soldering iron develops temperatures up to 400°C. Do not leave it unat-
tended! Keep distance to combustible materials and use a heat-resistant
base-pad for work. Any electrical connection-work may only be done when
disconnected from the main power supply.
All sources of current must be secured against short-cut in order to prevent
fire. Resistors are necessary for regular function. Lamps run without resis-
tors will be destroyed. Resistors may not be covered with insulating materi-
als in order to guarantee sufficient cooling.
The following instructions should be
read carefully!
Please check at first if the kit is complete. In case of damaged or
missing parts due to the sellers improper packing, please send
back the whole package.
Congratulations!
You have bought a high-quality product, supposed to give pleasure during
assembly and use. Please read these instructions carefully before assemb-
ling or using the product and check if the content of the packaging is com-
plete.
10 - 16 V, DC/AC
Made for:
Lokshop eK
Froschhöhle 9
D - 76229 Karlsruhe
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
Dieses Produkt ist
kein Spielzeug.
Nicht geeignet für
Kinder unter 14
Jahren!
This product is not
a toy.
Not suitable for
children under 14
years!
Ce produit n'est
pas un jouet.
Ne convient pas
aux enfants de
moins de 14 ans!
D
GB
F
Signal Kit
Light Block Signal, 1:220 (Z)
Hp0/Hp1
Item No LS4811

Warranty:
As we aren´t able to exert influence on correct and appropriate assembly,
we can only guarantee the completeness of the kit and the immaculate
condition of its parts. We guarantee the function of the modules in the
state of not being mounted and the technical specifications of the model
in case of correct and appropriate assembly and operation as shown in
the instructions.
There is no warranty or liability for damages or resulting damages in
relation of this product. We reserve repairs, amendments, delivery of
spare parts or recompense.
Any further claims are excluded.
The following criterions are decisive for the expiration of warranty or
rejection of repair:
- soldering with acidic tin-solder, flux or the like
- soldering, gluing or assembling the kit in an inappropriate way
- alterations or arbitrary repairs
- arbitrary alteration of model or circuit
- outplacement of parts or improper wiring etc.
- usage of parts not belonging to this kit
- destruction of circuits or soldering spots
- wrong wiring and resulting damages
- overloading the assembly
- damages caused by third persons
- damages caused by oblivion of instructions
- connection with wrong voltage or current
- wrong polarity of assembly
- operating errors or damages caused by breach of security or
misusage
- damages caused by bridged or wrong fuses.
In all cases listed above the kit will be sent back at the expense of the
customer.
After that, mount the back part (3) of the mast (1). Click it into place
by pushing it downwards. Fix the top with superglue.
Now the switchbox (4) is being mounted on the pin at the bottom of
the back part of the mast (1). Fix it with a drop of superglue. Make
sure the imitation of the hinges is at the bottom.
To mark the signal, cut out one of the labels (11) and fix it at the plate
below the screen at the front side of the mast (1).
Tip: Paint back of circuit-board with black colour.
You only need a hole with a diameter of 4 mm to mount the signal on
the bearing plate. (Fig. 4) Pull the cables with
resistors through the hole and plug-in the signal.
Connect cables with the control system. There
should remain a little loop of about 3 cm of
length so you can lay down the signal in case of
maintenance works.
The cable with black shrink-tube is the common
anode (’+’).
Ø 4 mm
8.
9.
10.
11.
Fig. 4
