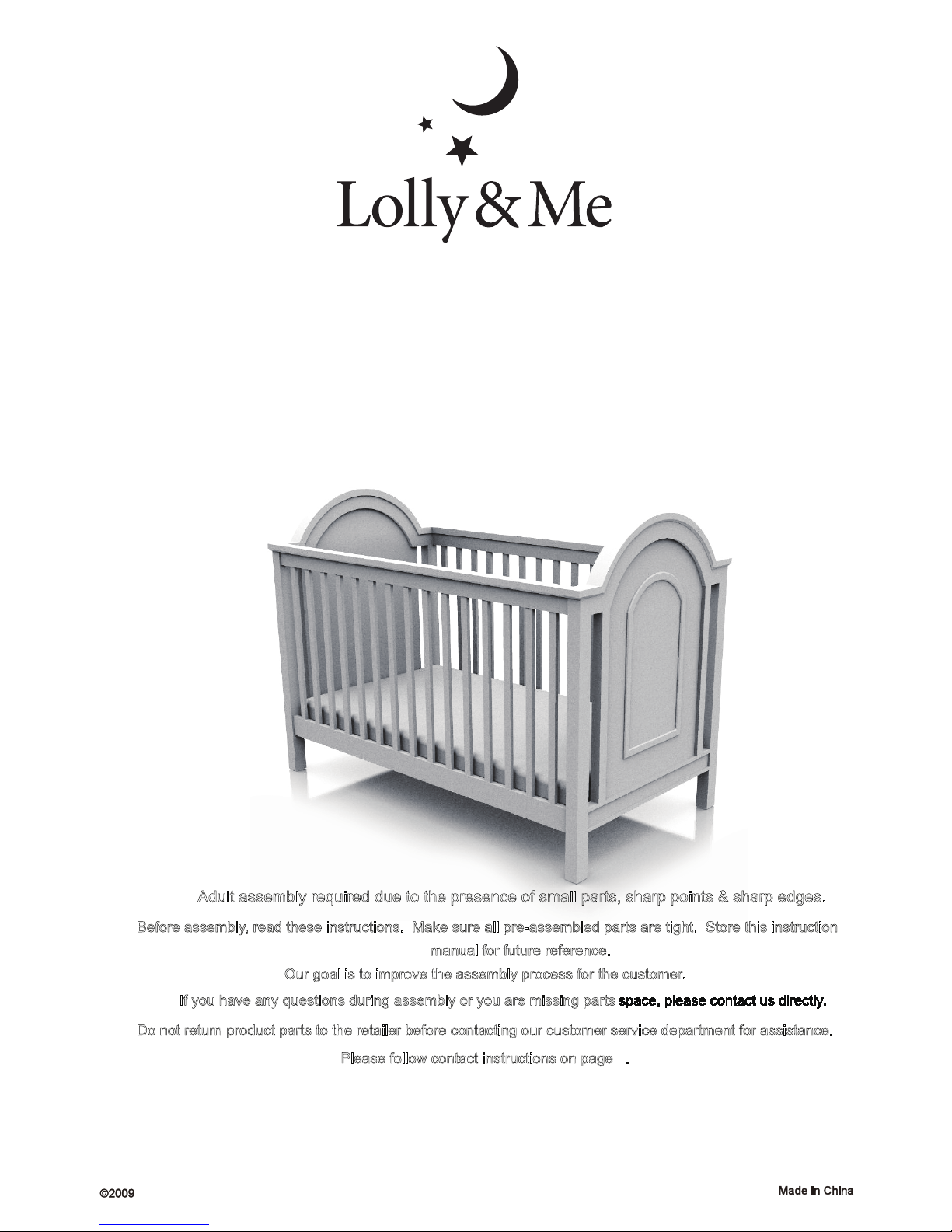

Lolly & Me Ellery Installation guide

Ellery
3-in-1 Convertible Crib
Adaptable as Your Child Grows Up
Assembly Instruction Manual
Questions? Call Us at 1-800-515-4056
Website: www.lollyandme.com
Adult assembly required due to the presence of small parts, sharp points & sharp edges.
Before assembly, read these instructions. Make sure all pre-assembled parts are tight. Store this instruction
manual for future reference.
Our goal is to improve the assembly process for the customer.
If you have any questions during assembly or you are missing parts
Do not return product parts to the retailer before contacting our customer service department for assistance.
Please follow contact instructions on page 9.

Any mattress used in this crib
must be at least 27 1/4 inches (69cm) by 51 5/8
inches (131cm) with a thickness not exceeding
6 inches (15cm).
2
Crib Warnings
Read all instructions before assembling crib. KEEP INSTRUCTIONS FOR FUTURE USE . DO NOT
use this crib if the instructions can not be strictly followed.
Failure to follow these warnings and the assembly
instructions could result in serious injury or death.
Infants can suffocate on soft bedding. Never add a pillow or
comforter.
To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to
sleep, unless otherwise advised by your physician.
Strangulation Hazard:
Strings can cause strangulation! DO NOT place items with a string around a child’s neck, such as
hood strings or pacifier cords. DO NOT suspend strings over a crib or attach strings to toys.
To help prevent strangulation tighten all fasteners. A child can trap parts of the body or clothing
on loose fasteners.
DO NOT place crib near window where cords from blinds or drapes may strangle a child.
Fall Hazard:
When child is able to pull to a standing position, set mattress to lowest position and remove
bumper pads, large toys and other objects that could serve as steps for climbing out.
Stop using crib when child begins to climb out or reaches the height of 35 in. (89cm). The crib can be
converted to a toddler bed for extended use.
Check this product for damaged hardware, loose joints, loose bolts, and other fasteners, missing parts, or
sharp edges before and after assembly and frequently during use. Securely tighten loose bolts and other
fasteners. DO NOT use crib if any parts are missing, damaged or broken. Contact LOLLY & ME at
1-800-515-4056 or write to 10301 Bren Road West, # 0-379 Minnetonka, MN 55343 for replacement
parts and instructional literature if needed. DO NOT substitute parts.
DO NOT use a water mattress with this crib.
If refinishing, use a non-toxic finish specified for children’s products.
Never use plastic shipping bags or other plastic film as mattress covers as they can cause
suffocation.
Infants can suffocate in gaps between crib sides and a mattress that is too small.
Assemble on soft surface to prevent damage to the product finish.
To make it easier to bulid your crib have a friend help during the assembly.
Ensure that all parts and components are located before beginning assembly.

3
Toddler Bed Warnings
Infants have died intoddler beds from entrapment and strangulation.
Failure to follow these warnings and the assembly instructions could result in seriousinjury or
death.
NEVER use bed with children under 15 months.
NEVER place bed near windows where cords from blinds or drapes may strangle a child.
The mattress intended for use on the bed shall be a full-size crib mattress having minimum
dimensions of 51 5/8 in. (1310mm) inlength, 27 1/4in. (690 mm)in width and 4 in. (100 mm)in
thickness. Not exceeding 6 in. (15cm) inthickness.
If guardrails are used as the mattress containment means, guardrail(s) provided must be used to
avoid the formation of a gap betweenthe mattress and the bed that could cause an entrapment.
The minimum age for a child using this toddler bed shall not be less than 15 months and the
maximum weight shall not be greater than 50 lb (22.7 kg).
Do not use casters on the toddler bed.
Do not use a water mattress.
A child could suffocate in small spaces between the toddler bed and solid objects such as a
wall or a dresser.
Strangulation Hazard:
Do not place bed near windows where cords from blinds or drapes may strangle a child.
Do not suspend strings over a toddler bed for any reason. Do not suspend strings over a toddler bed for any reason.
Do not place items with a string, cord, or ribbon around a child’s neck, such as hood strings
or pacifier cords.

Congratulations on Your Purchase!
Thank you for choosing a Lolly & Me product. Don’t worry
about the assembly. Inside you will find understandable step-
by-step instructions with clear illustrations—it’ll be a piece of
cake! If you get stuck, ring us up at 1-800-515-4056. Need a
replacement part or is a part missing? Just call us and we’ll get
one sent off to you right away.
Remember to complete your product registration card and
mail it in to activate your product’s one year limited warranty.
You can also go online to www.lollyandme.com and complete
it there. Then—and thisisthe good part— you will be registered
in our monthly drawing for a gift to enhance your little ones nursery!
Sincerely, Lolly & Me
Questions? Call Us at 1-800-515-4056
Website: www.lollyandme.com
Email: [email protected]
4

Instructions for Assembly
Ellery
3-in-1 Convertible Crib
Adaptable as Your Child Grows Up
OK
Let’s Put This Baby
Together!
5
Adult assembly required due to the presence of small parts, sharp points,and sharp edges.
Before assembly, read these instructions. Make sure all preassembled parts are tight and that
all neccessary hardware is included. Store the instruction manual for future reference. Our goal
is to improve the assembly process for you, our customer. If you have any questions during
assembly or you are missing parts, please contact us directly. Do not contact the retailer.
Do not return product parts to the retailer before contacting our customer service department
for assistance. We are here for you.

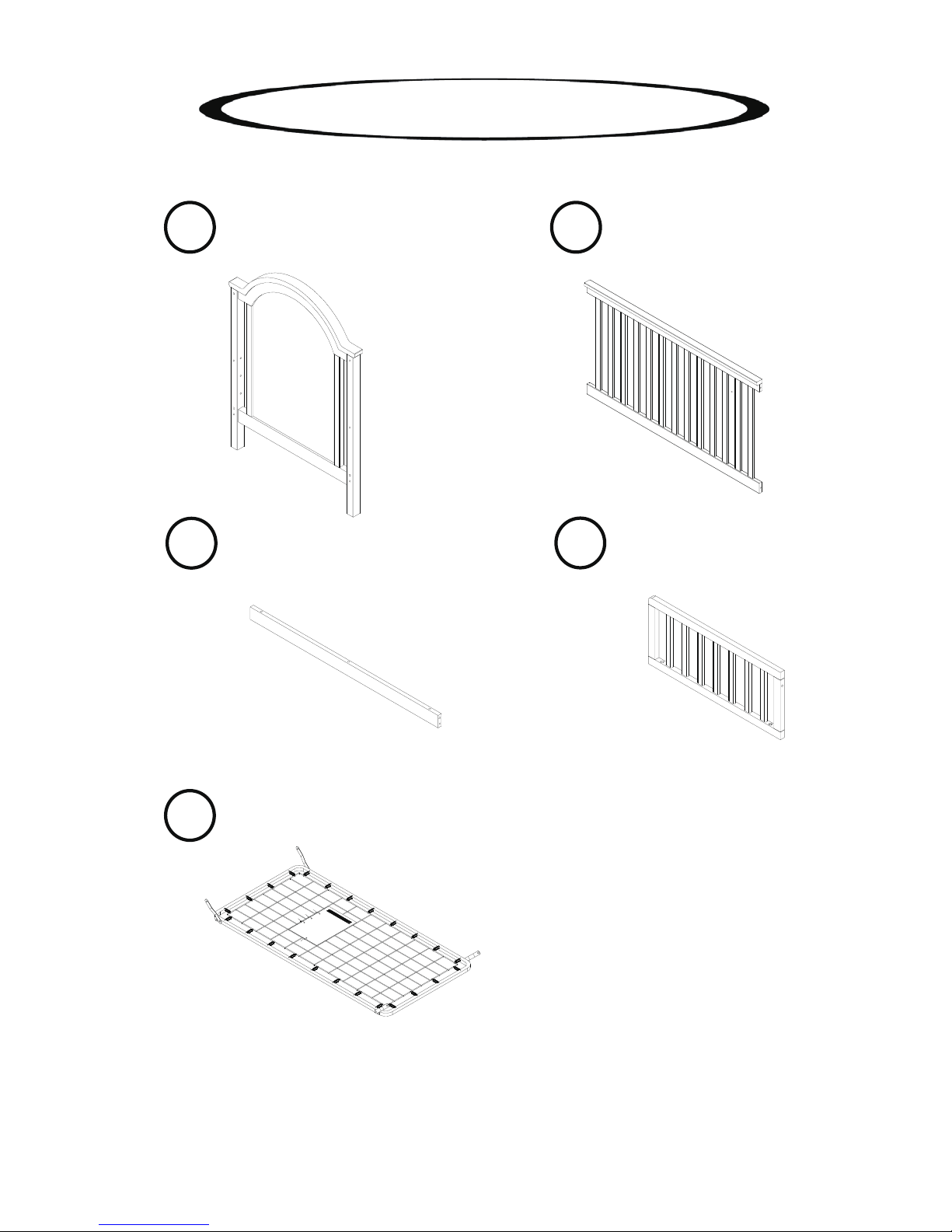

Left & Right End (x2)
Toddler Bottom Rail (x1) Toddler Rail (x1)
6
Parts
D
C
A B
Mattress Base (x1)
E
Crib Side (x2)

M6x55mm Bolt (x8)
M6x16mm Bolt (x4)
M6x44mm Bolt (x3)
Dowel (x2)
7
Hardware
aa
bb
cc
dd
nellA”S“
nellA”L“
hcnerW
hcnerW

STOP
IF YOU EXPERIENCE ANY
ISSUES WITH THIS PRODUCT
BEFORE YOU
RETURN THIS TO
THE RETAILER
PLEASE FOLLOW THE
PROCEDURES LISTED ON
THE FOLLOWING PAGE
8

9
PRODUCT ASSITANCE PROCEDURES
IF YOU HAVE ANY QUESTIONS DURING ASSEMBLY OR YOU ARE MISSING PARTS, PLEASE
CONTACT US DIRECTLY.
PROCEDURES TO FOLLOW SHOULD YOU HAVE ANY QUESTIONS:
FOR THE BEST AND MOST TIMELY SERVICE PLEASE CONTACT US VIA E-mail:[email protected]
phone us at 1-800-515-4056 or write to 10301 Bren Road West, # 0-379 Minnetonka, MN 55343
PLEASE PROVIDE THE FOLLOWING INFORMATION IN YOUR E-mail.
1. YOUR NAME
2. ADDRESS
3. BEST DAY TIME PHONE NUMBER
4. PLACE AT DATE OF PURCHASE
5. MODEL NUMBER, NAME AND COLOR OF YOUR PRODUCT
6. MANUFACTURER’S CODE (THE MANUFACTURER’S CODE CAN BE FOUND ON A LABEL
AFIXED TO THE BOX AS WELL AS A LABEL AFIXED TO THE CRIB ITSELF.)
7. SHORT DESCRIPTION OF THE ISSUES AND ATTACH PHOTOS IF POSSIBLE.
PLEASE INCLUDE SPECIFIC PART NUMBERS IN QUESTION FOR MORE EFFICIENT SERVICE.
SOMEONE WILL CONTACT YOU VIA E-mail OR PHONE TO HELP YOU WITH YOUR ISSUES.
IF YOU DO NOT HAVE INTERNET ACCESS, PLEASE FAX THE ABOVE INFORMATION TO :
612-573-6678
IF YOU DO NOT HAVE INTERNET OR FAX ACCESS, PLEASE CAL US AT 1-800-515-4056 AND BE
SURE TO HAVE ALL THE ABOVE INFORMATION TO GIVE TO THE CUSTOMER SERVICE
REPRESENTATIVE.
WE ARE HERE FOR YOU!

Parts Needed:
"L" Allen Wrench Left & Right End (x2) Crib Side (x1)
OR
M6x55mm Bolt (x4)
Attach 2pcs Left & Right End (A) to Crib Side (B)
using 4pcs Bolts (aa).
Continue to Step 2...
10
AB

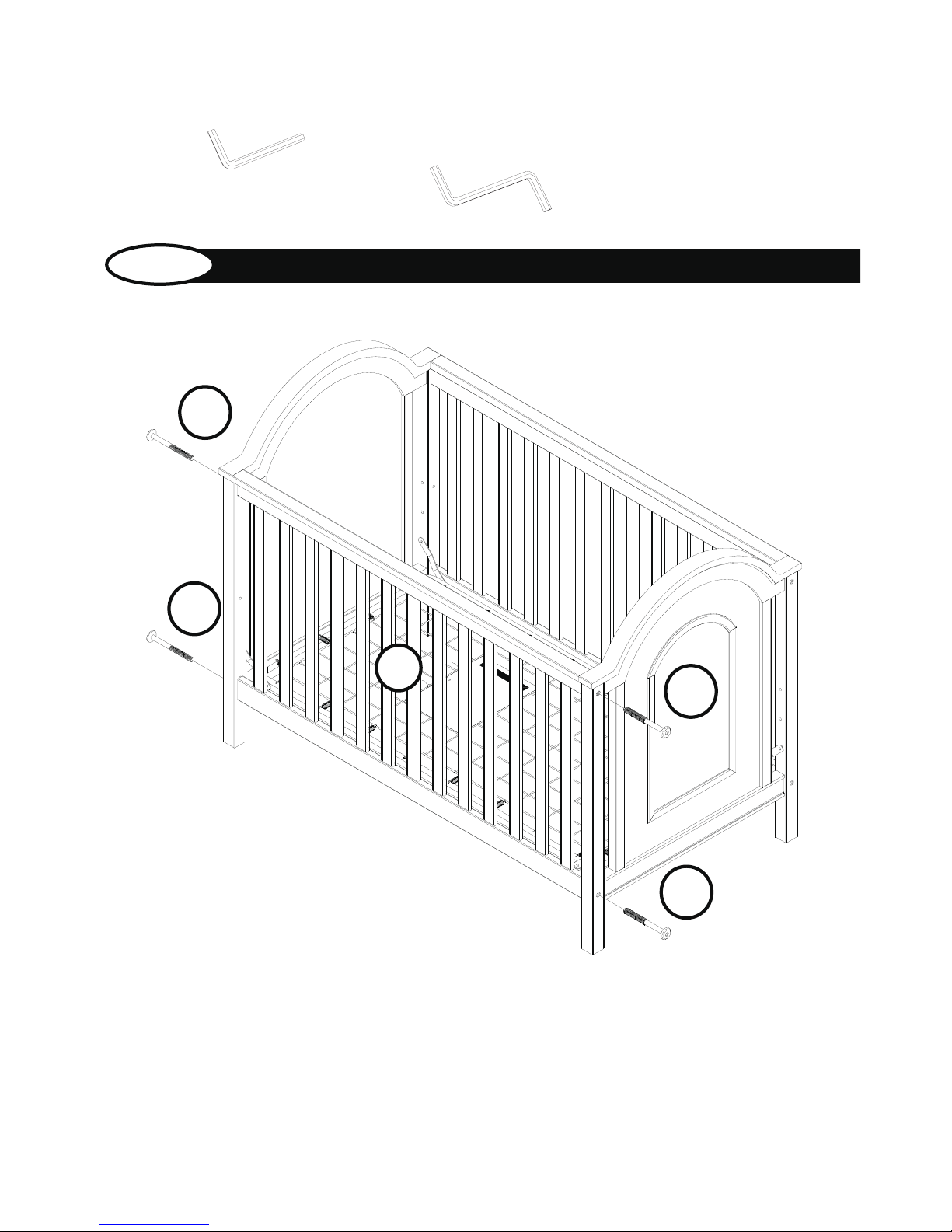

Crib Assembly
1
aa
"S" Allen Wrench
aa
aa
aa
A
A
aa
B

Parts Needed:
Mattress Base (x1)
Figure 1
Figure 2
Continue to Step 3...
11
Rotate out four mattress brackets
(one on each end) on (1) Mattress
Base (E) as shown (see Figure 1)
before attaching to Crib Assembly.
Then attach Instruction Envelope
(see Figure 2).
E

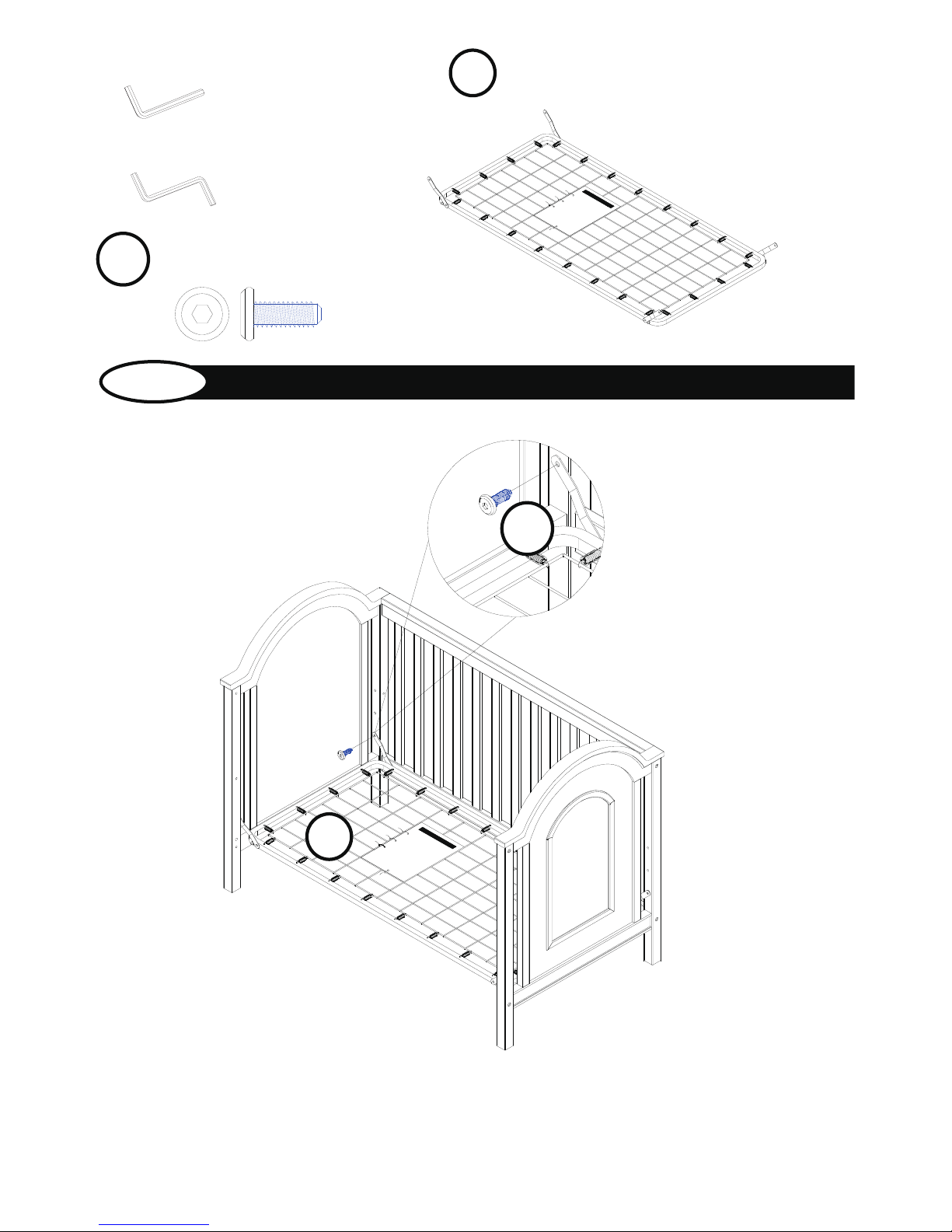

Crib Assembly
2
Warning
Envelope
E

12
Parts Needed:
"L" Allen Wrench Mattress Base (x1)
OR
M6x16mm Bolt (x4)
Attach Mattress Base (E) to Crib
using 4pcs Bolts (bb).
Continue to Step 4...
E
Crib Assembly
3
bb
"S" Allen Wrench
bb
E
x4 on this bolt
assembly zoom

Parts Needed:
"L" Allen Wrench Crib Side (x1)
OR
M6x55mm Bolt (x4)
Attach Crib Side (B) to Right and Left
Crib End using 4pcs Bolts (aa).
Continue to Step 5...
13
B
Crib Assembly
4
aa
"S" Allen Wrench
aa
aa aa
aa
EB

14
Please note that there are 3 different heights to adjust the mattress support as
your baby grows.
Place newborns and non-sitting babies on mattresses positioned on the highest mattress
support position. (top hole) Once a baby is sitting up, adjust the mattress to the second
position so that the baby is lower than the crib railing. (middle hole) When the baby can
pull up to the railing, move the mattress to the lowest mattress support position. (Bottom
hole).
Your mattress must be at the lowest level before the child begins to stand up.
To change the position of the mattress base, unscrew bolts, line up the base with the
holes at the desired height and re-attach the mattress base using the same bolts.
Continue to Step 6...
Crib Assembly
5
Your Lolly & Me crib is now built. Be sure to gently retighten all bolts to square up
the sides and you are good to go. Well done!

Parts Needed:
"L" Allen Wrench
"S" Allen Wrench
OR
Remove 4pcs Bolts (aa)
and the Front Side (B) from
Crib Assembly as shown.
Continue to Step 7..
15
Toddler Bed Assembly
6
aa
aa
aa
aa
B

Parts Needed:
"L" Allen Wrench Toddler Bottom Rail (x1) Toddler Rail (x1)
OR
M6x44mm Bolt (x2)
Attach Toddler Rail (D) to Toddler Bottom Rail (C)
using 2pcs Bolts (cc).
Continue to Step 8...
16
CD
Toddler Bed Assembly
7
cc
"S" Allen Wrench
C
D
cc
cc

Parts Needed:
"L" Allen Wrench
OR
M6x55mm Bolt (x2)
Continue to Step 9..
17
Toddler Bed Assembly
8
aa
"S" Allen Wrench
M6x44mm Bolt (x1)
cc Dowel (x2)
dd Dowel (x2)
Toddler Rail (x1)
Attach Toddler Rail to Crib using 2pcs Bolts (aa)
and 1pcs Bolt (cc) and 2pcs Dowels (dd).
The Lolly&Me toddler rail allows our customer greater flexibilty
in usage as rail can be attached at the head of the bed or at the
foot. Flip it left to right depending on individual preference.
cc
dd
dd
aa
aa

Parts Needed:
"L" Allen Wrench
"S" Allen Wrench
OR
Remove 3pcs Bolts (cc) and
the Toddler Rail (D) from Crib
Assembly as shown.
Continue to Step 10...
18
Day Bed Assembly
9
cc
cc
cc
D

Continue to Step 11..
19
Day Bed
10

Parts Needed:
.2.1
3.
After unit is assembled, use the
following instructions to keep
instruction manual for future use.
1. Pick up instruction manual.
2. Fold instruction manual in half.
3. Slide instruction manual into
warning envelope attached to mattress
base assembly.
20
Storin
g
Instruction Manual
11
FoldLine
