London electronics Maxi-int-s mk.2 Configuration guide

1

Document Ref:pm65\manuals\MAXI_INTUITIVE_S Revision:11 Dated: 30 June 2009

Software version F00.14

Panel mounting serial data input slave display

MAXI-INT-S Mk.2

Connection details, scaling and general information

London Electronics Limited

Thorncote Green, Near Hatch, Sandy, Bedfordshire SG19 1PU

Tel +44(0)1767 626444 Fax +44(0)1767 626446

www.london-electronics.com [email protected]

2

.

3

Alarm board configuration 20

Alarm programming 21-26

Analogue output 18-19

Bootup routine 10

Brightness Adjustment 11

Button Functions 12-14

Communications - configuring input 15-16

Connections 9

Declaration of conformity 36

General Description 6

Introduction 5

Keyboard timeout Delay 10

Language 10

Logic inputs 29-30

Mounting and Installation 7

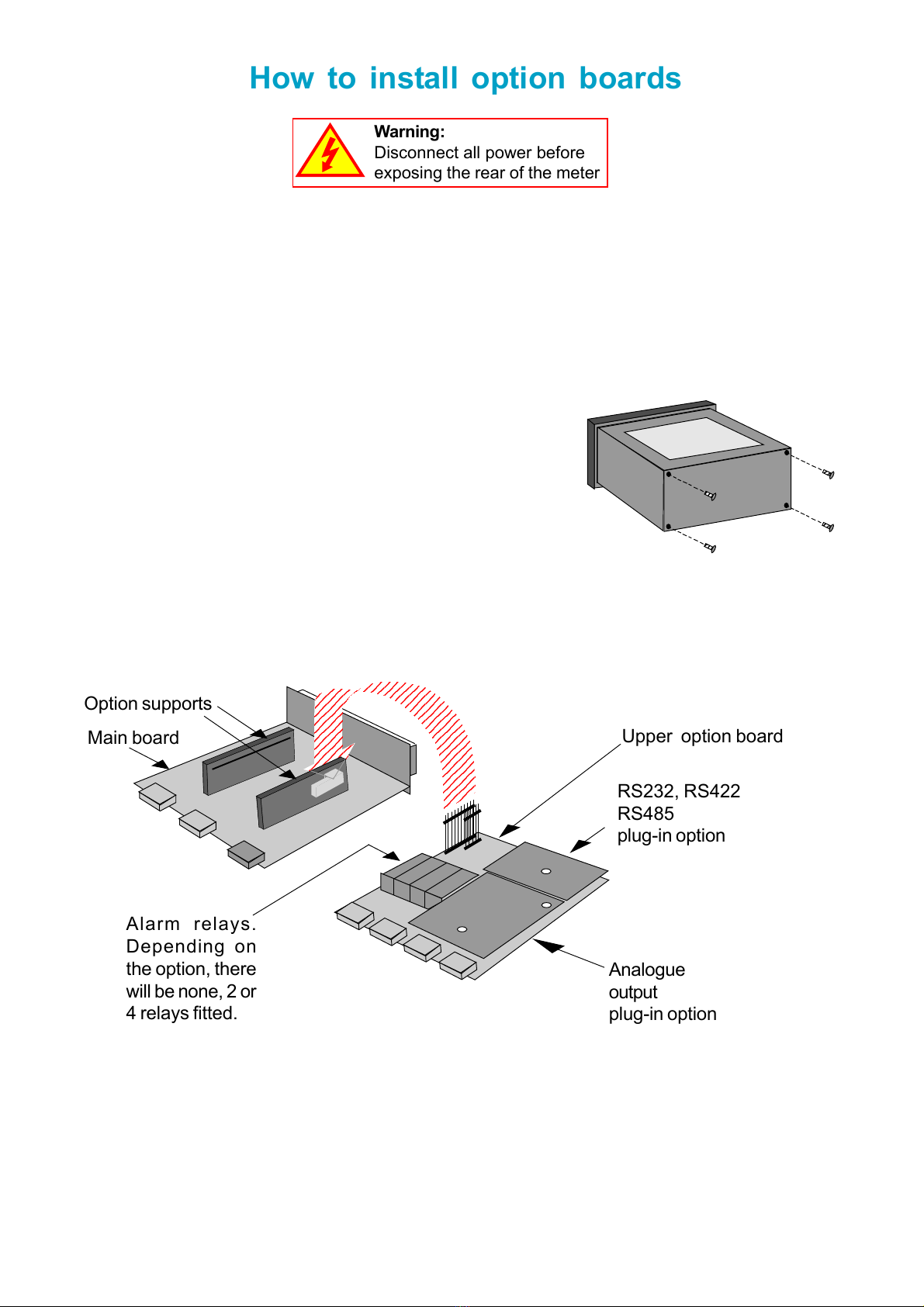

Option boards- installing 17

Record of revisions 34

Reverse / Mirrored display 32

Serial output option 27-28

Specifications 33

Warnings 4

WEEE 35

Wiring Advice 8

Contents

4

Safety First ..............Don't assume anything............. Always double check.

If in doubt, ask someone who is QUALIFIED to assist you in the subject.

Warnings

Please carefully read this manual and all warnings. Install the meter

ONLYwhen you are sure that you’ve covered all aspects.

Check that the model number and supply voltage suit your application

before you install the meter.

Connect the meter according to current IEE regulations, IEC61010 &

NFPA:70 National Electric Code in USA.

This meter is for Installation class II service only. This means it

has exposed electrical and power terminals. You must install it in

a suitable fire enclosure which will also protect users from electric shock

We designed this meter for Pollution-Degree 2 environments only.

It is sealed to IP65 NEMA4 from the front only.

Power supplies to this equipment must have anti-surge (T) fuses at

315mA for 230V supply, 315mA for 110V supply or 2A for DC supplies

in the range 11-30VDC. Aswitch or circuit breaker, clearly marked as a

disconnecting device, must be included close to the installation.

Don’t touch any circuitry after you have connected the meter, because

there may be lethal voltages on the circuit board.

Only adjust on-board switches or connections with the power turned off

Make sure all screw terminals are tight before you switch the meter on.

Only clean the meter’s front with a soft damp cloth. Only lightly dampen

with water. Do not use any other solvents. The behind-panel case may

be cleaned with a dry cloth only, use no liquid or solvent on it.

!

5

Introduction

Please contact us if you need help, if you have a complaint, or if you have

suggestions to help us improve our products or services.

If you contact us about a product you already have, please tell us the full

model number and serial number, so that we can give you accurate and fast

help.

This product has a 2 year warranty. We will put right or replace any meter

which is faulty because of bad workmanship or materials. This warranty does

not cover damage caused by misuse or accident.

IMPORTANT

If this equipment is important to your process, you may want to buy a spare to

cover possible failure or accidental damage in the future.

This is because during factory shutdown periods, you may have to to wait

several weeks for an equivalent replacement, or we may have no stock at the

time you urgently need it.

You may also need to pay extra carriage charges if you want a fast, guaranteed

courier service. Warranty repairs or replacements are usually returned with a

standard courier service.

We do not offer compensation for losses caused by failure of this instrument.

If you do not agree with these conditions, please return this item in unused,

condition, in its original packaging and we will refund the purchase price,

excluding any carriage paid.

We thought you’d prefer to know about possible delays and extra charges

now, rather than during a panic. Aspare unit could help to avoid these issues.

We always try to improve our products and services, so these may change

over time. You should keep this manual safely, because future manuals, for

new designs, may not describe this product accurately.

We believe these instructions are accurate, and that we have competently

designed and manufactured the product, but please let us know if you find any

errors.

6

General Description

This series of meters accept industrial sensors to allow various physical

measurements to be made, such a weight, temperature, pressure, humidity

etc. Different models are available for different sensor types.

The main function of this series is to give a numeric readout of the variable

being monitored. Most models include an excitation power output, to power

the sensor directly.

Various optional output modules are also available to give alarm relay outputs,

analogue output or digital communications, or any combination of these options.

Meters are programmed using front panel pushbuttons. The buttons may be

locked with a rear switch.

Meters have two power supply options : 100-240 VAC or 11-30VDC

These meters are designed to mount into a protective enclosure which will

protect users from contact with power and signal wiring.

These units must be installed fully assembled, and must be installed according

to local electrical installation rules. When properly installed, they provide ingress

protection to IP54 from the front

Safety

Obey all safety warnings in this manual, and install the meter according to local

wiring and installation regulations. Failure to follow these guidelines may cause

damage to the meter, connected equipment, or may be harmful to personnel.

Any moving mechanical device controlled by this equipment must have suitable

access guards to prevent injury to personnel if the meter should fail.

!

Caution: There is a risk of electrical

shock if this instrument is not properly installed

Caution: Risk of danger: Read the whole

manual before you install this meter

7

Mounting and Installation - Class II

Install these meters in a suitable protective electrical control enclosure

according to local wiring regulations. See specifications for maximum allowable

temperature in enclosure. Allow adequate air circulation.

888888

138mm +1mm -0mm

67.5mm +1mm -0mm

Panel cutout

1234567890123456789012345678901212345678901234567890123456789012123456789012345678901234

Model: INT2X-X-X-X

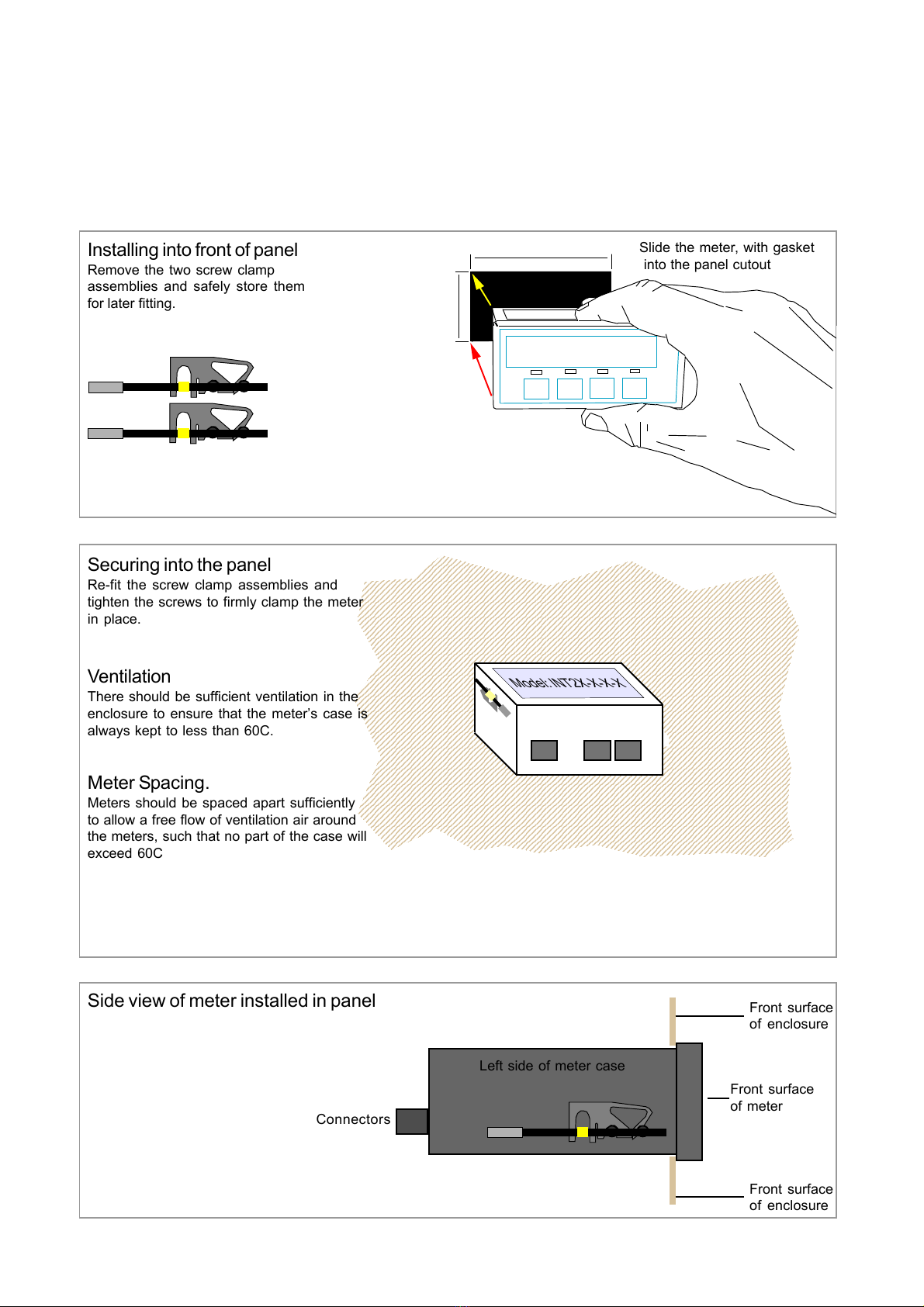

Installing into front of panel

Remove the two screw clamp

assemblies and safely store them

for later fitting.

Front surface

of enclosure

Front surface

of enclosure

Front surface

of meter

Left side of meter case

Slide the meter, with gasket

into the panel cutout

Securing into the panel

Re-fit the screw clamp assemblies and

tighten the screws to firmly clamp the meter

in place.

Ventilation

There should be sufficient ventilation in the

enclosure to ensure that the meter’s case is

always kept to less than 60C.

Meter Spacing.

Meters should be spaced apart sufficiently

to allow a free flow of ventilation air around

the meters, such that no part of the case will

exceed 60C

Side view of meter installed in panel

Connectors

8

Wiring Advice

This meter uses detachable screw terminal connectors. Refer to the wiring

diagram on the following page for the correct positioning of each wire.

The conductors you use must be suitable for the meter’s temperature, current

and voltage rating, which is broadly described as follows:-

Cable Temperature Rating

All cables must be rated for operation up to 90C continuous.

Cable gauge and screw tightness

The connectors on this instrument can accept conductors up to 16 gauge

AWG / 1.5mm2c.s.a. The minimum cross sectional area shall be 22 gauge

AWG / 0.5mm2 . Tighten screw terminals to 7.0 lb/in torque / 0.8 Nm torque.

Cable insulation voltage rating

Cables shall have an insulation voltage rating of at least 380V continuous.

Wire preparation:

We recommend multi-strand wire, because it withstands vibration better than

single strand cable. Pull the wire firmly after you make the connection to confirm

it is tight.

Use screened cable for all signal and control wiring and connect the screen to

earth at the destination end only. Route signal cabling away from power cabling

and relay switching cabling, to avoid electrical noise interference.

No bare wires exposed

Terminal screwdiver - 3mm blade

Strip back

5mm max.

London

Electronics

Outside

enclosure

Inside

enclosure

Side view of meter

Detachable

connectors

150mm behind panel

9

Connections - Serial input model

Alarm Lock

Calib’n Lock

Analog

o/p option

Serial Data

o/p option

0, 2 or 4 Alarm Relay

o/p options

Common

Tare

Peak/Valley

Reset

Logic Inputs PowerSignal Input

Demand

Common

Data A+ / Rxd

Data B- / Txd

nil

- +AL1 AL2 AL3 AL4

NL

- +

B

A

Comm

Enable

TxD

RxD

Comm

Enable

RS232

RS485

Rated 2A 250VAC Resistive

Remote

contacts

(5V DC 1mA)

Warning:

Disconnect all power before

exposing the rear of the meter

Connectors and options

Connectors may be present

even if output options are not

installed. Refer to rating label

to see installed options.

!

Class II Installation

Not used

Fuse Switch

Circuit breaker

Power

Customer-supplied disconnection

and overload protection devices

A plug-in input board determines whether the display will accept RS232 or

RS422/RS485 data.

10

Startup meter Settings

Menu Language Choice

Press the two right hand buttons briefly. You will see the User Interface language, which you

can change with the UP or DOWN buttons. Accept with OK

Next you will see ...

Meter Bootup routine

1. Activates all digit segments

2. Runs up and down brightness

settings

3. Displays model number and

installed options

4. Displays firmware version

5.Displays calibration audit

number.

6. Goes to meter mode

When you switch the meter on, it can run through a summary list of software version number,

installed options, calibration number etc.

You can choose from the 3 lists of bootup information to be displayed, the less information

you display, the sooner the meter will be available to operate.

Next you will see ...

Menu timeout delay

You can configure the meter to remain in its setup menu without timing out for 3 to 60

seconds, which is useful when you are becoming familiar with the setup.

Lockout notes: Cal Lock switch = OFF when changing. Switch Cal Lock to ON after changing

UI EnG UI FRA

boot 0 boot 1 boot 2

1. Activates all digit segments

2. Runs up and down brightness

settings

3. Displays model number and

installed options

4. Goes to meter mode

1. Goes immediately to meter

mode

dlay. 3 dlay.60

11

Brightness Adjustment

In normal operation, you can select from one of 8 brightness levels, to suit your local lighting

conditions, or to match the brightness of several meters which may be from different batches

or ages.

Press for 3 seconds, then press the down or up button to decrease or increase the

brightness.

Press OK when set.

Your chosen brightness level will be saved in memory, so that the meter will return to the

chosen brightness after power-off.

Lockout notes: Cal Lock switch = ON when changing.

bright

12

Button Functions- ‘Quick-Step’ - Page 1

Functions Buttons Conditions

AL CFG

888888

Calibration lockout OFF

Can be viewed at any time.

Alarm lockout OFF to

change

Calibration lockout OFF

Alarm Settings

Press button briefly to view

>3 seconds to change setpoint

>5 seconds to change function

Analogue Output Settings

Press > 3 seconds to enter

bright Calibration lockout ON

Brightness

Press button for 3 seconds

Change with UP/DOWN button. OK=Accept

offset Calibration lockout OFF

Calibration Offset

Press both buttons >3 secs, press OK 3x

Change with UP/DOWN button. OK=Accept

factor Calibration lockout OFF

Calibration Factor

Press both buttons >3 secs, press OK 2x

Change with UP/DOWN button. OK=Accept

dddddd

Decimal point position

Press both buttons >3 secs, press OK 11x

Change with UP/DOWN button. OK=Accept

End Character setting

Press both buttons >3 secs, press OK 2x

Change with UP/DOWN button. OK=Accept

E.CHR.0d

Calibration lockout OFF

bAUd

Baud Rate setting

Press both buttons >3 secs, press OK 4x

Change with UP/DOWN button. OK=Accept

Calibration lockout OFF

Addr.00

Address setting

Press both buttons >3 secs

Change with UP/DOWN button. OK=Accept

Calibration lockout OFF

dF .8n1

Data Format selection

Press both buttons >3 secs, press OK 4x

Change with UP/DOWN button. OK=Accept

Calibration lockout OFF

Displayed data length setting

Press both buttons >3 secs, press OK 9x

Change with UP/DOWN button. OK=Accept

d.len.06

13

ui eng

int..S

lSt 1

Calibration lockout OFF

Can be viewed at any time

Calibration lockout OFF

Button Functions- ‘Quick-Step’ - Page 2

Functions Buttons Conditions

888888 Calibration lockout ON

Link terminals 7,10 and 8

Language& Boot-up mode

Press both buttons briefly

Change with UP/DOWN button. OK=Accept

Hardware & Software summary

Press both buttons >3 secs

Last digit round-up

Press both buttons >3 secs, press OK once

Change with UP/DOWN button. OK=Accept

Reset Peak & Valley memories

Press buttons briefly

dlay.10 Calibration lockout OFF

Menu timeout delay

Press both buttons briefly, press OK 3x

Change with UP/DOWN button. OK=Accept

888888 Calibration lockout ON

Link terminals 7, 10 and 8

Reset Tare

Press buttons briefly 888888

888888 Calibration lockout OFF

Serial Comms setup

Press both buttons briefly

rEv.d 1 Calibration lockout OFF

Reverse / Mirror display

Press both buttons briefly, press OK 5x

Change with UP/DOWN button. OK=Accept

Start Position setting

Press both buttons >3 secs, press OK 8x

Change with UP/DOWN button. OK=Accept

S.Pos.00 Calibration lockout OFF

Start Character setting

Press both buttons >3 secs, press OK 2x

Change with UP/DOWN button. OK=Accept

S.chr.00 Calibration lockout OFF

14

Button Functions- ‘Quick-Step’ - Page 3

Functions Buttons Conditions

888888

Calibration lockout ON and

Link terminals 7 and 8

Calibration lockout ON

Link terminals 7 and 9

Tare display to 0

Press button briefly. Display shows 0 and the

button LED will illuminate to show you are tared.

Valley & Peak (Max. & Min.)

Press button briefly, once for peak, next for

valley.

tare S Calibration lockout OFF

Tare Storage

Press both buttons briefly, press OK once

Change with UP/DOWN button. OK=Accept

Termination Character setting

Press both buttons >3 secs, press OK 6x

Change with UP/DOWN button. OK=Accept

T.chr.00 Calibration lockout OFF

Timeout setting

Press both buttons >3 secs, press OK 7x

Change with UP/DOWN button. OK=Accept

TO .00 Calibration lockout OFF

Time to Reply setting

Press both buttons >3 secs, press OK 5x

Change with UP/DOWN button. OK=Accept

T.REP.00 Calibration lockout OFF

15

Configuring the communications

Lockout notes: Cal Lock switch = OFF when changing.

quant qua.tot

addr.00

S.CHR.02

E.CHR.03

baud

Mode Setting

There are 2 modes for the serial display, Quantitative, which shows a numeric variable value

as it is received (The default setting) or Quantitative Totaliser, which allows you to add data

strings together to show cumulative amounts from batches etc.

Press Set1 button for 3 seconds, then press the down or up button to select the mode you

want. Press OK when done.

Start Character Address Characters Data: ligo6ho987hmw1234.56kg abcd end character

STX 29 ligo6ho987hmw1234.56kg abcd ETX

Serial Data Settings

Press Set1 and Set2 buttons together for 3 seconds...

Set the Address from 00 to FF. If the display is a single stand-alone

slave, copying the display odf another meter, set address 00. Use the

Digit, up and down buttons to set your desired address and press OK

when done.

Start character, if needed. For example if your data starts with STX, set

tthe hex ASCII value for STX which is 02. Otherwise set 00

End character. For example if your data ends with ETX, set

the hex ASCII value for ETX which is 03. If it is a carriage return, set 0d

Set the baud rate to match that of the transmitting device

d.Len.xx

s.Pos.xx -1 to -19

s.Pos.xx 0 to 99

Value to

display

16

T.chr.00

to. 00

s.pos.00

d.len.06

dddddd

df.8n1

T.rep.05

Data format. Set to suit the data format of the received data.

Time to reply, in milliseconds. Set to 05 by default, or adjust to suit the

response time of the data network.

Time between characters in milliseconds. Set to 00 by default, or adjust

to suit the response time of the data network.

Time out in seconds. If data is lost for the time you set, the display will

show ------ . If you want the last data string received to be displayed

indefinitely, set TO. 00

Start Position. This tells the meter where the start of your data is

positioned, either with respect to the end termination character (set a

negative value) or to the end of the adderess character (set a positive

value) See diagram on previous page for clarification.

Displayed data length. Sets how many characters you want to display.

Include any decimal points, positive or negative symbols and spaces in

this value.

Decimal point position. Allows you to set the alarm levels or analogue

output values with correct decimal point position before receiving any

data.

17

If you want to open your meter to install or modify option boards, follow these steps...

1) Switch off power to the meter and unplug all connectors.

2) Remove the 4 small screws shown in the diagram.

4) Slide the electronic boards out throught the rear of the case. The upper option board plugs

into a female socket on the main board. It is held securely in place with two option supports,

which have a grooved slot, into which the board sits.

To add or remove an option board, you must release the

screws holding the option supports, so that the option board

can be plugged into the socket. Then tighten the option

supports to clamp the option board firmly in place.

The board assemblies will look something like this...

The analogue output and RS232 or RS422 plug-in option boards are fixed to the upper option

board with white plastic pillars. You must apply a firm force when fitting or removing these options.

Always be careful to connect the pins to sockets accurately. When reassembling, make sure

option boards are firmly fixed to the upper option board.

12345678901234567890123

RS232, RS422

RS485

plug-in option

Analogue

output

plug-in option

Alarm relays.

Depending on

the option, there

will be none, 2 or

4 relays fitted.

Upper option board

Main board

Warning:

Disconnect all power before

exposing the rear of the meter

How to install option boards

1234

123

Option supports

18

The analogue output board plugs onto the 0, 2 or 4 alarm upper option board.

It plugs onto a pair of connectors and is secured by two snap-pillars.

Check that the unit is set for voltage or current output, to suit your application.

Re-assemble the meter, apply power and follow the Analogue Output Settings procedure on the

next page.

You can set the analogue output to operate over a display range of your choice, to create 0-

20mA, 4-20mA or 0-10V, fully isolated.

Please see the following page for a guide how to do this.

Handy Feature

You can tell if an analogue output is fitted to your meter, and if it has been set for voltage or

current, by viewing the ‘Summary’ display.

To see this, press the two outer buttons of the display for 3 seconds. You will also see the

summary when you first switch on your meter.

AL1

AL2

AL3

AL4

Serial Data

Comms Option

Analogue

Output

Option

Current

0-20mA & 4-20mA

Voltage

0-10V

Warning:

Disconnect all power before

exposing the rear of the meter

Warning:

Disconnect all cables from

option board before adjusting

Analogue Output - page 1

19

Your analogue output can cover 0-100% of its range over a display range which you can set.

For example, you might want 4-20mA output, for a display range of 500 to 1000.

You would press the Analogue O/P button for 3 seconds, and select 4-20mA

Then set 0% = 500

Then set 100% = 1000

Press the OUTPUT button for 3 seconds. If an output board is fitted, the display will confirm this

and confirm the range chosen by the jumpers on the previous page.

The 0% LED will flash. Select the Output range you want.

Use the DIGIT, and buttons to set the display value at which you want 0% analogue

output.

Press OK when done.

The 100% LED will flash.

Use the DIGIT, and buttons to set the display value at which you want 100% analogue

output.

Press OK when done.

When you have finished setting the meter, put the lockout switch in its ON position now, to prevent

your settings from being changed.

DIGIT OK

ALARMS

AL1

AL2

AL3

AL4

OUTPUT

0% 100%

Analogue Output - page 2

Lockout notes: Cal Lock switch = OFF when changing. Switch Cal Lock to ON after changing

20

You can have 3 types of alarm board:-

a) An alarm board with no relays, which will simply allow you to fit analogue and/or

serial output options.

b) An alarm board with 2 relays, to which you can also fit analogue and/or serial

output options.

c) An alarm board with 4 relays, to which you can also fit analogue and/or serial

output options.

For failsafe operation (where contacts open on alarm or when power is lost to the meter) set the

jumpers for OPEN CONTACTS as shown below, and DE-ENERGISE on alarm, in the alarm

setup menu.

To access the alarm board, remove power from meter, including any power which might be on

the alarm output board.

Look on the top and bottom surfaces of the case, near the rear. You will see two small screws,

one on each surface. Remove both screws. Now, clip off the front bezel and slide the meter

assembly carefully out via the front of the case.

The relay board plugs into the main board. Gently separate the two boards.

When you have set the jumpers, refit the board to the meter and carefully slide the

assembly back into the case.

Fit the two small screws to the top and bottom surfaces of the case.

Open Contacts

Closed Contacts

AL1

AL2

AL3

AL4

Serial Data

Comms Option

Analogue

Output

Option Select relay output contact

status, when relays are

de-energised (power removed

from meter) by placing these

jumpers. Each relay has a snubbing

network to minimise contact sparking.

Relay

2n2

100R

Warning:

Disconnect all power before

exposing the rear of the meter

Warning:

Disconnect all cables from

option board before adjusting

Alarm Board Configuration

Warning:

All switched power must

come from the same phase.

London Electronics MAXI-INT-S Mk.2 Configuration guide

Popular Monitor manuals by other brands
