LONGEVITA FS-100 User manual

Digital Infrared Forehead Thermometer
Instruction manual
Model: FS-100 0120

INSTRUCTION BEFORE USING PRODUCT
•Use this product only for its intended purpose as
described in this manual and read through the manual
before initial use.
• The measurement by this product does not represent
doctor's medical examination.
• Consult with doctors if any abnormality found.
• Don't take temperature over scar tissue or opened sores.
• Must follow the safety instructions when used on an infant
or neonate.
•Follow the cleaning instructions as described in this
manual.
• Do not use this product if it is not working properly and ask
to your service personnel.
• If this product will not be used regularly, remove the
battery to prevent chemical leakage. If the battery leaks,
never let bare skin touch leaking fluid and remove
carefully.
• Dispose of used battery properly. Do not wrap it in metal or
aluminum foil. Wrap it in newspaper before disposing it.
Do notburn it. Battery may explode if overheated.
• Examine the product periodically.

INSTRUCTION MANUAL
1. Press the Power/Measure button.
2. The LCD is activated showing all symbols. Then latest
measurement value is displayed for a second.
3. When the ready symbol is displayed, thermometer is
ready to measure.
4. Place the probe on the forehead and flat to the skin firmly.
Depress the measure button throughout measurement.
5. Slowly slide the probe midline across the forehead to the
hairline keeping the instrument flat and contact with skin.
You should scan the forehead slowly, just like wiping the
skin for 3~5 seconds. Measurement should be started
from center of the forehead, paralleling probe to the
eyebrows, to temporal side, not down the side of the face.
The probe and the forehead should be at right angle to
each other.
6. You will hear beep sounds per 0.5 second throughout the
measurement. The total measurement time takes 3~5
seconds. Then read the temperature on display.
Note:
If there is perspiration on the forehead, take the temperature
behind the ear lobe. Normally the artery behind the ear lobe
does not provide a sufficiently accurate reading. However, in
case of the falling of the temperature of skin due to sweating,
taking the temperature behind the ear lobe may give a better
result. Brush hair aside if covering the ear and waits about 30
seconds for more accurate measurement. Then gently
nestle the DOTORY on neck directly behind ear lobe and
scan through the arrow direction about 1~2cm (0.4~0.8 inch)
as illustrated for 3~5 seconds.

CLEANING AND KEEPING
•Sensor in front of the probe is extremely sensitive part.
For accurate measurement, always keep it clean and not
damaged.
• Place the sensor facing the below to prevent any liquid
dropped on the sensor. Carefully clean the sensor using
cotton-stick with alcohol. After cleaning, allow at least one
hour drying time for measurement.
• The outside and probe of product should be cleaned with
a soft cloth moistened in alcohol or water.
• Do notgive excessive power upon the probe.
• Do not immerse the product in water or any other liquid.
• Keep the product away from straight sunlight, dust and
contaminating substance.
• Keep the product in normal room temperature.
The operating ambient temperature range for this thermo-
meter is 10°C (50°F) to 40°C (104°F)
• When placing the product out of the normal room tempe-
rature, use the product after keeping the product in normal
room temperature for30 minutes.

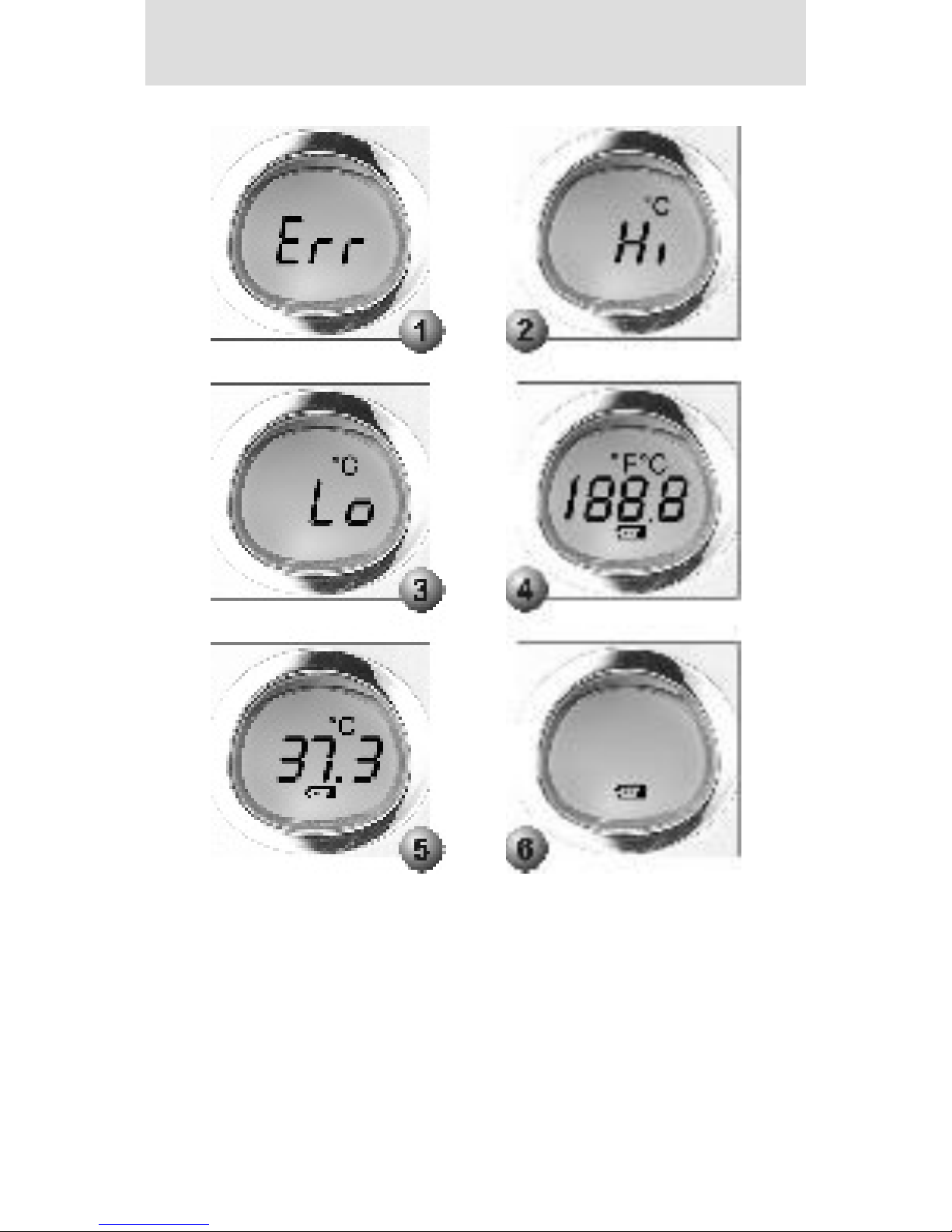

INDICATIONS OF ERRORS
Q. Outside temperature is below 10C(50F) or above
40°C (104°F)
A. Place the product where temperature is between
10°C (50°F) and 40°C (104°F)
Q. Measured object is above 42.2°C (108.0°F)
A. Recheck the measured object before measuring.
(Extremely hot object cannot be measured)
Q. Measured object is below 20°C (68.4°C)
A. Recheck the measured object before measuring.
(Extremely cold object cannot be measured)
Q. System Error
A1. Turn on after 1 minute of turn off.
A2. Take out the battery and place it again.
A3. Consult the nearest authorized dealer.
Q. Informing battery replacement time
A. Replace the battery.
Q. Informing inactivity due to low battery
A. Replace the battery.

BATTERY CHANGE
One lithium battery is installed in a product when produced.
When is displayed on LCD, replace the battery
through following steps. Pull the battery compartment and
pull the pin holding the battery in arrow direction. Place the
new battery in shown “+” mark. Close the battery
compartment. Recycle the used battery to prevent pollution.
DISPOSAL / BATTERY SAFETY NOTE
The battery compartment can be found on the underside of
the unit. Open the battery compartment, install batteries and
then close the battery compartment.
Battery safety note:
• Keep away from children!
• Do not shorten battery!
• Not rechargeable!
• May explode in fire!

TEMPERATUREUNITCONVERSION
(°C °F)
Push away the battery compartment and press the indicated
button for a second. Then temperature unit will be
converted.

PRODUCT DESCRIPTION
Probe Sensor
Probe
LCD Display Screen
Power/Measure button
Battery Compartment
PRODUCT SPECIFICATION
Item
Measurement method:
Temperature range:
Accuracy:
Display type:
Power save mode:
Battery:
Dimensions (WxDxH):
Operating temperature:
Standards:
Description
Infrared measurement
20 (68.4)~42.2°C 108.0°F)
±0.2°C (±0.4°F):20~42.2°C
(68.4~108.0°F)
LCD(Liquid Crystal Display)
Automatic shutdown after
1 minute
CR2032(1EA) about 6,000
readings
36mm x 32mm x 116mm
10 (50)~40°C(104°F)
EC directive 93/42/EEC(MDD)
