LOTO LEGEND User manual

INSTRUCTION MANUAL

B. MAGNETIC
NAIL
A. MOUTH PIECE
I. ADAPTER
(INSIDE DEVICE)
H. CENTER
DEVICE
GROMMET
(INSIDE DEVICE)
C. MAGNETIC NAIL
HOLDER
D. CARB RING
E. AIR INTAKE
TUBE
F. AIR INTAKE
GROMMET
G. U-PIPE
K. BRUSH
J. DAB TOOL

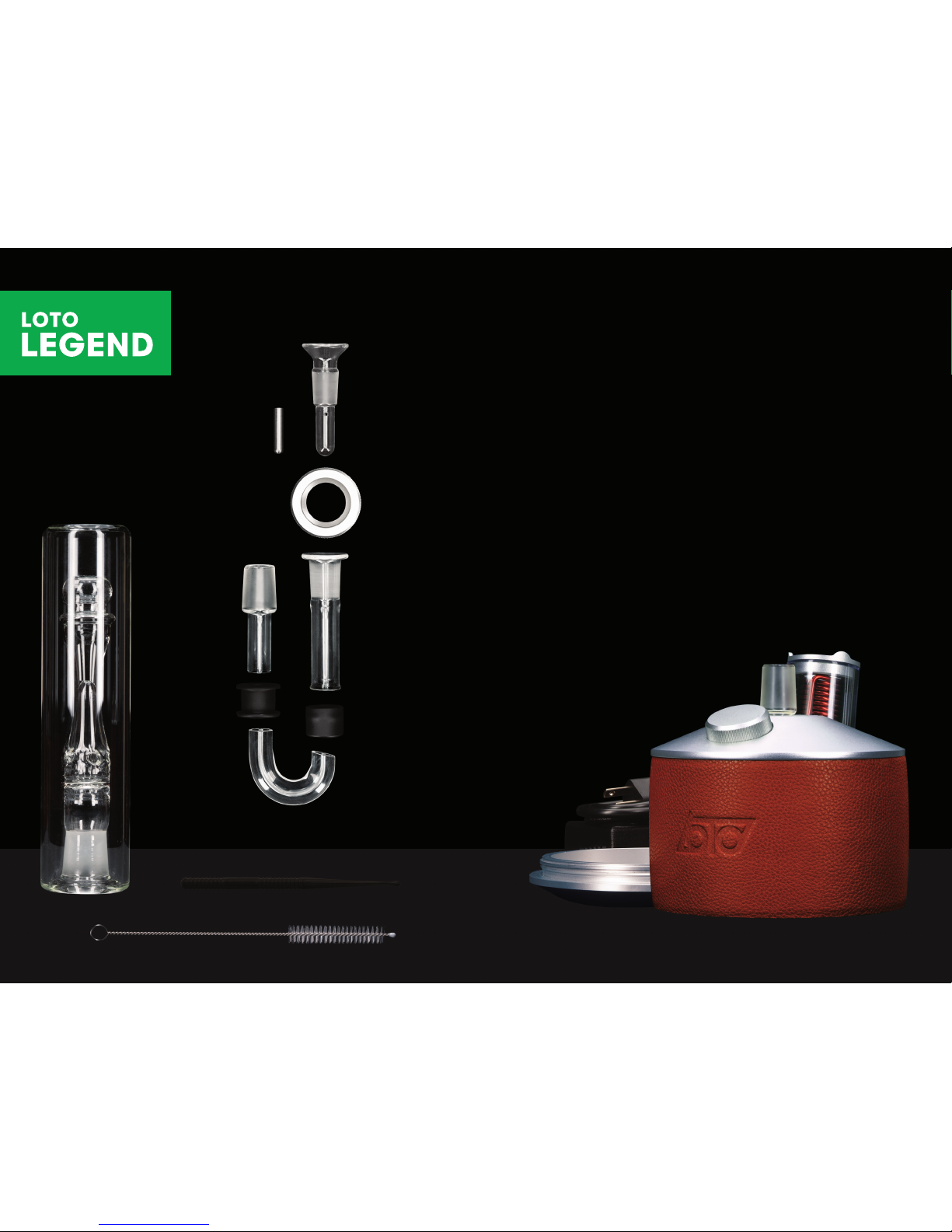

INVENTORY
1 . Take out the device.
2 . Unscrew the bottom of the device.
3 . Remove the Carb Ring and Air Intake Grommet.
4 . An itemized description of the Legend components
are as follows:
A. Mouth Piece
B. Magnetic Nail (Inside Silicone Concentrate Case)
C. Magnetic Nail Holder
D. Carb Ring
E. Air Intake Tube
F. Air Intake Grommet (Inside device)
G. U-Pipe
H. Center Device Grommet (Pre-attached to the device)
I. Adapter (Pre-attached to the device)
J. Dab Tool
K. Brush
L. Power Adapter
M. Bottom Plate
N. Device
N. DEVICE
M. BOTTOM PLATE
L. POWER ADAPTER

2 . Place the Air Intake Grommet
inside the device and
connect it to the bottom of
the Air Intake Tube.
3 . Insert the U-Pipe into the
Air Intake Grommet and
Center Device Grommet.
4 . Screw Bottom Plate
back into place.

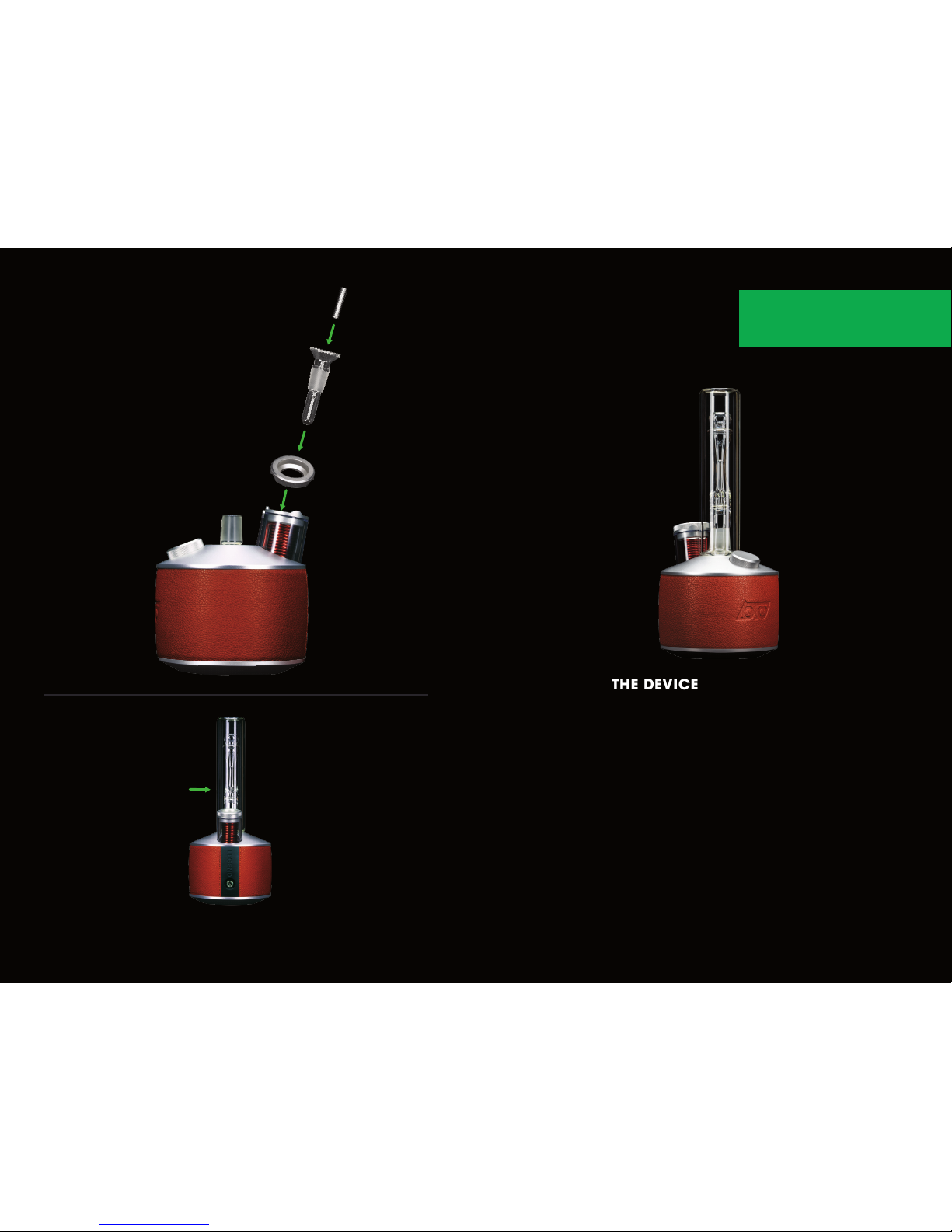

COMPLETE GLASS AIR PATH
1 . Keeping your device
upright, insert the Air
Intake Tube into the coil
area (flanged side up).
Legend comes disassembled to ensure all glass
components are protected during transport. Review
the diagram above to see how the components fit
together inside the unit and follow the steps on the
following pages.
(Steps Continued on Next Page)
ASSEMBLY

USING THE DEVICE
1 . Have material ready on the end of the dab tool
before proceeding.
2 . Push Button.
3 . Turn Button to desired power setting (as
indicated by color).
4 . Using the Dab Tool, put material into chamber
and press against the magnetic nail.
5 . Inhale.
6 . Remove Dab Tool from the chamber.
7 . Turn Carb Ring while inhaling to clear vapor
from Mouth Piece.
8 . Press Button to turn device off.
9 . Exhale.
5 . Place Magentic Nail
in Holder with open
side up.
6 . Place Magnetic Nail
Holder in bowl on top of
Carb Ring.
7 . Place Carb Ring on
top of bowl/coil area.
8 . Fill Mouth Piece
with water slightly
above the holes.
9 . Place Mouth Piece
onto adapter.
10. Connect Power Adapter
to back of unit.
HOW TO VAPE

POWER LEVELS
Legend has 6 power levels. Level 1 is the lowest power
(coolest) and Level 6 is the most power (hottest).The
mouth piece will light up according to the power level
selected.
BRIGHTNESS
You can adjust the brightness of the lights on
your Legend.
1 . Press Button 2 times quickly to enter brightness
adjustment. Legend will light up white.
2 . Turn Button to adjust brightness level.
3 . Press Button once to exit brightness
adjustment.
ERROR MODES
NO MAGNETIC NAIL DETECTED
Legend will flash yellow-orange until Magnetic Nail
is inserted. Legend will flash for 10 seconds and
automatically shut down if no Magnetic Nail is detected.
OVER TEMPERATURE
Legend will flash yellow-orange 3 times then shut down
until cooled completely. Remove Carb Ring, Magnetic
Nail Holder and place in Accessory Stand (sold
separately).
UNIT MALFUNCTION
Remains yellow-orange for 10 seconds, then device shuts
down.
Level 0 - Idle (No heat)
Level 1
Level 2
Level 3
Level 4
Level 5
Level 6
!
APP
The App unlocks full control of your Legend.You will
also be able to update the software or firmware on the
Legend as features and versions become available.
1 . Go to lotolabs.com/app for links to the latest App.
2 . Download and Install the App on your phone.
3 . Open the App and follow the directions.
BLUETOOTH
After downloading the App and following the
directions, you can pair Legend with your phone.
1 . Press and hold down Button on Legend.
2 . Legend will enter pairing mode and flash a teal
blue color.
3 . The Legend will hold a solid teal blue color when
the device pairs.
SETTINGS

MICROFIBER WRAP
Keep the microfiber away from dust and moisture, prolonged sun
exposure, high-temperature environments as well as acidic and
alkaline substances.
CLEANING THE MICROFIBER WRAP
1 . Only clean with water and mild detergent.
2 . Use water that is not greater than 40° C to clean the product.
3 . Avoid using petroleum or organic solvents.
GLASS AIR PATH
QUICK CLEANING
1 . Wait for device to cool completely.
2 . Insert brush or pipe-cleaner into air intake hole to clean.
DEEP CLEANING
1 . Wait for device to cool completely.
2 . Remove Mouth Piece.
3 . Remove Carb Ring with Magnetic Nail and Holder.
4 . Unscrew Bottom Plate.
5 . Remove U-Pipe and Air Intake Grommet carefully.
6 . Use a cotton swab (Q-Tip) to clean Center Grommet and
other glass mating areas.
7 . Soak all parts in alcohol for at least 2 hours, overnight is
suggested.
8 . Clean glass parts with brush or pipe-cleaner.
9 . Let dry.
10. Rinse with water and dry.
11. Follow assembly instructions, use the device, and repeat.
SAFETY AND WARNINGS
Keep Legend and its components out of reach of
children and pets.
Do not operate Legend with the mouth piece off.
Do not attempt to remove the magnetic nail from the
induction coil until it has cooled completely.
Do not use Legend if it appears to be damaged, broken,
or operating in an unusual manner.
Do not use Legend if it is unusually hot to the touch.
Do not expose Legend to, or store your Legend in,
extremely high or low temperatures.
Do not store the Legend on or near heat sources.
Do not use if it becomes immersed in any liquid.
Do not use if you are a minor.
Do not use this product if you have an allergy or
sensitivity to inhalants.
Do not use if you are pregnant or breastfeeding, have
heart disease, diabetes, high blood pressure, asthma or
any other serious medical condition.
Seek medical attention if you experience symptoms such
as nausea, vomiting, dizziness, diarrhea, weakness, or
rapid head beat.
Ingestion of small parts can present a choking hazard.
Seek medical attention in the case of dizziness,
drowsiness, accidental exposure, or if you feel unwell
This product is not intended for the mitigation, treatment,
or prevention of any disease or condition.
This product is not intended for use with illegal
substances.
!
DEVICE CARE

LOTOLABS.COM
WARRANTY
Legend is covered by a limited 2-year manufacturer’s warranty.
Please visit lotolabs.com/warranty for details.
Email: [e-mail]
Website: lotolabs.com
Copywrite ©2019 Loto Labs Inc. All rights reserved.
Loto Labs name, Legend name and associated.Taglines are
trademarks of Loto Labs Inc. US and international patents
pending. Patent: lotolabs.com/patent
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions. (1) This device may not
cause harmful interference. (2) This device must accept any
interference received, including interference that may cause
undesired operation.
Adult use 21+ only. Only use with supplied power adapter.
