Lotus ATS-500 User manual

ATS-500
Please read the manual carefully before installation and utilization.
This product is made for the US and Canada.
The function and design of the product may be changed for quality improvements.
“Important safeguards/general cautions” are information that can protect the user from safety hazards and also prevent
losses. Please be sure to read the manual correctly for proper usage.
Warranty(22~23)

32
Preparation
0peration
&
Cleaning
Others
Contents
IMPORTANT SAFEGUARDS 4
General cautions 6
(Product components)
Control designations 9
Installation and cautions 10
Initial operation 12
Basic operation 14
Detailed operation 15
Maintenance 18
Draining water 19
Winter usage 19
Trouble shooting 20
Specications 21
Warranty 22-23
Product structure and designations 8
Separation of the unit from toilet bowl 13

1. Do not place or store product where it can fall or be pulled into a tub or sink.
2. Do not place in or drop into water or other liquid.
3. Do not reach for a product that has fallen into water.
If this happens unplug the unit and then remove item from water immediately.
READ ALL INSTRUCTIONS BEFORE INSTALLATION AND USE
DANGER - To reduce the risk of electrocution:
WARNING - To reduce the risk of burns, electrocution, re, or injury to persons.
1. Close supervision is necessary when this product is used by, on, or near children or invalids.
2. Use this product only for its intended use as described in this manual.
Do not use attachments not recommended by the manufacturer.
3. Never operate this product if it has a damaged cord or plug or if it is not working properly,
if it has been dropped or damaged, or dropped into water. Return the product to a service center for
examination and repair.
4. Keep the cord away from heated surfaces.
5. Never block the air openings of the product or place it on a soft surface, such as a bed or couch,
where the air openings may be blocked. Keep the air openings free of lint, hair, and the like.
6. Do not use the unit if you are sleeping or tired to the point of being drowsy.
7. Never drop or insert any object into any opening or hose.
8. Do not use outdoors or operate where aerosol (spray) products are being used or when oxidated products
are being administered.
9. Unplug this product before lling. Fill (reservoir) with water. Do not overll (or specify lling instructions)
SAVE THESE INSTRUCTIONS
THIS PRODUCT MUST BE PLUGGED into a regular voltage Grounded GFCI outlet (North America
120V AC, 60Hz). The rated power consumption is 660W / 600-700W. In locations where only a
standard two-prong outlet is available, it is the responsibility of the user to install a grounded
three-prong outlet. Using higher voltage is dangerous and may result in a re or other accident.
This product is not responsible for damage resulting from the use of it on other than specied
voltage, or operating it without proper grounding.
This product has to be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with a
grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
Danger - Improper use of the grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either at blade terminal.
Consult with a licensed electrician if you have concerns about whether the product is properly grounded.
This product is for use on a normal 120 V circuit, and has a grounding plug that looks like the plug illustrated in sketch A
in Figure 1. A temporary adapter, which looks like the adapter illustrated in sketches B and C, may be used to connect this
plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available. The temporary adapter
should be plugged into a properly grounded outlet (sketch A) and should be installed by a licensed electrician.
The green colored rigid ear, lug, and the ike extending from the adapter must be connected to a permanent ground such
as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place by the screw.
This appliance has to be grounded.

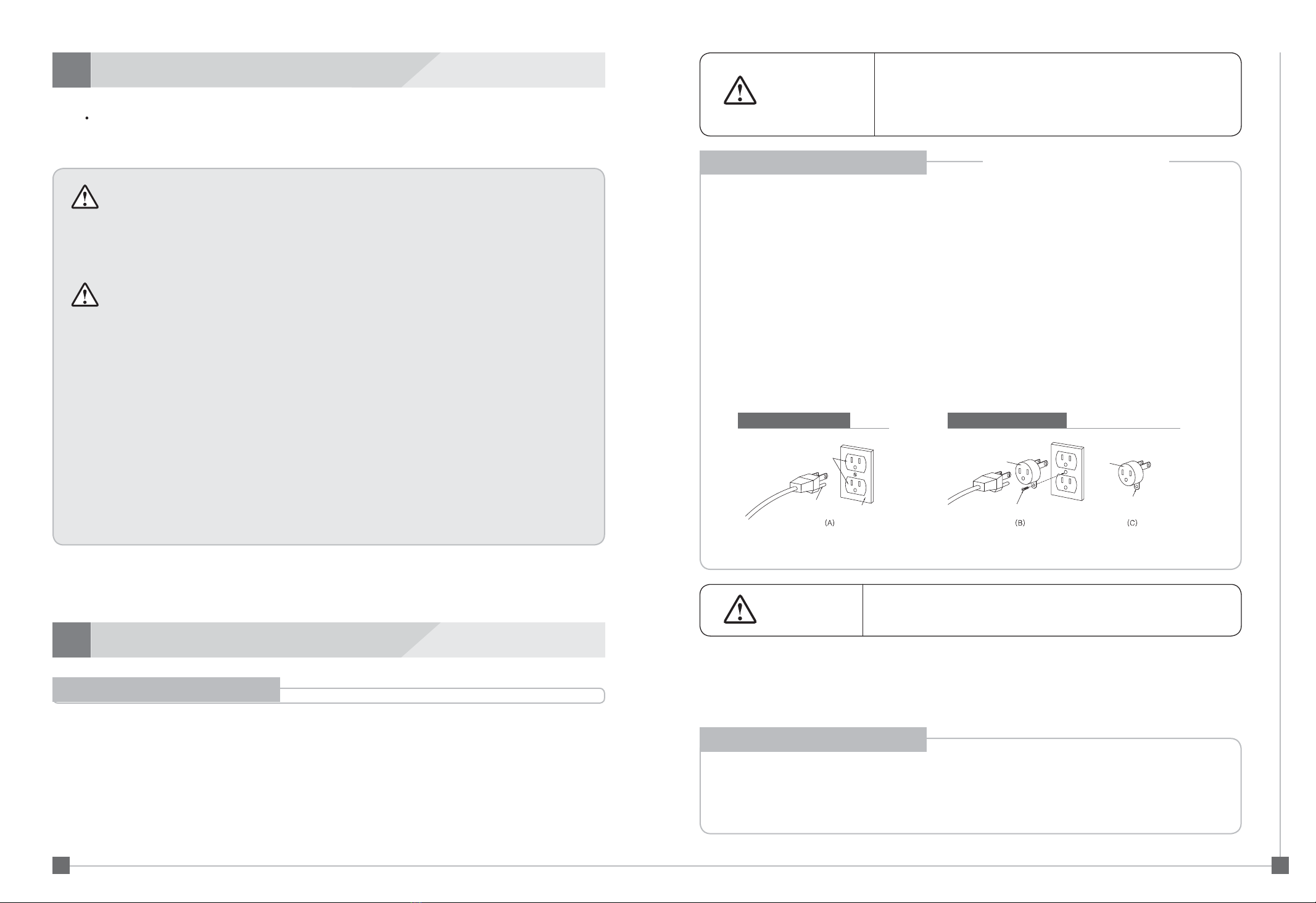

GROUND INSTRUCTIONS
GROUNDING PIN
ADAPTER ADAPTER
METAL SCREW
TAB for
Grounding Screw
GROUNDED
OUTLET
- Figure 1-
Instruction and caution statements for cleaning, user maintenance, operations recommended by the manufacturer,
such as lubrication or nonlubrication, and a warning to the user that any other servicing should be performed by
an authorized service representative or that the product has no user serviceable parts.
GROUNDED
OUTLET BOX
54
WIRING REQUIREMENT
REMARK
5
4
Cautions Before Installation
IMPORTANT SAFEGUARDS
IMPROPER GROUNDING CAN RESULT IN A RISK OF ELECTRIC SHOCK.
Electric wiring has to be done in accordance with all local codes,
or in the absence of local codes, with National Electrical Codes.
Preferred Connection Temporary Connection
This Product must be on a separated circuit. No other appliance should share
the circuit with this product.
Sharing a circuit could cause the branch circuit fuse to blow
or the circuit breaker to trip. Continuous usage under these conditions may
result in re or property damage.
WARNING
DANGER
㻘
㻘
㻘
The use of an extension cord is not recommended or advised. If it is necessary to use an extension cord, use only a three-prong
extension cord (one to one), and a three slot built-in GFCI receptacle that will accept the plug on this product. The marked rating
of the extension cord should be equal to or greater than the electrical rating of the unit (10amp). Consult a licensed electrician if
you are not sure whether the unit is properly grounded.

76

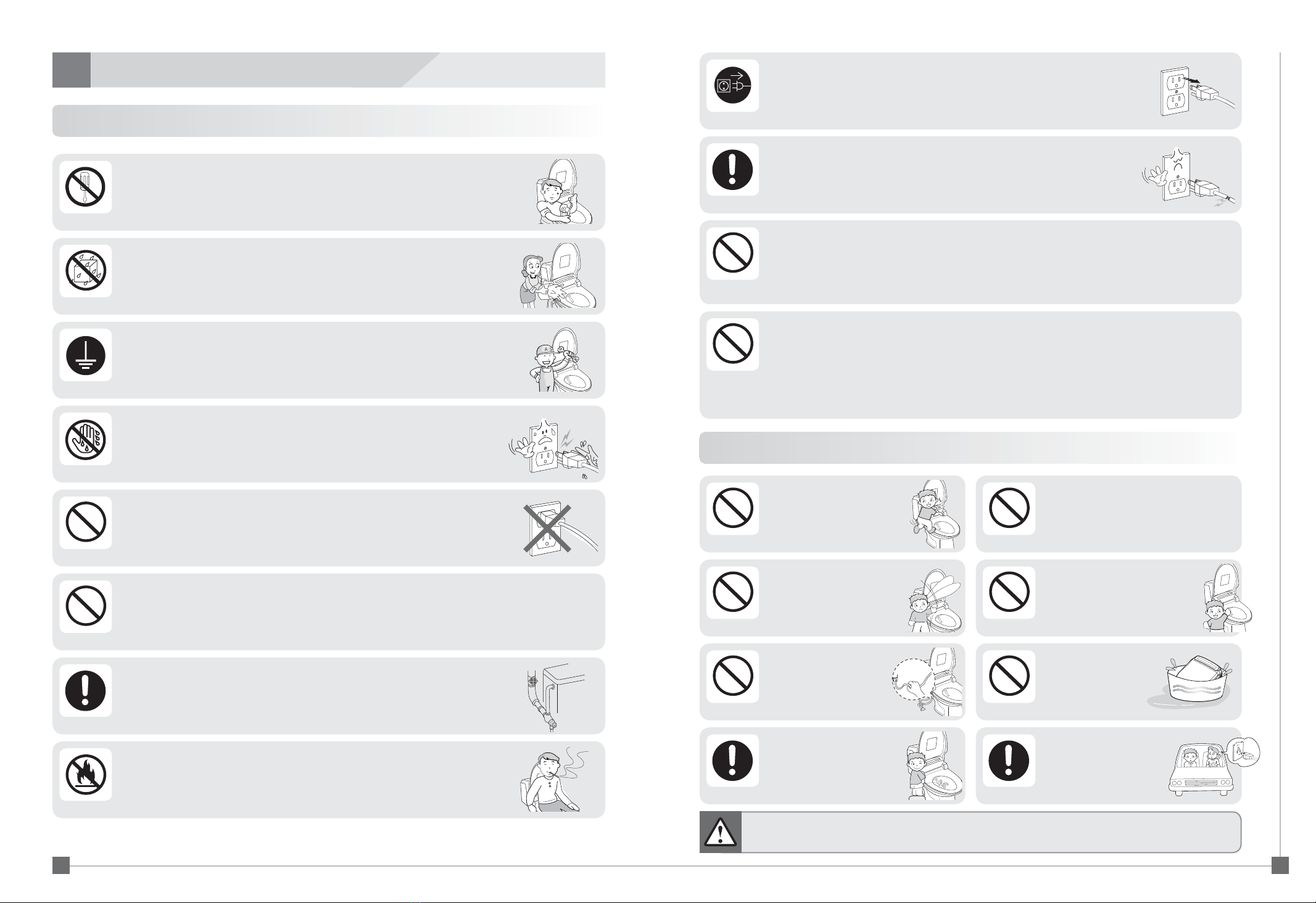

6General Caution
Do not separate, disassemble, repair or remodel the unit,
or allow foreign substances inside the unit.
㻘This can cause a re or electric shock.
㻘Only qualied service personnel should repair this product.
Disassembling,
remodeling prohibited
Do not splash water on the main unit or power cord, and do not utilize it in areas of high
levels of humidity.
㻘This can cause a re or electric shock.
Do not spray water
This product must be grounded before usage and
plugged into an AC 120V/60Hz power outlet.
㻘If grounding is not done, it can cause re or electric shock .
Grounding
Do not touch the power cord with wet hands.
㻘Do not plug or unplug the power cord with wet hands as it can
cause electric shock or bodily injury.
Wet hands prohibited
Do not supply electrical power to the product until it is installed on the toilet and the water
supply hose is properly connected.
㻘This can cause a re or damage the product.
Prohibited
Do not connect several power cords into one outlet.
㻘This unit uses 120V power outlet.
㻘Can cause overheating or re hazards.
㻘Plug in the power cord properly into the power outlet.
Prohibited
Please use public water supply.
Please do not connect the unit to industrial water or greywater.
㻘This can cause skin infections or urinary tract infections and also damage the unit.
Observe at all times
Keep the cord away from cigarettes or ammable substances.
㻘This can cause electric shock or bodily injury.
Use of re prohibited
Warning
Cautions
For safety purposes, unplug the power cord either when cleaning
the product or detaching the unit from the toilet bowl.
㻘Failure to do so can cause an electric shock.
㻘
Unplugging the
power cord
Do not use a damaged power cord or a loosely tted electric outlet.
㻘This can cause an electric shock.
Observe at all times
㻘Children, elderly, patients and those who are physically limited should us the low temperature setting for
the seat, water and dryer.
㻘After using the unit at high temperatures, the temperature should be readjusted to ‘low’ for the elderly,
children and for those with sensitive skin.
㻘Those who cannot adjust the temperature or those who have sensitive skin should take special precautions.
Prohibited
(oxidized products, sink products, toilet cleaning
When cleaning, do not use cleaning detergents
products, and any types of stain removers) on the external surface of the electronic toilet seat,
do not spray air fresheners or aromatic products onto seat in attempts to eliminate odors.
㻘Using cleaning detergents or air fresheners can change the color of the external surface and
can also cause problems with the seats functioning
Prohibited
Do not stand on top of the seat
cover, seat or main body unit. This
can damage or break the unit.
Prohibited
㻘Do not use a broken product.
㻘As the unit is a bathroom appliance,
do not use it for any other purposes.
Prohibited
Do not slam or close the seat or
seat cover forcefully.
Prohibited
Prevent children from putting foreign
substances or inserting their hands
into the dryer outlet or onto the nozzle.
Prohibited
Do not let urine contact the dryer
outlet or nozzle area.
Observe at all times
Never put the product
in water.
Prohibited
Do not pull the connecting
hose forcefully or bend it.
Prohibited
When cleaning or not using
the product over a long period
of time, be sure to unplug the
unit. (refer to page 19)
Observe at all times
When the following people sit down on the seat, a guardian should pay extra attention so that they will not fall when sitting
on the toilet seat or standing up from it.
- Children, elderly, or those who cannot independently sit or stand on the seat.

Warm air dryer
Dierent types
of nozzles
(refer above)
Skin sensor is
embedded in seat
Drain / Unit Separation
Button
Heated seat
Lid
Caution label
Turbo Wash
Lady Wash
Wash
㻘Always sit on the middle of the unit and do not sit on the side of the seat.
(The basic functions will not work if the skin sensor is not active.)
㻘When operating For Her Front Wash / For Her Back Wash / For His Back Wash, if the water temperature is low and
cold water comes out after using it for a period of time, pause and wait for 3 minutes for warm water to be provided.
㻘Drying will occur quicker if toilet paper is used to wipe away excess water prior to using the dryer function.
98

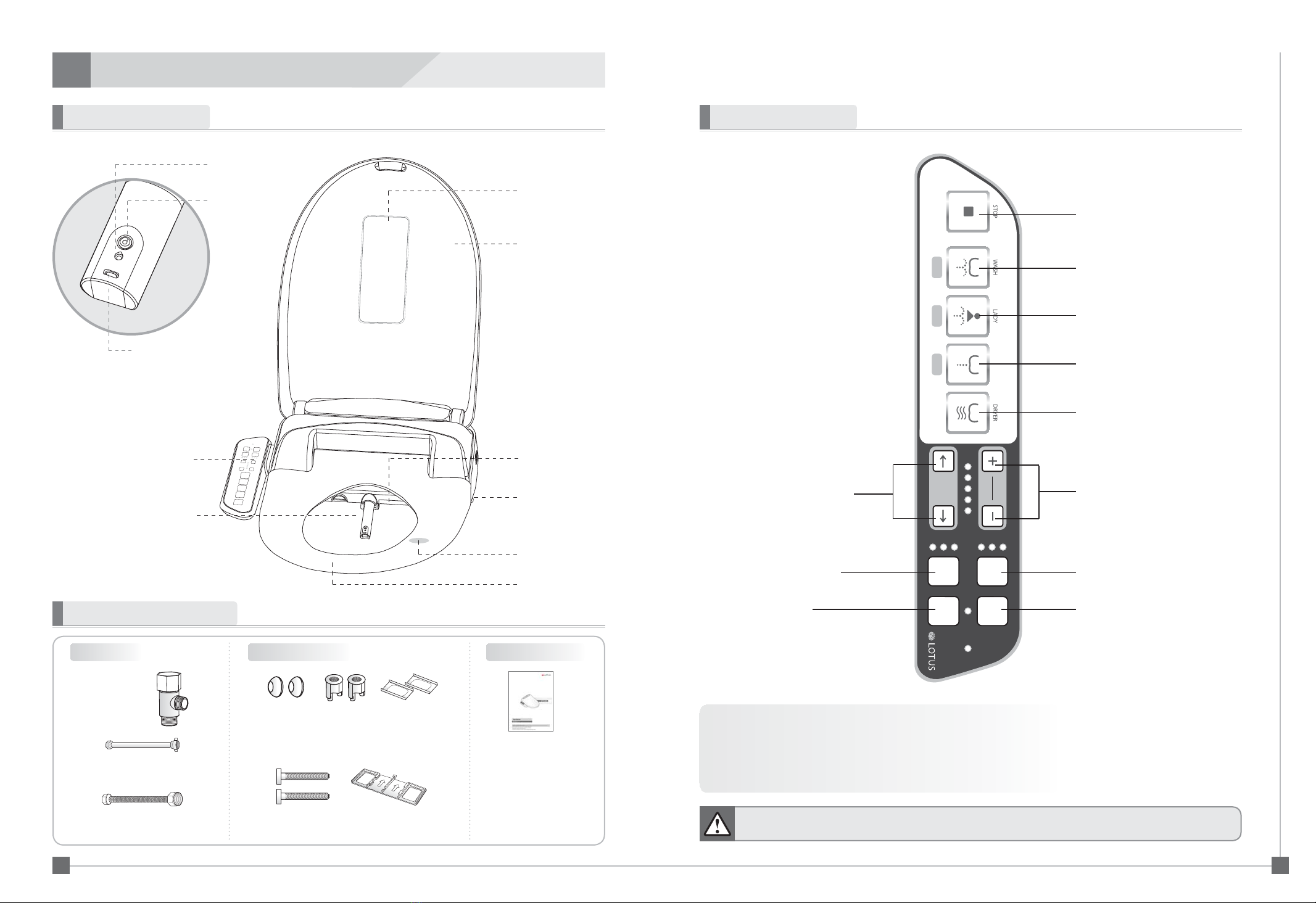

7Product structure and designations
Cone packing
(2pcs)
Nuts (2pcs) Bolt Case
(2pcs)
User manual
Mounting bolts
(2pcs)
Base Plate
(1pc)
Main unit Control Panel
Product components
Sitting on the heated seat or using the dryer for an extended period of time can potentially cause low degree burning.
Special precautions should be taken for children, those who cannot adjust the temperature, and those who have sensitive skin.
For plumbing For product xation Installation instructions
Control Panel
T-Valve
Plastic Nut
to Water Tank
Water supply hose
(for electrical toilet seat)
Water supply hose
(for toilet ush water tank)
MOVE MOVE MOVE
WATER
DRYER
NOZZLE
POSITION
WATER
SEAT
ECO
ON/OFF
CHILD
TURBO
Energy Saving mode.
Water TemperatureSeat Temperature
Warm Air Dryer
Stop all operations
Wash (Twice to oscillate)
Lady (Twice to oscillate)
Turbo (Twice to oscillate)
Adjust the oscillation
function and nozzle
position (5 levels).
Adjust the water pressure
air dryer temperature.
Child Wash

Check the water valve in the bathroom. You may need to consider purchasing additional components.
For the following case, the T-valve alone is sucient for connection.
Minus home Handle Inner bolt for water valve
Water supply valve Inner bolt water valve
㻘Please consult with a qualied specialist.
㻘Please put the unused water hose in a secure area.
Professional engineering is needed for plumbing work
on specialized water pipes and ush valve pipes.
㻘This product requires 120V usage.
㻘Please do not plug in the electrical cord prior to installation.
㻘Please consult with a licensed electrician if electrical work is needed, and in case a grounded outlet
is not available, grounding should be done in order to prevent short circuits or electric shock.
Caution
Shut water supply by turning it to the right
and disassemble the water hose.
Water supply hose
Water valve

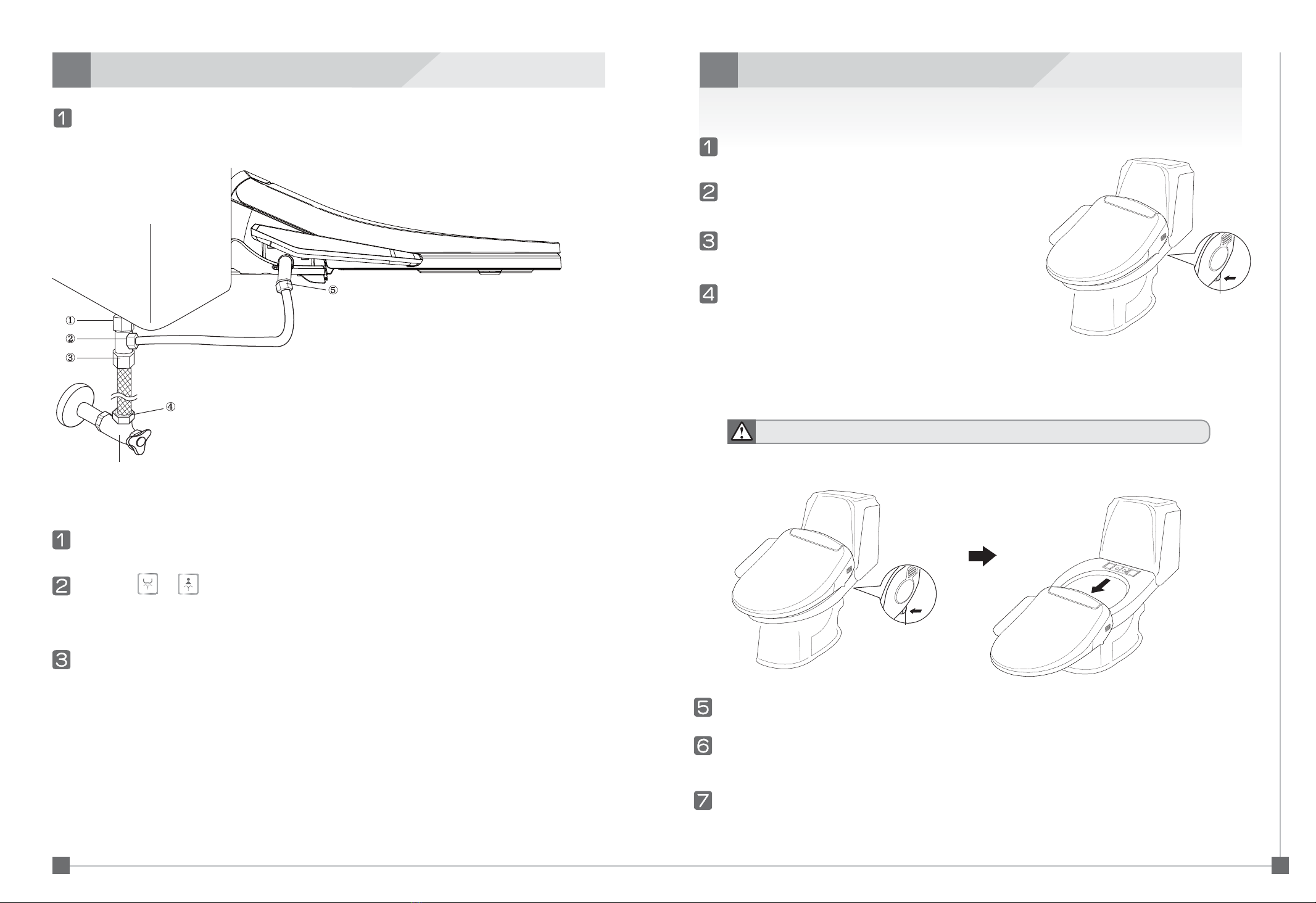

Remove existing seat and lid.
㻘Release the bolts on both
sides of the existing toilet
seat to remove the seat
and lid.
㻘Store the removed seat,
nut and water hose in a
safe area in case you
move or it needs to be
reinstalled.
Nut Toilet
body
Exisiting toilet
seat Once the base plate is attached to the unit, align
the unit and toilet xture facing front, and then
insert the mounting bolts
to the toilet mounting holes.
Put the bolt into the bolt case and align it with the
top of the base plate. Insert bolt with bolt case onto
the base plate. After this is done hold the bolts,
slide it into the bottom of the unit until it snaps in
place.
Install the main unit and insert the mounting
bolts to the toilet mounting holes.
Installed bolt case
Bolt
Bolt
Back
Base plate
Cone Packing
Nut
1110
8Installation
Check the water valve
Installation steps
Cone Packing
Nut
T-valve
Water Tank
Shut o Valve
(with packing)
Disconnect existing hose from water tank.
Connect the T-valve to the water tank.
Connect the water supply hose to the
assembled T-valve.
Water supply valve
Water supply hose
Connect the exible tube from side of
T-valve to the unit. Turn the water
valve to the left to allow water to ow.
㻘㻘
㻘
Customers should use the new hose set provided
with the product. Do not use used set again.

Turn the water valve to the left and see if there is any water leaking from the hose.(1~5)
Connect the power cord to the 120V electric outlet.
㻘In order to check whether the functions work, you will rst need to touch the seat or sit on it to
activate the skin sensor.
㻘Please be aware that water will come out. This product can only operate when the user sits on the
electronic toilet seat.
㻘If the tank is full, then a low beeping sound will occur which indicates that
preparation is complete.
If you press or button, the water will begin to enter the heated water tank.
Function Check
Please follow the instructions below when moving or separating the unit from the toilet for cleaning purposes
Unit separation button
Disconnect the power plug
Disconnect the T-valve from the water supply. (Refer to page 10~11)
Connect the water hose to the toilet which was disassembled while installing the electronic toilet seat,
and turn the water valve to the left to open it. See if there is any leaking from the water hose connection.
Re-install the toilet seat and lid that was separated when installing the electronic toilet seat.
Shut the water supply valve
Push and hold the button on the right side of the unit to completely
drain the water from the water tank.
Loosen the nut on the hose that is connected to the unit, and
then separate the electronic toilet seat from the toilet in the
following order as illustrated.
㻘While pushing the button (area shown as an arrow) push the electronic toilet seat slightly toward to the front
and then the body unit will begin to slide out.
Next, lightly pull the unit toward the front and it will detach from the toilet.
㻘As explained above, steps 1~4 are instructions for separation of the unit for basic cleaning purposes,
and steps 5~7 are instructions for separation when moving, etc.
Do not turn the seat upside-down. This can cause damage to the unit as well as re hazard.
1312
9Initial Operation :Separation of unit from the toilet bowl
Unit separation
button
Water supply valve

Press or ,
㻘Sit on the toilet seat so that the skin sensor can fully be activated.
㻘Rear Wash, Lady Wash, Turbo Wash.
㻘The selected function can be used for up to 1 minute.
Press
㻘The display light for the (high), (low) on the control panel will turn on while the
dryer is activated.
㻘The selected function can be used up to 3 minutes.
㻘Before using the dryer, wiping the wet area with toilet paper will let drying occur more quickly.
Press
㻘To Stop Wash, Lady Wash, Turbo Wash and Air Dryer
㻘Press (high), (low) for the Water/Dryer (Water pressure can be adjusted 1~5 levels.)
㻘It is recommended that the water lter (strainer) is cleaned periodically, as water pressure
can be weakened if foreign substances cling onto the water lter (strainer).
(Refer to page 18)
Please press the ‘o’ or ‘low’ button for seat temperature when the following persons use it.
Special precautions should be taken for children, those who cannot adjust the temperature, and
those who have sensitive skin.
Cautions
Cautions
㻘Do not press the control buttons harder than needed. This can cause damage.
㻘The skin sensor of the seat is only activated with bodily contact,
please be sure to pull down your clothes amply and do not cover the seat
with any clothing items, as it can prevent the seat from activating.
Warning
㻘The wash functions will automatically stop after one minute.
If you want to use it continuously press the button again.
Warning
1514
;Operation (Basic)
Sit on the seat.
<Operation
(Instructions to operate each function)
Water pressure
Skin sensor
Low - High Low - High Low - High Low - High
Seat temperature
Low - High
Seat temperature
Room temperature 93.2°F 98.6°F 104°F
t8IFOQSFTTJOHCVUUPOEJTQMBZMJHIUXJMMDIBOHF
Temperature can be adjusted to the desired level.
Child Wash
t8IFOQSFTTJOHCVUUPOUIFVOJUXJMMBVUPNBUJDBMMZSVO3FBS8BTIGPSTFDPOETUIFO%SZFSGPSNJOVUF
t5IJTGVODUJPOBEKVTUTOP[[MFQPTJUJPOBOEESZFSUFNQSBUVSFGPSBDIJMETTQFDJöDBUJPO
Water temperature
Low - High Low - High Low - High Low - High Low - High
Room temperature 93.2°F 98.6°F 104°F
t8IFOQSFTTJOHCVUUPOUIFEJTQMBZMJHIUXJMMDIBOHFUPBMMPXUIFBEKVTUNFOU
t"WFSBHFNBJOUFOBODFUJNFGPSXBSNXBUFS5IJTQSPEVDUDBONBJOUBJOUIFXBSNXBUFS
Water temperature adjustment
of the water temperature to the desired level.
level for up to 50 seconds during a 1 minute wash session.
CHILD

During a power outage, the water or seat heating temperature could appear to be lower than
the actual temperature setting.
Other energy saving tips
In order to save energy, please abide by the following instructions:
㻘Keep seat cover closed when not in use to prevent heat from being lost.
㻘Keep temperature set to low.
㻘Unplug the power cord if you do not plan to use it for a long period of time.
㻘
㻘
When using the wash functions use (front), (back) buttons to adjust the nozzle to t to your body.
LED level
Front
I
Back
Front
I
Back
1716
<Operation
(Instructions to operate each function)
Nozzle position adjustment
㻘Before and after using For Wash / Lady Wash / Turbo,
the nozzle will automatically clean itself.
Automatic self cleaning nozzle
Cleaning the nozzle
tPlease perform the actions below without sitting on the toilet seat
tOn control panel press and hold the button for three(3) seconds and the nozzle will extend.
And nozzle stop during two minutes.
tIf nozzle tip pulls forward after rotating cloclwise nozzle tip, it is separated from nozzle.
tTo clean use a soft brush or a soft cloth
tAssemble in the reverse order of when nozzole tip to replace a new nozzle tip or nished cleaning.
tIf push button, nozzle will retracked back to its original position and will perform it's self-cleaning function.
Separation of the nozzle Assembly of the nozzle
㻘When pressing the energy saver light on the electronic toilet seat will turn on.
㻘Energy saver mode automatically maintains a water and seat temperature of 89.6.
㻘If you want to turn o the energy saver function,
press the button again and the display light will turn o.
㻘The energy saver function will automatically cancel when using the unit during a
power outage, and also after standing up from the seat.
Energy saver
t8IJMFVTJOH8BTI-BEZPS5VSCPQSFTTUIFTBNFCVUUPOBHBJOUPPTDJMMBUFOP[[MF
The nozzle will automatically move back and forth covering a wider area for washing.
t1SFTTCVUUPOBHBJOUPTUPQPTDJMMBUJPO
Oscillate
㻘The ( ) display lamp for the Water pressure / Dryer will change when using the dryer function.
㻘Adjust the dryer temperature by pressing (Strong), (Weak).
㻘
㻘
The drying functions can be adjusted up to 5 levels.
Warm air dryer adjustment
LED level
Strong
I
Weak
Strong
I
Weak

Disconnect the power plug.
Shut the valve by turning it to the right.
When pressing the drain button located on the side of the body unit,
the water in the tank will completely drain into the toilet bowl.
㻘This electronic toilet seat has considered the user’s
convenience in that the water can be drained easily
without removing the unit from the toilet seat.
Drain button
Check if the power cord is plugged in securely.
Adjust the button to “low” to prevent water from freezing.
If the product is not used for a long period of time,
please disconnect the power cord and
drain the water from the internal unit.
Beware to not use any bathroom cleaning detergents such as benzene acid
chemical detergent on the seat exterior.
- Using any type of chemical products or rough scrubbers on the electronic toilet seat surface,
which is made out of plastic material can either damage or change its color.
㻘
㻘
Do not spray water directly or use a shower hose on the main body unit.
- Can cause re or damage to the unit.
㻘When cleaning, the power cord must be unplugged from the power outlet,
and make sure water does not contact the cord and/or outlet.
㻘After cleaning, use a soft cloth to dry the unit.
㻘Please perform the actions below without sitting on the toilet seat
- On control panel press and hold the ‘Wash’ button for three (3) seconds and the water nozzle will extend.
- To clean use a soft bristled brush(tooth brush) or a soft cloth. Upon completion press and hold the‘Stop’
button and the nozzle will retract back to its original position and will perform it’s self-cleaning function.
- Upon completion of these two steps the toilet seat can be used.
Do not use any cleaning products such as Oxy Clean.
1918
43 Maintenance
Cleaning the body unit
Cleaning the nozzle
Cleaning the water lter
44 Draining water from tank
45 Maintenance for winter season
Please do not keep this product outdoors during the winter
as the cold temperature may damage the product.
(strainer)
4
5
6
4
5
6
7
Water supply valve
Water supply valve
1) Close the water shut o valve.
2) Flush the toilet to empty the water reservoir.
3) Unscrew the water hose nut.
4) Clean the strainer with a small brush or water
5) Re-screw the water hose nut.
6) Open the water shut o valve.
Water lter
(Strainer)

Troubleshooting Factors to check
The water does not spray
㻘Check if the water tank is lled.
㻘See if the water valve is closed.
㻘Check if the water lter (strainer) is clogged.
The unit is not operating
㻘Check if the power cord is connected.
㻘See if the power is turned o from the main unit.
㻘See if you are correctly sitting on the seat so that
the skin sensor switch will function properly.
(Make sure that the Skin sensor on the seat touches your skin when you sit on the seat.)
Water is leaking 㻘After checking if the plumbing is correctly connected, if water is leaking
from the main unit disconnect and contact service personnel.
Water pressure is weak 㻘Check if the water pressure is set at “low”.
㻘Check if the water lter (strainer) is clogged.
Seat, water and
dryer is not warm
When the nozzle doesn’t
come out
㻘See if the water temperature is set to “low”.
㻘Check if the dryer temperature is set to “low”.
㻘See if the skin sensor on the seat is touching the skin.
When water is cold or warm
Body unit shakes
Dryer does not work
㻘Adjust the temperature to (mid, high).
㻘If someone has already used the wash function, wait about 3 minutes to use it.
㻘Sit on the seat for approximately 3 minutes and then use it.
㻘Tighten the bolt (do not over-tighten)
㻘See if the skin sensor on the seat is touching the skin.
Specication
Water inlet
type
Wash
device
Heated
seat
Warm Air
Dryer
Device
Inlet water temperature 37.4 °F ~ 95°F (3°C ~ 35°C)
Ambient temperature 37.4 °F ~ 104°F (3°C ~ 40°C)
Elongated
Dimensions
Weight (Ibs) 11.9 lbs (Packed : 16.5 lbs)
Type
Water inlet pressure
Wash
120V / 60Hz / 670W
Direct Inlet Flow Type
0.07 ~ 0.74MPa
Max. 700cc ± 150cc / min.
Lady Wash
Turbo Wash
Max. 700cc ± 150cc / min.
Max. 700cc ± 150cc / min.
Water pressure
adjustments 5 levels
Warm water temperature
control Room Temp. ~ Low, Normal, High
Heater 600W
Safety device Thermal fuse, Thermal switch, Float switch
Temperature control Room Temp. ~ Low, Normal, High
Heater 55 W
Safety device Thermal fuse, Bimetal
Room temp ~ 131° F , 5 levels
250W
Thermal fuse, Bimetal
Warm air control
Heater
Safety device
Power rating
ATS-500
2120
46 47 Specications
㻘Please be sure to check the following aspects before asking for help.
Trouble shooting
W : 17.3 inch (440mm)
L : 20 inch (508mm)
H : 6.06 inch (154mm)

This limited warranty gives you specic legal rights, and you may also have other rights that may vary
from state to state or according to other conditions.
General Limited Warranty Covered The Manufacturer, Lotus Hygiene Systems Inc. will warrant to the
original retail buyer only, which fails in normal use and within the applicable periods specied below,
following the terms of this warranty. Lotus Hygiene Systems Inc. replacement will be warranted to the
original purchaser of the products.
The Parts Warranty If the parts fail within Twelve (12) months after original installation following the
installation manual and normal operation, Lotus Hygiene Systems Inc. will furnish a replacement part(s).
2322
Information to the user
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This Warranty does not cover the following
1621 E. Saint Andrew Pl.
Santa Ana, CA 92705
www.LotusSeats.com
[email protected]
For warranty
registration, please visit
www.LotusSeats.com
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio commu-
nications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one more of the
following measures:
Warranty
Lotus Hygiene Systems Inc.
Limited Warranty
Any changes or modications not expressly approved by the manufacturer could void the
users authority to operate the equipment and limited warranty.
WARNING

Memo Memo

Lotus Hygiene Systems Inc.
www.LotusSeats.com
Tel: [phone]
Email: [email protected]
