LotusRC T580 Product guide

T580 四旋翼飞行器使用指导书
T580 Quadcopter/Four-roter Manual Book
V1.0

T580 四旋翼飞行器
第1 页
2010-07-20
阅读本说明书，请注意以下红色字体的内容。
Please note the followed red contents when you read this manual book, it
is related to the user’s safety .
z安全事项：Safety Cautions
1. 本产品为无线电遥控模型，旋转中的桨叶具有一定危险性，未年满 15 岁的
人员，请勿调试和操作该模型产品，以免造成人身伤害或其它不良后果。
The product is a radio-controlled model of rotating blades with a
certain risk. Please do not debug and operate this model if you are not
more than 15 years old, so as to avoid personal injury or other negetive
consequences.
2. 请在专业人士的帮助和指导下使用。
Please use it under the professional’s help and guidance.
z免责声明：Disclaimer
本公司不承担用户因使用该产品导致的一切直接、间接的损失与后果。
1. Do not use this product for model airplane applications than any other,
but not as illegal purposes. Users in the process of using the product
must bear all the responsibility.
2. The model contains a large number of sophisticated products,
electronic equipment, electronic products may appear in view of the
failure probability, the Company does not assume the user of the
product resulting from the use of all direct and indirect loss and

T580 四旋翼飞行器
第2 页
consequences.
NOTE: If you start using this product, you agree to the above
agreement. Hope this product will give you a satisfactory flying fun.
目 录
前言 ................................................................................................................................................................................4
1.功能特性 ................................................................................................................................................................5
2.整机外观 ................................................................................................................................................................6
3.配置说明 ................................................................................................................................................................7
4.技术参数 ................................................................................................................................................................8
二 部件名称 ................................................................................................................................................................10
1.机体部件 ..............................................................................................................................................................10
2.电子设备 .............................................................................................................................................................. 11
3.软件系统 .............................................................................................................................................................. 11
三 整机组装 ................................................................................................................................................................12
1.主体 ......................................................................................................................................................................12
2.脚架 ......................................................................................................................................................................13
3.螺旋桨 ..................................................................................................................................................................14
4.云台 ......................................................................................................................................................................14
四 连接设置 ................................................................................................................................................................16
1.接收机连接 ..........................................................................................................................................................16
2.电池安装 ..............................................................................................................................................................18
3.遥控器设置 ..........................................................................................................................................................18
4.操作与动作 ..........................................................................................................................................................19
五 开始飞行 ................................................................................................................................................................23
1.起飞前的准备 ......................................................................................................................................................23
2.起飞与降落 ..........................................................................................................................................................23
3.信号与迫降 ..........................................................................................................................................................23
4.低电保护 ..............................................................................................................................................................24
六 操作提示说明 ........................................................................................................................................................24
七 装箱清单 ................................................................................................................................................................25
八 版本说明 ................................................................................................................................................................26
九 支持和帮助 ............................................................................................................................................................26

T580 四旋翼飞行器
第3 页
十 信息反馈 ................................................................................................................................................................27
CONTENTS
I, Foreword
1. Functional properties------------------------------------------------------------------- 4
2. The Whole appearance----------------------------------------------------------------5
3. Configuration instructions--------------------------------------------------------------5
4. Technical parameters-------------------------------------------------------------------6
II, Assembly unit name
1. Body parts---------------------------------------------------------------------------------8
2. Electronic equipment-------------------------------------------------------------------8
3. Software system-------------------------------------------------------------------------8
III, the whole assembly
1. Mainstay-----------------------------------------------------------------------------------10
2. Tripod---------------------------------------------------------------------------------------10
3. Propeller------------------------------------------------------------------------------------11
4. PTZ------------------------------------------------------------------------------------------11
IV, the connection settings
1. Receiver connection--------------------------------------------------------------------14
2. The battery installed --------------------------------------------------------------------16
3. Remote control settings----------------------------------------------------------------16
4. Operation and action--------------------------------------------------------------------16
V, start flying
1. Preflight preparation--------------------------------------------------------------------22
2. Takeoff and landing---------------------------------------------------------------------22
3. Signals and landing---------------------------------------------------------------------22
4. Low battery protection------------------------------------------------------------------23
VI, the operation it indicates that---------------------------------------------------24
VII, packing list-----------------------------------------------------------------------------25
VIII, release notes--------------------------------------------------------------------------26
IX, support and assistance--------------------------------------------------------------27
Ⅹ, feedback--------------------------------------------------------------------------------28

T580 四旋翼飞行器
第4 页
前言 Foreword
在使用 T580 四旋翼飞行器前，请仔细阅读本说明书。有不解之处，请联
系我们。
为了您能够得到完善的服务支持，请从正规渠道购买该产品。我们的服务
只针对注册客户。
我公司保留更改说明书和产品的任何内容、参数指标的权力，不会另行通
知客户。
您可以通过登录我们的网址了解到最新的产品动态，欢迎您随时反馈在使
用我们产品的过程中的体会、意见与建议i。
Please read this manual book carefully before using the T580
Four-rotor aircraft, if there is anything you don’t understand, please
contact us.
Please purchase the product from formal channel to get the full
service. Our supporting service would only be supported for the
registered customer.
We reserve our authority to revise manual book and any content
without informing the customer.
You can visit our website to know the latest news about our products,
and welcome your feedback to our products.

T580 四旋翼飞行器
第5 页
一 简介、introduction
1.功能特性 Function characteristics
T580 四旋翼飞行器是一款高性能中端航模产品，定位于常规模型航拍玩家。外形简约，
姿态稳定，操作方便。T580 four-rotor aircraft is a high-performance model plane
which is positioned on aerial photography players. It is brief in shape, stable in
flying, easy in operation.
1) 高效：12 寸慢速桨+盘式无刷电机直驱，最佳效率段高达 12g/W。
High efficiency: 12-inch slow paddle + disc direct drive brushless
motor, maximum efficiency segment up to 12g / W.
2) 稳定：6 自由度运动测控，采用高性能 MEMS 工艺传感器，抗冲击、低漂移。
Stability: 6 DOF motion measurement and control, the use of
high-performance MEMS sensor technology, impact resistance, low drift.
3) 简便：只需 4 个遥控比例通道即可飞行。自主核心系统，兼容所有遥控设备。
Simplicity: Independent core system, compatible with all remote control
devices, only needs 4 channels transmitter can make it fly.
4) 易用：安装快捷，操作直观，具备二维自稳定云台功能支持。
Easy to use: quick installation, intuitive operation, with two-dimensional
self-stable head support, but aerial player.
依靠四组无刷电机直驱螺旋桨为动力，在自动平衡系统的控制下实现自稳定悬浮;通过遥控
系统的操作能够做出垂直起降、定点悬停、前后左右侧飞、左右自旋转等三维空间动作。
It rely on the four brushless motor,direct drive propeller as the push power, achieve
self-stabilization suspention. By remote control of the system, the airplane is able to
make vertical takeoffs and landings, fixed hover, fly around the left and right side,
about three-dimensional self-rotation space action.
机体下方可安装云台，挂载卡片式数码相机、摄象头、轻型 DV 等航拍应用器材。可通
过遥控设备可以调整云台俯仰的角度，方便不同视角航拍。云台与飞行器的固定方式，采

T580 四旋翼飞行器
用自主设计的弹性阻尼避震悬挂系统，有效过滤飞行器的机体震动，消除航拍画面水波纹。
云台悬挂点位于脚架横梁上，可以快速拆装，方便外出携带。A holder can be installed
below the airplane for holding a digital camera,webcam,light DV and other aerial
photography equipment.The holder’s angle can be adjusted by remote control
equipments for different visual angles. Head fixation with the aircraft, using
self-designed shock absorber damping suspension system, an effective vehicle
body vibration filter to eliminate the aerial image ripples.
Tripod head suspension point is located on the beam, a fixed tripod, it can be a
quick disassembly, easy to carry out.
2.整机外观 The whole appearance
300
外形尺寸
The outline size
第6 页

T580 四旋翼飞行器

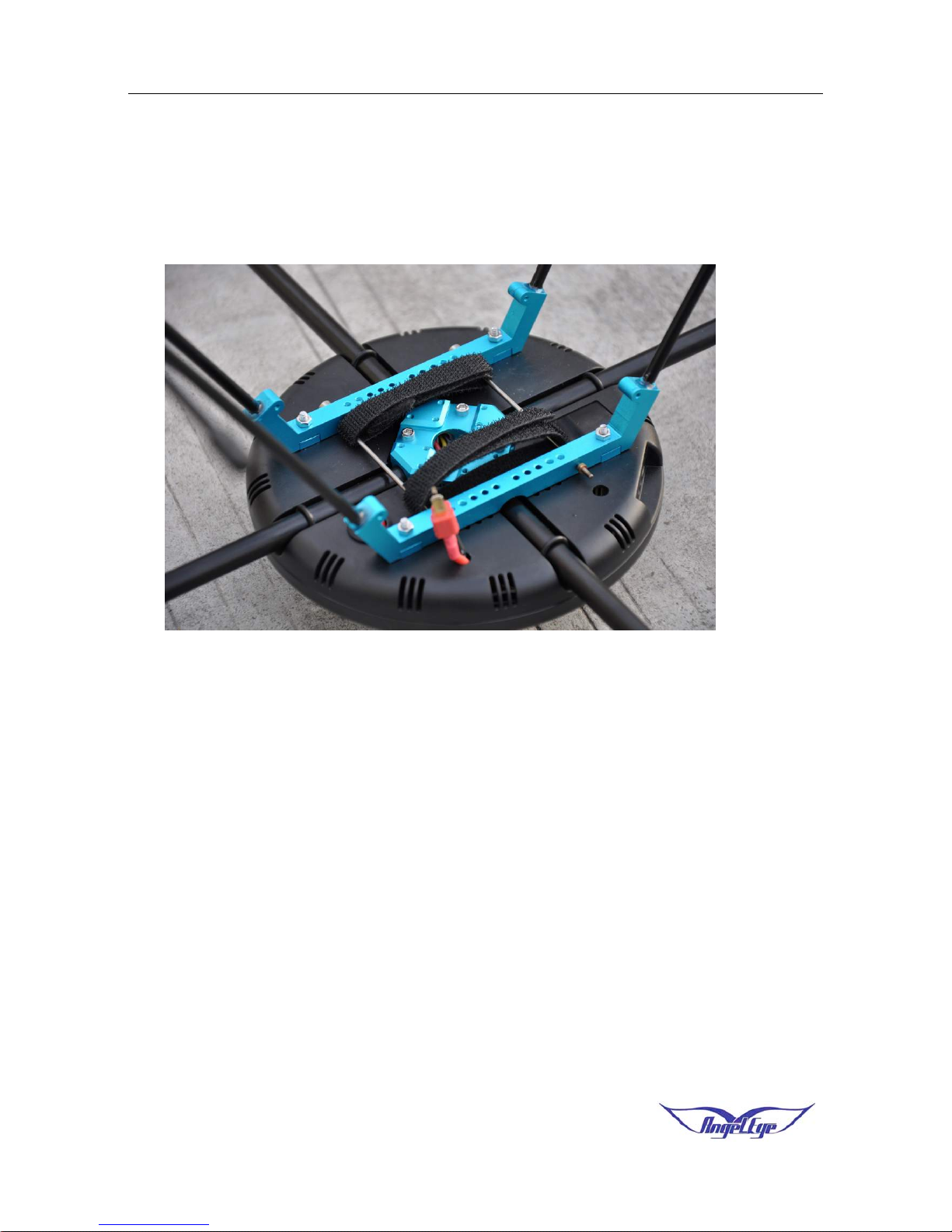

展开尺寸 电池安装位置，1P/2P
the stretching size Battery installation location
3.配置说明 Configuration instructions
Use this form for reference only, product configuration may occur due to small
changes in different versions.
条目 类型 规格 数量 单位 备注
1 主体外壳 ABS 复合材料 1 套 -
2 横臂 玻纤/碳纤 4 根 -
3 脚架 玻纤/橡胶/高强铝 1 套 -
4 电机 C2806 KV600
外转子无刷电机 4 个 专用
5 螺旋桨 1260、1260R
塑胶复合材料 4 支 专用
6 云台 玻纤/碳纤二维平衡 1 套 -
7 云台悬挂架 弹性阻尼 1 套 专用
8 云台舵机 金属高速数码舵机 2 个 -
第7 页

T580 四旋翼飞行器
第8 页
9 无刷电调 2-3S 18A 高速电调 4 组 专用
10 飞控系统 惯性姿态自稳定系统 1 套 专用
No. Part Specifications QTY Units Remarks
1 Main shell ABS composite material 1 Set -
2 Arm Fiberglass / carbon fiber 4 Pcs -
3 Tripod Fiberglass, rubber,
aluminum 1 Set -
4 Motor C2806 KV600
Efficient brushless motor 4 Pcs Special
5 Propeller
1260,1260 R
Nylon composite slow
paddle
4 Pcs Special
6 PTZ
Fiberglass / carbon fiber
two-dimensional
equilibrium
1 Set -
7 Head
hangers
Elastic damping, shock
absorber suspension 1 Set Special
8 Steering
head
High Speed Digital
Servo Metal 2 Pcs -
9 ESC 2-3S 18A high-speed
electronic transfer 1 Set Special
10
Flight
control
system
Inertial self-stabilizing
system 1 Set Special
4.技术参数 Technical parameters
整机尺寸 608 × 608 × 243 mm
±3mm
最大展开尺寸 885 × 885 × 243 mm -
马达轴距 直线对角，两马达中心轴距 580mm
±3mm
螺旋桨 1260 正反专用对桨 12 寸
-
电池 LiPo 3S 2200mAh 20C 标准 1P
可使用 2P

T580 四旋翼飞行器
第9 页
单机重量 不含电池、接收机、应用载荷 730
±10 克
起飞重量 3S 2200mAh 1P 电池、接收机、云台 950 克
标准配置
有效载荷 卡片式相机 ≤230 克
标准
最大拉升力 使用 1P 标准电池 2400 克
-
最大有效载荷 使用 1P 标准电池 ≤580 克
-
最大起飞重量 使用 1P 标准电池 1800 克
安全极限
飞行距离 目视区 -
-
飞行时间 3S 2200mAh 1P 电池、接收机 12 分钟
无风悬停
抗风强度 ≤4 级
-
Machine
size 608 × 608 × 243 mm ±3mm
Expand size
of the
largest
885 × 885 × 243 mm
Motor
Wheelbase
t
Diagonal line, the two motor
centers wheelbase 580mm ±3mm
Propeller 1260, positive and negative special
paddle 12”
Battery
LiPo 3S 2200mAh 20C 1P
Single
Weight No battery, receiver, load 730g ±10g
Take-o ff
weigh
3S 2200mAh 1P Battery, receiver,
head 950g standard
Payload
Camera card ≤230g standard
Maximum
power
pulled
Using the standard battery 1P 2400g
-

T580 四旋翼飞行器
Maximum
payload Using the standard battery 1P ≤580g
-
Maximum
takeoff
weight
Using the standard battery 1P 1800g Safety limit
Flight
distance
Remote control device and battery
capacity by the decision - -
Flight Time
3S 2200mAh 1P Battery, receiver 12 minutes No wind hover
Wind
strength ≤4 Class -
二 部件名称 Assembly unit name
1.机体部件 Assembly unit
1 桨夹 blade folder 7 侧臂 side arm 13 底盖 bottom
2 垫片 shim 8 堵头 rubber plug 14 横臂 arm
3 螺旋桨 propeller 9 脚撑 bar 15 定位块 locking block
第10 页

T580 四旋翼飞行器
第11 页
4 减震垫 rubber gasket 10 盖 cover 16 横轴 lateral axis
5 无刷电机 blushless motor 11 飞控板 Flight control panel 17 中 心 连 接 器 center
coupling
6 横梁 cross beam 12 无刷电调 ESC 18 三通 rubber tee
2.电子设备 Electronic equipment
1）高速专用无刷电调，可持续输出电流 12A，过载性能优良，特殊堵转保护策略，有效
防止烧毁功率管。内建通讯信号监测，输入信号中断时会逐渐关闭电机输出。
High-speed dedicated brushless electric stressed that sustainable output
current of 12A, overload performance, special blocking protection strategy to
effectively prevent the burning of power tubes. Built-in communications signal
monitoring mechanism, the input signal interruption will gradually turn off the
motor output.
2）飞控系统使用高安全系数的工业级控制单元，运行速度快、稳定。结合最新型的高
性能 MEMS 工艺传感器，实现稳定可靠的姿态控制。可同时采集 8 路接收机信号，做出飞行
姿态控制和云台操作。
The flight control runs fast and stable by using the high safty and technical
grade control unit, combining the latest high-performance MEMS transducer to
achieve the stable and reliable posture control.8 receivers’signals can be
captured to achieve posture control and PTZ operation.
3.软件系统 Software system
专门针对四旋翼类气动布局模型开发，具有完全自主知识产权。简便易用，免去设置
环节，基于智能模糊算法的自适应参数，令飞行器姿态稳定。
配合专属功能设置卡或 PC 上位机，可实现参数配置调整。
This software system is specially aimed at Four-rotor model’s development
which has full independent intellectual property rights.Based on the intellective
fuzzy algorithm’s self-adaption parameter, it leaved out setting steps to be
user-friendly and keep the aircraft stable.

T580 四旋翼飞行器
三 整机组装 The whole assembly
1.主体 The main body
为了用户使用的便利，飞行器主机体出厂时已安装完成，内含无刷电调和飞控电子设
备。壳体底部设有飞控电源开关、T 插；电池固定在横梁上。
In order to ensure product performance and user convenience, the main
body has been completed at the factory, it includes brushless esc and electric
flight control electronics. The flight control power switch,T plug have been
installed on the shell bottom,and the battery would be fixed on the crossbeam.
第12 页
飞行器主体完成图
The finished picture of the aircraft
T-shaped
plug slip
Flight control power switch
主机体底部
the bottom of the main body

T580 四旋翼飞行器
2.脚架 Stand
脚架由横梁、钢轴和玻纤管、橡胶三通接头组成，无需借助工具就能完成装配。脚架
固定在底壳的定位块上，脚架的固定只需4颗M3六角螺母。
The stand is consisted of crossbeam, steel shaft , glass fiber tube and rubber
tees, it can be assembled without using tools. Use 4 M3 Hex nuts and fix the stand
on the bottom’s positioning block.
第13 页
脚
脚架套件 the stand unit
His legs
Velcro
Beam components
脚架安装完成图 the finished figure of stand

T580 四旋翼飞行器
3.螺旋桨 Propeller
T580 使用4支12寸专用对桨，内嵌螺母，和电机轴旋紧固定，再以桨夹二次锁紧，确
保稳固安全。螺旋桨的安装如下图所示，前后为正桨，左右是反桨。
为了安全，待设置完成后再安装螺旋桨。
T580 pros and cons of using four 12-inch dedicated to the oar; propeller shaft
embedded brass threaded sleeve, and the motor shaft to tighten the fixation
match, plus the aluminum paddle holder, to ensure a solid security.
Counterclockwise direction of rotation of the paddle is positive, anti-clockwise
rotation of propeller. Installation of the propeller as shown below, is positive
before and after the paddle, so is anti-paddle, can not be installed wrong.
For security, the first not to install the propeller, to be set after the completion
of the installation.
T580 uses 4 pieces 12-inch special propellers, for making sure the stable and
safty,the propeller use embeded nut and tightened with motor shaft, moreover, it
locked by blade folder.Propeller’s installation is as follows, the front and the
back are straight propellers, the left and the right are anti-propellers.
Anti-pro
peller
Are paddle
4.云台 PTZ
T580 可选配的航拍云台有单轴(A、B)、双轴两类共三款，使用减震圈和自主设计的减
震器，滤除震动干扰。
You can choose one of the three--monopodium A/B, or biax as your PTZ on
T580, use shock-absorbing ring and self-designed shock-absorbing equipment
for reducing shaking disturbance.
第14 页

T580 四旋翼飞行器
单轴云台 A 产品完善中
俯仰轴视角自稳定
全金属数码舵机，碳纤-铝合金支架，
压力阻尼悬挂系统;相机快门控制
单轴云台 B
俯仰轴视角自稳定
全金属数码舵机，玻纤-铝合金支架，
压力阻尼悬挂系统;无快门控制
双轴云台 产品完善中
俯仰、横滚双轴向视角自稳定
全金属数码舵机，碳纤-铝合金支架，
压力阻尼悬挂系统;相机快门控制
Monopodium
A Improve the product
View from the pitch-axis
stability;
Special all-metal digital servo,
carbon fiber - aluminum frame,
pressure damping suspension
system;
Camera shutter control.
Monopodium
B
View from the pitch-axis
stability;
Special all-metal digital servo,
Glass - Aluminum frame,
pressure damping suspension
system;
第15 页

T580 四旋翼飞行器
第16 页
Biaxial head Improve the product
View from the pitch-axis
stability;
Special all-metal digital servo,
carbon fiber - aluminum frame,
pressure damping suspension
system;
Camera shutter control.
四 连接设置 The connection settings
1.接收机连接 Receiver’s connection
T580 支持 35M、40M、72M 和 2.4G 频段，兼容以下品牌：Spektrum、JR、Sanwa、Futaba、
Hi-TEC、GWS、WFLY、ESKY 等。仅需四个通道，即可实现垂直起降、航线飞行、空中悬停、
旋转等动作。
T580 support 35M, 40M, 72M and 2.4G frequency ranges, be compatible with
the major brands: Spektrum, JR, Sanwa, Futaba, Hi-TEC, GWS, WFLY, ESKY ,
etc. It can achieve vertical take off,land, air routes, hovering and totation by only
4 channels.
可使用遥控设备型号列表：(按测试的时间先后排列)
Viable remote control device list:(listed by tested time)
条目 item 品牌 brand 遥控发射机 transmitter 接收机 receiver 备注 remarks
1 WFLY FT06-C FRP06
2 Futaba FF9 R149DP
3 Futaba 6EX R146iP
4 Futaba 10C
5 JR DSX7 RD721
6 JR 9XII
7 Spektrum DX7 AR7100
8 Sanwa RD8000 92777
9 Hi-TEC Eclipse7 FRP06
用魔术贴固定接收机在机壳内合适位置，把飞控板上的信号线依次插入接收机相应的
输出通道，注意 Futaba 与 JR 接收机的通道输出顺序不同。T580 的通道输入顺序是按照
Futaba 的接收机输出标准排列，连接时请参考下图。
Random with the Velcro fixed receivers in the chassis proper position, the flight
control panel in order into the receiver signal line corresponding output channel.
Note Futaba and JR receiver channel output in a different order, T580 of the
channel input sequence is output in accordance with standard Futaba receiver
arranged in connection please refer to the figure below.
Fix the receiver on a shell’s proper position by velcro, plug the flight
controlpanel’s signal wire into the receiver’s corresponding output channel by

T580 四旋翼飞行器
turn,please pay attention that Futaba and JR have different receiver output channels.
T580’s input channel order is arranged according to Futaba receiver’s output
standard,please refer to the followed figure on connection.
飞控板遥控通道 the remote control channel on flight control panel
第17 页

T580 四旋翼飞行器
2.电池安装 Battery installation
T580 的电池采用粘带方式固定，拆装电池更方便。标准配置电池的规格为 3S 2200mAh
20C 1P 锂聚合物电池。
T580’s battery fixed by adhesive tap which is convenient for dismantle and
installation. Standard battery specifications are: 3S, 2200mAh, 20C,1P lithium
polymer battery.
3.遥控器设置 Remote control settings.
设置遥控器的飞机类型为固定翼模式，舵量 0～100％，无混控。1、2、3、4 通道的舵
量曲线全部置零，各微调全部回中。Set the transmitter on fixed wing mode, 0~100%
rudder rate, no mixing. Set zero on 1,2,3,4 channel’s rudder rate curve, and fine
turning on the middle.
打开遥控器电源，油门拉到最低位。飞行器放置在稳固的水平地面上电，无刷电机发出上
电提示音；打开机体底部的电源开关，蜂鸣器发出一声“嘀”提示音，表明飞控已开始工
作（请不要挪动飞行器，它将进入自检、初始化进程）。两秒钟后飞行器会发出一声“嘀”
提示音，表示电池满电。第三秒后响起一声“嘀”提示音，表示遥控信号正常并且油门在
最低位置。第六秒后响起“嘀--嘀--嘀”三短声提示音，表示飞行器已准备就绪。Turn on
the transmitter, pull the throttle on the lowest power. Brushless motor would
make a powered sound when you put the aircraft on flat ground and make it
power on; Turn on the power switch on the aircraft bottom, the flight control
system would start working after a beep tone(now, pelase don’t move the
aircraft, it would enter the self-checking, initialization process). The aircraft
would make a beep tone after two seconds to show the full charged battery.
You’ll hear a beep tone again on the third second, that means the normal
第18 页

T580 四旋翼飞行器
remote control signal and the throttle is on the lowest position. “Beep, beep,
beep”, three short sound would be heard after the sixth second, that means the
aircraft is ready to fly.
4.操作与动作 Operation and action
T580 设计为标准“十”字飞行模式。因为结构完全对称，没有明显的机体方向特征，
需要做出标示以代表飞行指向。黄色标示为飞行方向的“前”。T580 is designed on standard
cross letter flying mode.There needs a mark to show the direction because the
aircraft structure is completely symmetry and has no obvious direction feature.
The yellow marking stands for aircraft’s head.
为了确保安全调试，请不要多人协同操作，以免发生意外。To ensure the safety
testing, please do not over cooperation to avoid accidents.
接下来进行遥控动作检查。飞行器放在水平地面上，轻推油门启动全部马达。一手拿
起飞行器，适当推高一点油门，拉摇杆看飞行器有无相应的姿态倾斜。横滚摇杆打向左，
飞行器左边的马达减速，相应右马达为加速，姿态向左倾斜。反之亦然。前后方向用同样
手法测试。The next is to check remote control actions.Put the aircraft on the flat
ground and push throttle gently to start all motors. Hold up the aircraft by one
hand, push the throttle on a bigger power properly, pull the jointed arm to check
whether the aircraft tilt. Play the roll jointed arm on the left, left motor on
the aircraft would slow down,and right motor would speed up, and aircraft would
tilt on the left. And vice versa. The front and back direction can be tested by
the same way.
以美国手为例，以下图片表示出摇杆与飞行器的动作关联；如果动作不正确，请调整遥
控器的相应通道，或通过设置卡在飞行器上进行调整。Take American hand as example, the
followed pictures show the connection between jointed arm and aircraft; Please
adjust transmitter’s channel or adjust from aircraft’s setting if actions are
incorrect.
Push the throttle to take off
第19 页
