Lowell SEQ-8 User manual

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.
©2021 Lowell Manufacturing Co., 100 Integram Dr., Pacic MO 63069 / tel. [phone] / www.lowellmfg.com
Spec 1603
Model SEQ-8 Rev. 06-21-21 | pg. 1/4
INTERNAL USE ONLY: PN 24369
Compact low voltage eight step sequencer model SEQ-8 is
designed to work with single or multiple external switches and
low voltage remote power controls (RPCs) to provide time-
delayed activation and deactivation of AC powered equipment
on site or at remote locations.
Note: This sequencer is for use with compatible components that feature classic
connections. It is not for use with devices that feature pass-through connections.
FEATURES:
• Power Requirement: 100-240VAC 12W
• Activation Trigger: Sequencing is initiated by a remote
external SPST switch or switches (order separately). Slide the
bar to select single or multiple switch mode.
– For Single Switch Applications: Use an SPST switch with
MAINTAINED contact closure.
– For Multiple Switch Applications: Use SPST switches with
MOMENTARY contact closure.
• Eight (8) Step Delay:
– Eight time-delayed closure circuits activate in sequential
order (1, 2, 3, 4, 5, 6, 7, 8) and deactivate in reverse order.
– The delay between steps can be adjusted via an externally
accessible trimpot (0.5-10 seconds).
– LEDs provide visual status of the sequence.
– Includes auxiliary 24VDC output (300mA max.) for use with
remote indicators.
• Compact Chassis: 10" x 3.28" x 1.69" steel chassis with
black powder epoxy finish and mounting holes.
– Unit can be installed in a remote location or rack panel (2U).
– Operational diagram printed on top of chassis aids system
set-up.
• Country of Origin: Made in U.S.A. with global components
• Power Supply: UL Listed power supply (100-240VAC input,
24VDC 500mA output) with 6 ft. cord and NEMA 1-15P plug.
Includes three adaptors for international use (Schuko CEE
7/16, BS1362, AS3112).
• Installation: The sequencer is typically installed in a
convenient location, while remote power controls are placed
near equipment to be controlled—in another rack, room or
building.
– Maximum distance between sequencer and remote power
controls: 22 gauge wire = 6,600 ft.; 18 gauge wire =
17,160 ft.
– System Capacity: Accepts up to 10 RPCs per step.
• Connections: Order compatible remote power controls and
switches separately. (See last page.)
• A&E Specications: The power sequencer shall be Lowell
model SEQ-8, which shall feature barrier strip terminals for
connection to a single external SPST switch with maintained
contact closure or multiple external SPST switches with
momentary closure. The sequencer shall connect to remote
power controls (RPCs) to activate equipment in up to eight
steps with an adjustable time delay between each step. It shall
activate the RPCs in sequential order and deactivate them in
reverse order. The sequencer shall feature a steel chassis
with mounting holes, black powder epoxy finish, and overall
dimensions of 10" x 3.28" x 1.69". It shall be made in the
USA with global components, and include a UL Listed power
supply with NEMA 1-15P plug and three adaptors (Schuko
CEE 7/16, BS1362, AS3112). External switch(es) and remote
power controls are required for sequencer use and shall be
ordered separately.

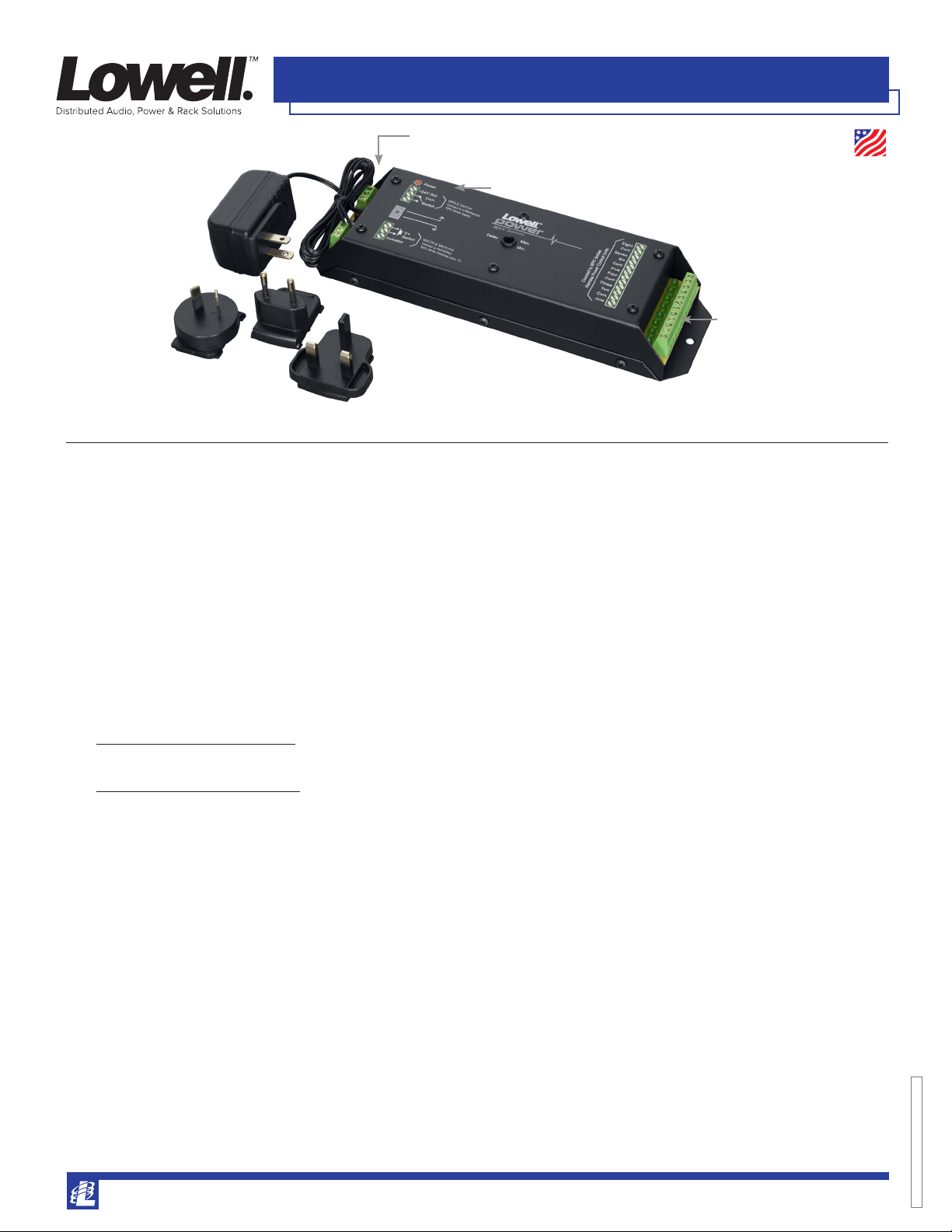

Low Voltage Sequencer (8 step): SEQ-8
Made in USA
INPUT for activation trigger (select single or multiple switches)
Chart for connections
Screwdriver-adjustable delay setting
Includes power supply
with NEMA 1-15P plug
and three adaptors
OUTPUT to connections
(up to 10 RPCs per circuit)
LEDs show sequencing status

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.
©2021 Lowell Manufacturing Co., 100 Integram Dr., Pacic MO 63069 / tel. [phone] / www.lowellmfg.com
Spec 1603
Model SEQ-8 Rev. 06-21-21 | pg. 2/4
INTERNAL USE ONLY: PN 24369
Connect one Lowell RPS Series switch that features MAINTAINED closure
(remains on until turned off). The switch will feature one LED and use
three conductors.
Max. distance between SEQ-8 and switch: 22-gauge wire = 100 ft.; 18-gauge wire = 200 ft.
Select
SINGLE SWITCH.
Three (3)
conductors.
To additional RPCs
To additional RPCs
To additional RPCs
To additional RPCs
To additional RPCs
To additional RPCs
To additional RPCs
To additional RPCs
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Set sequencer to Single Switch. Connect equipment to Lowell RPC Series
remote power controls that feature classic connections (not pass-through),
and connect the RPC (switch and common terminals) to one of the steps
on the sequencer. Up to 10 RPCs can be connected in parallel on each
of the eight circuits.
Max. distance between SEQ-8 and RPCs: 22-gauge wire = 6,600 ft.; 18-gauge wire = 17,160 ft.
RPC connections
(step 8)
RPC connections
(step 7)
RPC connections
(step 6)
RPC connections
(step 5)
RPC connections
(step 4)
RPC connections
(step 3)
RPC connections
(step 2)
RPC connections
(step 1)
TYPICAL WIRING (one switch):

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.
©2021 Lowell Manufacturing Co., 100 Integram Dr., Pacic MO 63069 / tel. [phone] / www.lowellmfg.com
Spec 1603
Model SEQ-8 Rev. 06-21-21 | pg. 3/4
INTERNAL USE ONLY: PN 24369
Connect multiple Lowell RPS Series switches
that feature MOMENTARY closure (release after
being pushed) and have one LED (which use
three conductors).
Max. distance between SEQ-8 and switch:
22-gauge wire = 100 ft.; 18-gauge wire = 200 ft.
Select
MULTIPLE SWITCHES
Three (3)
conductors.
Set sequencer to Multiple Switches. Connect equipment to Lowell RPC Series
remote power controls that feature classic connections (not pass-through),
and connect the RPC (switch and common terminals) to one of the steps
on the sequencer. Up to 10 RPCs can be connected in parallel on each
of the eight circuits.
Max. distance between SEQ-8 and RPCs:
22-gauge wire = 6,600 ft.; 18-gauge wire = 17,160 ft.
To additional RPCs
To additional RPCs
To additional RPCs
To additional RPCs
To additional RPCs
To additional RPCs
To additional RPCs
To additional RPCs
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Switch Com. +24VDC Out
Switch Com. +24VDC Out
RPC connections
(step 8)
RPC connections
(step 7)
RPC connections
(step 6)
RPC connections
(step 5)
RPC connections
(step 4)
RPC connections
(step 3)
RPC connections
(step 2)
RPC connections
(step 1)

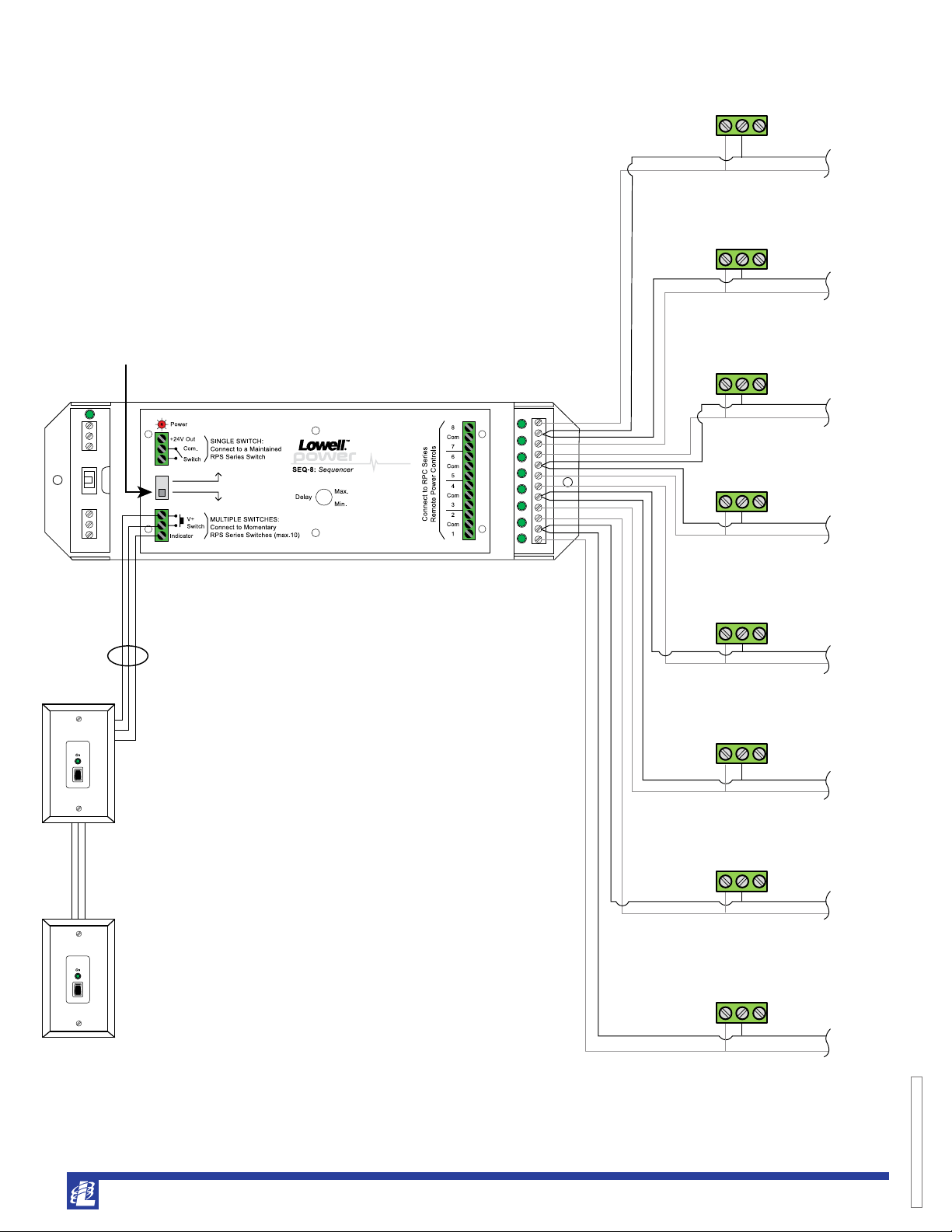

TYPICAL WIRING (multiple switches):

Lowell strives to provide accurate information while reserving the right to change specications and/or improve manufacturing methods without prior notication.
©2021 Lowell Manufacturing Co., 100 Integram Dr., Pacic MO 63069 / tel. [phone] / www.lowellmfg.com
Spec 1603
Model SEQ-8 Rev. 06-21-21 | pg. 4/4
INTERNAL USE ONLY: PN 24369
This
spec
SEQ & SEQR Series Overview — sequencers with classic connections
Alternate REQUIRES ACCEPTS ACCEPTS ACCEPTS
Sequence Onboard A Remote Multiple Remote Input from Input from Lowell Power Country
Model No. Chassis Steps Mode Switch Switch Switches Alarm System Switch w/RJ45 Input of Origin
SEQ-4 standalone 4 --- --- yes through MSM2 --- --- power supply USA
SEQ-8 standalone 8 --- --- yes yes --- --- power supply USA
SEQR-4 1U panel 4 --- rocker --- yes yes --- power supply USA
SEQR-4K 1U panel 4 --- key --- yes yes --- power supply USA
SEQR-8 1U panel 8 yes rocker --- yes yes --- power supply USA
SEQR-8K 1U panel 8 yes key --- yes yes --- power supply USA
SEQR-8RJ 1U panel 8 yes rocker --- yes yes yes power supply USA
Steps = Unit activates/deactivates connected remote power controls (RPCs) in four or eight steps, with a delay between each. Multiple RPCs can connect to each step.
Alternate Sequence Mode = The ASM feature skips selected outputs to allow partial startup of system, useful for small events or rehearsals. It requires remote switch
model RPSB-KP-ASM to enable ASM function before main switch is activated.
Onboard Switch = Sequencers without an onboard switch will require an external switch for activation.
REQUIRES A Remote Switch = Sequencer can be controlled by one external switch, usually placed in a remote location (RPS series switch with MAINTAINED closure).
ACCEPTS Multiple Remote Switches = Sequencer can be controlled by one or more external switches placed in remote locations (RPS Series switches with
MOMENTARY closure). Some models require the MSM2 module in order to accept multiple switches.
ACCEPTS Input from Alarm System = Sequencer can accept control override from an alarm system (alarm by others, not included).
ACCEPTS Input from Lowell Switch w/RJ45 = Sequencer is designed for use with a Lowell MOMENTARY switch that has a model number with "-RJ" as a suffix (see
options above). Note that these switches include a single RJ45 connector and are not part of Lowell's "pass-through" series.
NOTE: For rackmount sequencers that include AC power outlets, see Lowell ACR Series or ACSPR Series.
OPTIONS: (order separately)
• SWITCH for single switch applications: (RPS Series switch with maintained closure, one LED)
Model Description Model Description
RPSW-P 1 LED rocker switch, white wall plate RPSW-KP 1 LED key switch, white wall plate
RPSB-P 1 LED rocker switch, black wall plate RPSB-R 1 LED rocker switch, 19" panel
RPSB-KR 1 LED key switch, 19" panel RPSB-R-RJ 1 LED rocker switch, 19" panel, RJ45
RPSB-KR-RJ 1 LED key switch, 19" panel, RJ45 RPSW-P-RJ 1 LED rocker switch, white wall plate, RJ45
RPSW-KP-RJ 1 LED key switch, white wall plate, RJ45 RPSB-P-RJ 1 LED rocker switch, black wall plate, RJ45
• SWITCH for multiple-switch applications: (RPS Series switch with momentary closure, one LED)†
Model Description
RPSW-MP 1 LED rocker switch, white wall plate
RPSB-MP 1 LED rocker switch, black wall plate
RPSB-MR 1 LED rocker switch, 19" panel
RPSW-MKP 1 LED key switch, white wall plate
RPSB-MKP 1 LED key switch, black wall plate
RPSB-MKR 1 LED key switch, 19" panel
• REMOTE POWER CONTROL: (RPC Series with classic connections)
Model Description Model Description
RPC-15 RPC with (2) 15A NEMA outlets, cord RPC-15-S RPC with (2) 15A NEMA outlets, surge supp, cord
RPC-15-SCD-RJ RPC with (2) 15A NEMA outlets, cord, RJ45 RPC-15-U RPC with (2) IEC C13 oulets, cord
RPC-20-CD RPC with (2) 20A NEMA outlets, cord RPC-20-SCD RPC with (2) 20A NEMA outlets, surge supp, cord
RPC-20-SCD-RJ RPC with (2) 20A NEMA outlets, surge supp, cord, RJ45 RPC-3N1 RPC with (8) 15A NEMA outlets, cord
RPC-20-HW RPC with (2) 20A NEMA outlets, whip RPC-20-SHW RPC with (2) 20A NEMA outlets, surge supp, whip
RPC-30-SHW RPC with 30A Twistlock outlets, surge supp, whip
†
Note: This sequencer is not designed for use with RPS Series switches that feature two LEDs (and require four connectors)
