LT LTS-1-01 Series Quick guide

LT-S01-0012, Print version 03/2021, English
Translation of the original operating instructions
Sensor 01
Type: Liquidtool sensor
Product number: LTS-1-01-XXXXXX
Year of manufacture: 2021
Follow these instructions for proper and safe use.
Keep for future reference.

Sensor 01
Contents
Print version 03/2021, English
3
CONTENTS
Contents............................................................................................................................. 3
Purpose of the operating instructions............................................................................ 5
Orientation in the operating instructions ....................................................................... 5
1Identification ...................................................................................................... 7
1.1 Product identification...................................................................................................7
1.2 Manufacturer information ............................................................................................7
1.3 FCC Compliance.........................................................................................................7
1.4 Rating plate.................................................................................................................8
1.5 Declaration of Conformity............................................................................................9
2Basic safety instructions ................................................................................ 10
2.1 Duty of care of the operating company .....................................................................10
2.2 General safety at work ..............................................................................................10
2.2.1 Personnel qualification...................................................................................10
2.2.2 Approved personnel.......................................................................................11
2.3 Residual risks............................................................................................................11
2.3.1 Danger from electrical energy........................................................................11
2.3.2 Danger from magnetism ................................................................................11
2.3.3 Danger from leaks and hose lines..................................................................12
2.3.4 Hazards from coolants...................................................................................13
2.4 Safety instructions of the sensor...............................................................................14
2.5 Emergency information .............................................................................................14
3Description, structure and function............................................................... 15
3.1 Intended use .............................................................................................................15
3.2 Reasonably foreseeable misuse ...............................................................................15
3.3 Conversions and modifications .................................................................................15
3.4 Specifications............................................................................................................15
3.5 Location requirements...............................................................................................16
3.6 Design.......................................................................................................................16
3.7 Functional and system description............................................................................17
3.8 LED status indicator..................................................................................................17
3.9 Interfaces ..................................................................................................................18
4Transportation, installation and storage....................................................... 19
4.1 Introductory safety notes...........................................................................................19
4.2 Packaging .................................................................................................................19
4.3 Transportation...........................................................................................................19
4.4 Delivery.....................................................................................................................20
4.4.1 Scope of delivery ...........................................................................................20
4.4.2 Checking for transportation damage..............................................................20
4.5 Downloading the app ................................................................................................21
4.6 Storage......................................................................................................................21
5Startup .............................................................................................................. 22
5.1 Introductory safety notes...........................................................................................22
5.2 Installation.................................................................................................................22
5.3 Identification of the machine tool...............................................................................23
5.4 Information for the connection of the sensor.............................................................23
5.5 Connection................................................................................................................24
6Operation.......................................................................................................... 28

Sensor 01
Contents
4
Print version 03/2021, English
6.1 Introductory safety notes...........................................................................................28
6.2 Switching on the sensor............................................................................................28
6.3 Switching off the sensor............................................................................................28
6.4 Operation ..................................................................................................................28
7Taking out of operation................................................................................... 29
7.1 Introductory safety notes...........................................................................................29
7.2 Remove the identification of the machine tool...........................................................29
7.3 Removal....................................................................................................................30
7.4 Cleaning....................................................................................................................32
8Service and maintenance................................................................................ 32
8.1 Troubleshooting ........................................................................................................32
9Disposal............................................................................................................ 33
9.1 Introductory safety notes...........................................................................................33
9.2 Removal....................................................................................................................33
9.3 Proper and environmentally compatible disposal......................................................33
9.4 Disposal points..........................................................................................................33

Sensor 01
Purpose of the operating instructions
Print version 03/2021, English
5
PURPOSE OF THE OPERATING INSTRUCTIONS
Ensure that you have read the operating instructions before you operate the sensor for the first
time or when you are instructed to carry out other work on the sensor.
Using and handling the sensor described below is not self-evident. It is explained in detail in the
accompanying technical documentation.
Take special notice of the chapter "2 Basic safety instructions".
The operating instructions are intended to help you to use the sensor properly, efficiently and
safely. Therefore, read the following chapters carefully and attentively. If necessary, always look
up facts that are crucial for you.
The operating instructions inform and warn you of residual risks against which risk reduction by
design and protective measures is not or not fully effective.
ORIENTATION IN THE OPERATING INSTRUCTIONS
These operating instructions contain the following general information icons to guide you, the
reader, through the operating instructions and to provide you with important information.
Pictogram
Meaning
Caution - possible material damage
This pictogram tells you that there is a risk of material damage to the sensor
during an action if the action specifications are not observed and carried out
correctly.
Important information
This pictogram identifies important additional information that includes a
warning of a danger.
Personnel qualification
This pictogram tells you which personnel (target group) are allowed to
perform the actions in the respective chapter.
Instruction for action
This pictogram identifies an instruction for action. It always precedes an
active action that is to be performed by the user.
Tab. 1: General pictograms and their meaning
Warning icons warn of dangerous areas, risks and obstacles.
Warning of
dangerous area
Warning of magnetic
field
Warning of crushing
hazard
Warning of tripping
hazard
Warning of flammable
substances
Warning of slipping
hazard
Warning of harmful
substances
Warning of
environmental
damage
Operating
instructions
Residual risks
Representation of
general
information icons
Icons used in
operating
instructions

Sensor 01
Orientation in the operating instructions
6
Print version 03/2021, English
Mandatory icons are used for the prevention of accidents at the workplace
General mandatory icon
Wear safety shoes
Wear protective gloves
Wear adequate working
clothes
Wear protective goggles
Read instructions
Prohibition icons contribute to more safety.
General prohibition icon
Prohibition for persons with cardiac
pacemaker
Prohibition of food and beverages at the
workplace
Prohibition of naked flames and ignition
sources

Sensor 01
Identification
Print version 03/2021, English
7
1IDENTIFICATION
1.1 Product identification
Sensor 01
Sensor type: Liquidtool sensor
Product number: LTS-1-01-XXXXXX
Year of manufacture: 2021
1.2 Manufacturer information
Company headquarters
Liquidtool Systems Inc.
Winterseistrasse 22
3415Hasle-Rüegsau
Switzerland
E-mail:
[email protected]
Internet:
www.liquidtool.com
Tab. 2: Manufacturer information
1.3 FCC Compliance
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This is a mobile device to be used in such a way that a separation distance of at least
20 centimeters is normally maintained between the RF source's radiating structure(s)
and the body of the user or nearby persons.

Sensor 01
Identification
8
Print version 03/2021, English
1.4 Rating plate
The rating plate and the product information on the product clearly identify the sensor.
The rating plate of the sensor sits on the bottom of the sensor.
Fig. 1: Place of attachment
1
Rating plate
Fig. 2: Rating plate
2
For EU member states only: Disposal instructions for batteries and rechargeable batteries
3
For EU member states only: Disposal instructions for electrical appliances
4
Specifications of the year of manufacture
5
Company address

Sensor 01
Identification
Print version 03/2021, English
9
1.5 Declaration of Conformity
Fig. 3: Declaration of Conformity

Sensor 01
Basic safety instructions
10
Print version 03/2021, English
2BASIC SAFETY INSTRUCTIONS
2.1 Duty of care of the operating company
The following requirements are placed on the technical state of the sensor, and must be
ensured by the operating company:
The sensor may only be used as intended
The sensor must always be checked for its faultless technical condition before it is switched
on
The functioning of the safety devices must be checked at regular intervals
The safety and warning labels attached to the sensor must never be removed. They must
be checked at regular intervals to ensure that they are legible. They must be replaced if
necessary.
No unauthorized conversions, manipulations or changes to the sensor are allowed
The operating instructions must always be available in a legible condition and complete at
the place where the sensor is used. This also applies to the instructions from suppliers.
2.2 General safety at work
2.2.1 Personnel qualification
Important information on personnel qualification
Only instructed, trained and authorized persons are allowed to carry out activities
on the sensor.
WARNING
Danger from insufficient personnel qualification
There is a risk of serious injury and considerable material damage if
unqualified personnel are in the danger zone or carry out work on the
sensor.
The operating personnel must have the specified qualifications.
Unqualified personnel must be kept away from the danger zone.
A person is considered to be trained/instructed if he/she has been informed of the tasks
assigned to him/her and the possible hazards caused by improper behavior and, if necessary,
has been instructed. He/she was also informed of the necessary safety devices and protective
measures.
Personnel to be trained, instructed or undergoing general training are only allowed to work
under the constant supervision of an experienced person. The personnel read and understood
the operating instructions.
Technical state of
the sensor
Trained, instructed
operating
personnel

Sensor 01
Basic safety instructions
Print version 03/2021, English
11
A specialist is a person who successfully completed vocational training. The specialist must also
have knowledge of the applicable relevant standards and regulations. He/she must be able to
assess assigned work and, based on his/her professional training and work experience,
recognize and avoid potential hazards on his/her own.
The skilled electrician is a person in the sense of a specialist with special knowledge in the field
of electrical engineering (training in a recognized training occupation as a skilled worker, master
craftsman, industrial foreman, state-certified technician, graduate engineer, bachelor or master).
2.2.2 Approved personnel
Life phase / chapter
Personnel qualification
Transportation, installation
and storage
Trained, instructed operating personnel
Startup
Trained, instructed operating personnel
Specialist
Skilled electrician for work on electrical systems or equipment
Operation
Trained, instructed operating personnel
Taking out of operation
Trained, instructed operating personnel
Specialist
Skilled electrician for work on electrical systems or equipment
Service and maintenance
Trained, instructed operating personnel
Specialist
Skilled electrician for work on electrical systems or equipment
Disposal
Trained, instructed operating personnel
Specialist
Skilled electrician for work on electrical systems or equipment
Troubleshooting
Specialist
Skilled electrician for work on electrical systems or equipment
Tab. 3: Approved personnel
The personnel working on the sensor must regularly be trained and instructed by the operating
company.
2.3 Residual risks
2.3.1 Danger from electrical energy
The sensor is connected to the power supply via a 24-volt power supply unit. When connecting
the power supply to the sensor, check to ensure that the cable is routed correctly.
Prior to starting maintenance work or disassembly, pull out the mains plug, thus disconnecting
the sensor from the power supply.
Ensure that the electrical equipment of the sensor is checked at regular intervals. Defects, such
as loose connections, rubbed or scorched cables, must be eliminated immediately by a skilled
electrician.
Switch off the sensor immediately in the event of malfunctions in the electrical power supply.
2.3.2 Danger from magnetism
Powerful magnets are used to secure the sensor on surfaces. These magnets generate
electromagnetic fields that can affect cardiac pacemakers and similar devices. This can cause
cardiac pacemakers to malfunction. The electromagnetic field affects devices in the immediate
vicinity in an area of about 0.5 meters around the sensor. Persons with cardiac pacemakers
should not be inside this area.
Specialist
Skilled electrician
Instruction
Danger from
strong magnets

Sensor 01
Basic safety instructions
12
Print version 03/2021, English

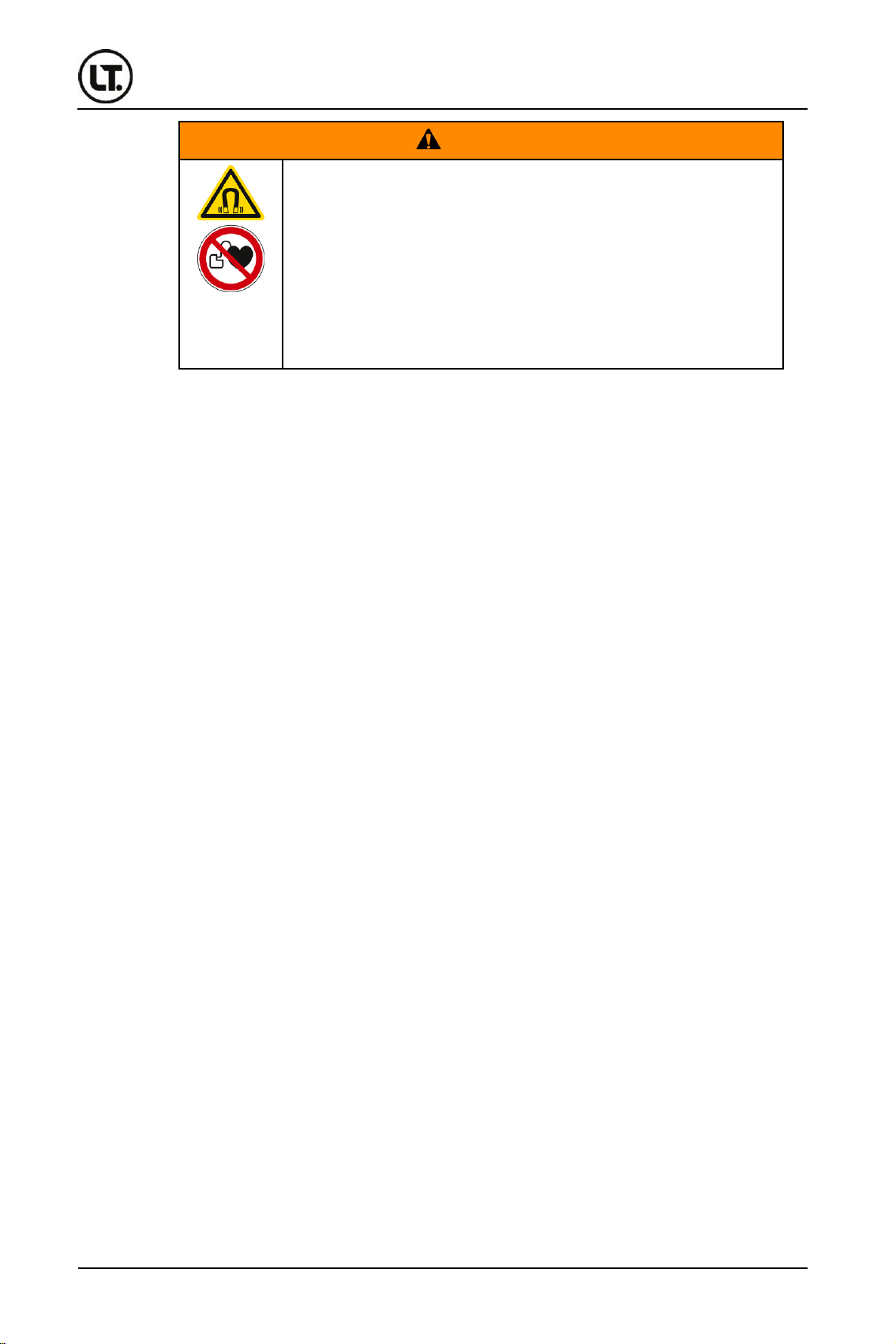

WARNING
Danger from strong magnets
The magnets generate strong electromagnetic fields that can affect and
interfere with electronic devices (such as cardiac pacemakers).
Malfunctioning cardiac pacemakers can cause death or serious injuries to
the persons concerned.
Persons with cardiac pacemakers are not allowed to be in the vicinity of
the sensor.
Persons with cardiac pacemakers are not allowed to work with or handle
the sensor.
Check this warning on the sensor or on the machine tool at regular
intervals. Replace damaged warning labels immediately.
The hazard exists even when the sensor is switched off. The magnets are always active.
Persons with cardiac pacemakers are therefore not allowed to perform any activities with the
sensor (neither transportation, startup, or disposal, nor service and maintenance).
In addition, check the warning labels on the machine tool for damage at regular intervals. These
pictograms are the only way to warn uninvolved persons of the magnets and to safeguard them.
To do this, comply with the information in the maintenance plan.
Powerful magnets are used to secure the sensor on surfaces, such as machine housings.
During the installation, the magnetic effect can pull the sensor instantaneously towards the
surface. This can squeeze the fingers of the fitter if he/she is not careful. This results in a slight
bruising of individual fingers or fingertips. To protect from squeezing, the sensor is equipped
with recessed grips on the housing. Combined with appropriate care, mounting the sensor is
thus possible without risk.
Magnets are used to secure the sensor on surfaces. The sensor can drop if there is only little or
no magnetic adhesion on the surface. The dropping sensor can bruise the feet of the fitter. The
sensor can be damaged when it drops on the floor.
Carefully approach the sensor to the surface to check its magnetic effect. While observing the
magnetic effect, hold the sensor by the recessed grips to prevent bruising your fingers.
Afterwards, watch the sensor for a short time to see if it moves and risks to drop down. Select a
different surface for mounting if the sensor moves.
2.3.3 Danger from leaks and hose lines
Hose lines connect the sensor with a coolant tank. If these lines are damaged or not installed
properly, there will be leaks, and coolant will escape.
Leaked coolant can cause injuries (risk of slipping, for example). Consequently, route the hose
lines carefully and free of tripping hazards. Prior to starting up the sensor, check the installation
of the hose lines at coolant tank and sensor. Observe the specifications in the maintenance plan
for regular inspections.
Hose lines connect the sensor with the coolant tank. These hose lines must be routed carefully
to prevent any risk of tripping. Persons tripping over hose lines can fall and injure themselves. In
addition, the lines or the connections on the sensor or the tank can be damaged and coolant
can escape in an uncontrolled way.
Crushing hazard
from the magnets
Dropping sensor
Leaks and
defective hose
lines
Tripping hazard on
lines

Sensor 01
Basic safety instructions
Print version 03/2021, English
13
2.3.4 Hazards from coolants
Depending on the currently used coolant, there can be various hazards and risks. Reading the
data sheet of the coolant is therefore absolutely necessary!
WARNING
Health damage from coolant
A direct contact of the coolant with the skin can cause diseases and health
damage.
Direct contact of your eyes with coolant can cause severe irritation of the
eyes.
Inhaling the vapors or aerosols can cause irritation and diseases of the
respiratory tract.
Escaping and/or splashing coolant can contaminate food and drinks.
Read the data sheet of the coolant.
Wear protective gloves.
Wear protective goggles.
Be aware during maintenance, servicing, cleaning and disposal that
there are residues of the coolant in the hose lines and in the unit even
after the unit has been switched off.
Eating and drinking in the vicinity of coolant is prohibited!
Contact a doctor immediately if you experience any discomfort.
Escaped coolant must be wiped up and disposed of immediately. There is a slipping hazard!
People can slip on it and injure themselves. Therefore, check the hose lines for leaks at regular
intervals (see maintenance schedule).
NOTE
Environmental damage from leaking coolant
Escaping coolant damages the environment and can be the cause of further
hazards.
Read the data sheet of the coolant.
Check pipes regularly for leaks.
Repair leaks immediately when they are discovered.
Dispose of coolant in accordance with the regulations.
Be aware during maintenance, servicing, cleaning and disposal that
there are residues of the coolant in the hose lines and in the unit even
after the unit has been switched off.
Notify the environmental agency responsible in case of a major incident.
Hazards from
coolants

Sensor 01
Basic safety instructions
14
Print version 03/2021, English
2.4 Safety instructions of the sensor
The sensor is delivered with several pictograms and warnings as stickers. Due to the small size
of the product, these stickers can not be attached to the sensor. In the course of the assembly,
these stickers must instead be glued on in the vicinity of the sensor, for example on the housing
of the machine tool. Ensure that these stickers are checked at regular intervals. Damaged
stickers must be replaced immediately.
Fig. 4: Safety instructions on the machine tool (example)
1
2
3
2.5 Emergency information
In case of an emergency at the sensor, pull out the mains plug to put the sensor out of
operation. Check to see if there are any casualties.
SAFETY INSTRUCTION
Pull out the mains plug immediately in the event of a malfunction or
emergency!
This disconnects the sensor from the power supply and shuts it down
immediately.
Important information for your safety
You are responsible!
In any case, ensure that the safety instructions in chapter 2 "Basic safety
instructions" and the locally applicable safety regulations are observed and
complied with.
Important information in the data sheet of the coolant
Different coolants exist that can have different effects on your health. In an
emergency, read the data sheet of the coolant!
Behavior in an
emergency

Sensor 01
Description, structure and function
Print version 03/2021, English
15
3DESCRIPTION, STRUCTURE AND FUNCTION
3.1 Intended use
This sensor may only be used to measure the concentration (via refractive index) and
temperature of coolant. The coolant must be emulsifiable in water. The measurement requires
the sensor to have access to the coolant tank of a machine tool. Access is established through
the inlet and outlet pipes. The app associated with the sensor then collects the acquired data.
The sensor may only be used when:
It is in a technically faultless state
The personnel have the necessary safety and hazard awareness
The instructions in the operating instructions are followed
3.2 Reasonably foreseeable misuse
The sensor is not intended to be used for any other purpose than the one listed here.
Any use other than the intended use is always considered improper use. Safe operation is then
no longer guaranteed. The operating company, not the manufacturer, is responsible for any
injuries or material damage resulting from improper use.
Foreseeable misuse also includes:
Improper assembly, startup, operation and maintenance of the sensor
Operating the sensor in a faulty state
Operating the sensor without protective coverings
Installing or operating the sensor in a potentially explosive atmosphere
Using operating fluids that were not approved by the manufacturer
3.3 Conversions and modifications
For safety reasons, conversions and modifications to the sensor are only permitted after
consultation with the manufacturer.
Using non-genuine spare parts may void the liability for any resulting consequences.
Consequently, use only the specified spare parts. This applies in particular to safety-relevant
components.
3.4 Specifications
Value
Unit
Length / depth
318
mm
Width
89
mm
Height
125
mm
Weight
2.65
kg
Tab. 4: Dimensions and weight
Value
Unit
Voltage
24
VDC
Current
max. 2.5
A
Mains connection
External power supply unit with 100-240V / 50-60Hz AC | 5
connection adapter (ILC type A, C, G, I)
Protection rating
IP44
Tab. 5: Connected loads and power –electricity
Dimensions and
weight
Connected loads
and power –
electricity

Sensor 01
Description, structure and function
16
Print version 03/2021, English
Value
Unit
Operating mode
continuous
VDC
Pump interval
Adjustable between 30 and 120 minutes
Delivery volume
200
ml/cycle
Fluid connection
IQS standard 6/8 mm
Tab. 6: Connected loads and power –pump
Communication / interfaces
Bluetooth
WiFi
NFC
Tab. 7: Interfaces
Value
Sound power level
<75 dB(A)
A-weighted equivalent continuous sound
pressure level is below 70 dB(A)
Tab. 8: Emission values
3.5 Location requirements
To ensure trouble-free operation of the sensor, the following location requirements and
installation conditions must be satisfied.
To guarantee smooth operation, the ambient temperature must be between +5 °C and +40°C.
The environment must be frost-free, dry and protected against corrosion.
3.6 Design
Fig. 5: Design of the sensor (view from diagonally below)
1
Housing
2
Capacitive button
3
Covered connections (4x USB, 1x
RJ45 network)
4
Inlet connecting fitting
5
Outlet connecting fitting
6
Removable NFC token to identify the
machine tool (NFC-capable, magnetic
mounting possible)
Connected loads
and
power –pump
Interfaces
Emission values
Temperature

Sensor 01
Description, structure and function
Print version 03/2021, English
17
Fig. 6: Design of the sensor (rear view)
1
Background lighting
2
Recessed grip
3
Main switch
4
RS485 interface
5
Power supply unit connection
6
Inlet connecting fitting
7
Outlet connecting fitting
3.7 Functional and system description
The sensor takes samples of the coolant from the coolant tank via the intake hose. Temperature
and concentration of the samples are determined before the samples are returned to the tank
via the outlet hose. The measuring results are transmitted to the Liquidtool Manager and stored
there.
The temperature of the coolant is measured directly in the flow channel.
3.8 LED status indicator
There is an LED in the capacitive button on the front of the product. This LED shines in different
colors, indicating the status of the product. You can find more information about this in the
Liquidtool app.
Color
State
Description/meaning
White
Shines continuously
The product is switched on
Green
Shines continuously
The product is ready for operation
Blue
Shines continuously
Interaction necessary
Blue
Blinking
The sensor is working (measurement in progress,
or software is updated)
Orange
Shines continuously
Information: The measured value is outside the
specification
Red
Shines continuously
Fault/malfunction
Tab. 9: Status indicator LED

Sensor 01
Description, structure and function
18
Print version 03/2021, English
3.9 Interfaces
The sensor is equipped with the following interfaces:
WLAN adapter
Covered connections:
Status LED
-4x USB connection
Capacitive button
-1x RJ45 network
Mains switch
Inlet with filter
Plug connection (power supply unit)
Plug connection (RS485 interface)
Outlet

Sensor 01
Transportation, installation and storage
Print version 03/2021, English
19
4TRANSPORTATION, INSTALLATION AND STORAGE
4.1 Introductory safety notes
Personnel qualification
The following personnel are authorized for "transportation, installation and
storage":
Trained, instructed operating personnel
Important information for your safety
You are responsible!
In any case, ensure that the safety instructions in chapter 2 "Basic safety
instructions" and the locally applicable safety regulations are observed and
complied with.
Wear the necessary personal protective equipment (PPE).
SAFETY INSTRUCTION
Important transportation information
A used sensor must be taken out of service and cleaned before it is
transported. Follow the instructions in the respective chapter.
Information about taking out of service can be found in chapter "7
Taking out of operation" on page 29.
Information about cleaning can be found in chapter "7.4 Cleaning" on
page 32.
WARNING
Danger from strong magnets
The magnets generate strong electromagnetic fields that can affect and
interfere with electronic devices (such as cardiac pacemakers).
Malfunctioning cardiac pacemakers can cause death or serious injuries to
the persons concerned.
Persons with cardiac pacemakers are not allowed to be in the vicinity of
the sensor.
Persons with cardiac pacemakers are not allowed to work with or handle
the sensor.
Check this warning on the sensor or on the machine tool at regular
intervals. Replace damaged warning labels immediately.
4.2 Packaging
The sensor is packed in cardboard boxes. Unpack all parts and dispose of the packaging in an
environmentally compatible way.
4.3 Transportation
Due to its low weight, you can carry the sensor in its packaging to your installation site.

Sensor 01
Transportation, installation and storage
20
Print version 03/2021, English
4.4 Delivery
4.4.1 Scope of delivery
The scope of delivery contains:
Fig. 7: Scope of delivery
1
Connecting cable with power supply unit
2
Outlet hose (including weight)
3
Intake hose (including filter)
4
Sensor 01
5
Safety information and warnings
4.4.2 Checking for transportation damage
Check the sensor for transportation damage immediately after it has been delivered to the
installation location. Report any transportation damage immediately to the manufacturer.
Documenting transportation damage with photos is recommended
