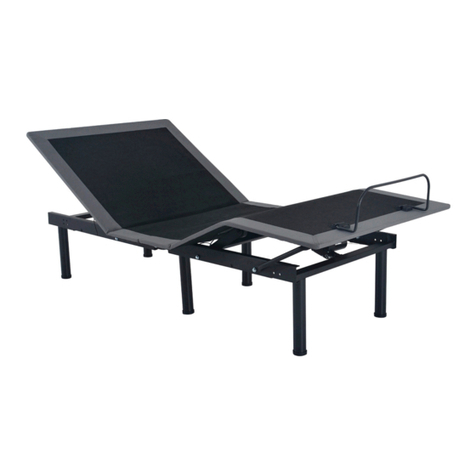

Lucid 100 Series User manual

100 SERIES ADJUSTABLE BASE
[email protected]
888-975-8243
SERIAL NO.
OWNER’S MANUAL
100 SERIES ADJUSTABLE BASE

CONTENTS
Safety & Warranty Warnings
Overview & Parts List
Assembly
Remote Control
Synchronizing Two Bases
Troubleshooting
Warranty
04
06
08
12
14
16
18
100 SERIES ADJUSTABLE BASE

100 SERIES ADJUSTABLE BASE
OWNER'S MANUAL
05
04
Safety & Warranty Warnings
PLEASE READ ALL INFORMATION CAREFULLY BEFORE
USING THIS PRODUCT. SAVE THESE INSTRUCTIONS.
IMPORTANT:
WARRANTY WARNINGS
Do not open or tamper with control box,
motors, or remote. The warranty will
be void if the internal workings of these
components are tampered with.
SAFETY WARNINGS
• Do not use bed outdoors.
• Using bed with oxygen administering
equipment other than the nasal masked
type creates a possible re hazard.
• When using nasal or masked type
administering equipment, route and
secure oxygen or air tubing properly to
ensure that tubing does not become
entangled or damaged during normal
operation of the bed.
• Keep moving parts free of obstruction
during bed operation (including sheets,
clothing, tubing, wiring, and products
using electric power cords).
WEIGHT LIMITS
• This product is not rated to support
weights in excess of:
650 lbs (295 kgs)
• This limit is inclusive of the mattress and
bedding. The bed will structurally sup-
port this weight, provided it is evenly
distributed across the foundation. The
power foundation is not designed to
support or lift this amount in the head
or foot sections alone. Exceeding this
weight restriction could damage the
bed and/or cause injury and will void
the warranty.
HOSPITAL USE DISCLAIMER
This power foundation is designed for
residential use only. It is not approved for
hospital use and does not comply with
hospital standards.
PRODUCT RATING
The motors are not designed to operate
continuously for more than (1) minute in
an (8) minute time period. Attempting to
exceed this rating will shorten the life ex-
pectancy of the foundation and will void the
warranty.
SAFE OPERATION
• Use caution when having liquids in or
around the bed to ensure no spilling
occurs. In case of spillage, stand in a
dry, clean area of the oor and unplug
the bed immediately. Clean up spill and
allow the area around bed to dry
thoroughly before using the electric
controls again. Do not eat or drink hot
liquids while operating the bed.
• Do not allow children or individuals with
disabilities to operate the bed without
adult supervision.
• Do not allow any person or pet under
the bed at any time.
• During bed operation, make sure body
is positioned within the connes of the
bed. Do not place extremities over the
sides of the bed when operating bed
functions.
• After power foundation assembly is
completed, operate remote control to
ensure proper functions.
• Distribute body weight evenly over bed
surface. Do not place entire weight on
head or foot sections of the bed, during
reposition and entering or exiting bed.

100 SERIES ADJUSTABLE BASE
OWNER'S MANUAL
07
06

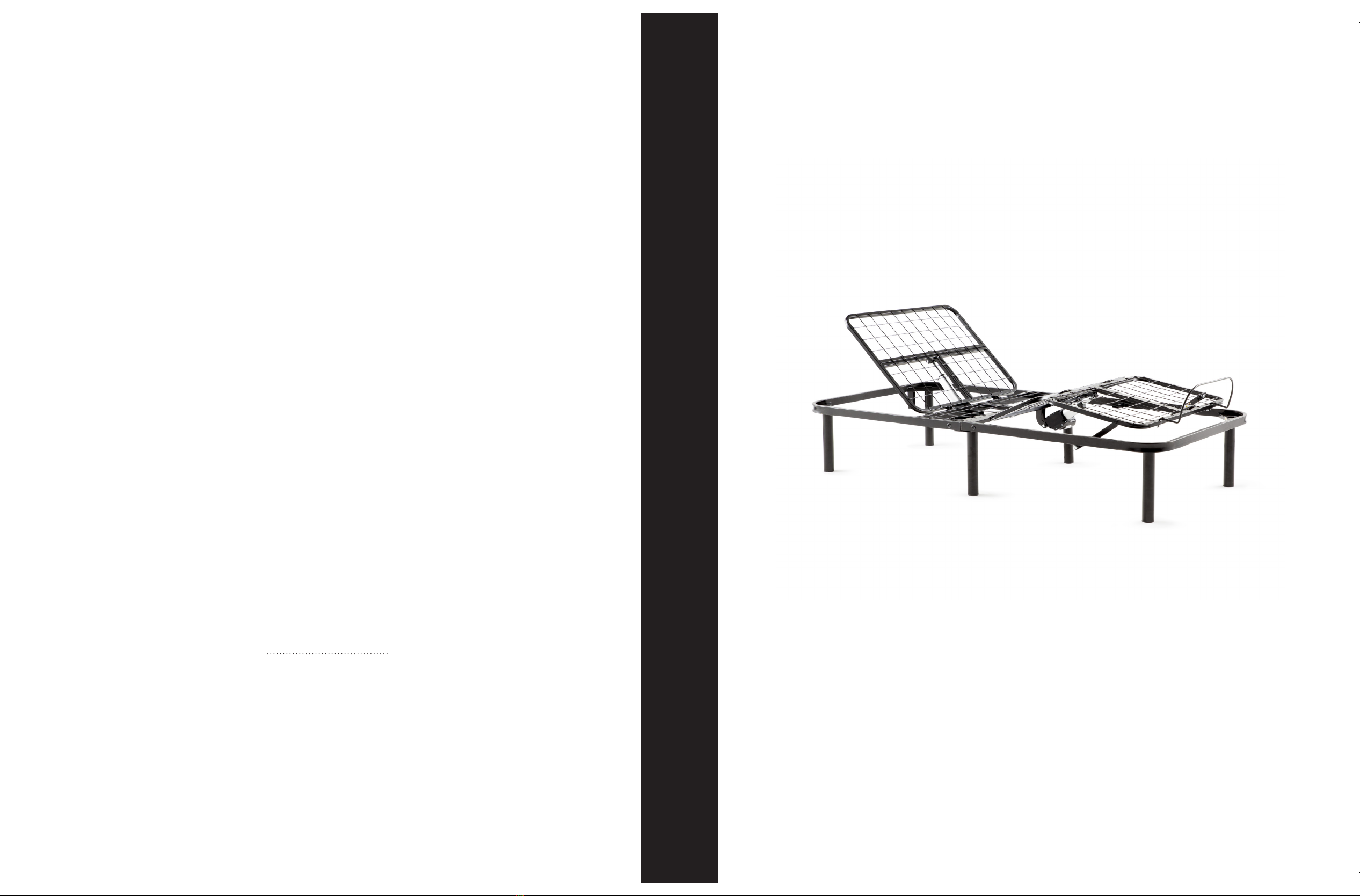

Overview & Parts List
GET TO KNOW YOUR ADJUSTABLE BASE
Before beginning assembly of your 100 Series Adjustable Base,
please take a moment to familiarize yourself with the parts and
location of components, as explained here.
If any parts or components are missing, or are different than
shown in the adjacent image, do not attempt to complete the
assembly process and contact customer support by calling
888-975-8243 or emailing [email protected]
WIRED REMOTE
POWER CORD POWER SUPPLY BOX
12" LEGS
SPLITTER CABLE (included
with Twin XL size only)
PAIRING BUTTON CORD
(attaches to power supply box)
HEAD MOTOR
FOOT MOTORCONTROL BOX
RETAINER BAR
FOOT MOTOR
HEAD MOTOR

100 SERIES ADJUSTABLE BASE
OWNER'S MANUAL
09
08

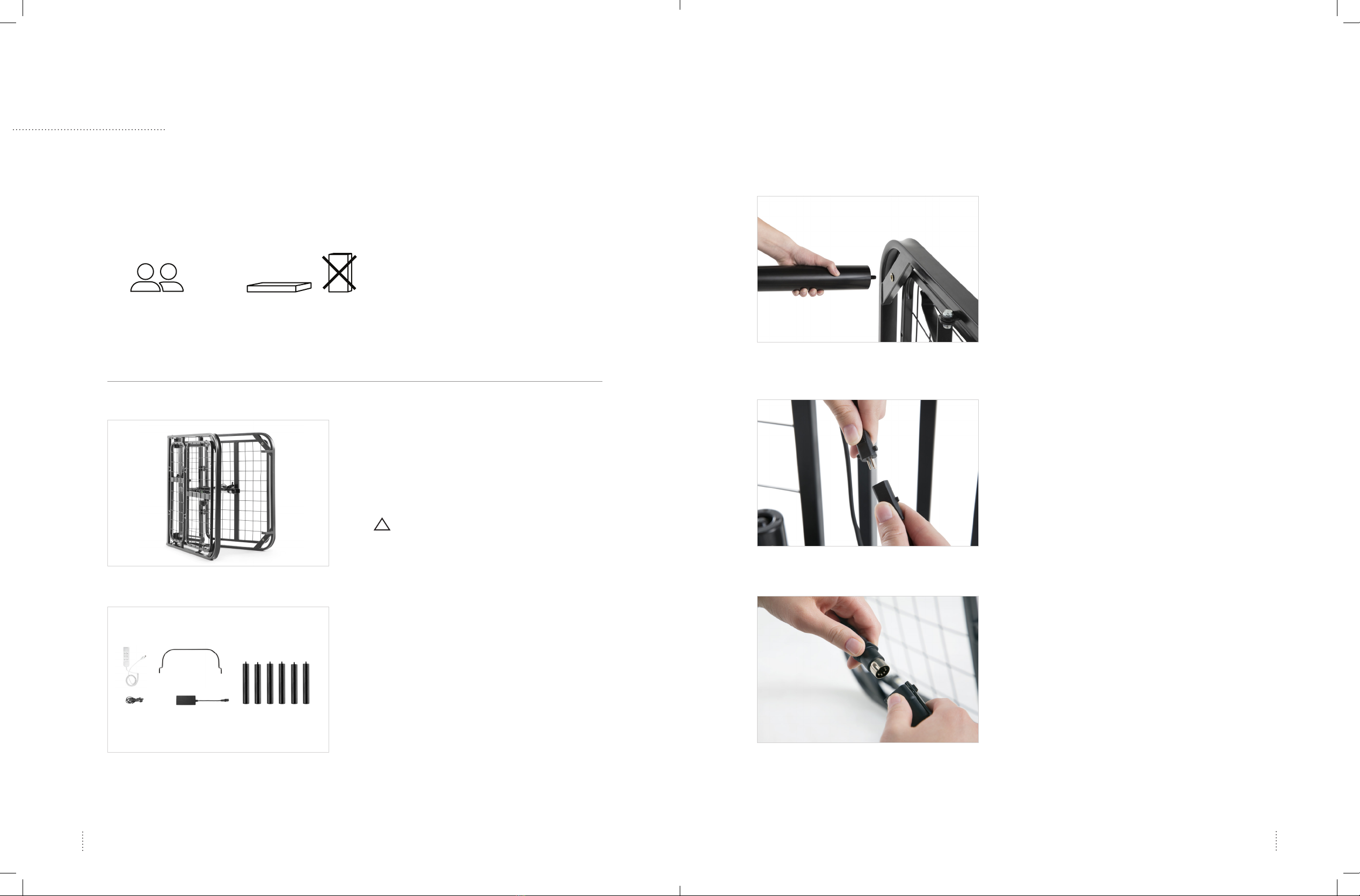

Assembly
Open the carton in the at
position, bottom facing
up, to avoid damage.
Two people are
required to assemble
this adjustable base.
2.1.
NOTES
STEP 3
To install the six (6) legs, thread the bolt of
the leg into the frame and tighten by hand.
STEP 2
Open the accessories box and ensure all
accessories are included (see pages 6-7).
STEP 1
Remove folded bed base from the box and
carefully unfold the base. Set it on its side
with the base half-way open.
STEP 4
Uncoil the input power cord (connected
to the control box on the underside of the
base) and plug it into the power supply box.
Take caution to avoid pinning ngers or
any underside wires along the hinge.
i
STEP 5
Connect the remote cord into the
receptacle cord on the underside of
the base.

100 SERIES ADJUSTABLE BASE
OWNER'S MANUAL
11
10

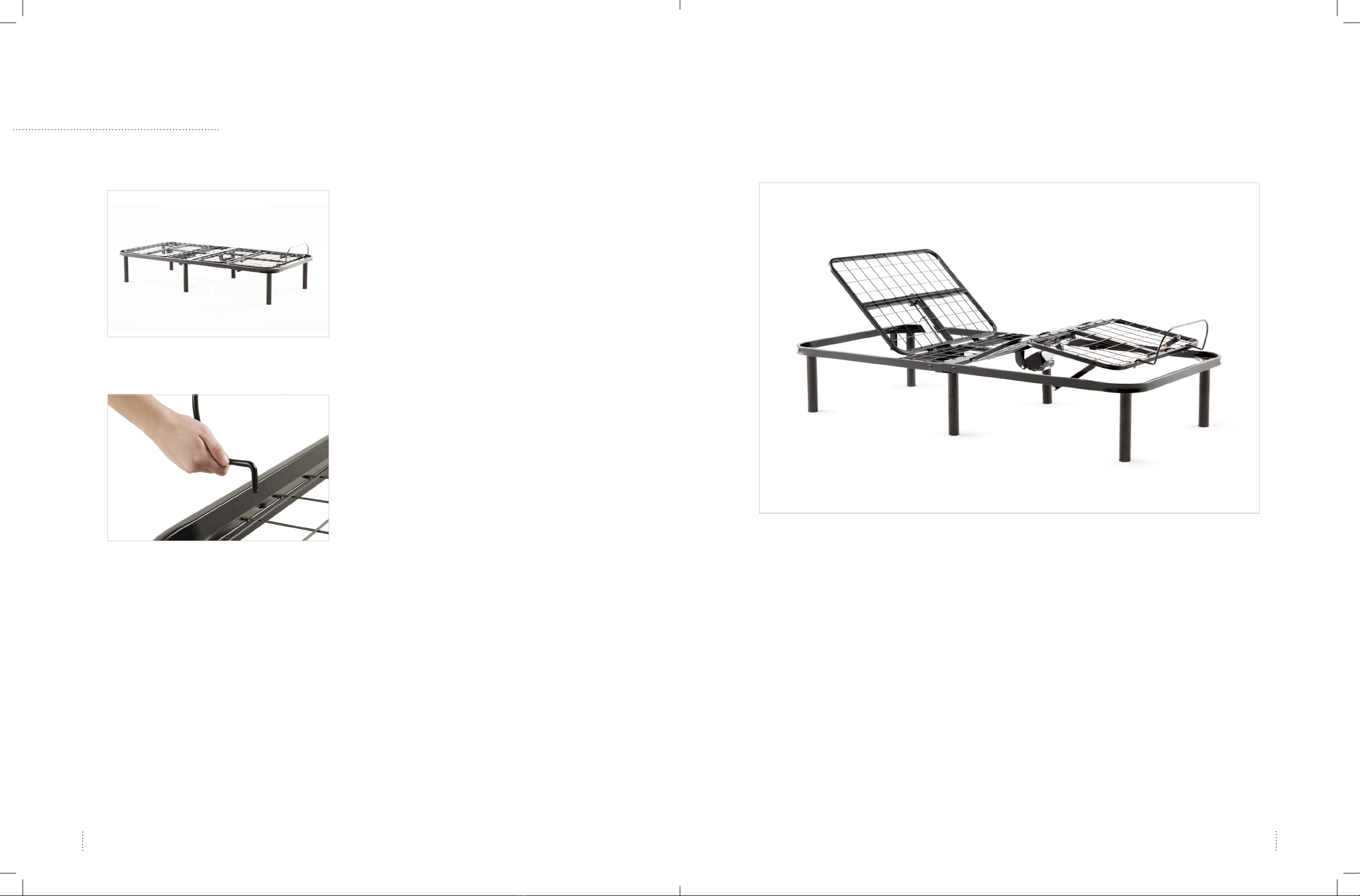

STEP 6
With two (2) to four (4) people, lift the bed
by the outer frame and turn it over so the
mattress side is facing up. Take caution not
to lift the bed by any moving parts, the re-
tainer bar, or to use the legs as pivot points
causing angled pressure as this may cause
damage. Avoid dragging the base across
the oor.
STEP 8
To complete assembly, plug the power cord
into the wall outlet and use remote to test
functionality.
STEP 7
To install the mattress retainer bar, insert
ends into holes at the foot of bed.
Assembly, ctd.

100 SERIES ADJUSTABLE BASE
OWNER'S MANUAL
13
12
Remote Control
OVERVIEW
All of the functions of the bed, explained here, can be operated
with the remote control. Ensure that the remote is plugged into the
receiving cord located at the bottom of the base.
HEAD arrows raise and lower the head
section of the base
FOOT arrows raise and lower the foot
section of the base
ADJUSTABLE
HEAD and FOOT arrows simultaneously
raise and lower the head and foot section
of the base
HEAD CONTROL
(Raise)
FOOT CONTROL
(Raise)
HEAD CONTROL
(Lower)
FOOT CONTROL
(Lower)
HEAD AND FOOT
CONTROL (Raise)
HEAD AND FOOT
CONTROL (Lower)

100 SERIES ADJUSTABLE BASE
OWNER'S MANUAL
15
14
Synchronizing Two Bases
OVERVIEW
Two Twin XL bases may be placed next to each other to form a
King. Both sides can be operated independently with their own
remotes or, if desired, a single remote can be used with both
bases. Using a single remote for both bases will result in the
bases moving jointly.
TO SYNC REMOTE TO TWO BASES:
STEP 1
Ensure both bases (A & B) are plugged into a power source
and both in the at position.
STEP 2
Using the splitter cable (included with Twin XL bases only) plug
both cables into each base (A & B). Finish by attaching the last
cord to one remote. The bases should now be controlled by
one remote.
For Twin XL bases only

100 SERIES ADJUSTABLE BASE
OWNER'S MANUAL
17
16
PROBLEM POSSIBLE SOLUTION
No features of the base will activate. Ensure that all wired connections are secured
bellow the bed base.
Unplug the power cord, wait 30 seconds and
plug back in to reset electric components.
The surge protection or the electrical outlet
may be defective. Test the outlet by plugging
in another working appliance.
Head or foot section will elevate, but will
not return to the at position.
Bed mechanism may be obstructed. Elevate
bed and check for obstruction. Remove
obstruction.
Head section may be too close to the wall.
The remote will not operate the base. Check to ensure that the remote control is
secured completely and that the power cord
is plugged into the wall outlet.
Troubleshooting

100 SERIES ADJUSTABLE BASE
OWNER'S MANUAL
19
18
Warranty Information Notes
DATE OF PURCHASE
PLACE OF PURCHASE
PO # (found on shipping box label)
SERIAL # (found on back cover of this manual)
ADDITIONAL NOTES
The foregoing warranty shall be exclusive and in lieu of any other warranty, express or implied, including warranties of merchant-
ability and tness for a particular purpose and all other warranties otherwise arising by operation of law, course of dealing, custom,
trade, or otherwise. LUCID® shall not be liable for any consequential damages or losses arising from the purchase, installation and/
or use of this product.
To assist with warranty claims, please keep your receipt and record the following:
WHAT IS COVERED
This warranty covers any defects in materials or
workmanship under the conditions and exceptions
stated below and applies only to the original pur-
chaser. The warranty is void if purchased or trans-
ported outside the USA. This warranty excludes
commercial use.
HOW LONG COVERAGE LASTS
This warranty runs for up to ve (5) years from the
date of purchase, according to the tiers set forth
below.
WHAT LUCID®WILL DO
Lucid® is the administrator of the warranty for the
100 Series Adjustable Base.
YEAR 1:
During the period of one (1) year from the date of
purchase, LUCID® will offer replacement parts for
any defective part to the purchaser. The purchas-
er shall bear all service, transportation, labor,
and shipping costs associated with the repair or
replacement of the defective part(s).
YEARS 2-5:
During the years two (2) through ve (5) LUCID®
will offer replacement parts for any mechanical
bed part (excluding electronics, electrical compo-
nents, and drive motors). Purchaser shall pay 1/4th
of the replacement cost of the defective part mul-
tiplied by the number of years since 1 year after
the warranty commencement date, and LUCID®
shall bear the remainder of the cost of the replace-
ment part. The purchaser shall bear all service,
transportation, labor, and shipping costs associat-
ed with the repair or replacement of the defective
part(s). At the sole discretion and direction of the
manufacturer, parts demonstrated to be defective
must be returned. The manufacturer will arrange
all return shipping.
HOW TO GET SERVICE
E-mail “[email protected]” to submit
your warranty claim. Please keep your receipt so
that we may process your warranty request.
HOW STATE LAW APPLIES
This warranty gives you specic legal rights, and
you may also have other rights which vary from
state to state.
WARRANTY LIMITATIONS
Purchaser must follow troubleshooting procedures
as set forth by the manufacturer or its agents
before warranty coverage may be granted.
At the sole discretion and direction of the manu-
facturer, parts demonstrated to be defective must
be returned. The manufacturer will arrange all
return shipping.
Warranty is void if purchased or transported
outside the USA.
5 YEAR LIMITED WARRANTY
